IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Board for LED Motor Driver Solar Lithium battery
IO15B01 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Board for LED Motor Driver Solar Lithium battery
SKU:IO15B01
1000 in stock
Regular price
$1.99
Regular price
$1.99
Sale price
$1.99
Unit price
per
Couldn't load pickup availability
Product Name: 6A DC 3V 3.3V 3.7V 5V Electronic Switch Latch Bistable Self-locking Trigger Board for LED Motor Instrumentation Lithium battery
Packing list:
1 PCS IO15B01 2.5-6V 5A LED Motor Flip-Flop Latch Switch Module
Description:
Falling edge - triggered. Initial state after power no voltage output, once triggered, output terminal output the power supply votage, after once again trigger the output terminal no voltaged output, and so on.
Low standby power consumption, high output power.
Electrical parameters:
Power supply voltage:DC 2.5V-6V
Standby current:less than 10uA
Driver IC is Dual P-channel MOSFET MEM2313,Maximum drive current is 6A
Allowing continuous output current:
5A(5V-6V)
4A(3.7V-5V)
2A(2.5V-3.7V)
Pin pitch 2.54mm.

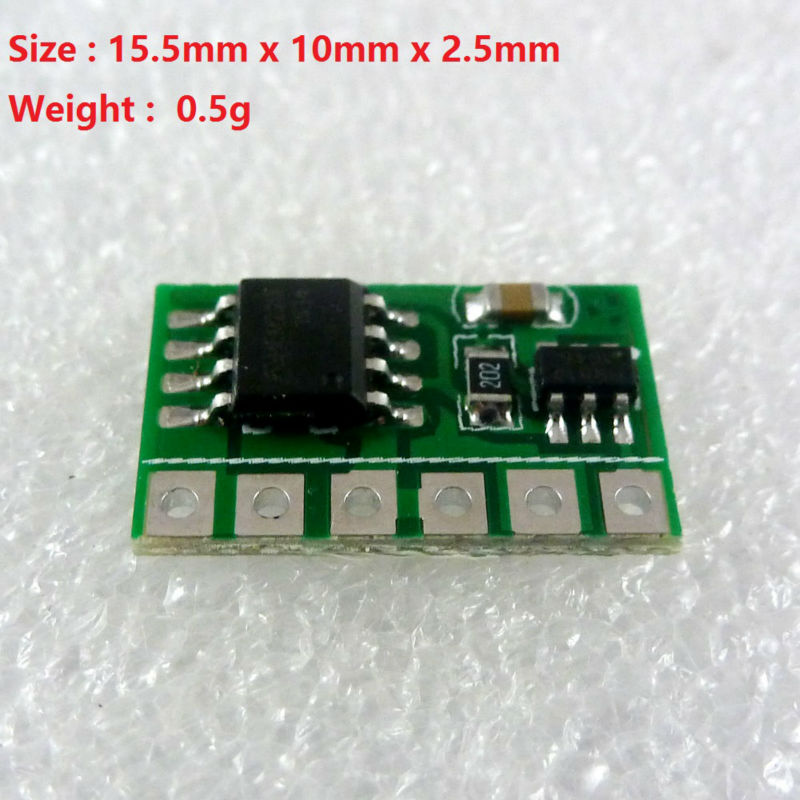

Size:15.5mm x 10mm x 2.5mm.
Weight : 0.5g

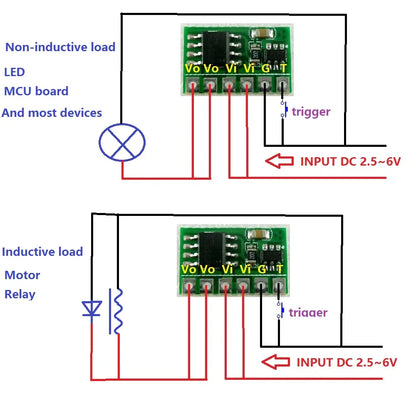

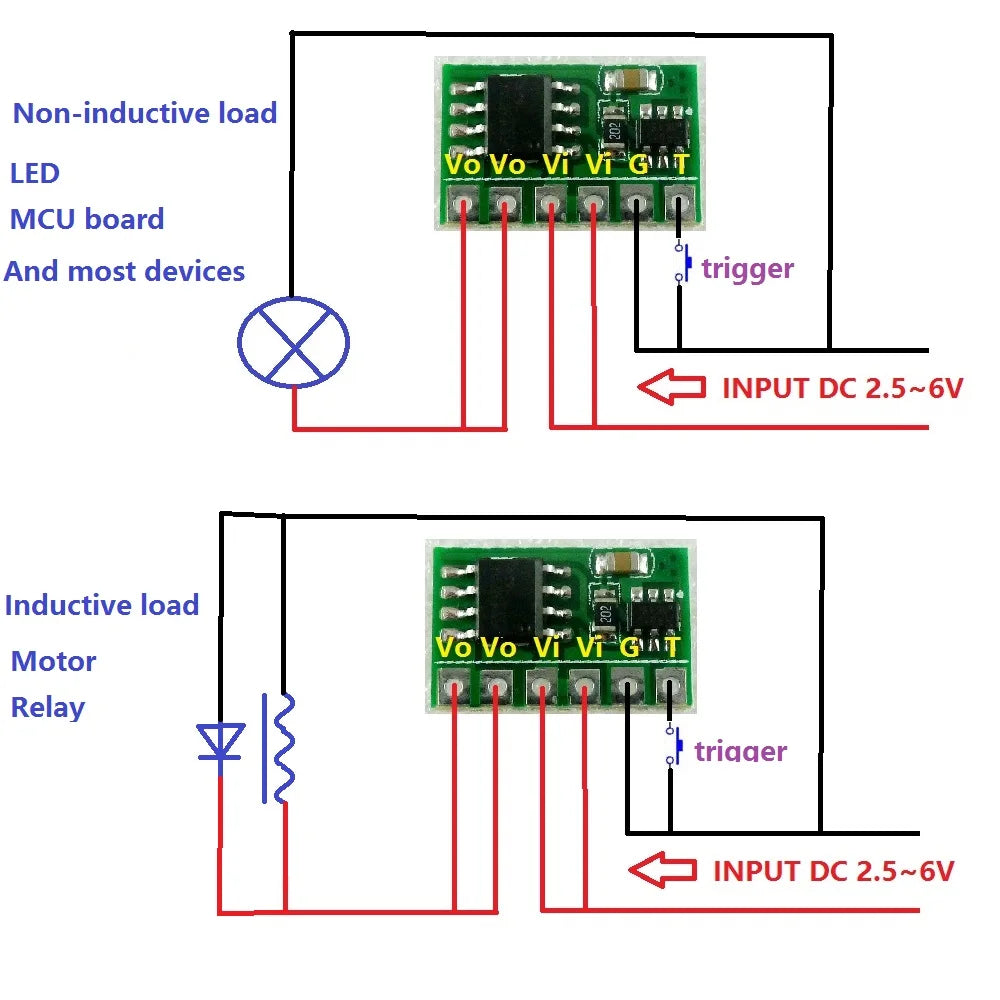

Note:inductive load, the load to the appropriate freewheeling diode in parallel to avoid damaged to the switching elements of the circuit.

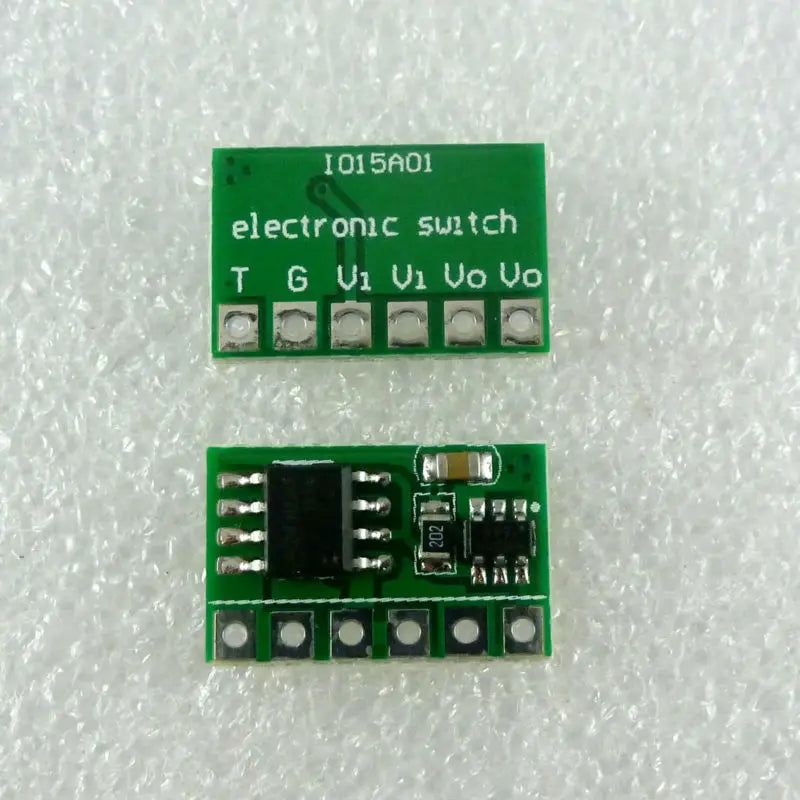

Pin description:
Vo:output;
Vi:power supply;
G:power ground.
T:trigger signal input terminal;
Applications:
MCU Development Board
Motor
mobile power
LED Lighting
5V Relay
esp8266 WIFI MODULE
315M 433M Wireless remote controller
