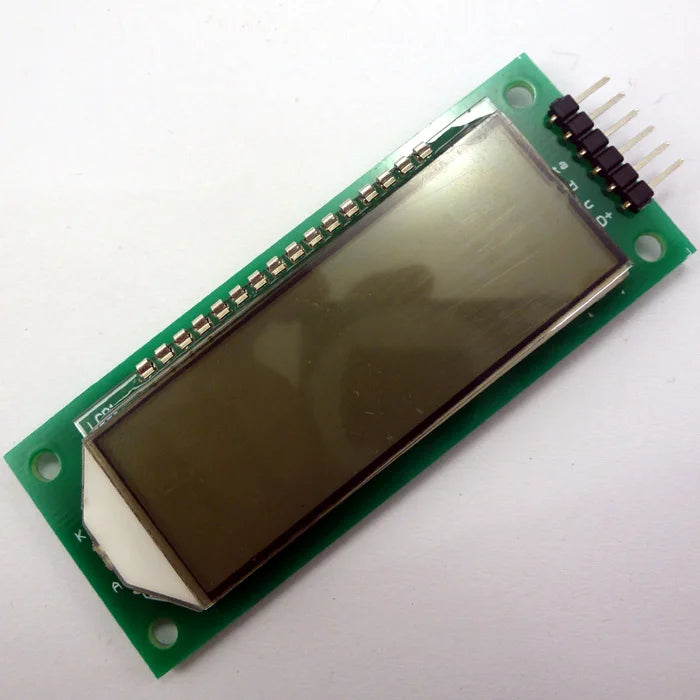

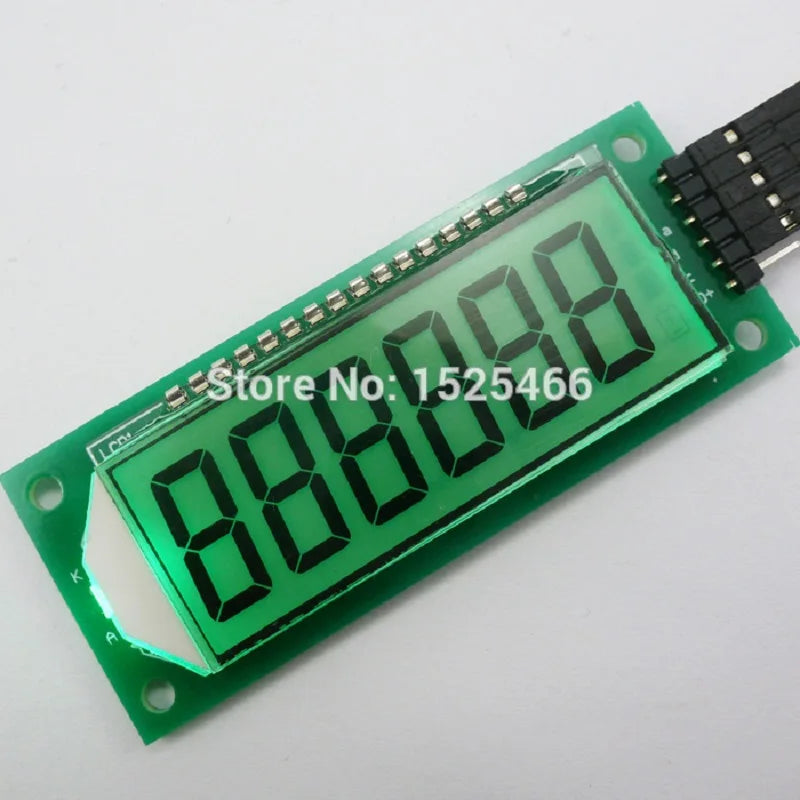

6Bit 7 segment LED SPI Digital tube LCD Display Controller Module for Arduiuo DUE Pro mini Nano MEGA2560 with example Code

6Bit 7 segment LED SPI Digital tube LCD Display Controller Module for Arduiuo DUE Pro mini Nano MEGA2560 with example Code

TB232

11766 in stock

$3.99
$3.99 $3.99
Sale Sold out

Product Name: with for UNO MEGA2560 example Code ! 6Bit 7 segment LED SPI Digital tube LCD Display Controller Module for Arduino DUE Pro mini Nano with UNO MEGA2560 example Code

Packing list:

1 pcs 6 Digit 7 Seg SPI LCD Display Module






 Description:
6 Digit 7 segment Display,provide Arduino MEGA2560/UNO Code;

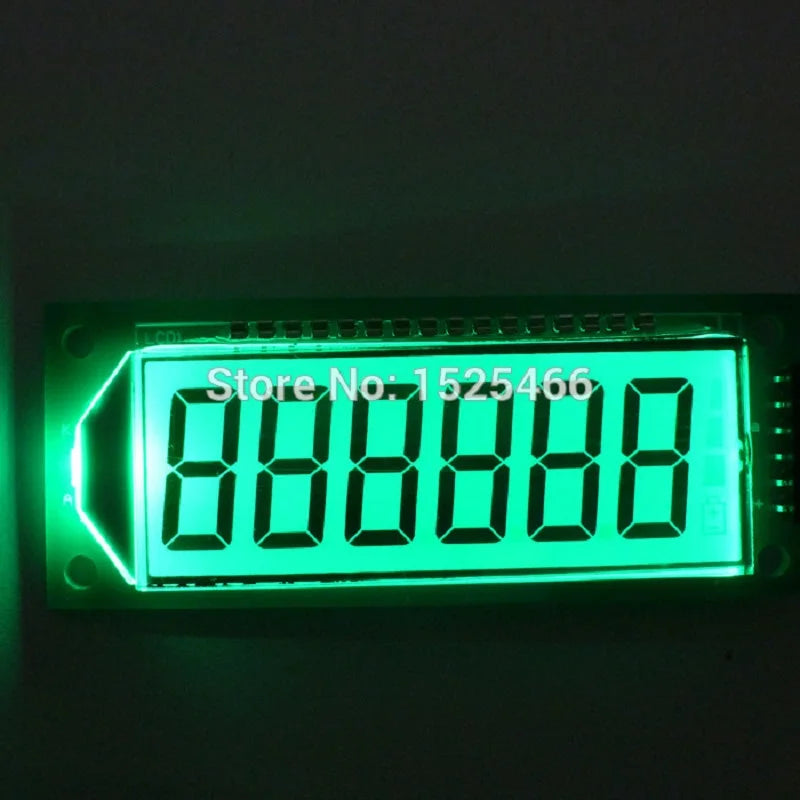

Backlight : Green

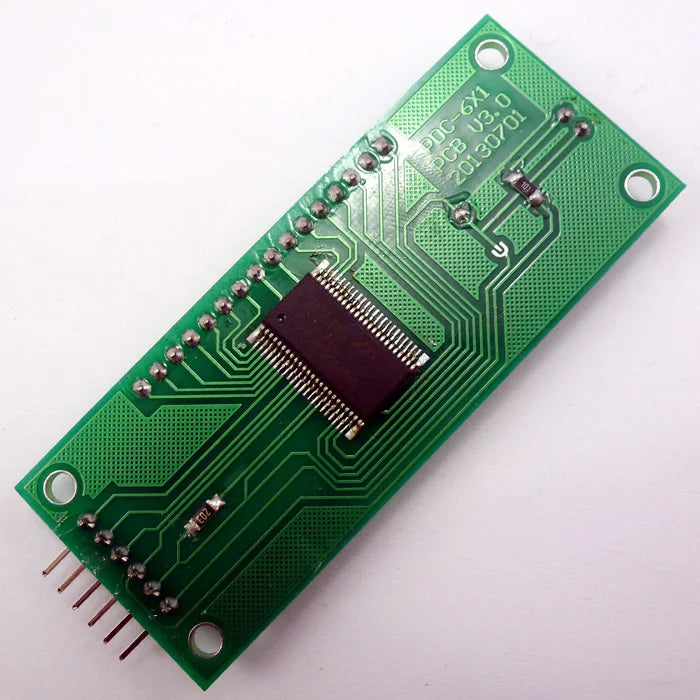

Supply voltage : DC 5VDriver IC : HT1621
Interface : SPI( Only three c ontrol signal ,CS WR Data)
Support display characters : 0,1,2,3,4,5,6,7,8,9,A,b,C,c,d,E,F,H,h,L,n,N,o,P,r,t,U,-
Size : 77mm * 31mm

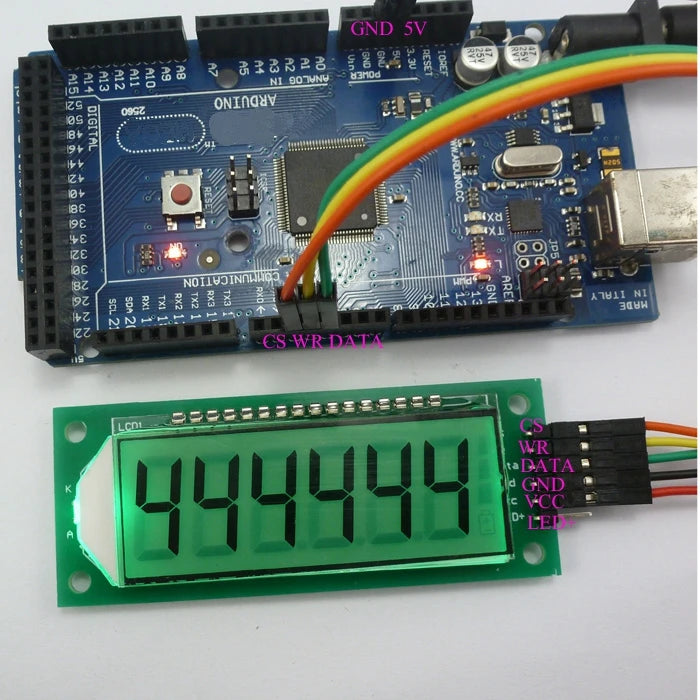

Connect with arduino-Compatible mega2560( Does not include MEGA2560)










arduino-compatible uno/mega2560 Code fragment:

After purchase, please contact me for complete code!

//*******************************************//

.......

void setup()

{
pinMode(CS, OUTPUT); //Pin 2

pinMode(WR, OUTPUT); //Pin 3

pinMode(DATA, OUTPUT); //Pin 4

}

void loop()

{

...
Init_1621() ;
...
while(1)
{
//display 0 to 999999
for(t=0;t<999999;t++)
{
displaydata(t,1,1,1,1);
delay(100) ;
}
...

//****************************************************************************//
