AMVOL08 8 Channel Analog Output 0-10V 0-5V AO Module RS485 Modbus RTU To Voltage PLC Remote IO Expansion Board
AMVOL08 8 Channel Analog Output 0-10V 0-5V AO Module RS485 Modbus RTU To Voltage PLC Remote IO Expansion Board
SKU:AMVOL08
1978 in stock
Regular price
$27.99
Regular price
$35.68
Sale price
$27.99
Unit price
per
Couldn't load pickup availability
Overview:
This is RS485 TO voltage output module with MODBUS RTU protocol. The maximum output voltage is 10V, which can be used as a 0-5V/0-10V sensor. It uses 12bit DAC, but you just need to enter the voltage value in the for register, the unit is 0.01V. For example, if you need to output 5.12V, then just enter the value 512.
This is RS485 TO voltage output module with MODBUS RTU protocol. The maximum output voltage is 10V, which can be used as a 0-5V/0-10V sensor. It uses 12bit DAC, but you just need to enter the voltage value in the for register, the unit is 0.01V. For example, if you need to output 5.12V, then just enter the value 512.
1 Product Description

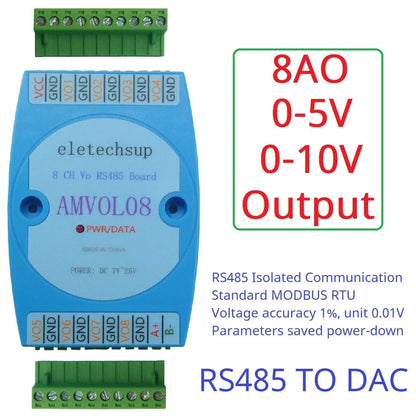

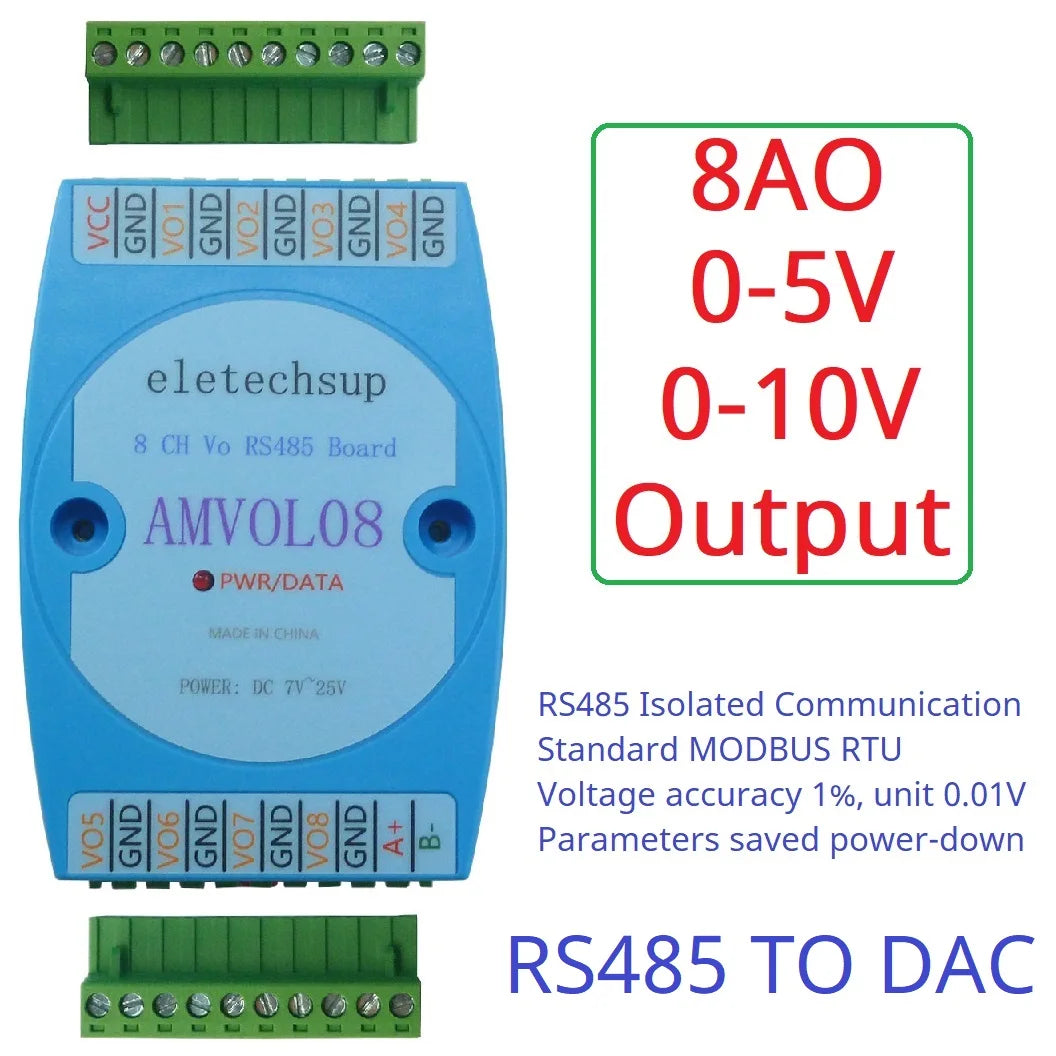

8-channel 0-5V/0-10V voltage output
RS485 MODBUS RTU standard communication protocol

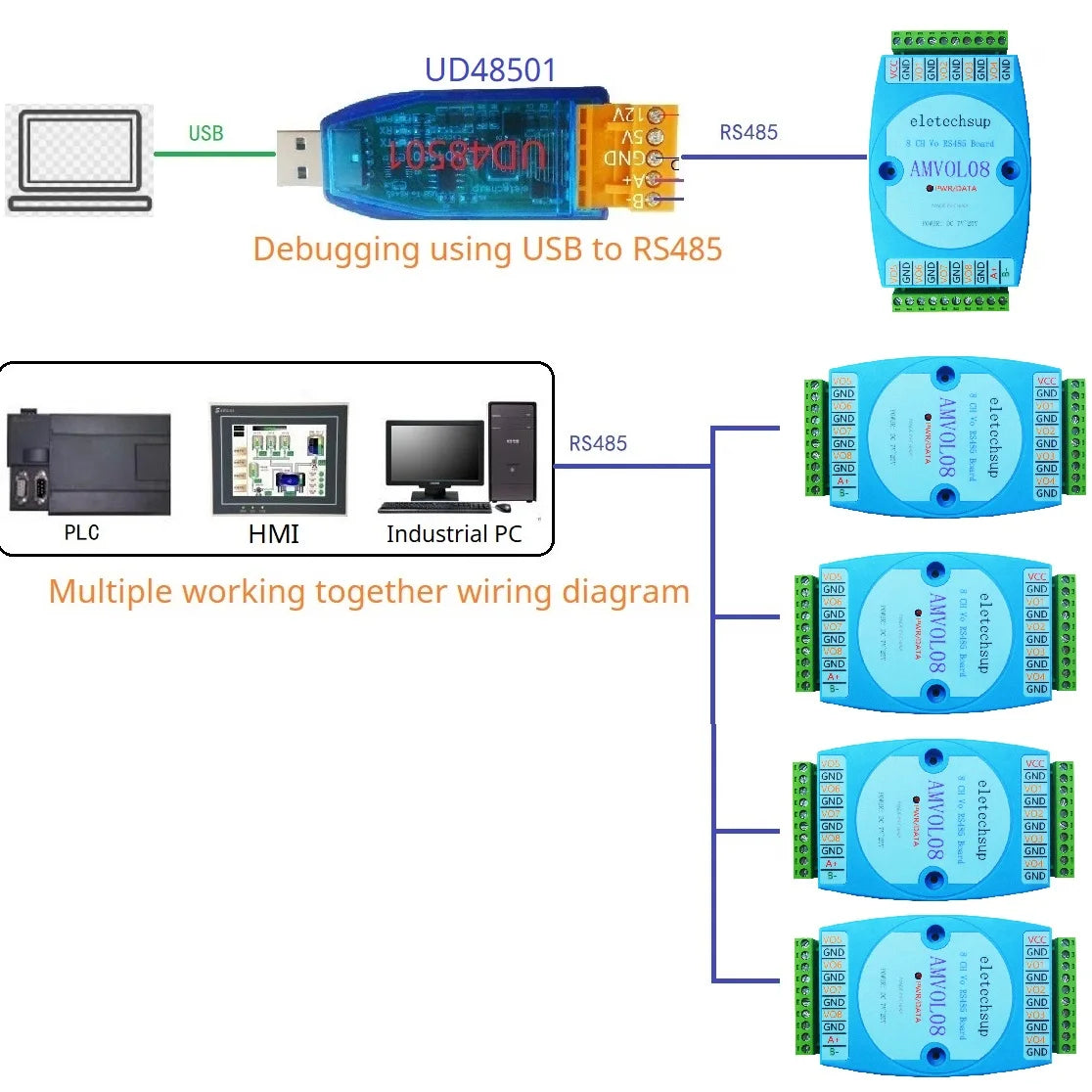

Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
Voltage output by direct input of the voltage value
Voltage parameters are saved at power-down
2 Specification
1 Working voltage: DC 7-30V (0-5V)/DC 12-30V (0-10V)
2 Working current: 16-20MA
3 8 channels voltage outputs , the output voltage range of each channel is 0~10V
4 RS485 communication isolation protection 3000VDC

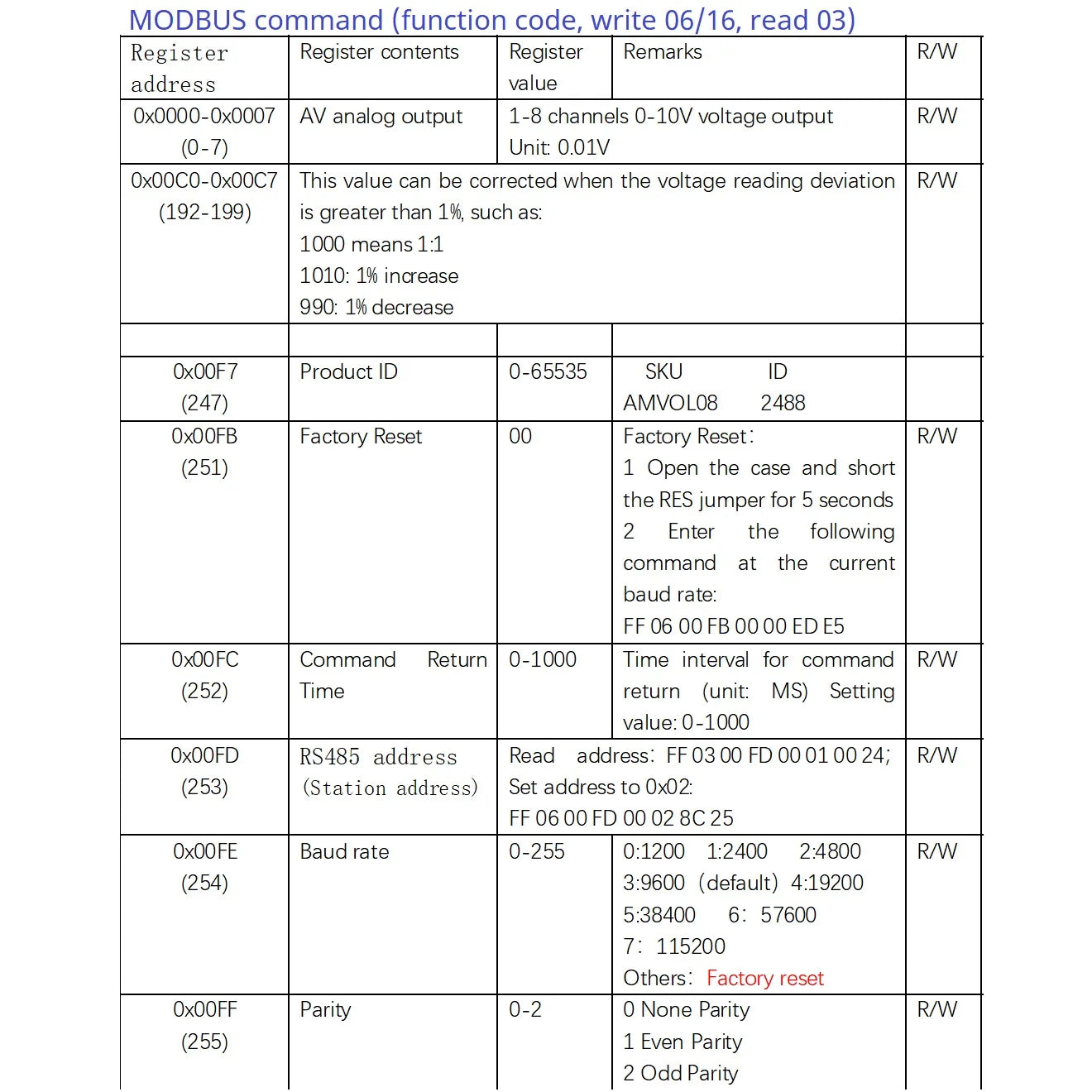

5 Standard MODBUS RTU command (function code, 06/16 Write, 03 Read )
6 Output voltage accuracy 1%, unit 0.01V.
7 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
8 Parity bits: None (default) /Even /Odd

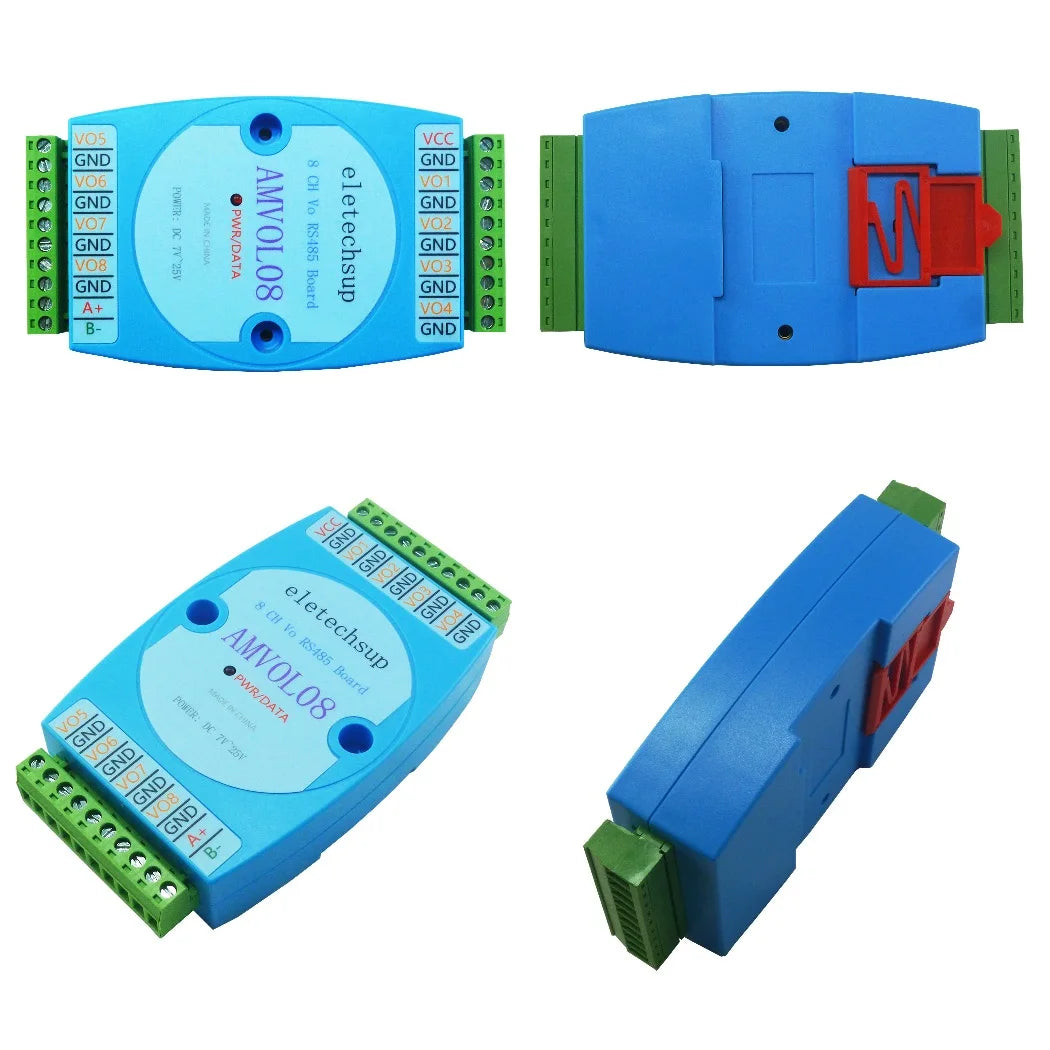

9 Installation method Standard DIN rail installation
10 Dimensions 125×70×30mm
11 Weight: 110 grams

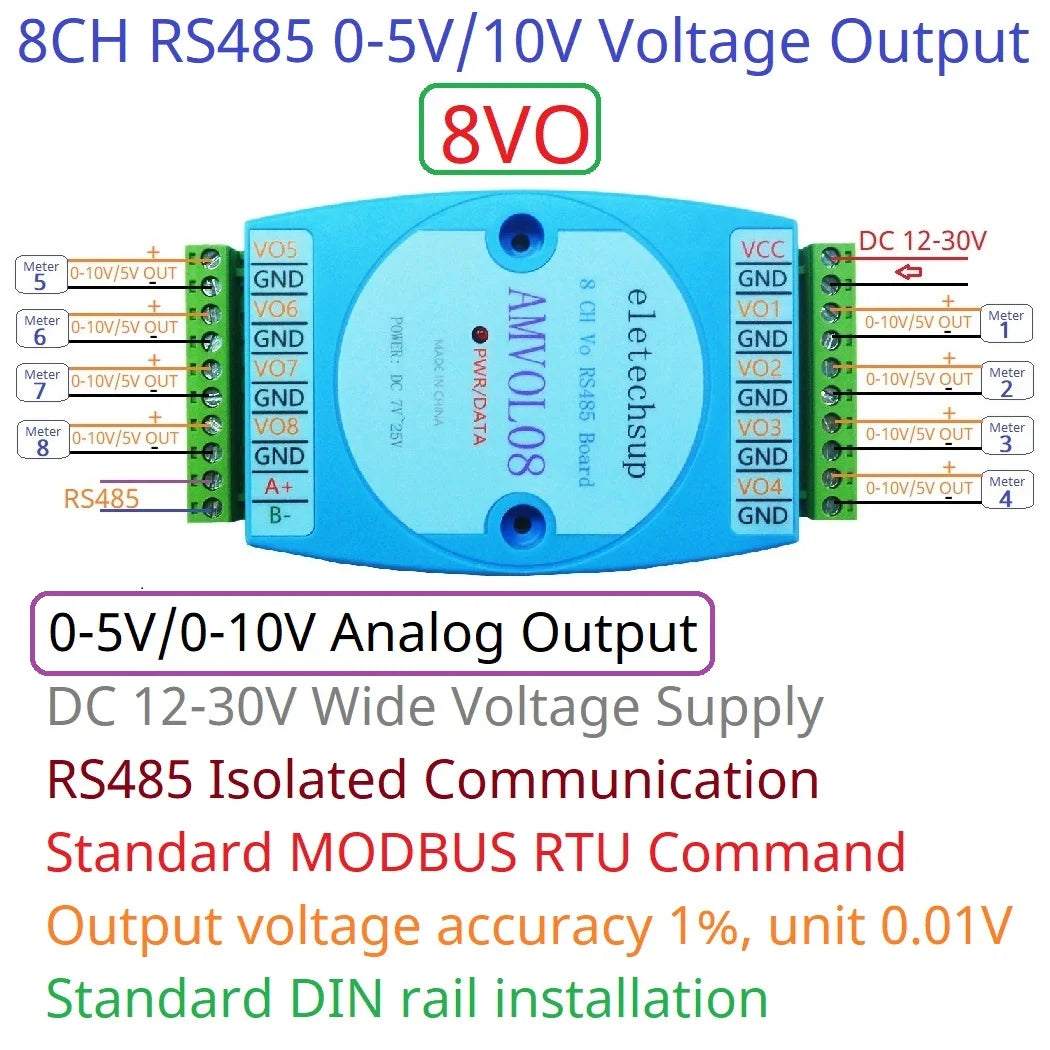

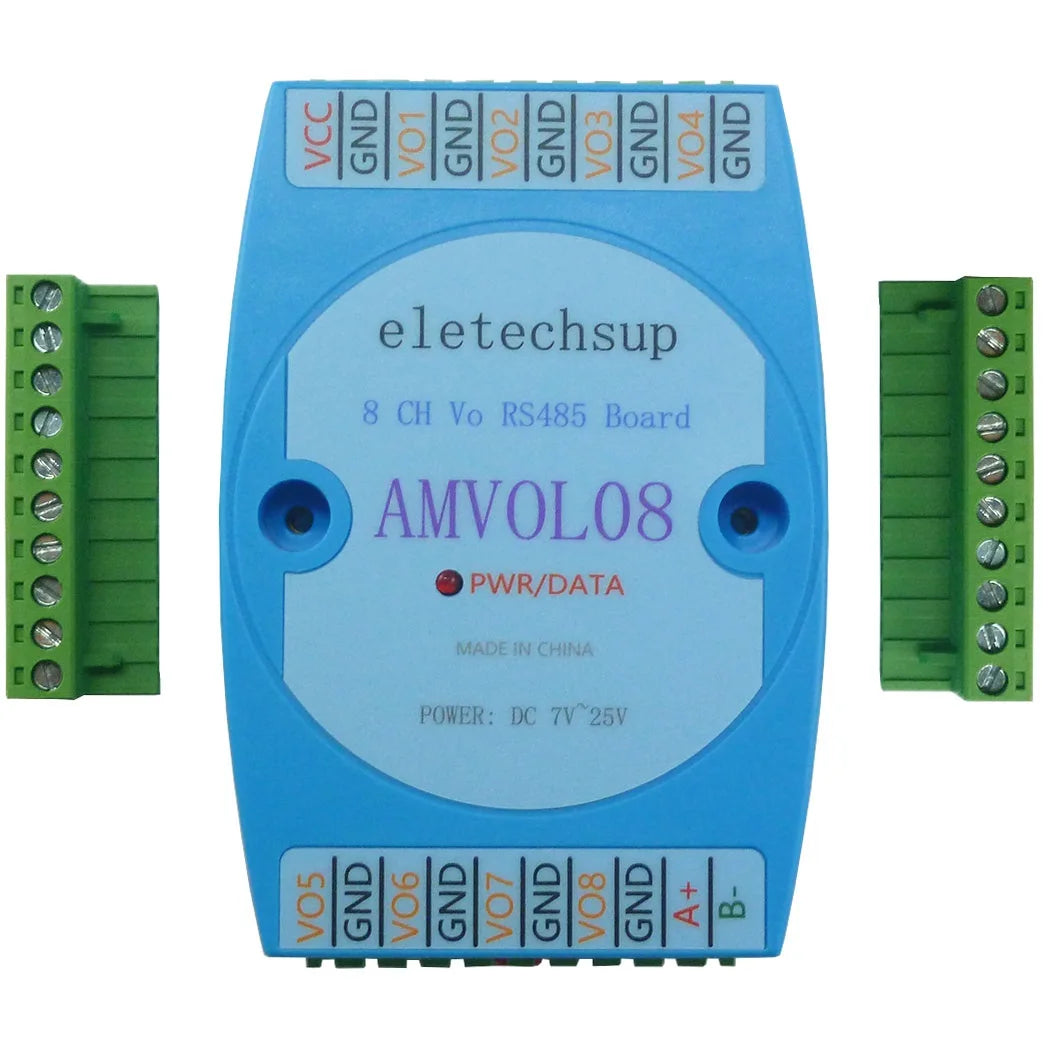

3 Interface definition:
VCC : Power input+
GND: Power input-
VO1 : voltage output channel 1+
GND: voltage output channel 1-
VO2 : voltage output channel 2+
GND: voltage output channel 2-
VO3 : voltage output channel 3+
GND: voltage output channel 3-
VO4 : voltage output channel 4+
GND: voltage output channel 4-
VO5 : voltage output channel 5+
GND: voltage output channel 5-
VO6 : voltage output channel 6+
GND: voltage output channel 6-
VO7 : voltage output channel 7+
GND: voltage output channel 7-
VO8 : voltage output channel 8+
GND: voltage output channel 8-
A+: RS485 signal A+
B-: RS485 signal B-
