R4IOH08 8DI 8DO 4DI-4DO 2DI-6DO 6DI-2DO Multipurpose RS485 Digital Input Output Module mini PLC IO Dilator DC 12V 24V for Arduino

R4IOH08 8DI 8DO 4DI-4DO 2DI-6DO 6DI-2DO Multipurpose RS485 Digital Input Output Module mini PLC IO Dilator DC 12V 24V for Arduino

R4IOH08_PIN_8DO_12V

994 in stock

$3.99
$4.97 $3.99
Sale Sold out

1. Working voltage: DC5V/DC 12V (6-25V)
2 .Working current: 8-14MA
3. MODBUS RTU function codes: Write 05/06/15/16, Read 01/02/03

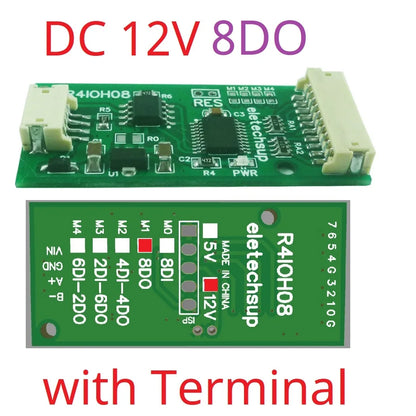

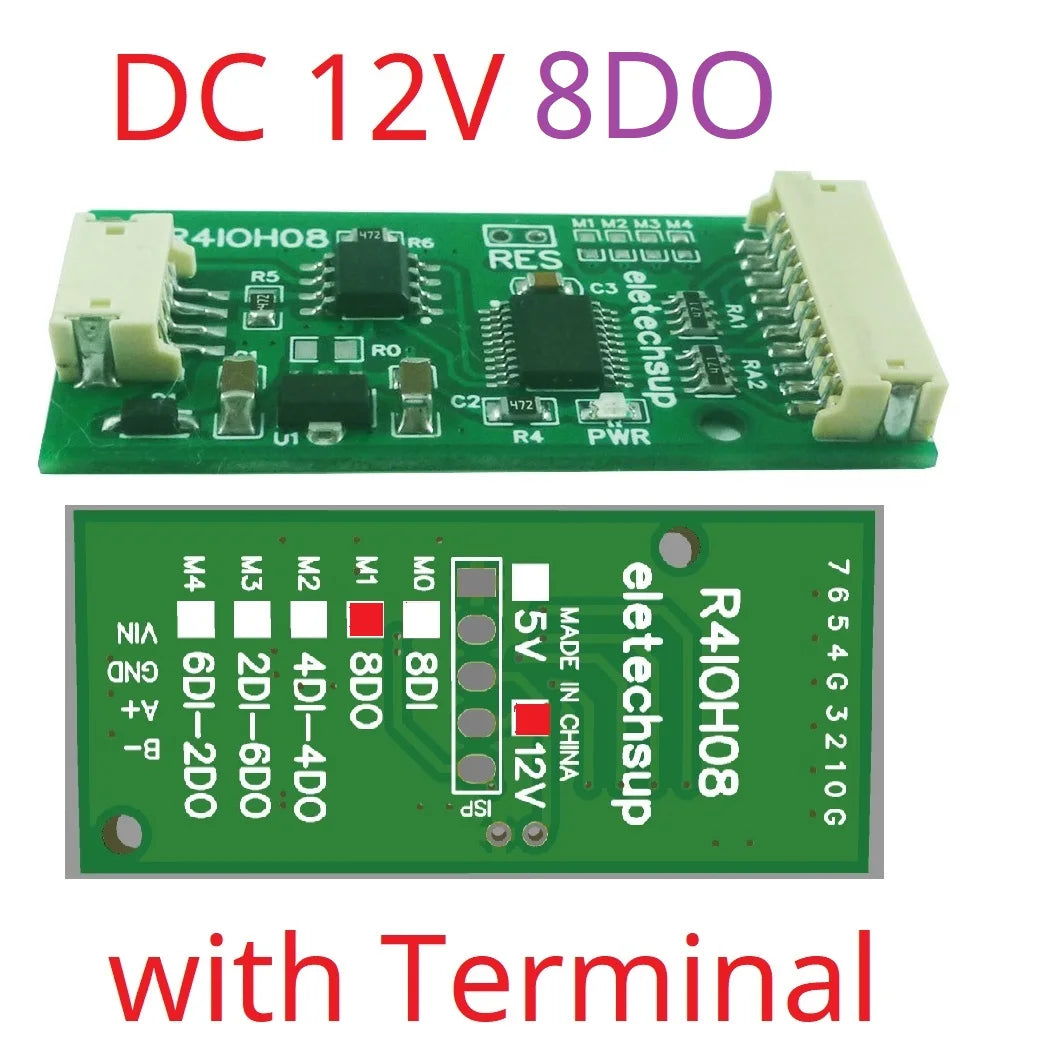

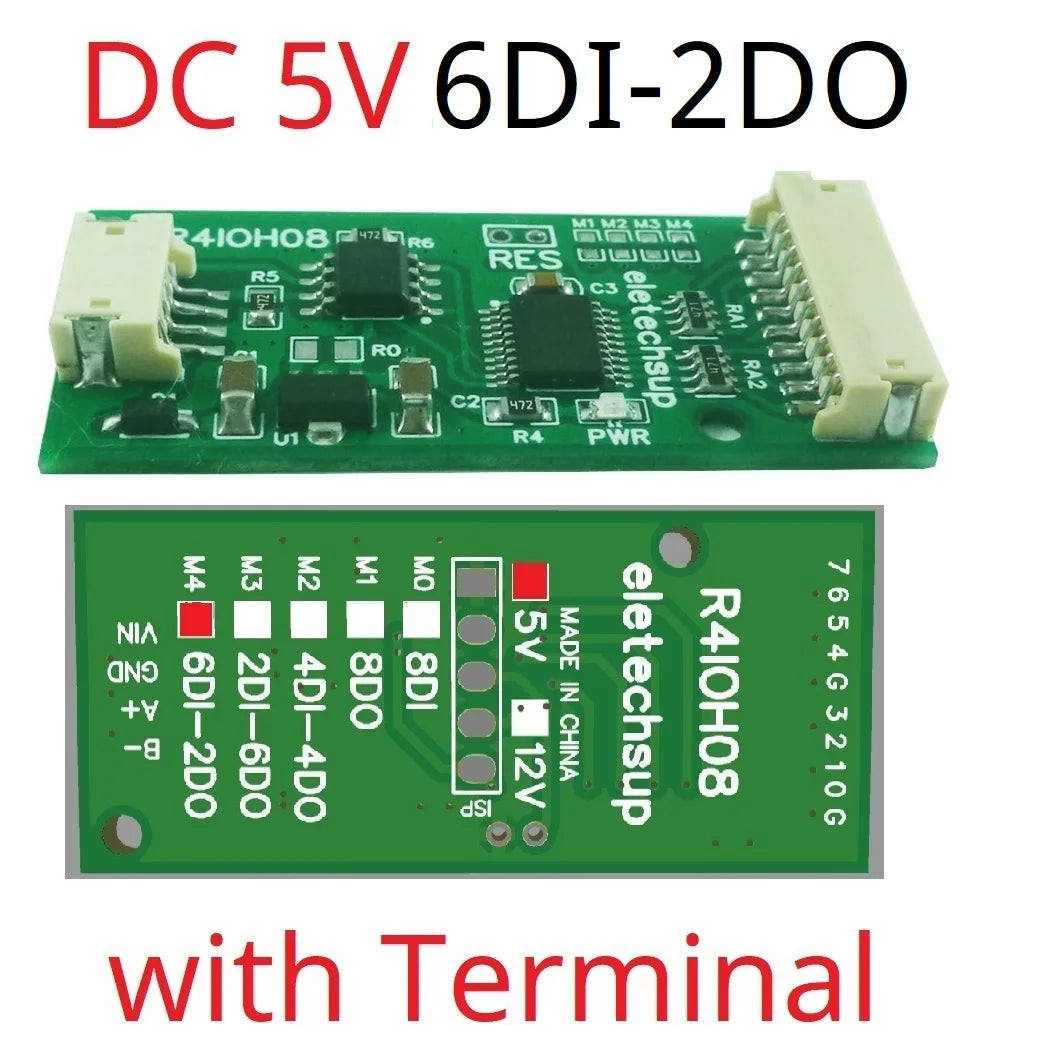

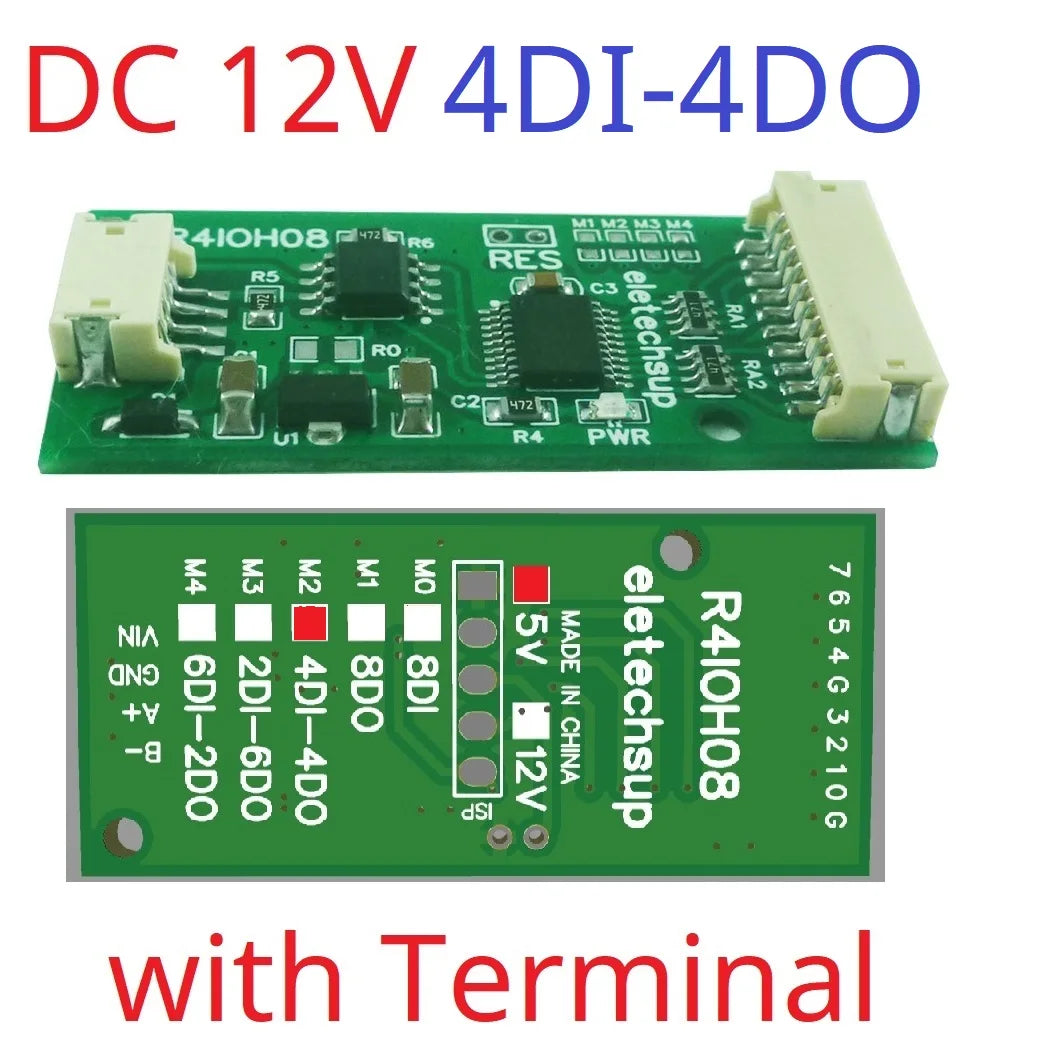

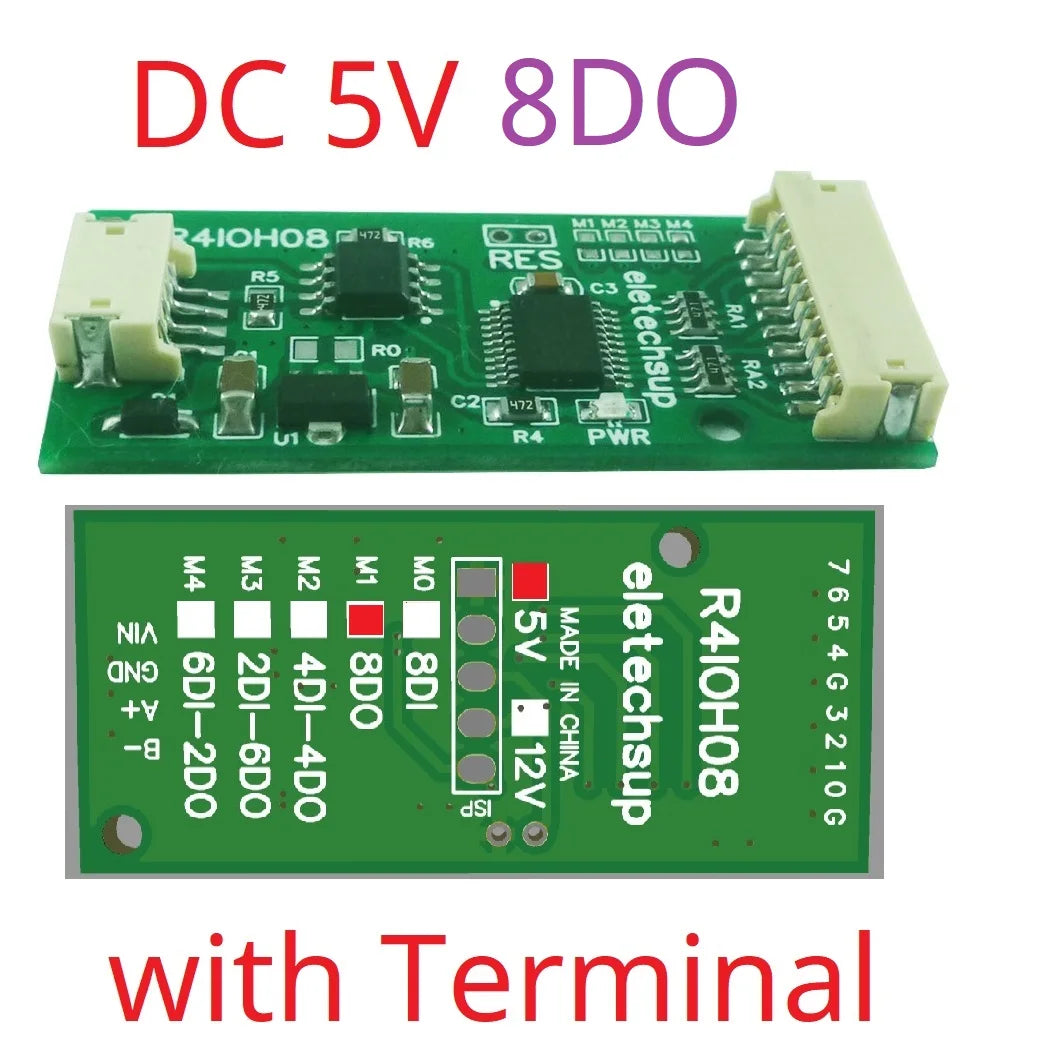

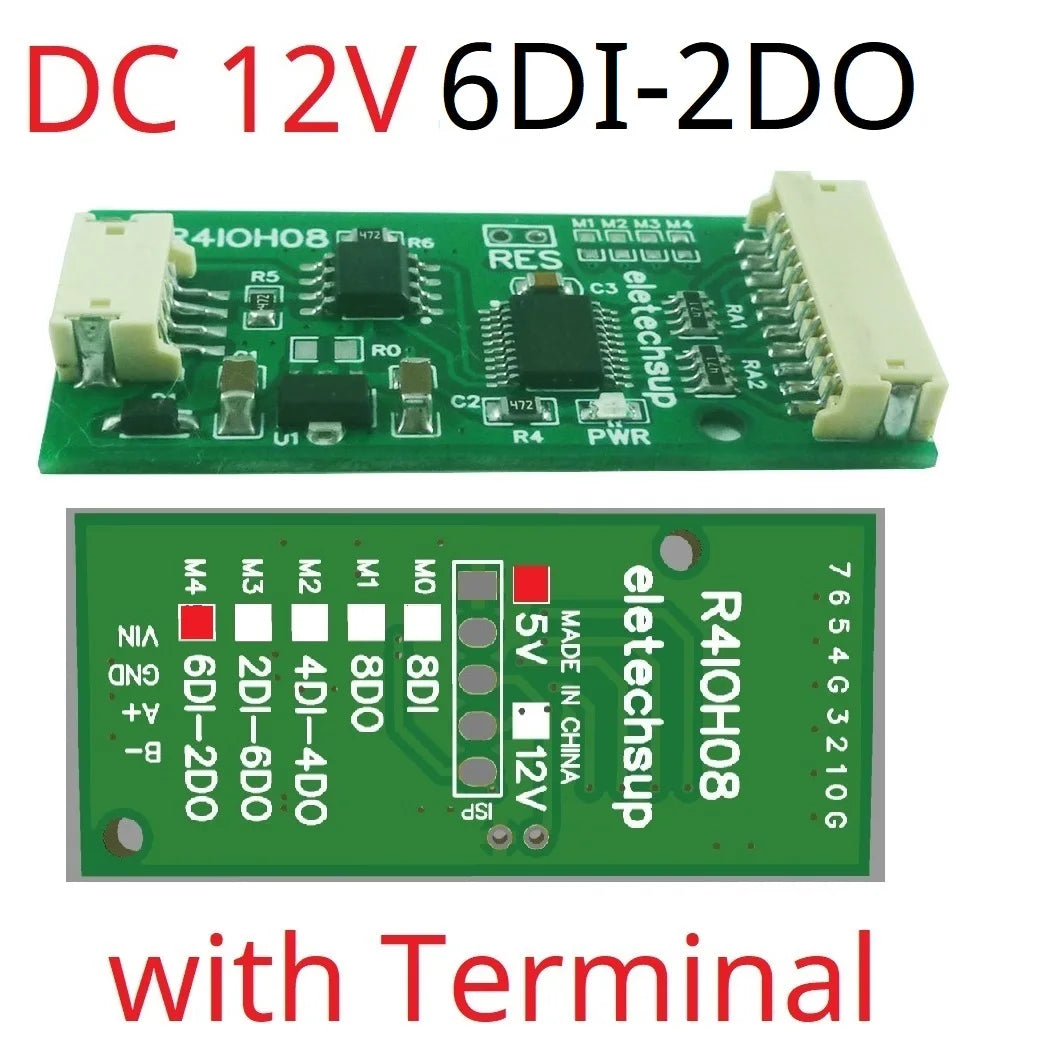

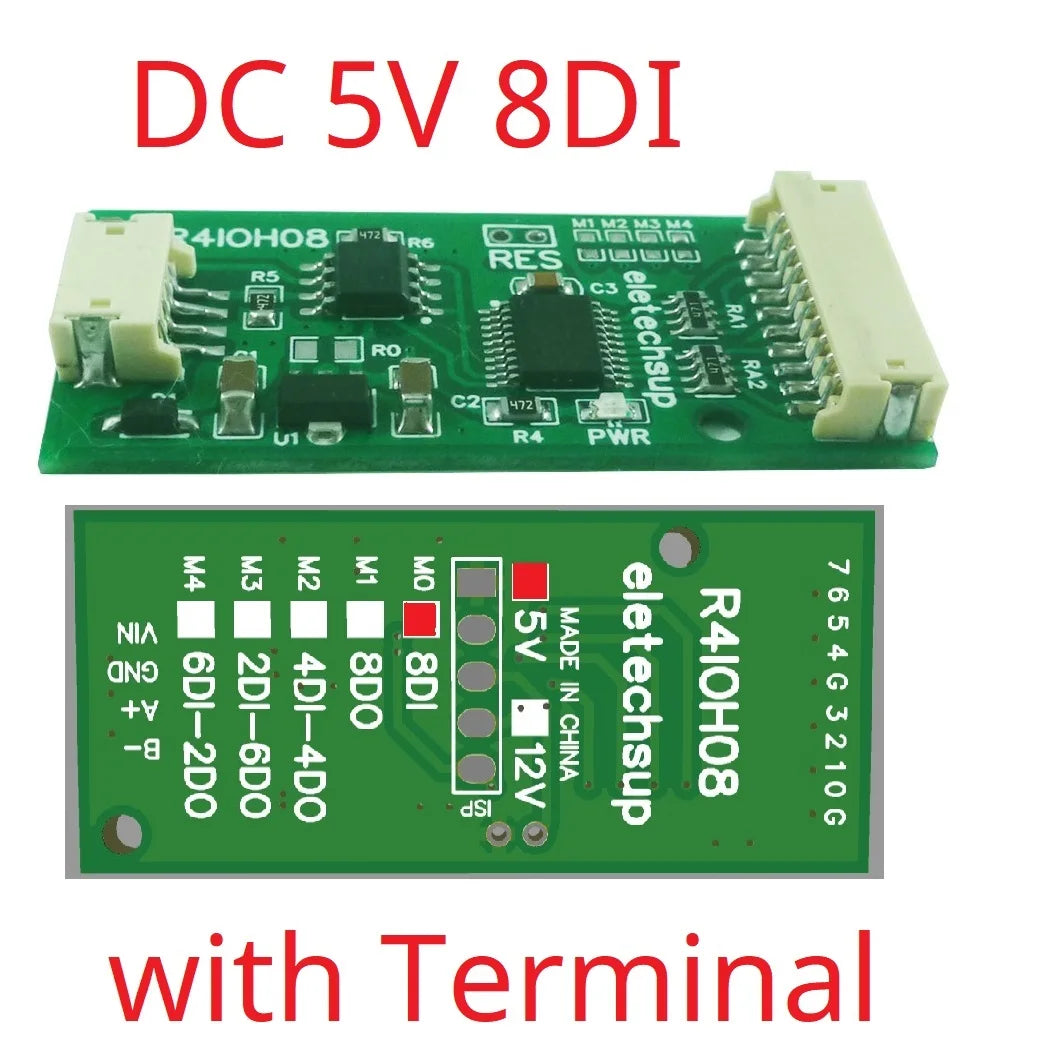

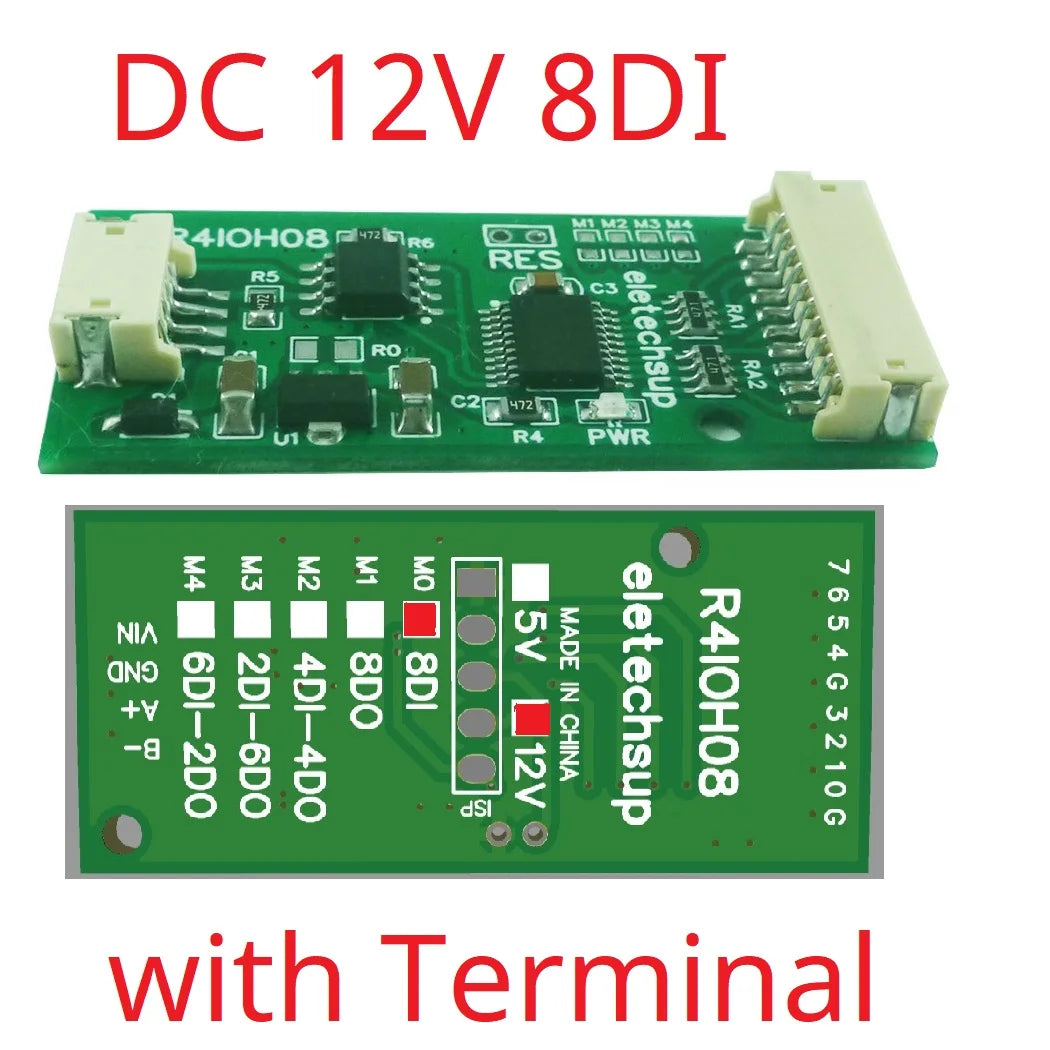

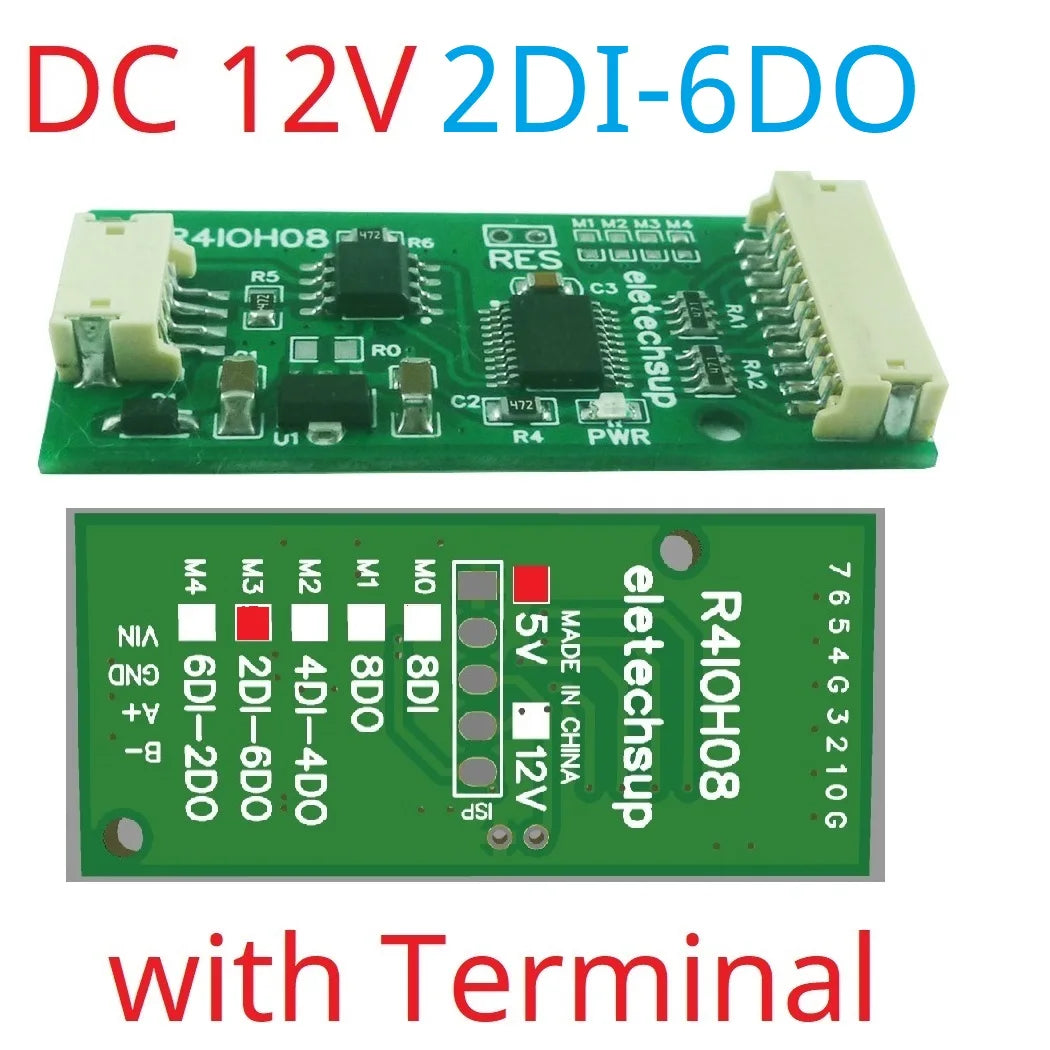

4. 5 function IO modes can be selected by jumper: 8DI/8DO/4DI-4DO/2DI-6DO/6DI-2DO
5. By modifying the 0X00F5/0X00F6 register, the input and output levels (NPN/PNP) can be switched
6. Input mode: Support 3.3V/5V TTL level input, there are two input modes of low level input (default) and high level input
7. Output mode: 5V TTL level, low level (default) / high level output
8. In MODBUS command mode, it can support up to 247 devices in parallel
9 .Input port status supports query (default) and automatic reporting
10. BaudRate:1200 2400 4800 9600(default) 19200 38400 57600 115200, None/Odd/Even Parity

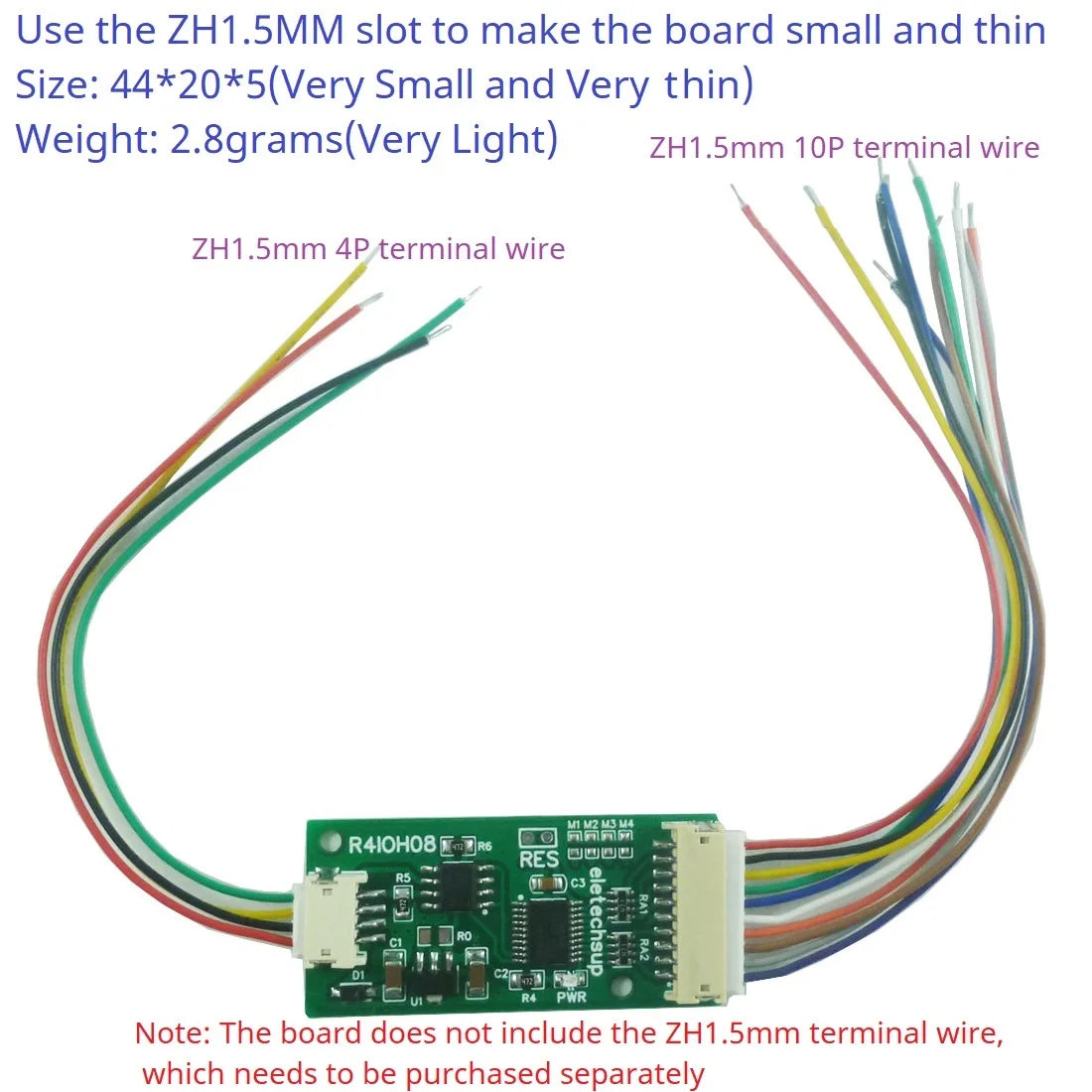

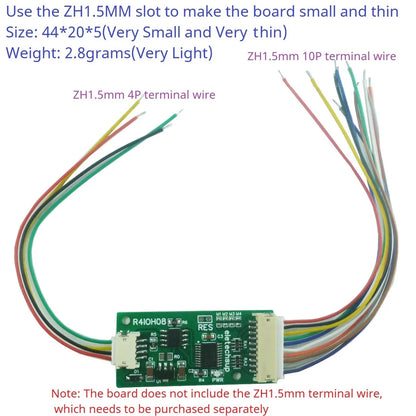

11. Use the ZH1.5MM Connector to make the board small and thin
12. Size: 44*20*5(Very Small and Very Thin)
13. Weight: 2.8grams(Very Light)


Packing list:
1 PCS 8ch DC 5-24V RS485 Multifunctional DI-DO Module

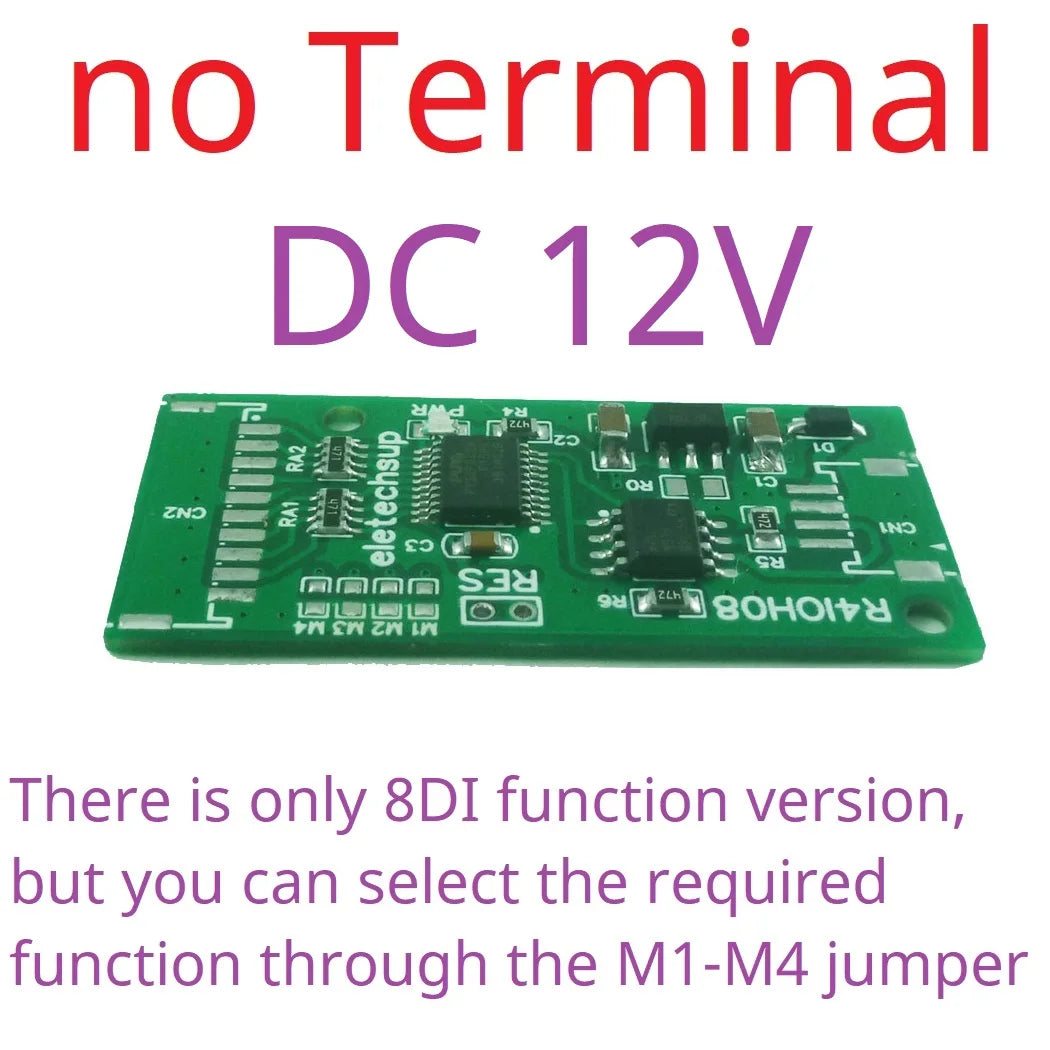

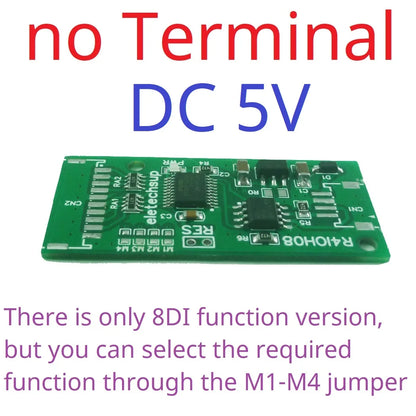

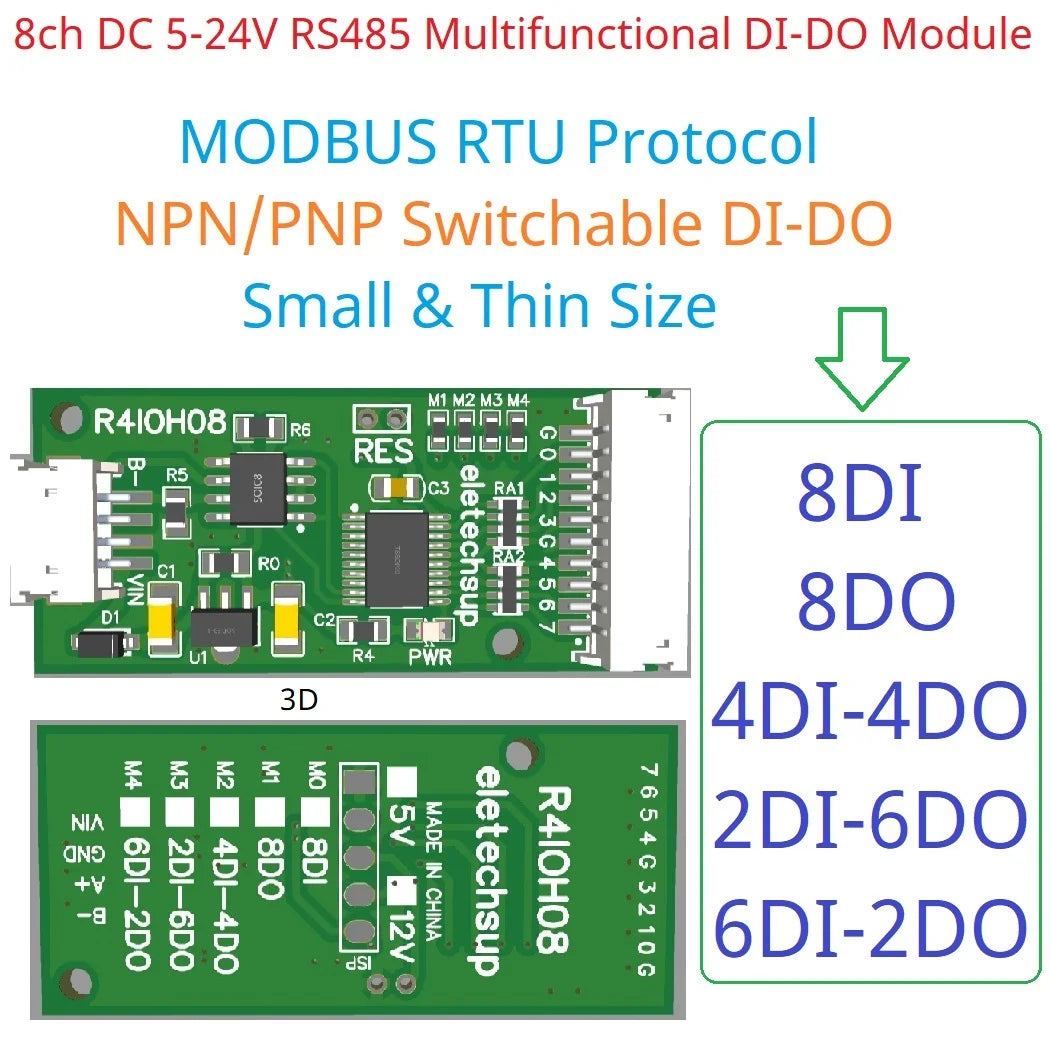

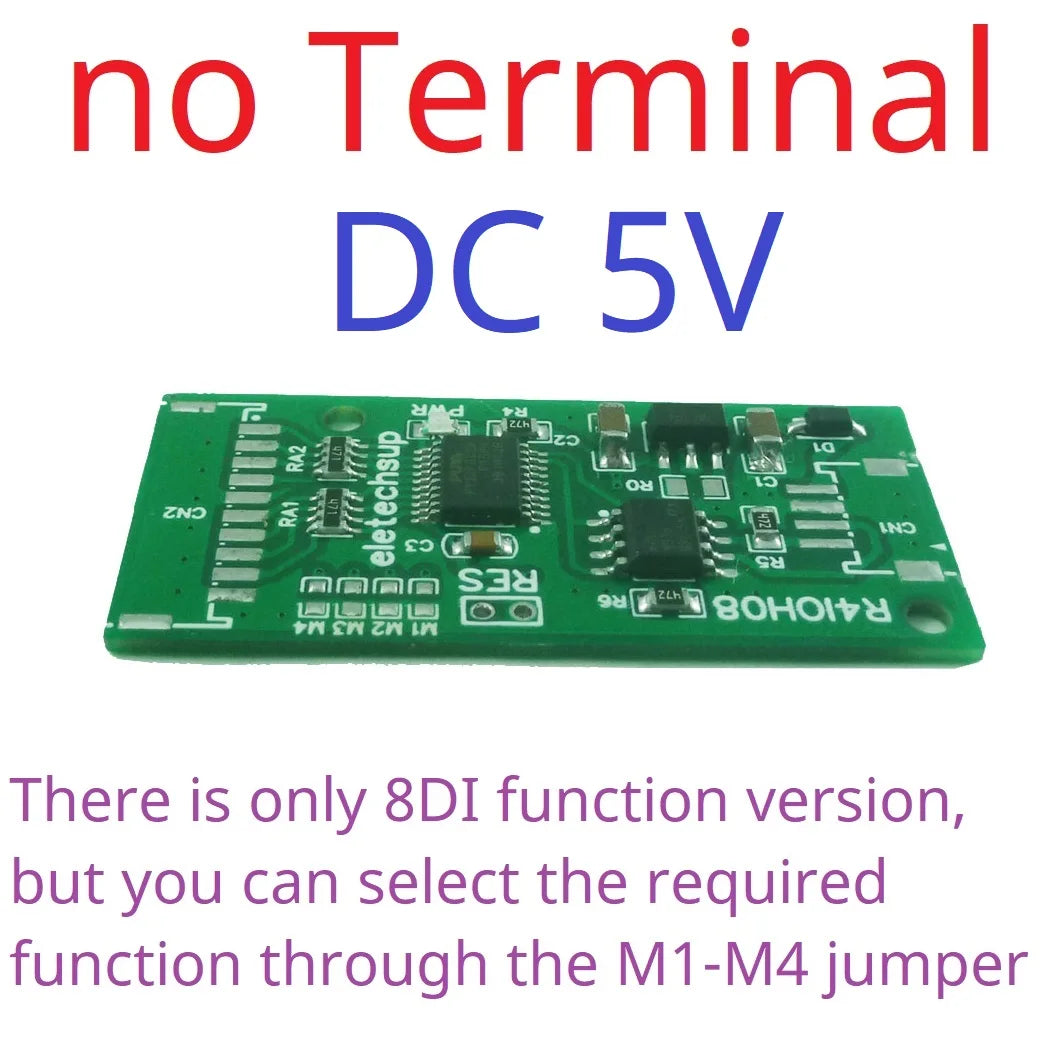

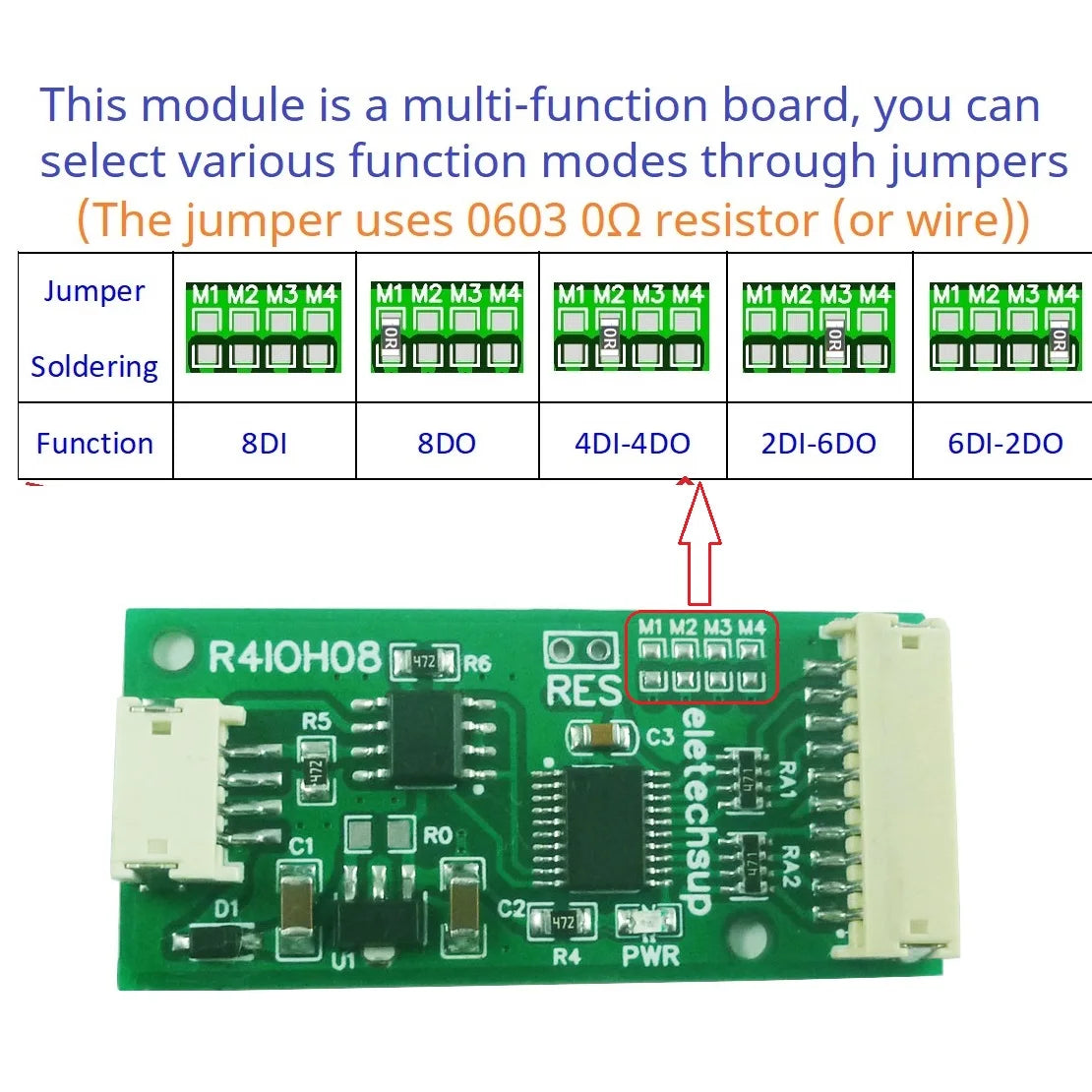

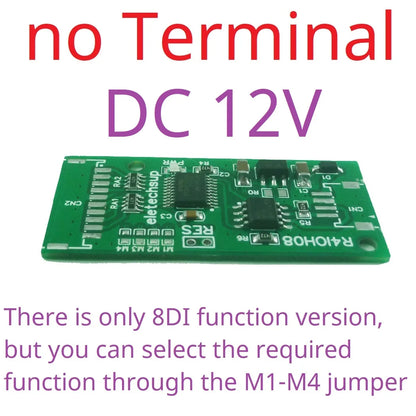

This module is a multi-function board, you can select various function modes through jumpers.
The jumper uses 0603 0Ω resistor (or wire)

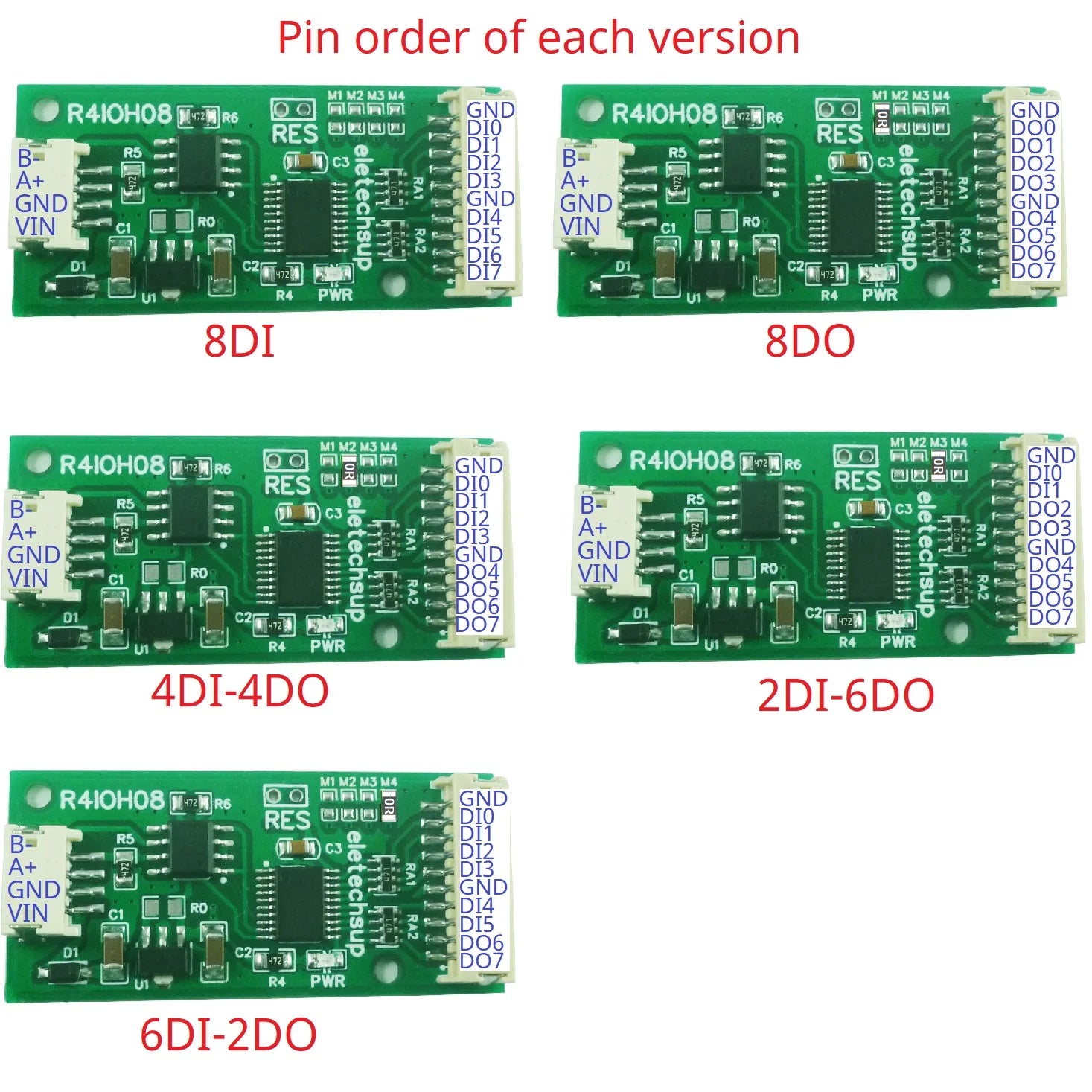

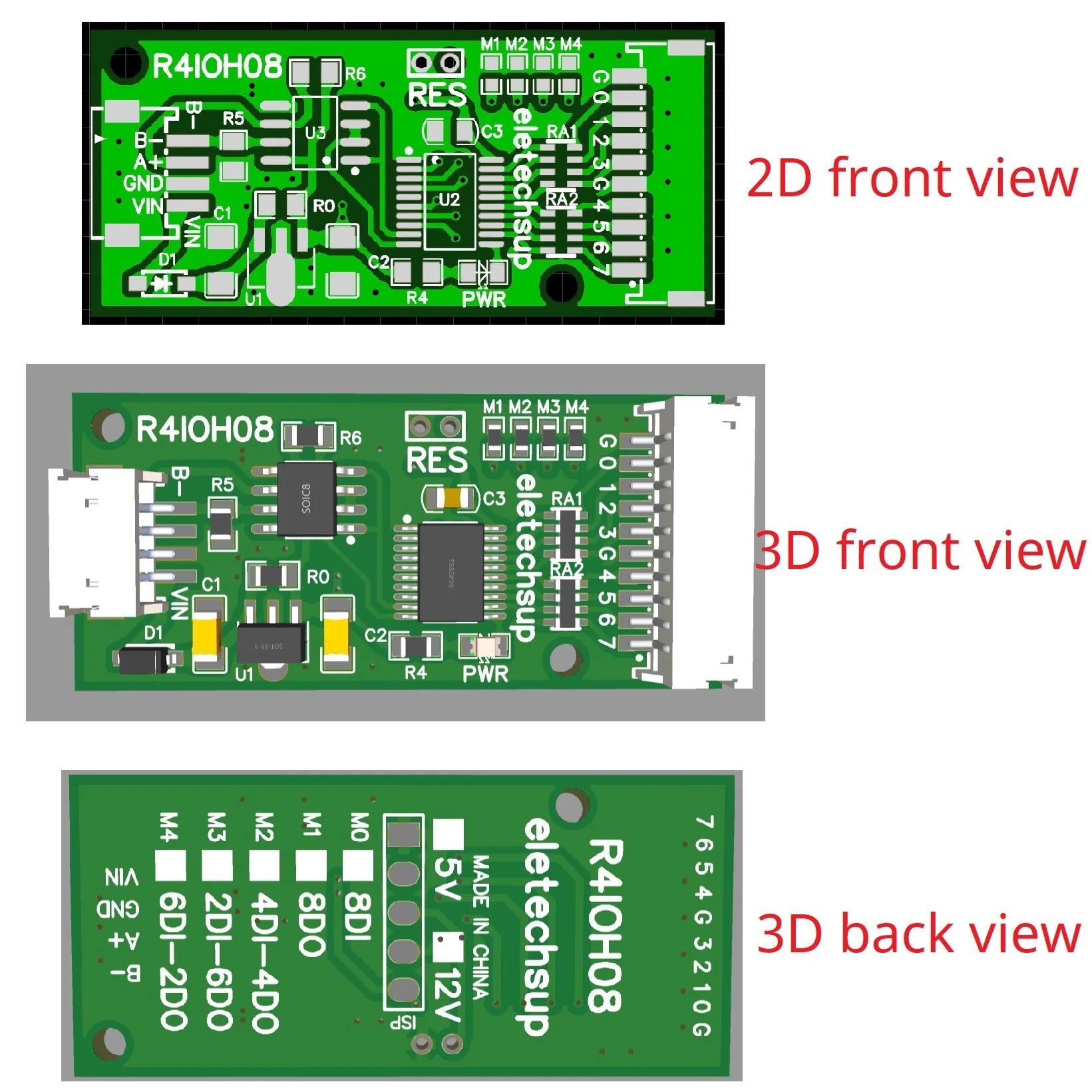

Different Versions of Pin Definitions

For MODBUS RTU command details, see:''R4IOH08 MODBUS RTU Commamd''

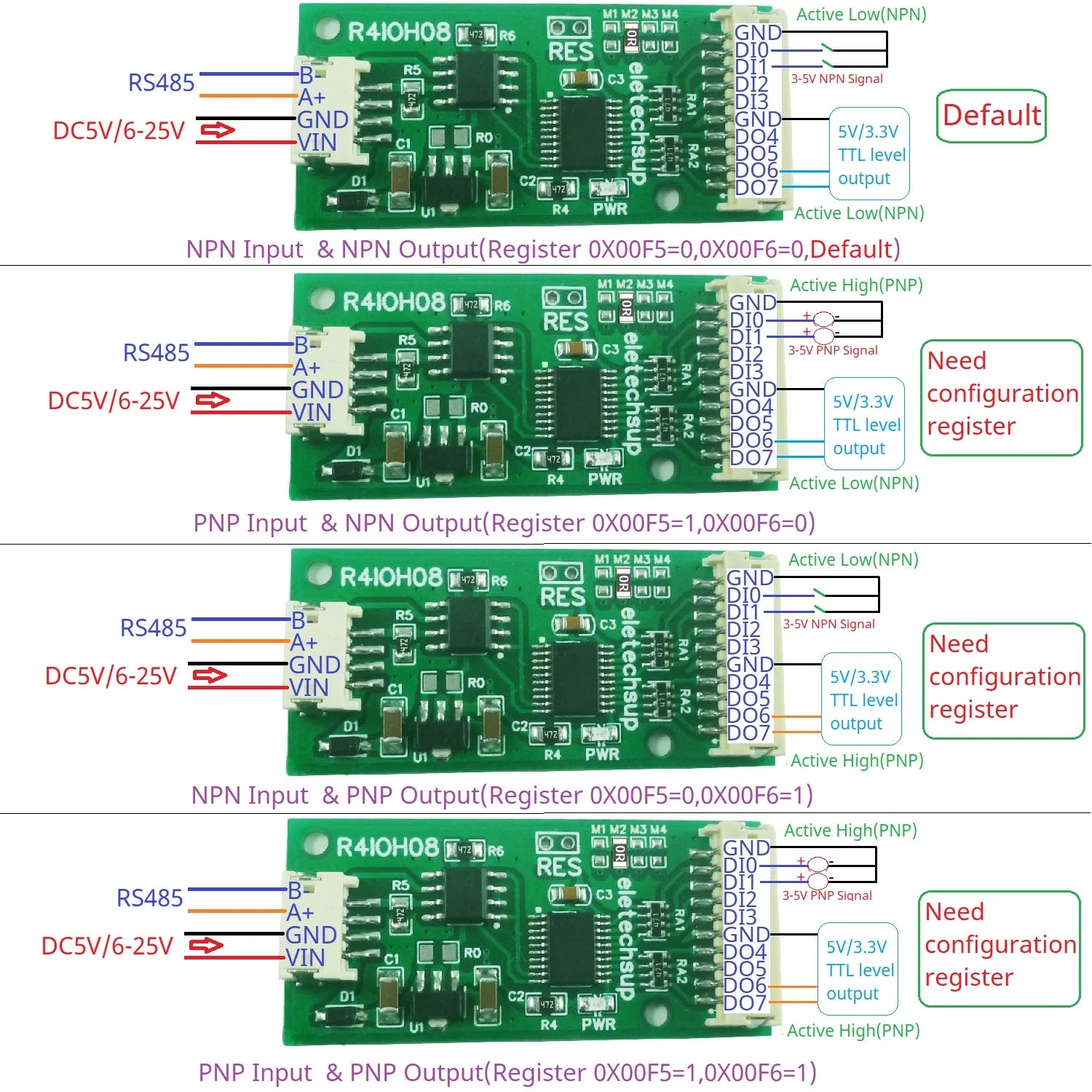

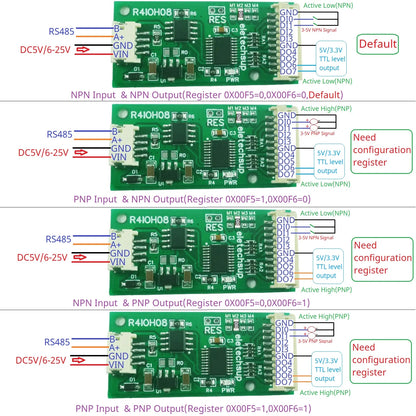

By modifying the 0X00F5/0X00F6 register, various input and output levels (NPN/PNP) can be switched

NPN Input & NPN Output(Register 0X00F5=0,0X00F6=0,Default)
PNP Input & NPN Output(Register 0X00F5=1,0X00F6=0)
NPN Input & PNP Output(Register 0X00F5=0,0X00F6=1)
PNP Input & PNP Output(Register 0X00F5=1,0X00F6=1)

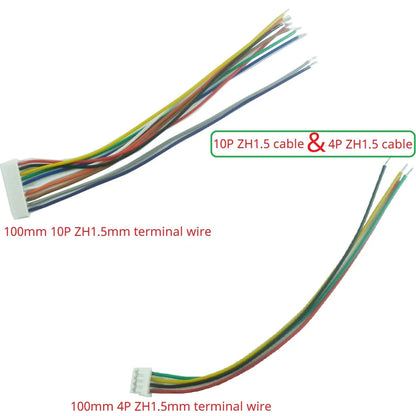

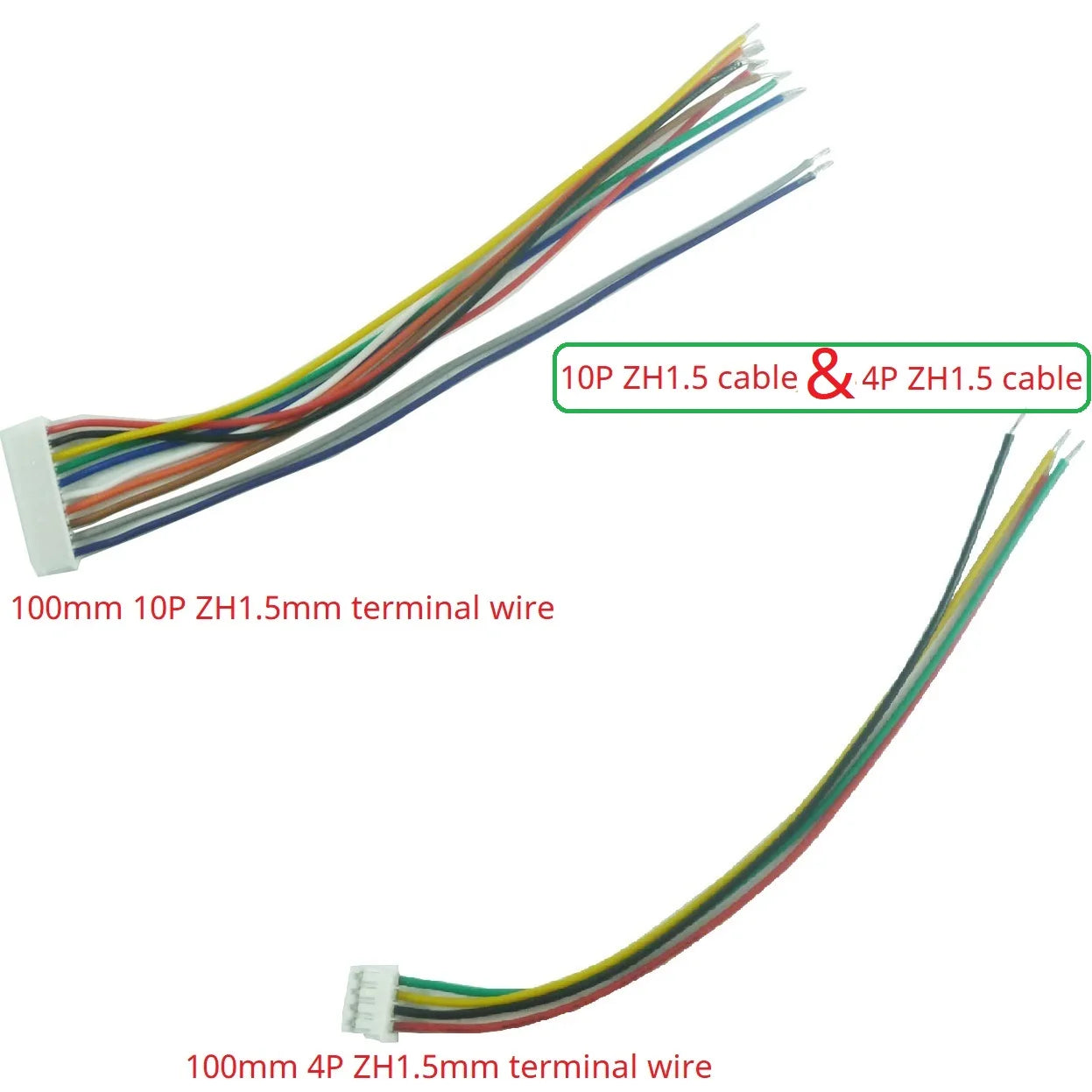

Note: The board does not include the ZH1.5mm terminal wire, which needs to be purchased separately
