CE018 10W Breadboard Power Module DC 6.5V-23V 12V to 5V DC DC Converter replace mb102 AMS1117 LM2596
CE018 10W Breadboard Power Module DC 6.5V-23V 12V to 5V DC DC Converter replace mb102 AMS1117 LM2596
SKU:CE018
10868 in stock
Regular price
$1.99
Regular price
$13.99
Sale price
$1.99
Unit price
per
Couldn't load pickup availability
Product Name : mini 1.4Mhz 1.2A DC DC Converter Step Down DC 6.5V 9V 12V 15V 18V 20V to 5V Buck Module
Packing list:
1 PCS mini 1.2A DC DC Converter Step Down 6.5V-23V to 5V
Description:

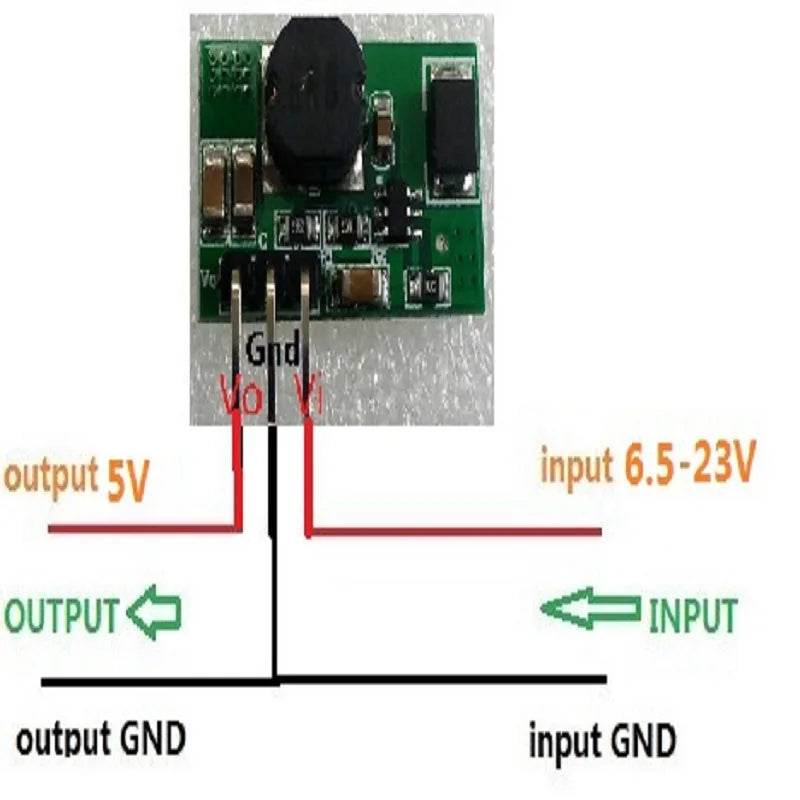

Input voltage 6.5~23V,output 5V
Maximum output current 1.2A,Short time maximum output current 2A
DC-DC Step-Down Converter module working frequency 1.4MHz. efficiency is 80-92% .
2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly

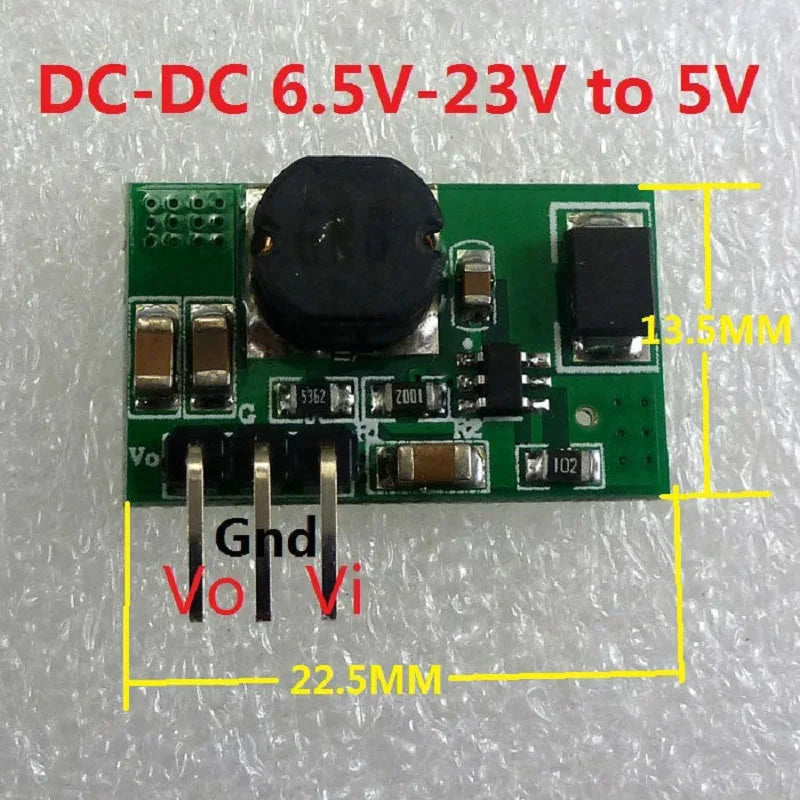

Excluding Pin Size 22.5mm x 13.5mm x 6.5mm( small)
Weight : about 2.2g( Very light)
Applications:
MCU Development Board,FPGA/CPLD UNO MEGA2560 DUE 8051 AVR C8051 etc
5V LED Lighting
5V Motor
Mobile phone charger
Wireless communication equipment
Smart home / home automation
315M 433M Wireless remote controller
Distributed Power Systems
Battery Charger
Pre-Regulator for Linear Regulators
DSL Modems
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
