AC 220V 433MHz 2 Channels RF Wireless Relay Receiver Controller

AC 220V 433MHz 2 Channels RF Wireless Relay Receiver Controller

AK027

1000 in stock

$20.98
$20.98 $20.98
Sale Sold out
AC220V 2 Channels Relay Receiver Controller


Modules No: AK027 ;

QTY: 1pcs 2 Channel receiver contrller .




Receiver :



Technical indicators:

Working voltage: AC220V;
Operating frequency: 433.92MHz;
Receiver sensitivity:-95dB;
Encoding: Receiver Recording;
Momentary / Latch / Toggle selectable (defult is Momentary , Latch Mode need 2 buttons handsender );

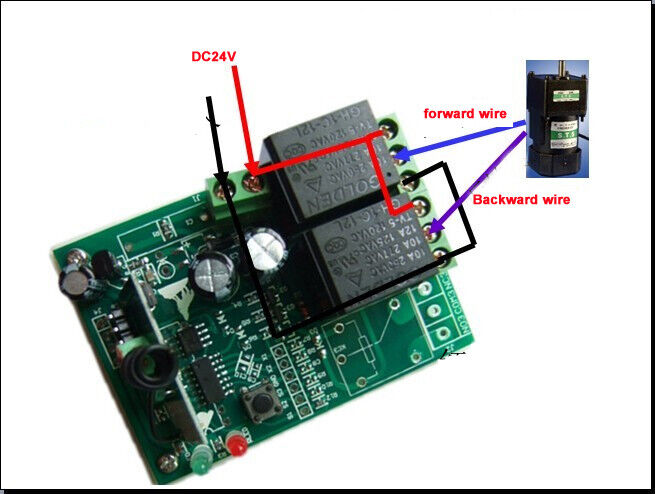

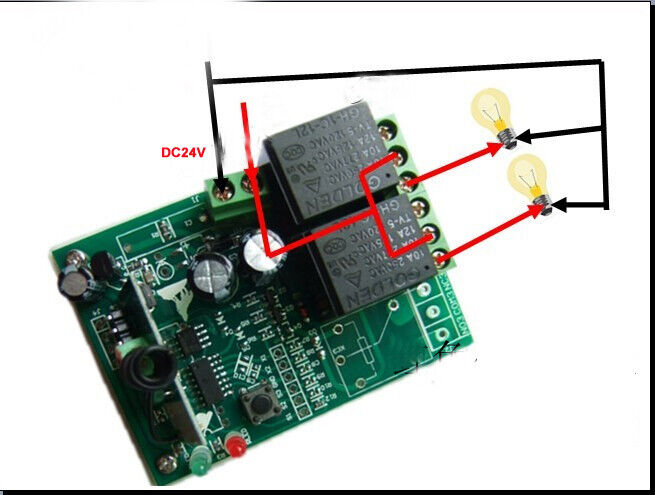

Output mode : Relay switch or AC220V  power switch (Relay switch is defult ) ;

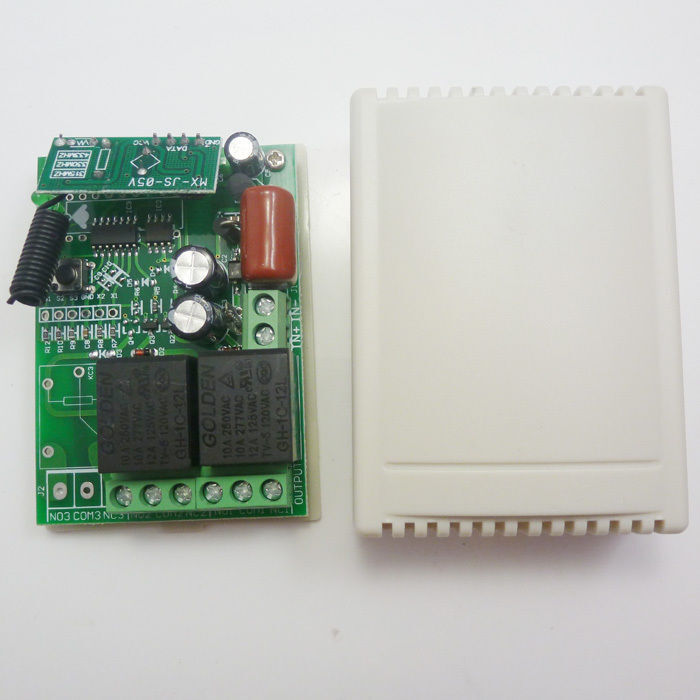

Receiver size: 62 * 35 * 22 mm;
Max load : 500W;
2 Channel;

Advantage :
1: Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 or PT2262 remotes to re-learn;

Work mode (programmable )

singnal Inter-locking (Latch)
singnal Self-locking (Toggle)
singnal Non-locking (Momentary is defult )






Momentary------------Press the Transmitter button A, the receiver relay A is ON, release button A; the receiver relay A is OFF, the same as B/C/D ,Every channel is Independent ;

Toggle---------------Press transmitter button A for 1 time , the receiver relay A is ON, press button A again, the receiver relay A is OFF, the same as B/C/D. Every channel is Independent ;

Latched------------------

Press transmitter button A, the receiver relay A is ON, the relay B/C/D is OFF.

Press transmitter button B, the receiver relay B is ON, the relay A/C/D is OFF.

Press transmitter button C, the receiver relay C is ON, the relay A/B/D is OFF

Press transmitter button D, the receiver relay D is ON, the relay A/B/C is OFF.


User guide instruction :
1:Clear the deposit information
Keep pressing learnig key on receiver controller board , LED turn on after 2 seconds , then turn off after 4 seconds , it means clearing successfully . ( our remote is already programmed before dispatch , please don't clearing ).
2: Relay working mode selecting :
1: keep pressing learning key on the receiver controller ,
LED turn on after 2 second , then turn off after 4 second, then the receiver controller enter programming state , but not release the finger , still keep pressing the learning button ,
LED blink once after 2 second , release the finger on learing key , it is Momentary mode ,
or still keep pressing learing key ,
LED blink twice after 2 second , release the finger on learing key , it is Toggle mode ,
or still keep pressing learing key ,
LED blink 3 times after 2 second , release the finger on learing key , it is Latch mode ,

3: Learning the remote to the receiver controller:

A: Keep pressing learnig key on receiver controller board , LED turn on after 2 seconds , release the finger on learning key , press " A" buttons on the remote work state LED blink 3 times , it means "A" buttons was memoried by Channel 1 .

B: repeat step A to memoried "B" button by Channel 2 .
