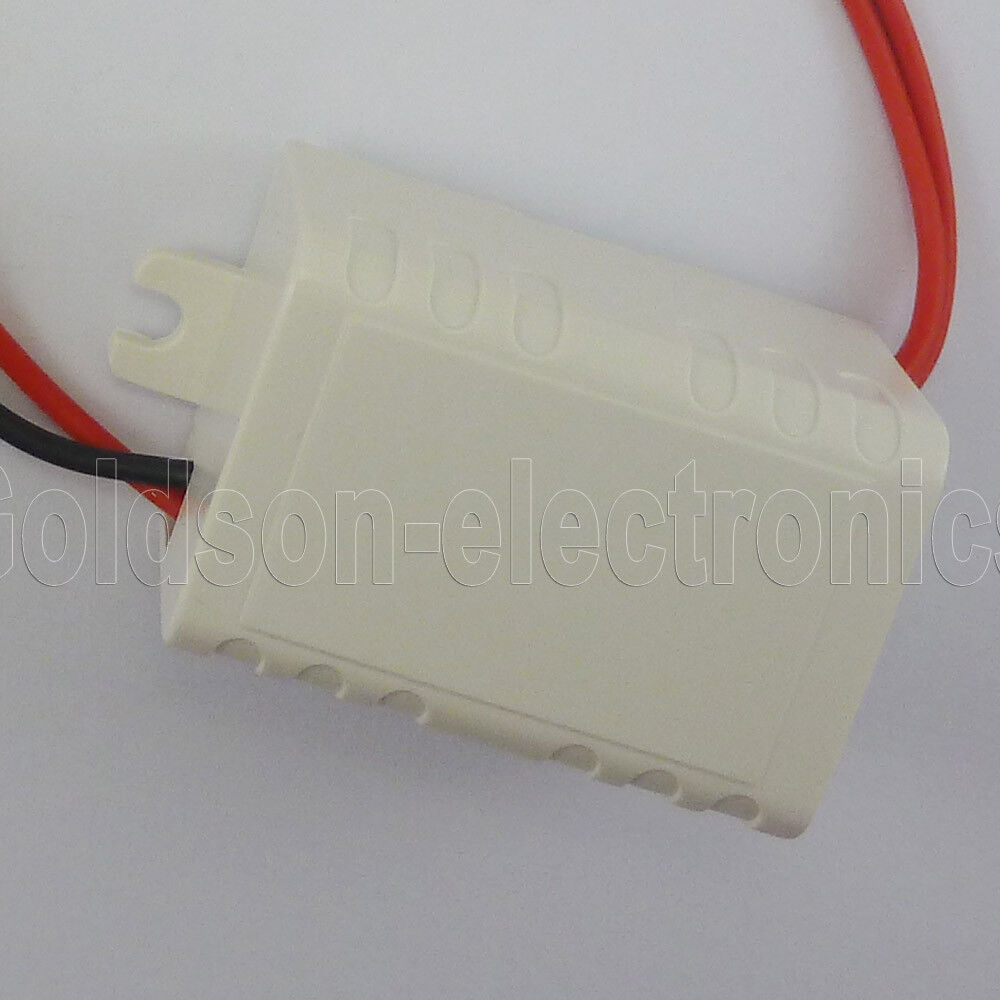

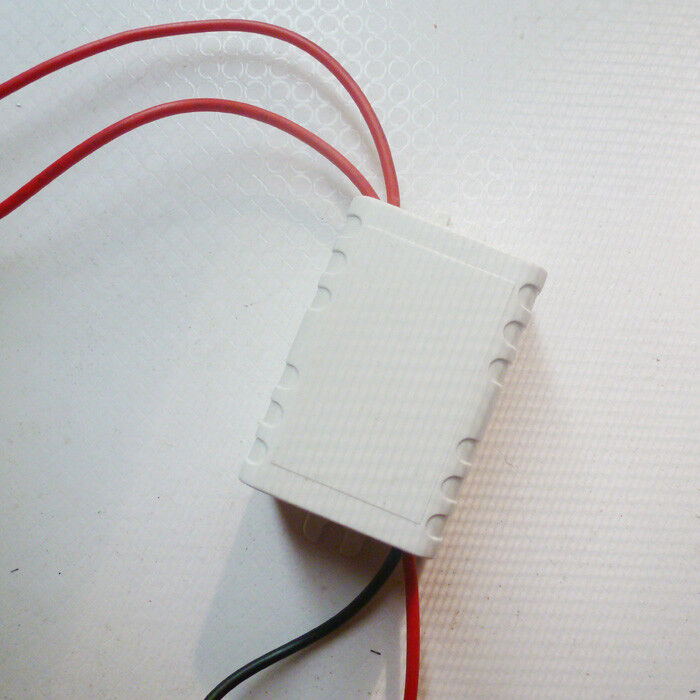

YC052 AC to DC AC 110V 220V to DC 5V Isolation Voltage Converter Adapter Power Supply
YC052 AC to DC AC 110V 220V to DC 5V Isolation Voltage Converter Adapter Power Supply
SKU:YC052
1000 in stock
Regular price
$1.99
Regular price
$13.48
Sale price
$1.99
Unit price
/
per
Couldn't load pickup availability
Share
AC to DC AC 110V 220V to DC 5V Isolation Voltage Converter Adapter Power Supply
Module No.:YC052
1 pcs AC-DC step-down 5V modules ;

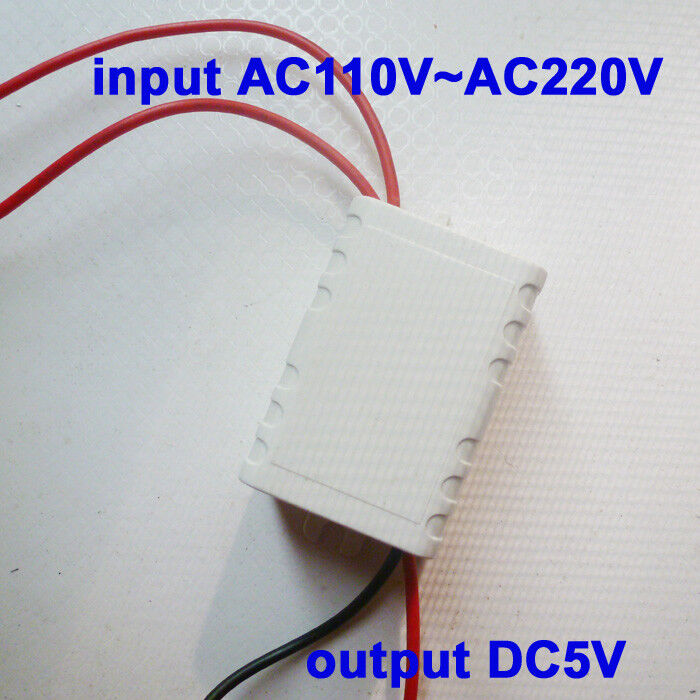

This power supply has a temperature protection, overcurrent protection and short circuit protection, AC90 ~ 240V wide voltage input, high and low voltage isolation, DC5V output , 431precise regulation.
1: Operating temperature: -20 to 60 ℃ , Relative humidity: 40 to 90% RH ;
2. Technical Requirements
2.1 Input characteristics
Input voltage range: 85 V ac to 265 V ac
Input Current: 0.0273 (AC110V) 0.014 (AC220V)
Input surge current: 20A
2.2 output characteristics
2.2.1 Output regulation characteristic
Output voltage range: 4.90 ~ 5.1V
Output Current Range: 0A to 500mA, the peak current of 800mA
2.2.2 Other output characteristics
Output power:. 3w maximum 3.5W
Output efficiency: 85%
Switching Overshoot: 10%
Output Rise Time: 100ma
2.3 Protection
Output Over Power protection: recovery characteristics: lock, after re-starting recovery
Short circuit protection: recovery characteristics: lock, after re-starting recovery
Temperature protection: recovery characteristics: lock, after re-starting recovery
Overcurrent protection: Yes Recovery features: lock, after re-starting recovery
3 Dimensions
Shell volume: length X width X height = 4X2.9X2.3 (cm) .
Weight : 0.02g
4: reliability requirements
Environment 25 ℃, at 80% load MTBF more than 16,000 hours
