AC220V Security WIRELESS HOUSE OFFICE BURGLAR INTRUDER Door Sensor Relay

AC220V Security WIRELESS HOUSE OFFICE BURGLAR INTRUDER Door Sensor Relay

TB094*1+AK022*1

1000 in stock

$20.98
$20.98 $20.98
Sale Sold out
Title :  AC220V Security WIRELESS HOUSE OFFICE BURGLAR INTRUDER Door Sensor Relay .

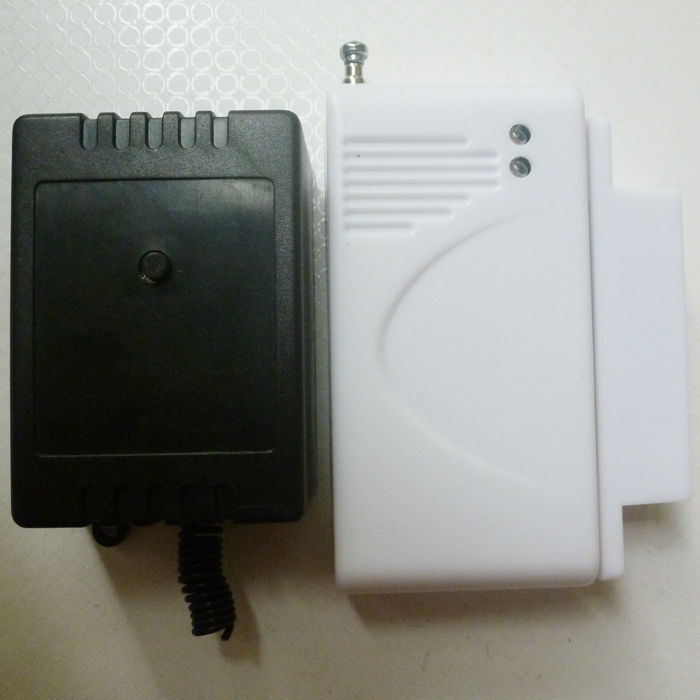

Package inlcuded:

1 PCS Wireless Sensor ;
1 PCS AC220V 1 channel relay receiver;


Receiver :

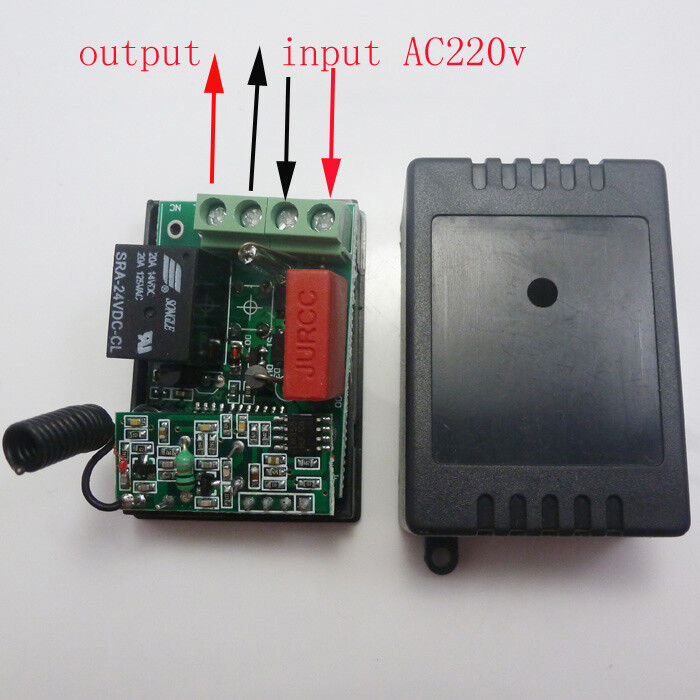

Connection :



Technical indicators:

1.operating voltage: AC220V ;

Operating frequency: 433.92MHz;
Receiver sensitivity:-95dB;
Encoding: Receiver Recording;
Momentary / Latch / Toggle selectable (defult is Momentary , Latch Mode need 2 buttons handsender );
Output mode : Relay switch;
Receiver size: 62 * 35 * 22 mm;
Max load : 500W;

Advantage :
1: Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 remotes to re-learn;

Work mode (programmable )
singnal Inter-locking (Latch)
singnal Self-locking (Toggle)
singnal Non-locking (Momentary is defult )

Program steps :
1: keep pressing learning key on the receiver controller ,
LED turn on after 2 second , then turn off after 4 second, then the receiver controller enter programming state , but not release the finger , still keep pressing the learning button ,
LED blink once after 2 second , release the finger on learing key , it is Momentary mode ,
or still keep pressing learing key ,
LED blink twice after 2 second , release the finger on learing key , it is Toggle mode ,
or still keep pressing learing key ,
LED blink 3 times after 2 second , release the finger on learing key , it is Latch mode ,

Learning method and steps

Keep pressing learnig key on receiver controller board , LED turn on after 2 seconds , release the finger on learning key , press the key on remote , work state LED blink 3 times , it means learnig successfully ;

Clear the deposit information

Keep pressing learnig key on receiver controller board , LED turn on after 2 seconds , then turn off after 4 seconds , it means clearing successfully .

Relay mode :
Normally close (NC ) ;
Normally open (NO ) ;
  • Normally-open (NO) contacts connect the circuit when the relay is activated; the circuit is disconnected when the relay is inactive. It is also called a Form A contact or "make" contact. NO contacts may also be distinguished as "early-make" or NOEM, which means that the contacts close before the button or switch is fully engaged.
  • Normally-closed (NC) contacts disconnect the circuit when the relay is activated; the circuit is connected when the relay is inactive. It is also called a Form B contact or "break" contact. NC contacts may also be distinguished as "late-break" or NCLB, which means that the contacts stay closed until the button or switch is fully disengaged.

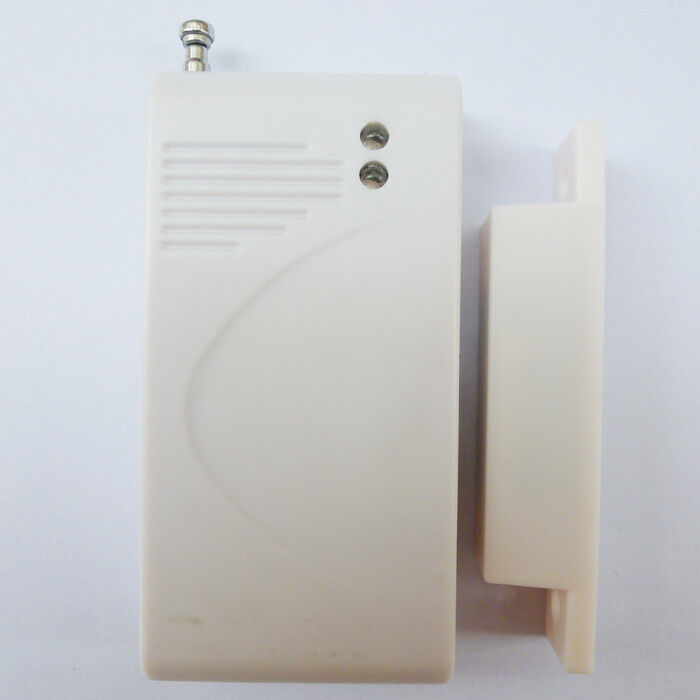

433Mhz Wireless Door / Windown Sensor



1)Feature:

It will work with most standard security system. Pull out the antenna of the magnetic detecto: when the door or window is opened from the closed position, LED 1 will turn to red for 2 seconds, the magnetic detector will be triggered and will send alarming signal to the main unit. Indication of low battery: When the voltage of battery is less than 7.5V, LED 2 will straightly turn on red light. At this time, you nee to immediately change the battery.



Launch Distance:  50-80 meters (open place)
Operating Voltage: 12V
Operating Frequency: 433MHz.
Encoding: EV1527 Fixed Code IC ;
Size: 71 x 36 x 15(mm) / 2.8 x 1.4 x 0.6(inch )
Oscillation resistance: 470K ;
Power supply: 12V 23A Battery (the battery is not included ) ;

2)Package:

1*wireless door sensor
