AD22B04 12V 4ch MT8870 DTMF Tone Signal Decoder Relay Phone Remote Control PLC

SKU:AD22B04+AE11A04

1000 in stock

$39.99

~~$39.99~~ $39.99

Sale Sold out

Quantity

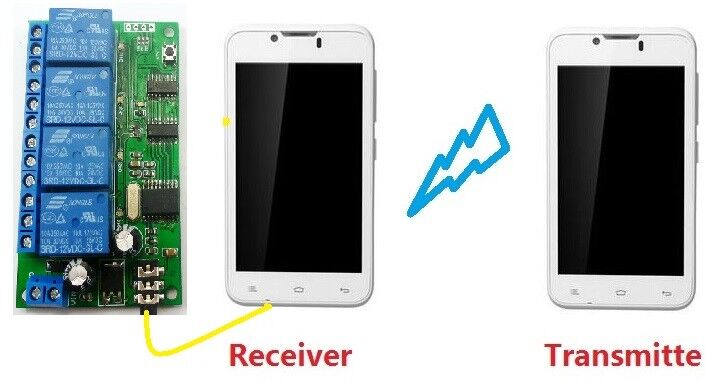

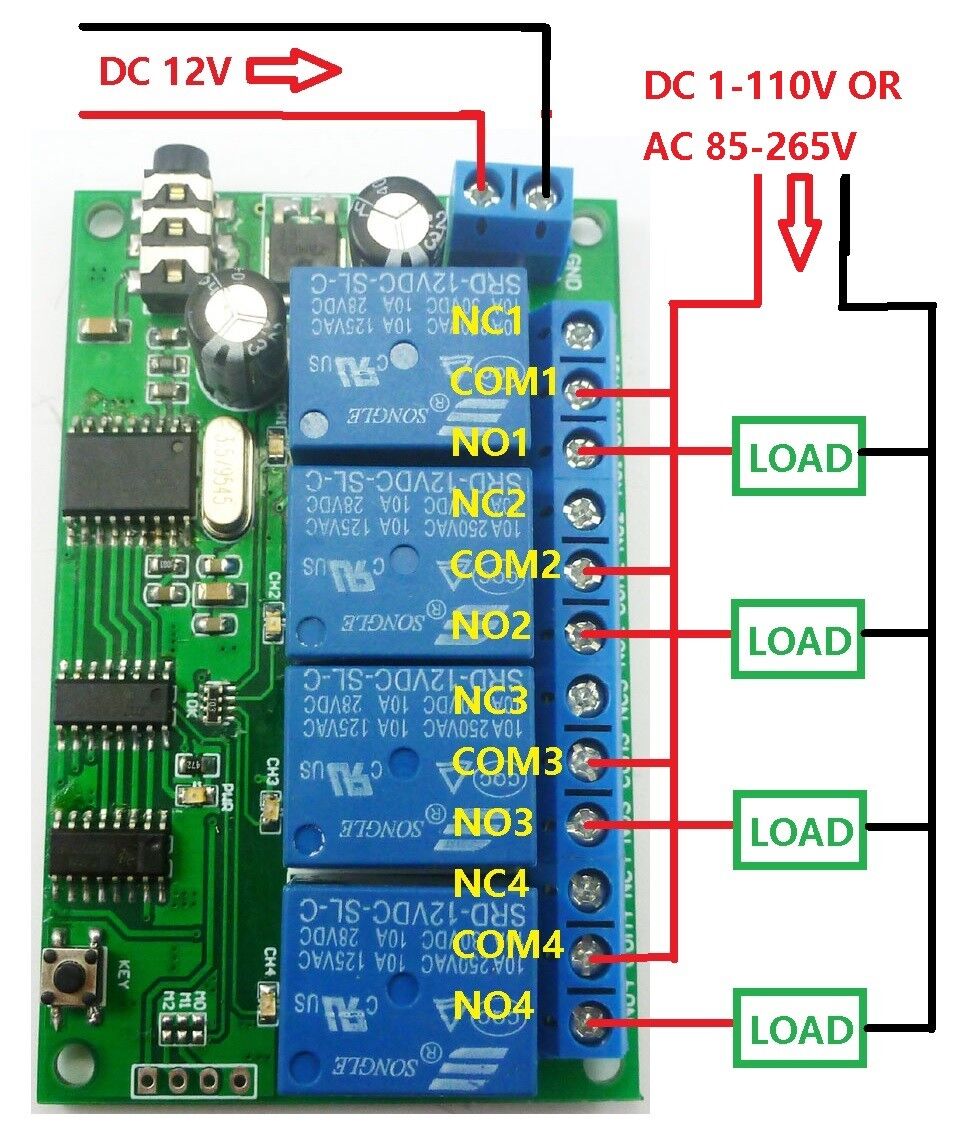

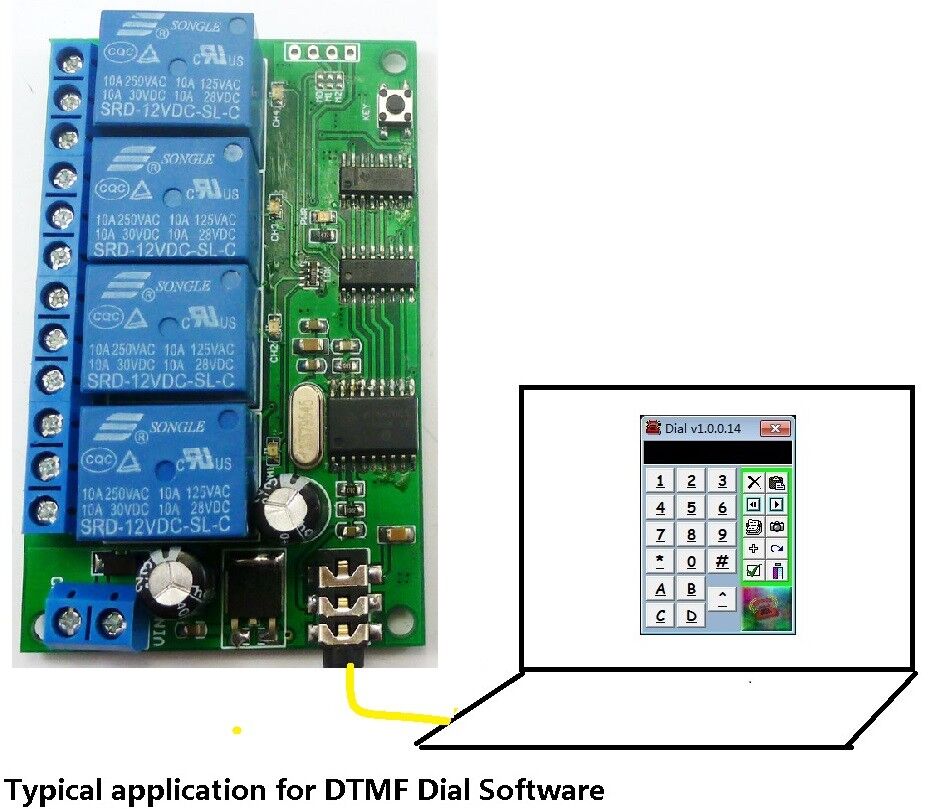

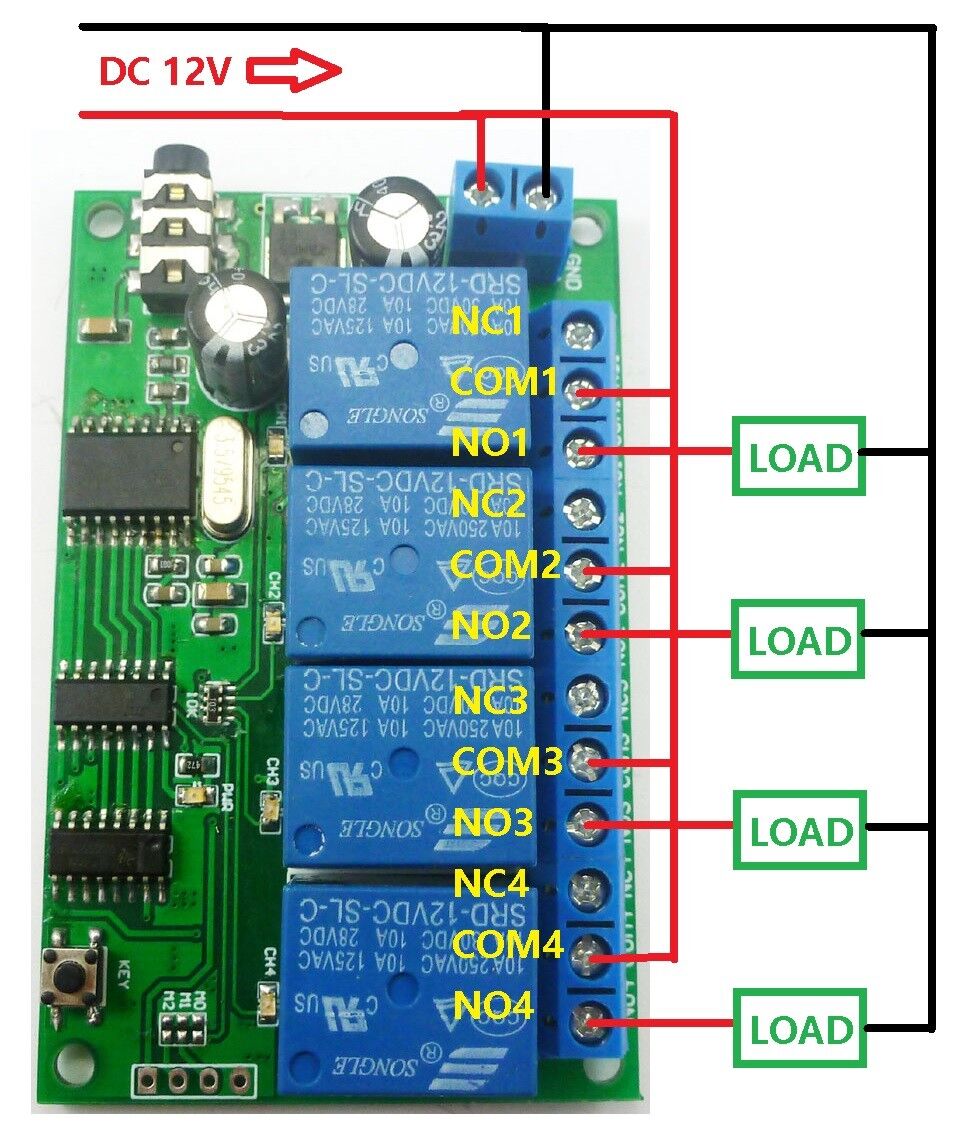

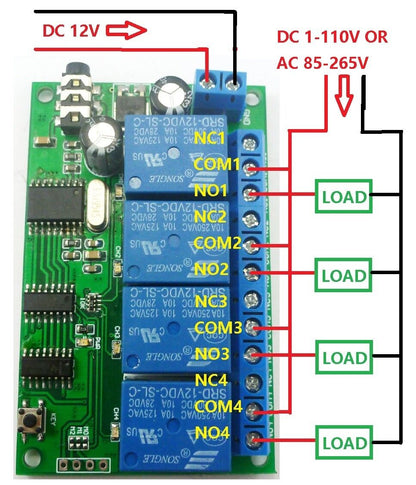

Control 4 Channel DC 12V electrical equipment: LED / Automotive electronics

General electrical equipment control:DC 1-110V or AC 85-265V

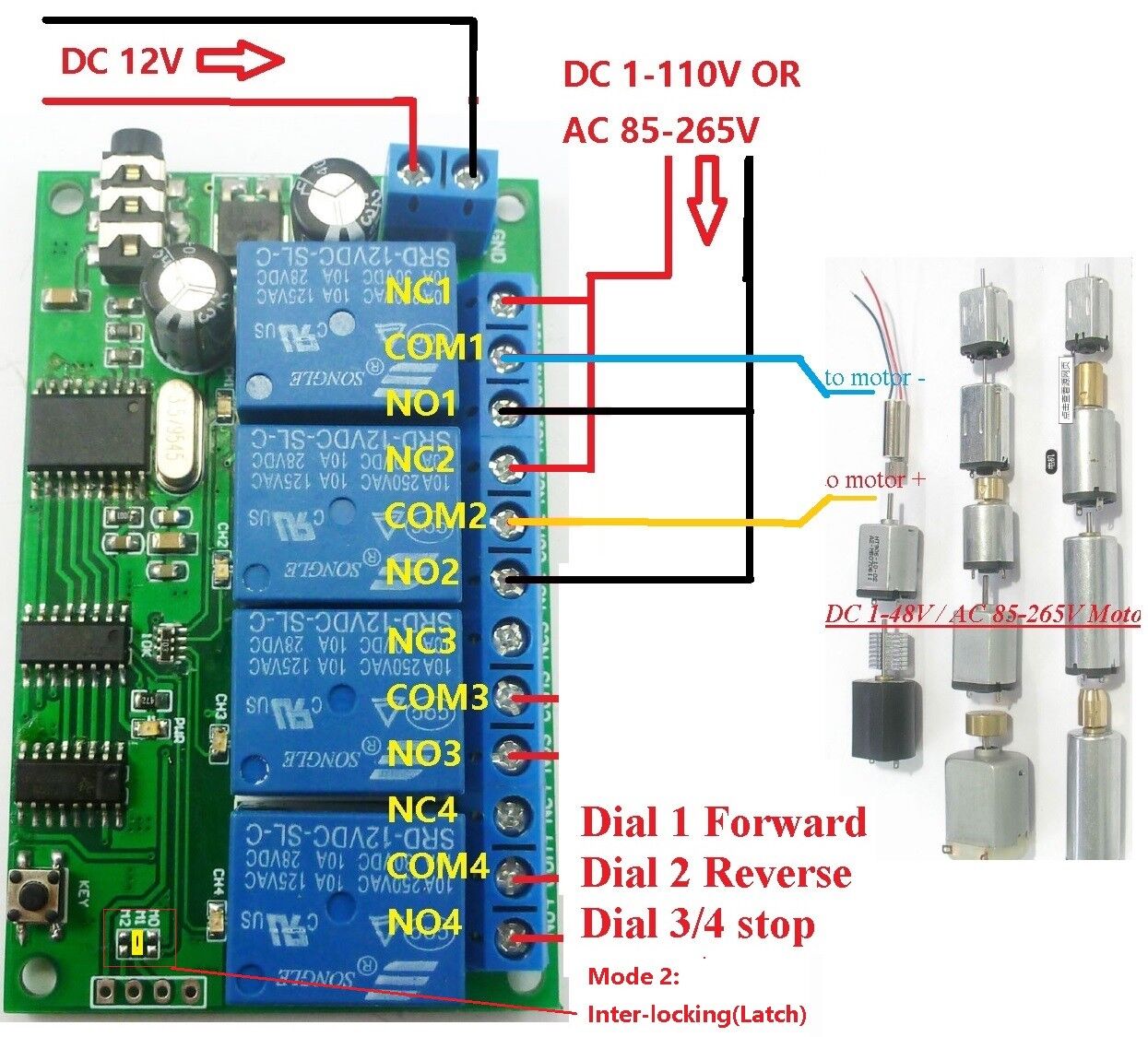

All kinds of motor reversing control: DC 1-48V or AC 85-265V

Product Name: AD22B04 DC 12V 4ch MT8870 DTMF Tone Signal Decoder Phone Voice Remote Control

Packing list :

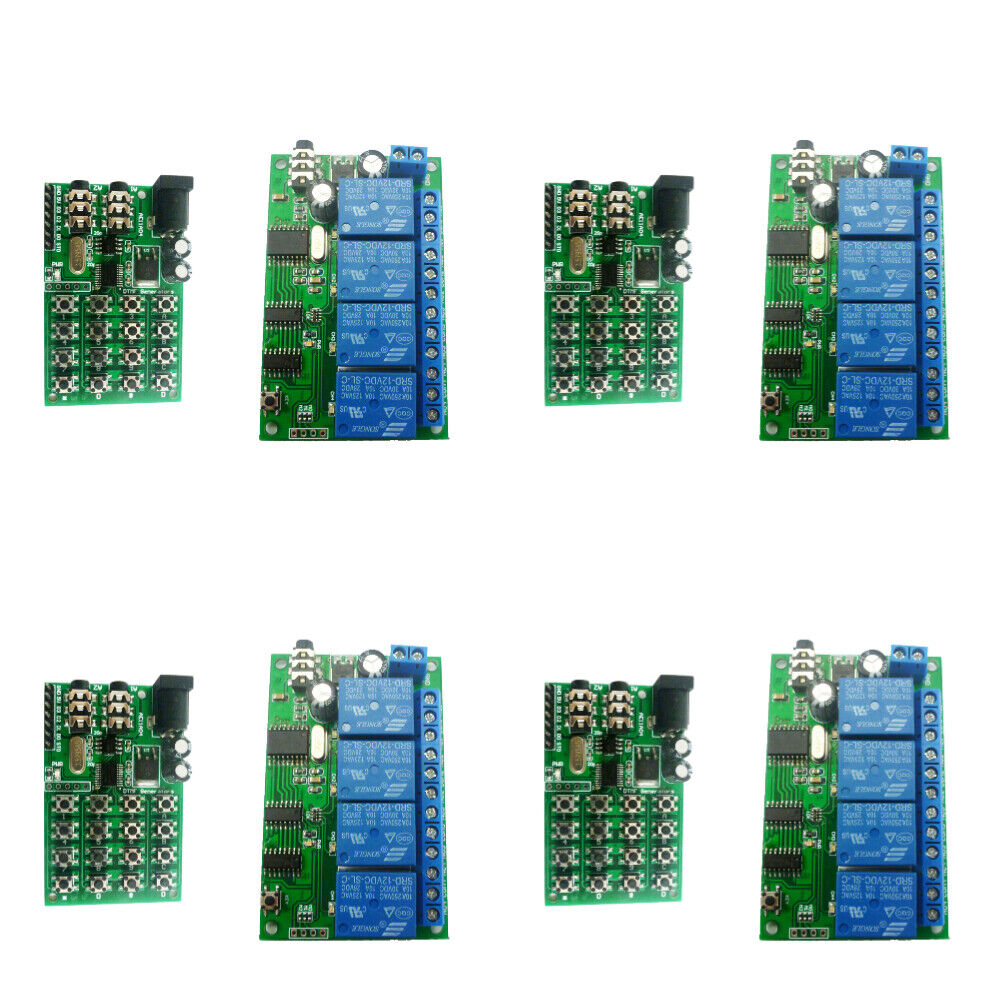

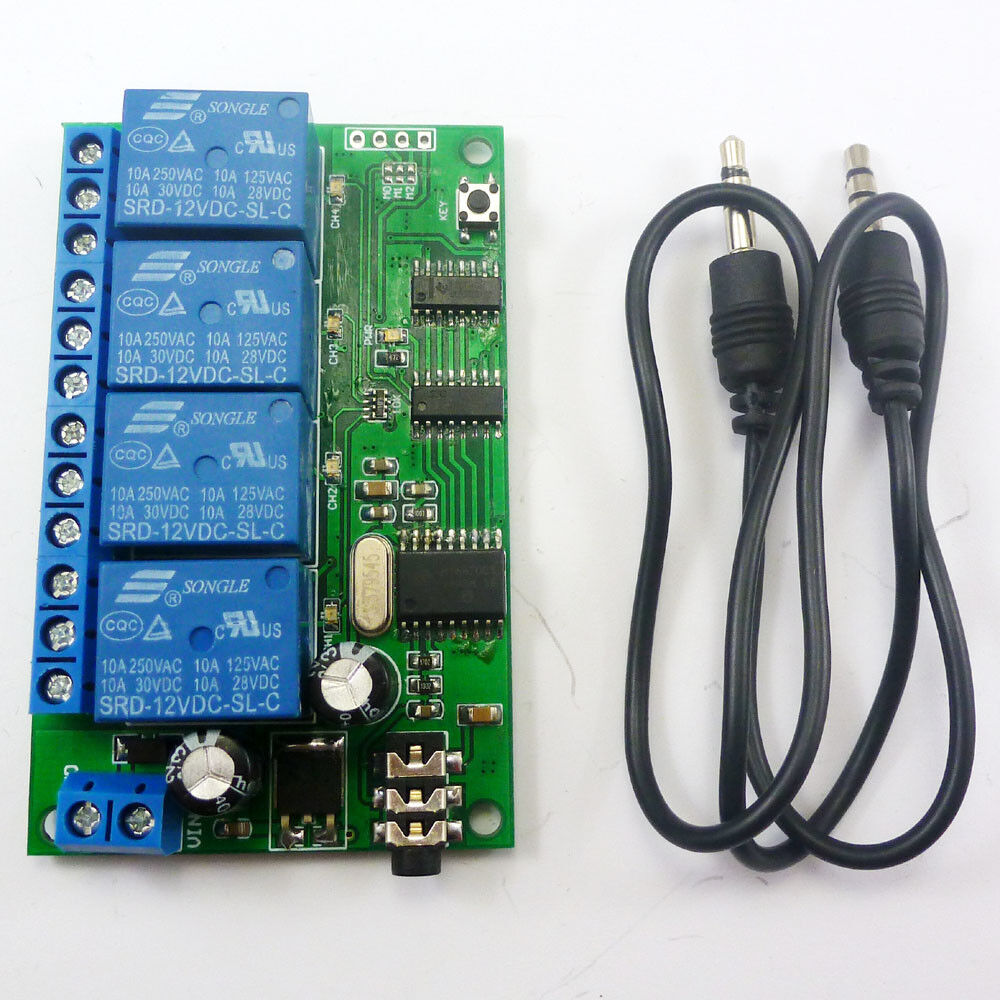

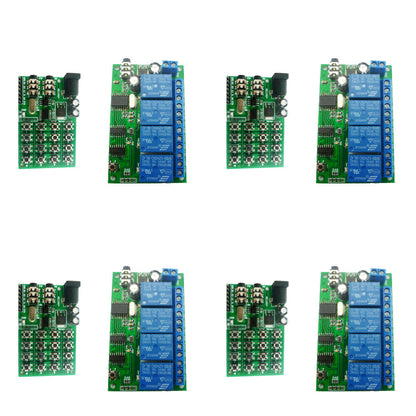

1 PCS AD22B04 DC 12V 4 Channel DTMF Decoder Relay Board ;

1 PCS Male to Male audio wire (3.5mm jack );

Functional characteristics:

1 Product model: AD22B04

2.working voltage DC 12V, with reverse polarity protection

3.Operating Current: Standby 11-13 MA, 1 relay "open" 44MA, 2 relays "Open" 77MA, 3 relays "Open" 110MA, 4 relays"open" 140MA

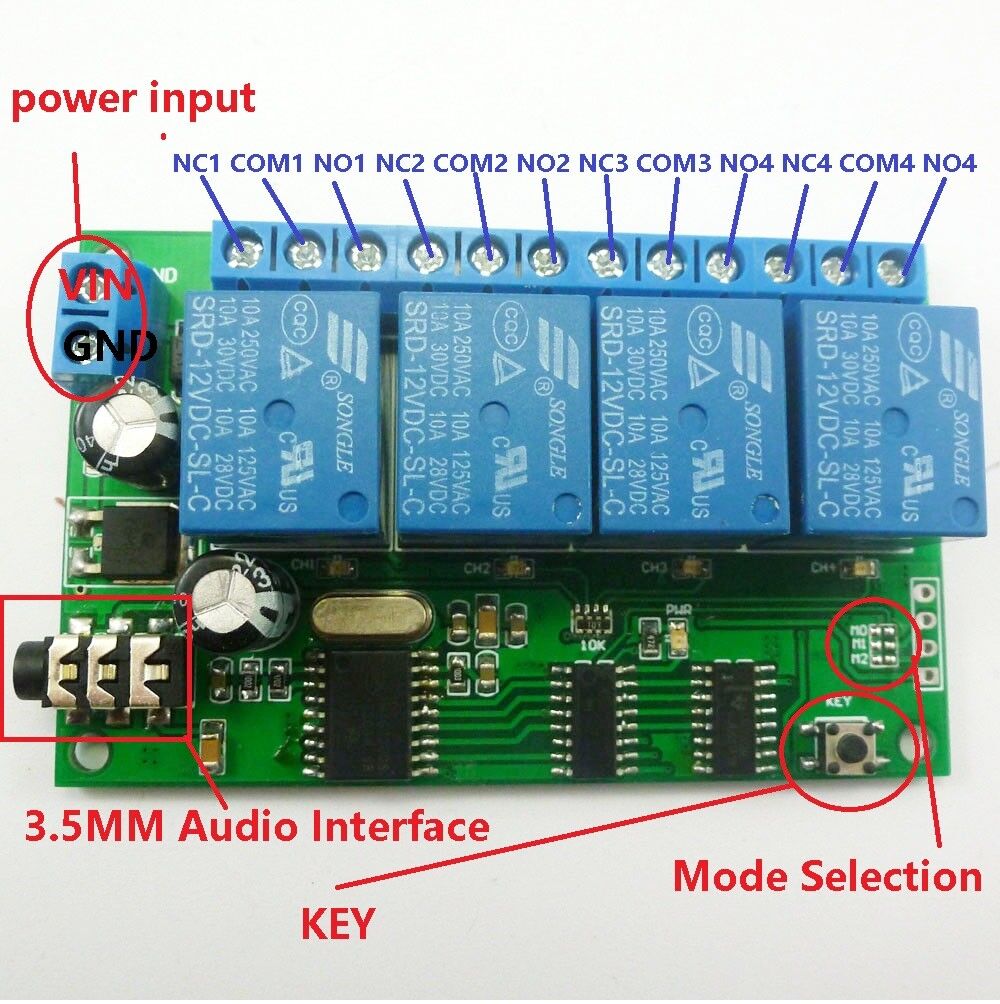

4 eight modes of operation:Non-locking (Momentary ), self-locking (Toggle),inter-locking (Latch), 5/20/60/120/250-second delay

5 The default control command is 1/2/3/4.Example: Dial 1 to control relay 1, dial 2 to control relay 2, dial 3 to control relay 3, dial 4 to control relay 4; control commands can be changed any 1-4 bits. (For more details, refer to " AD22B04_4 channel DTMF controller commands setting manual ").

6 Size: 50 * 80 * 19.5mm

7 Weight: 59 grams

8 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Typical applications:

Home lighting system

DTMF Remote control switch

Smart Home / Home Automation

DC 12V LED lighting

Fluorescent lamp

12V DC Motor

Fluorescent lamp

Automotive electronics

Industrial automation and control

Description:

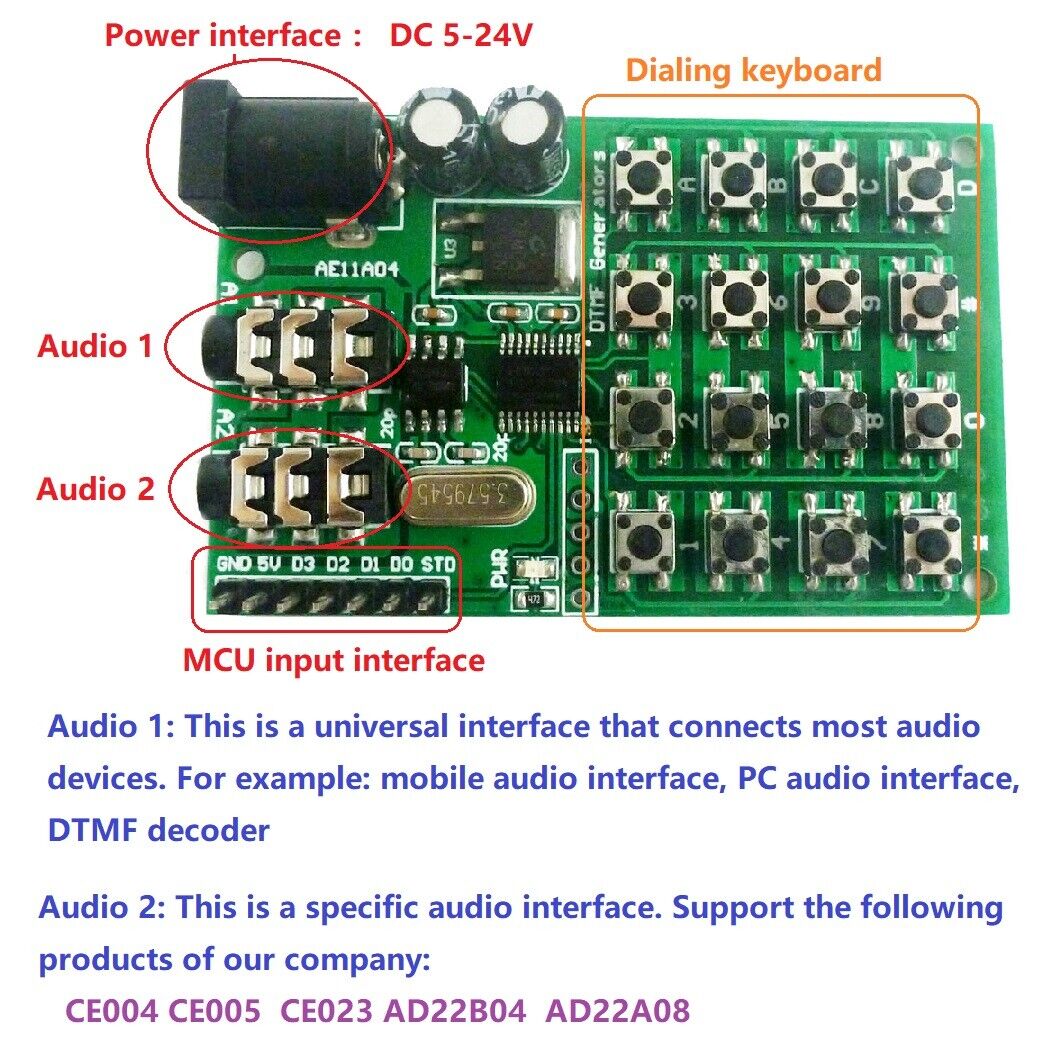

Operating Voltage : 5-24VDC

Working current : 6-8MA
Power interface : 2.1mm x 5.5mm Female Male DC Power Plug
Audio interface : 2x 3.5mm audio jack socket
MCU input interface : 7x 2.54MM pin header,GND 5V D3 D2 D1 D0 STD

Size : 63*40*13mm
Weight : 16g

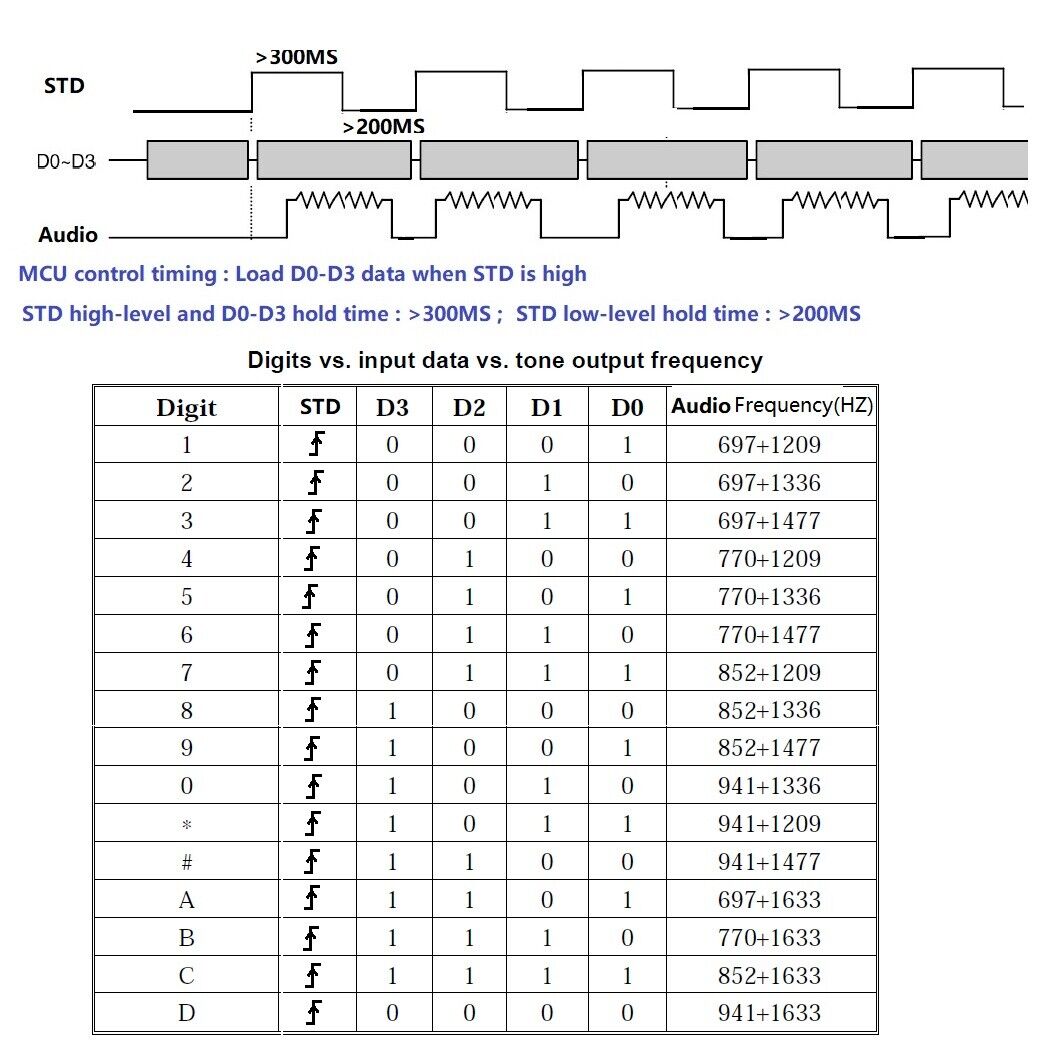

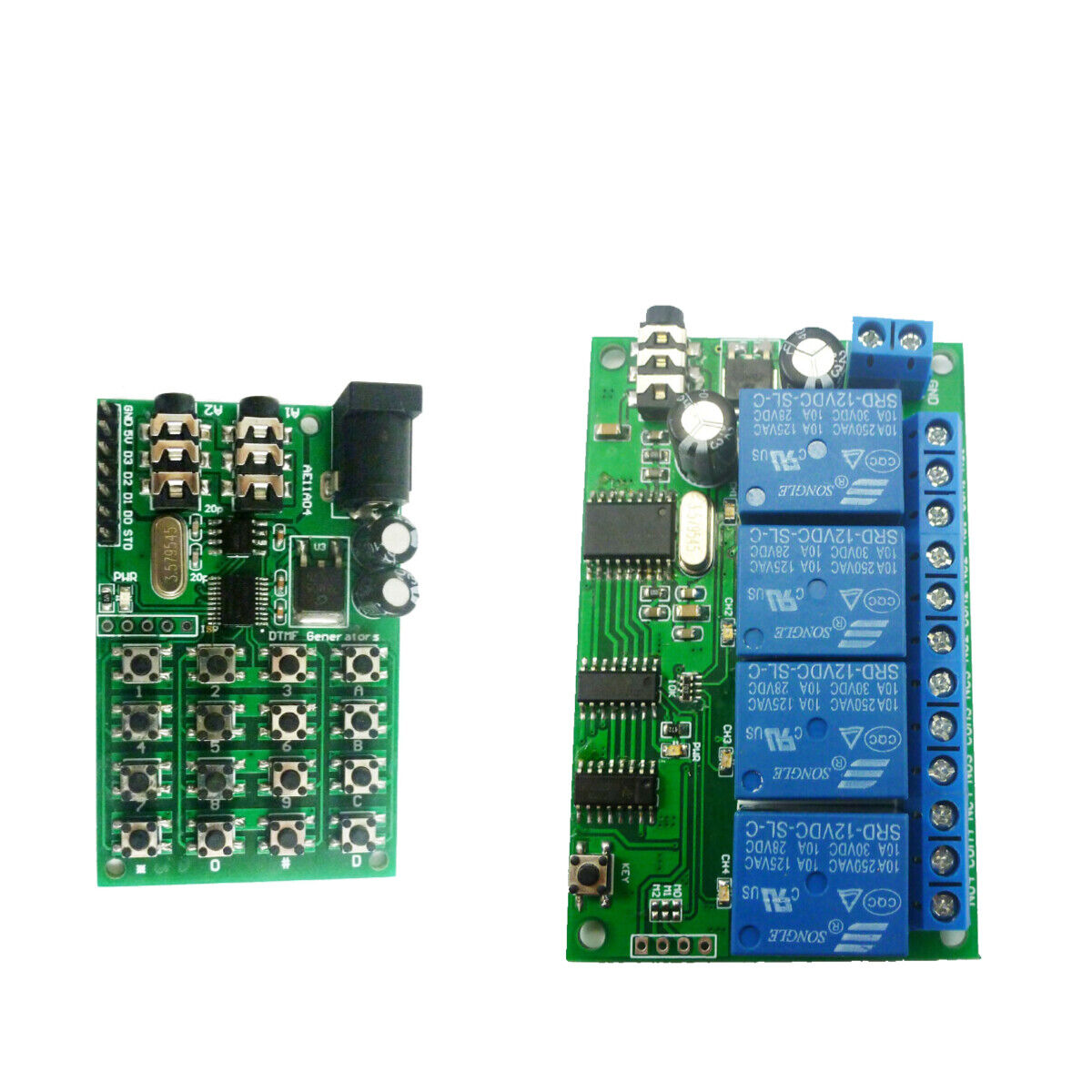

The AE11A04 DTMF tone generators are designed

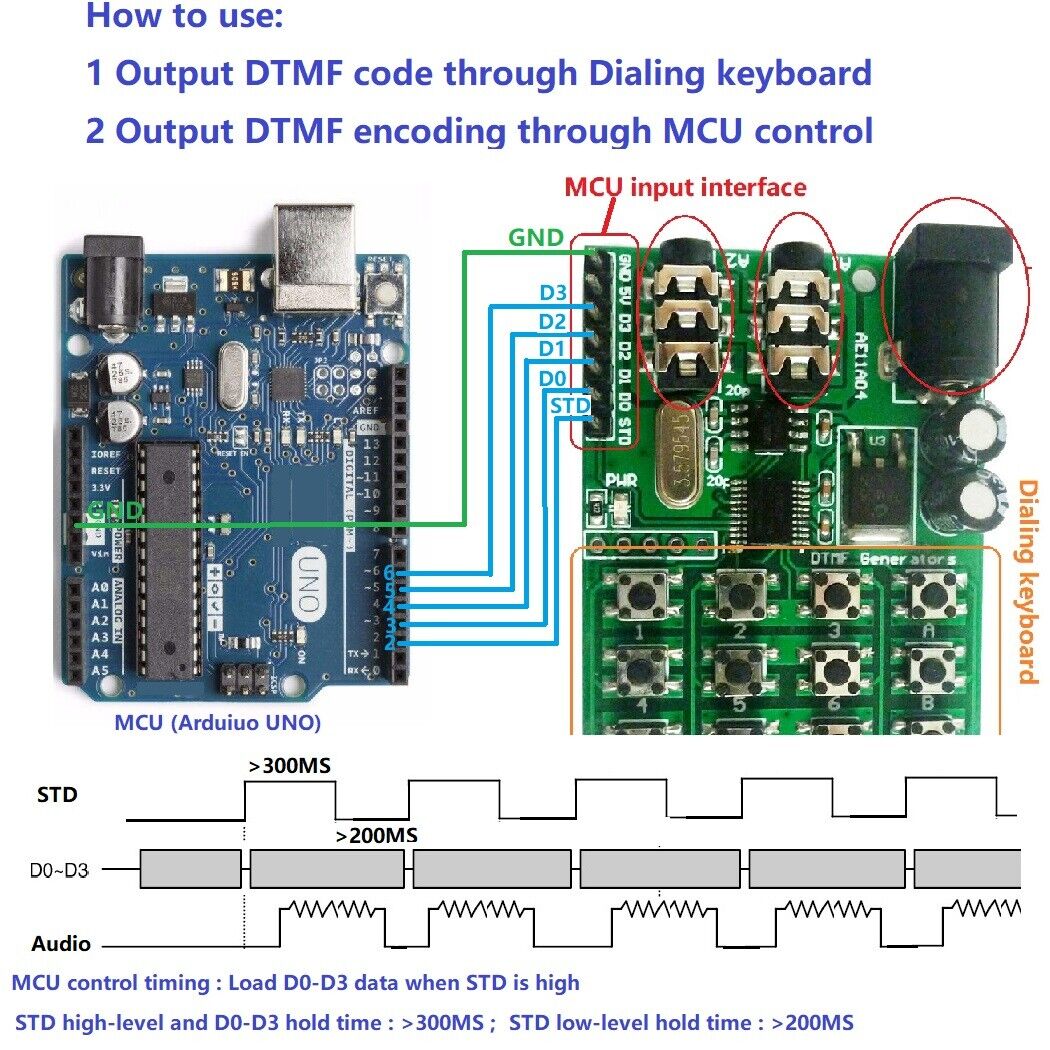

for Dialing keyboard AND MCU interfaces. They can be instructed by a
MCU(OR Dialing keyboard ) to generate 16 dual tones from the Audio 1/2 . 16 dual tones is ''1234567890#*ABCD''

For more information, please contact us

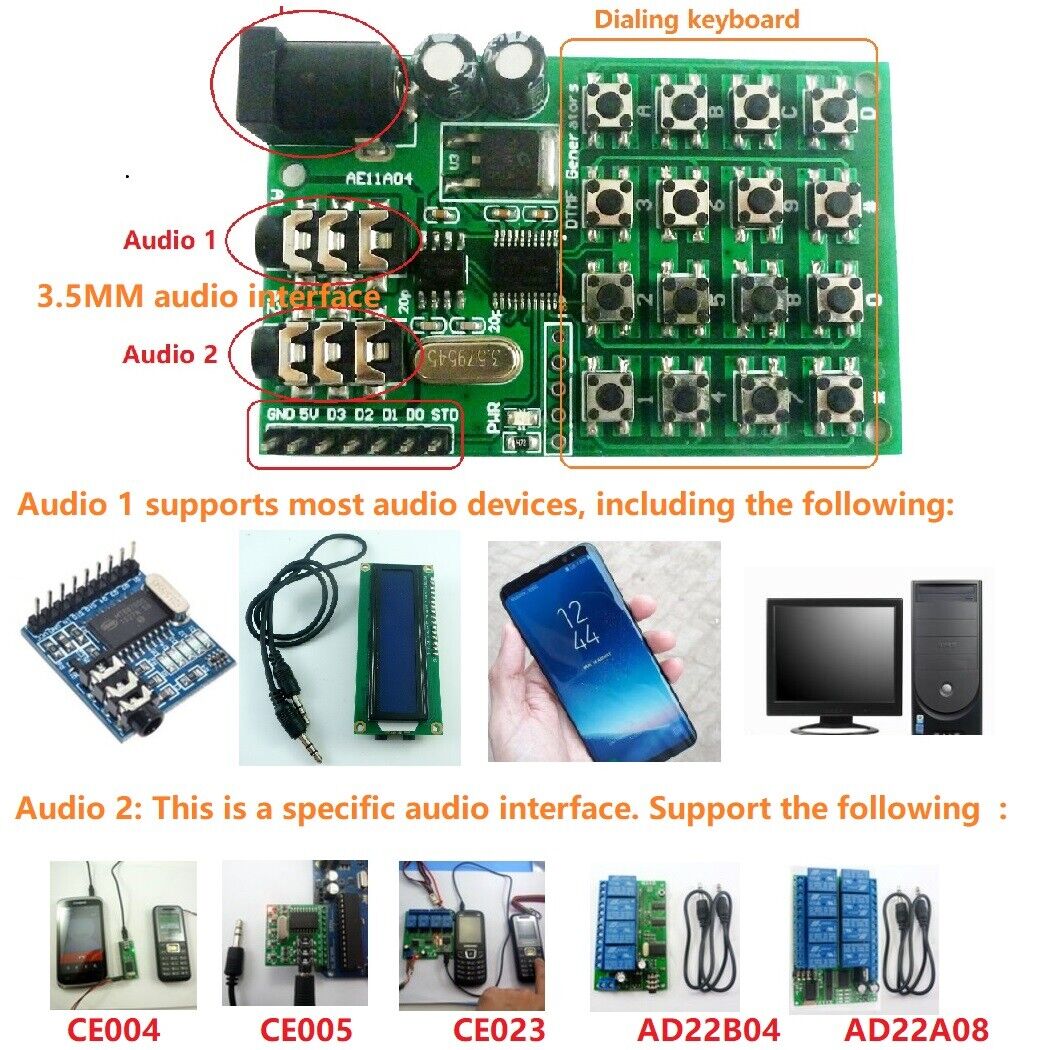

Audio 1: This is a universal interface that connects most audio devices. For example: mobile audio interface, PC audio interface, DTMF decoder
Audio 2: This is a specific audio interface. Support the following products of our company: CE004 CE005 CE023 AD22B04 AD22A08
