AD22B04 12V 4ch MT8870 DTMF Tone Signal Decoder Relay Phone Remote Control PLC

Name: AD22B04 12V 4ch MT8870 DTMF Tone Signal Decoder Relay Phone Remote Control PLC
Brand: Eletechsup Original Factory Official Store
SKU: AD22B04
Price: 9.99 USD
Availability: InStock

SKU:AD22B04

1000 in stock

$9.99

~~$32.98~~ $9.99

Sale Sold out

Quantity

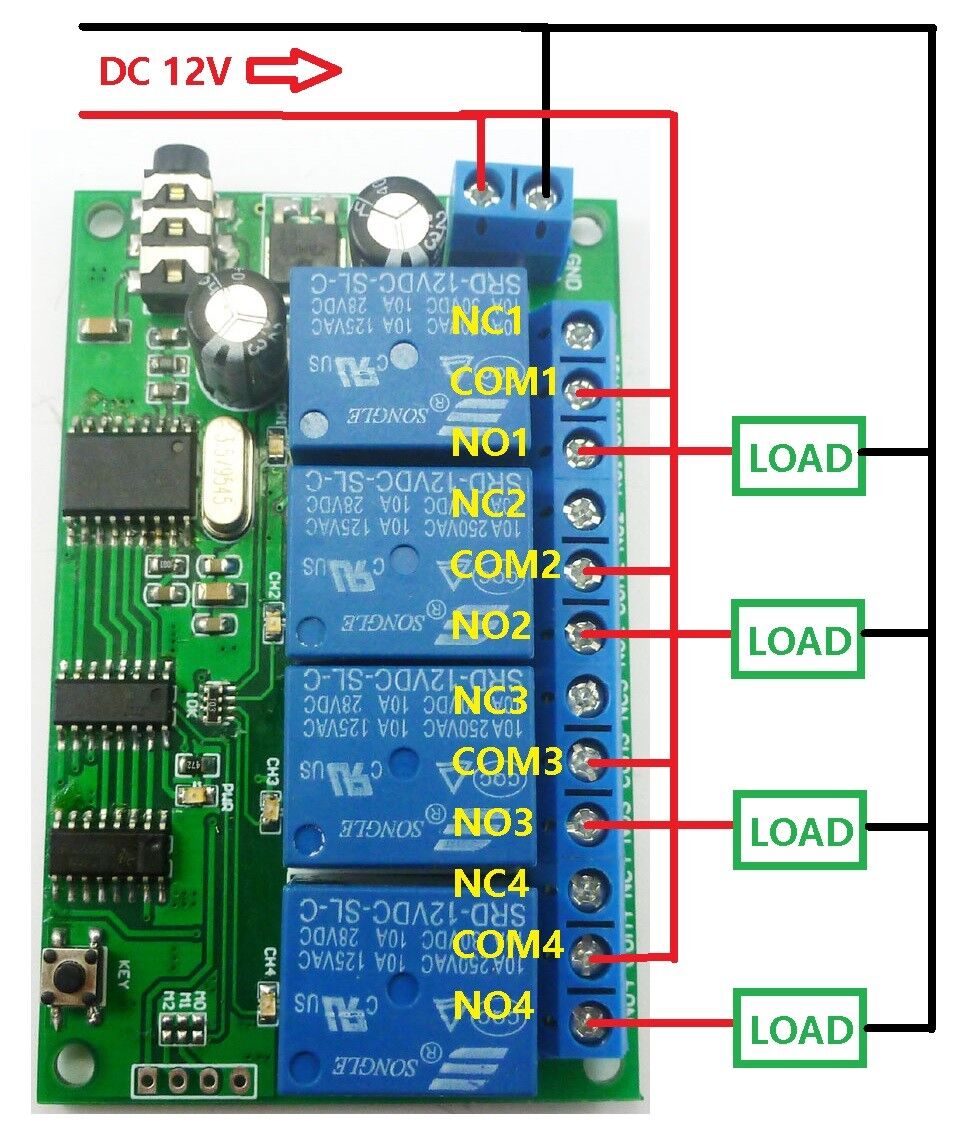

Control 4 Channel DC 12V electrical equipment: LED / Automotive electronics

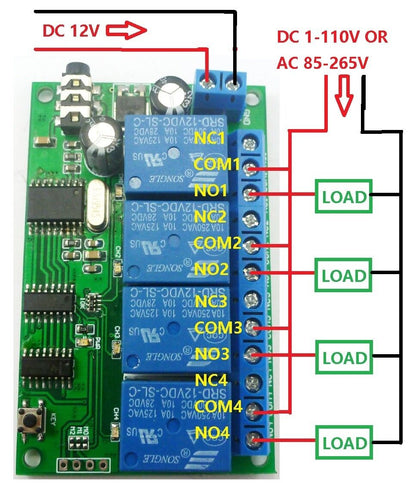

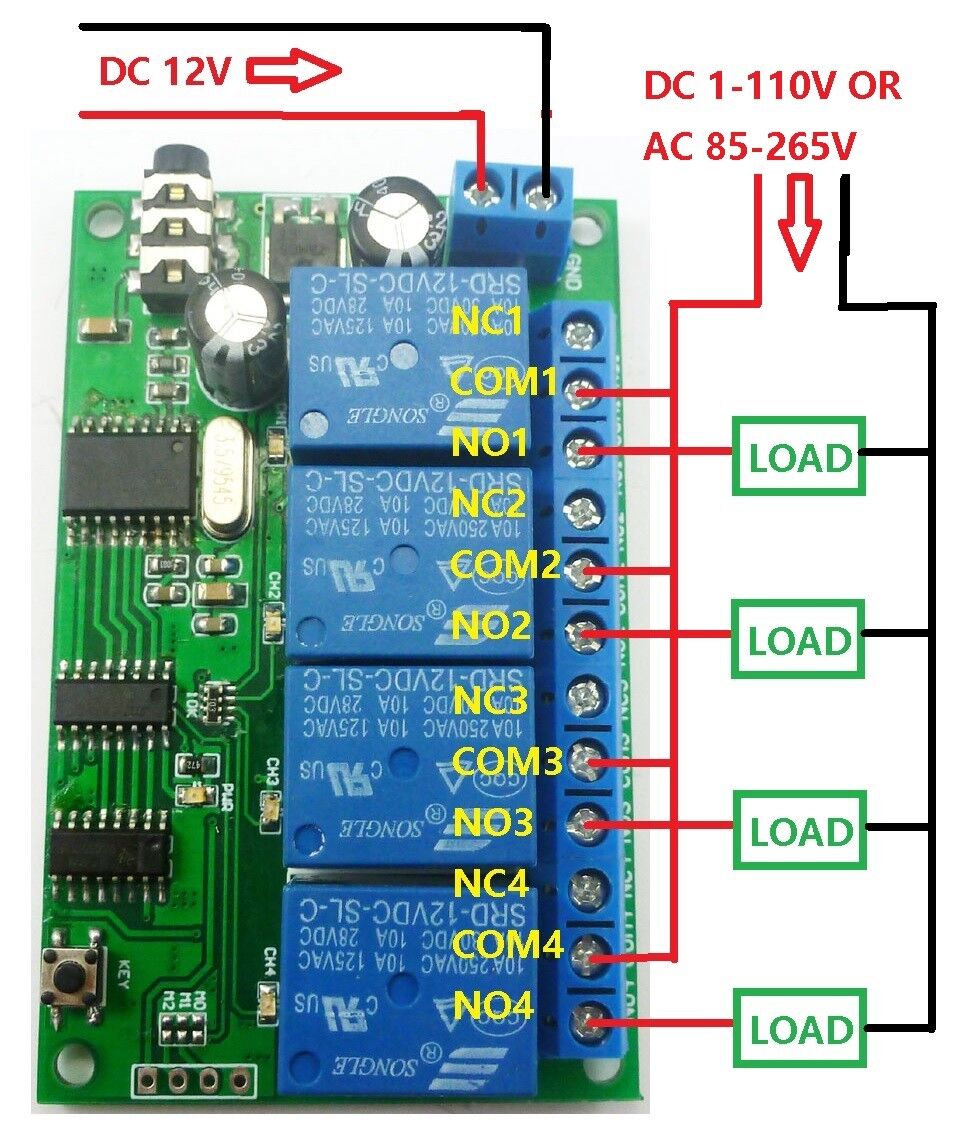

General electrical equipment control:DC 1-110V or AC 85-265V

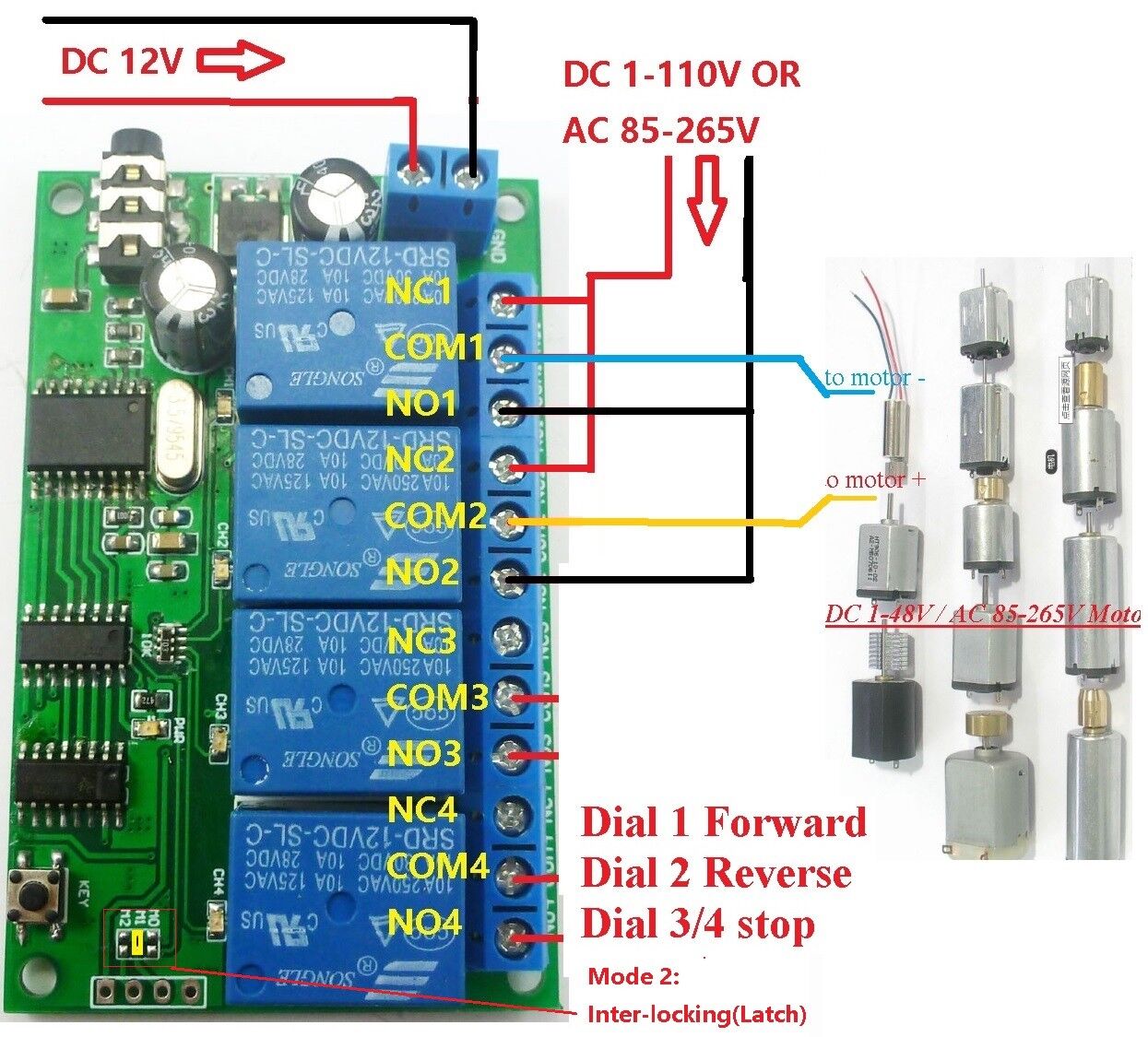

All kinds of motor reversing control: DC 1-48V or AC 85-265V

Product Name: AD22B04 DC 12V 4ch MT8870 DTMF Tone Signal Decoder Phone Voice Remote Control

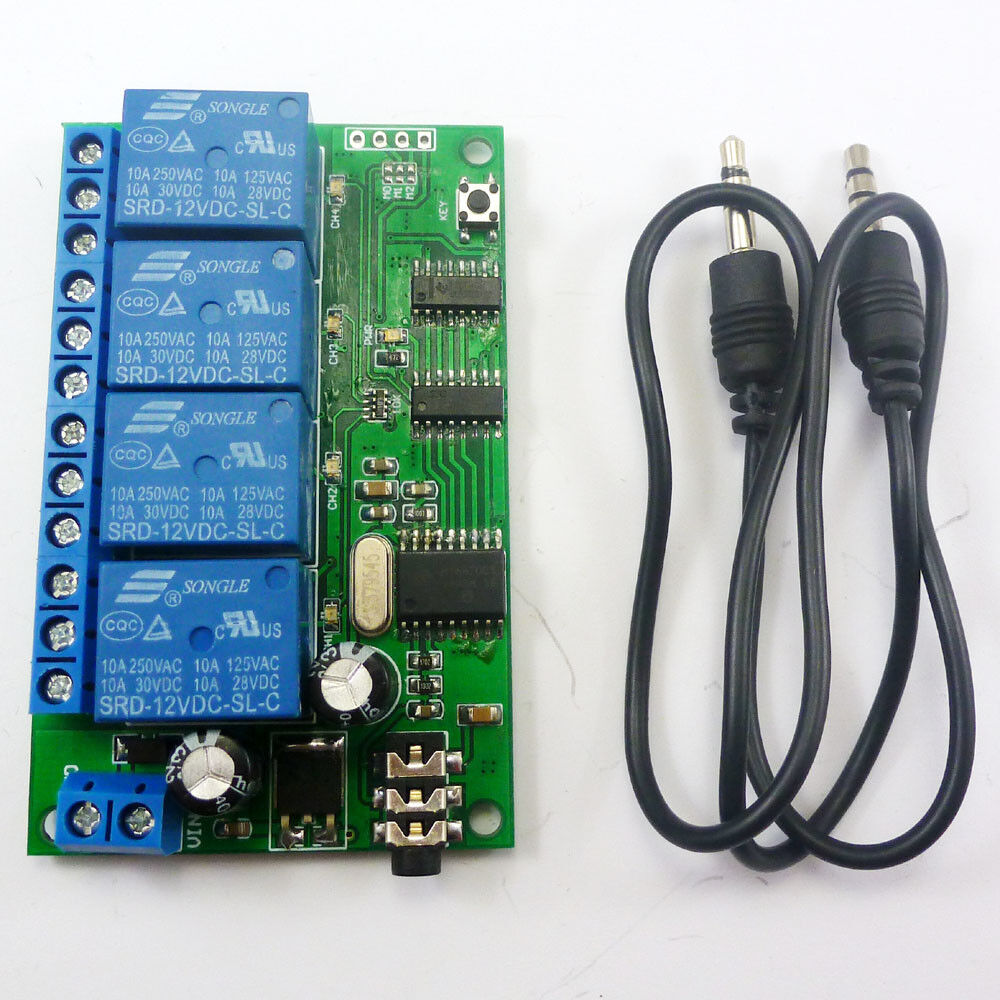

Packing list :

1 PCS AD22B04 DC 12V 4 Channel DTMF Decoder Relay Board ;

1 PCS Male to Male audio wire (3.5mm jack );

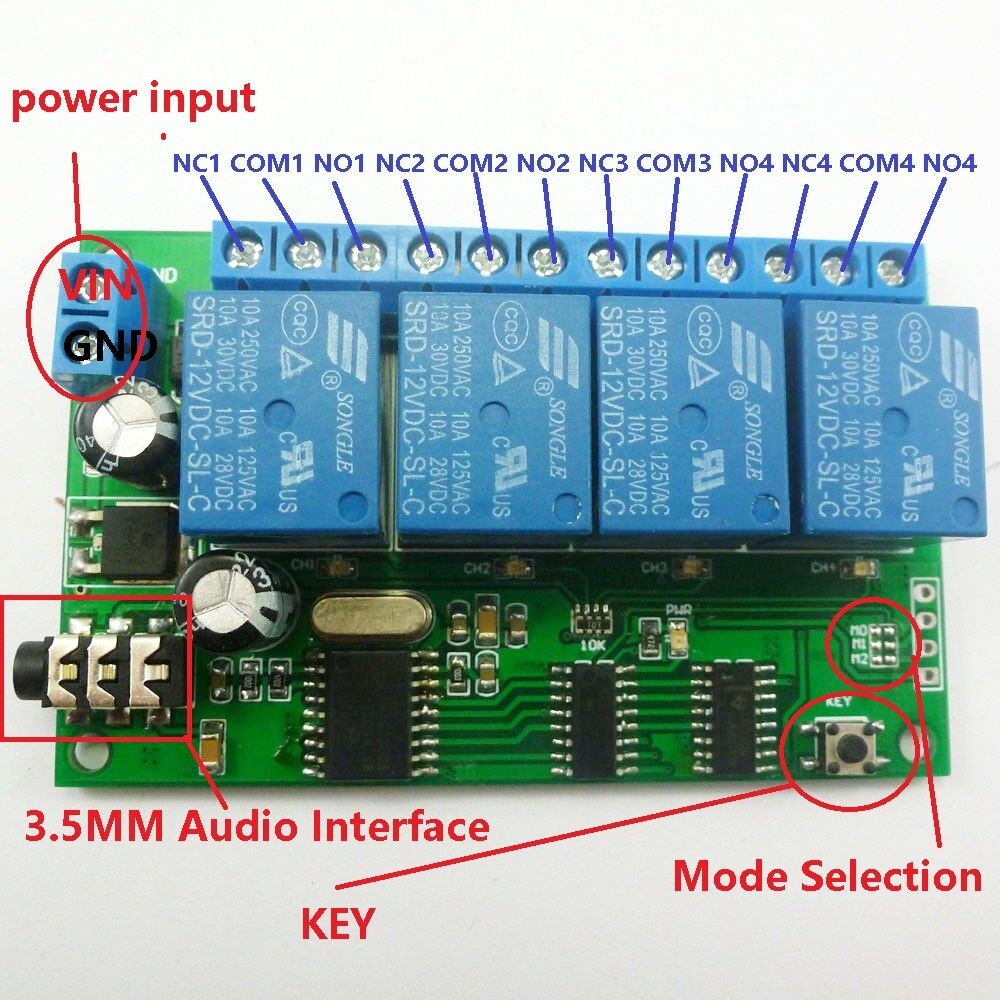

Functional characteristics:

1 Product model: AD22B04

2.working voltage DC 12V, with reverse polarity protection

3.Operating Current: Standby 11-13 MA, 1 relay "open" 44MA, 2 relays "Open" 77MA, 3 relays "Open" 110MA, 4 relays"open" 140MA

4 eight modes of operation:Non-locking (Momentary ), self-locking (Toggle),inter-locking (Latch), 5/20/60/120/250-second delay

5 The default control command is 1/2/3/4.Example: Dial 1 to control relay 1, dial 2 to control relay 2, dial 3 to control relay 3, dial 4 to control relay 4; control commands can be changed any 1-4 bits. (For more details, refer to " AD22B04_4 channel DTMF controller commands setting manual ").

6 Size: 50 * 80 * 19.5mm

7 Weight: 59 grams

8 Maximum load: 10A / 250VAC, 10A / 125VAC, 10A / 30VDC, 10A / 28VDC, 10A / 12VDC

Typical applications:

Home lighting system

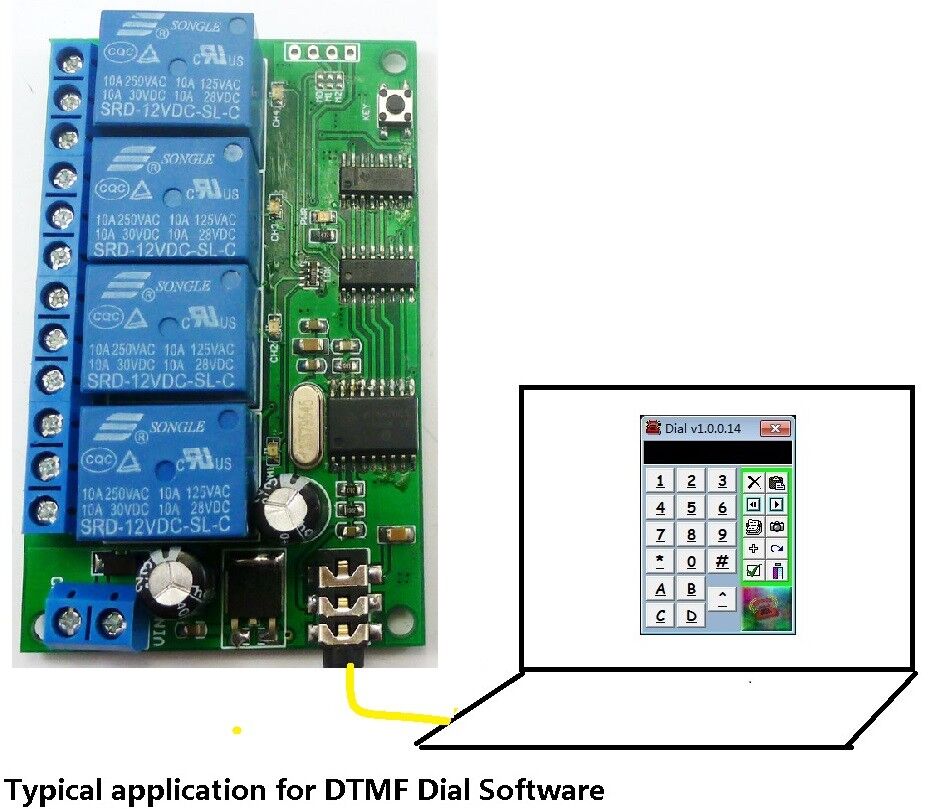

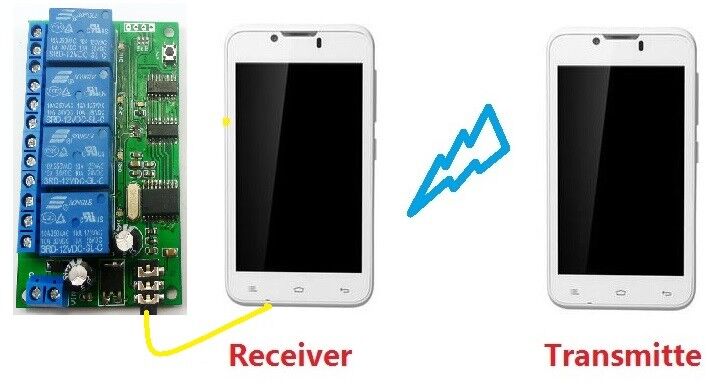

DTMF Remote control switch

Smart Home / Home Automation

DC 12V LED lighting

Fluorescent lamp

12V DC Motor

Fluorescent lamp

Automotive electronics
