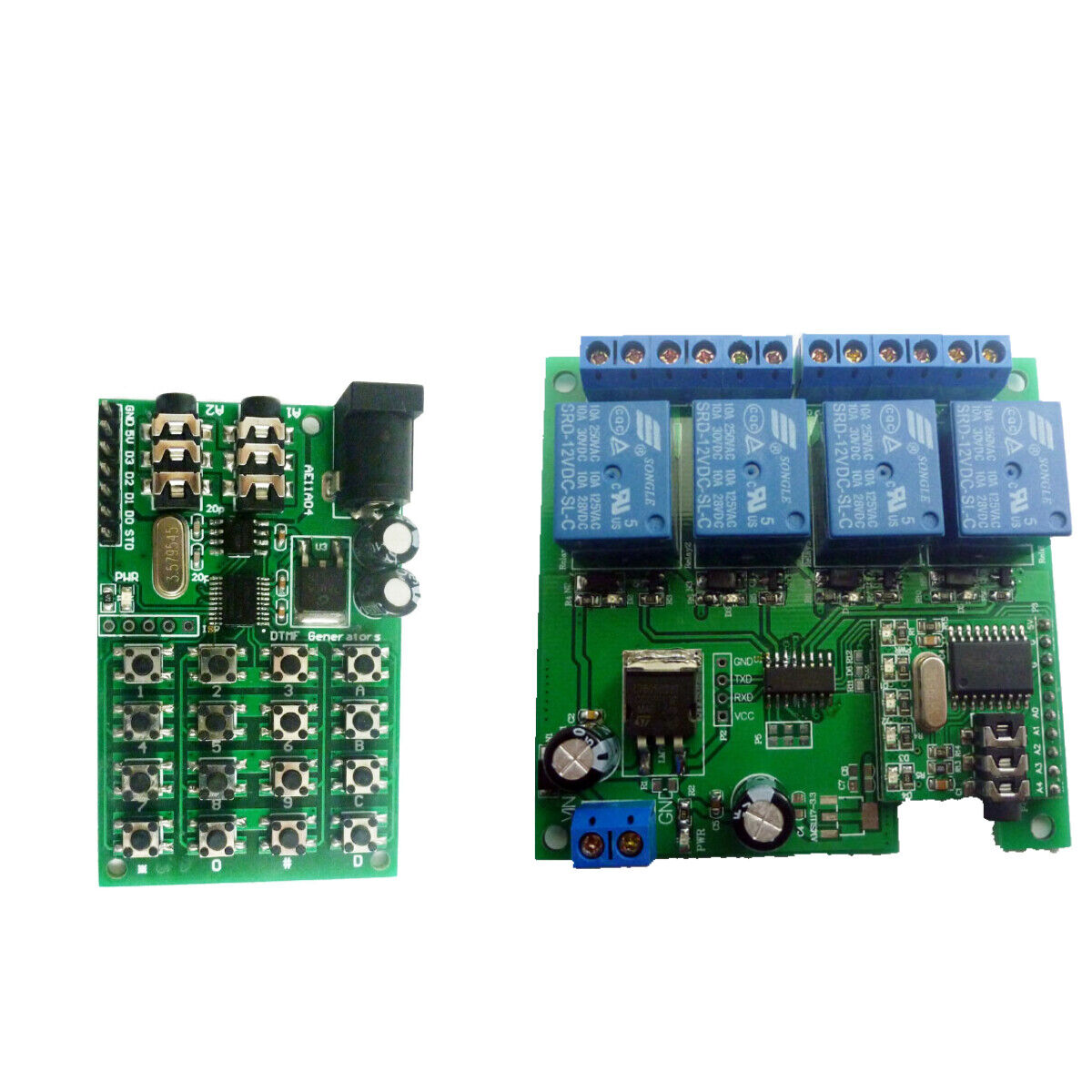

AE11A04 Keypad DTMF MT8870 Generator Audio Encoder + 4 Channels Decoder Relay

AE11A04 Keypad DTMF MT8870 Generator Audio Encoder + 4 Channels Decoder Relay

CE023+AE11A04

2000 in stock

$45.99
$45.99 $45.99
Sale Sold out
Product Name:   Keypad DTMF Generator Module Audio Encoder Transmitter Board for Arduino UNO Pro

Packing list:
1 PCS AE11A04 DTMF Generators Module;
1 PCS 50cm Male to Male audio cable (  3.5mm  Cable);
Description:

Operating Voltage : 5-24VDC
Working current : 6-8MA
Power interface : 2.1mm x 5.5mm Female Male DC Power Plug
Audio interface :  2x 3.5mm audio jack socket
MCU input interface : 7x 2.54MM pin header,GND 5V D3 D2 D1 D0 STD

Size : 63*40*13mm
Weight : 16g

The AE11A04 DTMF tone generators are designed
for Dialing keyboard AND MCU interfaces. They can be instructed by a
MCU(OR Dialing keyboard ) to generate 16 dual tones from the Audio 1/2 .  16 dual tones is  ''1234567890#*ABCD''

For more information, please contact us

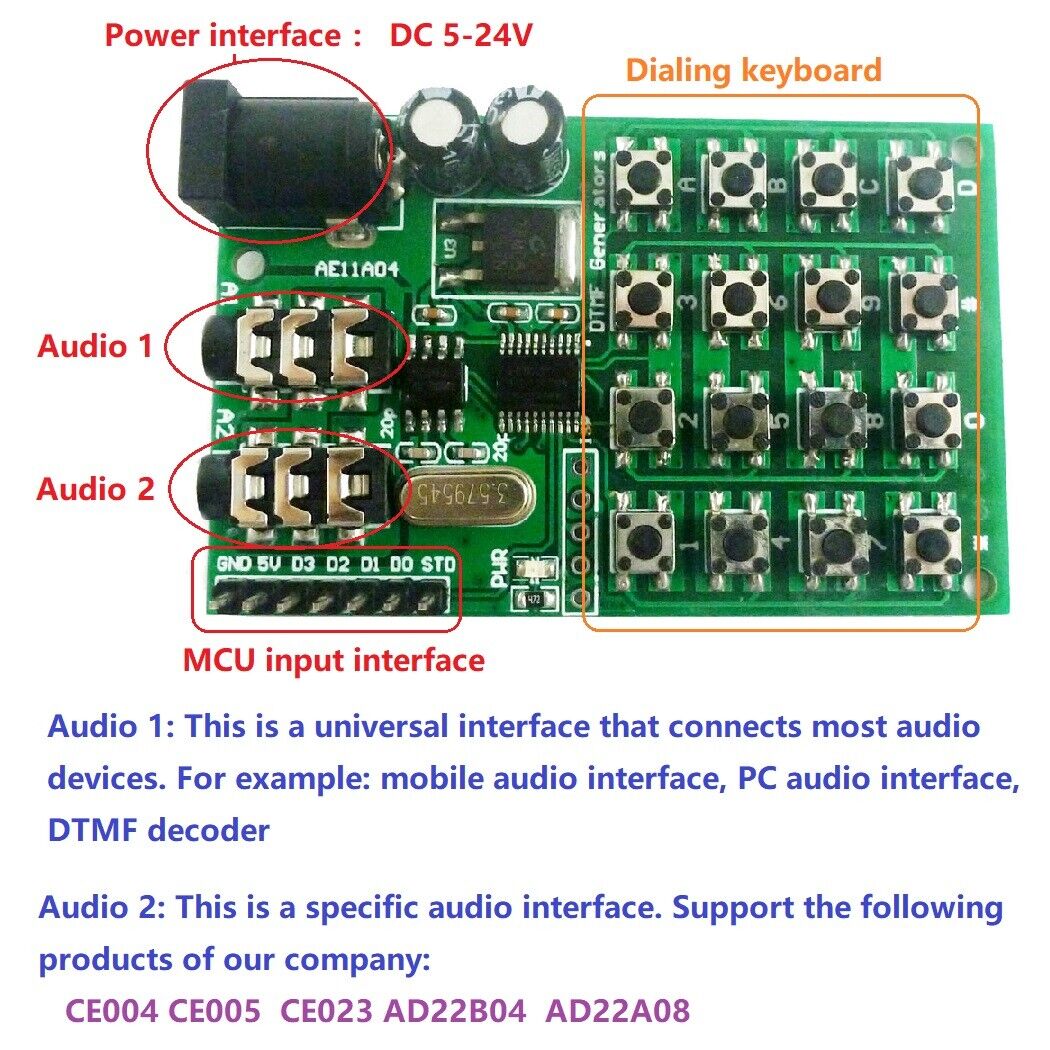

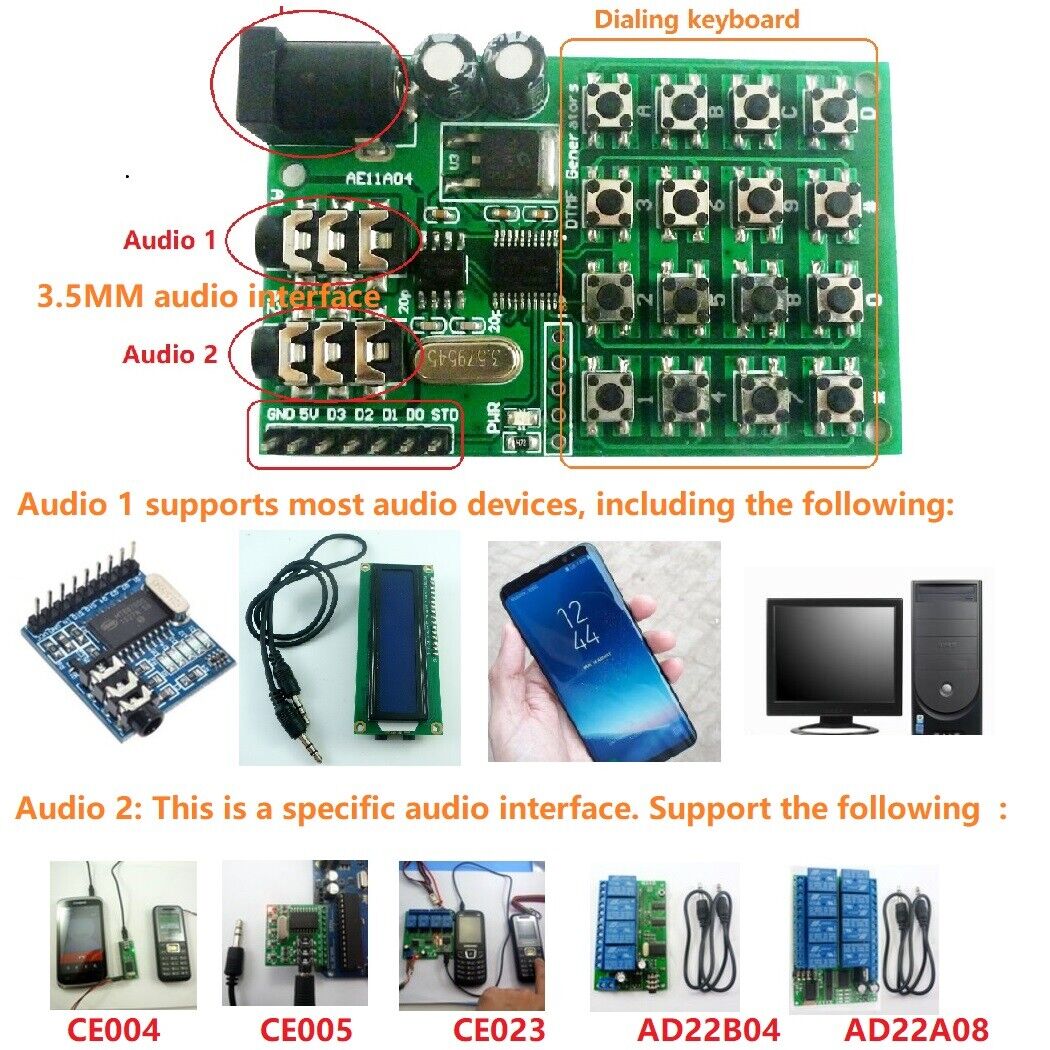

Audio 1: This is a universal interface that connects most audio devices. For example: mobile audio interface, PC audio interface, DTMF decoder
Audio 2: This is a specific audio interface. Support the following products of our company: CE004 CE005  CE023 AD22B04  AD22A08

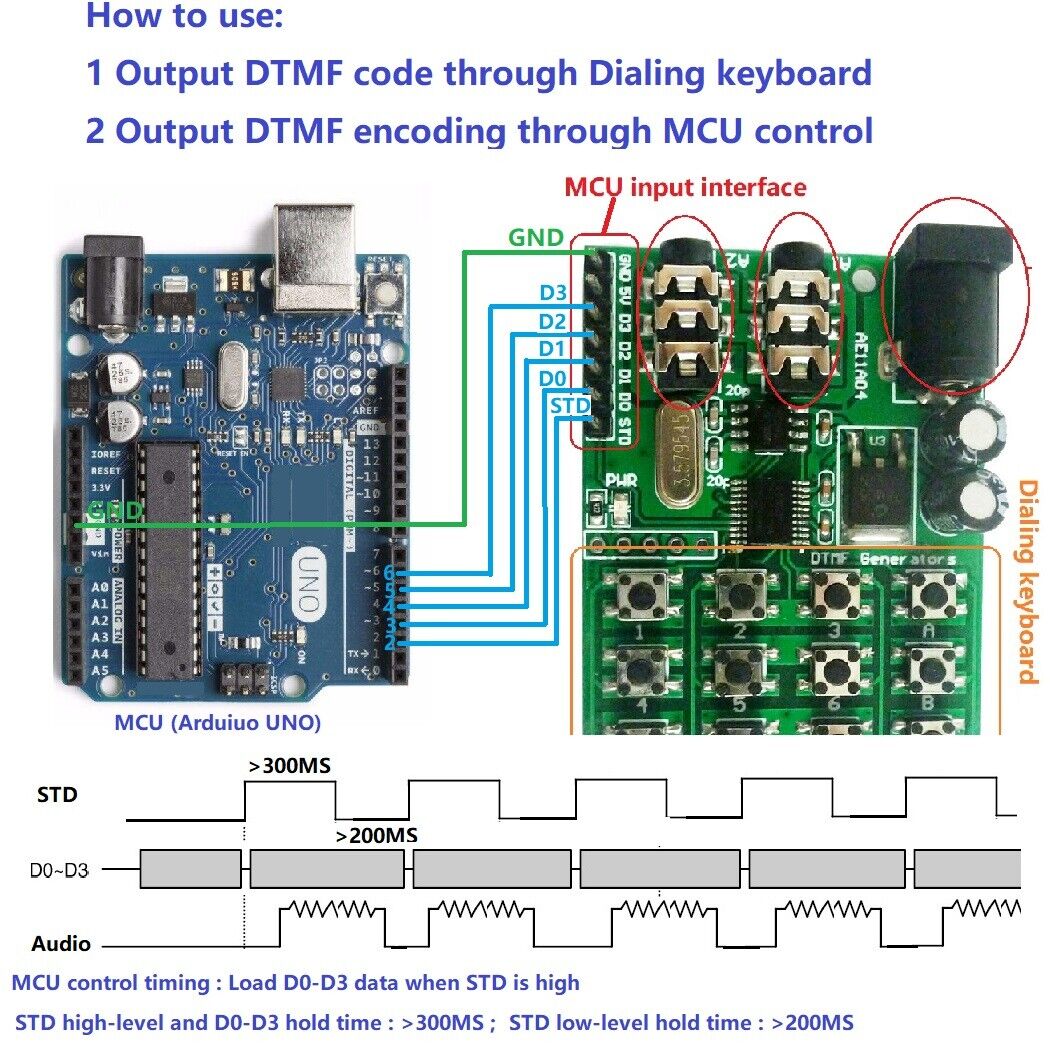

How to use:
1 Output DTMF tone through Dialing keyboard

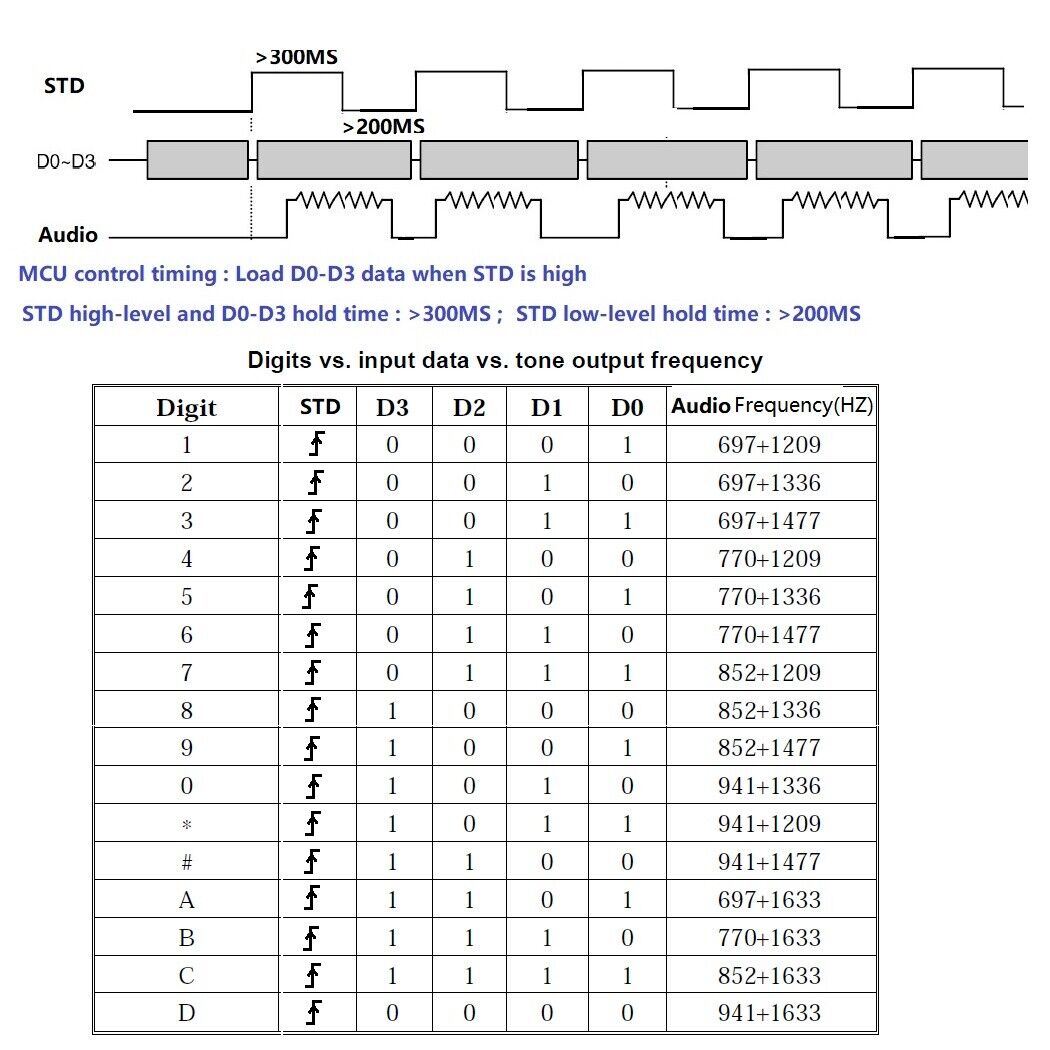

2 Output DTMF tone through MCU control



Product Name: 16CH DTMF MT8870 Audio Decoder Smart Home Controller Voice Mobile Phone Control


Control 4 Channel DC 12V electrical equipment: LED / Automotive electronics



DC 12V motor reversing control:RS360




General electrical equipment control:DC 1-48V or AC 85-265V



All kinds of motor reversing control: DC 1-48V or AC 85-265V


Product Name: DC 12V 4CH DTMF Relay MT8870 Phone Voice Decoder Remote Controller Switch Module

Module No.:  CE023

Package:(Does not include Mobile phones):

1 PCS DC 12V 4 Channel DTMF Relay Board ;
1 PCS Male to Male audio wire (3.5mm jack );



Product Specifications:



Operating Voltage: DC 9-13V(Recommendation : 12V);

Operating Temperature : -40-+85 °C

Size: 76x73x20mm

Weight :72g

Relay maximum load capacity: DC 0-48V/6A; AC 85-250V/5A




Product Features:



4 channel relay.DTMF audio decoder control,Dial the number 1/2/3/4 control channel 1/2/3/4.

Power anti-reverse diode.

8 kinds of Mode selection: Momentary, Toggle, Latch,Delay 5/20/60/120/250 seconds

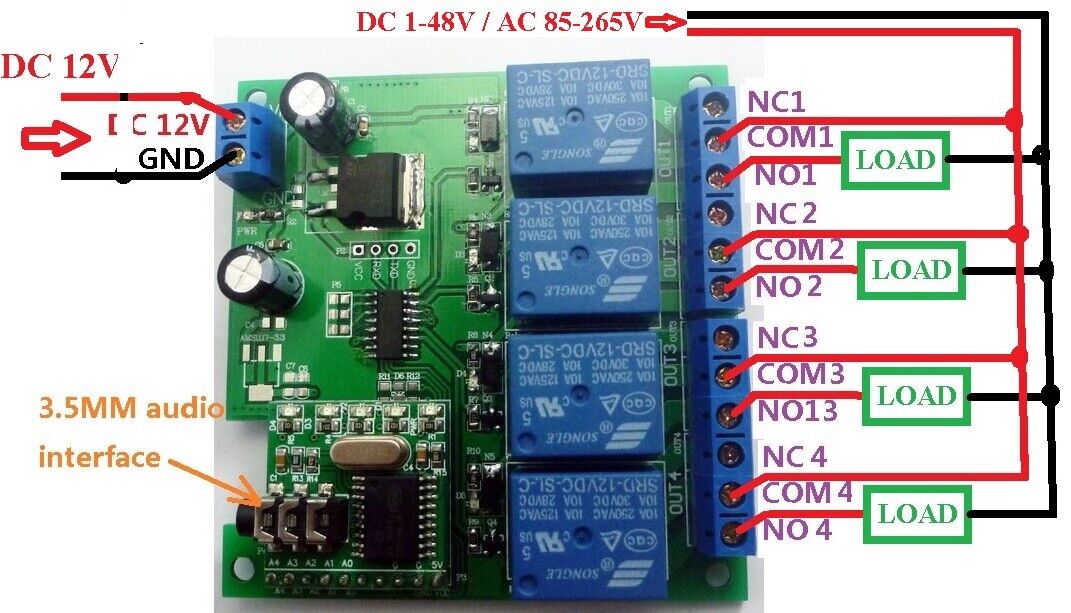

Flexible wiringcan be controlled all kinds of electrical equipment:

DC 12V LED Motor Forward and reverse,DC 1-48V /AC 85-265V LED Motor Electric light Refrigerator Air conditioning etc.



Use Method:



This decoding module is for mobile and fixed telephone voice dialing decoding function , has 4 channels, 8 kinds of selectable output function,4 channels outputs decode mobile and fixed telephone keys (number1/2/3/4).or can be use "DTMF Dial" Software control.


Control by mobile phone:



Control by DTMF Dial Software:

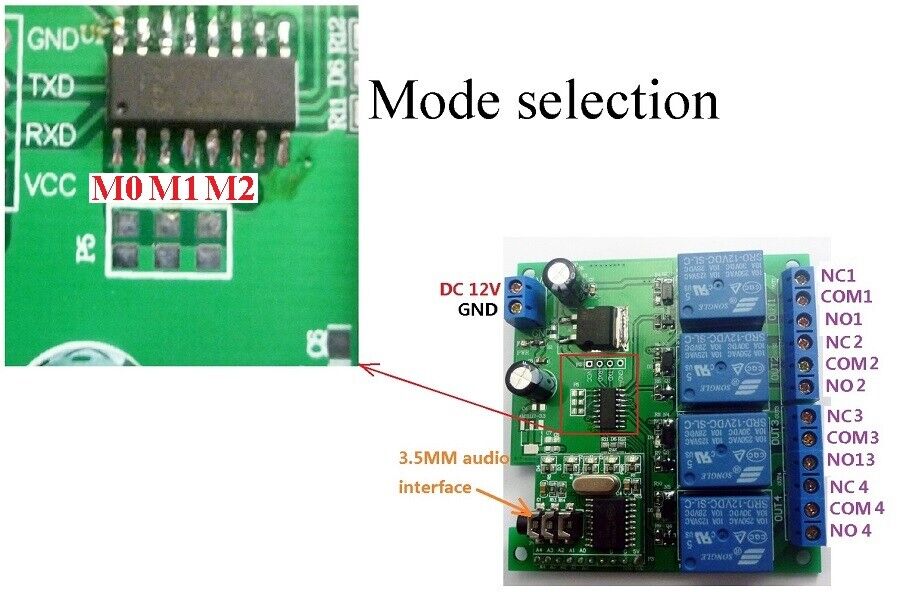

Mode selection:




NC : Normal Connect

COM : Common terminal

NO: Normal open

Relay close: COM connect NO.

Relay open : COM disconnect NO.

Mode selection explanation:



Momentary------------ Dial number 1, the relay 1(Out 1)is close, one second delay relay 1 open, the same as Relay 2/3/4 ,Every Relay is Independent ;



Toggle--------------- Dial number 1, the relay 1(Out 1) is close, Dial the number 1 again relay 1 open, the same as Relay 2/3/4 ,Every Relay is Independent;



Latched------------------

Dial number 1, the relay 1(Out 1) is close, relay 2/3/4(OUT 2/3/4) is open

Dial number 2, the relay 2(Out 2) is close, relay 1/3/4(OUT 1/3/4) is open

Dial number 3, the relay 3(Out 3) is close, relay 1/2/4(OUT 1/2/4) is open

Dial number 4, the relay 4(Out 4) is close, relay 1/2/3(OUT 1/2/3) is open



Delay 5/20/60/120/250 seconds ------------------ Dial number 1, the relay 1(Out 1)is close, 5/20/60/120/250 seconds delay relay 1 open, the same as Relay 2/3/4 ,Every Relay is Independent.


Typical applications:


Home lighting system
Remote control switch
Smart Home / Home Automation
DC 12V LED lighting
Fluorescent lamp
12V DC Motor
Fluorescent lamp
Automotive electronics
PLC
Industrial automation and control
