ASK AM Super-heterodyne RF Wireless Transmit Receiver Modules 433MHZ 1 pairs
ASK AM Super-heterodyne RF Wireless Transmit Receiver Modules 433MHZ 1 pairs
SKU:BX002*1+BX011*1
1008 in stock
Regular price
$17.98
Regular price
$17.98
Sale price
$17.98
Unit price
/
per
Couldn't load pickup availability
Share

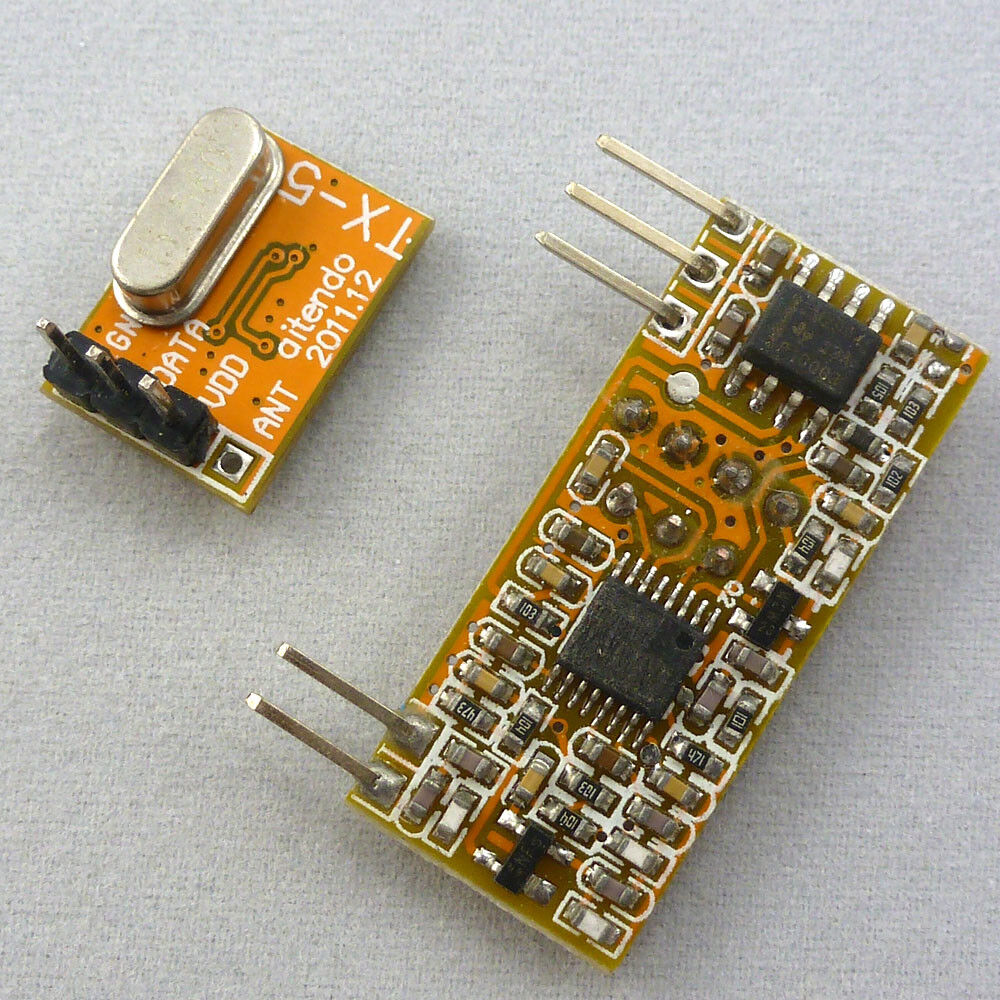

Qty: 1 PCS receiver module and 1pcs transmitter module .

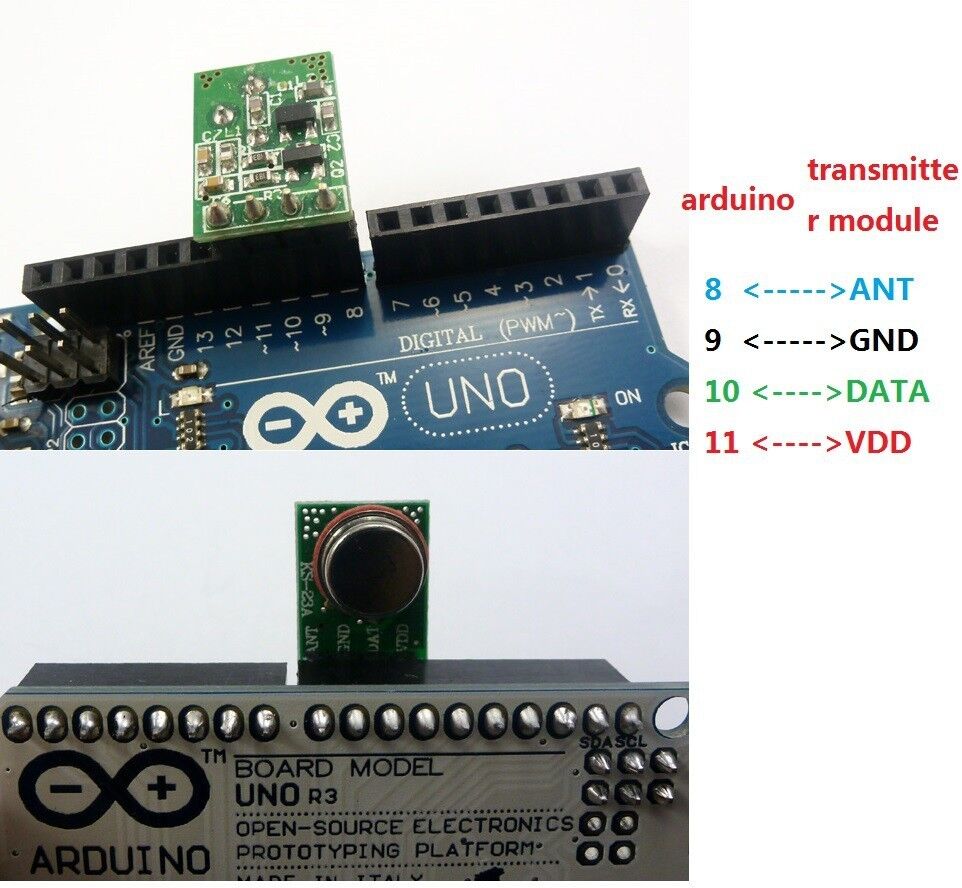

Test Platform :
Typical Applications
﹡ Remote gate controls
﹡ Remote keyless entry
﹡ Car alarm systems
﹡ wireless security systems
﹡ Automation systems
﹡ Remote control systems

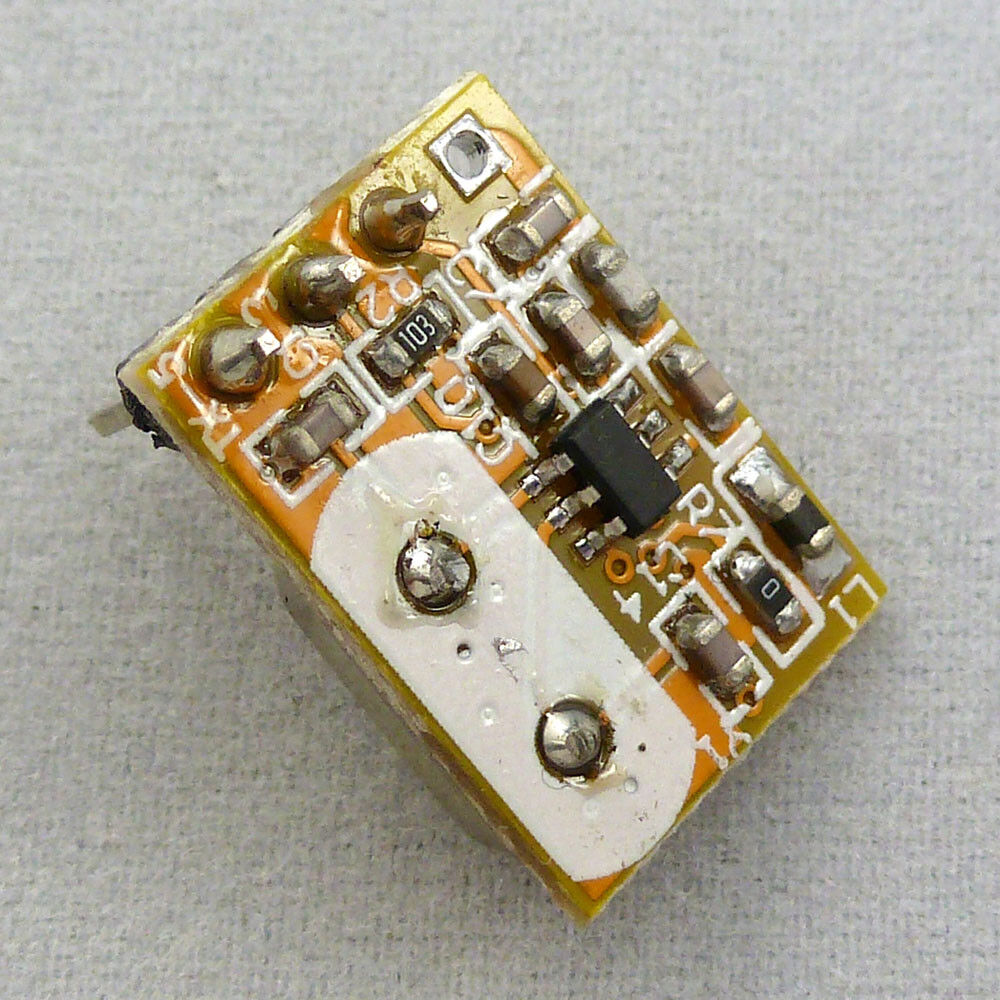

Transmitter module :
Item Description ：
Technical Data :
Transmitter module No.: BX-TM05 -433
High output power: +10dBm;
Low operation voltage: VCC= 1.8 to 3.6 V;
Operating frequency (MHz): 433.92MHz ( 315MHZ is available if required , other frequency can be custom made if order 100 pcs );
Frequency tolerance: ±50 KHz;
Frequency tolerance: ±50 KHz;
The rang can be upto 300-500m matching with XLC-RM08;
Operating temperature: -40℃～+80℃;
Small Size with Size of PCB: 11x16x5.5MM;
Bit rate: <3kbps;
Circuit Shape: PLL;

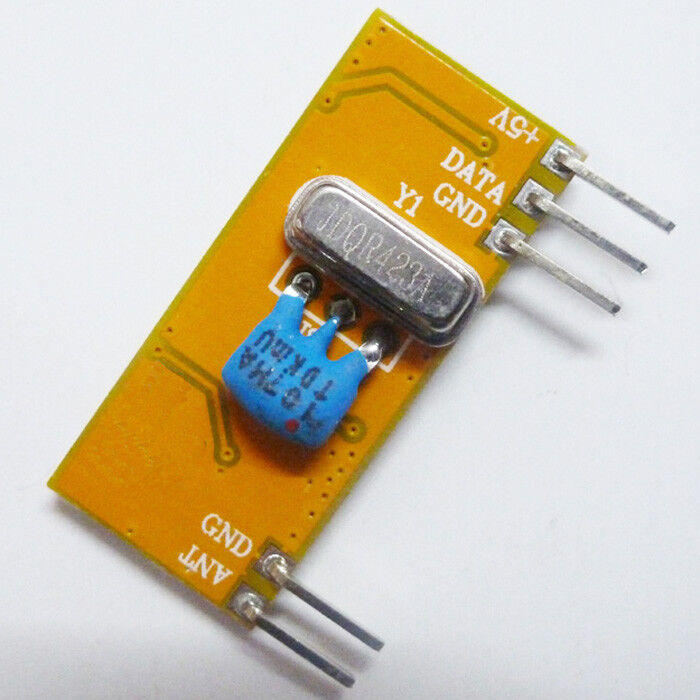

Receiver module :
Item Description ：
Technical Data :
Receiver Module No. : BX-RM08 -433 (match with our BX-TM01 -433 or BX-TM05 -433 module)
Receiver Sensitivity (dBm):-114 ;
Operating frequency (MHz): 433.92MHz ( 315MHZ is available if required , other frequency can be custom made if order 100 pcs );
Operating Voltage (V): DC 3-5.5V
Operating Voltage (V): DC 3-5.5V
Low power consumption : 5.0V / 9.6 mA
Operating temperature: -30 ℃ ~ +85 ℃
Type of Output: TTL
Pin Name :
1. ANT antenna connection
2. GND Negative Power Supply
3. GND Negative Power Supply
4. DATA
5.VCC
