ASK OOK RF Wireless Link Kit Super-heterodyne 433MHZ -114dBm High Sensitivity

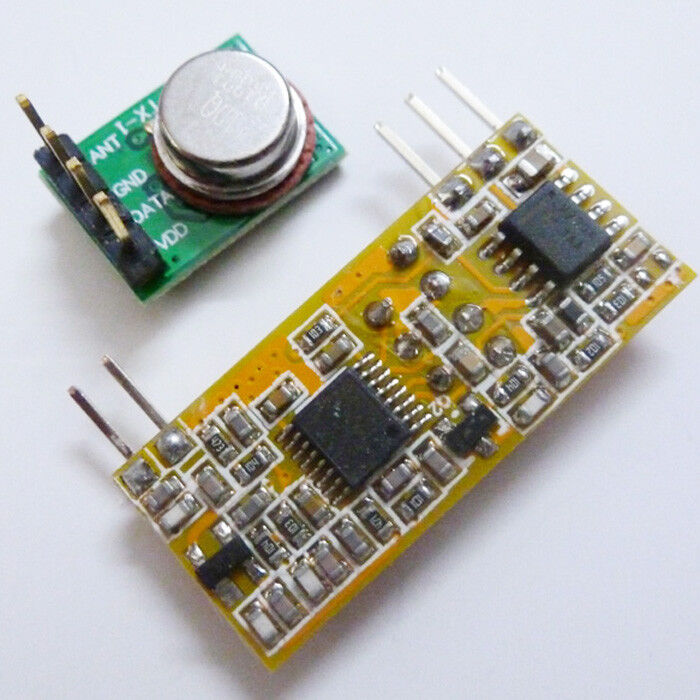

Qty: 1 PCS receiver module and 1 pcs transmitter module .

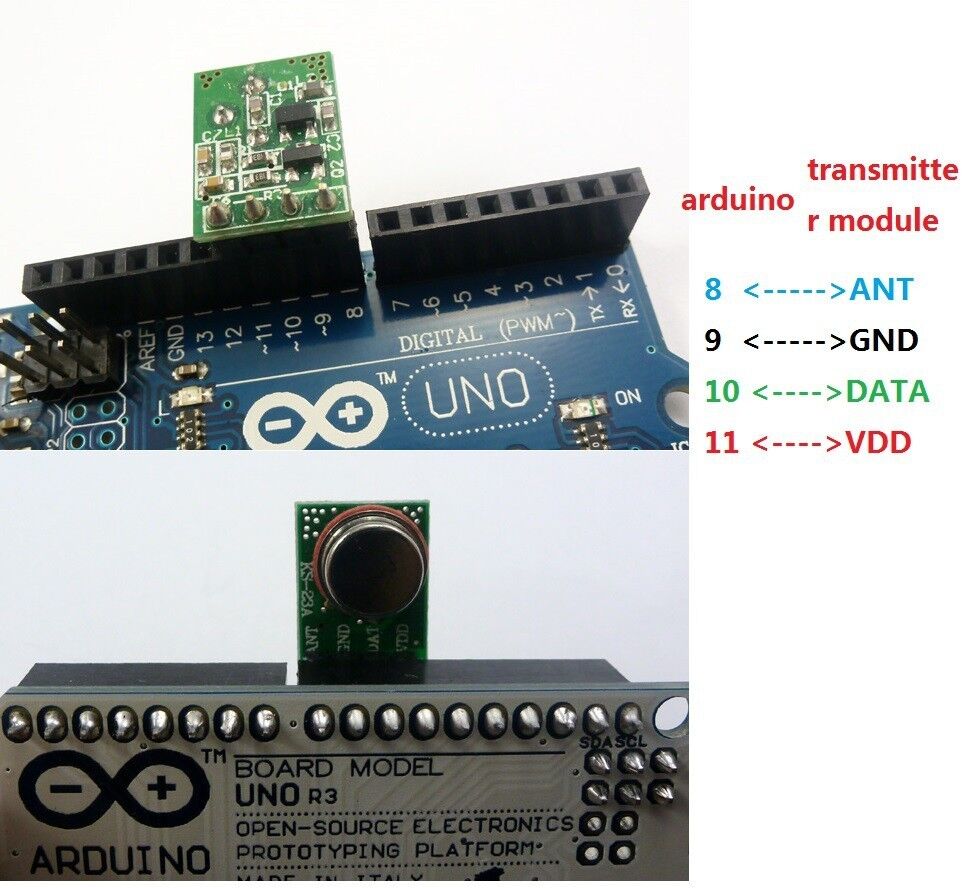

Test Platform :
Typical Applications
• Automotive RKE systems
• Automotive alarm systems
• Automotive immobilizers
• Gate and garage door openers
• Burglar alarm systems

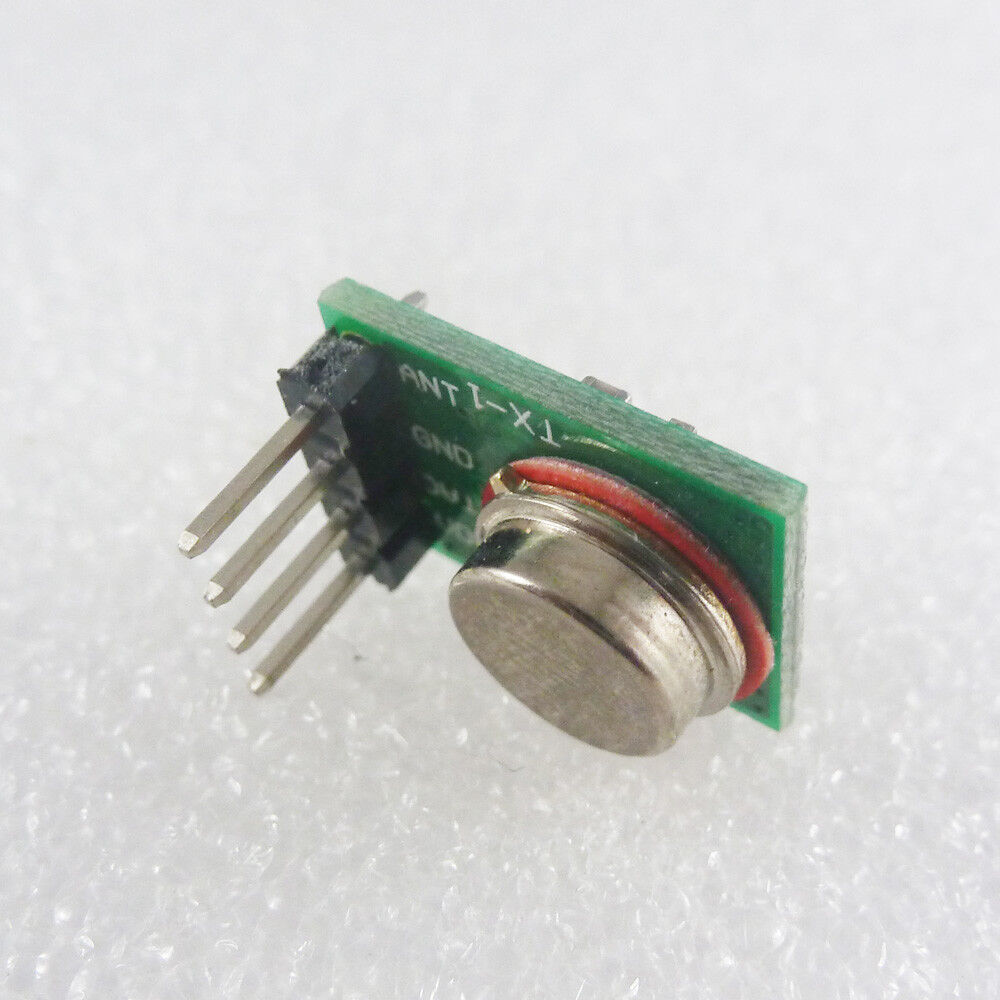

Transmitter module :
Item Description ：
Technical Data :
Transmitter module No.: BX-TM01 -433
Operating frequency (MHz): 433.92MHz ( 315MHZ is available if required , other frequency can be custom made if order 100 pcs );
Transmit power: more than 10mW;
Operating Voltage (V): DC 3-12V
low transmit of the static power consumption is current consumption : 10 mA ( No transmit No current consumption);
SAW Frequency stability :±75KHZ
Data transfer rate : 3 kb/s
Operating temperature: -20 ℃ ~ +60 ℃
Size : 11x16x5.5MM
Type of Output: TTL

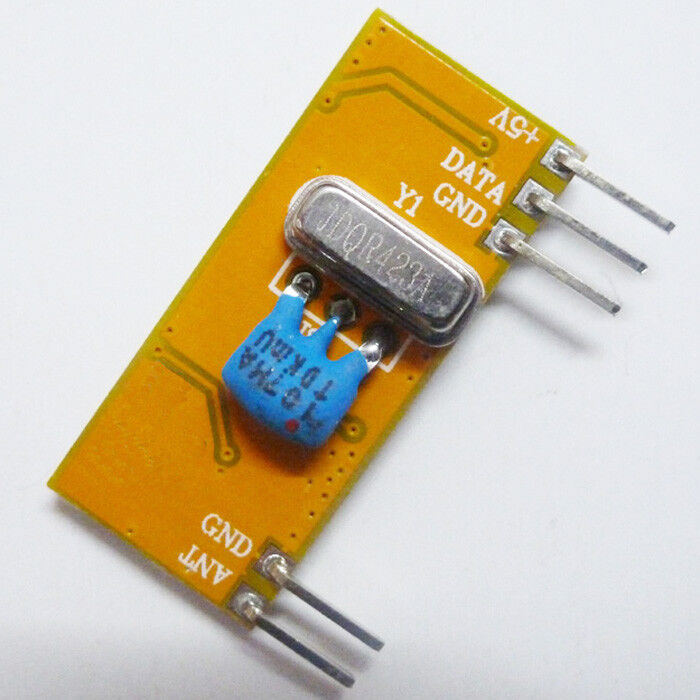

Receiver module :
Technical Data :
Receiver Module No. : BX-RM08 -433 (match with our BX-TM01 -433 or BX-TM05 -433 module)
Receiver Sensitivity (dBm):-114 ;
Operating frequency (MHz): 433.92MHz ( 315MHZ is available if required , other frequency can be custom made if order 100 pcs );
Operating Voltage (V): DC 3-5.5V
Operating Voltage (V): DC 3-5.5V
Low power consumption : 5.0V / 9.6 mA
Operating temperature: -30 ℃ ~ +85 ℃
Type of Output: TTL
Pin Name :
1. ANT antenna connection
2. GND Negative Power Supply
3. GND Negative Power Supply
4. DATA
5.VCC
