ASK RF Receiver Super-heterodyne Wireless Module 433MHZ -114dBm RX Sensitivity

ASK RF Receiver Super-heterodyne Wireless Module 433MHZ -114dBm RX Sensitivity

BX002

1008 in stock

$13.48
$13.48 $13.48
Sale Sold out
Technical Data :
      Receiver Module No. : BX-RM08 -433 (match with our BX-TM01 -433 or BX-TM05 -433 module)

             Receiver Sensitivity (dBm):-114 ;

Operating frequency (MHz): 433.92MHz ;

Operating Voltage (V):  DC 3-5.5V

Low power consumption : 5.0V / 9.6 mA

        Operating temperature: -30 ℃ ~ +85 ℃

Type of Output: TTL

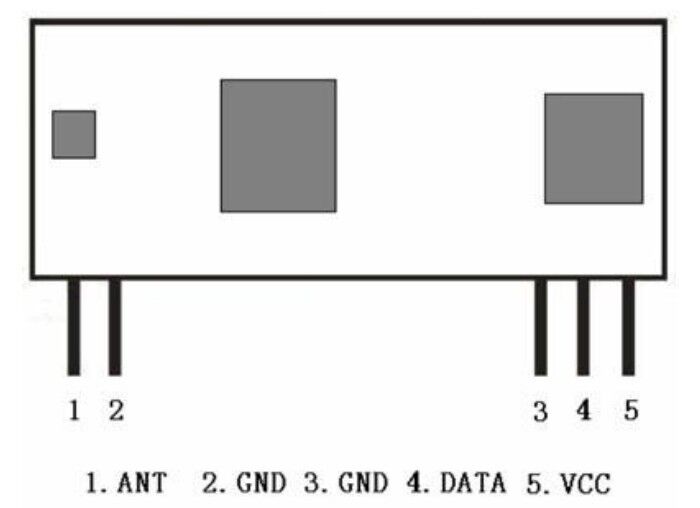

Pin Name :

1. ANT antenna connection

2. GND Negative Power Supply

3. GND Negative Power Supply

4. DATA

5.VCC




Typical Applications
• Automotive RKE systems
• Automotive alarm systems
• Automotive immobilizers
• Gate and garage door openers
• Burglar alarm systems
• Toy Remote control .
