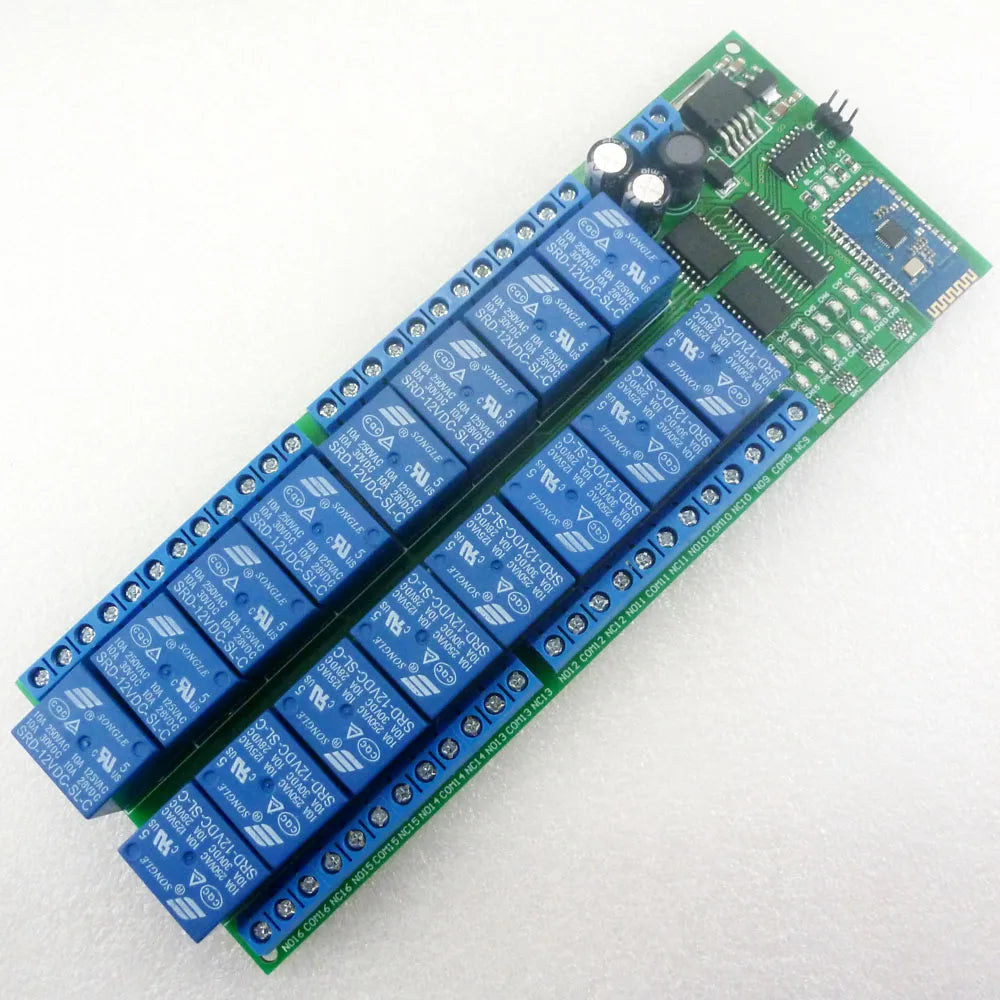

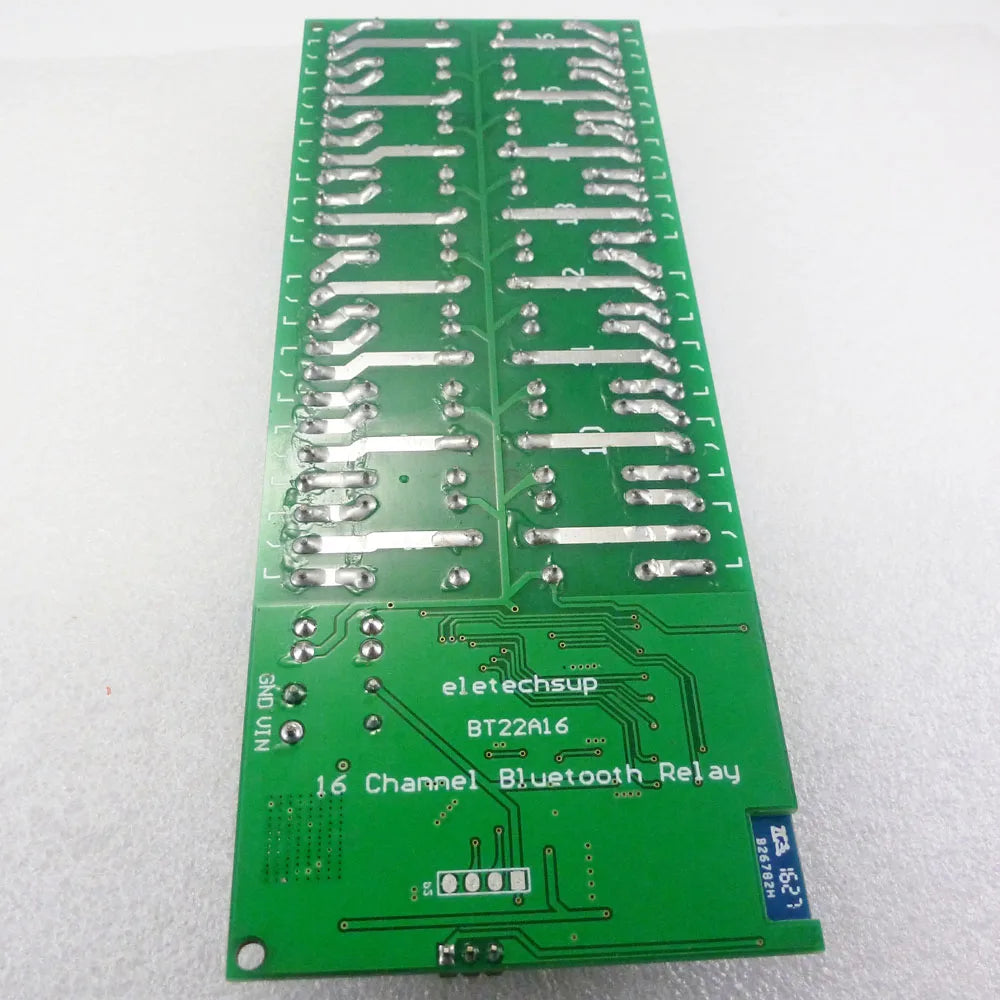

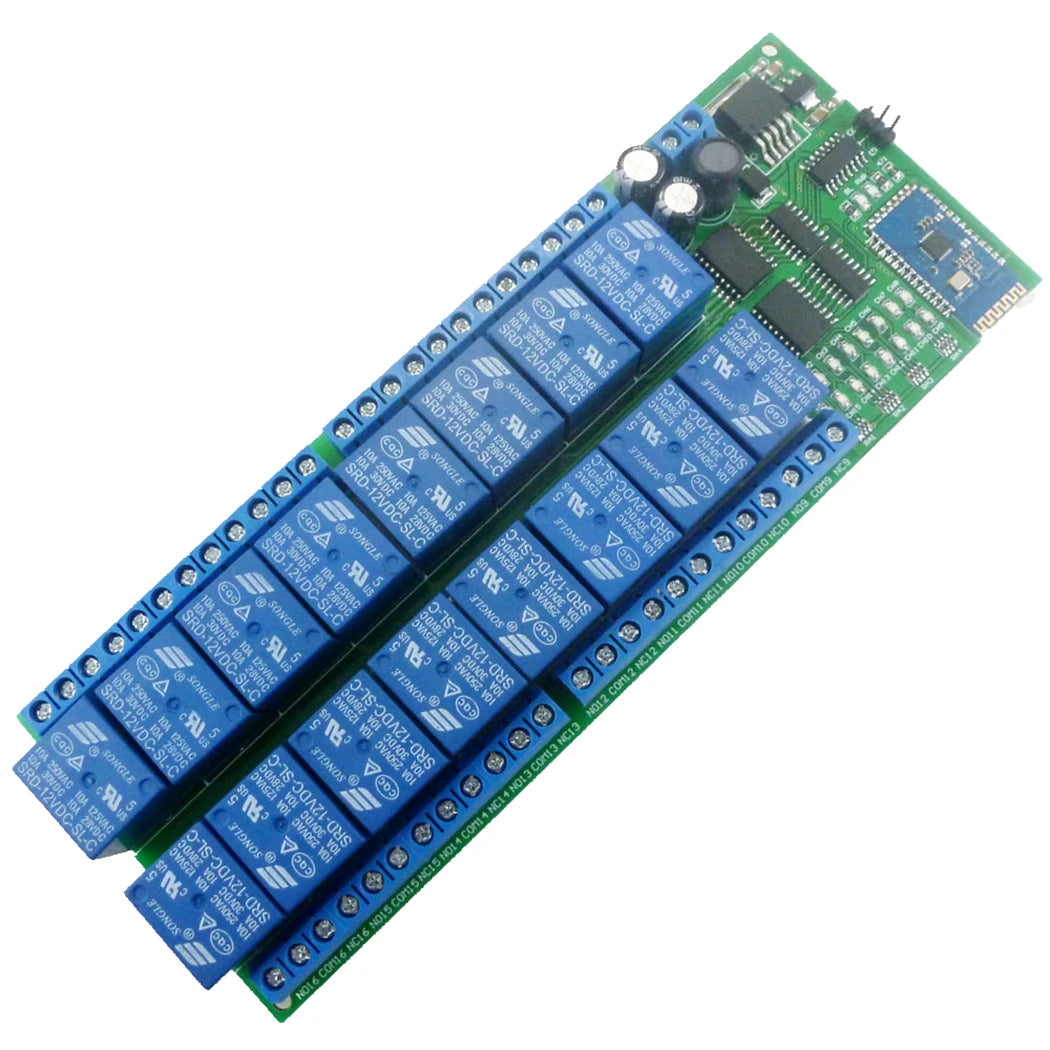

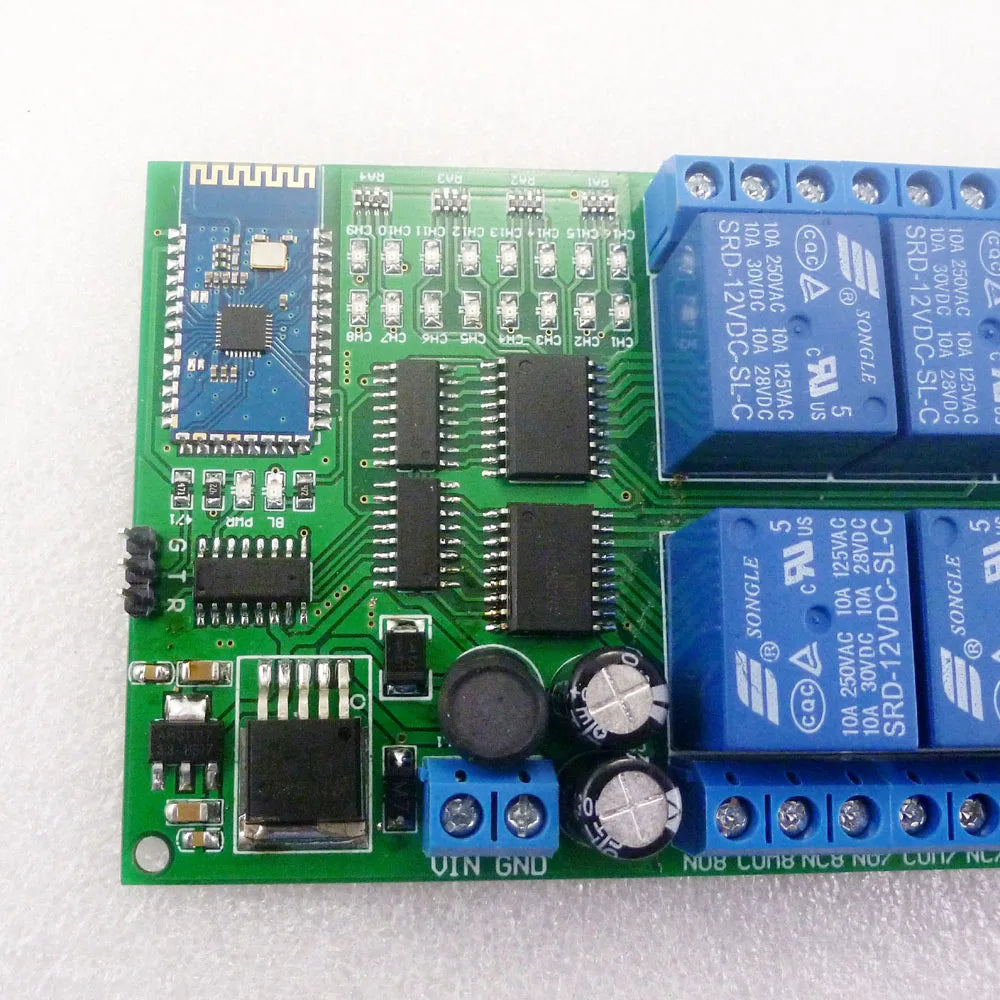

BT22A16 DC 12V 16 Ch Android Phone Bluetooth-compatible Control Relay Module 2.4G Wireless Controller for Smart Home LED Lighting system

BT22A16 DC 12V 16 Ch Android Phone Bluetooth-compatible Control Relay Module 2.4G Wireless Controller for Smart Home LED Lighting system

BT22A16

1100 in stock

$29.99
$39.99 $29.99
Sale Sold out
Product Name: DC 12V 16 Channel Android Phone Bluetooth-Compatible Control Relay Module 2.4G Wireless Controller For Smart Home L

Package inlcuded:

1 pcs DC 12V 16 Channel Android Bluetooth-Compatible Relay Module

Description:

1 Operating voltage: DC 12V

2 Operating Current: Standby current (all relays closed) 15MA, 1 relay open 41MA, 2 relays open 69MA, 3 relays open 96MA, 4 relays open 123MA,5 relays open 150MA,6 relays open 177MA,
7 relays open 203MA,8 relays open 229MA,16 relays open 480MA .

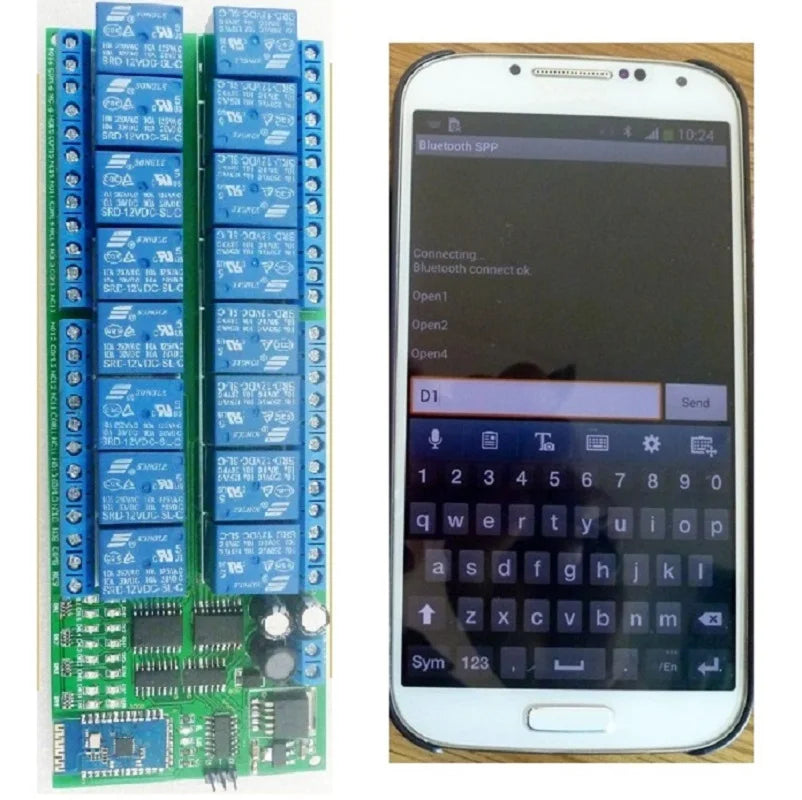

3: send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control)

4 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' 5 Commands

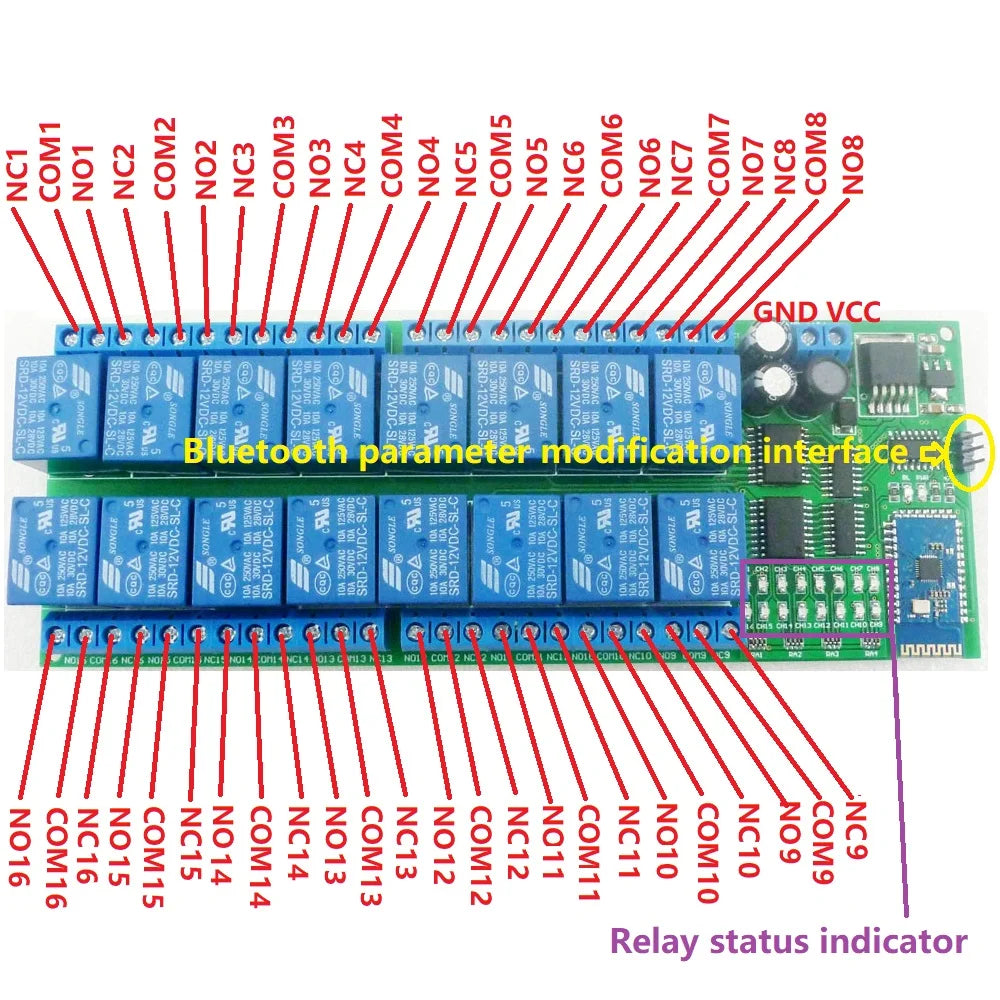

5 You can modify the Bluetooth name and PIN(Access Password) use '' UST to TTL232'',
For details, see file '' Bluetooth parameter modification''

6 size 175*65*19mm

7 Weight : 222g



  NOTE:
Only for Android OS, does not support the Apple OS


For more information, please contact me
