BTID42MA Mini 3.7V 4.2V 1-Cell LI-ON LI-PO Battery Power Voltage Indicator LED P/V Detection Module for 18650 26650 4680 Charge Discharge
BTID42MA Mini 3.7V 4.2V 1-Cell LI-ON LI-PO Battery Power Voltage Indicator LED P/V Detection Module for 18650 26650 4680 Charge Discharge
SKU:BTID42MA
1986 in stock
Regular price
$1.41
Regular price
$1.41
Sale price
$1.41
Unit price
per
Couldn't load pickup availability
Product Title:
Mini 3.7V 4.2V 1-Cell LI-ON LI-PO Battery Power Voltage Indicator LED P/V Detection Module for 18650 26650 4680 Charge Discharge
Packing list:
1PCS Mini 3.7 4.2V LI-ON LI-PO Lithium battery power indicator light Module
The BTID42MA is a single lithium battery charge indicator module, using CMOS process to achieve, small size and ease
of installation of portable products.

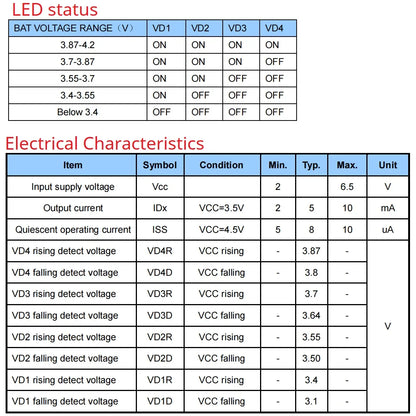

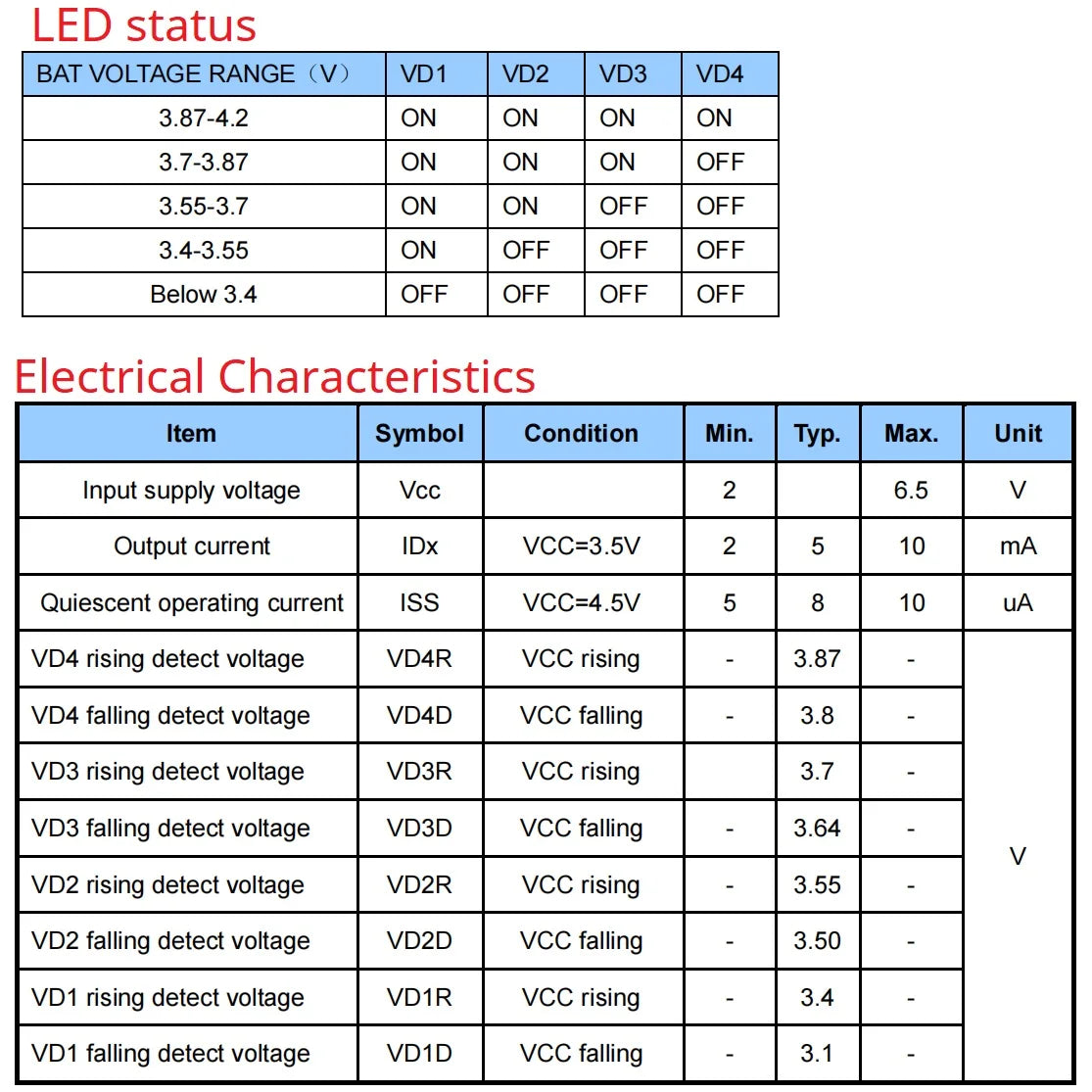

The BTID42MA with built-in comparator and feedback loop, to materialize the detection of the four voltage point. By the internal trimming technology, you can ensure that the
voltage detection accuracy of ± 2 %.
Description :
Mini 3.7V 4.2V 1-Cell LI-ON LI-PO Battery Power Voltage Indicator LED P/V Detection Module for 18650 26650 4680 Charge Discharge
Packing list:
1PCS Mini 3.7 4.2V LI-ON LI-PO Lithium battery power indicator light Module
The BTID42MA is a single lithium battery charge indicator module, using CMOS process to achieve, small size and ease
of installation of portable products.
The BTID42MA with built-in comparator and feedback loop, to materialize the detection of the four voltage point. By the internal trimming technology, you can ensure that the
voltage detection accuracy of ± 2 %.
Description :
Item Name: 3.7V 4.2V LI-ON LI-PO Battery Level Indicator Board
Work Voltage: 3-4.2V
Size : 12.4*7*2.9MM
Weight: 0.2g
Usage: Suitable for 1S 3.7V Lion Lipo Battery

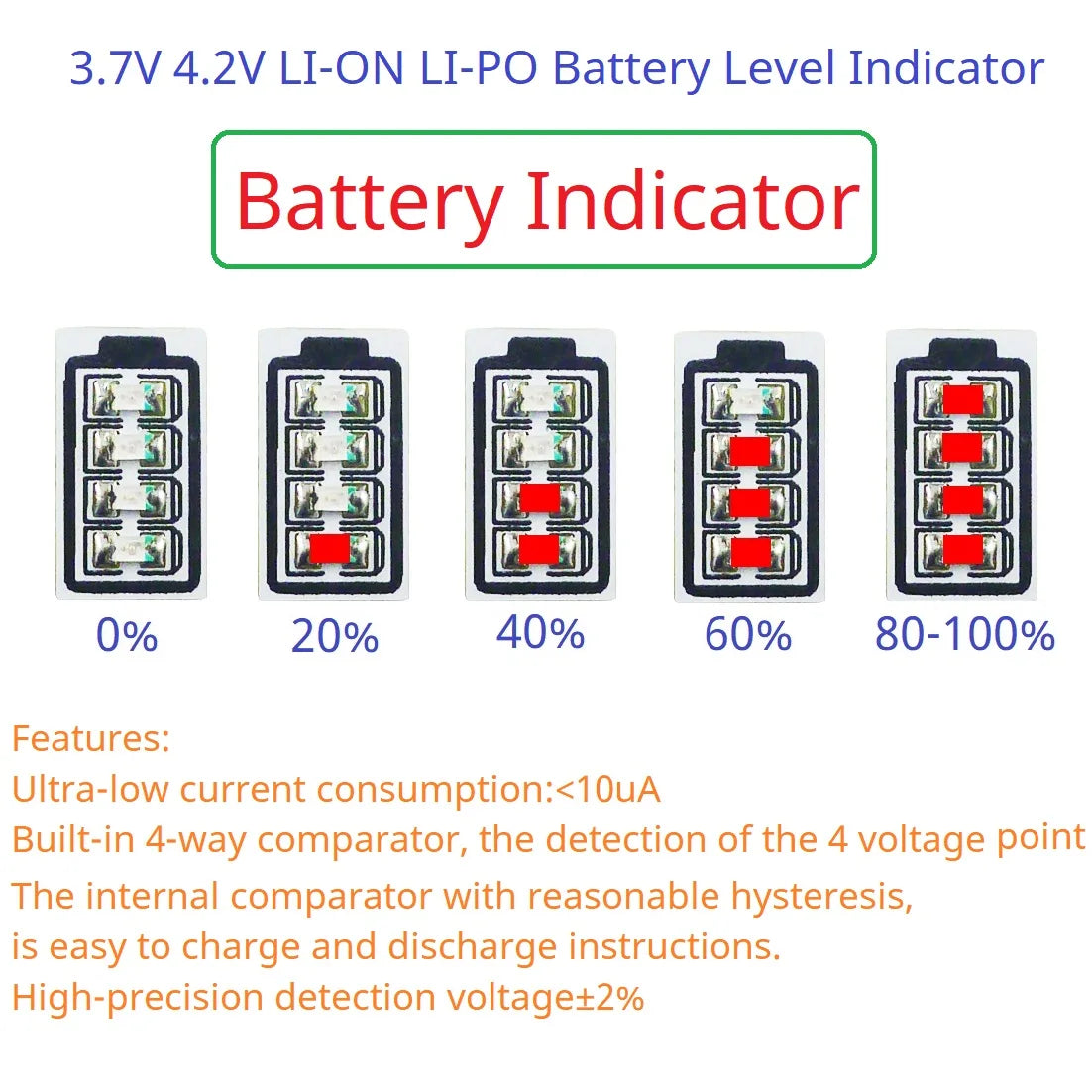

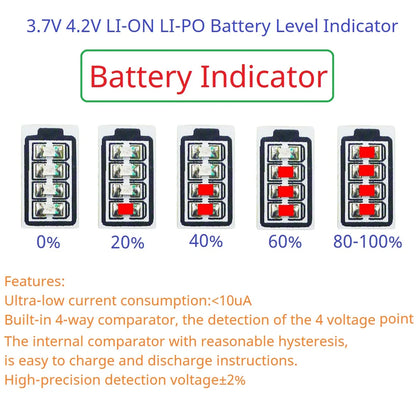

Features:
Ultra-low current consumption:<10uA
Built - in 4-way comparator, the detection of the four voltage point
The internal comparator with reasonable hysteresis,
is easy to charge and discharge instructions.
High-precision detection voltage±2%

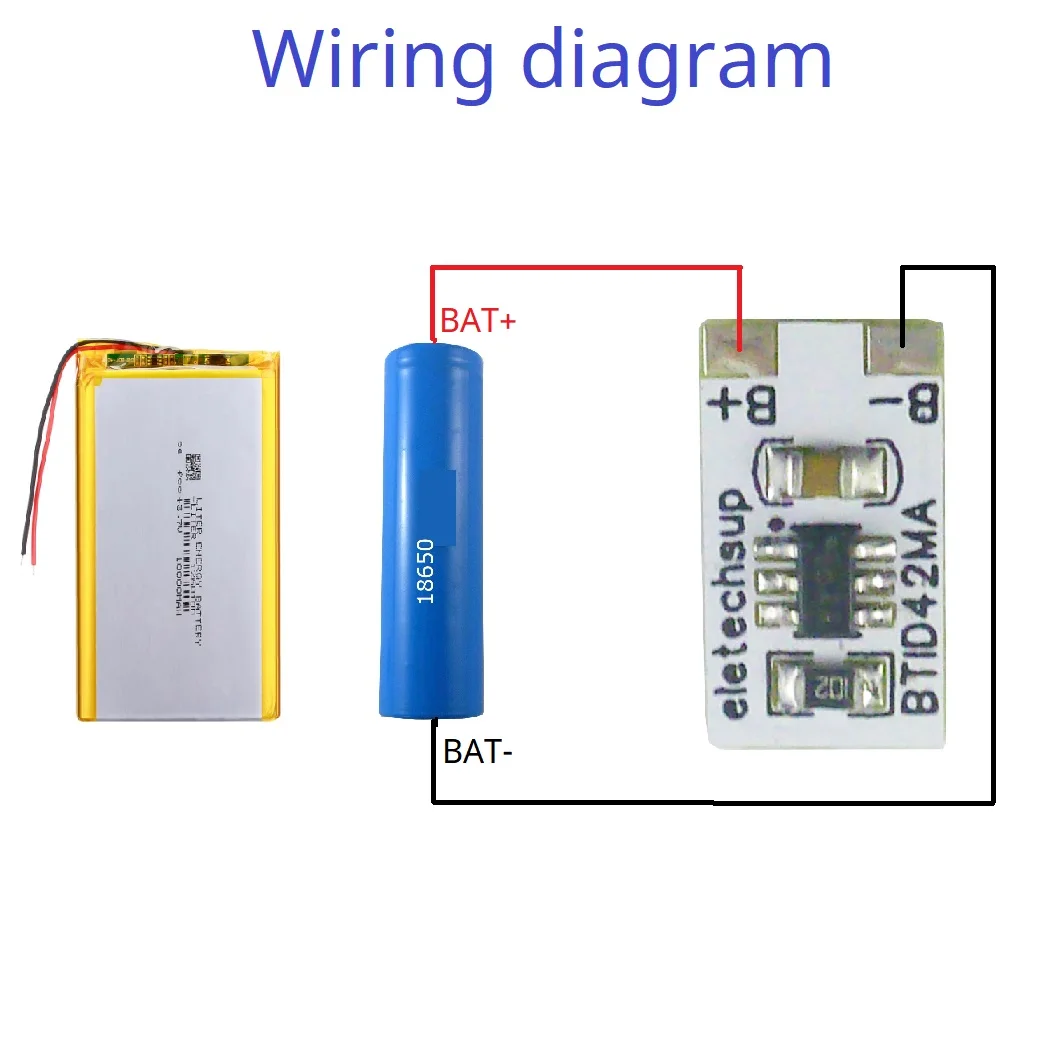

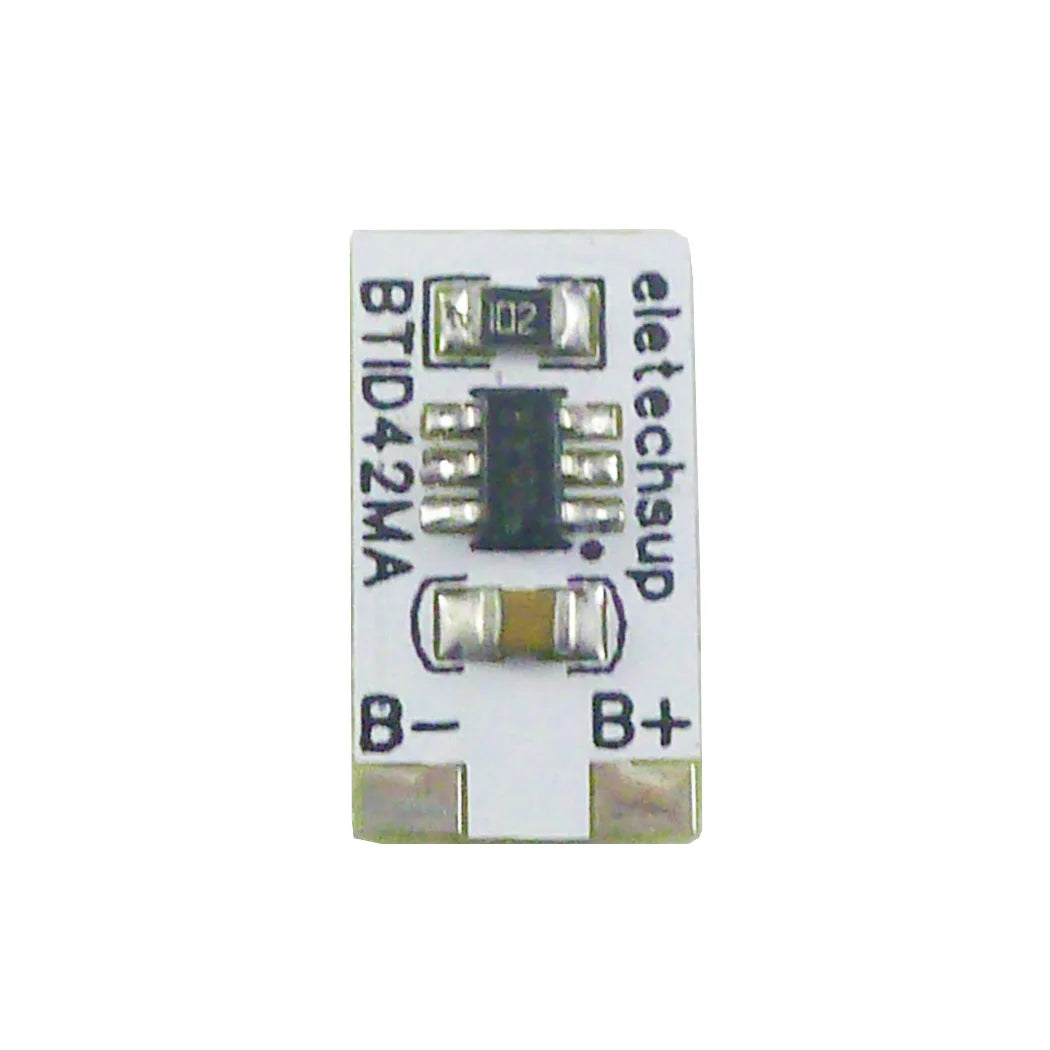

Pin description:
B+: Connect to the positive terminal of the battery
B-: Connect to the negative terminal of the battery
Work Voltage: 3-4.2V
Size : 12.4*7*2.9MM
Weight: 0.2g
Usage: Suitable for 1S 3.7V Lion Lipo Battery
Features:
Ultra-low current consumption:<10uA
Built - in 4-way comparator, the detection of the four voltage point
The internal comparator with reasonable hysteresis,
is easy to charge and discharge instructions.
High-precision detection voltage±2%
Pin description:
B+: Connect to the positive terminal of the battery
B-: Connect to the negative terminal of the battery
