CE013 mini dc/dc Converter 0.8-5V to DC 5V Step UP Boost Module for Arduno Bread

CE013 mini dc/dc Converter 0.8-5V to DC 5V Step UP Boost Module for Arduno Bread

$3.64 USD
$3.64 USD $3.64 USD
Sale Sold out



Product Name:  mini dc/dc Converter 0.8-5V to DC 5V Step UP Boost Module for Breadboard Arduino

Module No.:  CE013




Packing list:

1 PCS 0.9V-5V TO 5V Step-UP Voltage Converter Module





Description:

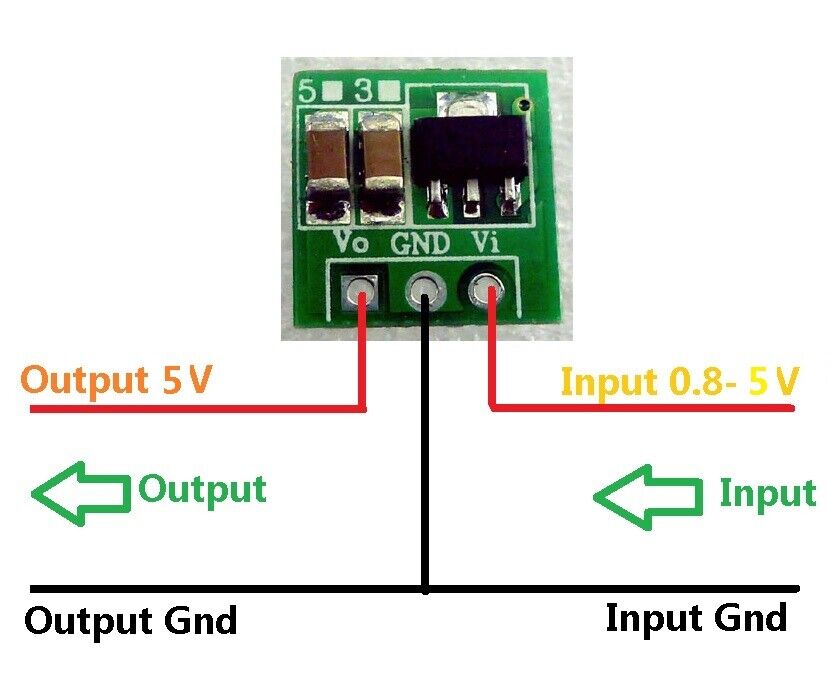

Input voltage 0.9 ~ 5V, output 5V
Maximum output current: 500 MA,

Start Voltage 0.9V, Output Current 10MA

INPUT 1-1.5V,      OUTPUT 5V 50-110MA;
INPUT 1.5-2V,      OUTPUT 5V 110-160MA;
INPUT 2-3V,         OUTPUT 5V 160-400MA;
INPUT above 3V,  OUTPUT 5V 400-500MA;

DC-DC Boost module working frequency 180KHZ. efficiency is normal 85% .
Operating ambient temperature : -25~+85 Degrees Celsius
2.54mm pin pitch,Arduino UNO Breadboard friendly.

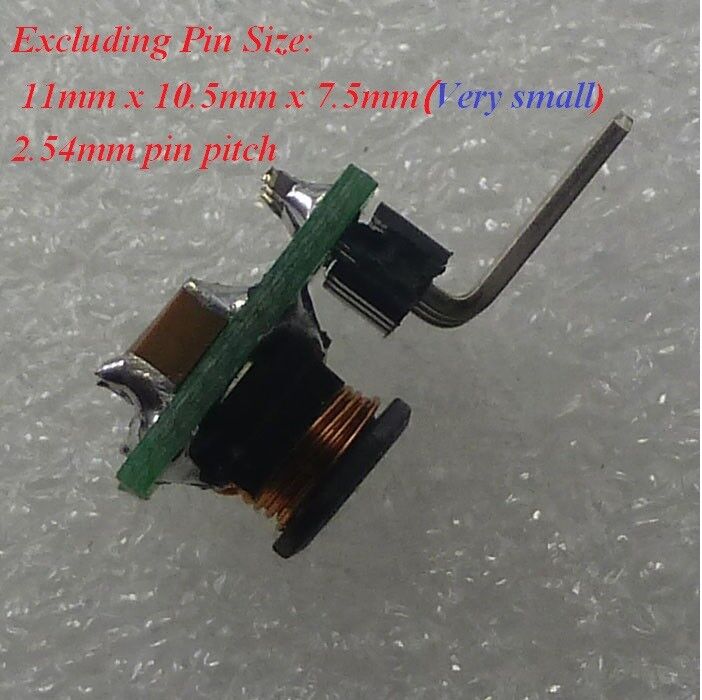

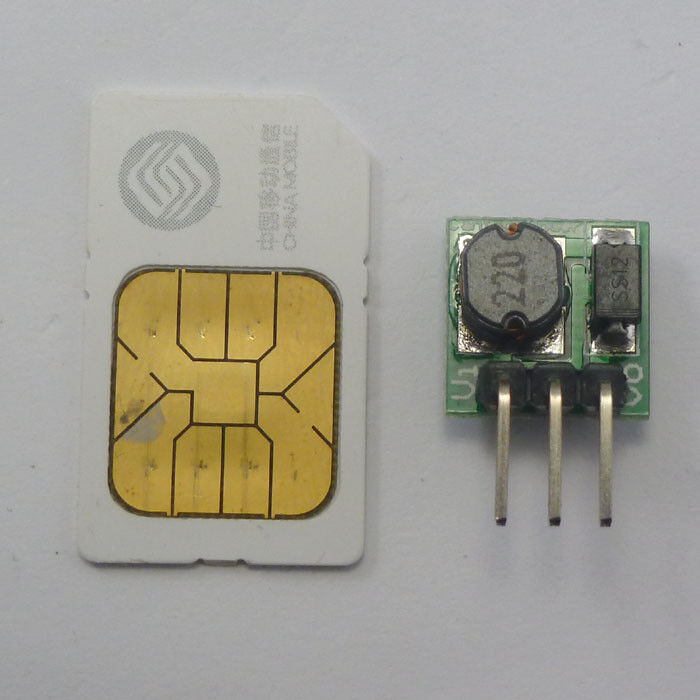

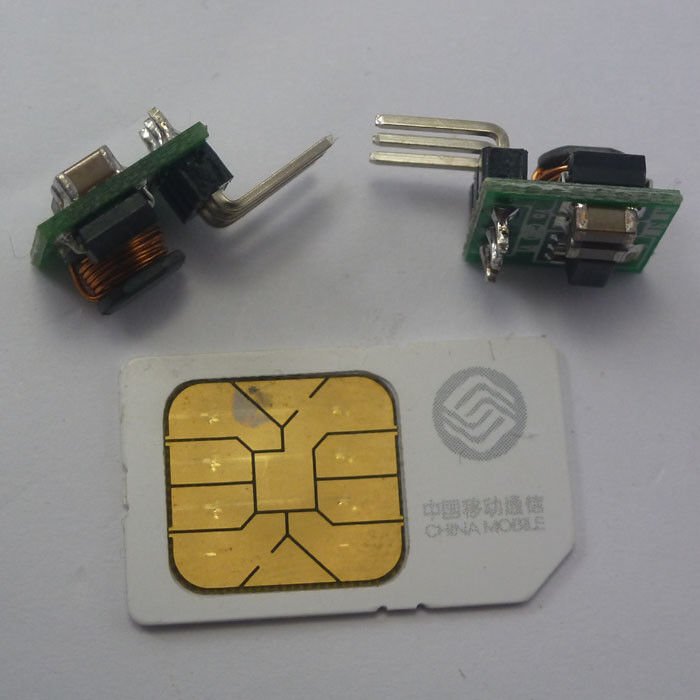

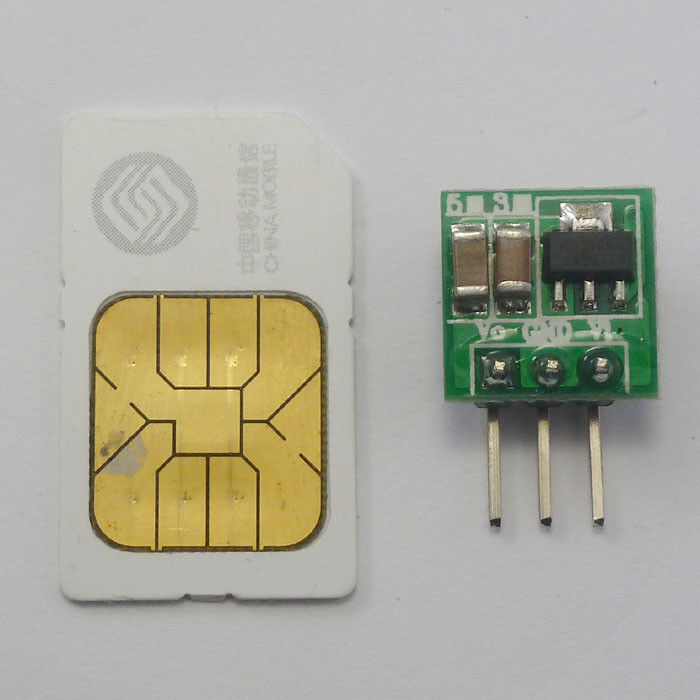

Excluding Pin Size 11mm x 10.5mm x 7.5mm(Very small)
Weight : about 1.2g(Very light)




 Applications：

①Battery powered equipment
②Wirels Module, NRF24L01 CC1101 CC2500 SI4432 etc.
③Development Board,FPGA/CPLD  Arduino 8051 AVR STC etc.
④Arduino Breadboard Raspberry Pi
⑤VCR
⑥PDA
⑦LED Lighting
⑧Wireless communication equipment
⑨MP3/MP4 player
⑩Audio equipment

Attention :


This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
