CE029A DC12V ASK RF Wireless Delay Relay timer & 3 Button EV1527 Remote Controlle

CE029A DC12V ASK RF Wireless Delay Relay timer & 3 Button EV1527 Remote Controlle

CE029A+JY001

1000 in stock

$22.48
$22.48 $22.48
Sale Sold out



Brand:Eletechsup

Product Name:DC12V ASK RF Wireless Delay Relay timer & 3 Button EV1527 Remote Controller EV1527 Remote Controller


Packing list:

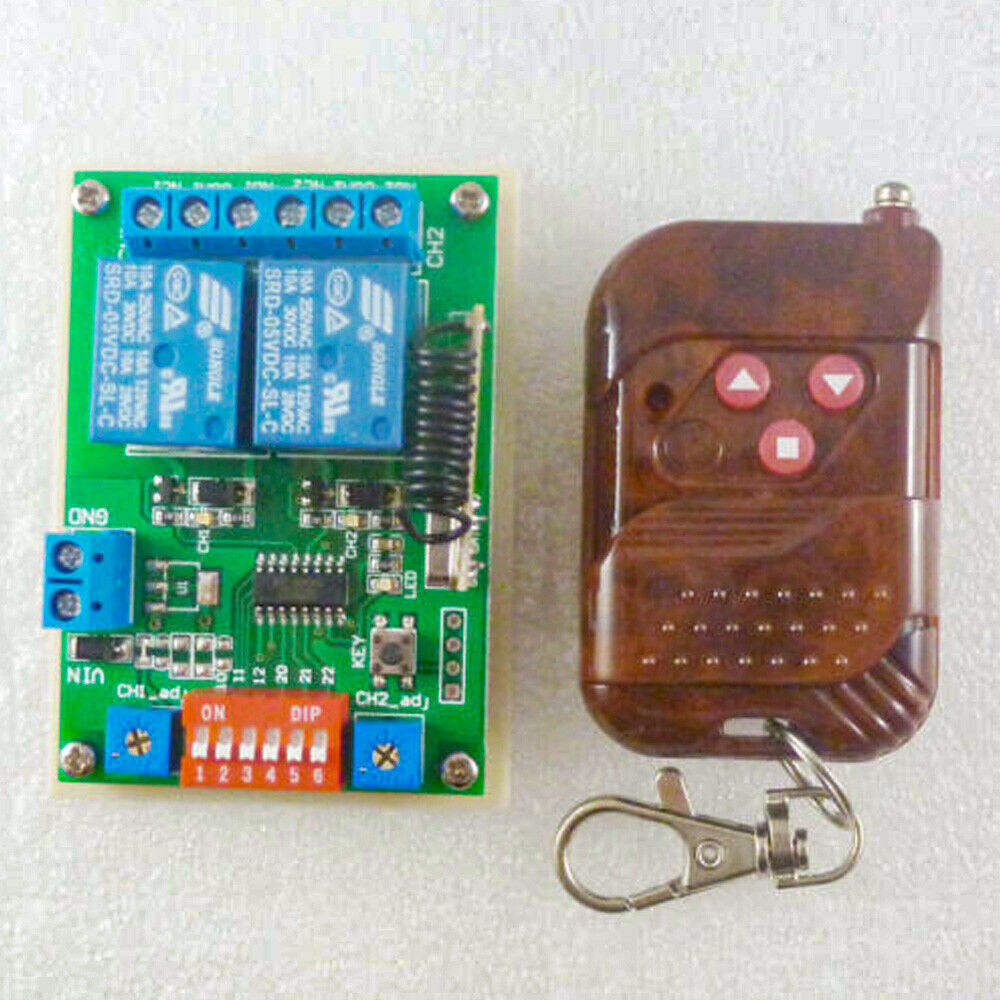

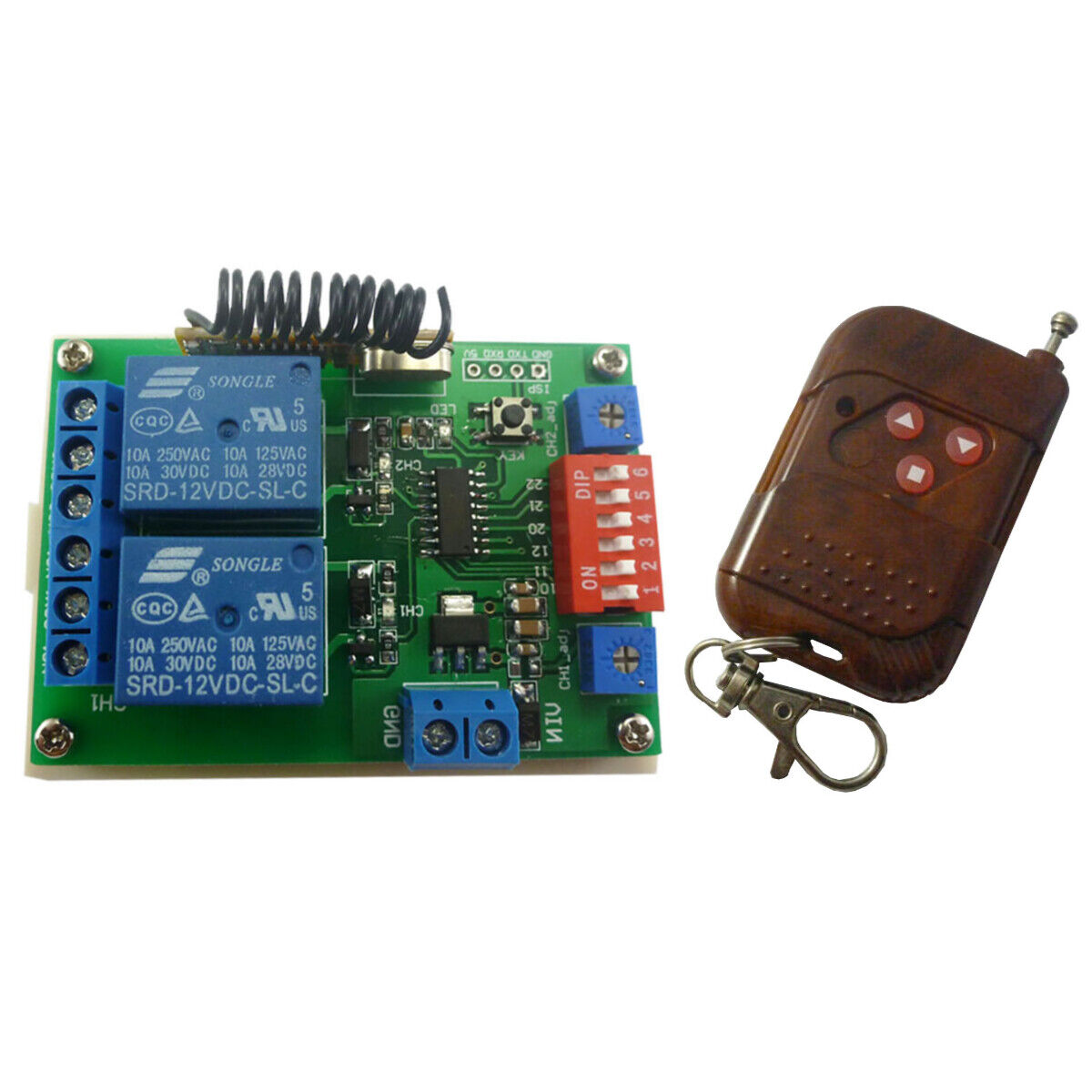

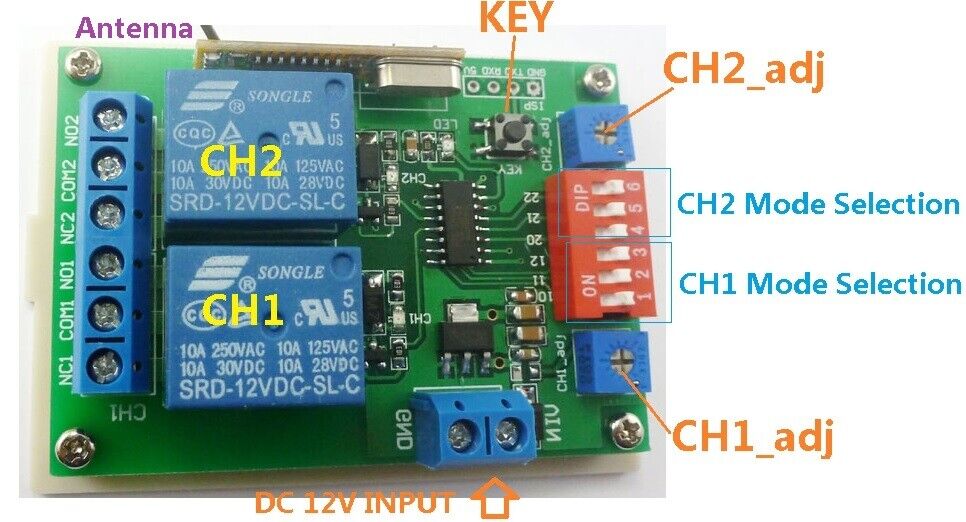

1 PCS 433M DC 12V 3 Channel Multifunction Wireless Controller
(all user guide was provided in this item description , there is no extra manual )



Typical applications:
DC 12V Home lighting system
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 12V DC Motor,RS360




Work mode



Typical applications:
DC 5V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 5 DC Motor,RS360






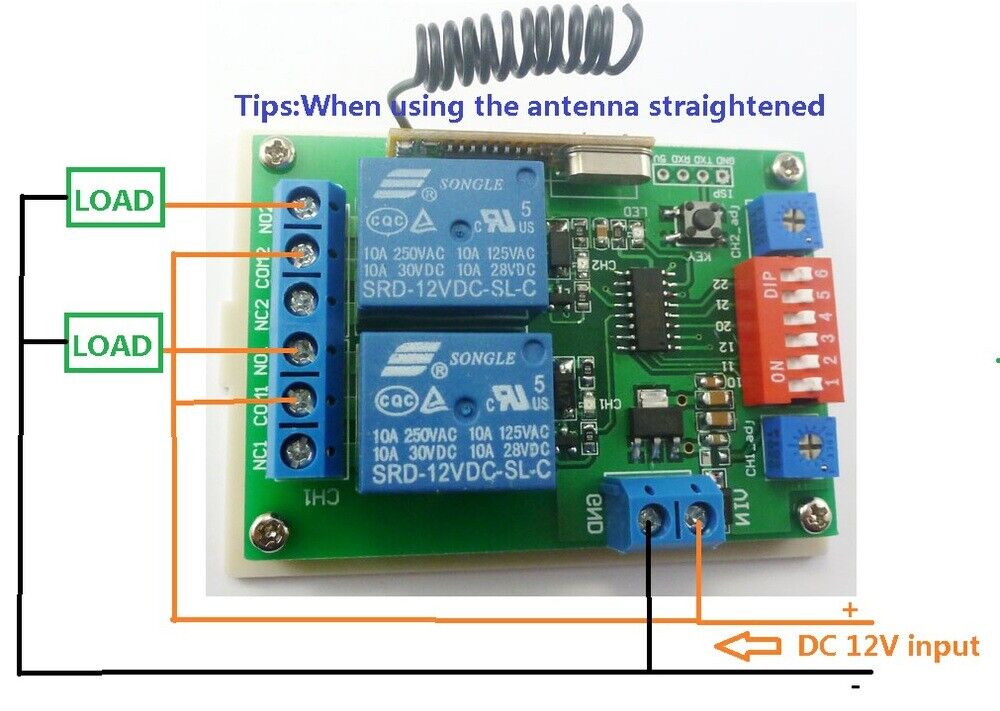

Wiring Diagram 1:
DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 5V

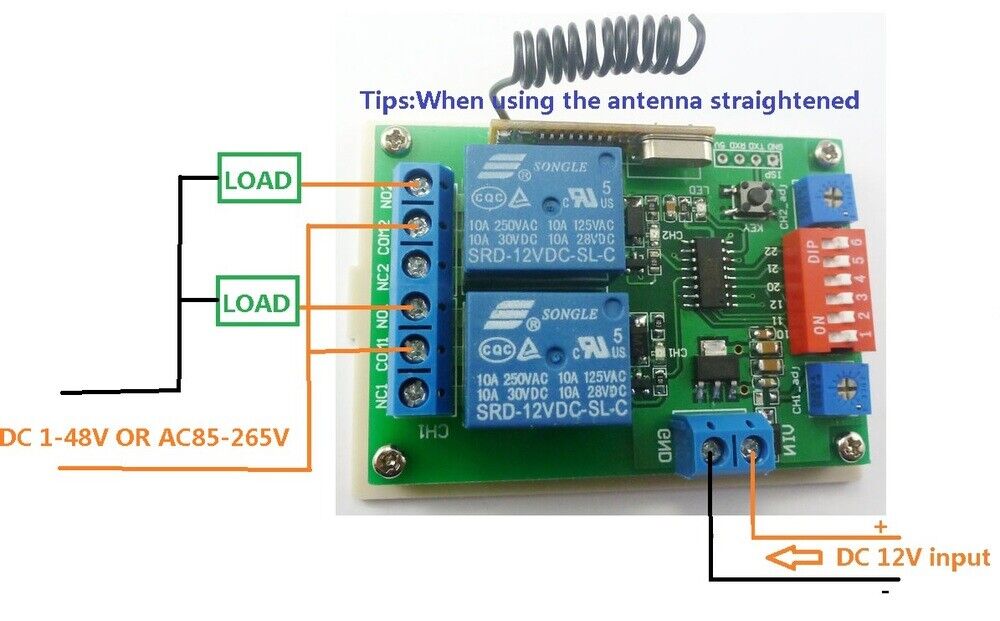

Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment



Packing list:

1 PCS 433M DC 5V 2 Channel Multifunction Wireless Controller









Technical indicators:

Operating voltage : DC 12V

Operating Current : All relays close,about 15MA; one relay open,about 86MA;two relay open,about 157MA

Operating frequency : 433.92M;

Receiver sensitivity : -108dB;

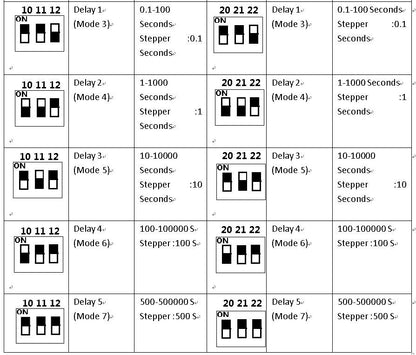

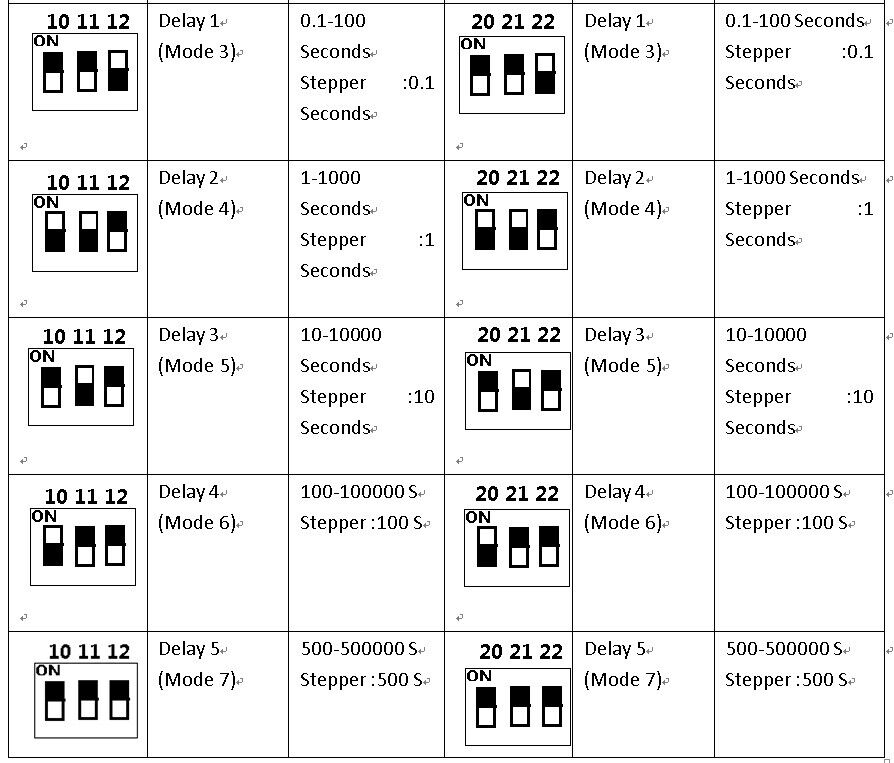

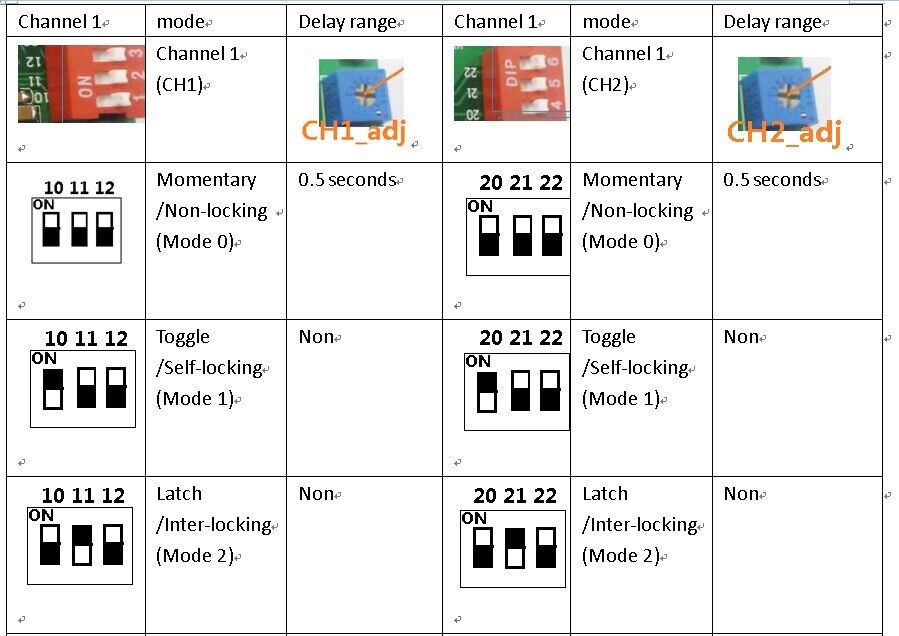

Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay

Size(Including housing) : 75*54*28mm

Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );

Max load : 500W;

Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Learning method and steps:

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes

Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)

Step 1 (into the learning mode): Press the button (about 1 second), LED off;

Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value

Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values



Use more details, please click here!

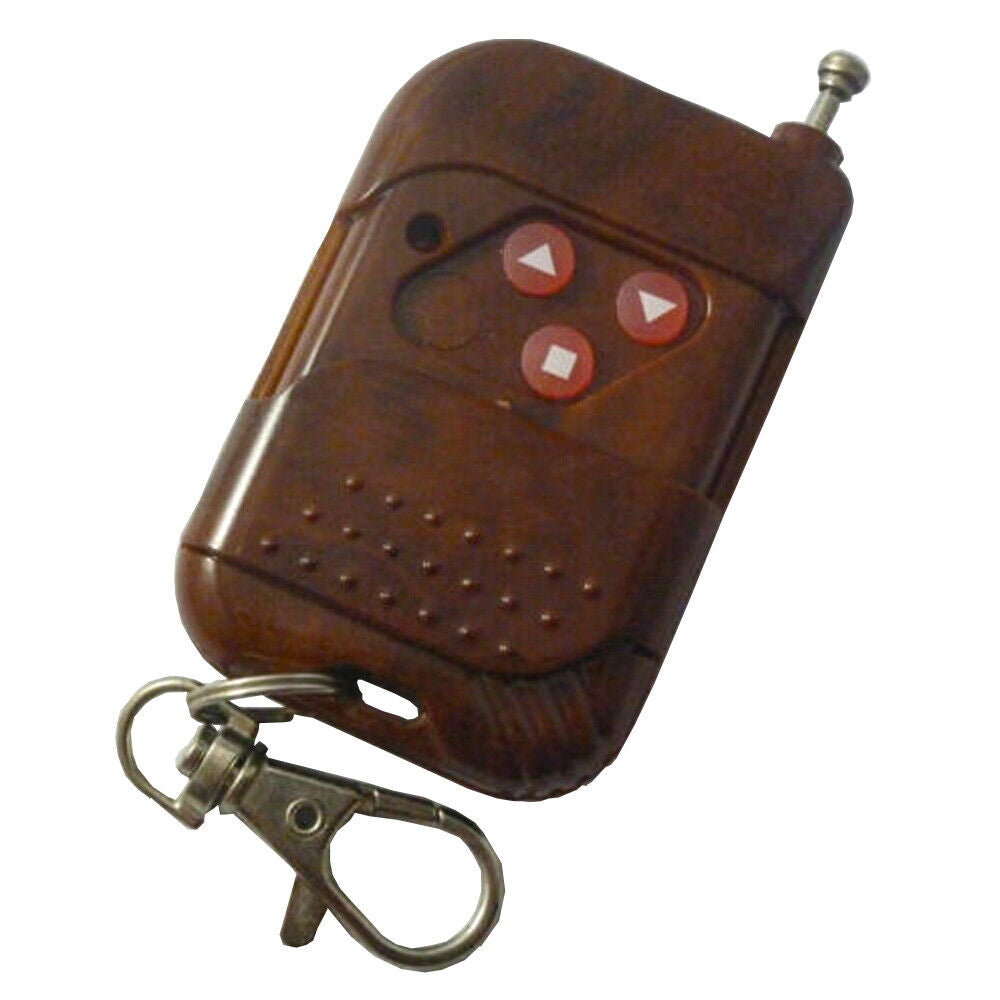

Transmitter :





EV1527 433MHz 3 buttons



Technical Data :

Power supply : 12V 23A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 9mA;
Decode Type : land or pad;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHZ ;
Encoding IC : Fixed code EV1527;
(CANNOT program , HAVENOT Learning Function , Cannot copy your existing remote ,Can be duplicate if your receiver board have a learning key ) ;
RC Resistance : 330K;
Remote size: 58×39×16 mm;
