CE033C 315M DC 12V 1-5000S adjustable delay timer Wireless Relay Remote Switch

CE033C 315M DC 12V 1-5000S adjustable delay timer Wireless Relay Remote Switch

CE033C+CJ002

1000 in stock

$9.99
$11.99 $9.99
Sale Sold out
Typical applications:
DC 12V Home lighting system
Remote control switch
Smart Home / Home Automation
Garage Door
Fluorescent lamp Illumination
Motorcycle Electromobile
Remote controlled gates
Security Monitoring
LED lighting
Fluorescent lamp
DC 12 DC Motor,RS360

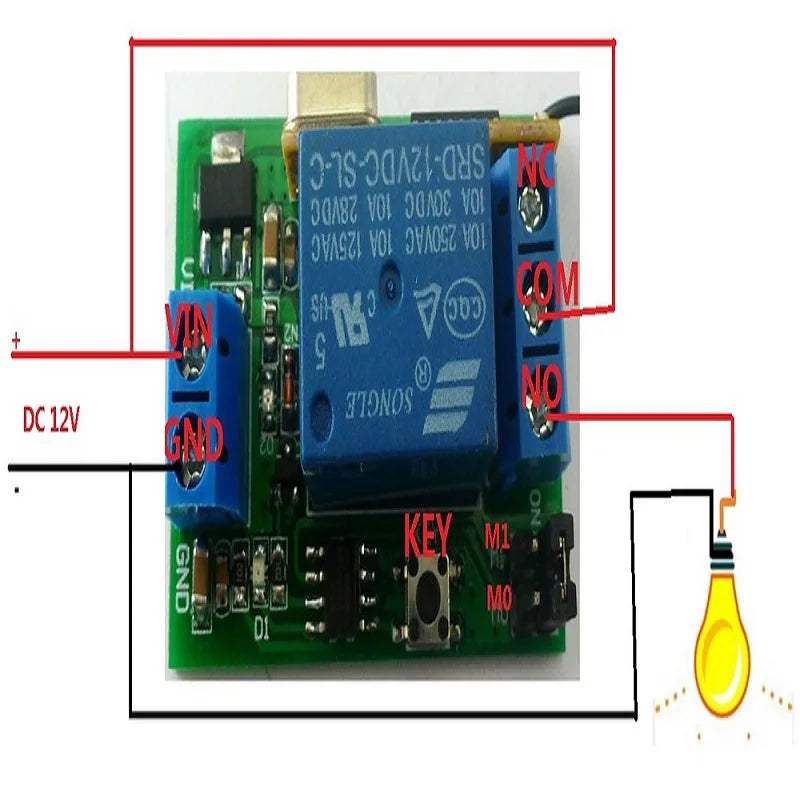

Wiring Diagram 1:
DC 12V control circuit,Wiring diagram below. "LOAD" may be LED lamp, fans, motors and other DC 12V Electrical equipment

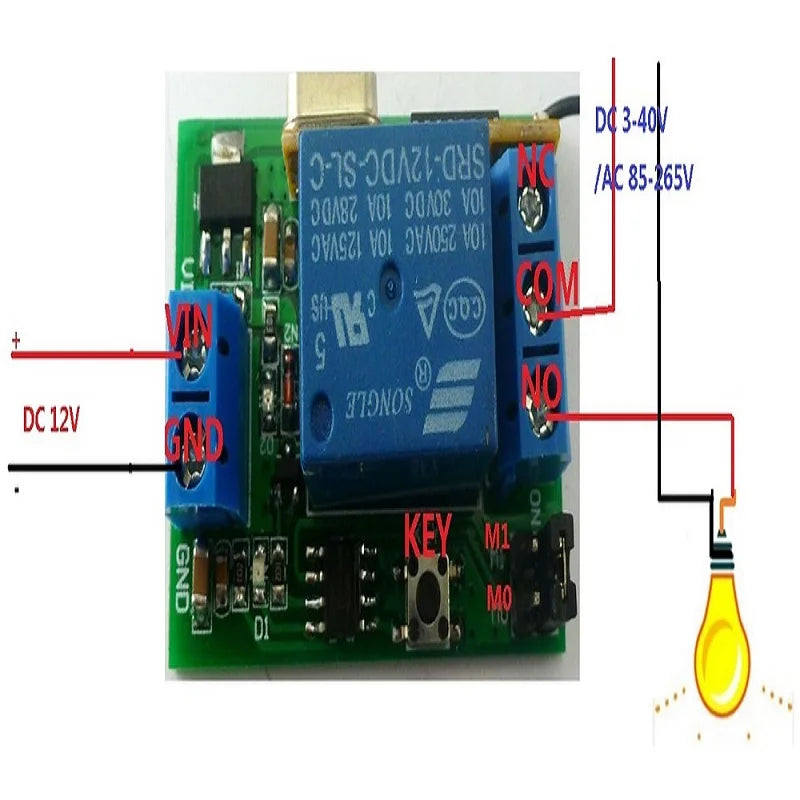

Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 12V load, need another DC 12V power supply). "LOAD" may be LED lamp, fans, motors and other DC AC equipment


Product Name : 315M DC 12V 1-5000S adjustable delay timer Wireless Relay Remote Switch


Packing list:

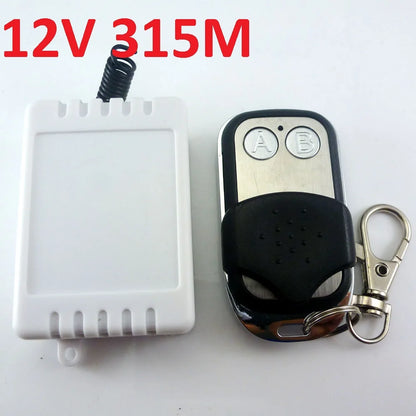

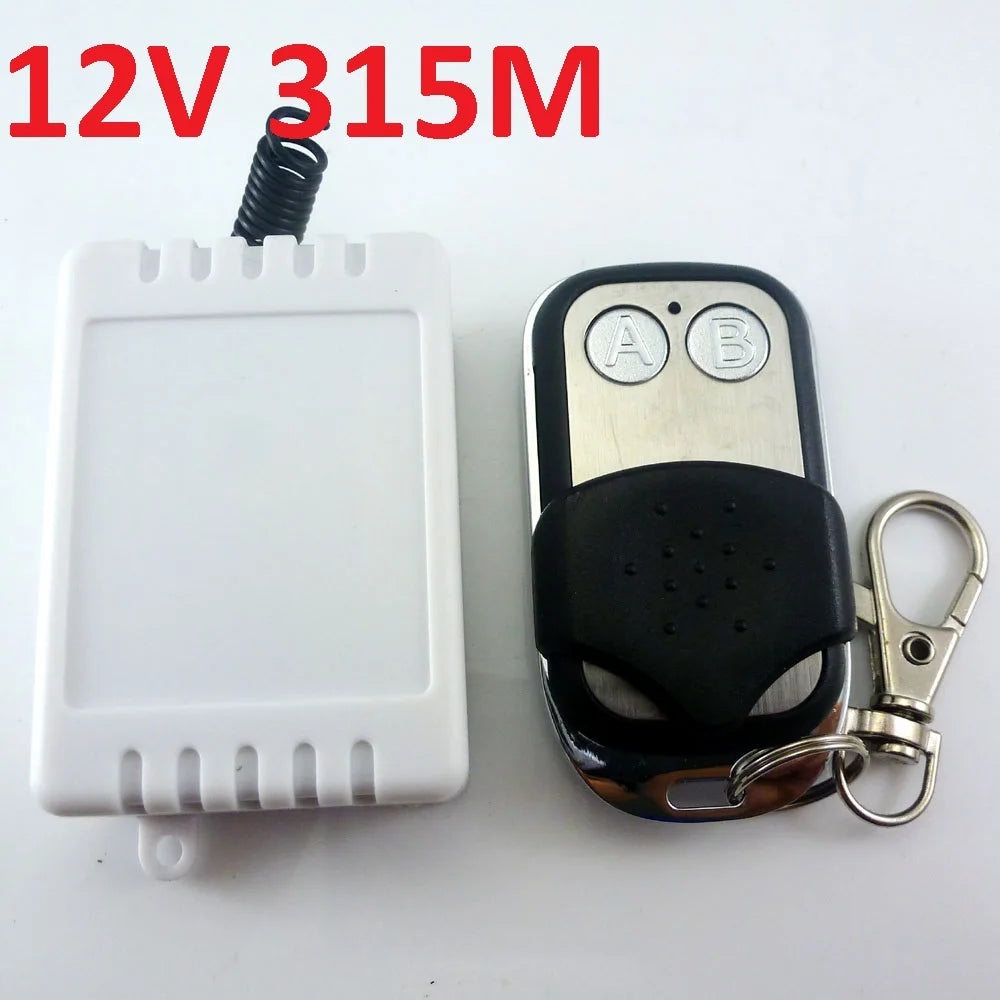

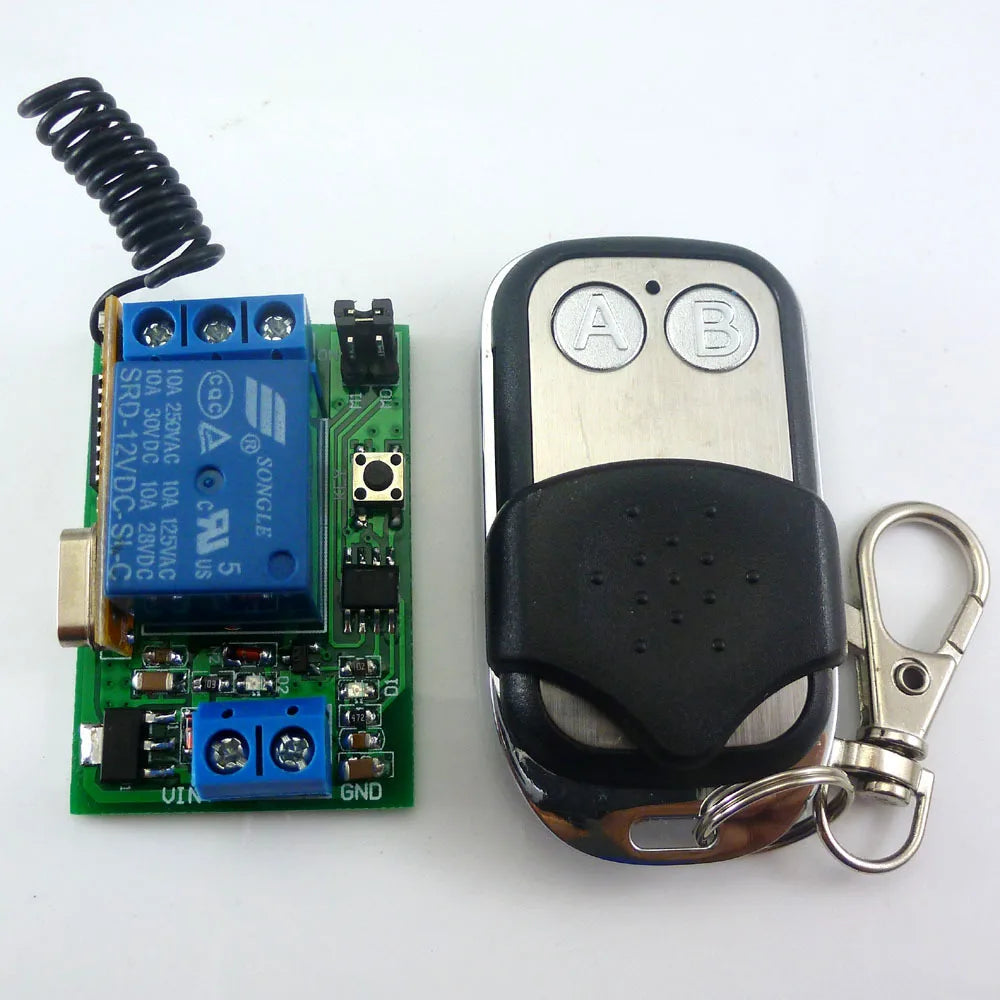

1 PCS 315M DC 12V one Channel Delay Switch
1 PCS 315 MLarge Power 2 Button EV1527  Remote Control (USE 12V 27A battery,Batteries not included)


receiver Features:

1 Operating voltage:  DC 12V;

2 Operating Current: relays close, about 9MA; relay open,about 42MA;

3 Operating frequency: 315M

4 Receiver sensitivity : -108dBm

5 Decode  : learning code, can be adapted EV1527 / PT2262 and compatible remote control, you can store up to 32 remote control

6 Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch),Delay; 1-5000 seconds adjustable delay time, minimum step 0.1 seconds

7 Size(Including housing)50*35*22mm

8 Weight(including housing) 30g

9 Relay Maximum load(Recommended<5A):10A/250VAC,10A/125VAC,10A/30VDC, 10A/28VDC,10A/12VDC


Work mode

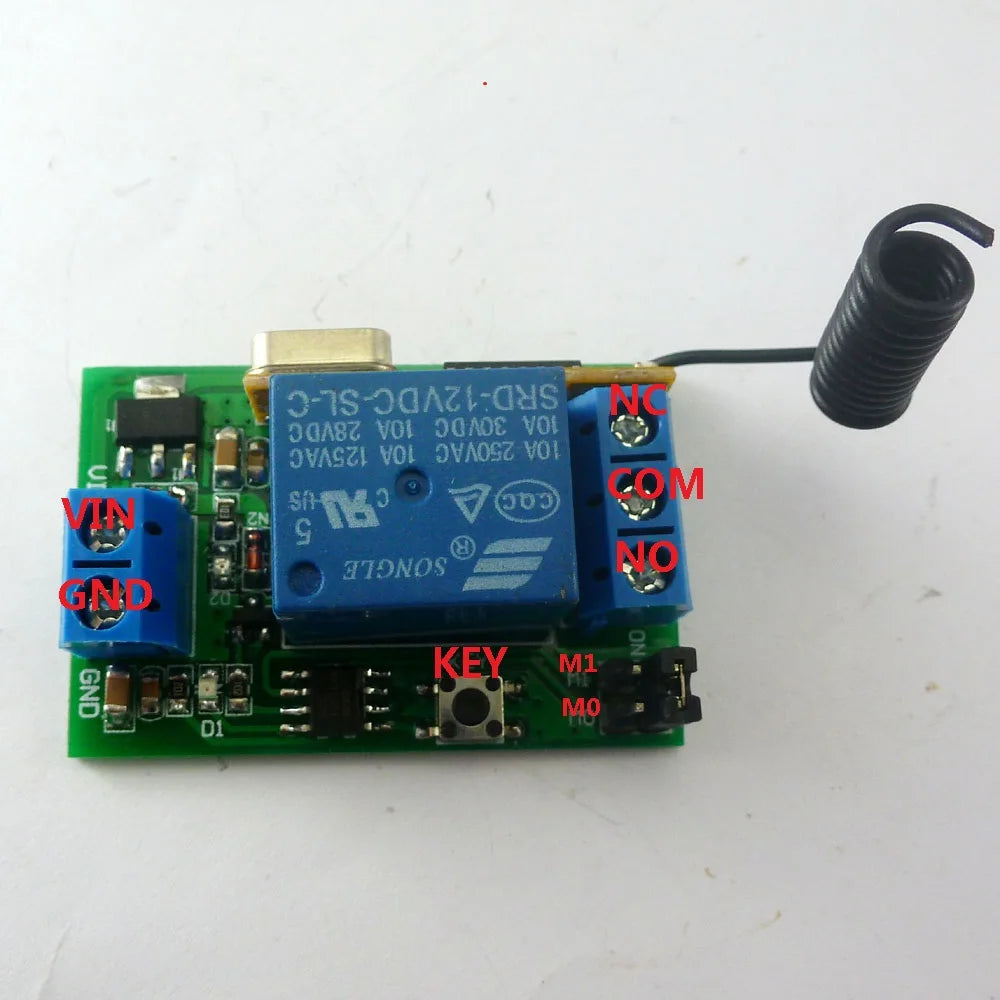

NO          : Relay normally open contact
COM       : Relay common contact
NC          : Relay normally closed contact
Open       : NO connection COM, NC disconnect COM
Close      : NO disconnect COM, NC connection COM
Momentary  : Press the Transmitter button , the receiver relay is Open, release button;the relay  is Close;
Toggle        : Press transmitter button for 1 time , the receiver relay is Open, press button again, the relay  is Close;
Latched       : Press transmitter button A, the receiver relay is Open  Press transmitter button B, the receiver relay is Close.
Delay           : Press the Transmitter button, the receiver relay Open,After a set time delay, the receiver relay  is Close;

If during the delay, press the button of Transmitter, delay start again; if the delay period, press and hold  the button of Transmitter 3-4 seconds, the receiver controller stops the delay, the relay Close

Adapter remote control (learning remote control):
Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes

Clean code: press the key and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)

Step 1 (into the learning mode): Press the key (about 1 second), LED off;
Step 2 (adapter button): Then press the utton on the remote control, LED flashes four times on, then learning the button value

Note:
Only the Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch) mode to a "clear code" and " learning " action
 In the "delay" mode can only set the delay time


Delay setting:
Step 1, the mode is set to "delay" mode (jumper cap on the M1 into two rows of pins)
Step 2, press the key until the LED is off
Step 3. Click the key again, LED flashes
Step 4. Click the key again after a period of time, LED light
LED blinking time is the delay time.


 Power supply : 12V 27A battery   replacable  . (This remote doesnot have a battery , Please buy in your local market )
Operating current:  ≤ 12mA ;
Oscillation mode:  SAW resonator ;
Oscillation resistor : 330K
Modulation mode: ASK OOK ;
Operating frequency:315 MHz  ;
Frequency dev iation: ±0.2MHz ;
Encoding format: Million  Group Code (  EV1527 ) ;
Transmit power: 10 mW.
Data Rate : 50~60KHZ;





Specifications:
Operating Voltage: DC 12V
Operating Current: Relays close, about 9MA; relay open, about 42MA
Operating Frequency: 315M
Receiver Sensitivity: -108dBm
Work Mode: Non-locking (Momentary is default), Self-locking (Toggle), Inter-locking (Latch), Delay; 1-5000 seconds adjustable delay time, minimum step 0.1 seconds
Size (Including housing): 50*35*22mm
Weight (Including housing): 30g

Features:
