AMVIF08 AMAIE08 DC 12V-24V 8AI 8VI 4-20MA /0-10V to RS485 Current/Voltage ADC Collector Read Capture Module MODBUS RTU PLC Board
AMVIF08 AMAIE08 DC 12V-24V 8AI 8VI 4-20MA /0-10V to RS485 Current/Voltage ADC Collector Read Capture Module MODBUS RTU PLC Board
SKU:AMAIE08
1100 in stock
Regular price
$22.99
Sale price
$22.99
Unit price
per
Couldn't load pickup availability

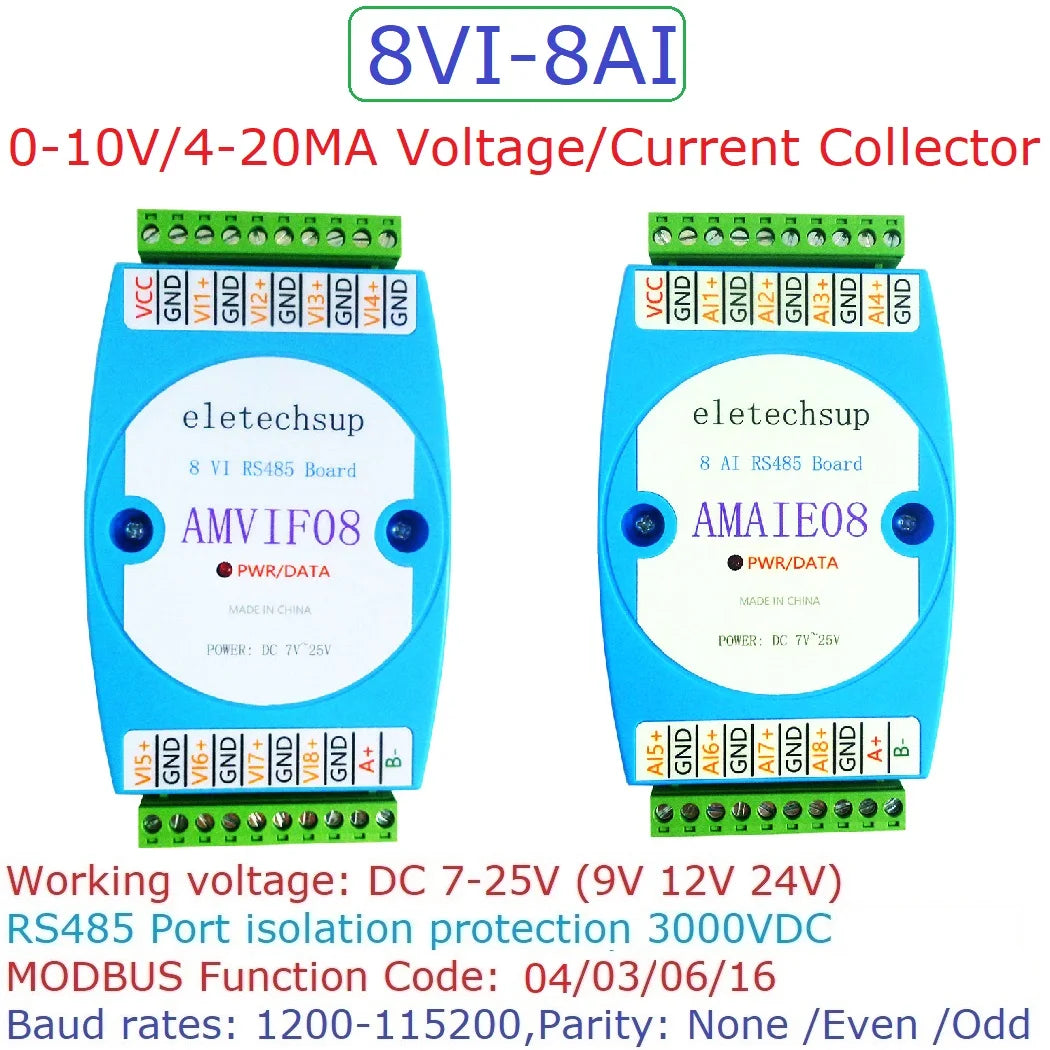

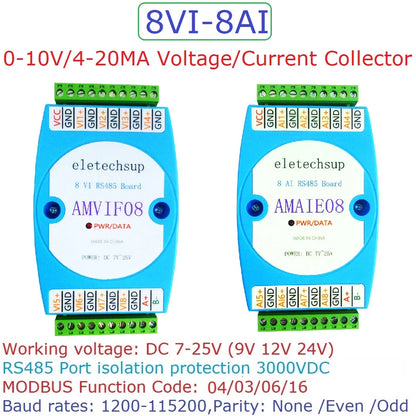

Product Name: DC 12V-24V 8AI 8VI 4-20MA /0-10V to RS485 Current/Voltage ADC Collector Read Capture Module MODBUS RTU PLC Board
Package inlcuded:
1 PCS DC 12V 24V 8 Channels RS485 4-20MA Current Collector Module OR
1 PCS DC 12V 24V 8 Channels RS485 0-10V Voltage collector
1 PCS DC 12V 24V 8 Channels RS485 0-10V Voltage collector
1 Product description(4-20MA)
8ch 0-20MA current analog input
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
2 Specification(4-20MA)
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-50MA
3 8-channel current input, the input current range of each channel is 0~20MA/4-20MA
4 RS485 communication isolation protection 3000VDC

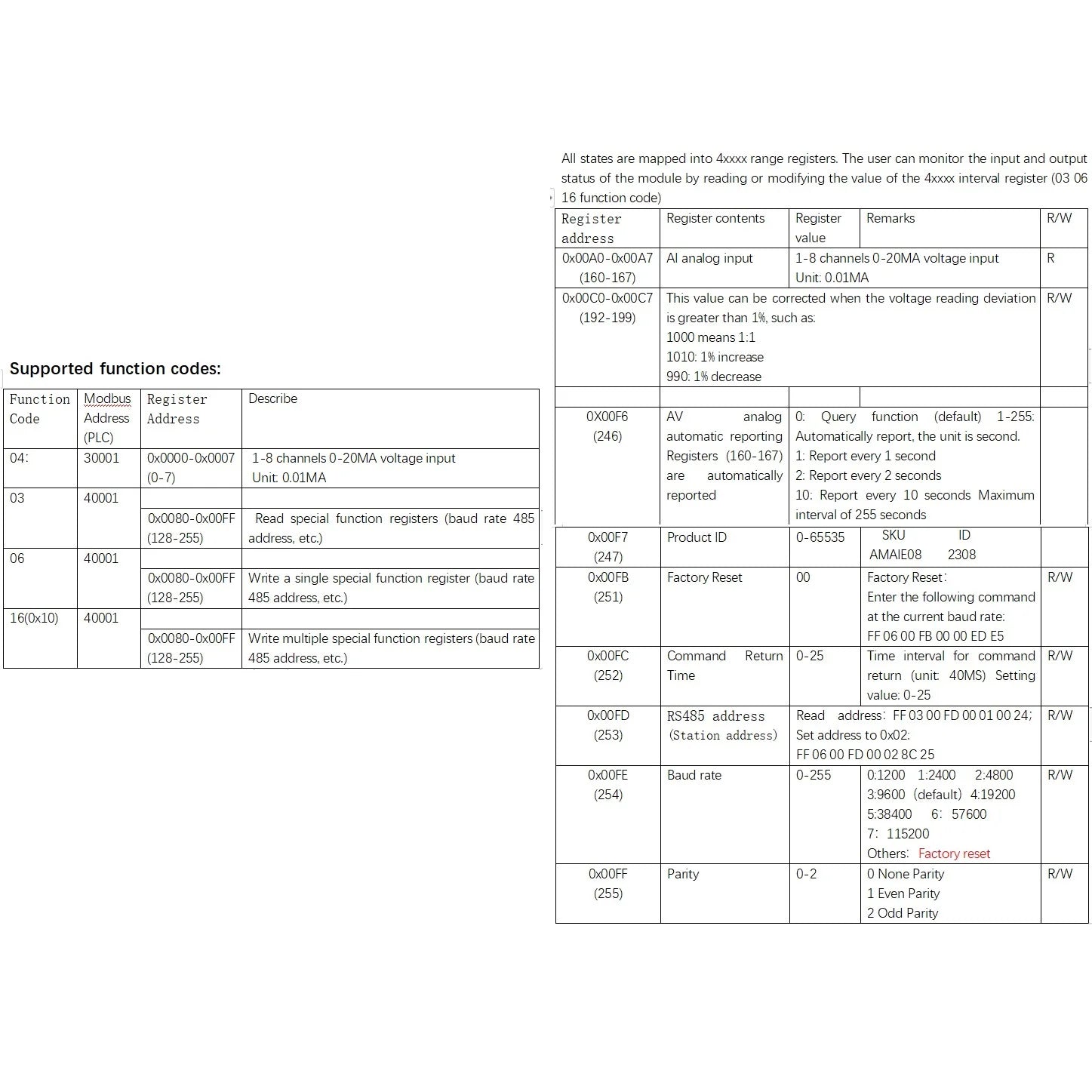

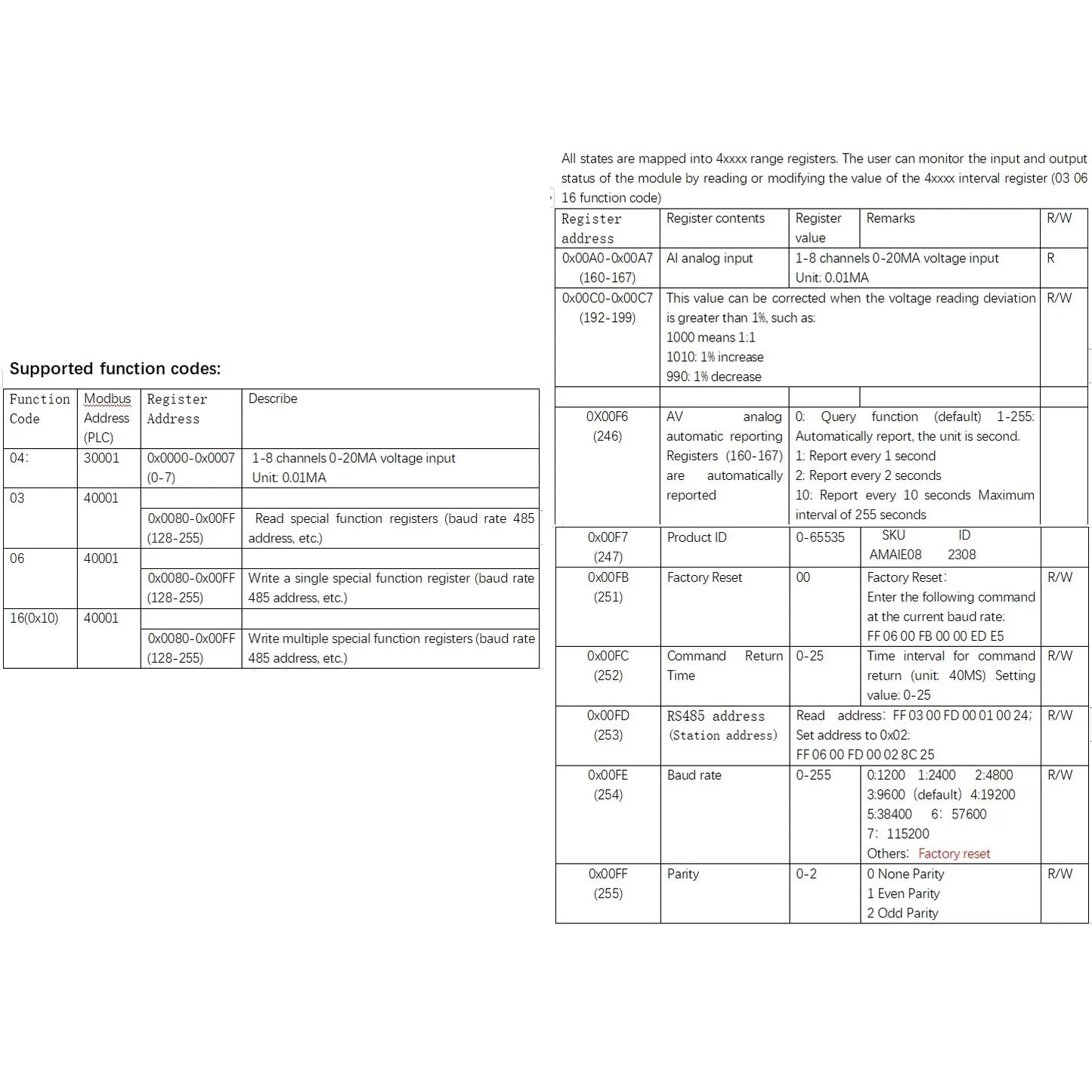

5 Standard MODBUS RTU command (function code, 06/16 Write, 04/03 Read )
6 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
7 Parity bits: None (default) /Even /Odd
8 Installation method Standard DIN rail installation
9 Dimensions 125×70×30mm
10 Weight: 114 grams

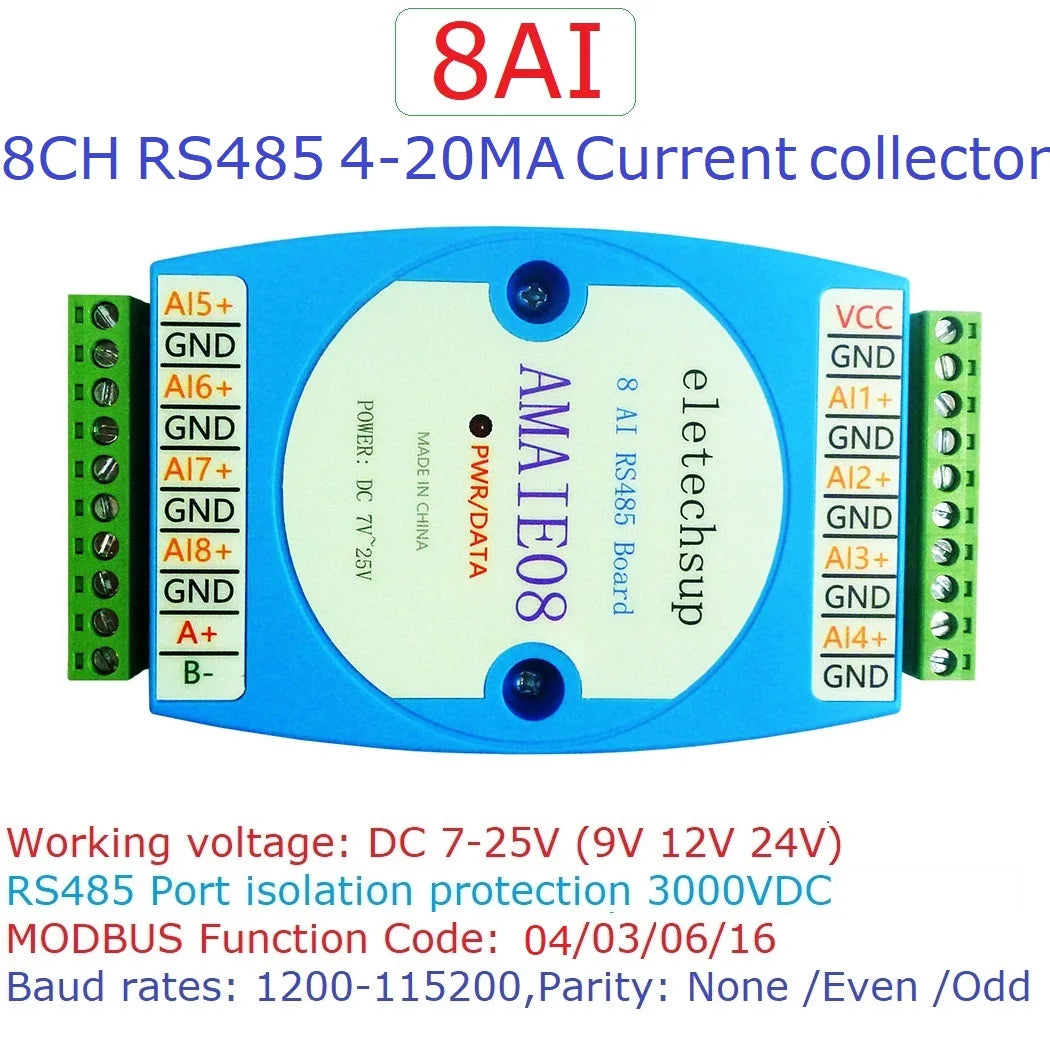

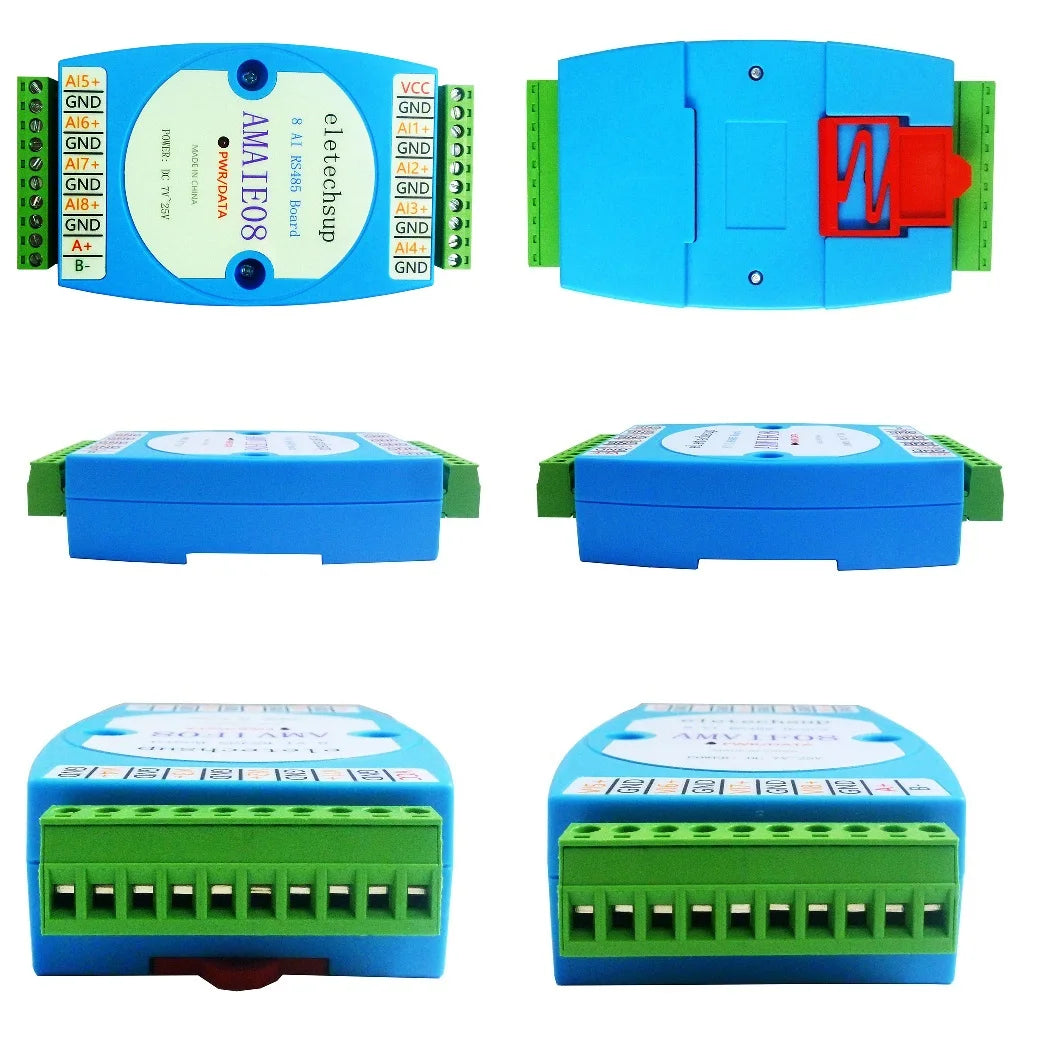

3 Interface definition(4-20MA):
VCC : Power input+
GND: Power input-
AI1+: Current input channel 1
AI1+: Current input channel 2
AI2+: Current input channel 3
AI2+: Current input channel 4
AI3+: Current input channel 5
AI3+: Current input channel 6
AI4+: Current input channel 7
AI4+: Current input channel 8
A+: RS485 signal A+
B-: RS485 signal B-

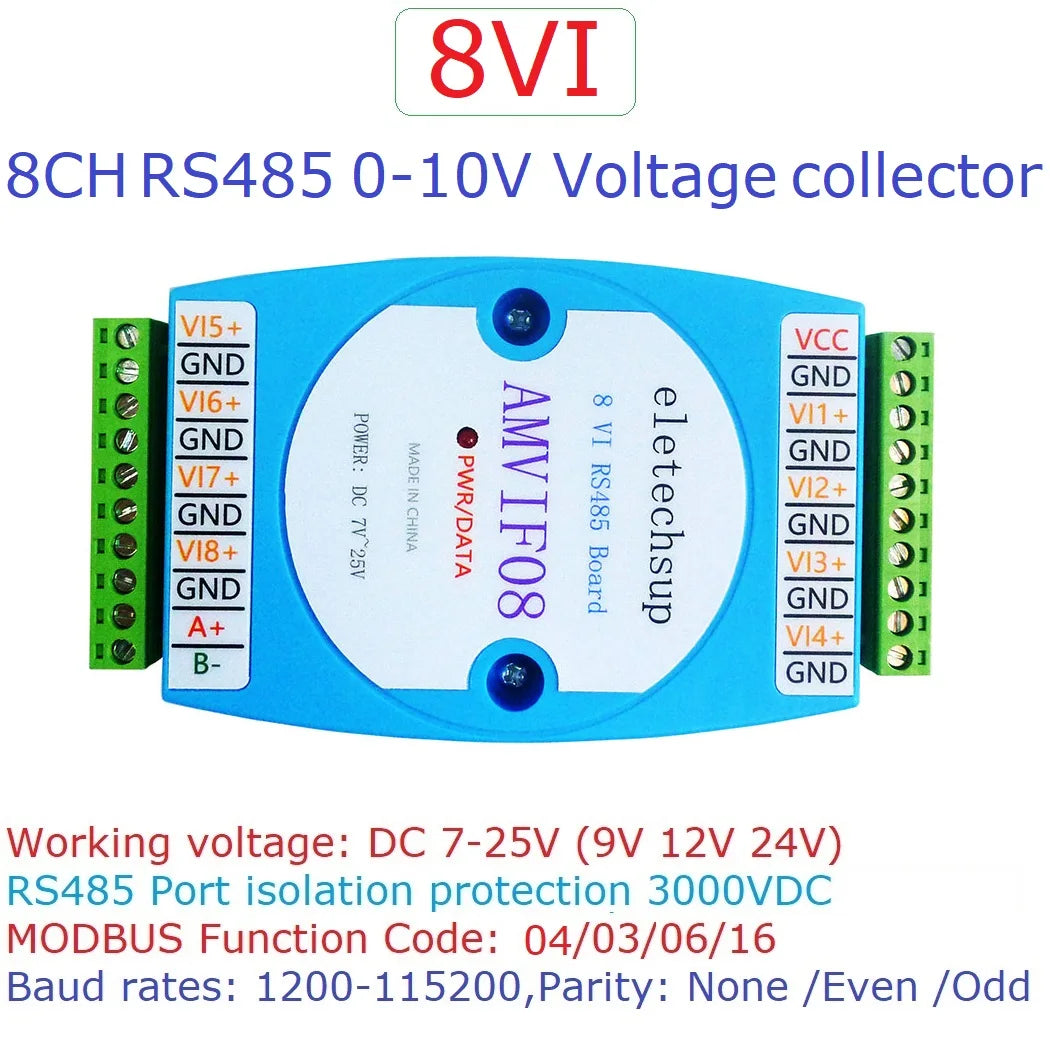

1 Product description(0-10V)
1 Product description
8-channel analog input
RS485 MODBUS RTU standard communication protocol
Netted with configuration software, PLC or industry touch panel
Communication circuit designed for thunder protection and interference immunity
Used for signal collection and control in industrial field
2 Specification(0-10V)
1 Working voltage: DC 7-25V (9V 12V 24V)
2 Working current: 8-50MA
3 8 channels voltage inputs , the input voltage range of each channel is 0~10V
4 RS485 communication isolation protection 3000VDC
5 Standard MODBUS RTU command (function code, 06/16 Write, 04/03 Read )
6 Baud rates: 1200 2400 4800 9600 (default) 19200 38400 57600 115200
7 Parity bits: None (default) /Even /Odd
8 Installation method Standard DIN rail installation
9 Dimensions 125×70×30mm
10 Weight: 114 grams
3 Interface definition(0-10V):
VCC : Power input+
GND: Power input-
VI1+: voltage input channel 1
VI1+: voltage input channel 2
VI2+: voltage input channel 3
VI2+: voltage input channel 4
VI3+: voltage input channel 5
VI3+: voltage input channel 6
VI4+: voltage input channel 7
VI4+: voltage input channel 8
A+: RS485 signal A+
B-: RS485 signal B-
For more information, please contact me
Application
PLC Output expansion board
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control
4-20MA current instrumentation
0-10V Voltage instrumentation
Smart Home,Home Automation ,Wiser Home;
PTZ CCTV Camera
Security Monitoring
Identification system;
Motor FW & BW
Automatic curtain control
4-20MA current instrumentation
0-10V Voltage instrumentation

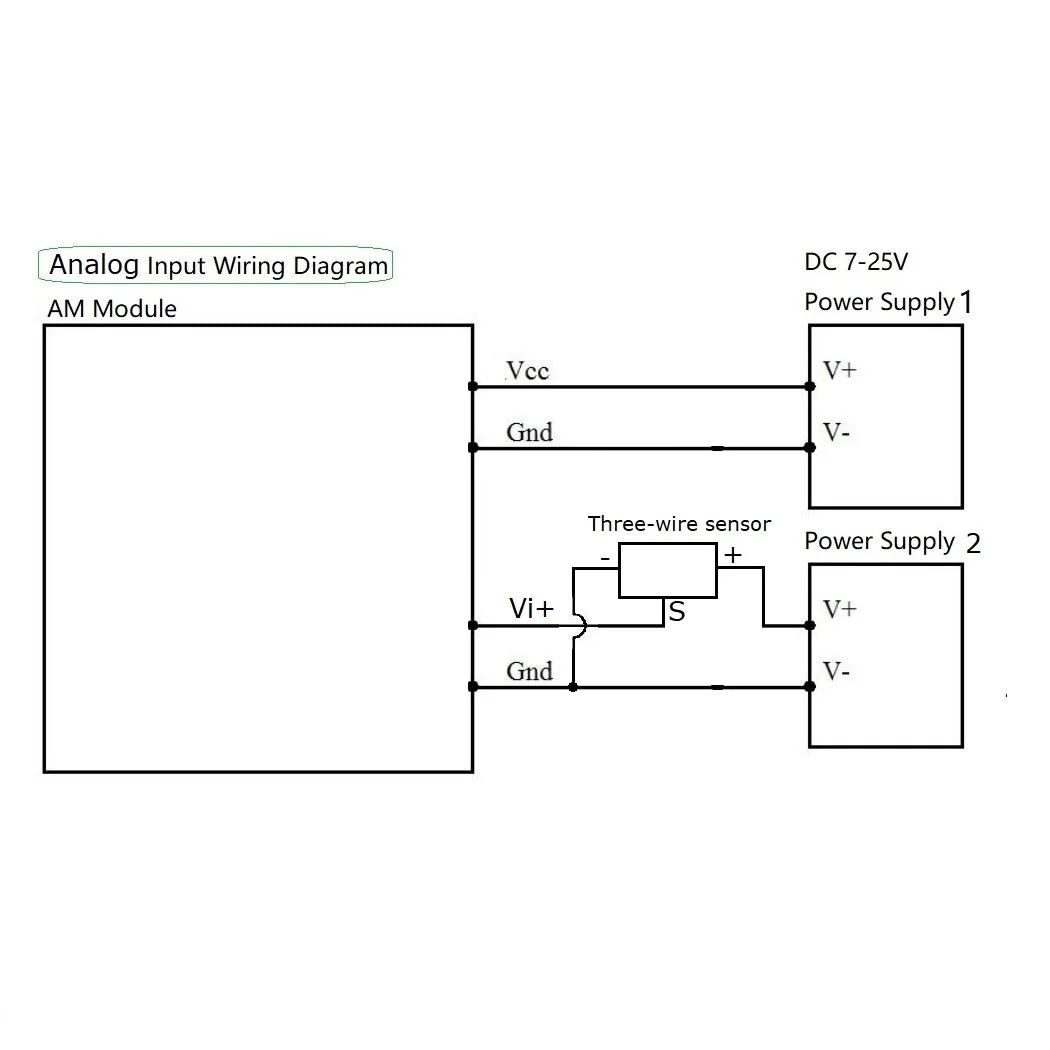

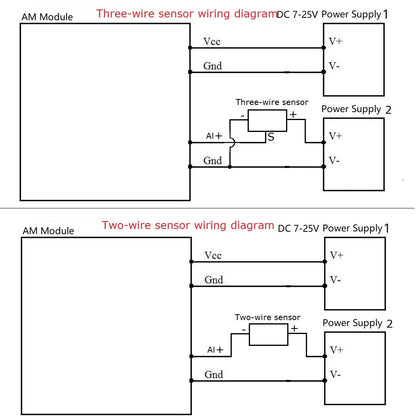

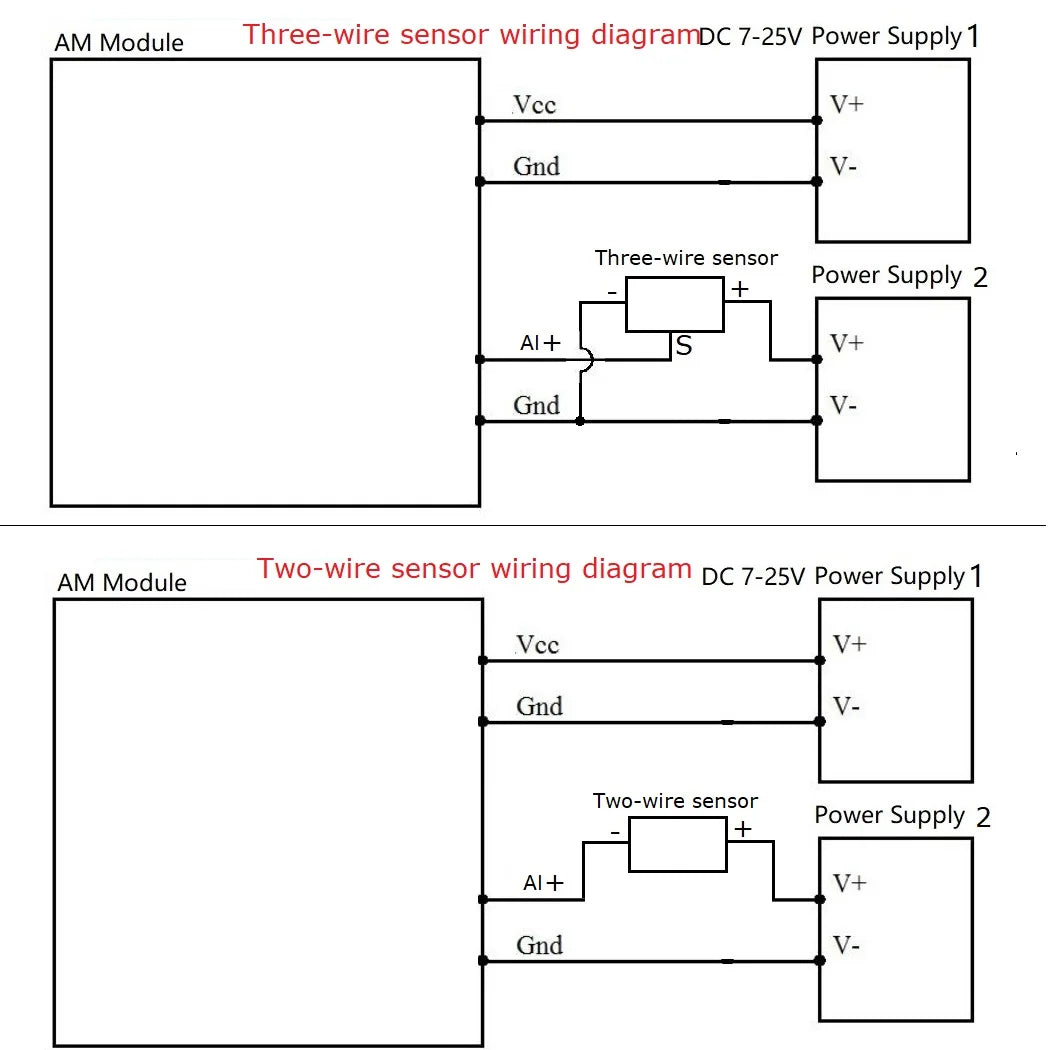

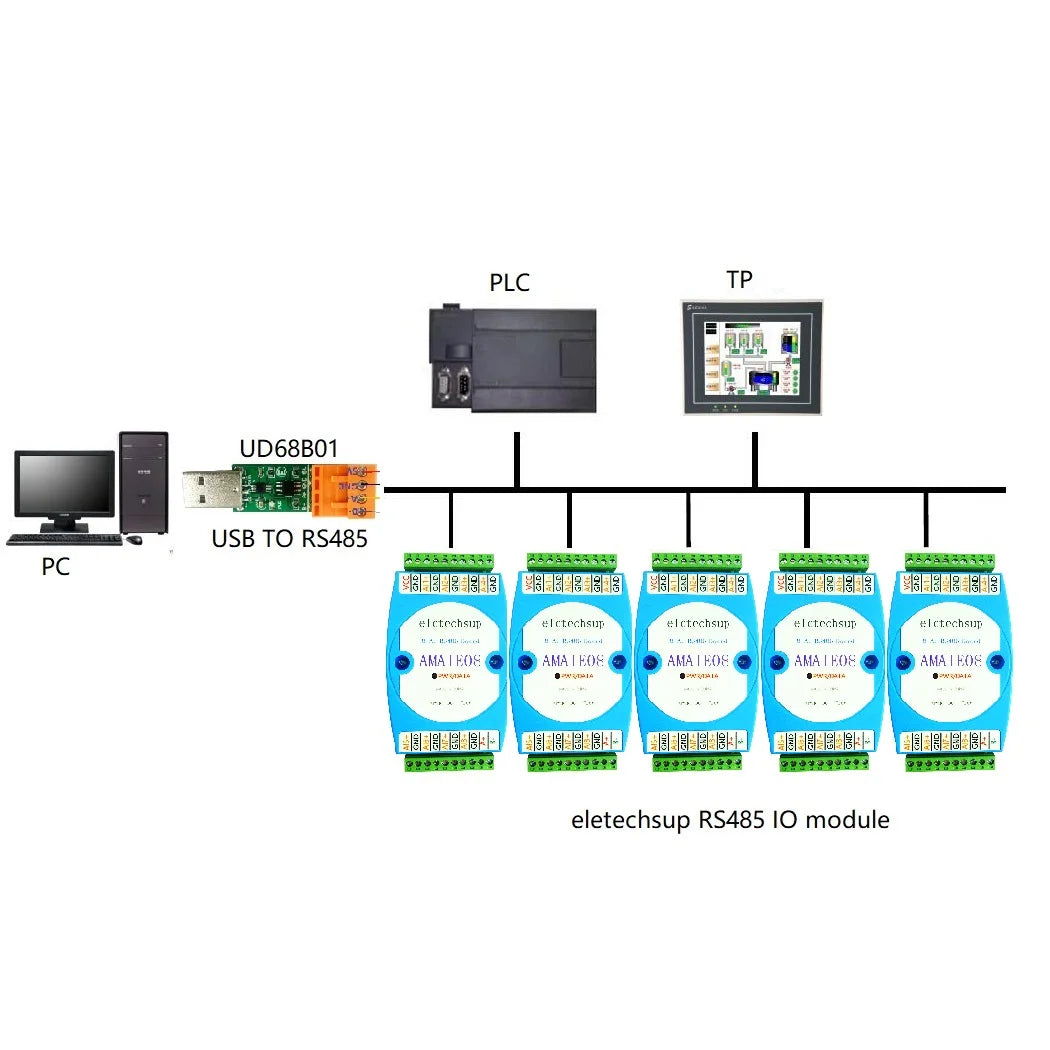

RS485 Networking Diagram
