DC 12V 4CH DTMF Relay MT8870 Phone Voice Decoder Remote Controller Switch Module





Product Specifications:



Operating Voltage: DC 9-13V(Recommendation : 12V);

Operating Temperature : -40-+85 °C

Size: 76x73x20mm

Weight :72g

Relay maximum load capacity: DC 0-48V/6A; AC 85-250V/5A





Product Features:



4 channel relay.DTMF audio decoder control,Dial the number 1/2/3/4 control channel 1/2/3/4.

Power anti-reverse diode.

8 kinds of Mode selection: Momentary, Toggle, Latch,Delay 5/20/60/120/250 seconds

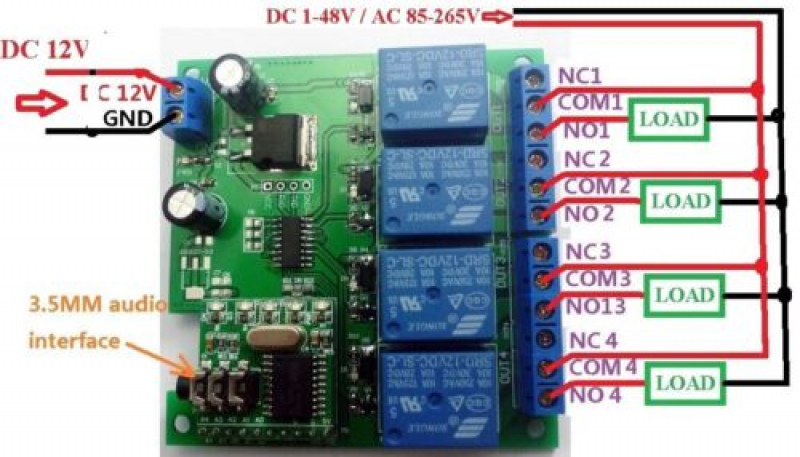

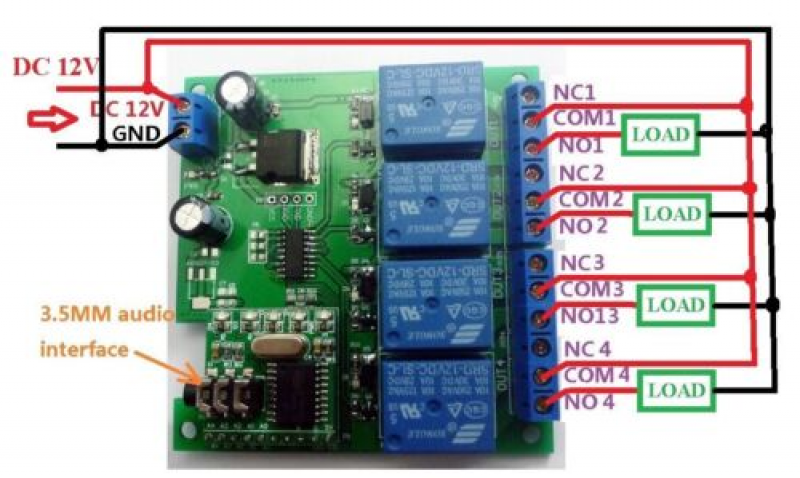

Flexible wiringcan be controlled all kinds of electrical equipment:

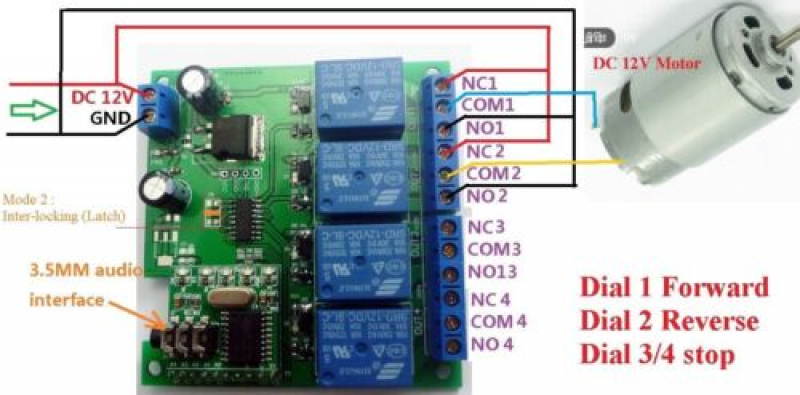

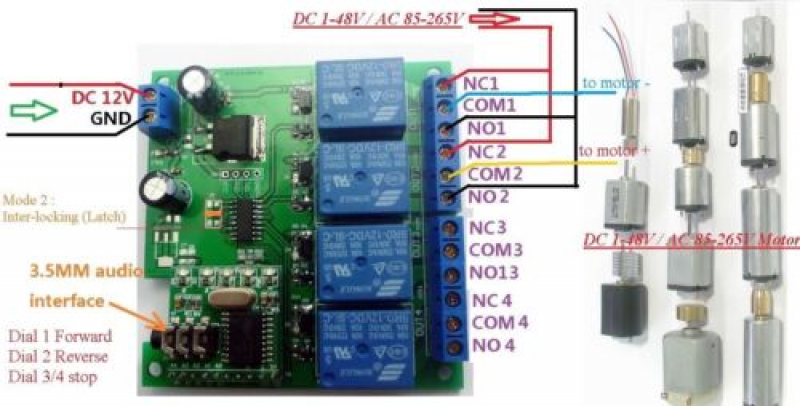

DC 12V LED Motor Forward and reverse,DC 1-48V /AC 85-265V LED Motor Electric light Refrigerator Air conditioning etc.



Use Method:



This decoding module is for mobile and fixed telephone voice dialing decoding function , has 4 channels, 8 kinds of selectable output function,4 channels outputs decode mobile and fixed telephone keys (number1/2/3/4).or can be use "DTMF Dial" Software control.

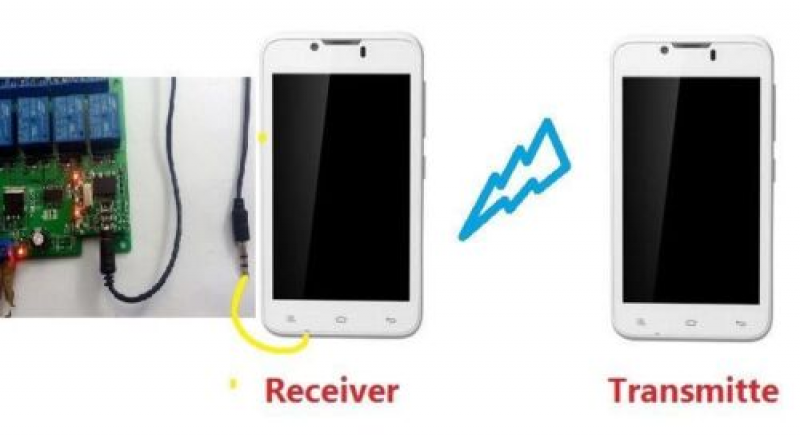

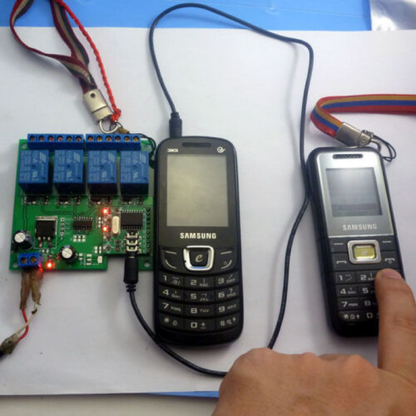

Control by mobile phone:

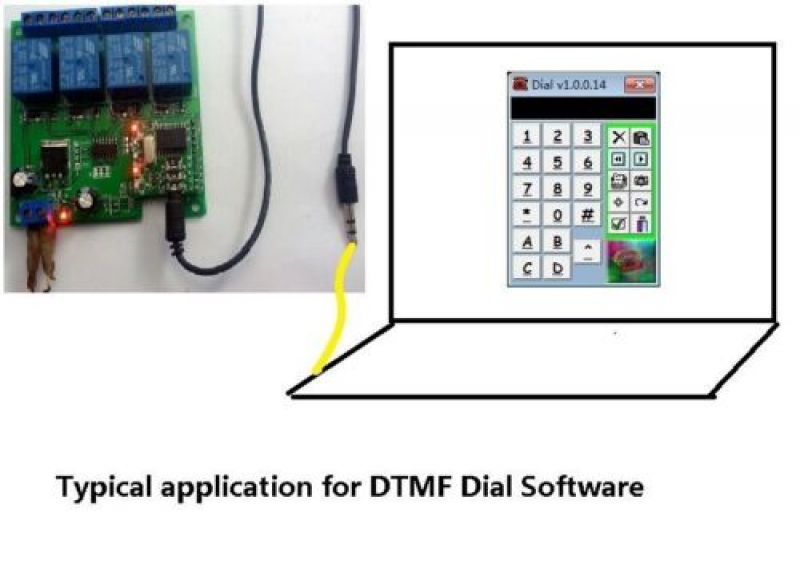

Control by DTMF Dial Software:

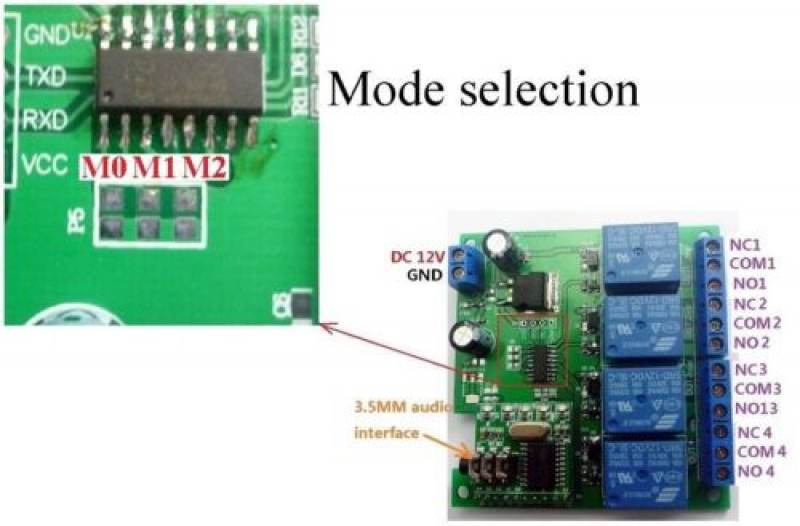

Mode selection:

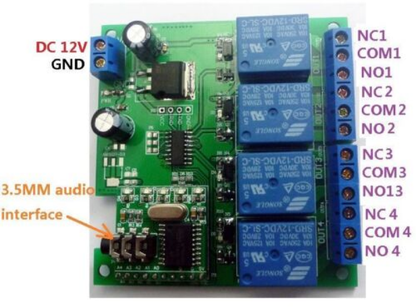

NC : Normal Connect

COM : Common terminal

NO: Normal open

Relay close: COM connect NO.

Relay open : COM disconnect NO.

Mode selection explanation:

Momentary------------ Dial number 1, the relay 1(Out 1)is close, one second delay relay 1 open, the same as Relay 2/3/4 ,Every Relay is Independent ;

Toggle--------------- Dial number 1, the relay 1(Out 1) is close, Dial the number 1 again relay 1 open, the same as Relay 2/3/4 ,Every Relay is Independent;

Latched------------------

Dial number 1, the relay 1(Out 1) is close, relay 2/3/4(OUT 2/3/4) is open

Dial number 2, the relay 2(Out 2) is close, relay 1/3/4(OUT 1/3/4) is open

Dial number 3, the relay 3(Out 3) is close, relay 1/2/4(OUT 1/2/4) is open

Dial number 4, the relay 4(Out 4) is close, relay 1/2/3(OUT 1/2/3) is open

Delay 5/20/60/120/250 seconds ------------------ Dial number 1, the relay 1(Out 1)is close, 5/20/60/120/250 seconds delay relay 1 open, the same as Relay 2/3/4 ,Every Relay is Independent.
