DC 12V WIRELESS Door Windown Sensor HOUSE OFFICE BURGLAR INTRUDER Anti-Enter

DC 12V WIRELESS Door Windown Sensor HOUSE OFFICE BURGLAR INTRUDER Anti-Enter

TB094*1+AK018*1

1000 in stock

$25.48
$25.48 $25.48
Sale Sold out

DC 12V WIRELESS Door Windown Sensor HOUSE OFFICE BURGLAR INTRUDER Anti-Enter

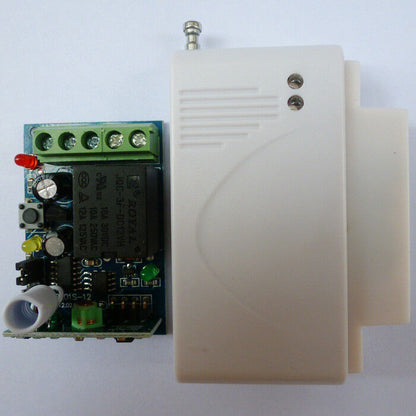

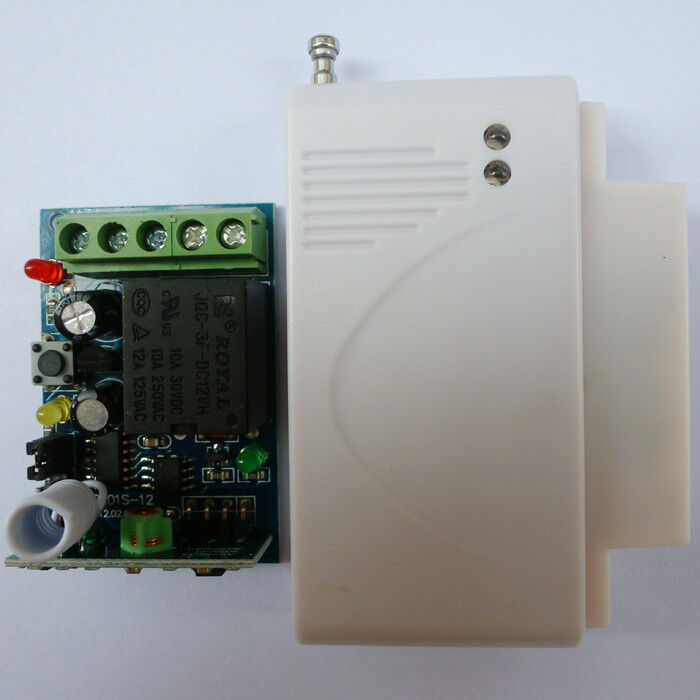

Package inlcuded:

1PCS Wireless Sensor ;
1 PCS DC12V 1 Channel relay receiver;

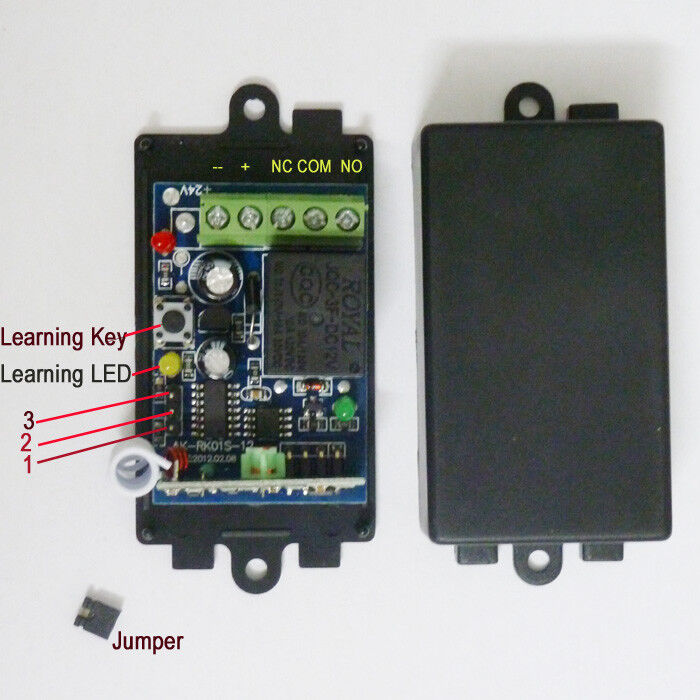

Receiver :





1.operating voltage: DC 12V ;

2.working frequency:433.92MHz;
3:Maximum load: 1000 watts;
4:PCB Size:41×20×15mm;
5: Momentary Mode ,Latch Mode  , Toggle Mode can be adjustable by slodering back side.
6. Pls connect the receiver modules properly before power supply ;
8: Momentary Mode ,Latch Mode  , Toggle Mode can be adjustable by jumper .
9. Pls connect the receiver modules properly before power supply ;
10: 1 chanels;
11: Learning function (can works with EV1527 SC2262 PT2262 PT2264 PT2260 remote , can store 10 pcs different code remote );



Advantage :
1:  Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 Learning remotes to re-learn;

Output:

A.singnal Inter-locking (Latch)----connect 1  and 2 ;

B.singnal Self-locking (Toggle) ---- connect 2 and 3 ;

C.singnal Non-locking (Momentary ) ---- All disconnect  ;


Inter-locking (Latch): 4-way relay each other to switch, when relay A  is working and locked  ,  relay B C D corresponding to switch off; when B is working and locked , corresponding relay A C D swith off ; Only 1 relay is on among 4 relays A B C D;

Non-locking  type (Momentary): Press A and hold it , then A is on.Same as Relay B C D ;


Self-lock type (Toggle): 4 chanels opens and closes independently, 4 chanels can work together ,they don’t affect each other . press A button, A relay of work and locked, press again then  disconnected; Same as B C D .



Learning method and steps

1.       Keep pressing learnig key on receiver board , release the button when LED is off , enter the learning state ;

2.       Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then it have success in learning .

Clear the deposit information

Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;


Connect to Power supply :

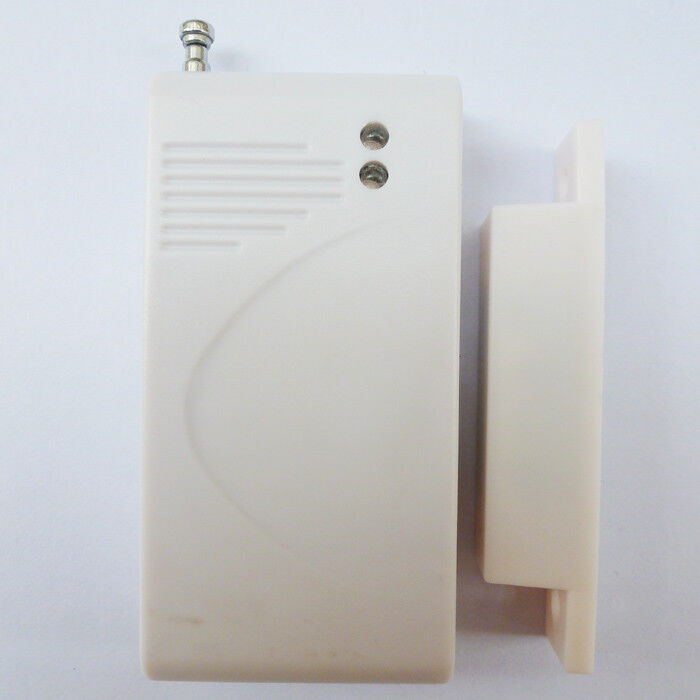

433Mhz Wireless Door / Windown Sensor



1)Feature:

It will work with most standard security system. Pull out the antenna of the magnetic detecto: when the door or window is opened from the closed position, LED 1 will turn to red for 2 seconds, the magnetic detector will be triggered and will send alarming signal to the main unit. Indication of low battery: When the voltage of battery is less than 7.5V, LED 2 will straightly turn on red light. At this time, you nee to immediately change the battery.





Launch Distance:  50-80 meters (open place)
Operating Voltage: 12V
Operating Frequency: 433MHz.
Encoding: EV1527 Fixed Code IC ;
Size: 71 x 36 x 15(mm) / 2.8 x 1.4 x 0.6(inch )
Oscillation resistance: 470K ;
Power supply: 12V 23A Battery (the battery is not included ) ;

2)Package:

1*wireless door sensor
