SL92B02 DC 3.3V 5V 12V Bistable Self-locking Electronic Switch Board for Arduiuo MEGA2560 ESP32 ESP8266 LED Motor
SL92B02 DC 3.3V 5V 12V Bistable Self-locking Electronic Switch Board for Arduiuo MEGA2560 ESP32 ESP8266 LED Motor
Regular price
$1.42 USD
Regular price
$1.42 USD
Sale price
$1.42 USD
Unit price
per
Couldn't load pickup availability

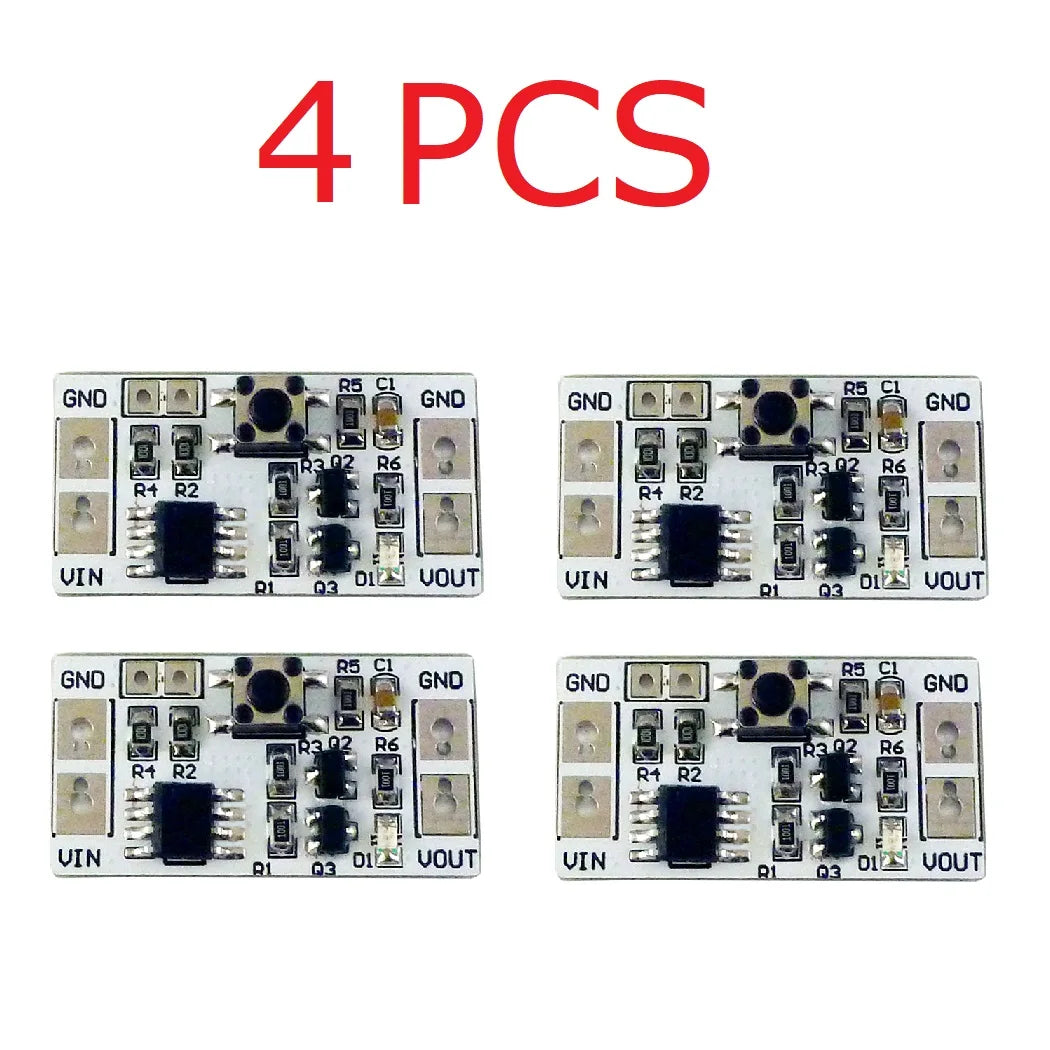

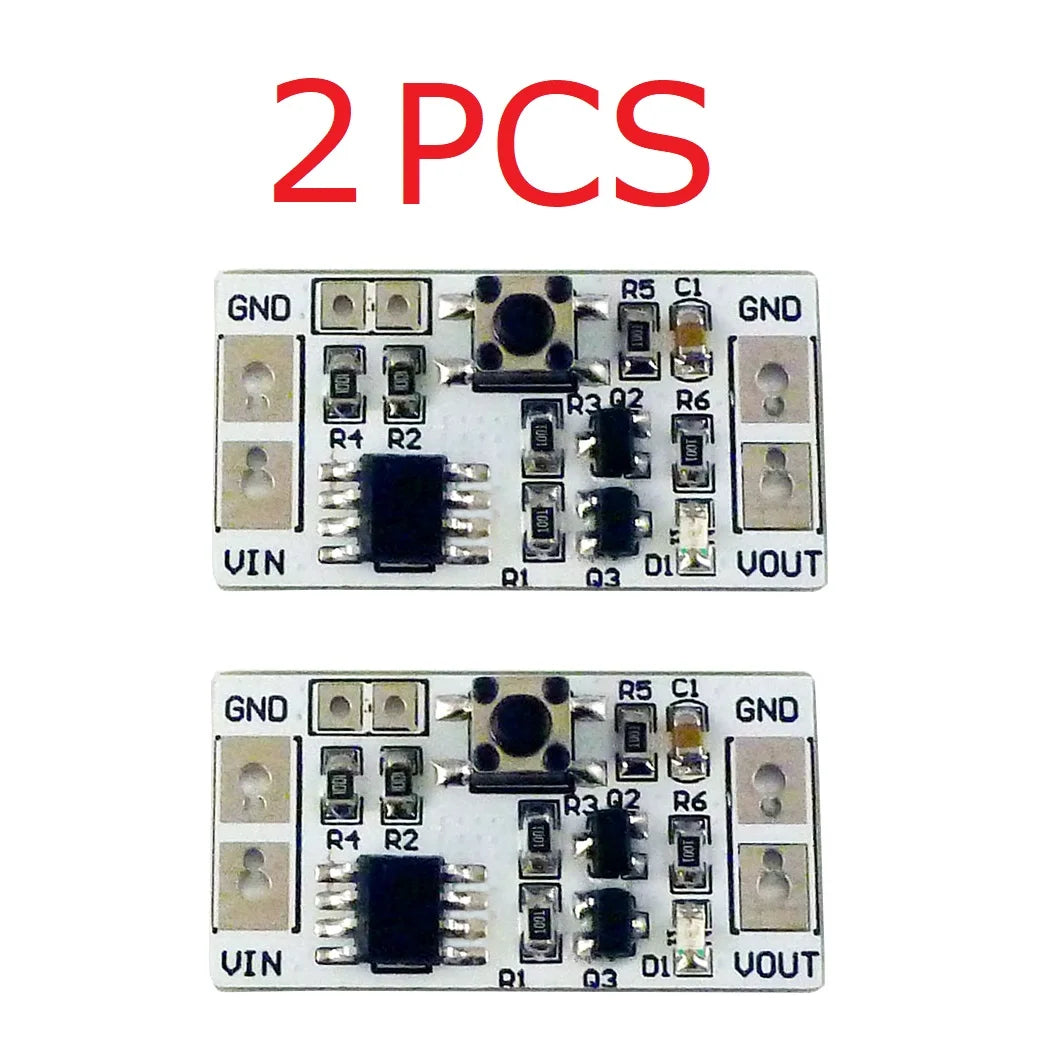

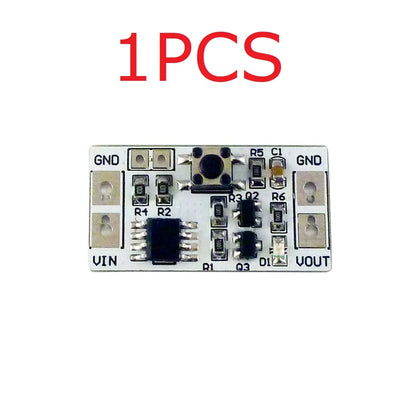

Product Name: 1PCS/2PCS/4PCS DC 3-20V 5A Bistable Self-locking Switch Module LED Driver Controller Relay touch Electronic Board
Packing list:
1PCS / 2PCS / 4PCS DC 3-20V 5000mA Bistable self-locking switch Module
(According to the version and quantity you choose)
(According to the version and quantity you choose)
Description :
Working voltage : DC 3-20V
Load current :0-3A(DC 3-4.2V);0-5A(DC 4.2-20V)
The board comes with a toggle switch (or an external switch)
Quiescent current: 15uA
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°

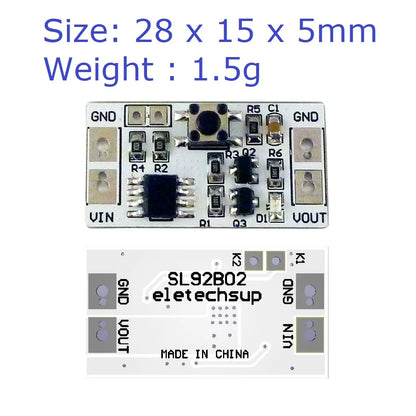

Size: 28 x 15 x 5mm
Weight : 1.5g

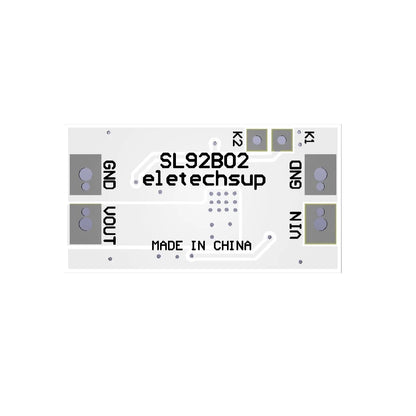

Module interface:
1. VIN : positive power supply (VCC)
2. GND : negative power supply (GND)
3. GND : negative Output (GND)
4 VOUT : positive Output
5 K1 : Button port 1
6 K2 : Button port 2

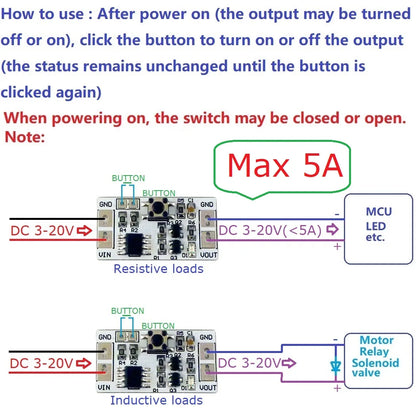

How to use: After power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again)
Note:
1 When powering on, the output state may be on or off,Connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty
Load current :0-3A(DC 3-4.2V);0-5A(DC 4.2-20V)
The board comes with a toggle switch (or an external switch)
Quiescent current: 15uA
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°
Size: 28 x 15 x 5mm
Weight : 1.5g
Module interface:
1. VIN : positive power supply (VCC)
2. GND : negative power supply (GND)
3. GND : negative Output (GND)
4 VOUT : positive Output
5 K1 : Button port 1
6 K2 : Button port 2
How to use: After power on (the output may be turned off or on), click the button to turn on or off the output (the status remains unchanged until the button is clicked again)
Note:
1 When powering on, the output state may be on or off,Connecting 220-1000UF electrolytic capacitors in parallel at the input can reduce the uncertainty
Typical applications:
Automotive electronics
Industrial equipment
Motor/Solenoid valve
LED/Emergency lighting
Smart Home
MCU development board
Toy car
Industrial equipment
Motor/Solenoid valve
LED/Emergency lighting
Smart Home
MCU development board
Toy car
