Eletechsup Factory store
OPDIA02 OPDIB04 OPDIC08 DC 3.3V 5V 2/4/8Ch 3000Vrms 150Kbps Digital Isolators TTL LvTTL Level Converter Module
OPDIA02 OPDIB04 OPDIC08 DC 3.3V 5V 2/4/8Ch 3000Vrms 150Kbps Digital Isolators TTL LvTTL Level Converter Module
SKU:OPDIA02
903 in stock
Regular price
$1.28
Regular price
$1.28
Sale price
$1.28
Unit price
per
Couldn't load pickup availability
Product Name: DC 3.3V 5V 2/4/8Ch 3000Vrms 150Kbps Digital Isolators TTL LvTTL Level Converter Module
Packing list:
Packing list:
1PCS DC 3-5V 2/4/8CH Enhanced ESD 3.0 kV rms 150Kbps Digital Isolators Board
(Specific according to the version and quantity you choose)
(Specific according to the version and quantity you choose)
Description :
Working voltage: DC 3-5.5V
Quiescent Supply Current: 0.6MA/1.2MA/2.4MA
Channels: 2/4/8 Chanels
Logic level: 3-5V
Drive current: 10MA
Data rate: 150Kbps
Whether with voltage isolation: with voltage isolation
Isolation voltage (Viso): 3000Vrms

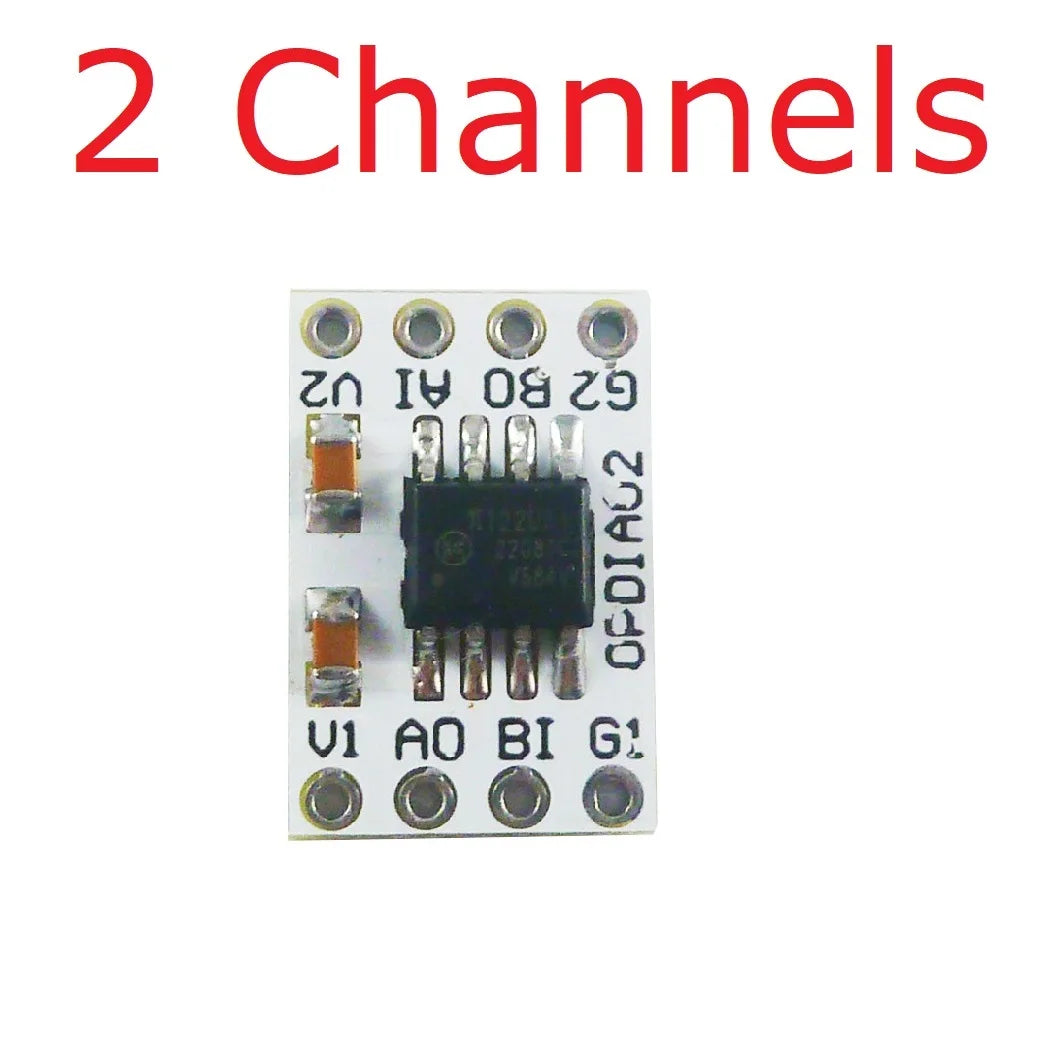

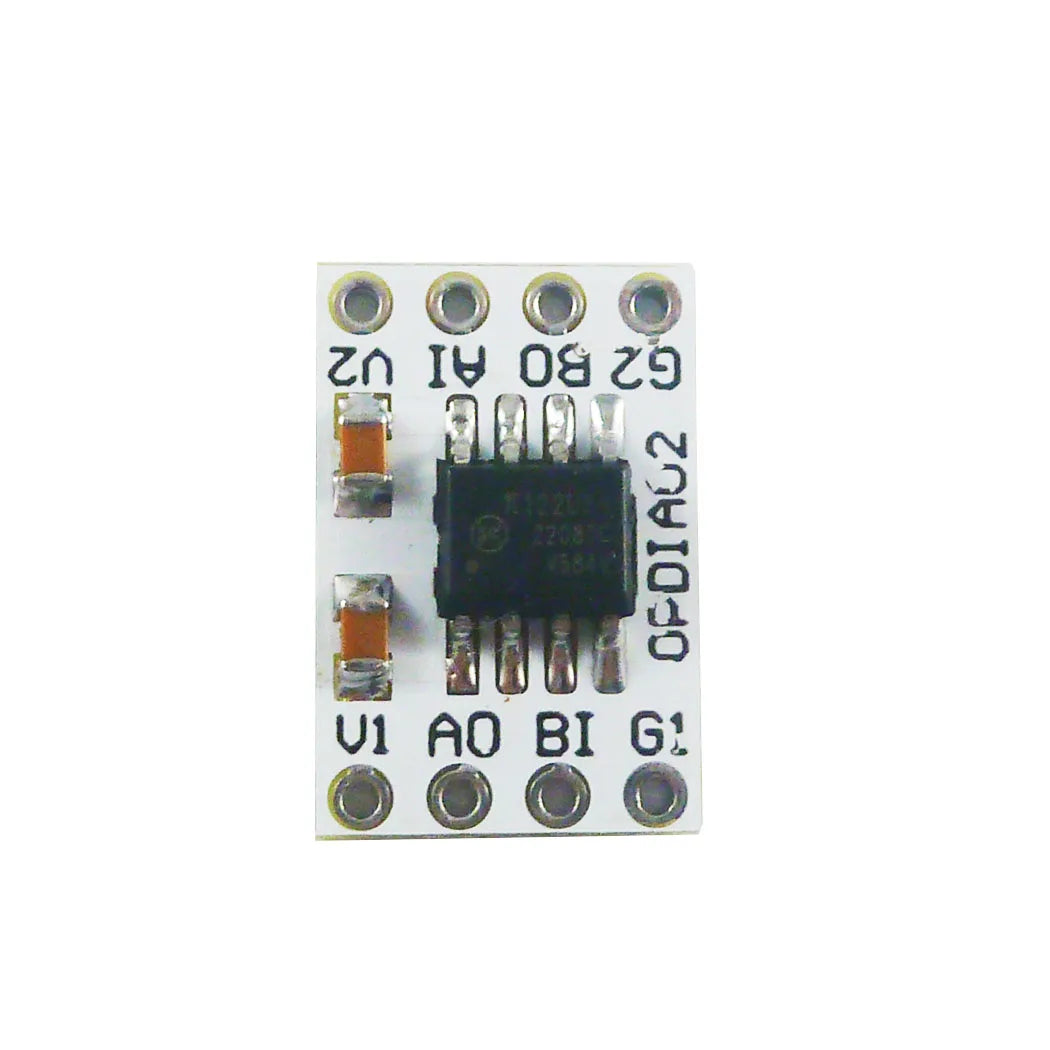

2CH:
Size : 10.16 * 15 * 3MM
Weight : 0.5g

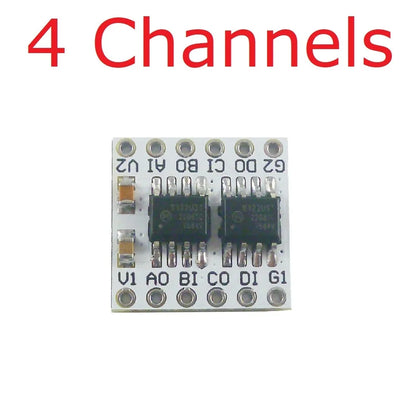

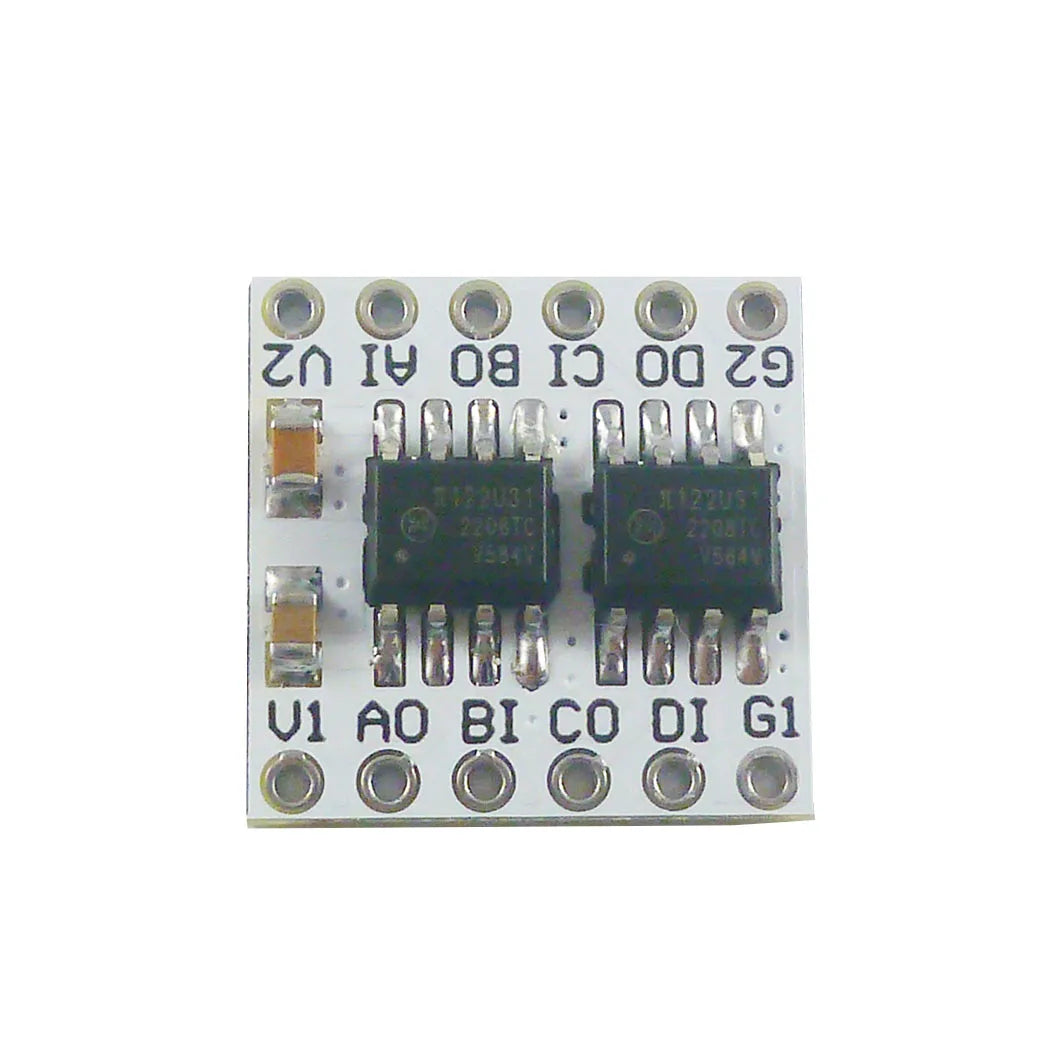

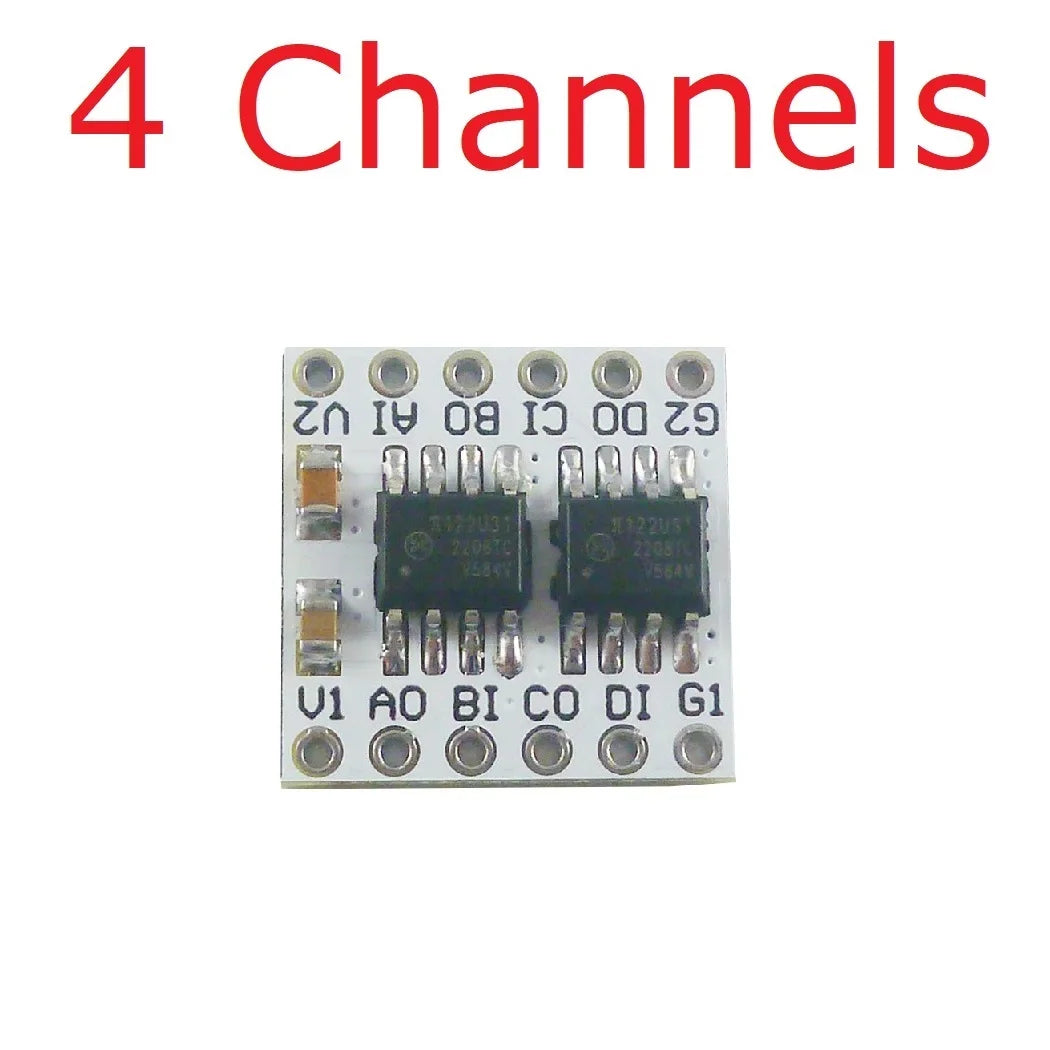

4CH:
Size : 15.24 * 15 * 3MM
Weight : 1g

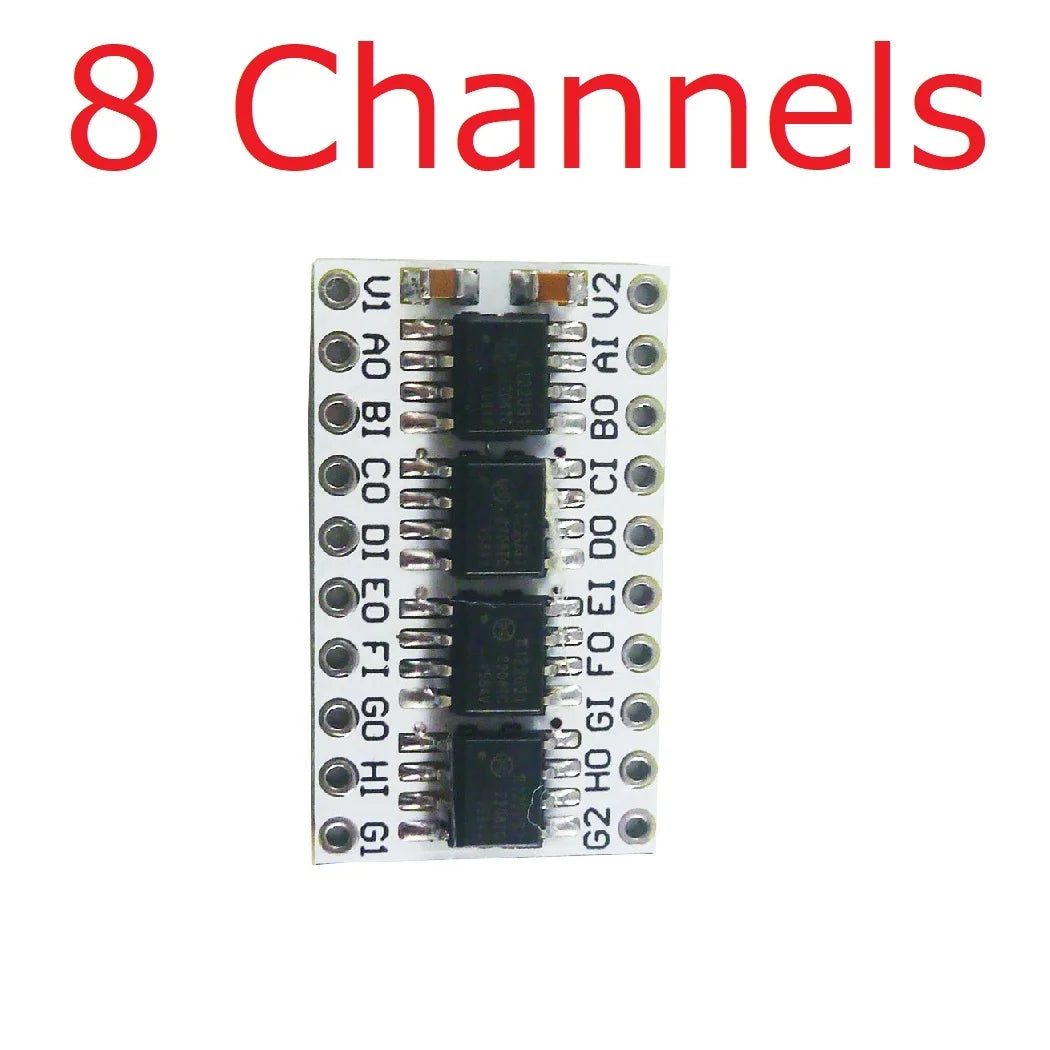

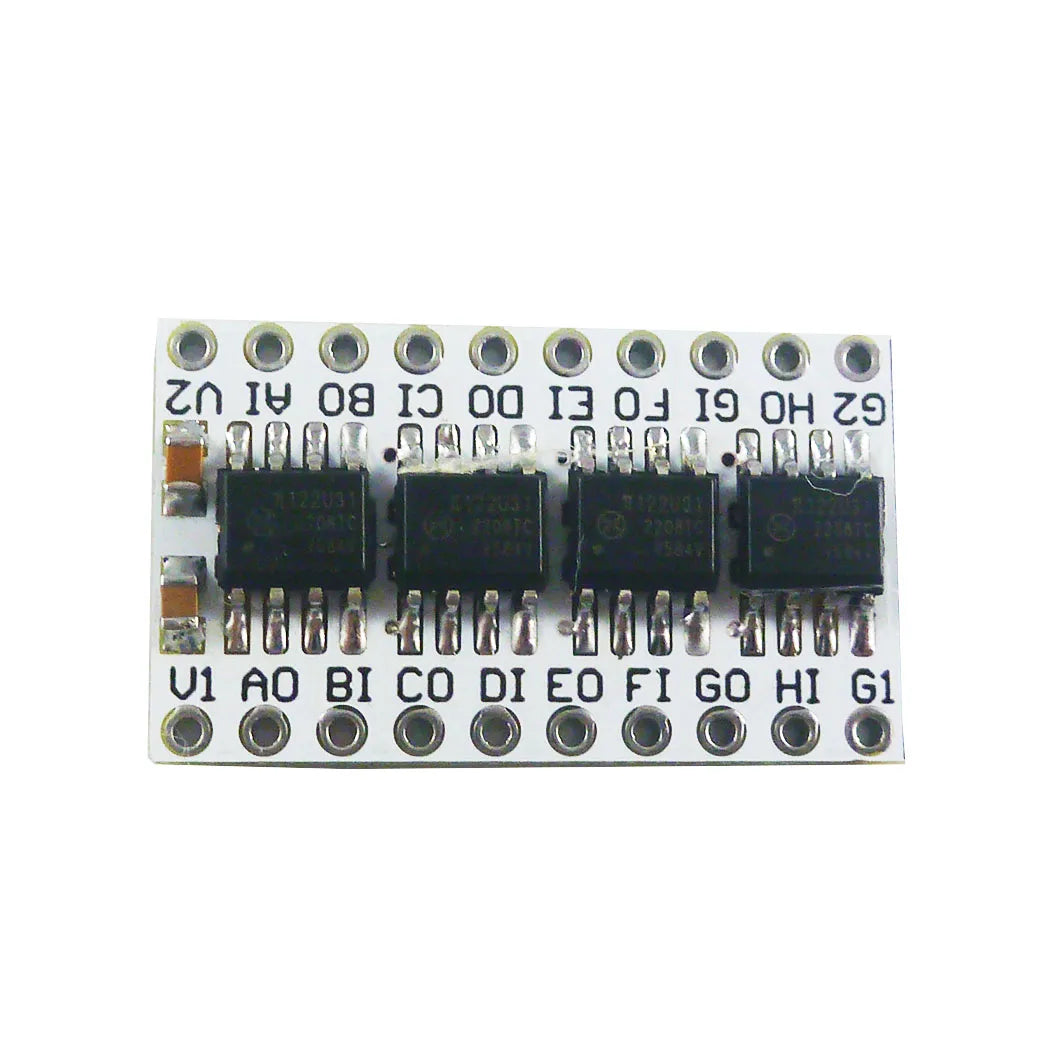

8CH:
Size : 25.4 * 15 * 3MM
Weight : 2g
Quiescent Supply Current: 0.6MA/1.2MA/2.4MA
Channels: 2/4/8 Chanels
Logic level: 3-5V
Drive current: 10MA
Data rate: 150Kbps
Whether with voltage isolation: with voltage isolation
Isolation voltage (Viso): 3000Vrms
2CH:
Size : 10.16 * 15 * 3MM
Weight : 0.5g
4CH:
Size : 15.24 * 15 * 3MM
Weight : 1g
8CH:
Size : 25.4 * 15 * 3MM
Weight : 2g

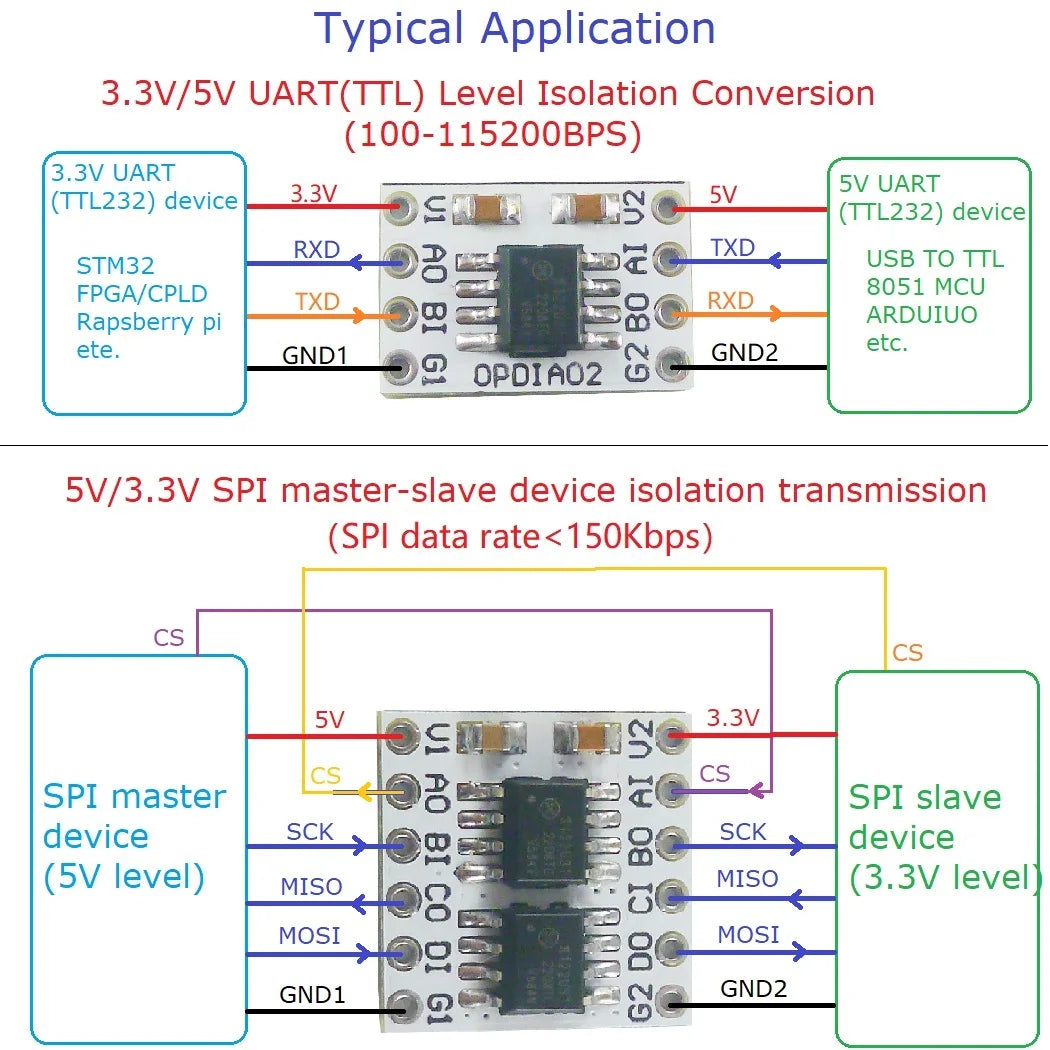

Typical Application :
for Arduino UNO MEGA2560 DUE Pro mini Nano
for Raspberry pi pico w
NRF24L01 NRF24LE1 CC2500 ZIGBEE/CC2530
FPGA/CPLD ARM AVR PIC C8051 C51 MSP430
MCU Development Board

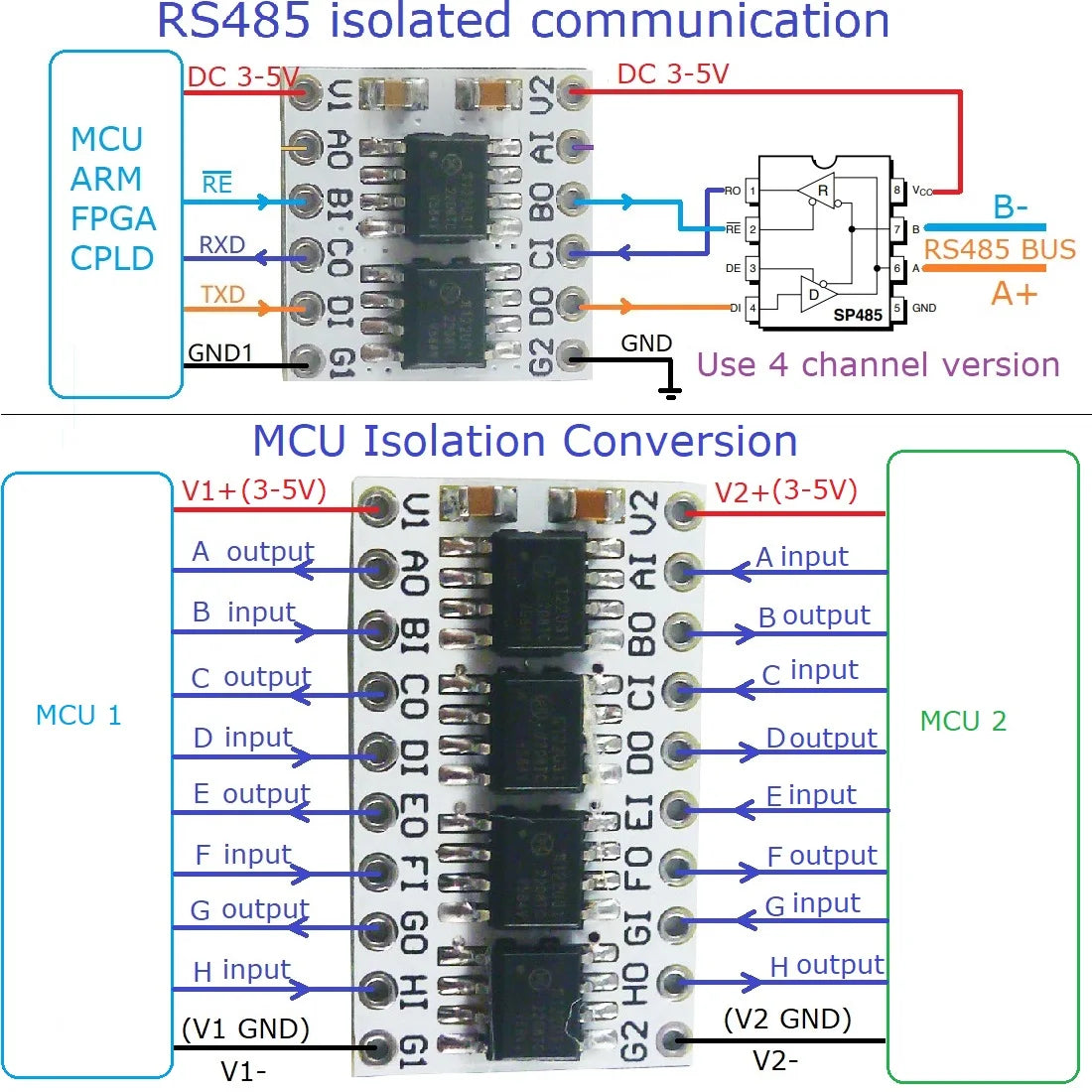

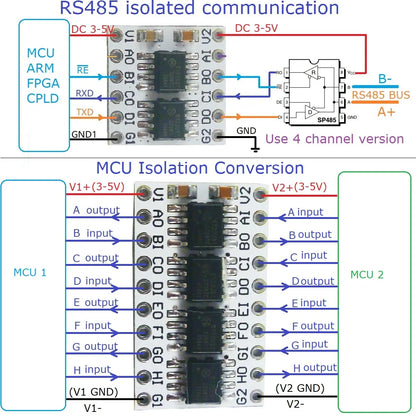

for UART SPI IIC RS485 isolated communication

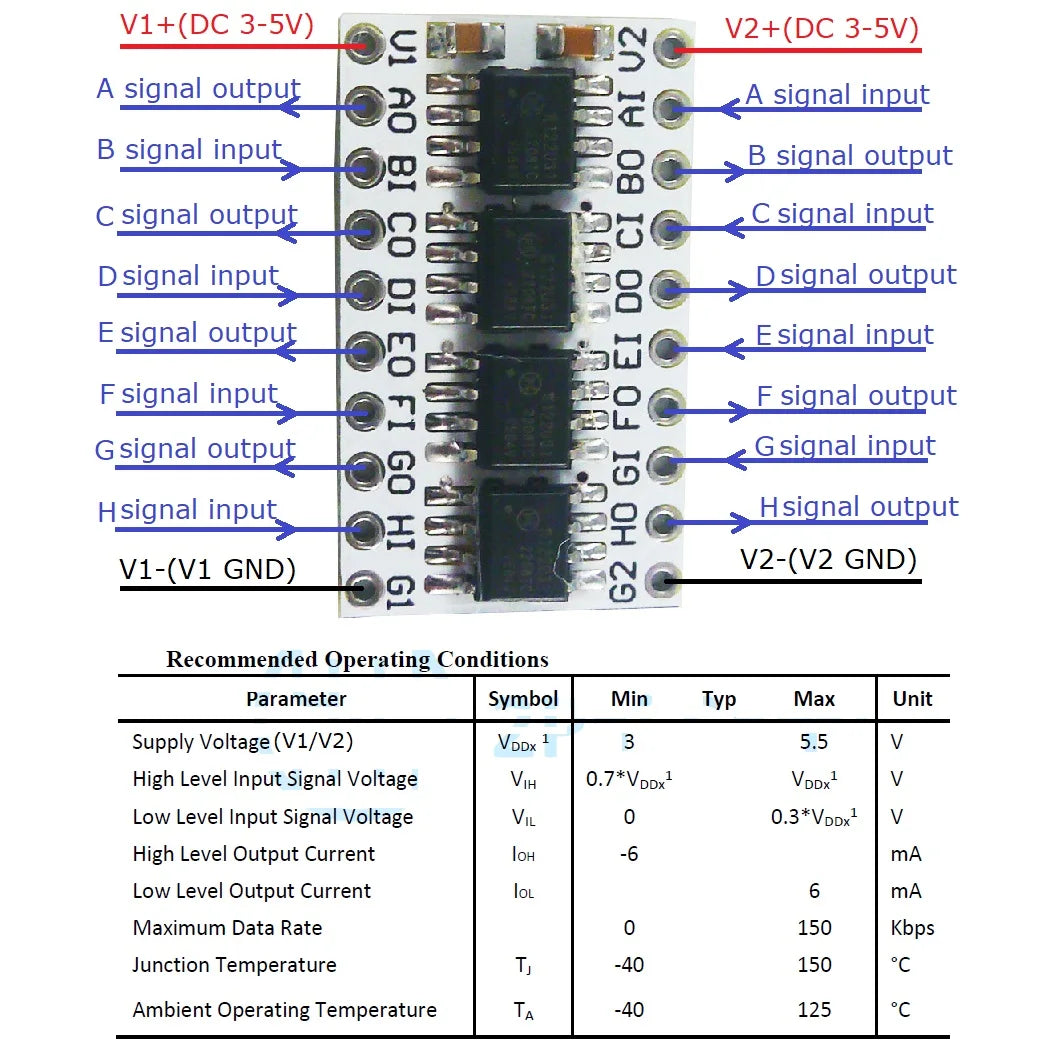

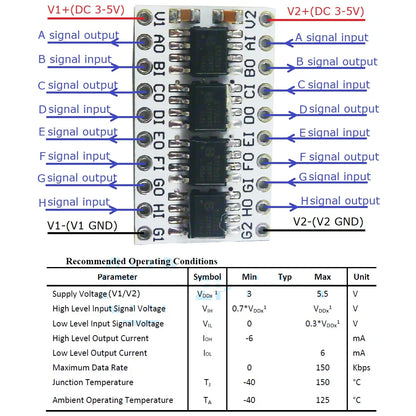

Pin description:
