DC 3V 5V 12V Rapid Prototyping RED LED Breadboard starter kit for Arduiuo Atmega MEGA2560 NANO Pro Mini DUE MCU
DC 3V 5V 12V Rapid Prototyping RED LED Breadboard starter kit for Arduiuo Atmega MEGA2560 NANO Pro Mini DUE MCU
Regular price
$0.99 USD
Regular price
$0.99 USD
Sale price
$0.99 USD
Unit price
per
Couldn't load pickup availability
Product Name:3.3V 5V 12V Rapid Prototyping RED LED Breadboard starter kit for Arduiuo atmega8 MEGA2560 Pro Mini DUE MCU LoL Shiel

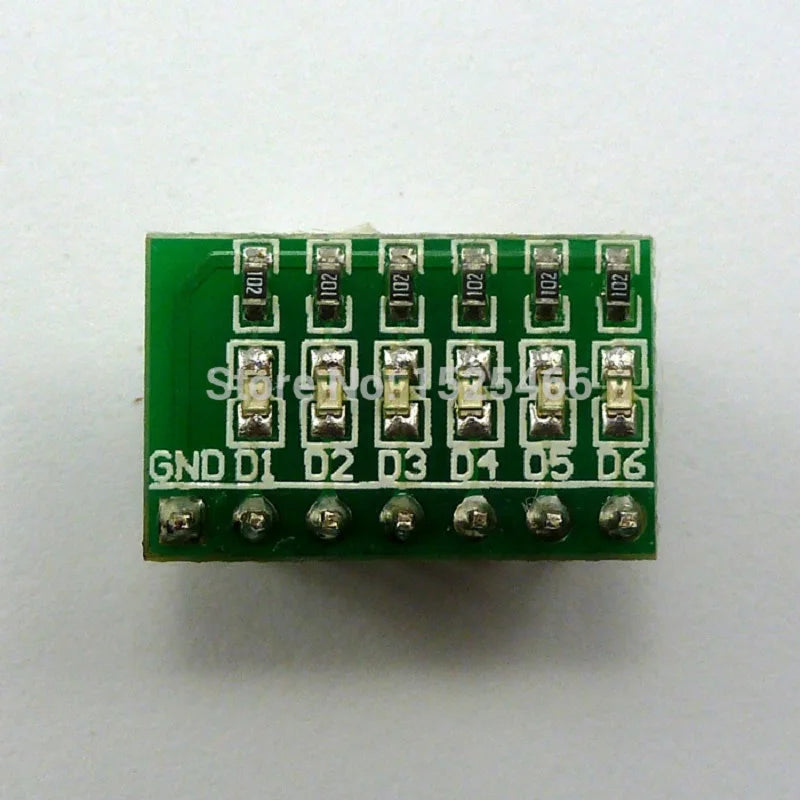

Packing list:
1 pcs 6 bit
RED
LED's Board;
Description:
Can be inserted directly into
Arduiuo uno mega2560
,Ideal for linking up to your Arduiuo UNO Mini Nano Mega2560 DUE Breadboard etc,or others MCU ( AVR STM32 ARM7 ARM9 ARM10 ARM11 PIC C8051 STC MSP430 FPGA/CPLD etc.)
1 6 bit
Red
Common Cathode LEDs.
2 7 PIN OUT 2.54mm
3 1K ohm Limiting resistor
4 Power Supply Voltage: 3.3-12V;
5 Size: 17.78MM x 11.43MM.

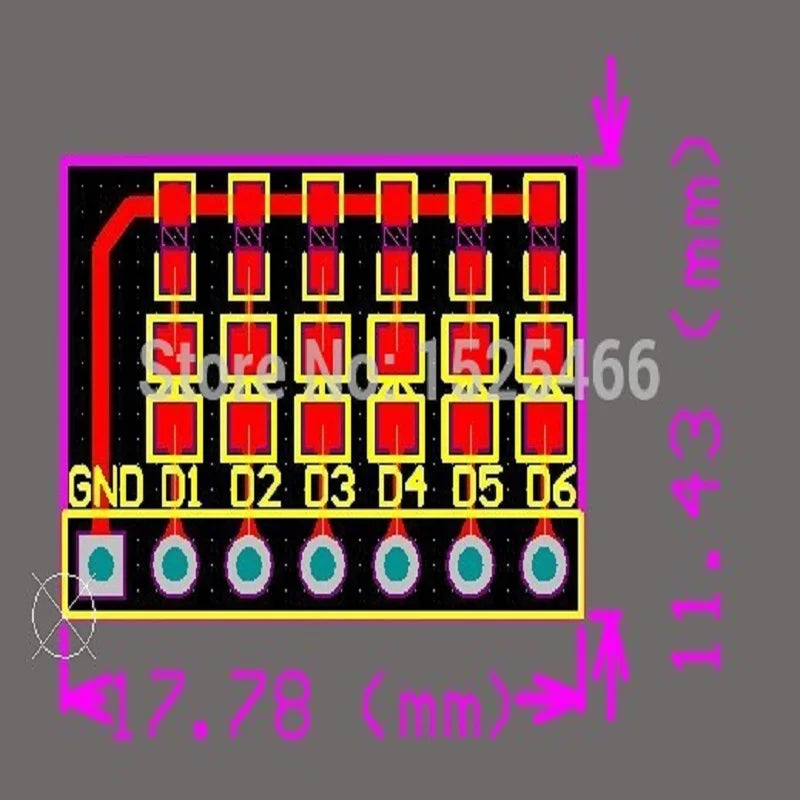

PCB:

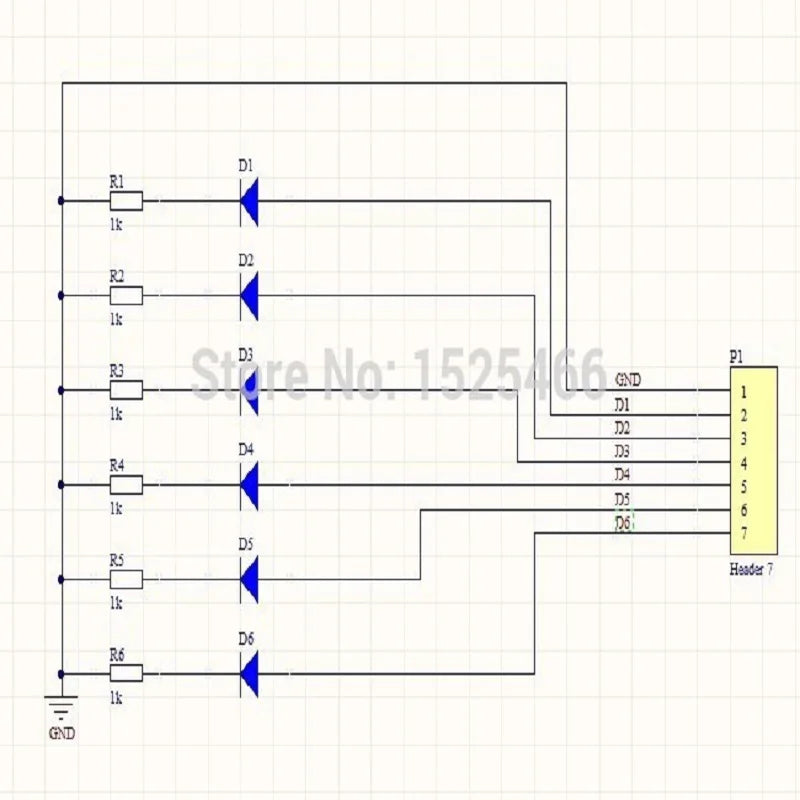

Circuit schematics :

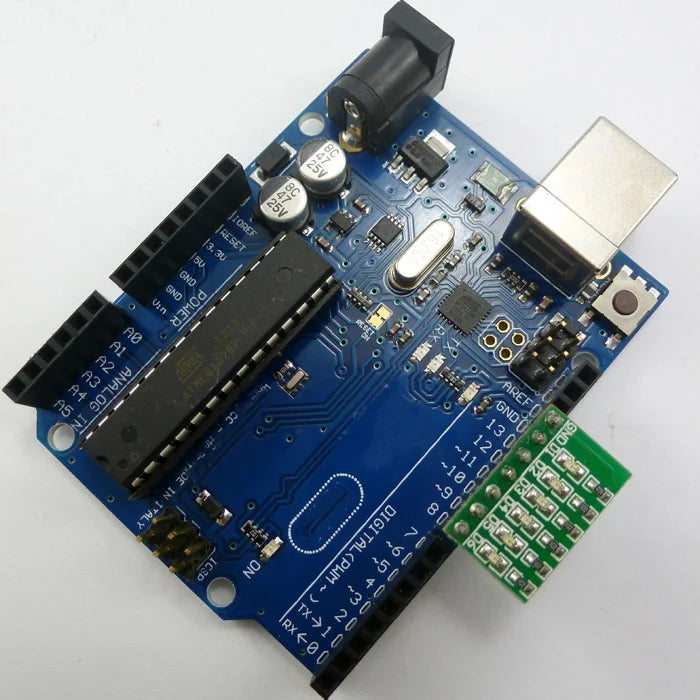

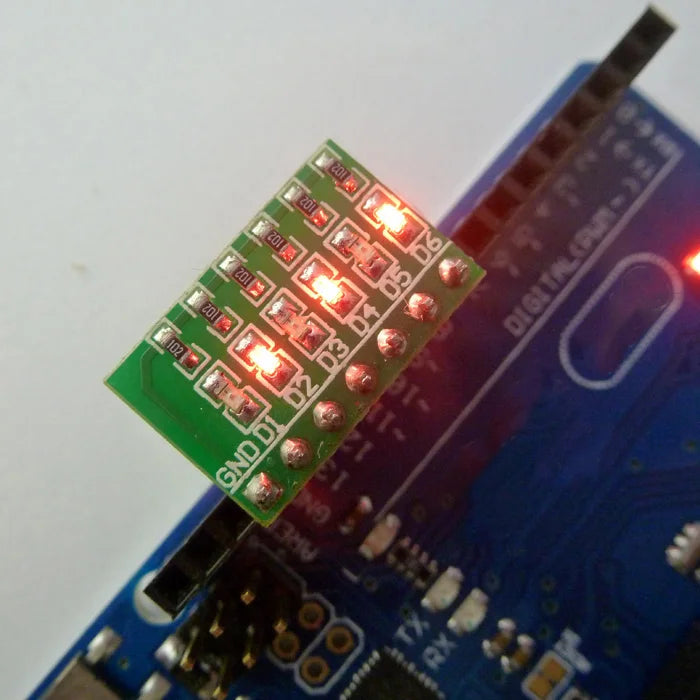

Connection with Arduiuo(Only 6 bit LED's Board ,Does not include ARDUIUO UNO R3) :
Circuit schematics :
Arduiuo uno/mega2560 Code
//******************************************************//
/*
Arduiuo_6led
This example code is in the public domain.
*/
// give it a name:
int D1 = 13;
int D2 = 12;
int D3 = 11;
int D4 = 10;
int D5 = 9;
int D6 = 8;
// the setup routine runs once when you press reset:
void setup() {
// initialize the digital pin as an output.
pinMode(D1, OUTPUT);
pinMode(D2, OUTPUT);
pinMode(D3, OUTPUT);
pinMode(D4, OUTPUT);
pinMode(D5, OUTPUT);
pinMode(D6, OUTPUT);
}
// the loop routine runs over and over again forever:
void loop() {
digitalWrite(D1, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a 200 Millisecond
digitalWrite(D1, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D2, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D2, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D3, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D3, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D4, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D4, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D5, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D5, LOW); // turn the LED off by making the voltage LOW
digitalWrite(D6, HIGH); // turn the LED on (HIGH is the voltage level)
delay(200); // wait for a Millisecond
digitalWrite(D6, LOW); // turn the LED off by making the voltage LOW
}
//******************************************************//
