DC 5V 12V 24V 4CH Bluetooth Relay RF Remote control Switch for Apple IOS Android

DC 5V 12V 24V 4CH Bluetooth Relay RF Remote control Switch for Apple IOS Android

CE038

1000 in stock

$43.46
$43.46 $43.46
Sale Sold out
Typical applications:

Home lighting system
Remote control switch
Remote locking
Garage door remote control
Smart Home / Home Automation
DC 5-24V LED lighting
Fluorescent lamp
5-24V DC Motor
Fluorescent lamp
Automotive electronics
Industrial automation and control

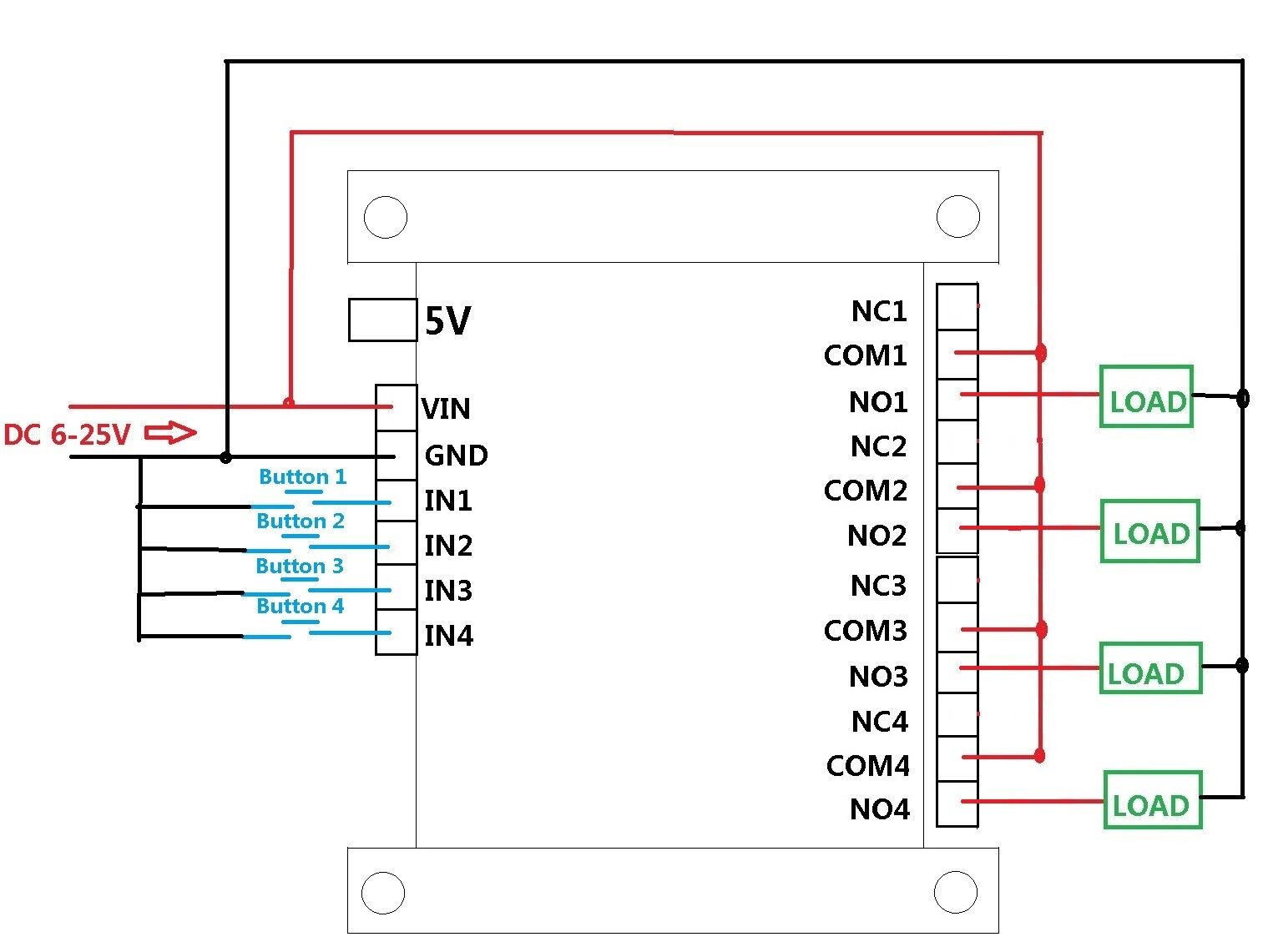

1 DC 6-25V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 6-25V equipment

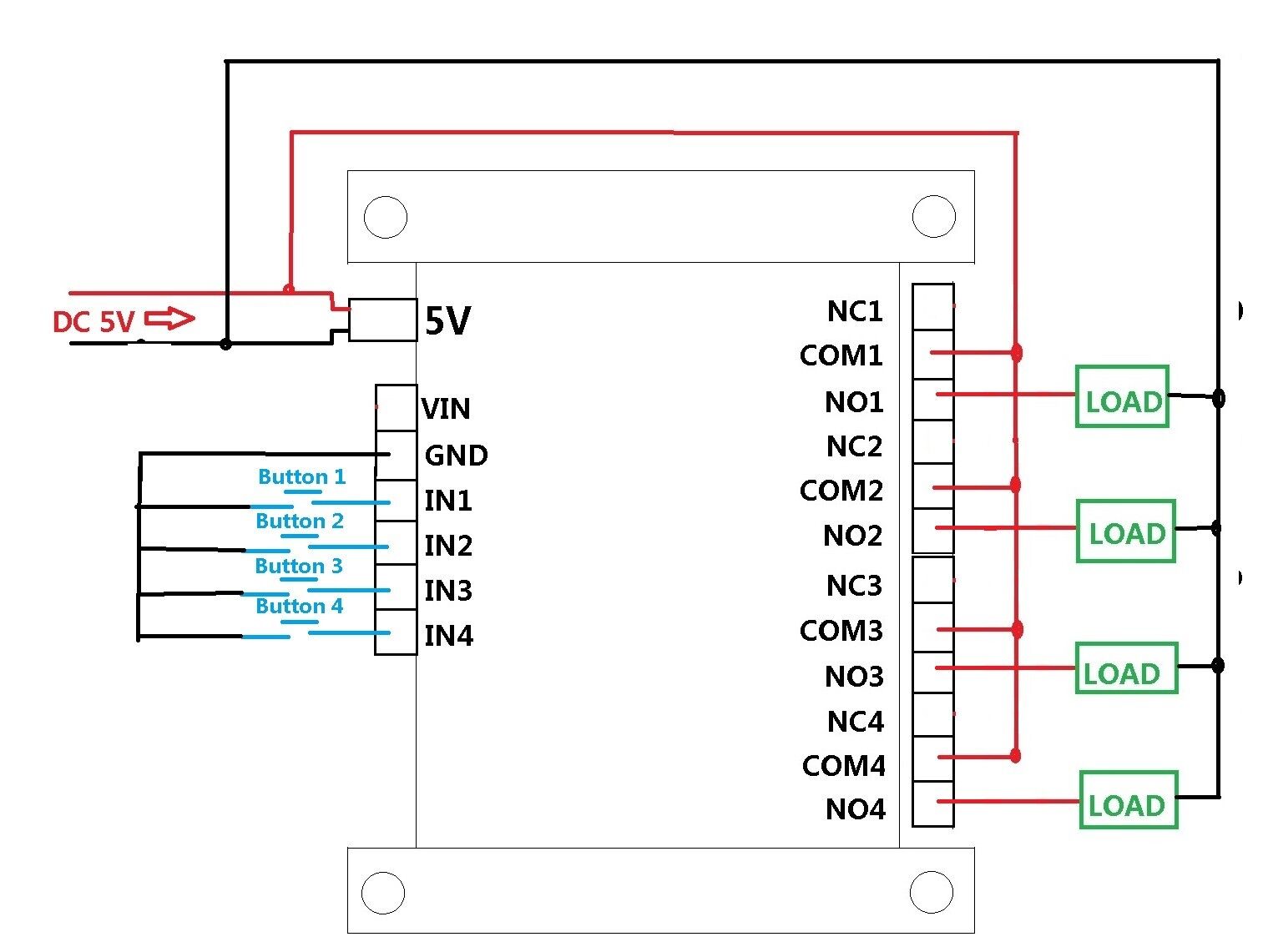

2 DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, toy car and other DC 5V equipment

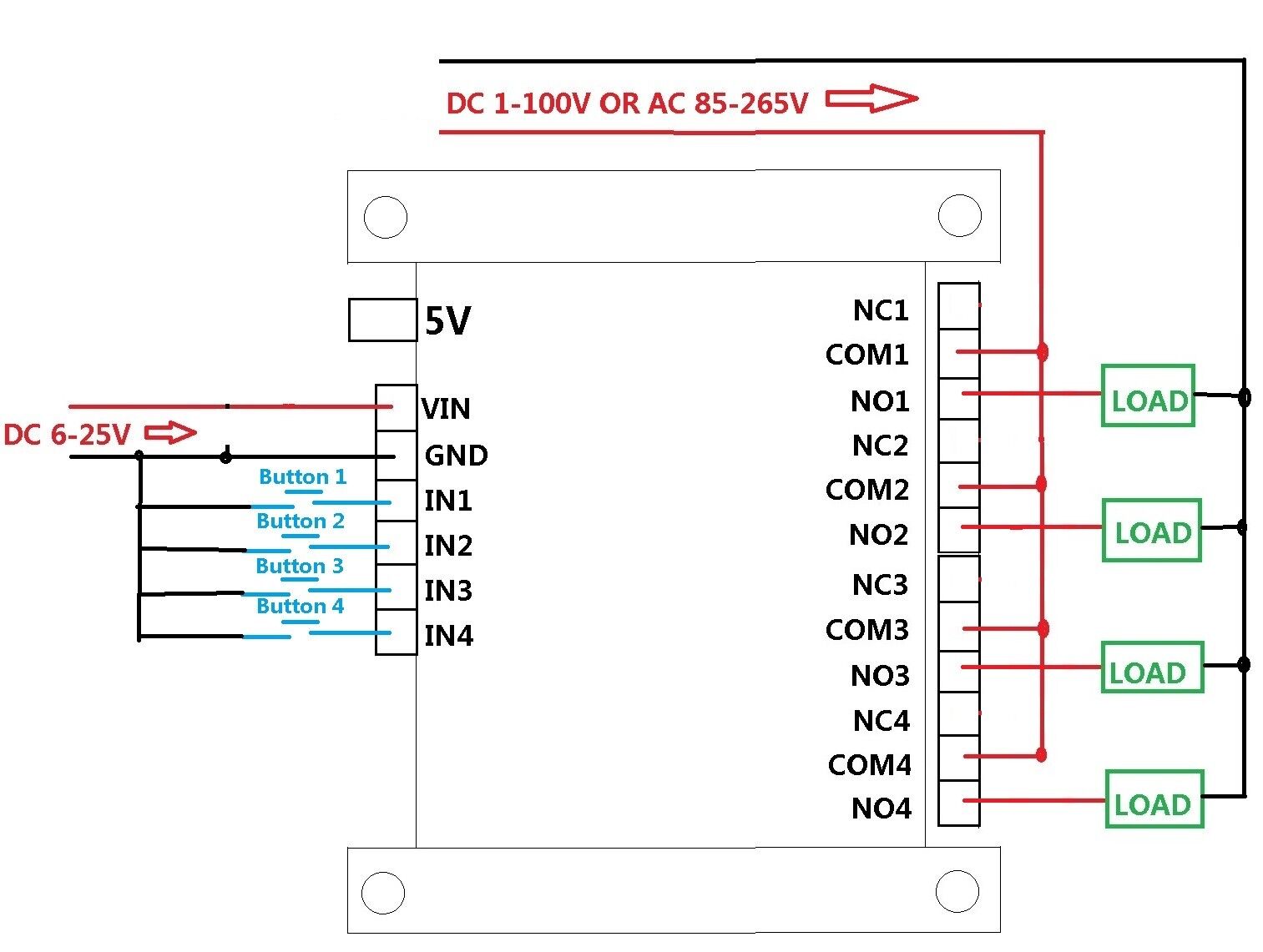

3 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC AC equipment

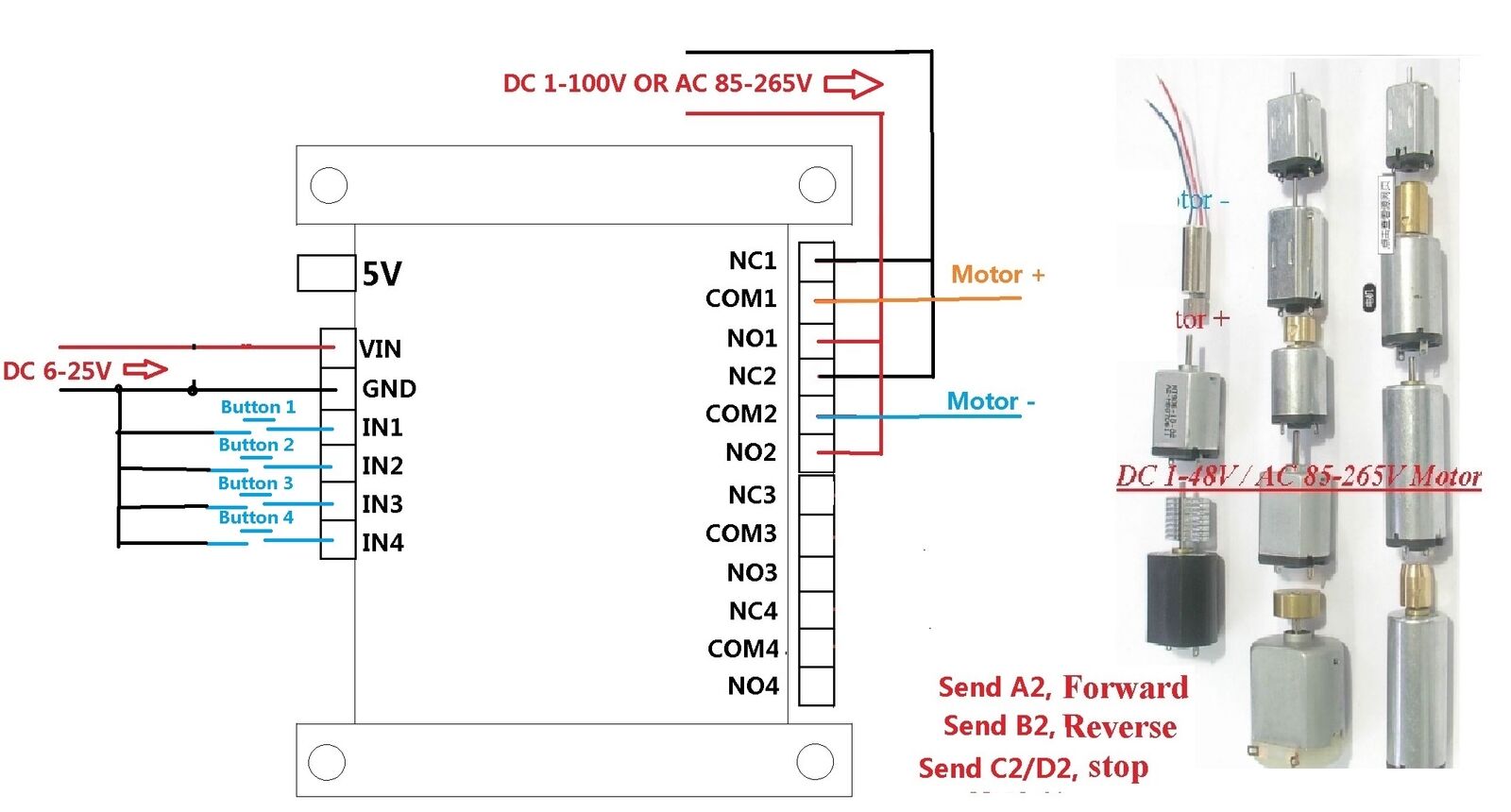

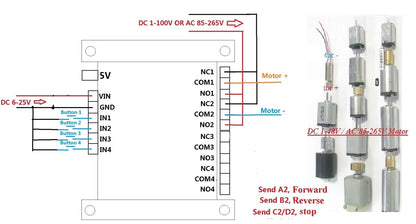

4 All kinds of motor reversing control: DC 1-100V or AC 85-265V DC/AC Motor




Product Name:DC 5V 12V 24V 4CH Bluetooth Relay RF Remote control Switch for Apple IOS Android

Module No.: CE038




Package inlcuded:
1 pcs DC 5-24V 4 Channel Bluetooth 4.0 Relay Module

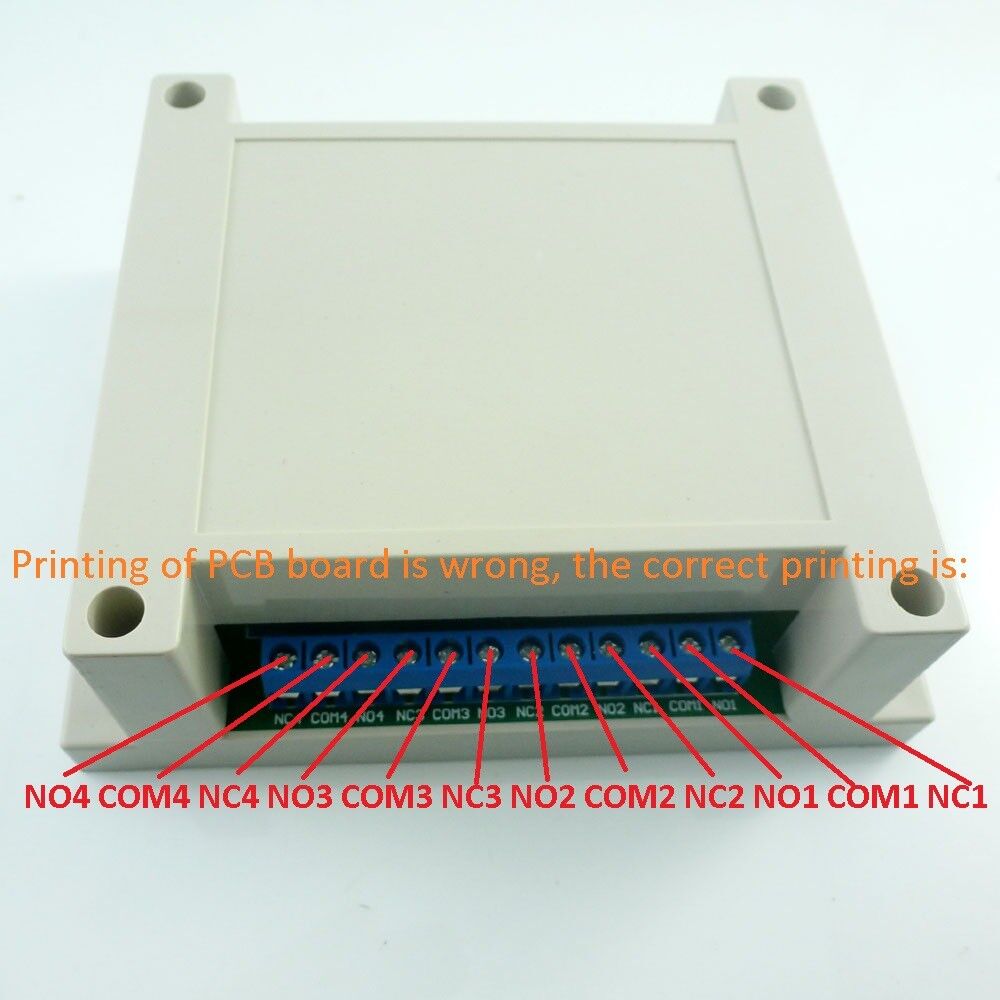

Printing of PCB board is wrong, the correct printing is:

NO4 COM4 NC4 NO3 COM3 NC3 NO2 COM2 NC2 NO1 COM1 NC1

Description:

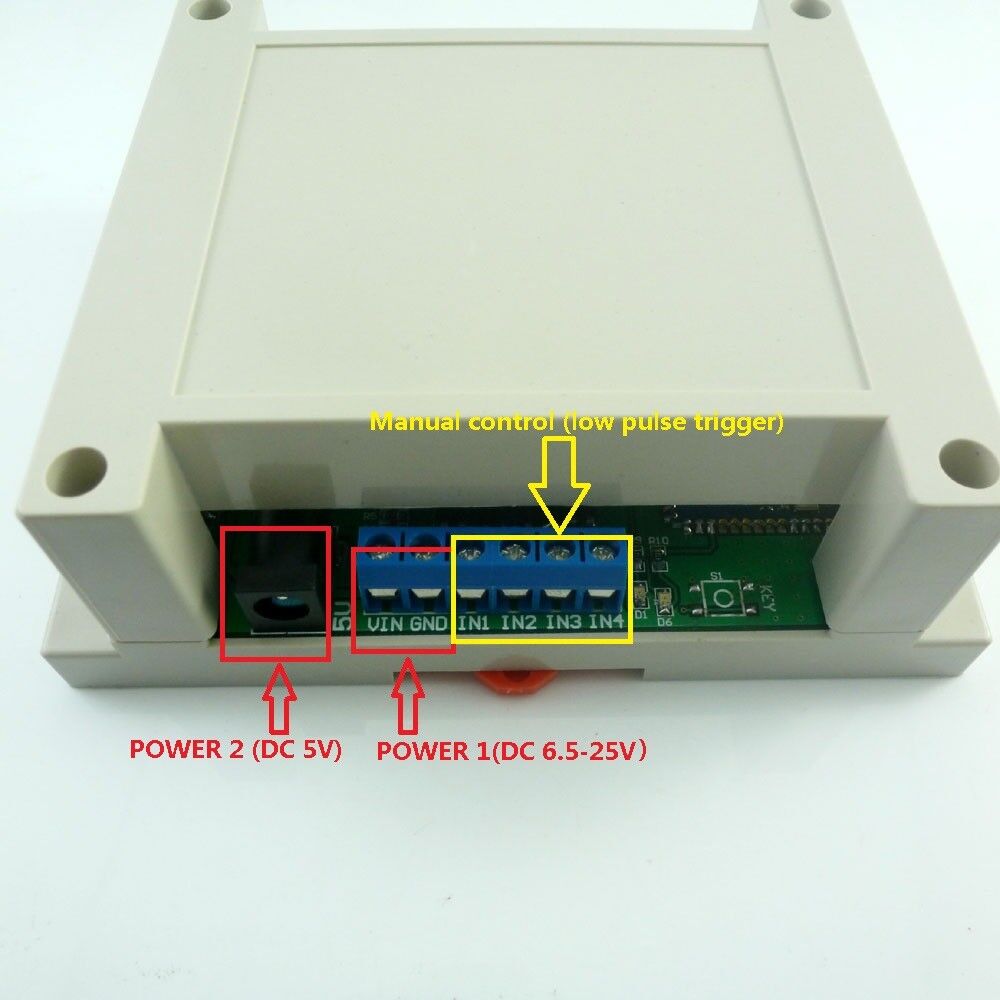

1 Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V

2 Operating Current: Standby current (all relays closed) 13MA, 1 relay open 44MA, 2 relays open 76MA, 3 relays open 107MA, 4 relays open 139MA

3 Bluetooth protocol: Bluetooth Specification V4.0 BLE

4 Based on TI CC2541 chipset, Support android 4.3 or above,phone 4s or above (IOS8 or above) mobile control

5 2.4GHz-2.48GHz unlicensed ISM band

6 send commands via Android/IOS Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control). It can also be triggered by an external pulse signal.

7 "Momentary" "Self-locking" "Interlock" "open" "close" 5 Commands

8 External trigger input, opto-isolated switch, low pulse inputs.

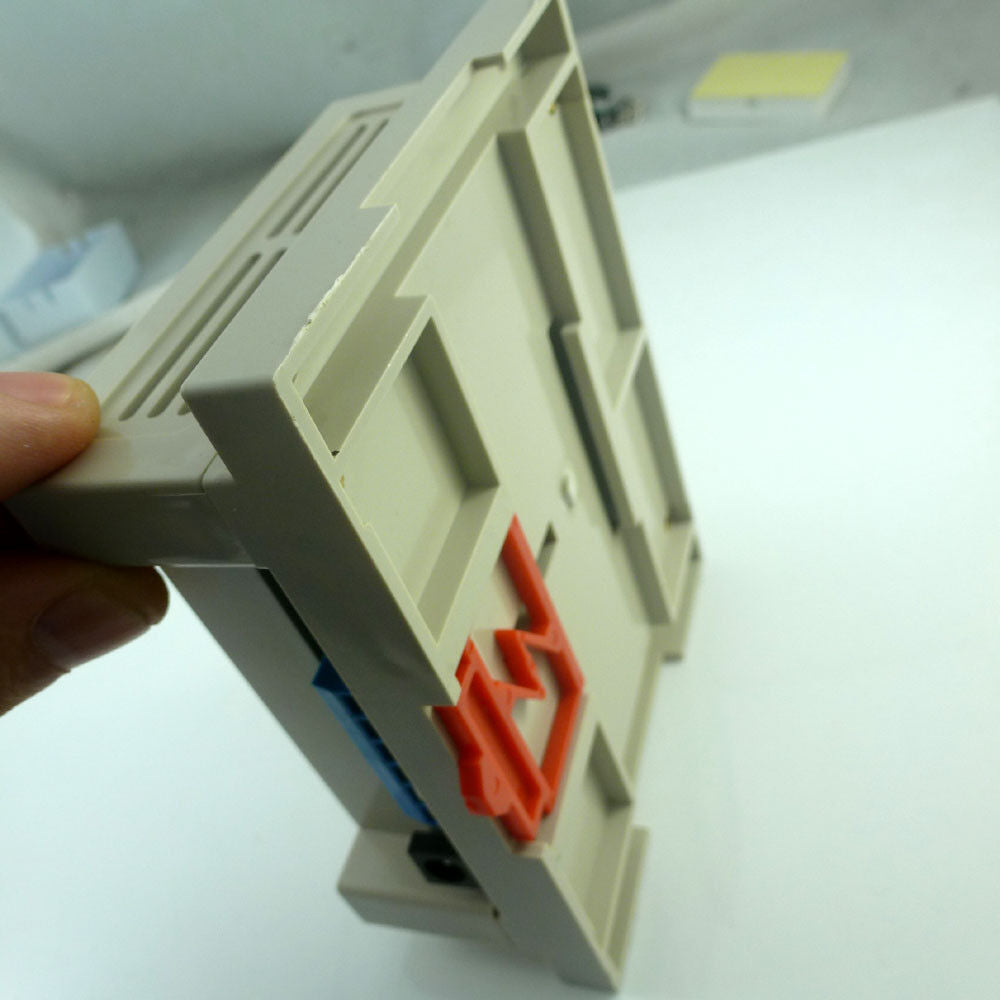

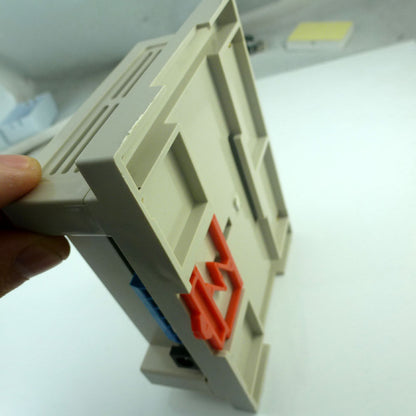

9 size (including housing) 115*90*40mm

10 Weight : 150g



NOTE:

1 phone must support bluetooth 4.0, such as galaxy S4 (android 4.3),phone 4s(IOS8)

2 Bluetooth 4.0 without matching, so when open bluetooth mobile phone cannot search equipment

3 Without password, open software direct connection

4 Baud rate is 9600BPS,can't change the parameters of bluetooth

APP:

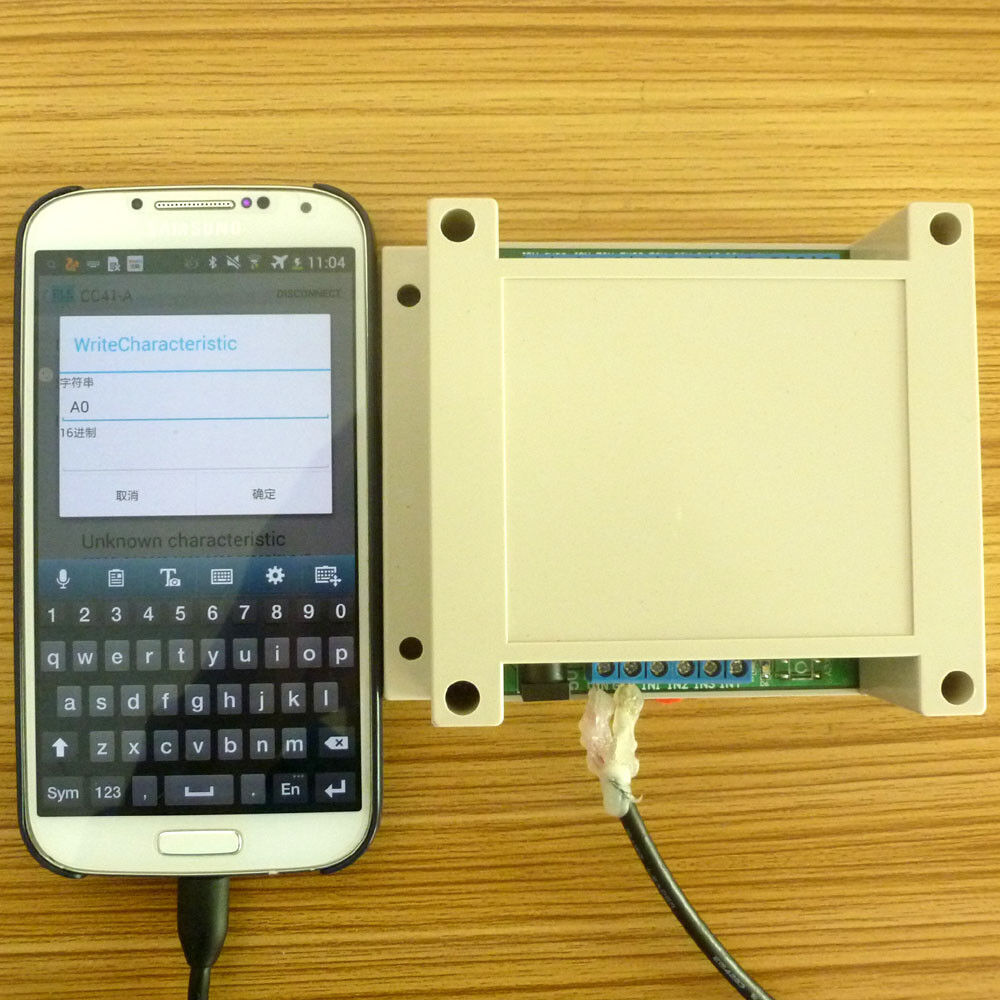

Android : Installing "BluetoothLeGatt" APP

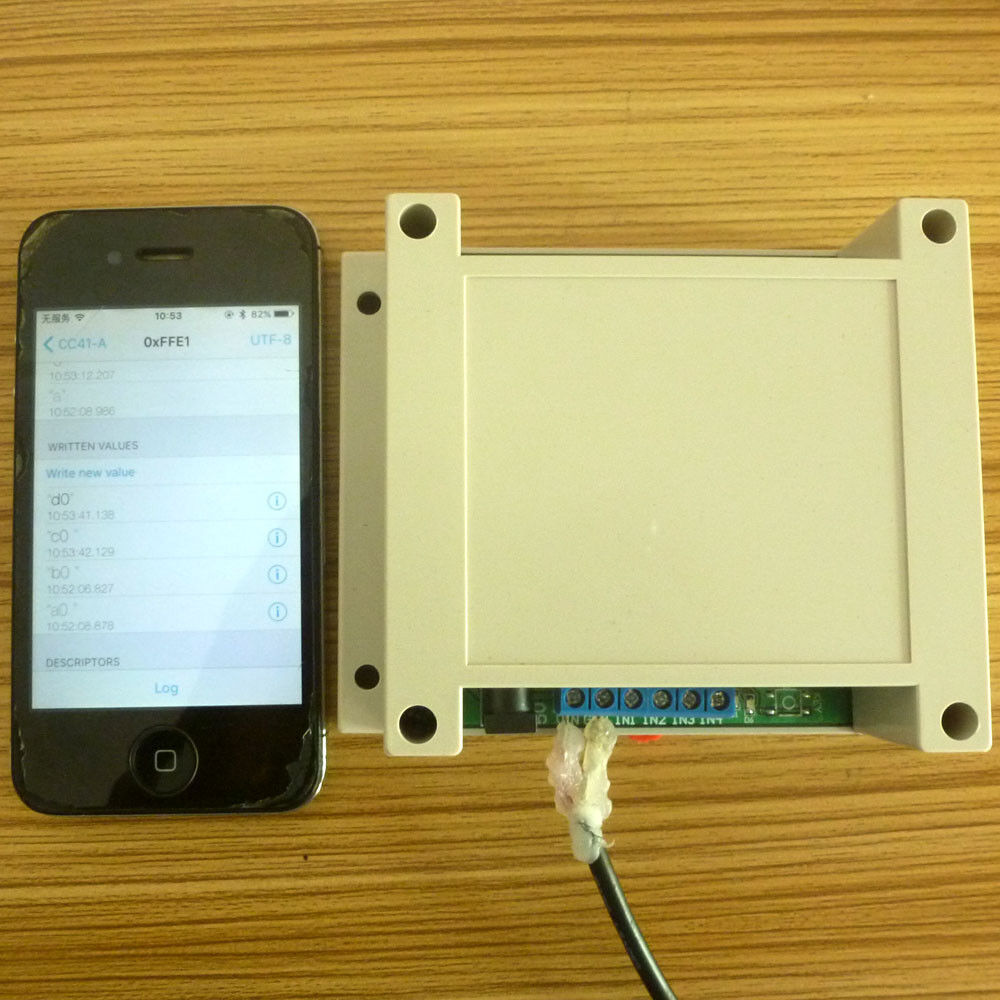

IOS : In AppStore download "LightBlue" software
