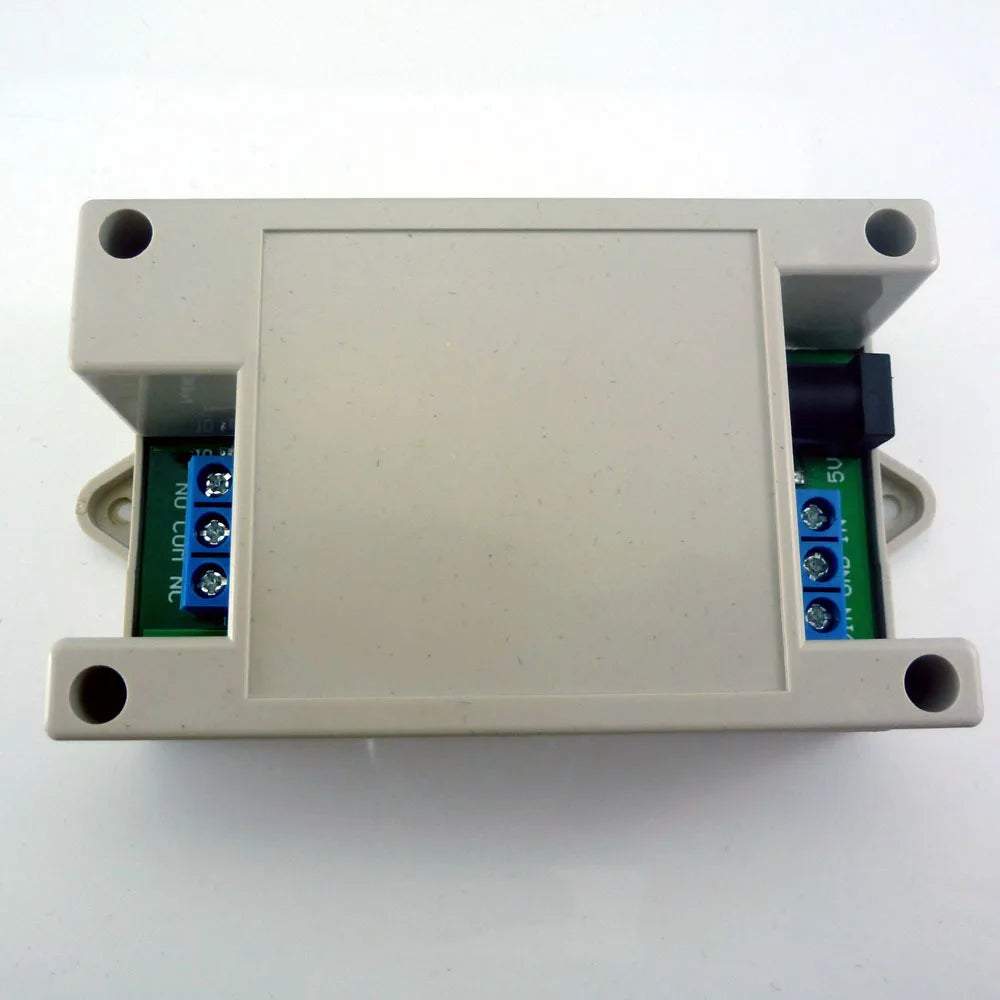

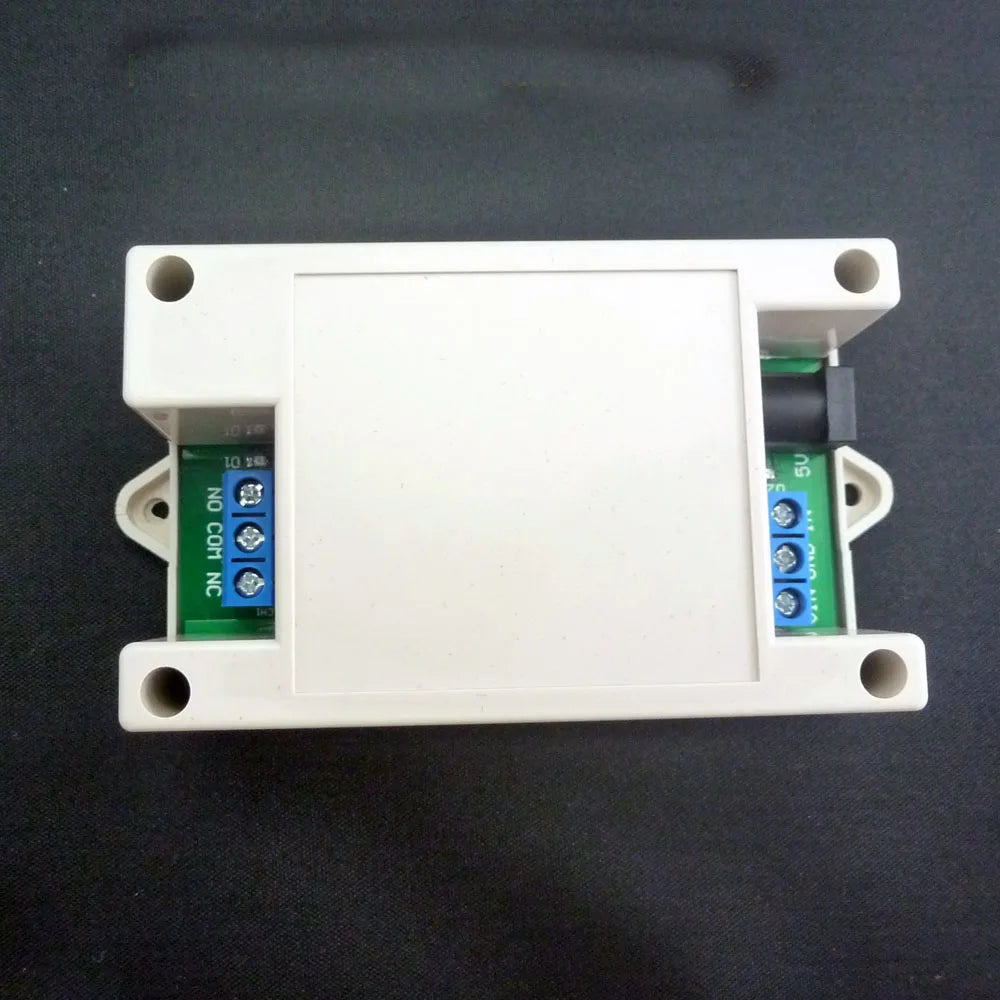

CE034 DC 5V 12V 24V Relay Android APP Mobile Phone Remote Optical isolation Switch for Smart Home Motor LED Light Lock NET
CE034 DC 5V 12V 24V Relay Android APP Mobile Phone Remote Optical isolation Switch for Smart Home Motor LED Light Lock NET
Couldn't load pickup availability
Typical applications:
Home lighting system
Remote control switch
Remote locking
Smart Home / Home Automation
DC 12V LED lighting
Fluorescent lamp
Phone APP
12V DC Motor
Fluorescent lamp
Automotive electronics
PLC
Industrial automation and control
1 Power supply is DC 6-25V, ''LOAD'' also DC 6-25V circuit, wiring diagram below.
''LOAD'' may be LED lights, fans, motors and other DC 6-25V equipment

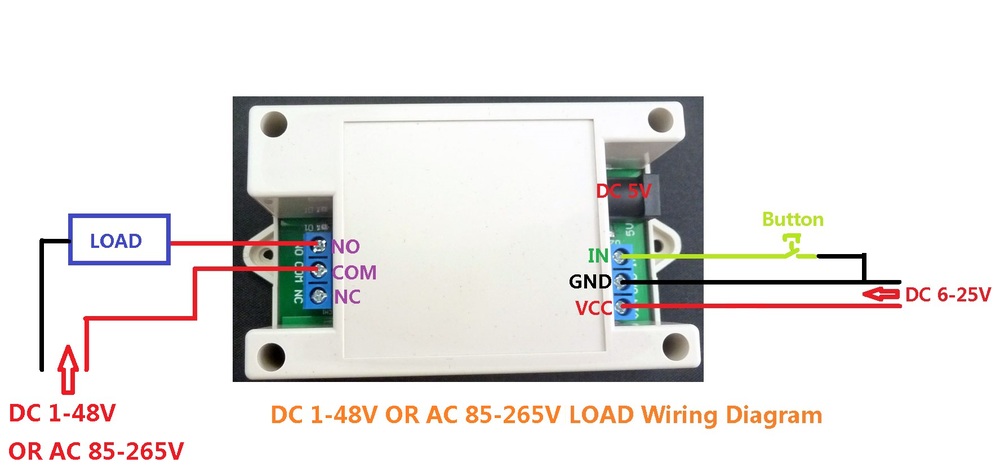

2 Power supply is DC 6-25V, ''LOAD'' is DC 1-48V or AC 85-265V circuit, wiring diagram below.
''LOAD'' may be LED lights, fans, motors and other DC 1-48V or AC 85-265V equipment

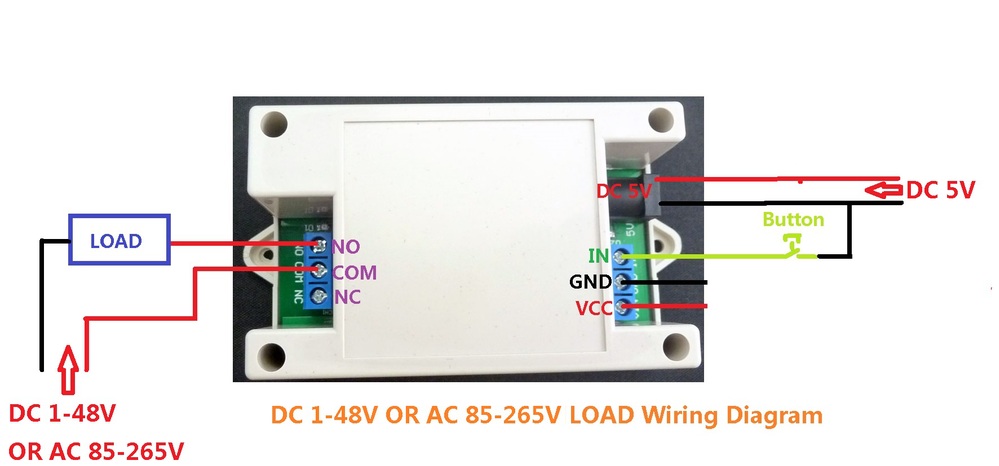

3 Power supply is DC5V, ''LOAD'' is DC 1-48V or AC 85-265V circuit, wiring diagram Below.
''LOAD'' may be LED lights, fans, motors and other DC 1-48V or AC 85-265V equipment

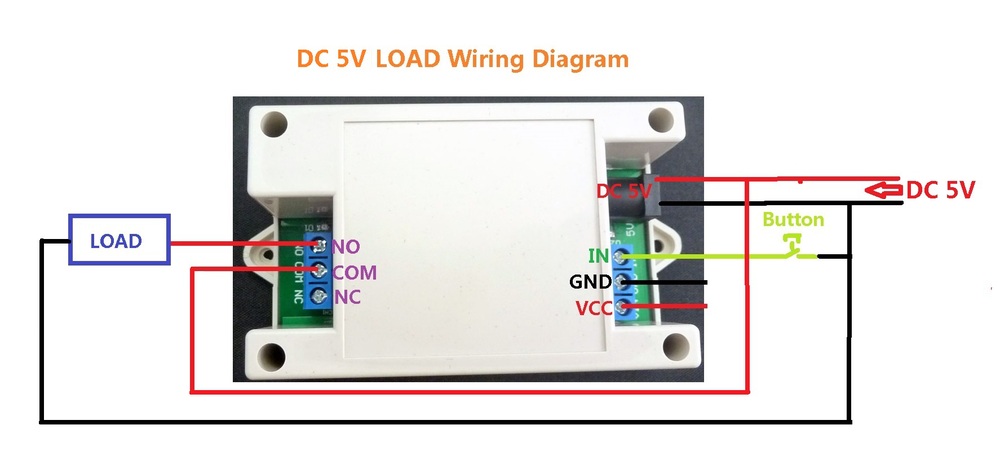

4 Power supply is DC 5V, ''LOAD'' is DC 5V circuit, wiring diagram below.
''LOAD'' may be LED lights, fans, mcu Development Boards and other DC 5V equipment

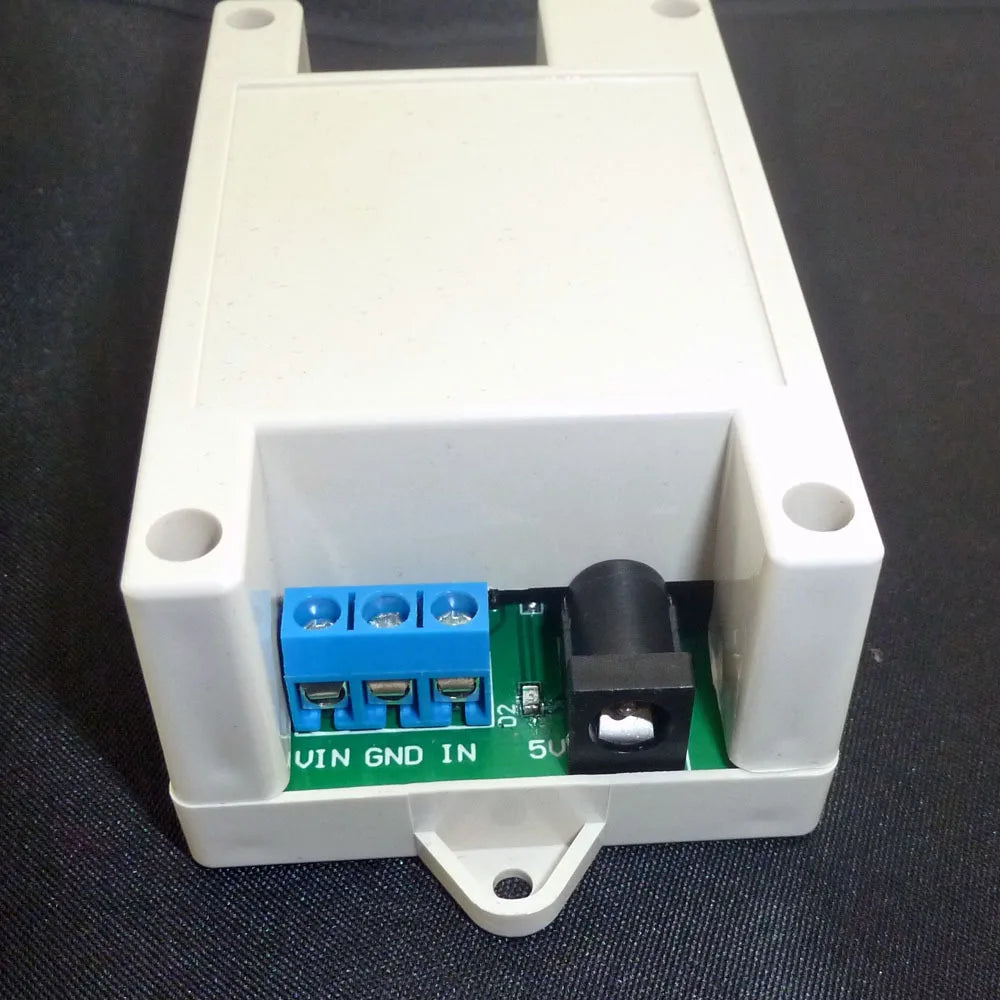

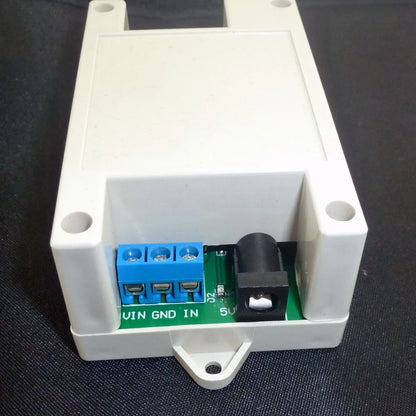

Product Name: DC 5V 12V 24V Bluetooth Relay Android APP Mobile Phone Remote Optical isolation Switch for Smart Home Motor LED Light Lock NET
Package inlcuded:
1 PCS DC 5V-25V 1 Channel Bluetooth Relay Module
Description:
1 Operating voltage: power supply 1, DC 6-25V; power supply 2,C 5V
2 Operating Current: Standby 11MA, Relay Open 45MA (voltage DC 12V)
3 Bluetooth V2.1 + EDR, Class 2
4 2.4GHz-2.48GHz unlicensed ISM band

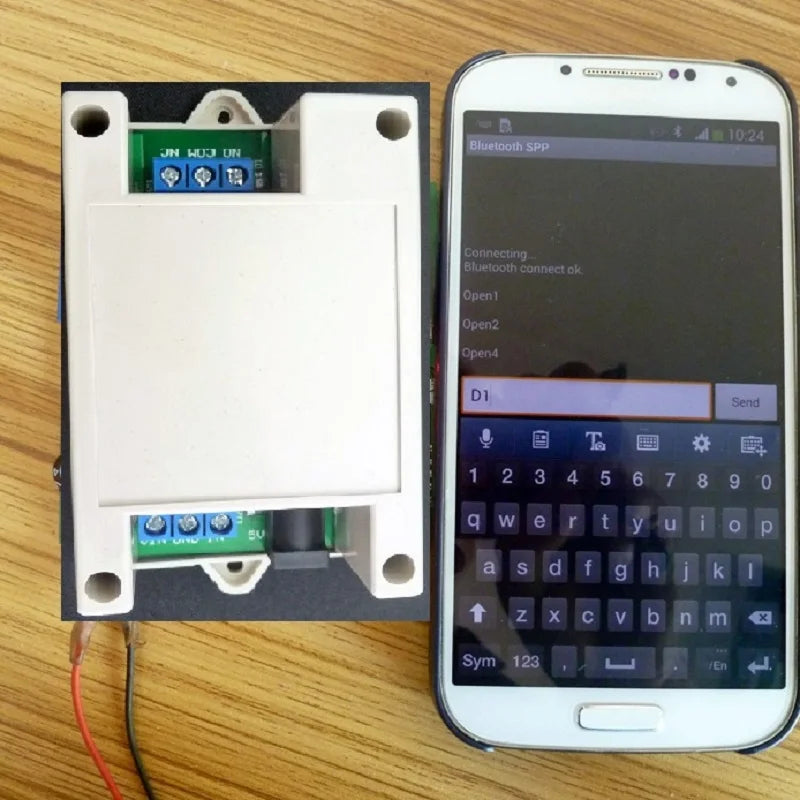

5send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control),It can also be triggered by an external pulse signal.
6 ''Momentary'' ''Self-locking'' ''open'' ''close'' 4 Commands
7 External trigger input, opto-isolated switch, low pulse inputs.
8 size (including housing) 81 * 50 * 32
9 Weight : 66g
10 Relay Maximum load:10A/250VAC ,10A/125VAC,10A /30VDC, 10A /28VDC ,10A /12VDC
Bluetooth relay manual:

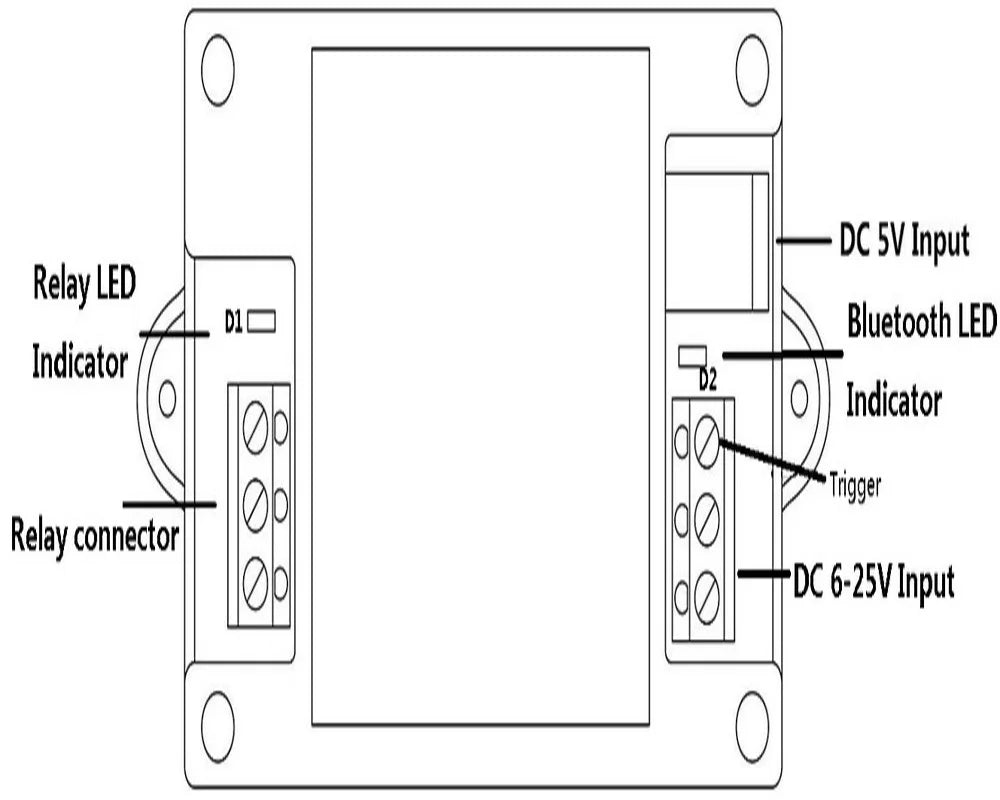

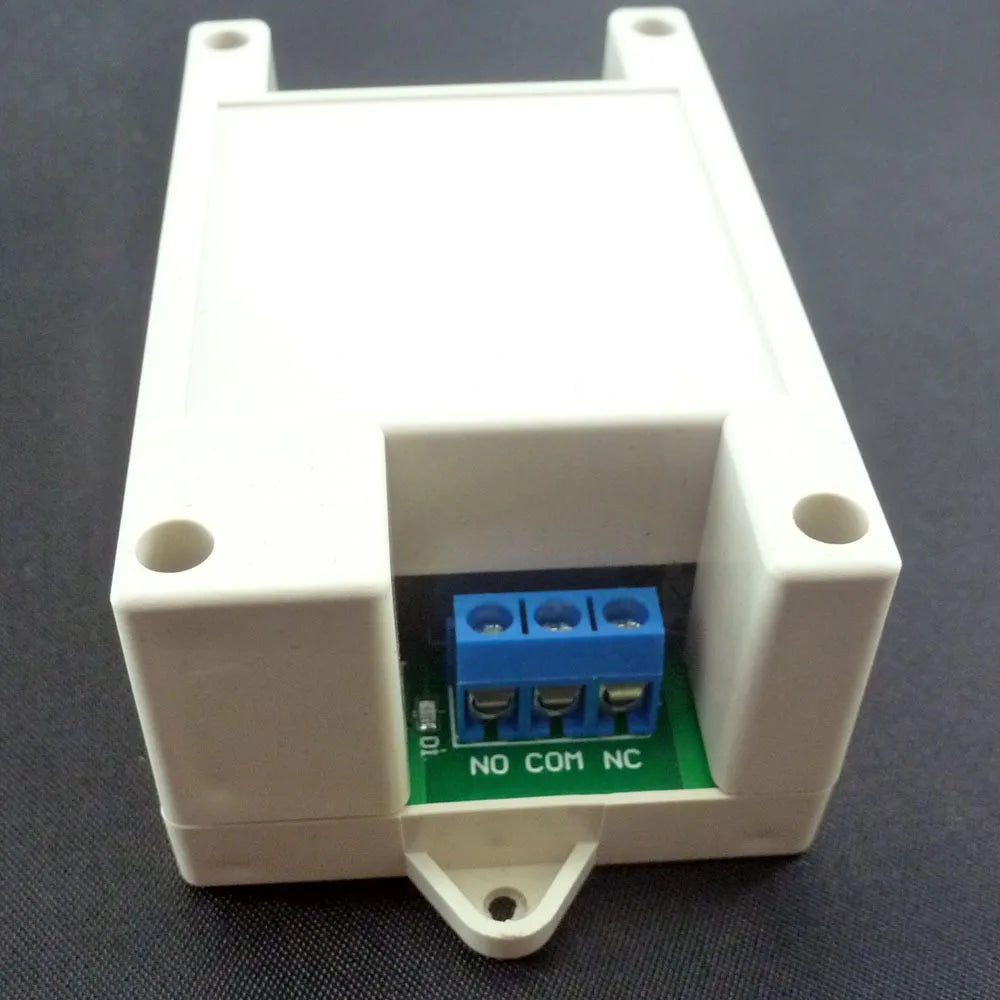

NO : Relay normally open contact
COM : Relay common contact
NC : Relay normally closed contact
Momentary : Mobile terminal input ''A0'', the relay is ''open'',and after delay of 1 second the relay is ''Close''.
Self-locking : Mobile terminal input ''A1'', the relay is ''Open'', input ''A1'', the relay is ''Close'', and so on
Open : NO connection COM, NC disconnect COM
Close : NO disconnect COM, NC connection COM
External trigger input: low pulse triggering, pulse width greater than 200 milliseconds.
Two control methods, external trigger signal and Command Control,It can be composed of flexible and diverse control.
CommandS (Format: character, case-insensitive)
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
Bluetooth APP operations:
Access Password : 1234
Bluetooth Baud rate: 9600BPS
For more information, please contact me
