R414A01 DC 5V-23V RS485 Modbus Rtu Temperature & humidity sensor Remote acquisition monitor replace DHT11 DHT22 DS18B20 PT100
R414A01 DC 5V-23V RS485 Modbus Rtu Temperature & humidity sensor Remote acquisition monitor replace DHT11 DHT22 DS18B20 PT100
SKU:R414A01
9707 in stock
Regular price
$9.99
Regular price
$9.99
Sale price
$9.99
Unit price
per
Couldn't load pickup availability
Product Name:DC 5V-23V RS485 Modbus Rtu Temperature & humidity sensor Remote acquisition monitor replace DHT11 DHT22 DS18B20 PT100
Packing list:

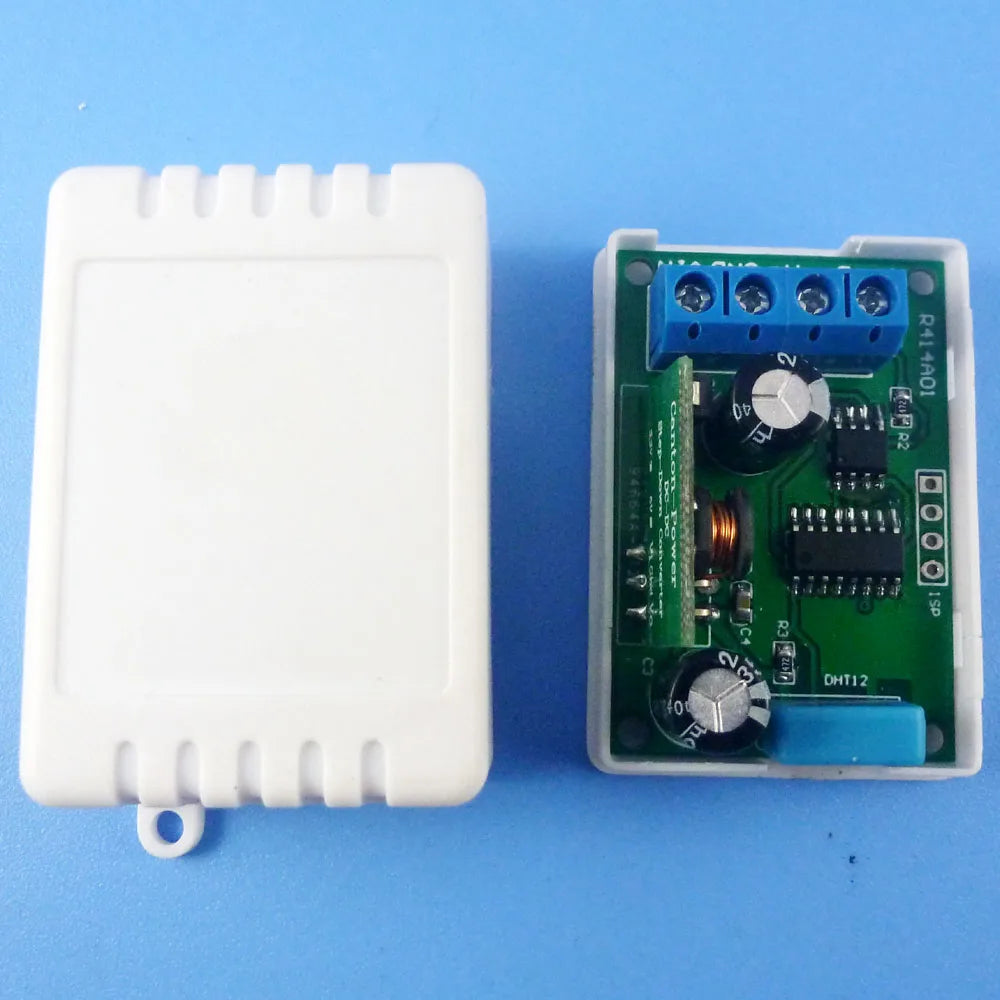

1 pcs R414A01 RS485 Temperature and humidity senso r(With a simple shell)
description :
Working voltage : DC 5-23V
Working current : 8MA(12V)
MODBUS RTU protocol,03 Read,06 Write.
Serial baud rate : 9600(default),N,8,1

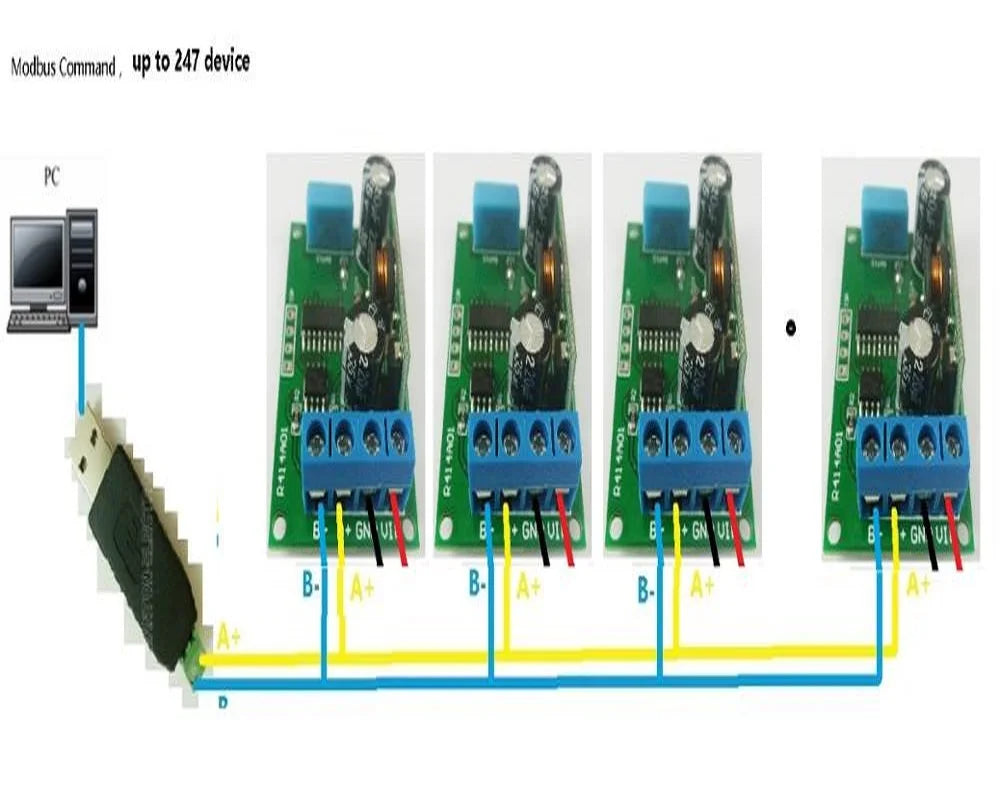

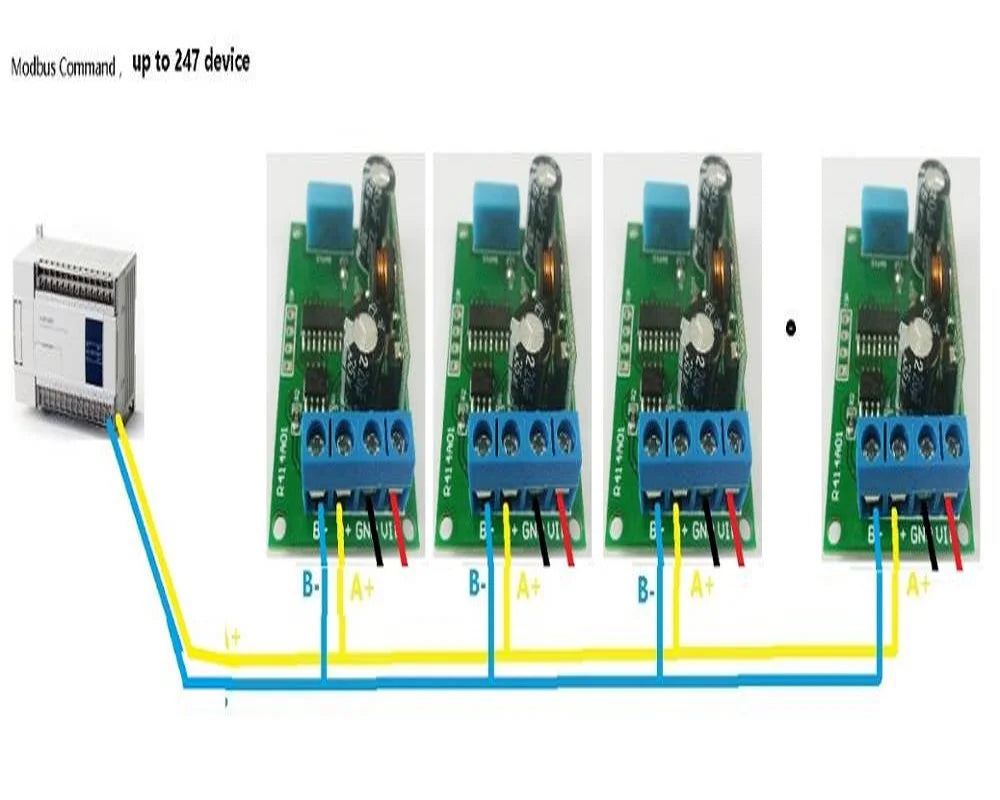

By modifying the RS485 address, up to 247 module s can be connected (more than 16 US ether485 repeater)

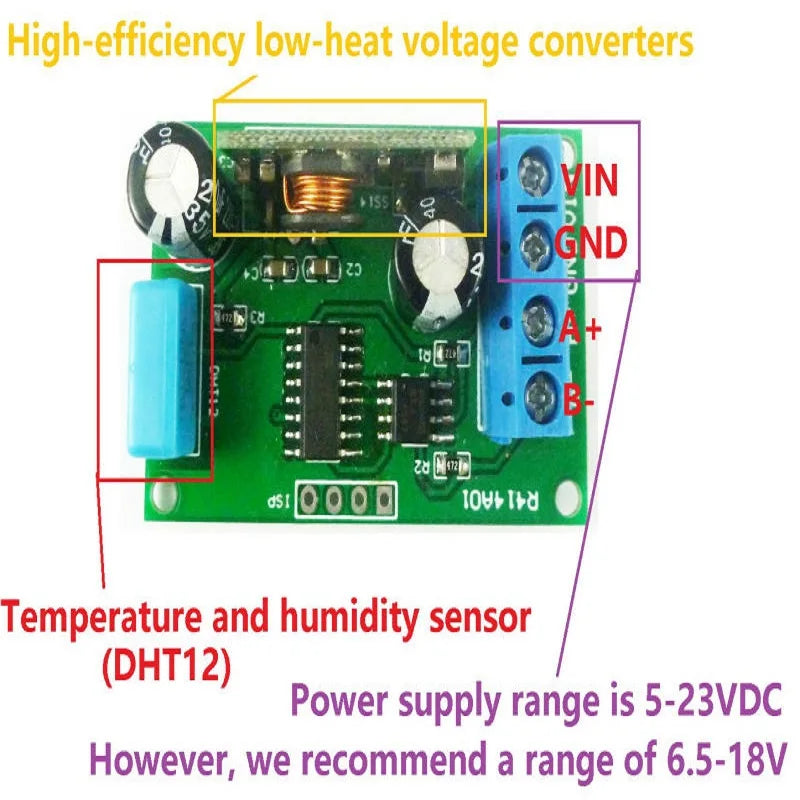

Temperature and humi dity sensor is DHT12
The voltage conversion module is CE018,a High-efficiency and Low-heat voltage Converter
Size : Module is 45 X 30 X 27MM,Shell is 50 X 35 X 22MM
Weight : Module is 11g,Shell is 10g
For more information, please contact us!!!
Typical application:
Indoor and outdoor temperature and humidity measurement
Temperature and humidity monitoring in vegetable garden
Weather forecasting, and monitoring
Temperature and Humidity Monitoring in Computer Room
Warehouse temperature and humidity monitoring

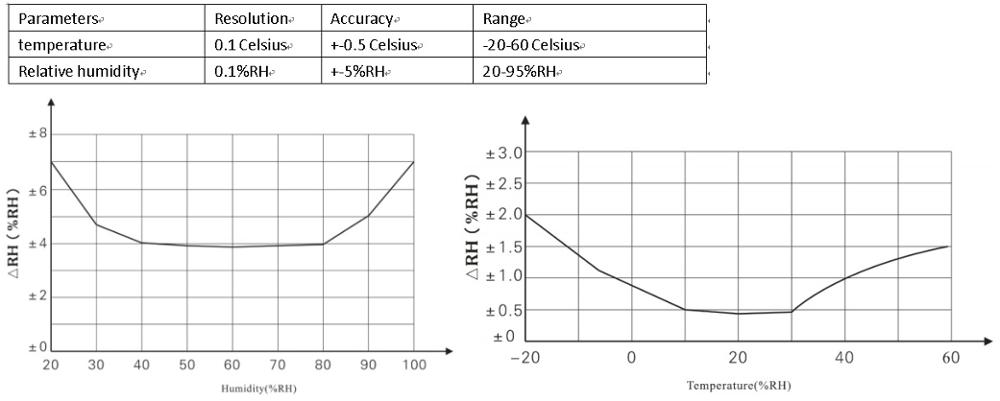

Sensor parameters:

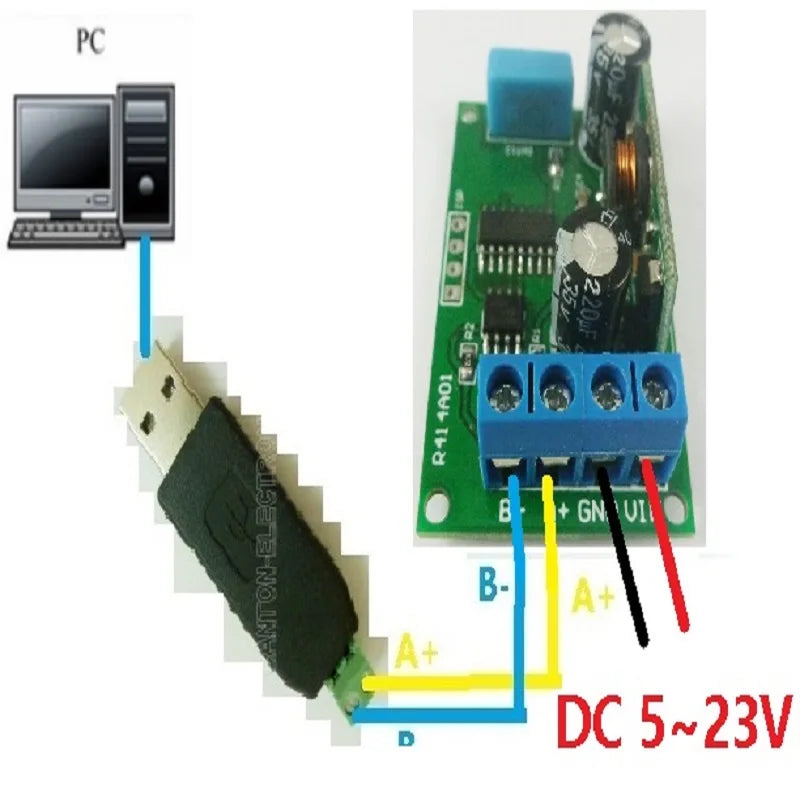

Wiring diagram:
