CE029B DC 5V 433MHz 2Ch Multifunction Wireless Controller Timer Delay Relay Learn code

CE029B DC 5V 433MHz 2Ch Multifunction Wireless Controller Timer Delay Relay Learn code

TB420+CE029B*2

1000 in stock

$40.48
$40.48 $40.48
Sale Sold out

Brand:Eletechsup

Product Name：433MHz DC 5V 2 Channel Multifunction Wireless Controller Timer Delay Relay Learning code for EV1527 PT2262 ASK OOK Remote control

Packing list :

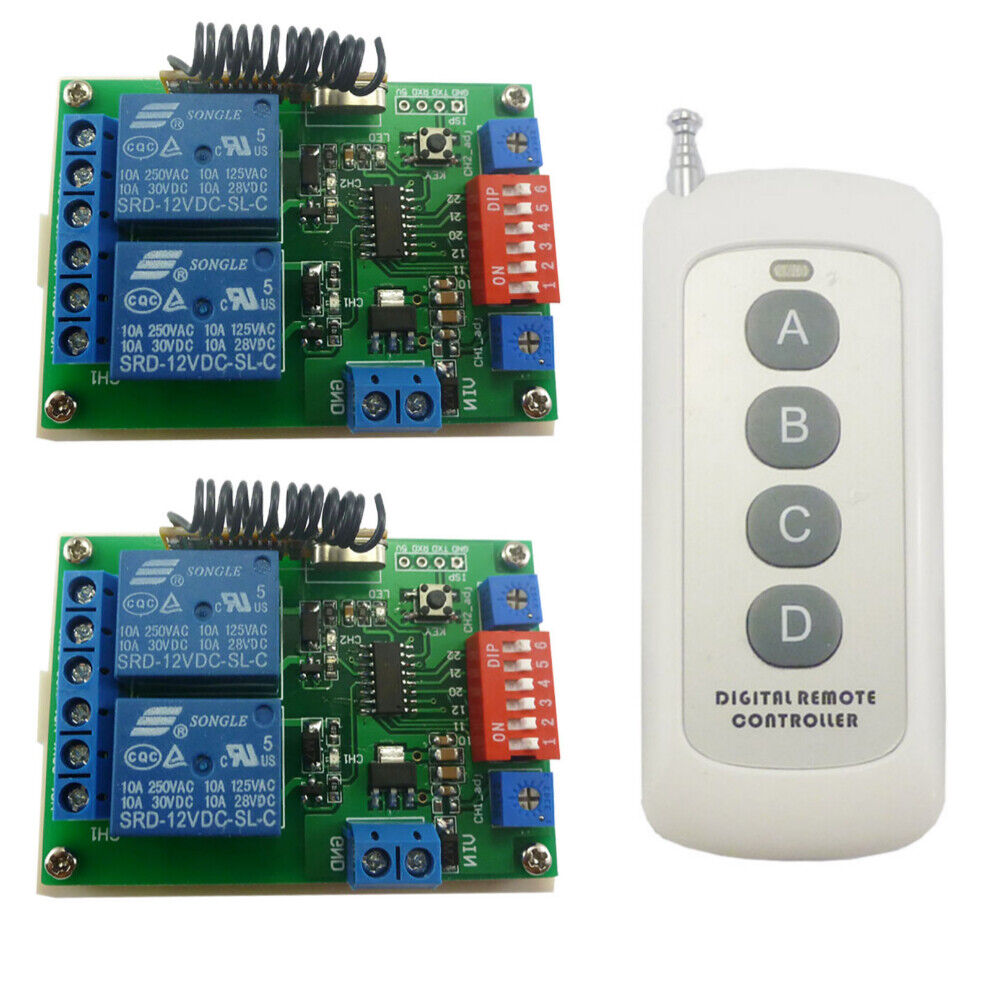

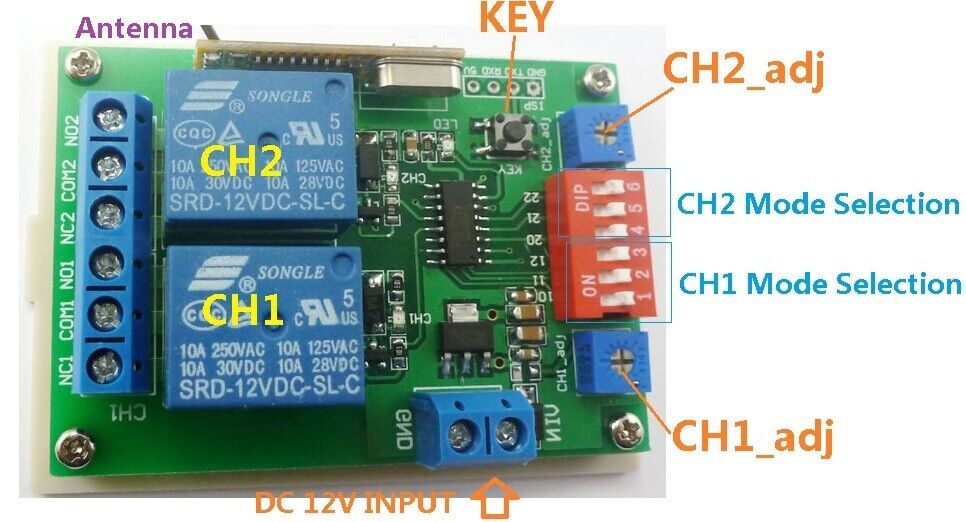

4 button transmitter remote & 2 CH DC5V Receiver relay board
(all user guide was provided in this item description , there is no extra manual )

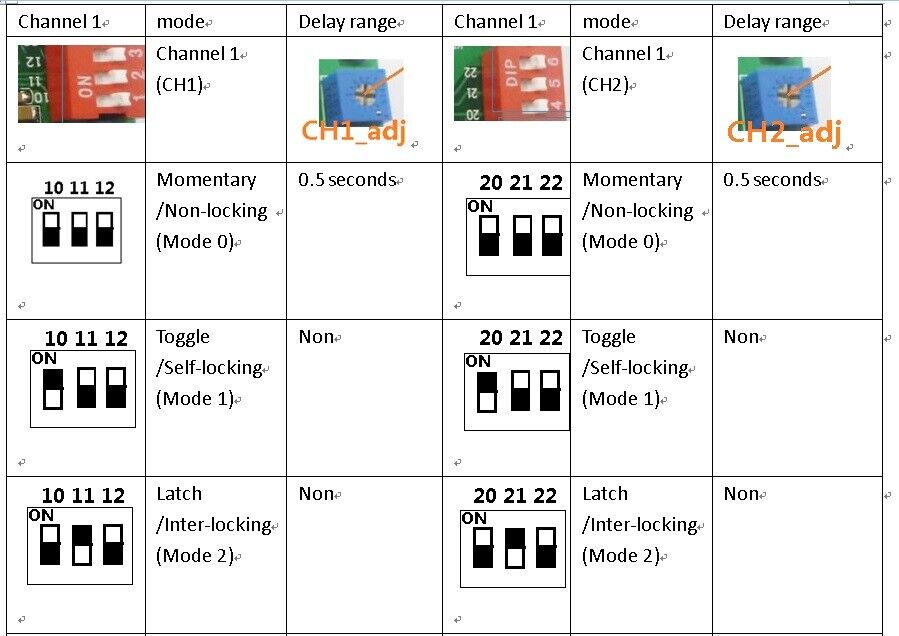

Work mode




Typical applications:
DC 5V Home lighting system
Garage Door
Elevators
Motor reversing control
Remote control switch
Smart Home / Home Automation
LED lighting
Fluorescent lamp
DC 5 DC Motor,RS360

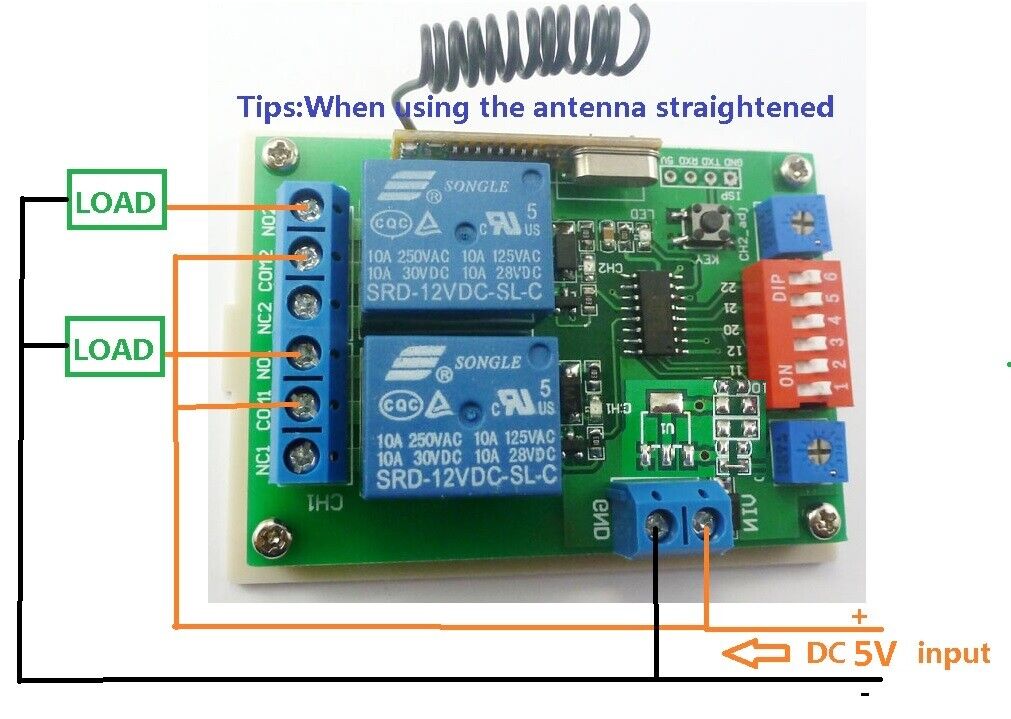

Wiring Diagram 1:
DC 5V control circuit,Wiring diagram below. "LOAD" may be LED lights, fans, motors and other DC 5V

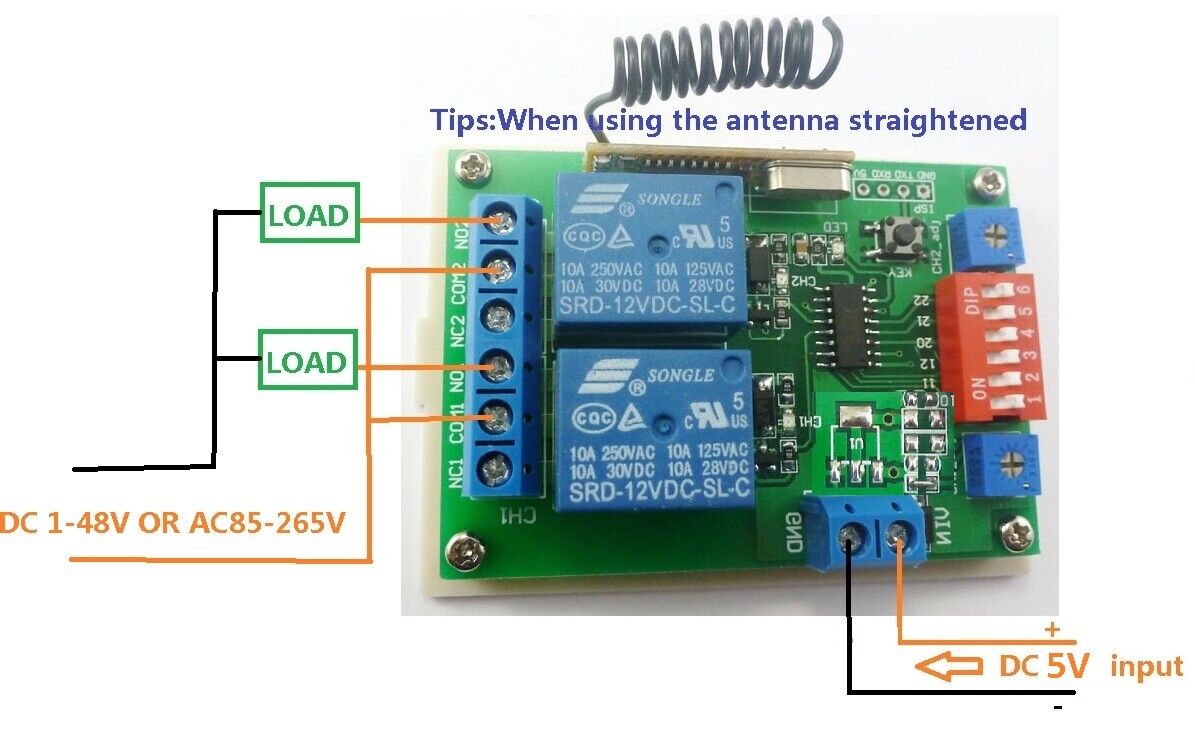

Wiring Diagram 2:

DC 1-48V OR AC 85-265V control circuit,Wiring diagram below(Note:If not DC 5V load, need another DC 5V power supply). "LOAD" may be LED lights, fans, motors and other DC AC equipment









Technical indicators:

Operating voltage : DC 5V

Operating Current : All relays close,about 15MA; one relay open,about 86MA;two relay open,about 157MA

Operating frequency : 433.92M;

Receiver sensitivity : -108dB;

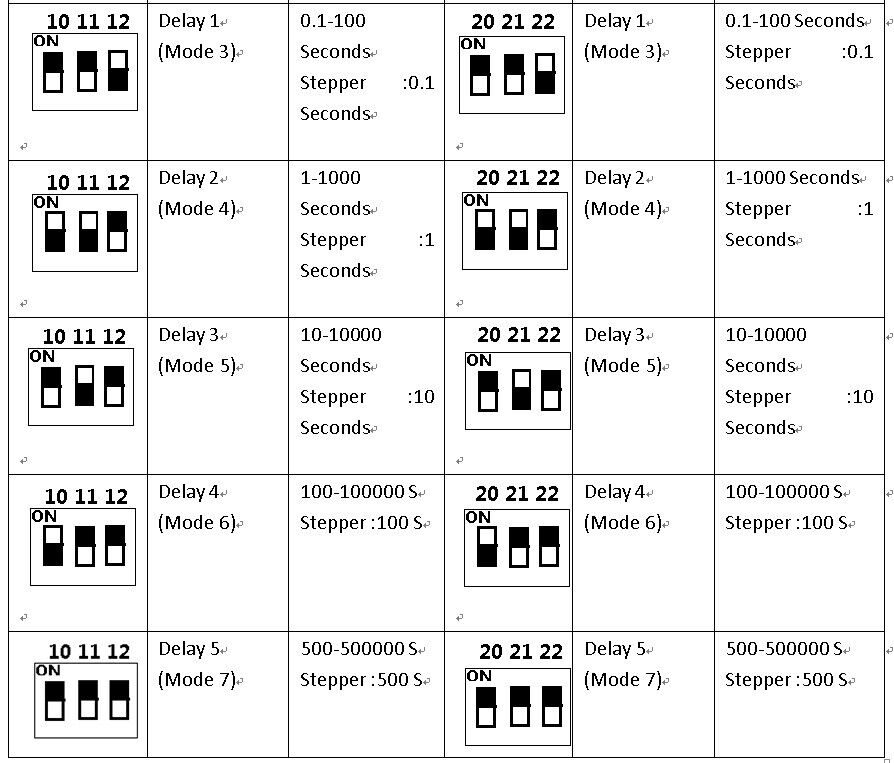

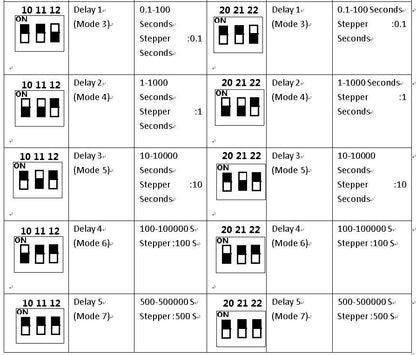

Work mode : Non-locking (Momentary is defult),Self-locking (Toggle),Inter-locking (Latch), Delay;Each channel independently set the Work mode; 500,000 seconds maximum delay

Size(Including housing) : 75*54*28mm

Learning function (can works with EV1527 and PT2262 remote, can store 16 pcs different code remote );

Max load : 500W;

Normally, we would adapter remote control and receiver.
If the item you received has not been adapted Or you need to add accessories, Please follow the instructions below

Learning method and steps:

Under normal operating mode, LED will be lit, when receives a valid remote control (EV1527 / PT2262) button values, LED flashes

Clean code: press the button and held down, LED off, LED will light about 8 seconds later, clean code is completed (Note: After performing clean code previously stored remote control value does not exist)

Step 1 (into the learning mode): Press the button (about 1 second), LED off;

Step 2 (adapter channel 1): Then press the first button on the remote control, LED flashes four times off, then learning the first button value

Step 3 (Adaptation Channel 2): Then press the second button on the remote control, LED flashes four times brighter, then learned two key values



Use more details, please click here!

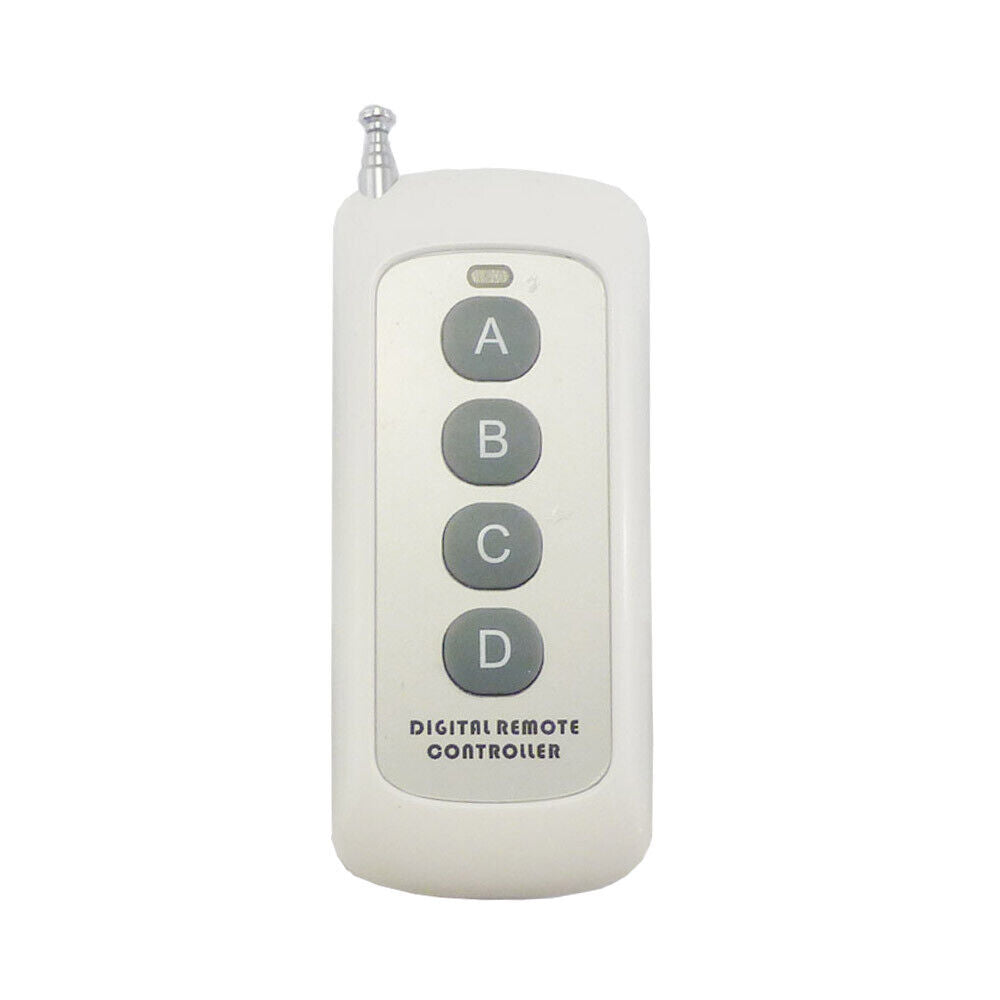

Transmitter :

Below item is powered by Canton-electronics Ltd .

Qty : 1 pcs 4Button Fixed code remote ;




Features / Specifications :

1. 4 buttons;
2. High stability, SMT chip, frequency stabilization SAW, ultra-high-frequency transistor;
3: Large power;



Technical Data :
Transmitter Module No.: TB420;
Power supply : 12V 23A battery (not included ) , please buy battery from here : https://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313.TR3.TRC2.A0.H0.X12V+23A+battery.TRS0&_nkw=12V+23A+battery&_sacat=0 .

Operating current: 28-33mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK;
Operating frequency:433.92MHZ ;
Encoding format: SCT2260 fixed code (compatiable for PT2262 SC2262 PT2260 PT2264 , can work with PT2272-M4 ,PT2272-T4,PT2272-L4 );
RC Resistance : 4.7M;
Transmit power : 200mW ;
