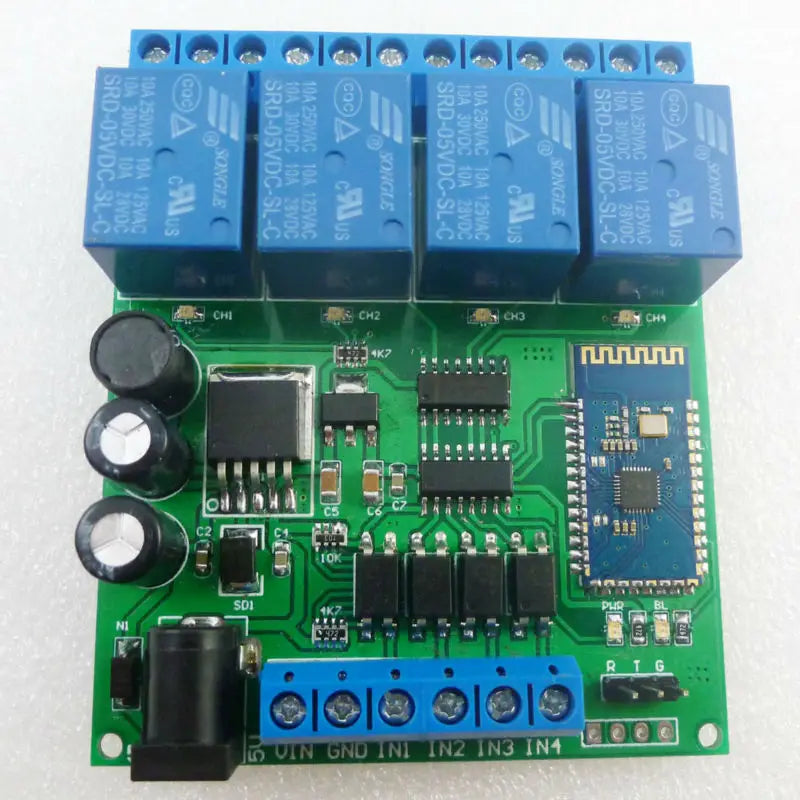

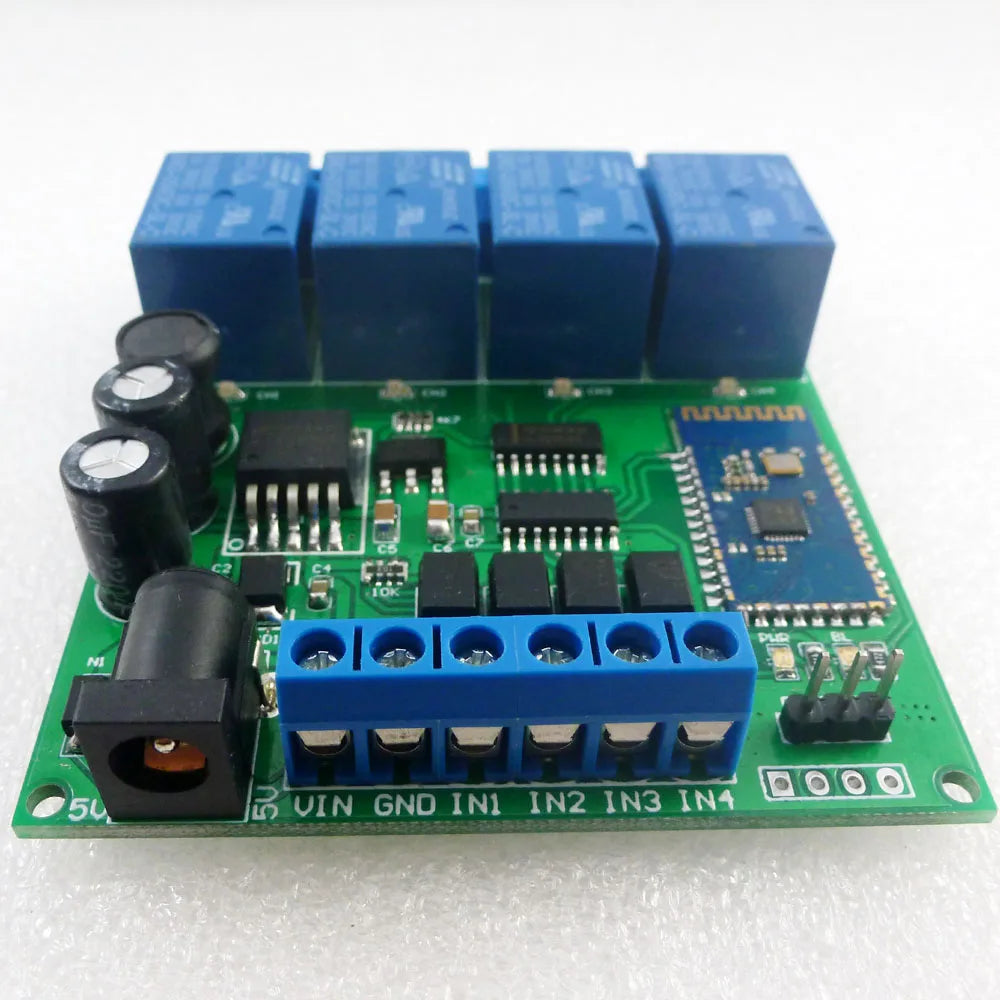

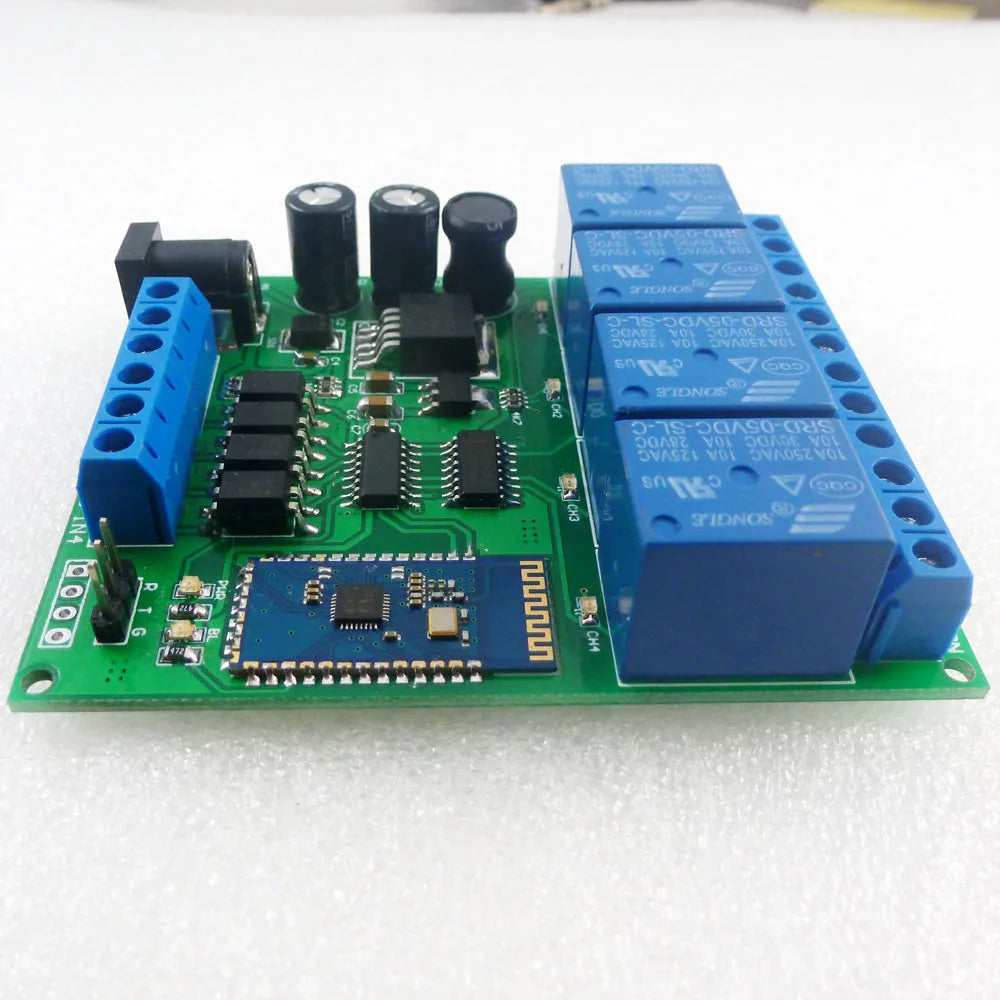

CE041 DC 5V 9V 12V 24V 4CH Bluetooth-compatible Relay Android app Wireless Remote Controller for Smart Home Motor LED Car Access

CE041 DC 5V 9V 12V 24V 4CH Bluetooth-compatible Relay Android app Wireless Remote Controller for Smart Home Motor LED Car Access

CE041

1000 in stock

$17.99
$17.99 $17.99
Sale Sold out










Typical applications:







Home lighting system




Remote control switch




Remote locking




Garage door remote control




Smart Home / Home Automation




DC 5-24V LED lighting




Fluorescent lamp




AC DC Motor




Fluorescent lamp




Automotive electronics




Industrial automation and control




Access Control System




Security Monitoring

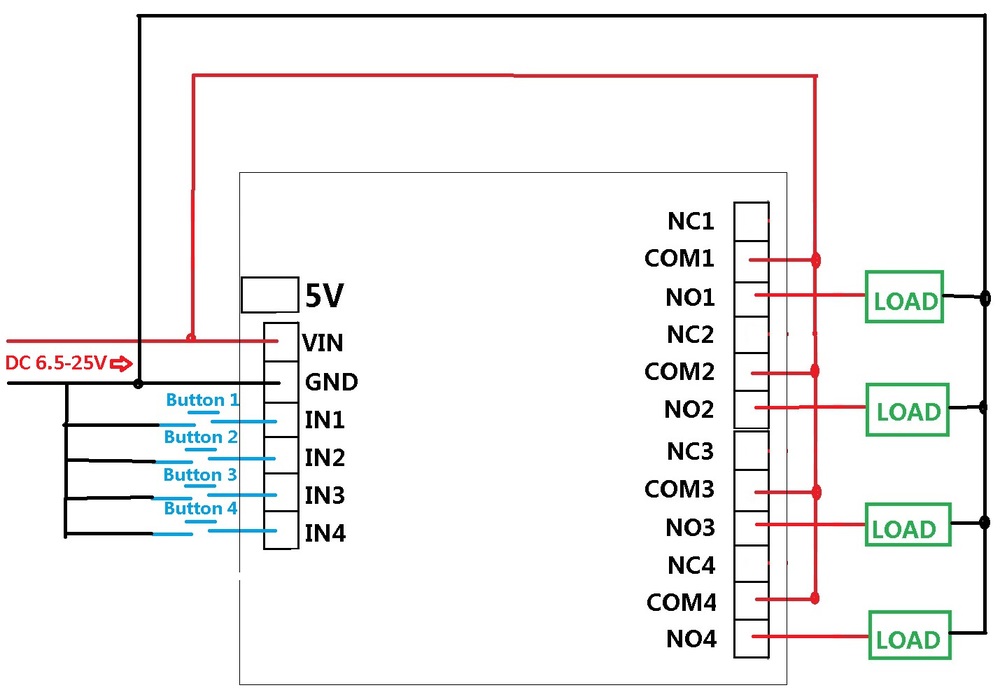

1 DC 6-25V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and


other DC 6-25V equipment










2 DC 5V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, toy car and


other DC 5V equipment







3 DC 1-100V OR AC 85-265V control circuit,Wiring diagram below. ''LOAD'' may be LED lights, fans, motors and other DC AC equipment

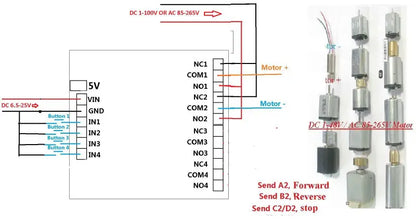

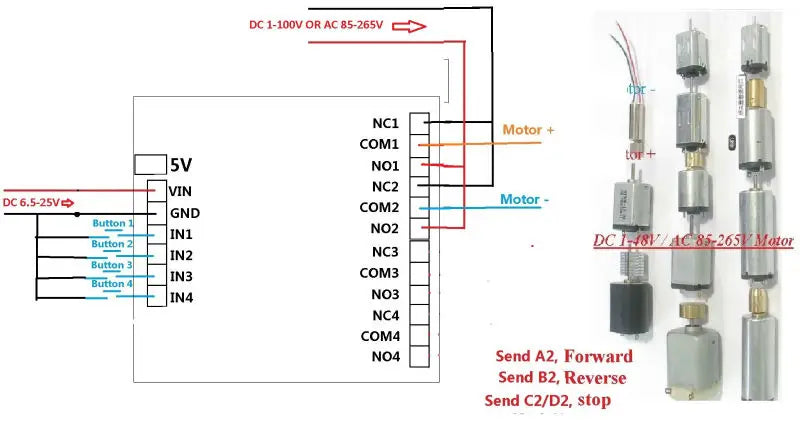

4 All kinds of motor reversing control: DC 1-100V or AC 85-265V DC/AC Motor




















Product Name:


DC 5V 9V 12V 24V 4CH Bluetooth-Compatible Relay Android app Wireless Remote Controller for Smart Home Motor LED Car Access Control System















Package inlcuded:



1 pcs DC 5-24V 4 Channel    Android








Bluetooth Relay Module








Description:

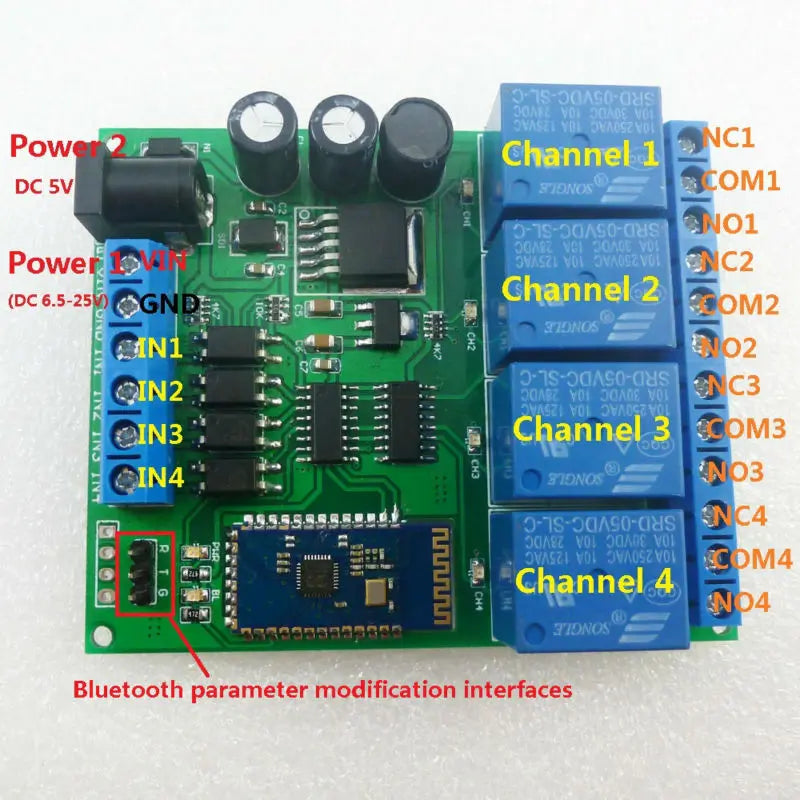

1 Operating voltage: power supply 1,DC 6.5-25V; power supply 2,DC 5V




2 Operating Current: Standby current (all relays closed) 13MA, 1 relay open 44MA, 2 relays open 76MA, 3 relays open 107MA, 4 relays open 139MA

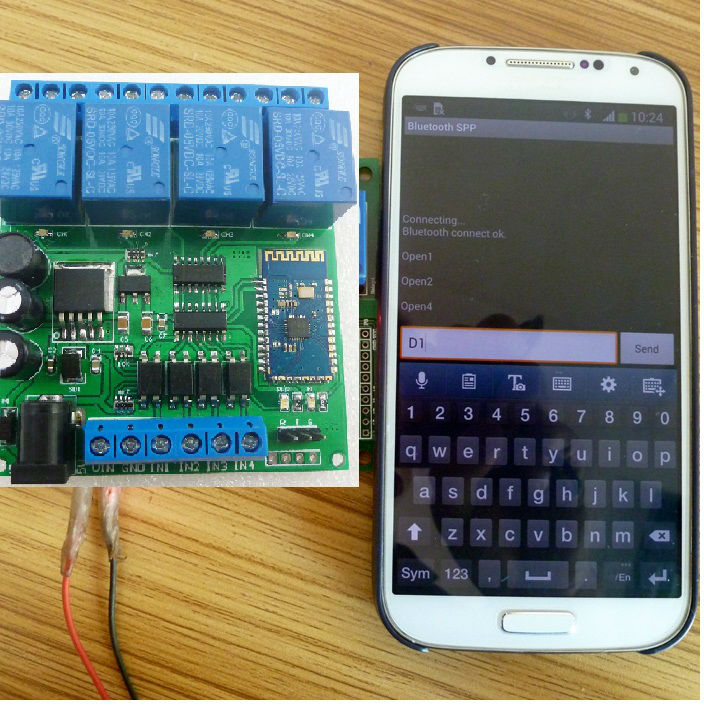

3: send commands via Android Bluetooth APP control relay turned on and off (we provide Bluetooth APP, you can also use your own APP to control relays, sending commands to control)




4 ''Momentary'' ''Self-locking'' ''Interlock'' ''open'' ''close'' 5 Commands




5 External trigger input, opto-isolated switch, low pulse inputs.




6

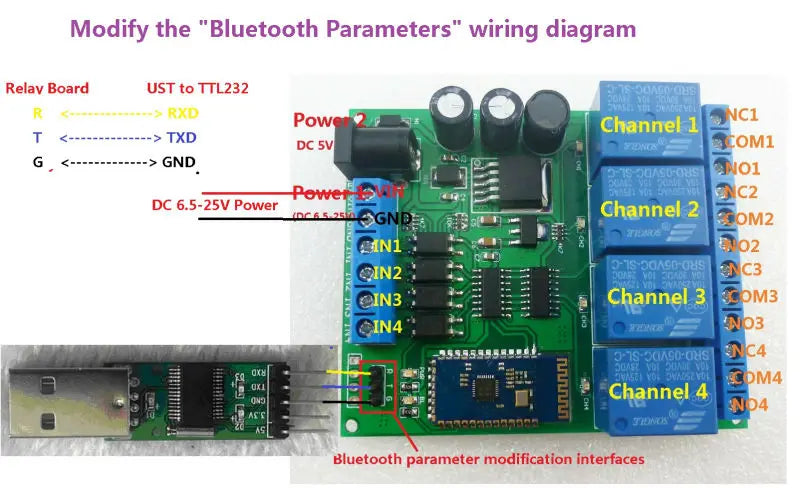

You can modify the Bluetooth name and PIN(Access Password) through AT commands,


For details, see file '' Bluetooth parameter modification''




7 size 80*67*19mm




8 Weight : 73g







NOTE:



Only for Android OS, does not support the Apple OS










For more information, please contact me
