CJ018 DC 5V RF WIRELESS Door Windown Sensor Modules HOUSE BURGLAR for Arduno MCU Alarm

CJ018 DC 5V RF WIRELESS Door Windown Sensor Modules HOUSE BURGLAR for Arduno MCU Alarm

TB094*1+CJ018*1

1000 in stock

$20.98
$20.98 $20.98
Sale Sold out

DC 5V RF WIRELESS Door Windown Sensor Modules HOUSE BURGLAR Arduino MCU Alarm



Title :  DIY SECURITY WIRELESS GSM AUTODIAL HOME HOUSE OFFICE BURGLAR INTRUDER Anti-theft ;

Package inlcuded:

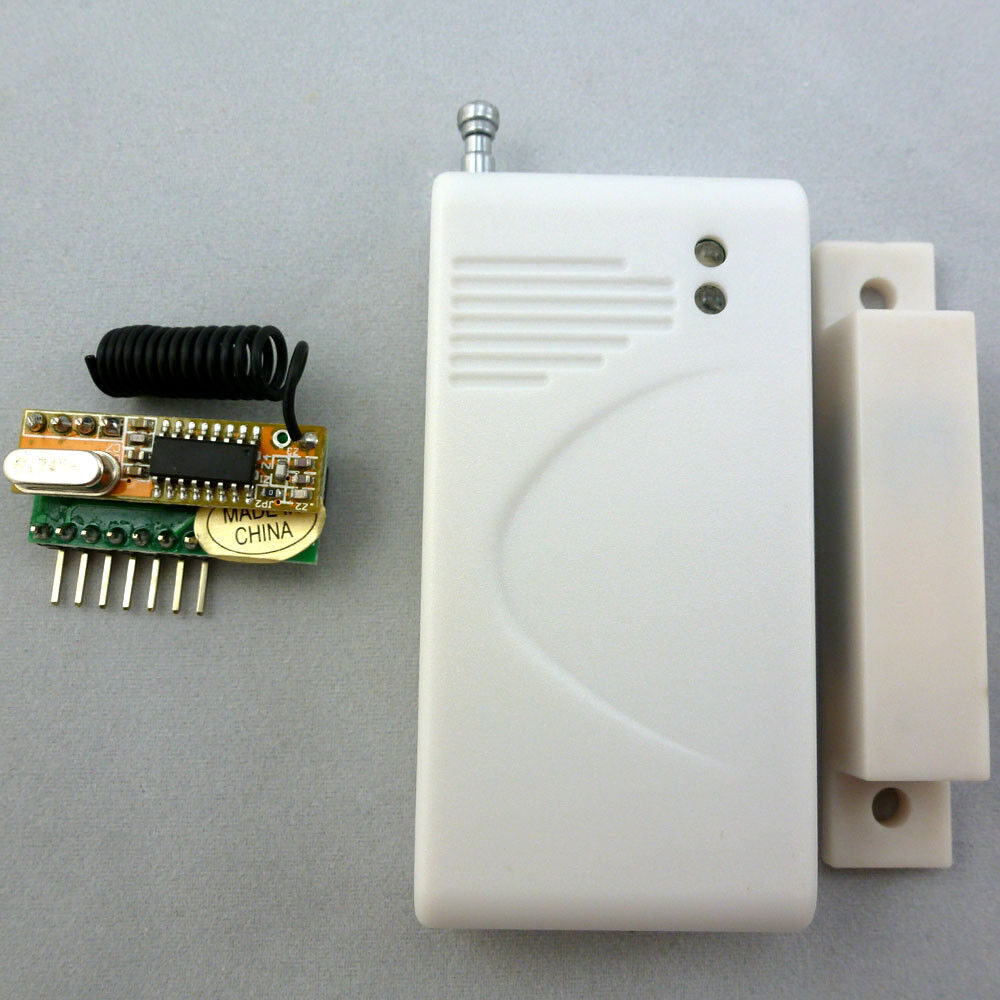

1PCS Wireless Sensor ;

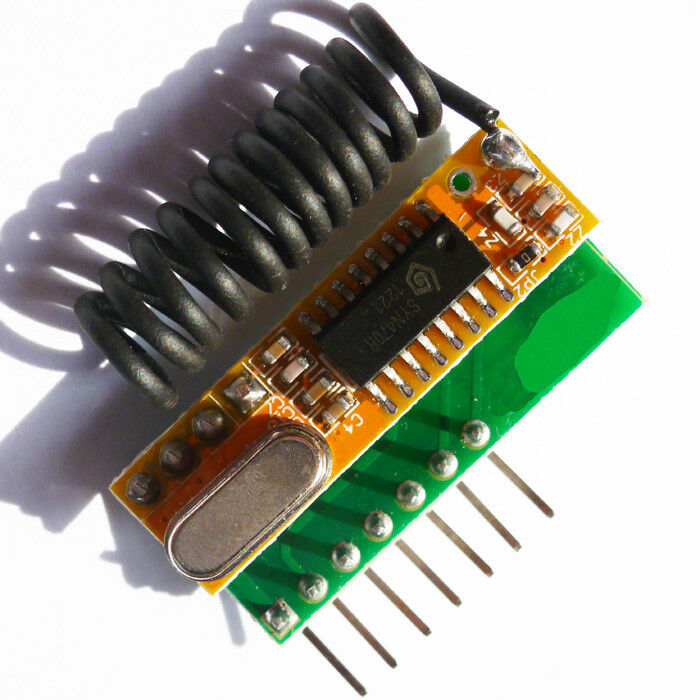

1 PCS DC5V 4 Channel receiver;


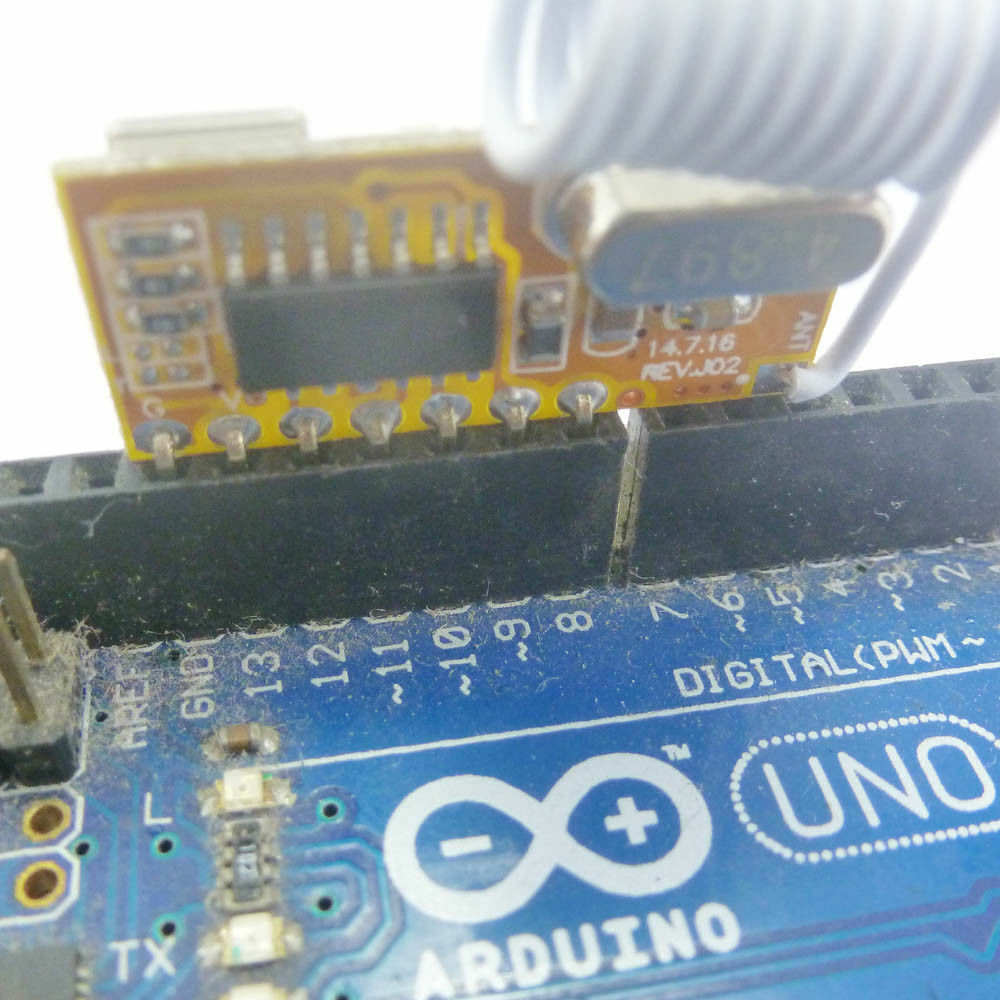

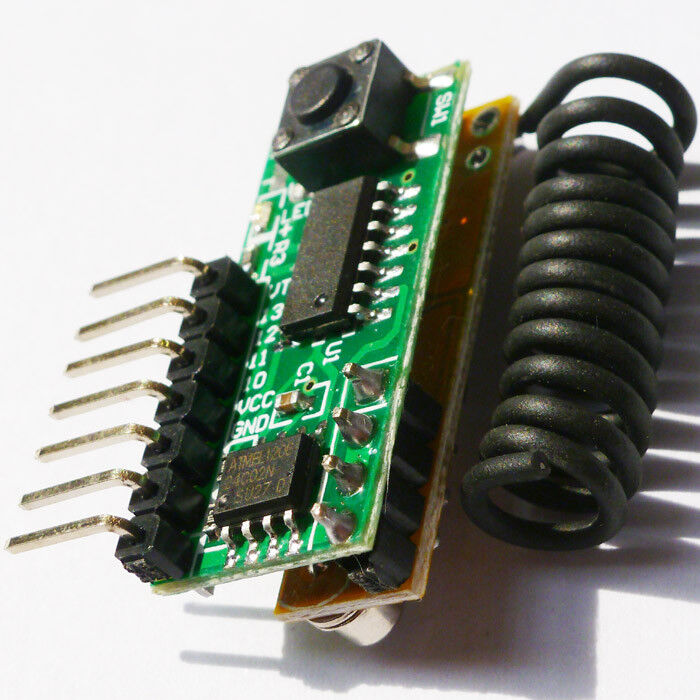

Receiver :






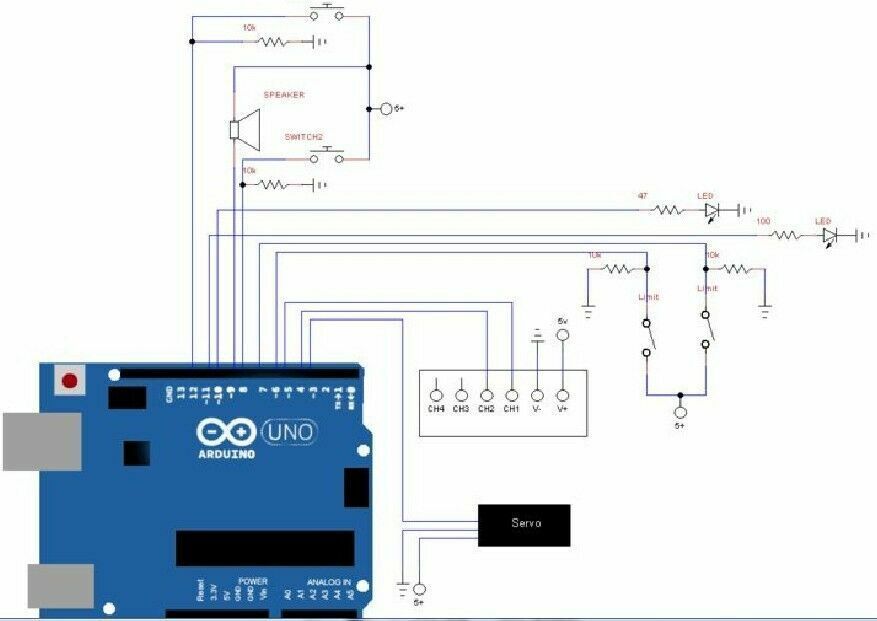

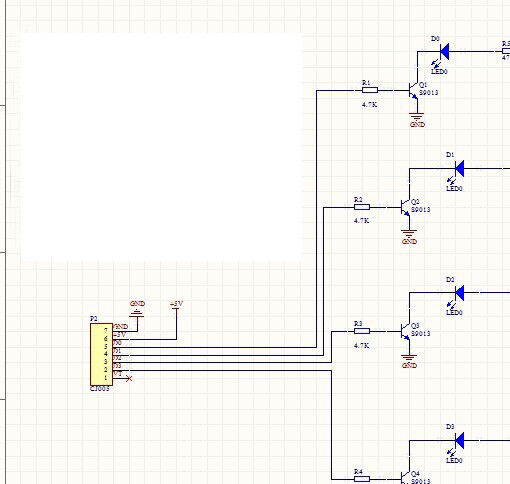

Demo :



Model No.
CJ005

Operating voltage
5.0VDC ±0.5V

 Working priceple

 Super Heterodyne receiver with decoder , learning type . decoding PT2262, PT2260, PT2240, EV1527 and other learning codeto chip or compatible chips, can learn and store 20 pcs different coded remote control. Intelligently distinguish shock resistance between fixed code and learning code , such as PT2262 and EV1527.

Static current
≤7 mA (DC 5V)

Operating frequency
433MHz

modulation Mode
ASK/OOK

Receiving sensitivity
over -102 dBm (50 Ω)

Speed
< 5 K bps (at 315 MHz, -95 dBm)

Operating temp.
-10 °C ~ +60 °C
Max rate 1 KHZ
Antenns length
20 cm (315 MHz), 18 cm (433.92 MHz)

Dimension
30*13mm

Output signal

TTL level , Momentary, Latch, Toggle ,user can set it  by welding, Latch is defult.

Band width
2MHz(315MHz, Sensitivity go down 3dBm test )


Output

A.singnal Non-locking (Momentary)----connect 1  and 2 ;

B.singnal Self-locking (Toggle) ---- connect 2 and 3 ;

C.singnal Inter-locking (Latch) ---- disconnect all  ;



Inter-locking (Latch): 4-way relay each other to switch, when relay A  is working and locked  ,  relay B C D corresponding to switch off; when B is working and locked , corresponding relay A C D swith off ; Only 1 relay is on among 4 relays A B C D;

Non-locking  type (Momentary): Press A and hold it , then A is on.Same as Relay B C D ;

Self-lock type (Toggle): 4 chanels opens and closes independently, 4 chanels can work together ,they don’t affect each other . press A button, A relay of work and locked, press again then  disconnected; Same as B C D .

User guide :
1: Learing ID : Press learning button , LED is on and beginning to learn ;after learning , LED will flash for a while .Then LED will keep being on to learn the next remote. If perss the learned remoter controller , auto-quit learning within 10 seconds;
2: Delete ID : Keep pressing learning button for 5 seconds , LED will be on and enter deleting . LED off means finishing deleting;
3: Antenna with a soft wire or other hard metals (such as whip antenna), try to straighten. Do not go near metal objects;
4: Power supply voltage requires stable and low ripple factor, multi-level filtering (such as adding beads, inductors, capacitors, etc.);

433Mhz Wireless Door / Windown Sensor



1)Feature:

It will work with most standard security system. Pull out the antenna of the magnetic detecto: when the door or window is opened from the closed position, LED 1 will turn to red for 2 seconds, the magnetic detector will be triggered and will send alarming signal to the main unit. Indication of low battery: When the voltage of battery is less than 7.5V, LED 2 will straightly turn on red light. At this time, you nee to immediately change the battery.



Launch Distance:  50-80 meters (open place)
Operating Voltage: 12V
Operating Frequency: 433MHz.
Encoding: EV1527 Fixed Code IC ;
Size: 71 x 36 x 15(mm) / 2.8 x 1.4 x 0.6(inch )
Oscillation resistance: 470K ;
Power supply: 12V 23A Battery (the battery is not included ) ;

2)Package:

1*wireless door sensor
