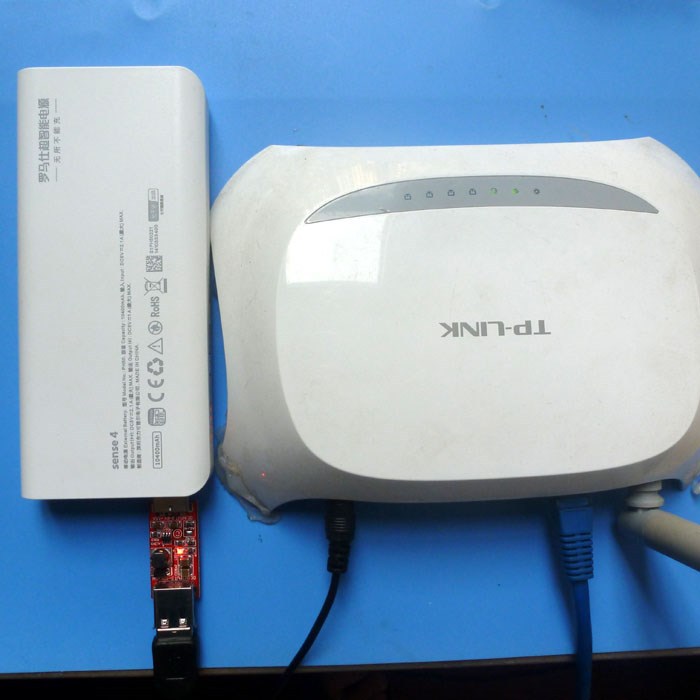

CE036 DC 5V TO 12V USB to DC 5.5*2.1mm Cable DC-DC Boost Conerter Step-up Voltage Power Supply Module for Wifi Router mobile power

Name: CE036 DC 5V TO 12V USB to DC 5.5*2.1mm Cable DC-DC Boost Conerter Step-up Voltage Power Supply Module for Wifi Router mobile power
Brand: Eletechsup Factory store
SKU: CE036
Price: 3.99 USD
Availability: InStock

SKU:CE036

1000 in stock

$3.99

~~$3.99~~ $3.99

Sale Sold out

Quantity

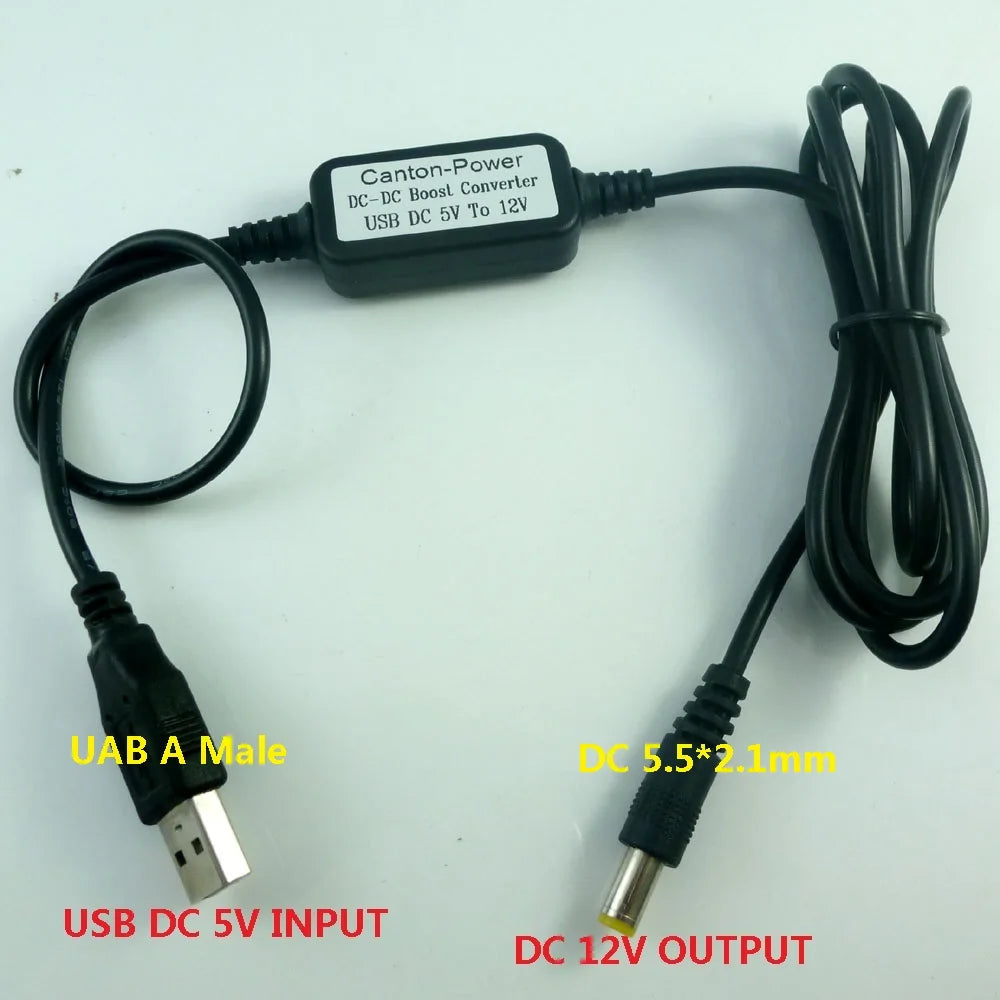

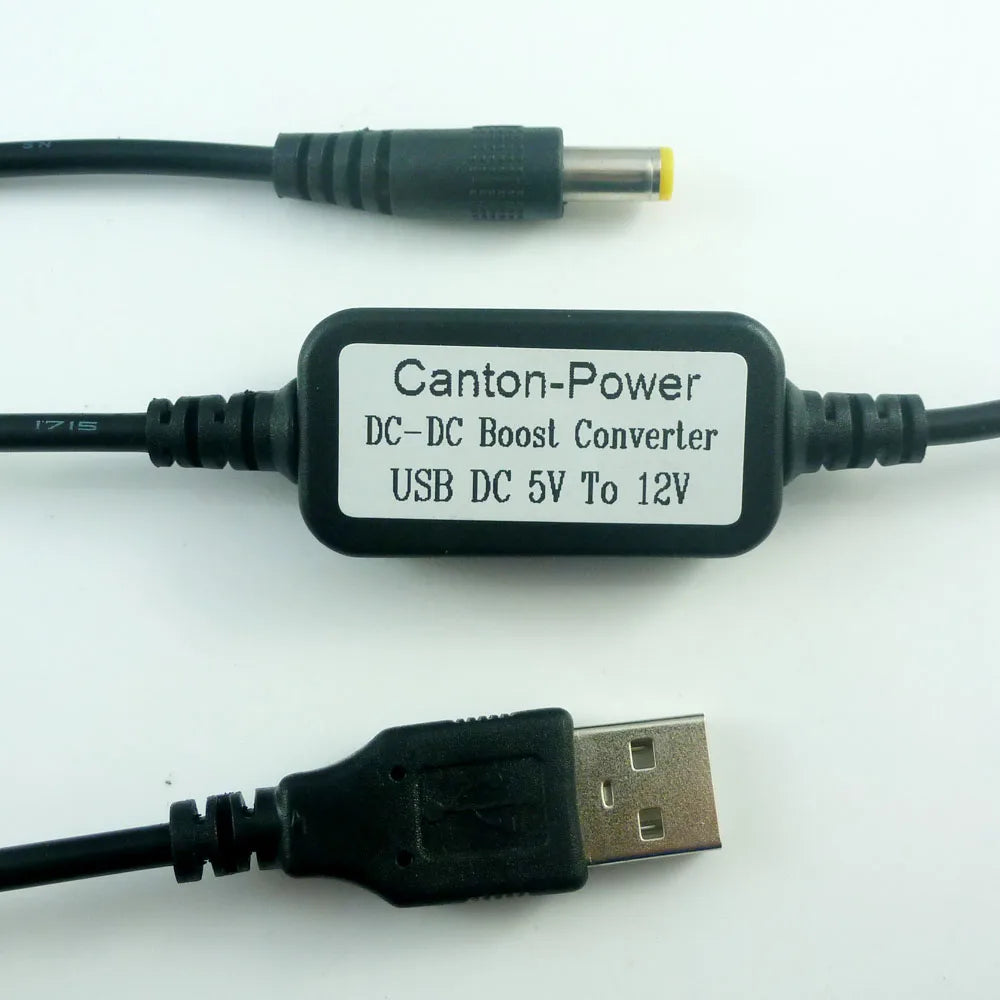

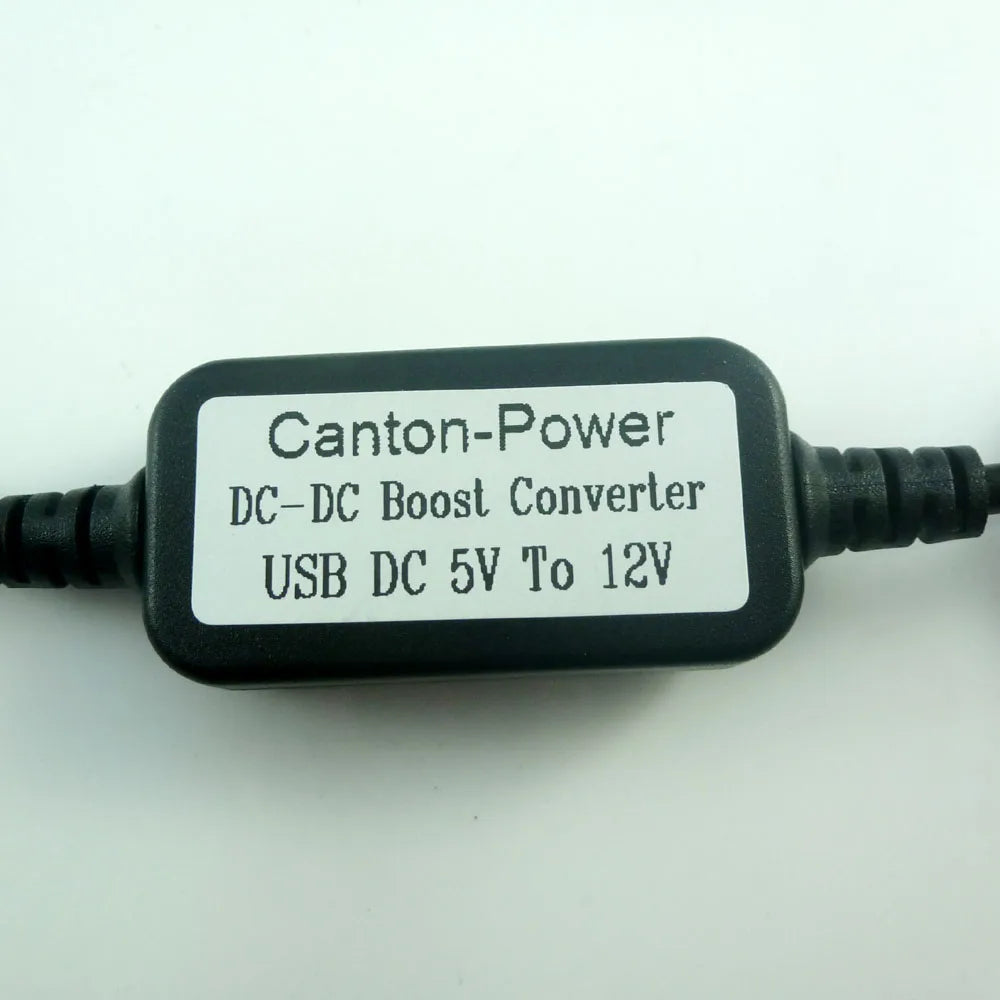

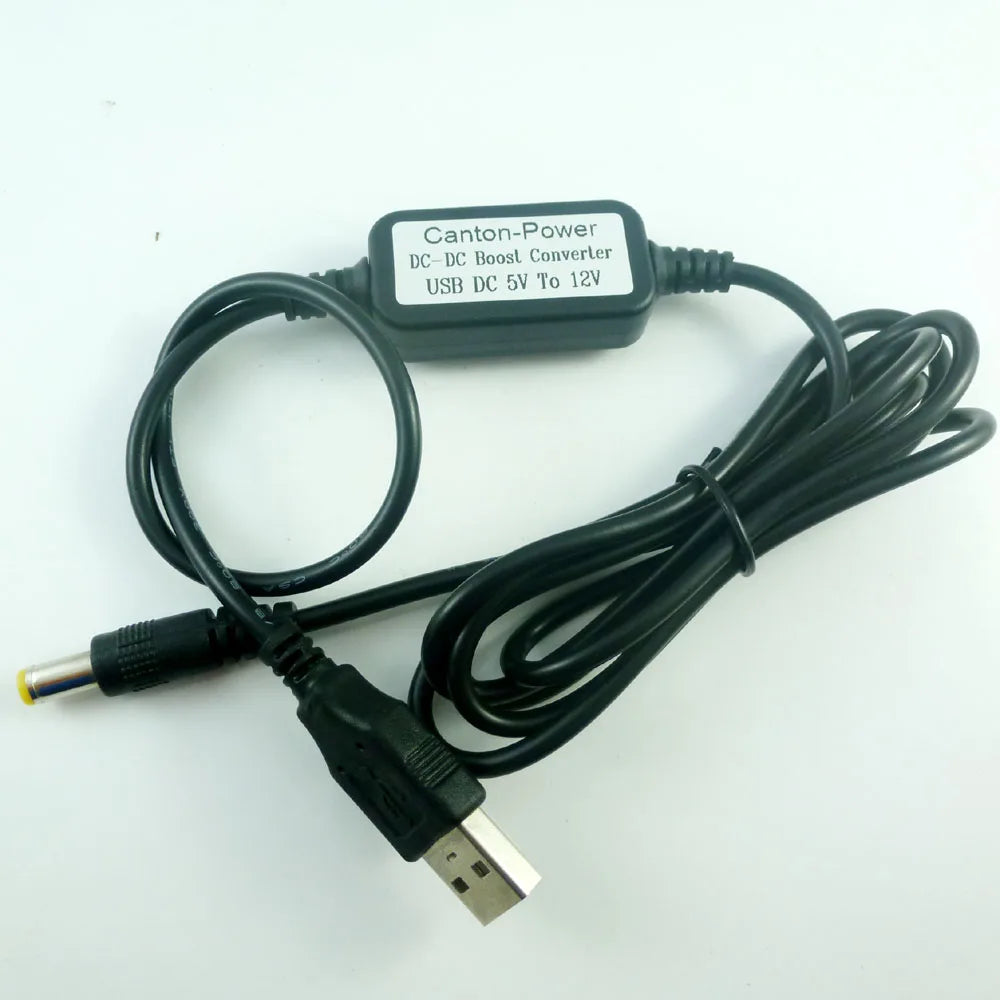

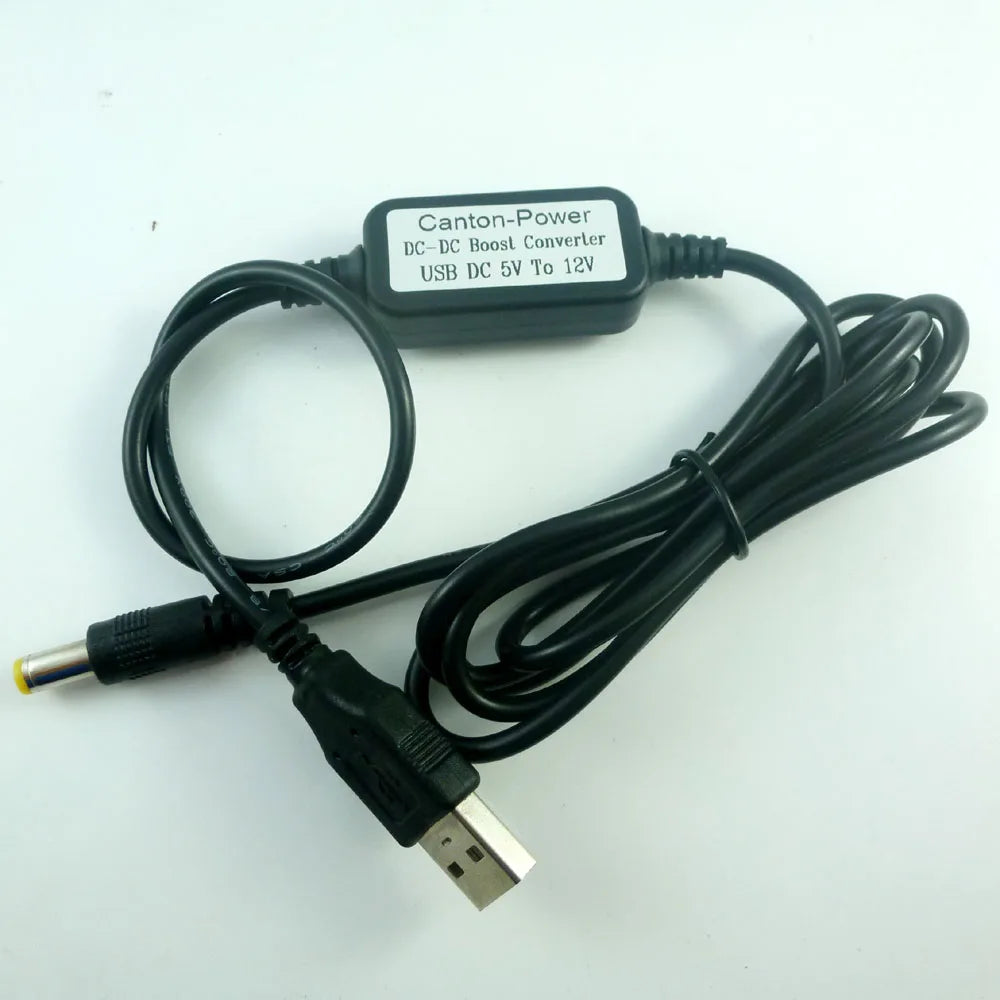

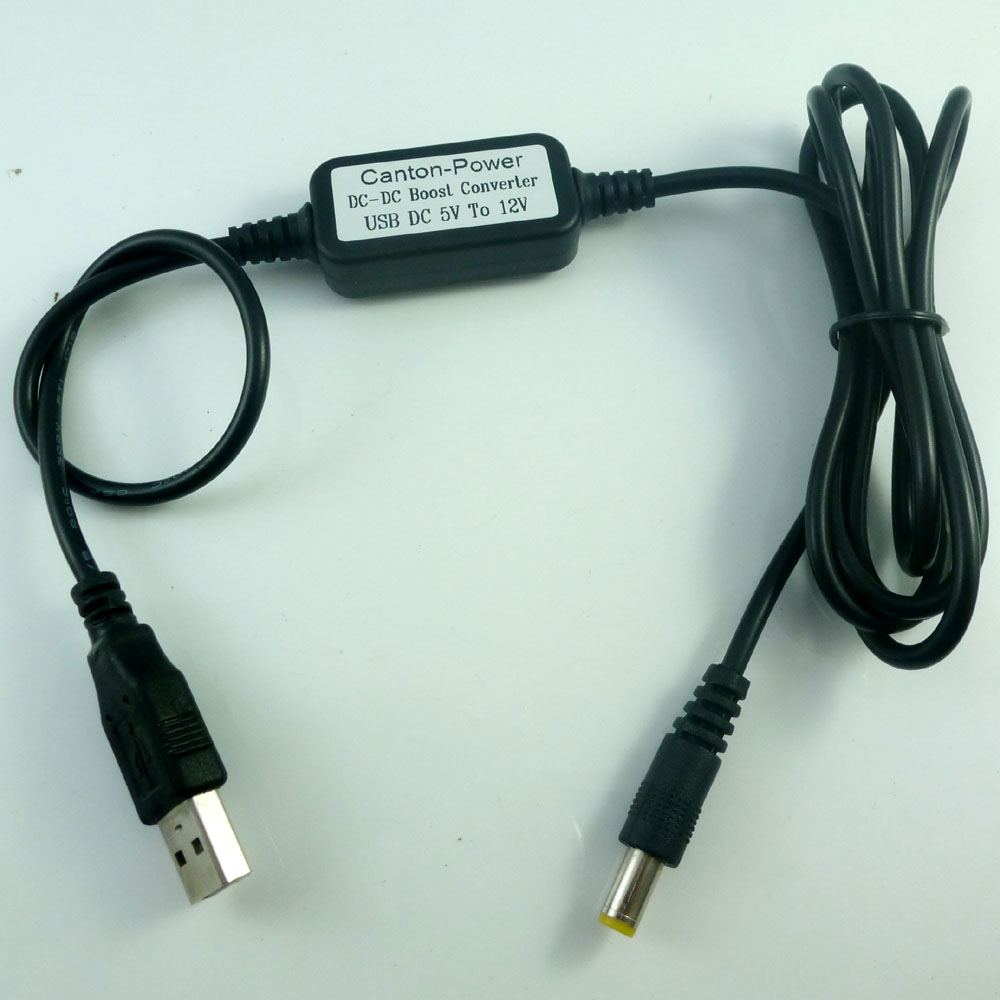

Product Name : DC 5V TO 12V USB to DC 5.5*2.1mm Cable DC-DC Boost Conerter Step-up Voltage Power Supply Module for Wifi Router mobile power

Packing list :

1 pcs USB DC 5V TO 12V DC DC Boost Converter cable(input DC 5V , output DC 12V+-5%)

Power Modules Description:

Input Voltage : DC 3~6.5V

Output Voltage : DC 12V+-5%

No-load power consumption : <13mW

No-load power consumption(remove inside LED) : < 4mW

maximum load : 6W(Recommended for 5W)

Operating Temperature : -40~85 Celsius

Input Interface : USB Male A

Output Interface: DC 5.5*2.1mm

full length : 1.3~1.6 Meter

Weight : about 42g

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
