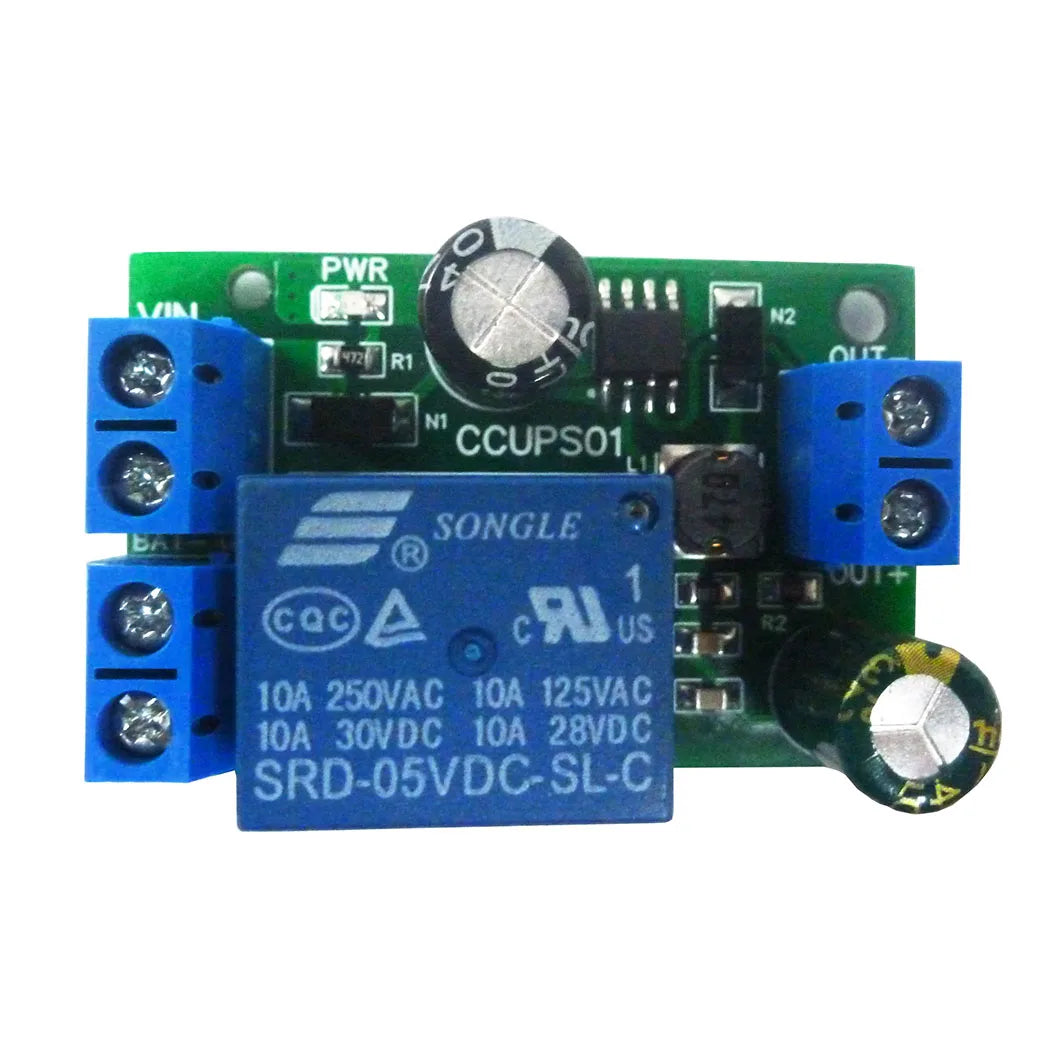

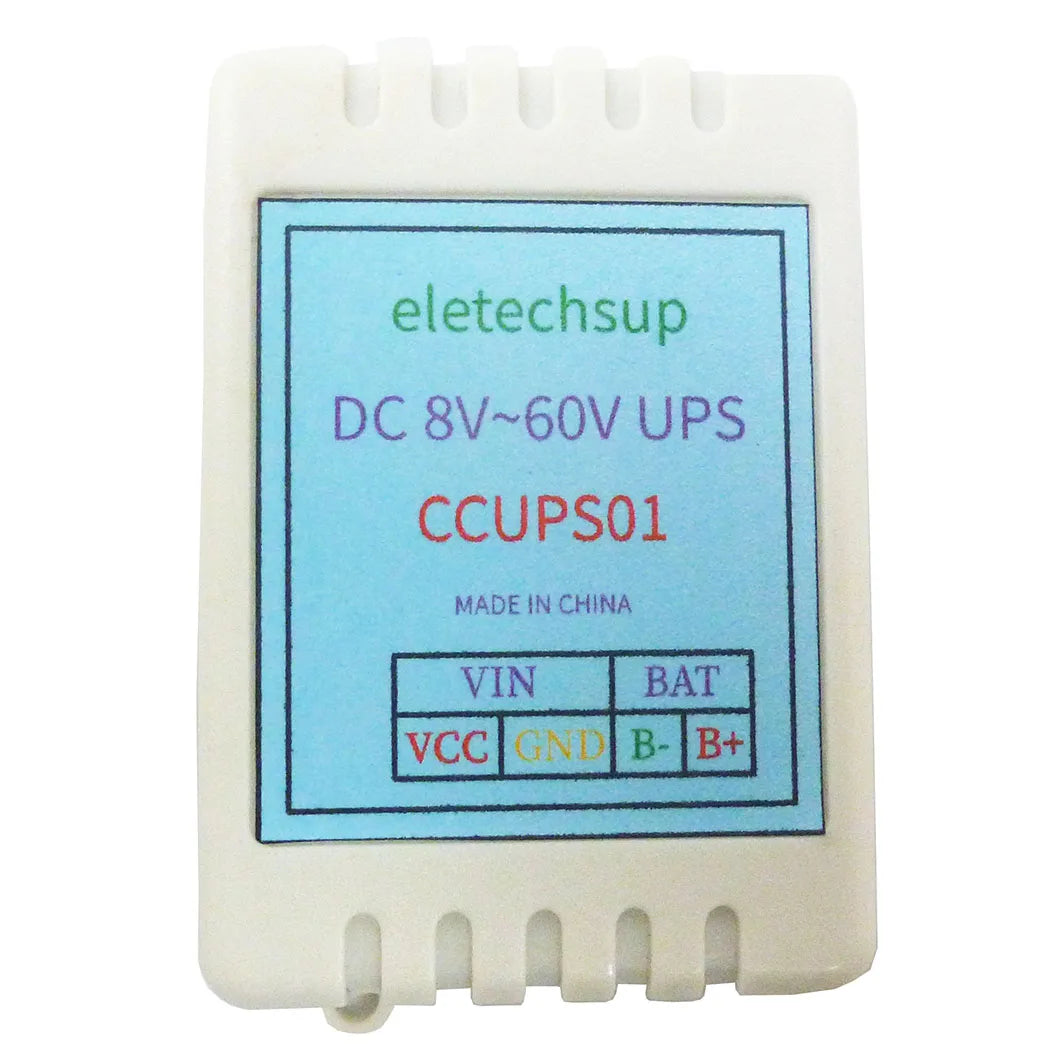

CCUPS01 DC 6V-60V UPS Automatic Switching Power-OFF Protection Module for WIFI Router Camera PTZ Security Equipment
CCUPS01 DC 6V-60V UPS Automatic Switching Power-OFF Protection Module for WIFI Router Camera PTZ Security Equipment
SKU:CCUPS01
1100 in stock
Regular price
$3.49
Regular price
$3.17
Sale price
$3.49
Unit price
per
Couldn't load pickup availability
1 PCS DC 6V-60V UPS Automatic Switching Power-OFF Protection Module for WIFI Router Camera PTZ Security Equipment
Product parameters:
1. Brand: eletechsup
2. Model: CCUPS01
3. Maximum load current: 10A
4. Working temperature: -25℃~85℃
5. Working humidity: 5%~95%RH
6. Weight with shell: 30.4 grams

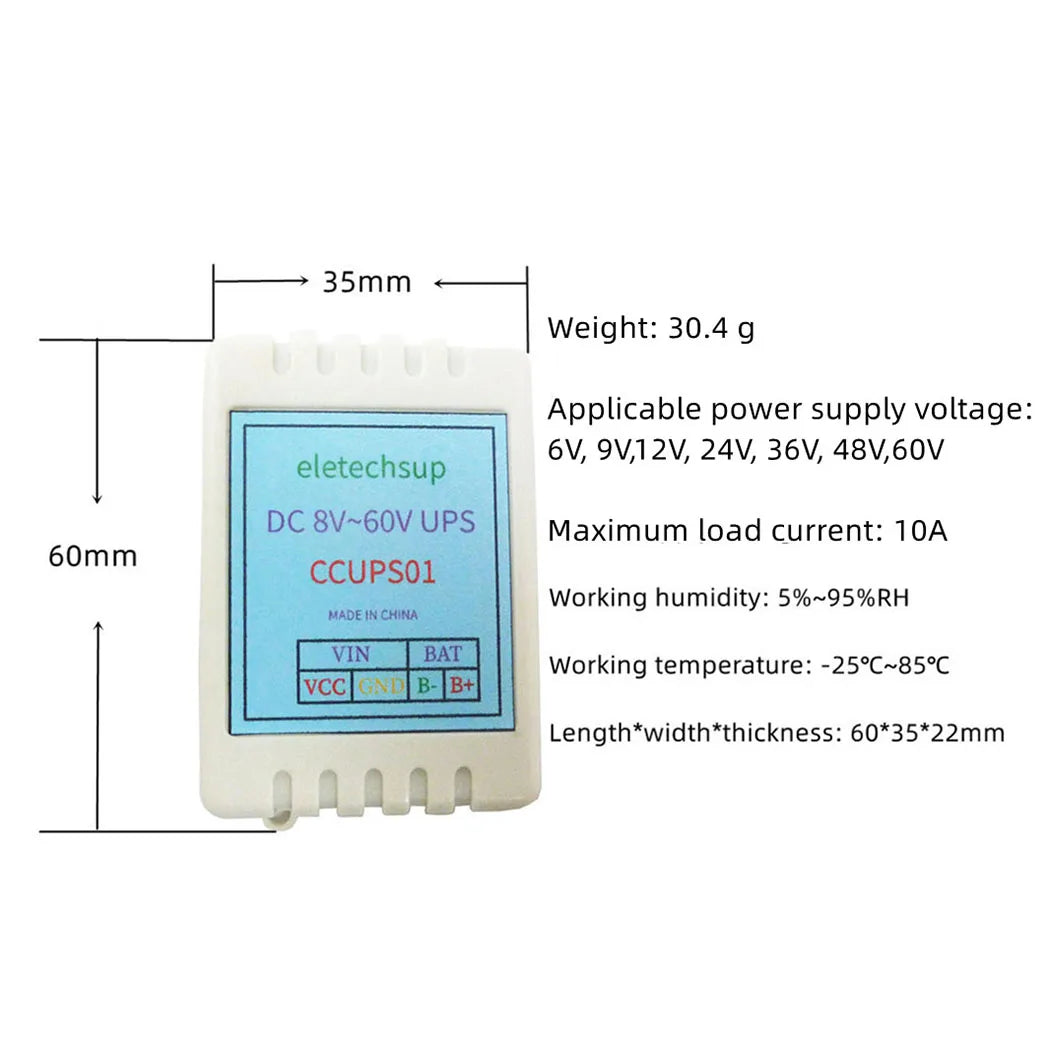

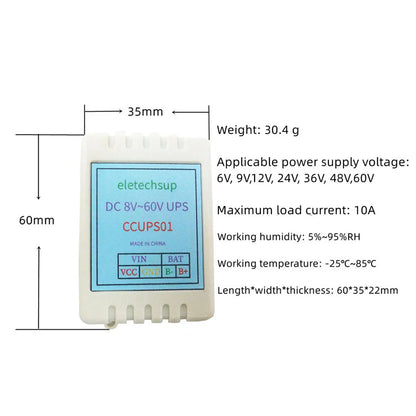

7. Size with shell: 60*35*22mm
8. Weight without shell: 20.5 grams

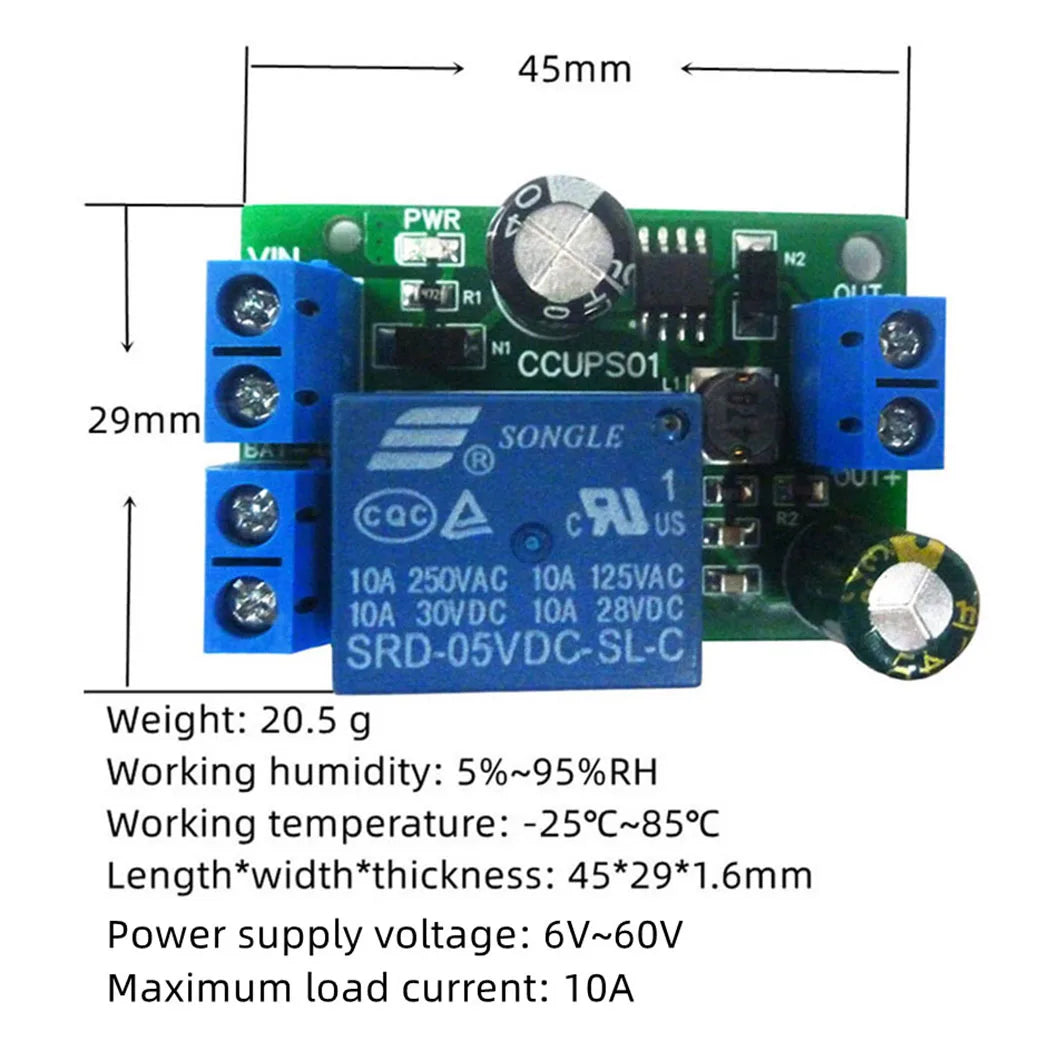

9. Size without shell: 45*29*1.6mm
10. Applicable power supply voltage: 6V, 9V, 12V, 24V, 36V, 48V, 60V
illustrate:

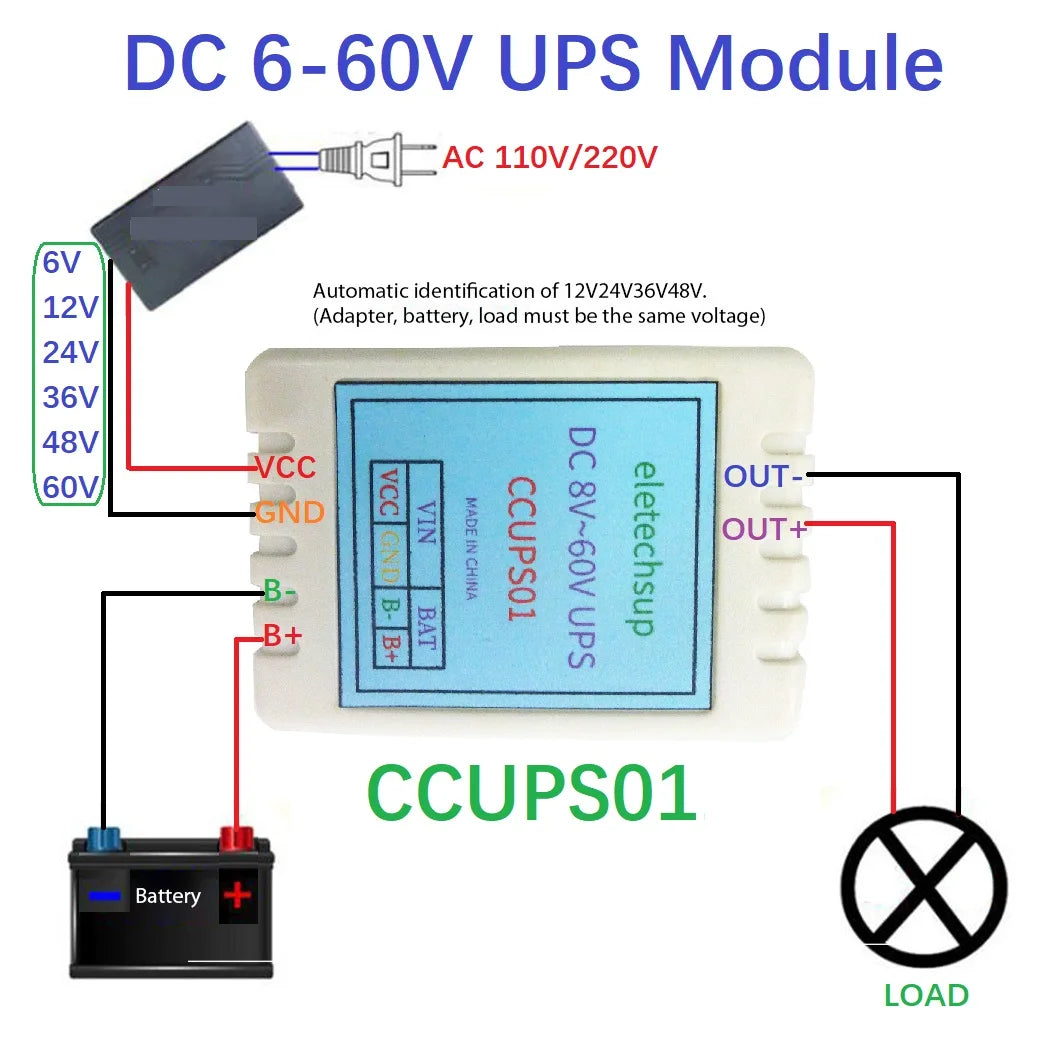

1. This module can only use one 6V~60V (6V, 9V, 12V, 24V, 36V, 48V, 60V) battery.
2. This module only has the power-off function but does not have the function of charging the battery and protecting it.
3. The DC, power and load voltages should remain the same.

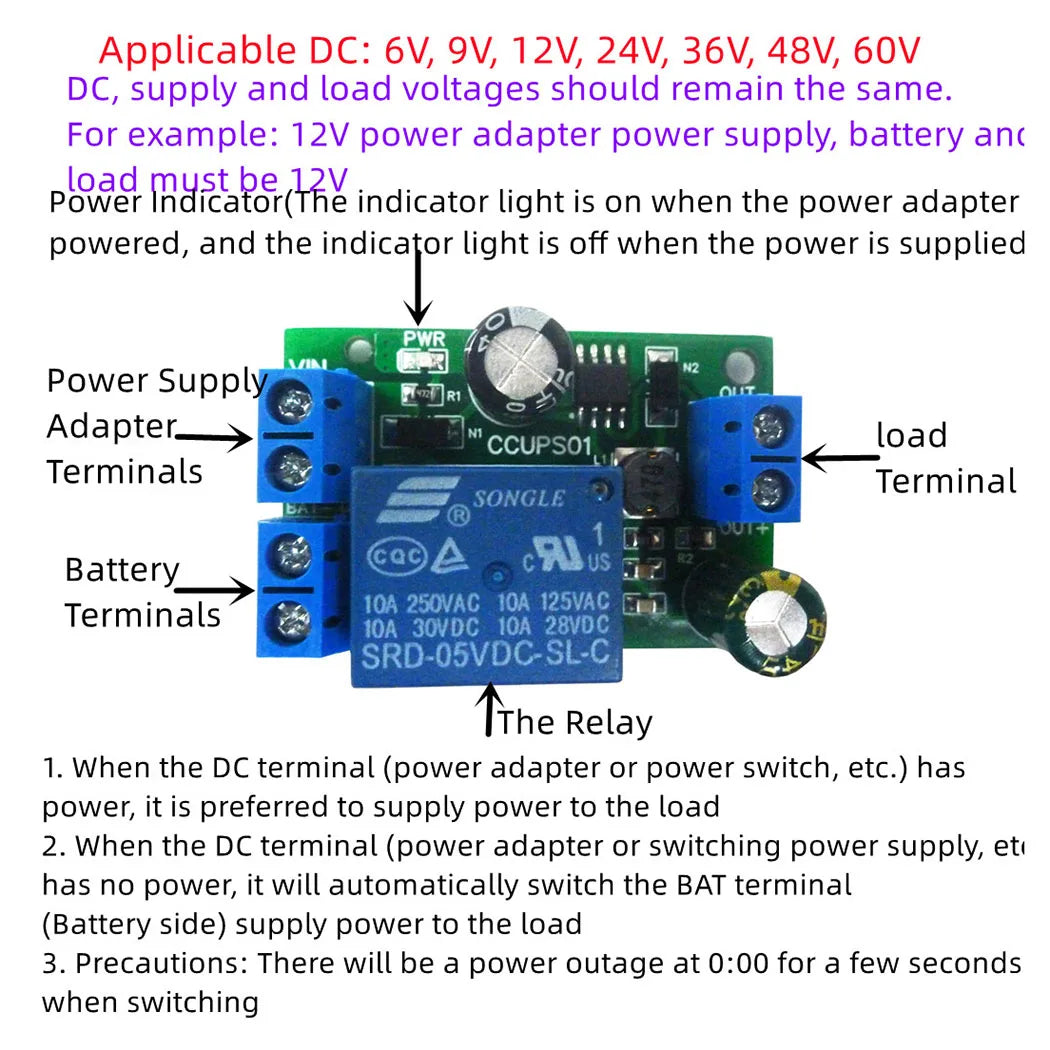

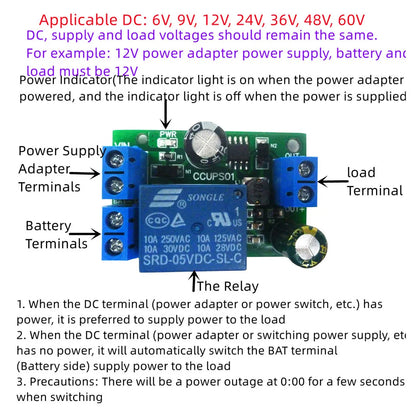

4. When the DC terminal (power adapter or switching power supply, etc.) is powered, give power to the load first.
5. When the DC terminal (power adapter or switching power supply, etc.) has no electricity, it will automatically switch the battery to the load.
6. Power adapter indicator (the indicator light is on when the power adapter is turned on, and the indicator light is off when the battery is powered off)
