DC-DC 1.5V 3V 3.3V 3.7V 4.5V 5V to 6V Step-up Boost Converter Module Relay Motor

DC-DC 1.5V 3V 3.3V 3.7V 4.5V 5V to 6V Step-up Boost Converter Module Relay Motor

TB396

1000 in stock

$11.98
$11.98 $11.98
Sale Sold out
Product Name:  DC-DC 1.5V 3V 3.3V 3.7V 4.5V 5V to 6V Step-up Boost Converter Module for Relay Motor

Module No.:  TB396



Packing list:

1 PCS 1V-6V TO 6V Step-up Boost Modules(PCB Color : RED)





Description:


Input voltage 0.8 ~ 6V, output 6V
Maximum output current: 600MA

Start Voltage 0.8V,    Output Current 20MA
INPUT 1-1.5V,         OUTPUT 6V 20-60MA;
INPUT 1.5-3V,         OUTPUT 6V 60-200MA;
INPUT 3-4.2V,         OUTPUT 6V 200-300MA;
INPUT 4.2-5V,         OUTPUT 6V 300-500MA;
INPUT above 5V,     OUTPUT 6V 500-600MA;


DC-DC Boost module working frequency 100KHZ. efficiency is normal 80% , can be up to 95%. On-board high-precision,
Size : 20mm X 12mm (length X width)
The input and output terminals using the wire bonding connection, the selection of a plurality of parallel filtering of tantalum capacitors, effectively filter out the power supply noise.
Overcurrent burn out warranty!
Booster plate, regulator, the output voltage is always 6V!

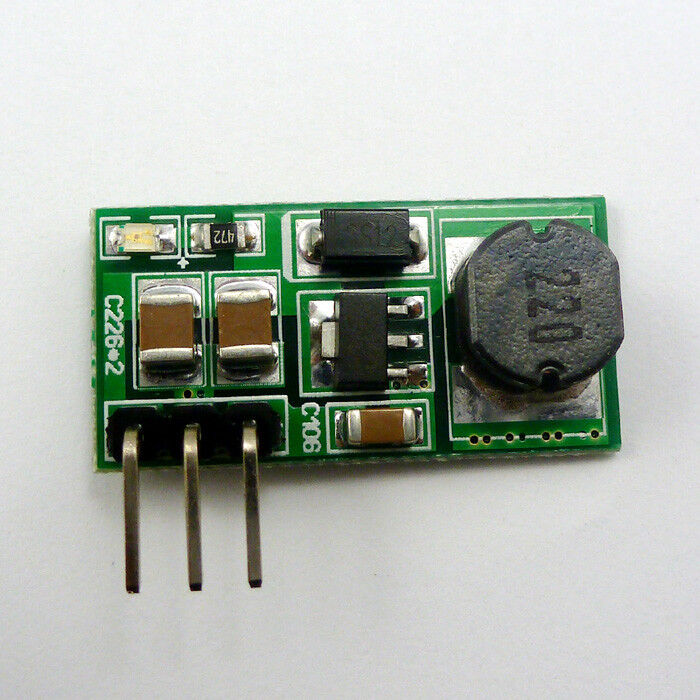

Prompt : The new version is red PCB,Component layout has changed, Pin order and parameters unchanged.


 Applications：

①Battery powered equipment
②Breadboard Power Supply
③6V Small power motors
④Camera, Video camera
⑤6V Toy car
⑥PDA
⑦LED Lighting
⑧Wireless communication equipment
⑨Arduino UNO MEGA2560 PRO MINI power supply
⑩Audio equipment




This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself

Input 3.7V/480MA,Output 6V/250MA

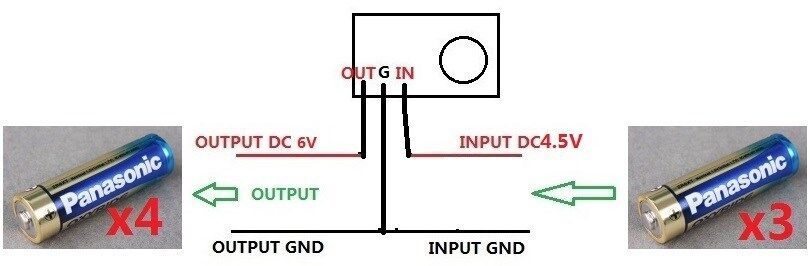

Input 4.5V/600MA,Output 6V/380MA

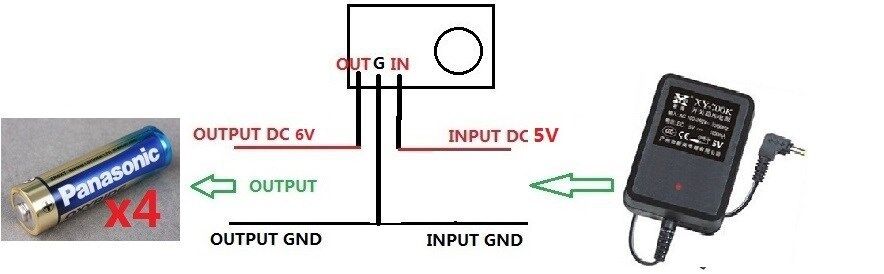

Input 5V/700MA,Output 6V/500MA
