DC-DC 1-5V to 5V Step up Boost Converter Module for Arduino Pro mini Breadboard

Product Description

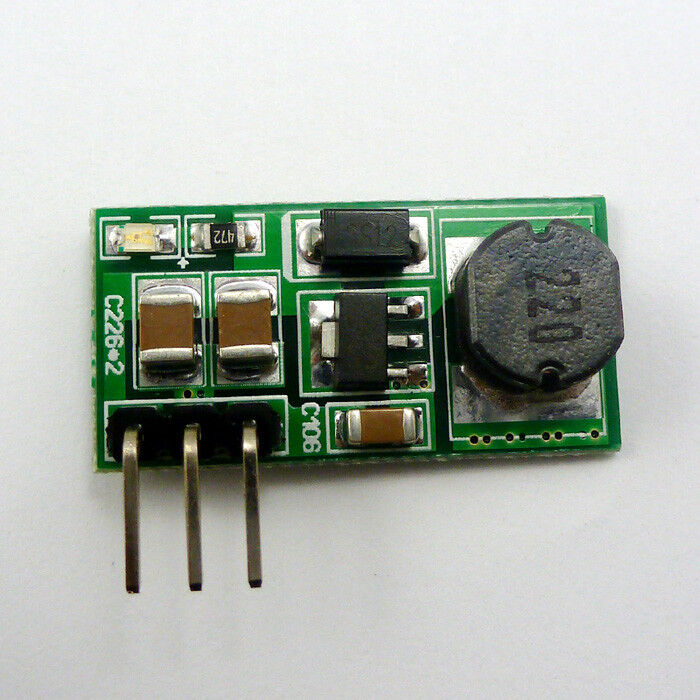

Product Name:  DC-DC 1-5V to 5V Step up Boost Converter Module for Arduino Pro mini Breadboard

Module No.:  TB294



Packing list:

1 PCS 1V-5V TO 5V Step-up Modules






Description:

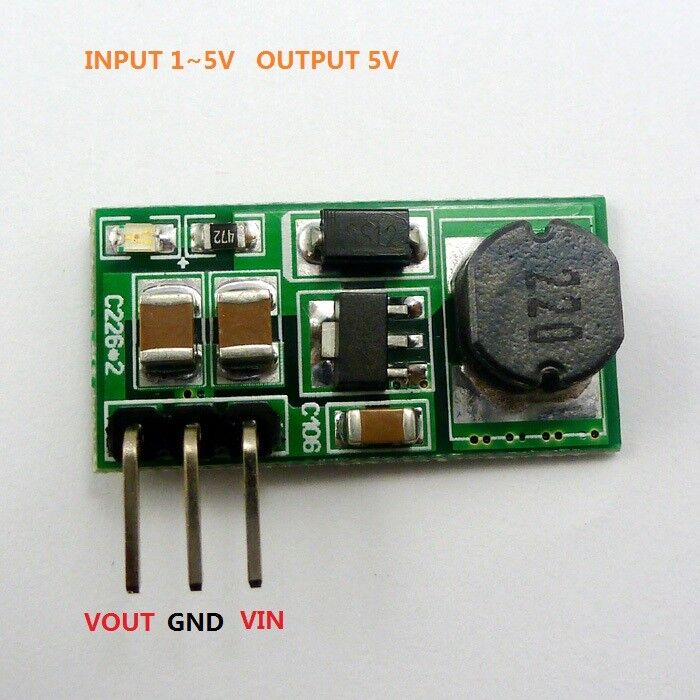

Input voltage 0.8 ~ 5V, output 5V
Maximum output current: 600MA

Start Voltage 0.8V,    Output Current 30MA
INPUT 1-1.5V,         OUTPUT 5V 40-80MA;
INPUT 1.5-3V,         OUTPUT 5V 80-300MA;
INPUT 3-4.2V,         OUTPUT 5V 300-400MA;
INPUT above 4.2V,  OUTPUT 5V 400-600MA;

DC-DC Boost module working frequency 100KHZ. efficiency is normal 80% , can be up to 95%. On-board high-precision,
Size : 20mm X 12mm (length X width)
Pin spacing is 2.54mm,Directly into the breadboard for power supply ARDUINO MCU ARM FPGA CPLD
The input and output terminals using the wire bonding connection, the selection of a plurality of parallel filtering of tantalum capacitors, effectively filter out the power supply noise.
Overcurrent burn out warranty!
Booster plate, regulator, the output voltage is always 5V!




 Applications：

①Battery powered equipment
②Breadboard Power Supply
③Arduino UNO MEGA2560 DUE Power Supply
④Camera, Video camera
⑤VCR
⑥PDA
⑦LED Lighting
⑧Wireless communication equipment
⑨MP3/MP4 player
⑩Audio equipment




This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
