TB397 DC-DC 3-6.8V to DC 5V 9V 12V Step Up Boost Voltage Converter Power Supply UPS Module For Led Motor

TB397 DC-DC 3-6.8V to DC 5V 9V 12V Step Up Boost Voltage Converter Power Supply UPS Module For Led Motor

TB397_5V

1000 in stock

$3.49
$3.49 $3.49
Sale Sold out

Product Name:30W DC-DC 3-6.8V To DC 12V Step Up Boost Voltage Converter Power Supply UPS Module in 3.3V 3.7V 4V 4.5V 5V 6V For Wifi LED Motor

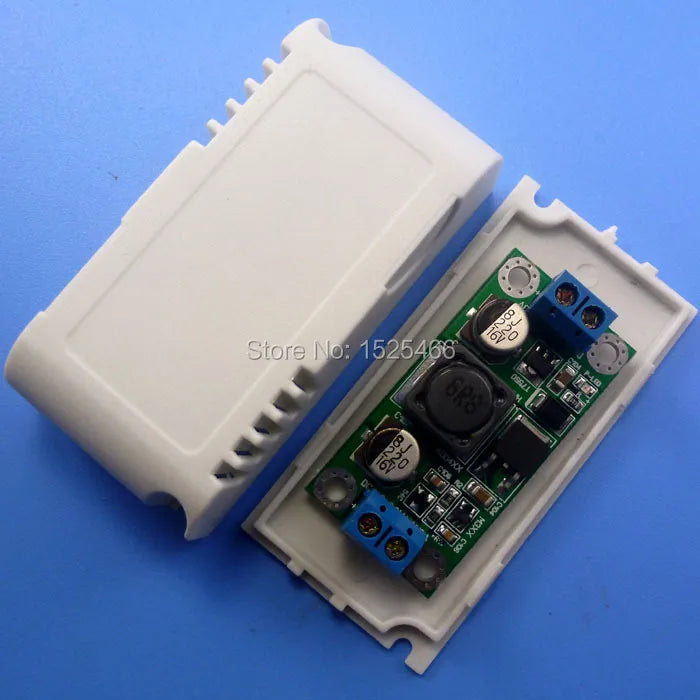

Packing list:

1 pcs Step-up
Voltage Converter
module (input 3-6.8V, output 12V
±5% );

1 pcs
Plastic shell









Description:


Module Properties: non-isolated step-up BOOST module

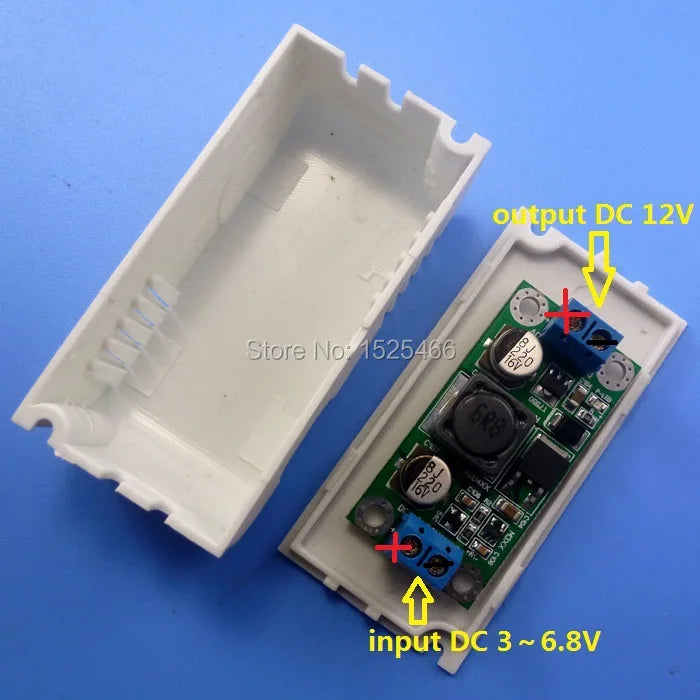

Input voltage DC 3-6.8V,output DC 12V





Maximum output current: 2.5A


Input 3.3V Output Current 12V 0.5MA


Input 3.7V Output Current 12V 1A


Input 5V Output Current 12V 2A


Input above 6V Output Current 12V 2.5A











Conversion Efficiency: 80-90%(Typical)


Operating Temperature:Industrial main chip


Short circuit protection:No.(Please Install fuses or protection circuits at Input port)


Input Reverse Polarity Protection: No.Please Series diode at the input port





Size:50(L)*25(W)*9(H)mm








Note :


1: Input voltage cannot bigger than the output , or boost part does not work. Voltage difference cannot be more than three times ,or the output power is limited !


2: No-load current: 12V output board (IN 5V = 22mA,6V = 17mA );








This is a DC-DC voltage converter module,Must be noted when using:


1 Input voltage can not be greater than the maximum input range


2 Output power can not be greater than the maximum load for a long time


3 Input power must be greater than the output power, because the power consumption of the module itself





Power supply

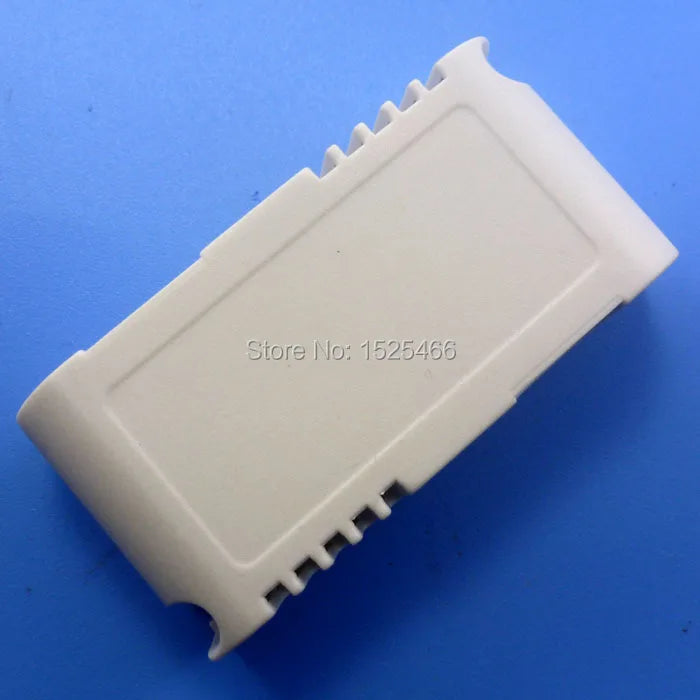

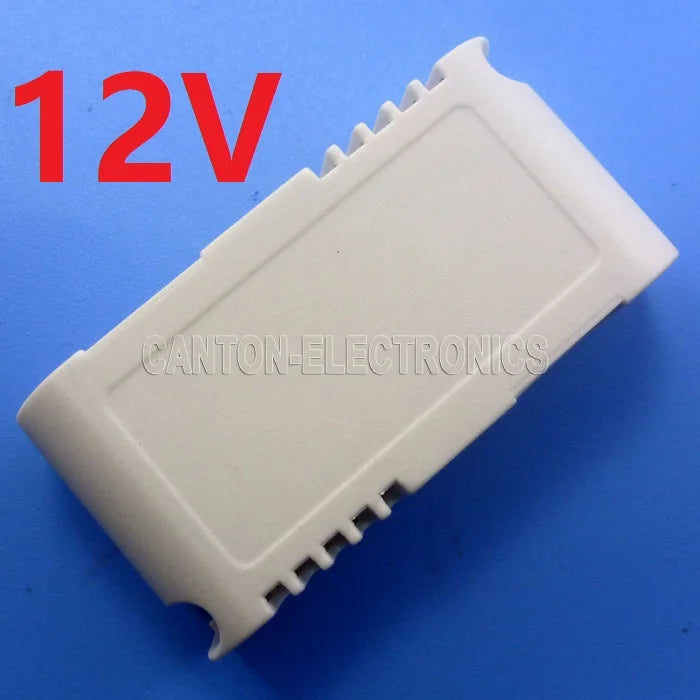

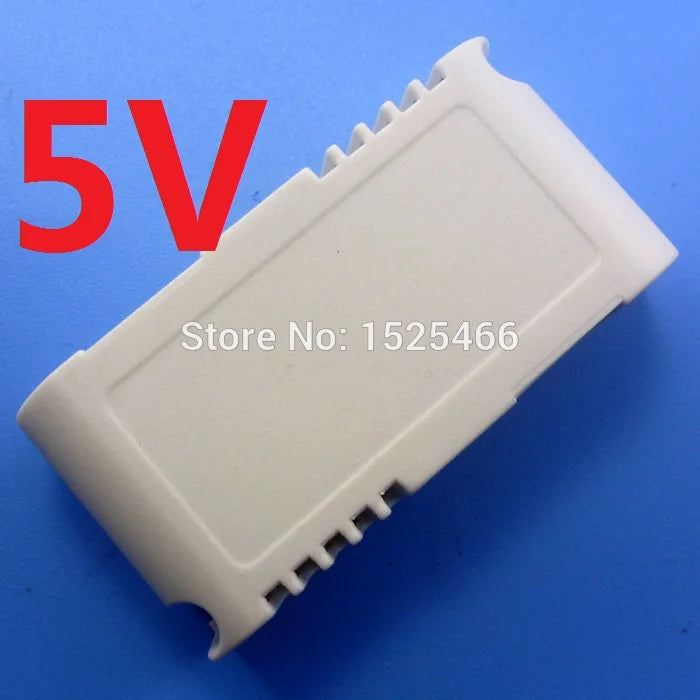

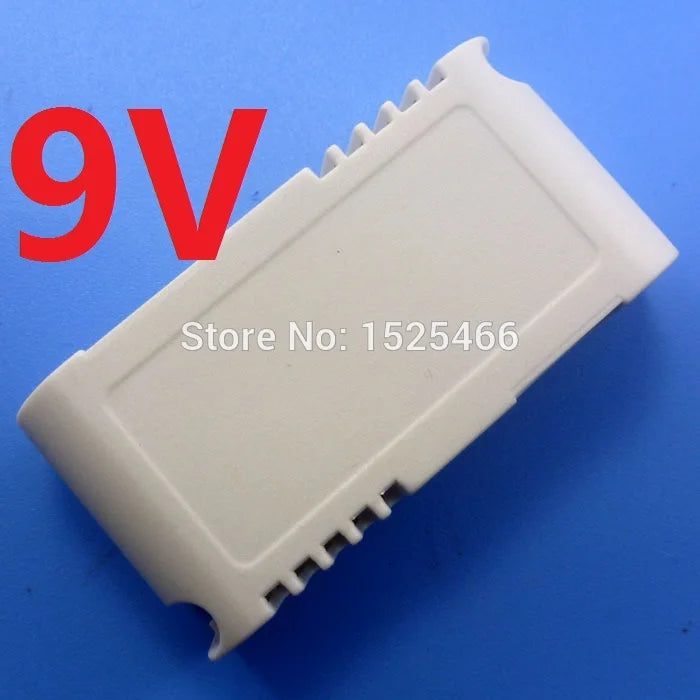

Plastic shell
:


Enclosure Material: PC


Outside diameter : 42 x 40 x 21


Inside diameter : 39 x 37 x 19
