DC-DC USB 5V to 12V Step-Up Boost Converter Module for Wifi Router Modem USB Charger Mobile Power Portable Power Solar Charging

Product Name:DC-DC USB 5V to 12V Step-Up Boost Converter Module for Wifi Router Modem USB Charger Mobile Power Portable Power Solar Charging

Module No. :  TB392

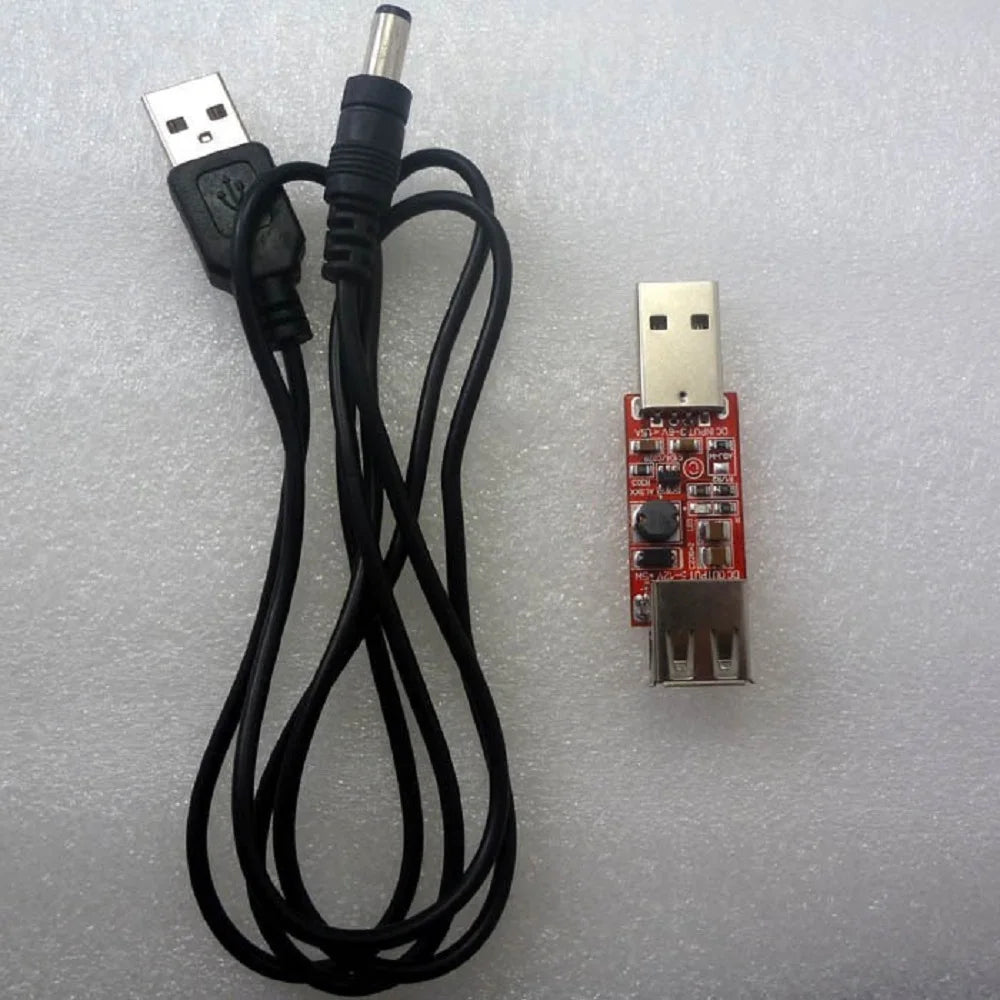

Packing list (Does not include USB Charger/routers/mobile power):

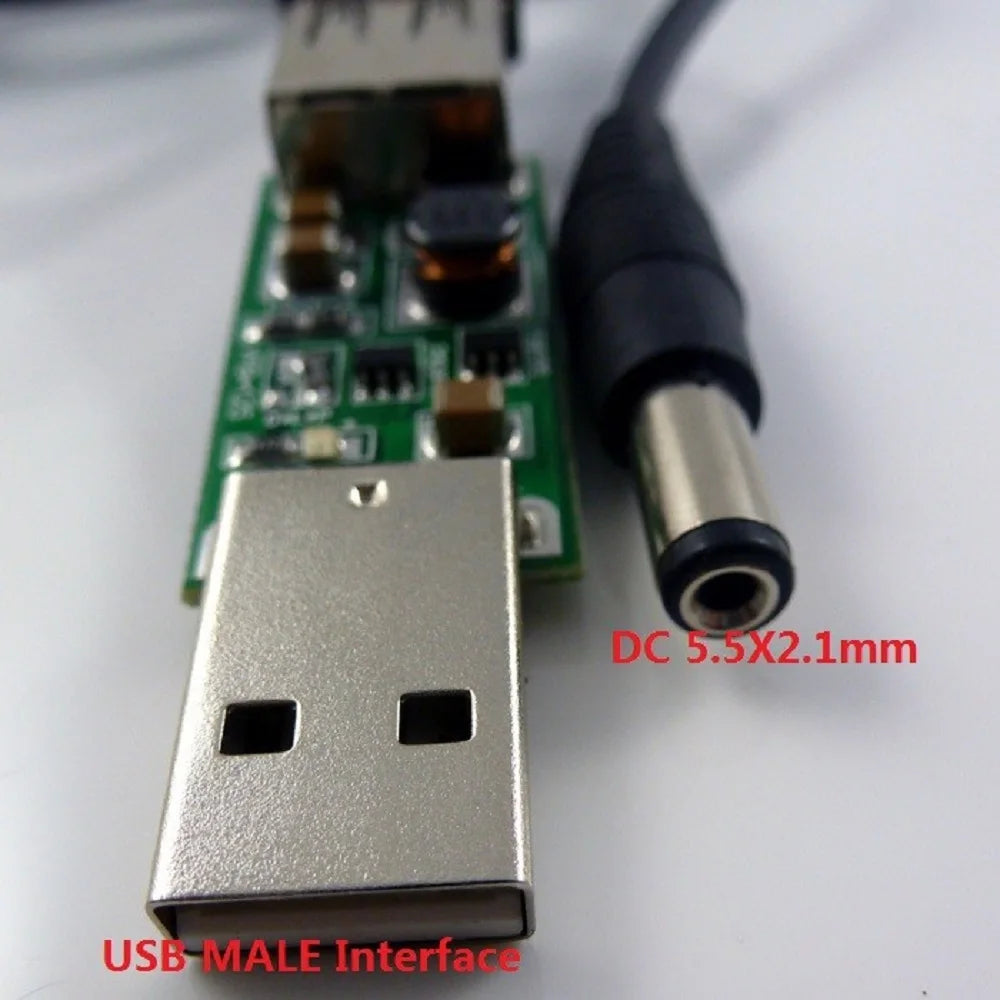

1 pcs Step-up Boost Power Supply Converter Module (input DC 5V , output DC 12V) ;

1 pcs USB Male to DC 5.5 x 2.1mm Power Charger Cable

Power Modules Description:

USB  Input DC 3-6V,Maximum 6.5V

USB Output DC 12V+-5%;

maximum load: 7W

Size : 34*16mm(Does not include USB interface)

This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself

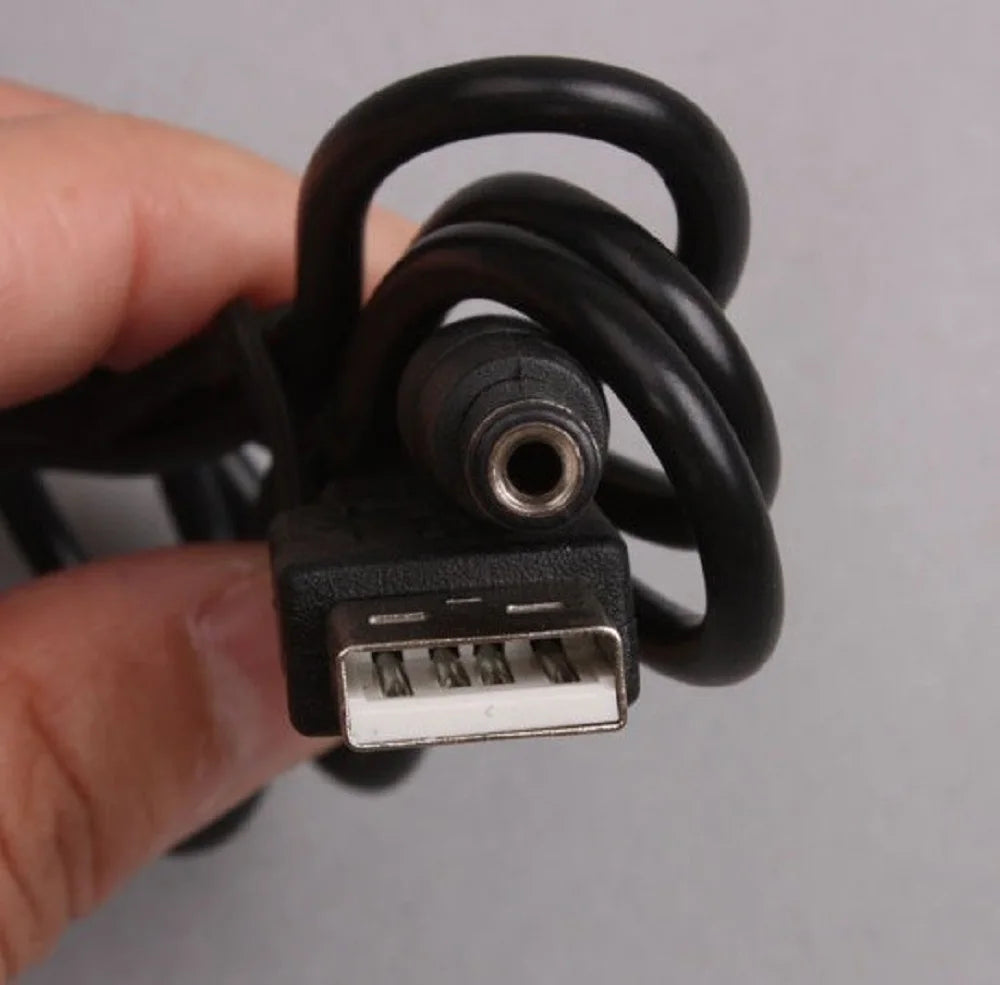

USB Male to DC 5.5 x 2.1mm Power Charger Cable :

Plug and play connections with USB A Male to DC 5.5 x 2.1mm Power Charger Cable for Mobile Power,USB Charger,Other USB Power

Cable Length: about 80mm(with 2 ports)
