Modules No: YET079*1+YET401PC-12V*1
Receiver board Voltage selected :
Input DC12V to receiver : jumper pulg into J1(2 pins);
Input DC24V to receiver : jumper dis-pulg into J1(2 pins) ;

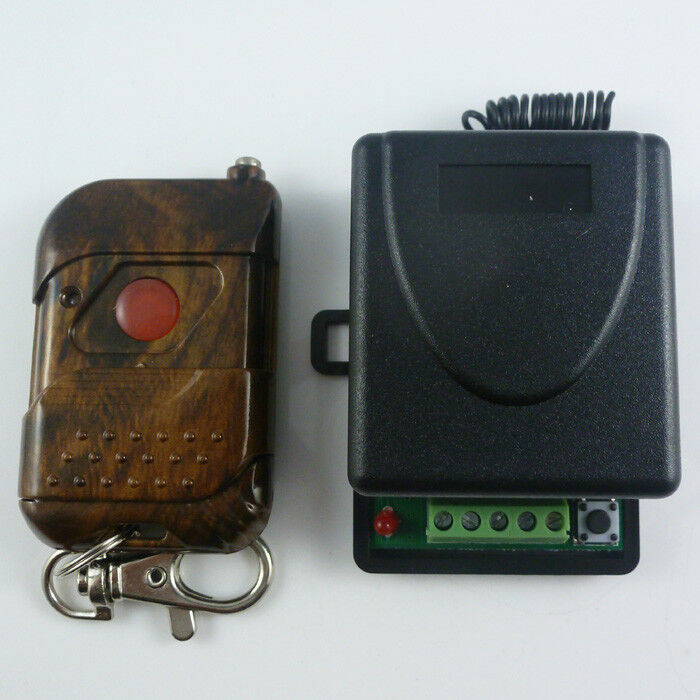

QTY: 1 pcs rolling code remotes and 1 pcs Receiver Controller . (this remote doesnot have a battery inside ) ;

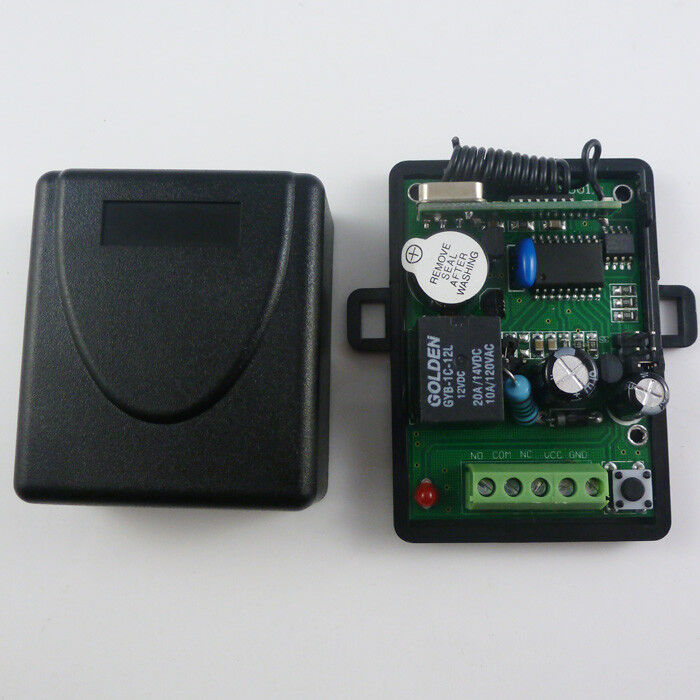

Receiver Data :
1. Applying LC oscillating circuit, built-in magnifying exchange, output signal is High Level and can directly drive a LED, there are Latch mode and Momentary mode selectable, can be decoded with decoder, easy to be used;
2. There are 8 signal outputs and 8 bit address pins with the module;
3. Module has wide receiving bandwidth +/-10MHz;
4. Quiescent current of module is generally 5mA, then can be reduced to be min.1.5mA in case of special requirement, but the receiving sensitivity will be reduced.
Technical indicators:
1.operating voltage: DC 12V ( can select DC24V) ;
2.static operating current:≤7mA;
3.Working temperature :-40°C- +80°C;
4.Receive sensitivity:≥-105dBm;
5.the working frequency: 433.92MHz ;
6.output current:≤10A;
7.size:60*43.5*30mm ;
8: Momentary Mode ,Latch Mode , can be adjustable by jumper .
9. Pls connect the receiver modules properly before power supply ;
10:1 channel;
11: Learning function ( can work with max 6 pcs remote );

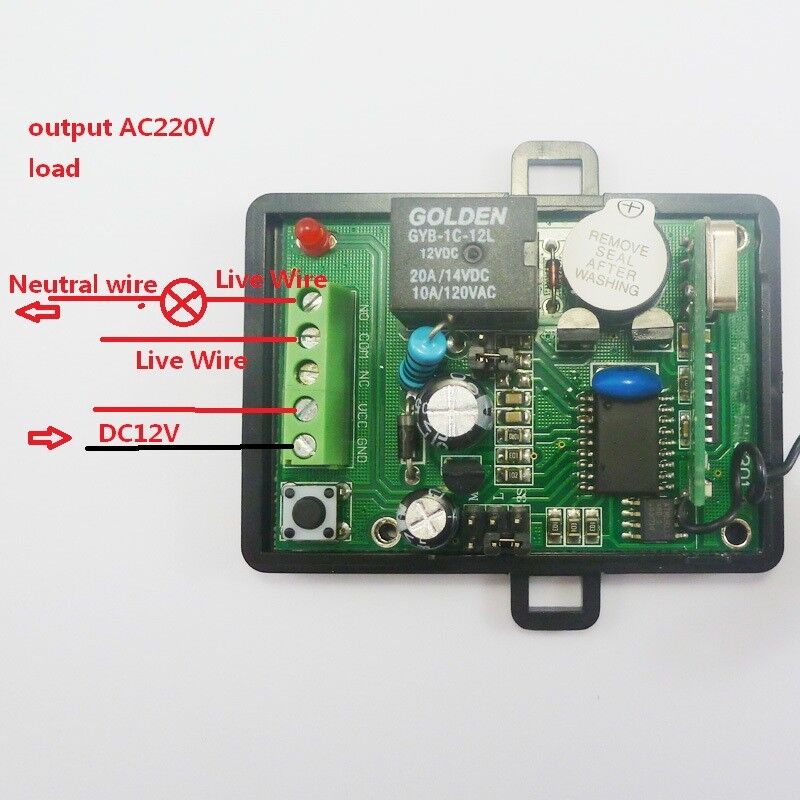

12: Max load : 1000W;
Output
Receiver board Voltage selected :
Input DC12V to receiver : jumper pulg into J1(2 pins);
Input DC24V to receiver : jumper dis-pulg into J1(2 pins) ;
Control type:
Delay 3 seconds----connect 1 ;
singnal self-locking (Toggle)----connect 2 ;
singnal Inter-locking (Latch) ---- Connect 3 ;
singnal Non-locking (Momentary)----all disconnect on 1 , 2 , 3. ;
· Latched: Press->On; Press other button->Off ;
·<span style="Times New Roman" "=""> Momentary: Press and hold->On; Release->Off ;

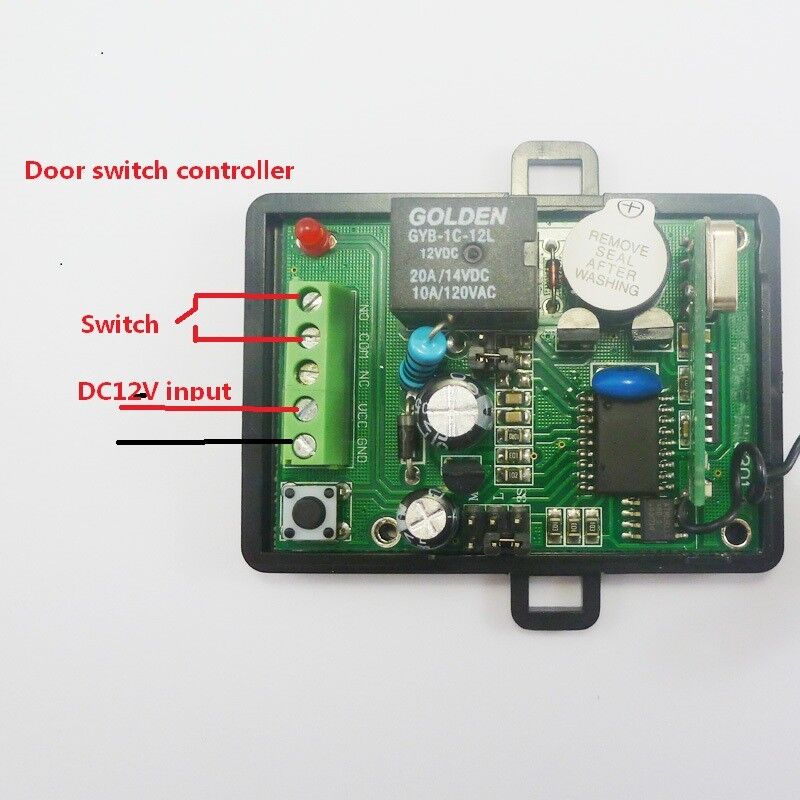

Relay mode :
AC= Normally close (NC ) ;
BC= Normally open (NO ) ;
- Normally-open (NO) contacts connect the circuit when the relay is activated; the circuit is disconnected when the relay is inactive. It is also called a Form A contact or "make" contact. NO contacts may also be distinguished as "early-make" or NOEM, which means that the contacts close before the button or switch is fully engaged.
- Normally-closed (NC) contacts disconnect the circuit when the relay is activated; the circuit is connected when the relay is inactive. It is also called a Form B contact or "break" contact. NC contacts may also be distinguished as "late-break" or NCLB, which means that the contacts stay closed until the button or switch is fully disengaged.
Learning method and steps:
1.matching : Press learning key , indicator light flash one time . then enter matching state ; press any key on remotes , If indicator light keep flashing , then match successfully . if not ,match unsuccessfully , press learning key again , Indicator light stop flashing.
2.Learning : After matching successfully , press leraning key , Indicator light flash one time , enter learning state.press any key on remote control within 5 seconds, When indicator light flashs 3 times quickly and then off , then successfully learning .
Note: Pls match the remote before learning , if matching unsuccessfully , rolling code remotes control not matches our receiver board ,cannot learn , Pls use our remote control to match our receiver board .
Clear the deposit information
keep pressing learn key about 10s, Indicator light turn off , that deposited information has been successfully cleared .
Advantage :
1: Receiver Mother board have a learning key , if the remote is lost , must buy our rolling code remotes to re-learn;

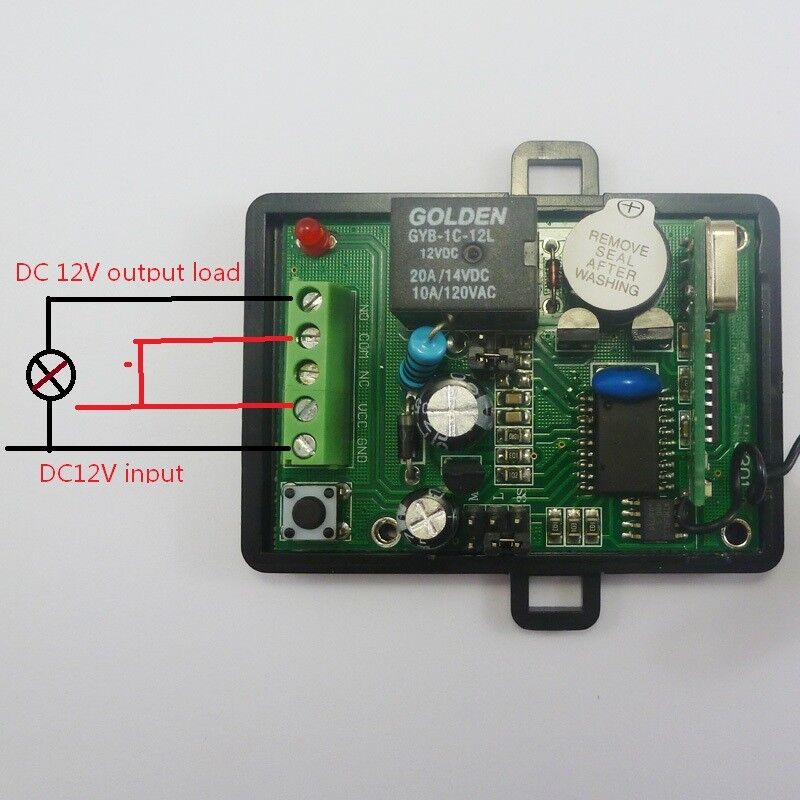

2: 1 relay output empty contacts, you can access the 1000W load.
Transmitter :
Technical Data :
Remote model : YE023;
Power supply : 12V 23A battery replacable .(This remote doesnot have a battery , Please buy in your local market )
Operating current: ≤ 9mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK;
Operating frequency:433.92MHZ;
Frequency deviation:± 150Hz (max);
Encoding format: Rolling Code ( HCS301) ;
