DC12V Momentary Toggle Latch Large Power Wireless Remote Control Relay Switch

DC12V Momentary Toggle Latch Large Power Wireless Remote Control Relay Switch

TB419*1+AK018*1

2000 in stock

$26.98
$26.98 $26.98
Sale Sold out

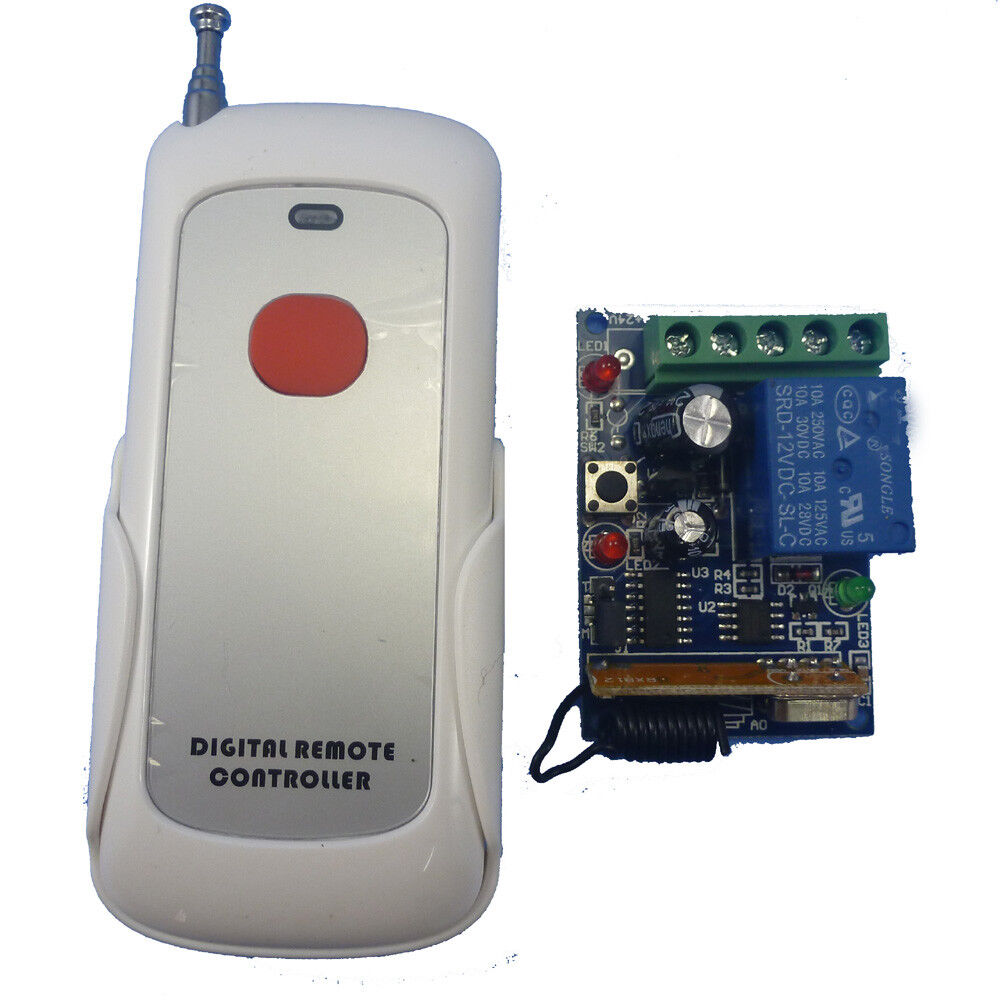

QTY: 1 pcs remotes and 1 pcs Receiver Controller . (This remote doesnot have a battery inside )





Receiver :



Technical indicators:

1.operating voltage: DC 12V ;

2.working frequency:433.92MHz;
3:Work current :≤6mA;
4:PCB Size:65×35×20mm;
7: Output currect : ≤10A;
8: Momentary Mode ,Latch Mode  , Toggle Mode can be adjustable by jumper .
9. Pls connect the receiver modules properly before power supply ;
10: 1 chanels;
11: Learning function (can works with EV1527 and PT2262 remote , can store 16 pcs different code remote );
12: Max load : 1000W;

Advantage :
1:  Receiver Mother board have a learning key , if the remote is lost , must buy EV1527 Learning remotes to re-learn;

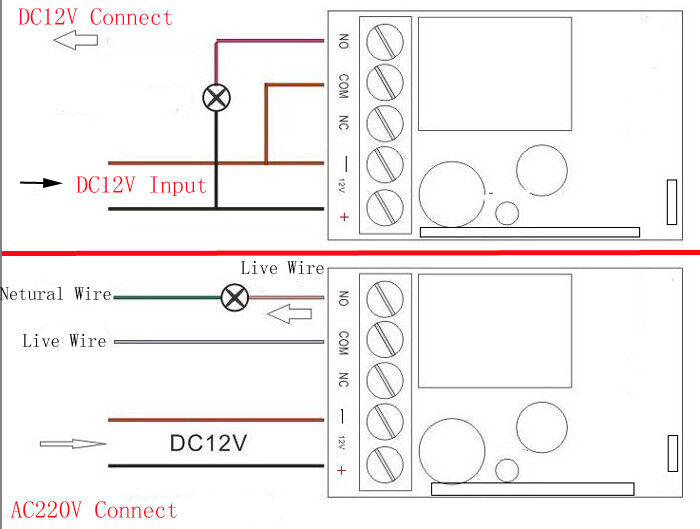

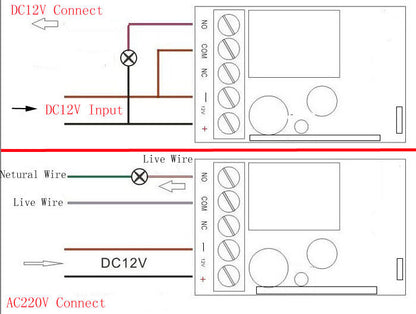

Output:

A.singnal Inter-locking (Latch)----connect 1  and 2 ;

B.singnal Self-locking (Toggle) ---- connect 2 and 3 ;

C.singnal Non-locking (Momentary ) ---- All disconnect  ;

·         Toggle : Press->On; Press again->Off ;

·         Latched : Press->On; Press other button->Off ;

·         Momentary : Press and hold->On; Release->Off;

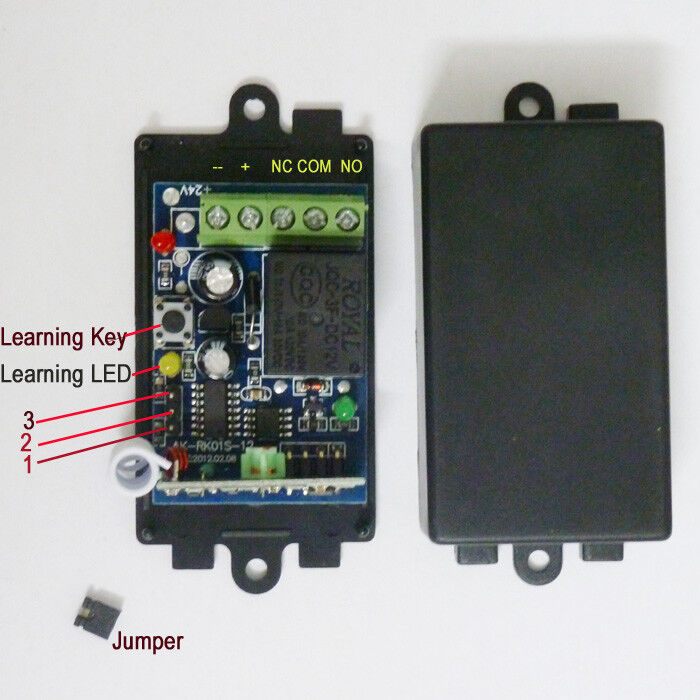

Learning method and steps

1.       Keep pressing learnig key on receiver board , release the button when LED is off , enter the learning state ;

2.       Press any key on remote control within 5 seconds , LED flash 3 times and then turn on , then it have success in learning .

Clear the deposit information

Keep Pressing Learning Key , LED turns off , Wait 10 Seconds , LED turn on , that deposited information has been successfully cleared ;

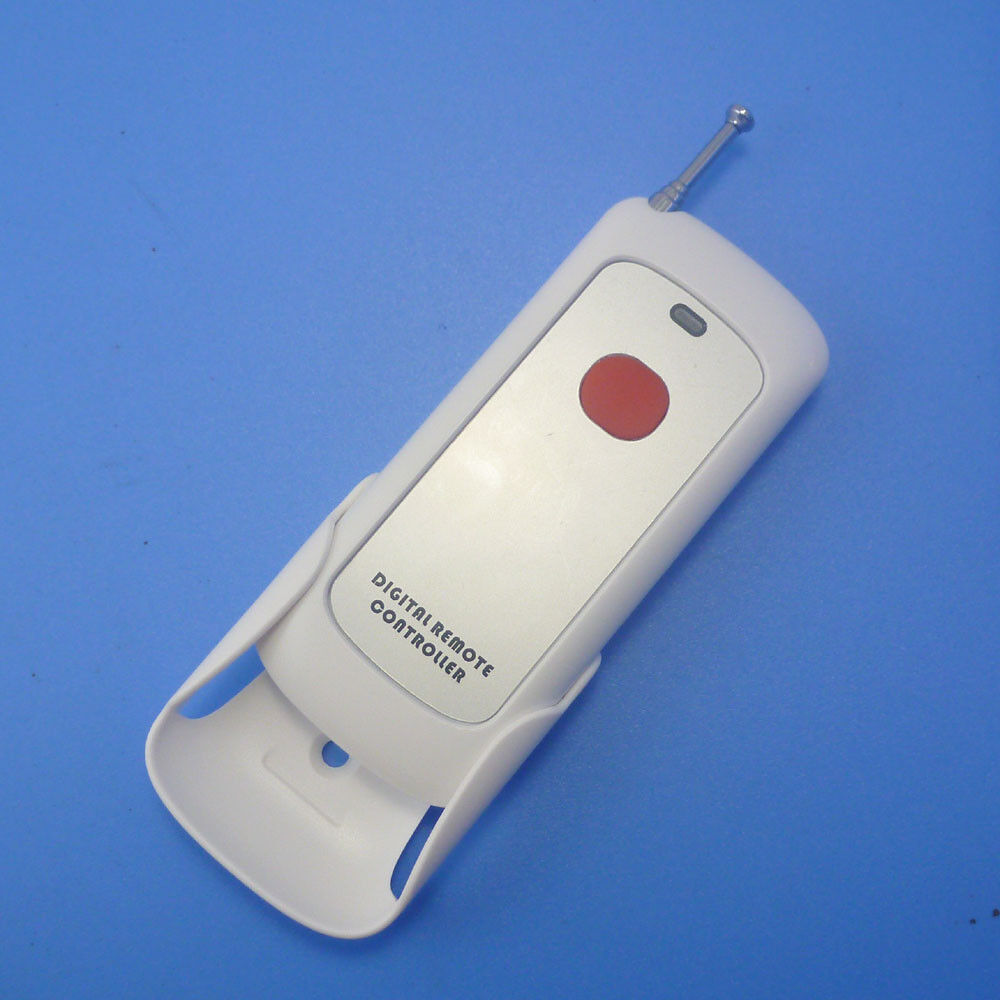

Transmitter :


Features / Specifications :

1. 1 buttons;
2. High stability, SMT chip, frequency stabilization SAW, ultra-high-frequency transistor;
3: Large power;



Technical Data :
Transmitter Module No.: TB419;
Power supply : 12V 23A battery (not included ) , please buy battery from here : https://www.ebay.com/sch/i.html?_from=R40&_trksid=p2047675.m570.l1313.TR3.TRC2.A0.H0.X12V+23A+battery.TRS0&_nkw=12V+23A+battery&_sacat=0 .

Operating current: 28-33mA;
Oscillation mode: SAW resonator;
Modulation mode:ASK/OOK;
Operating frequency:433.92MHZ ;
Encoding format: EV1527 fixed code ;
Transmit power : 200mW ;
