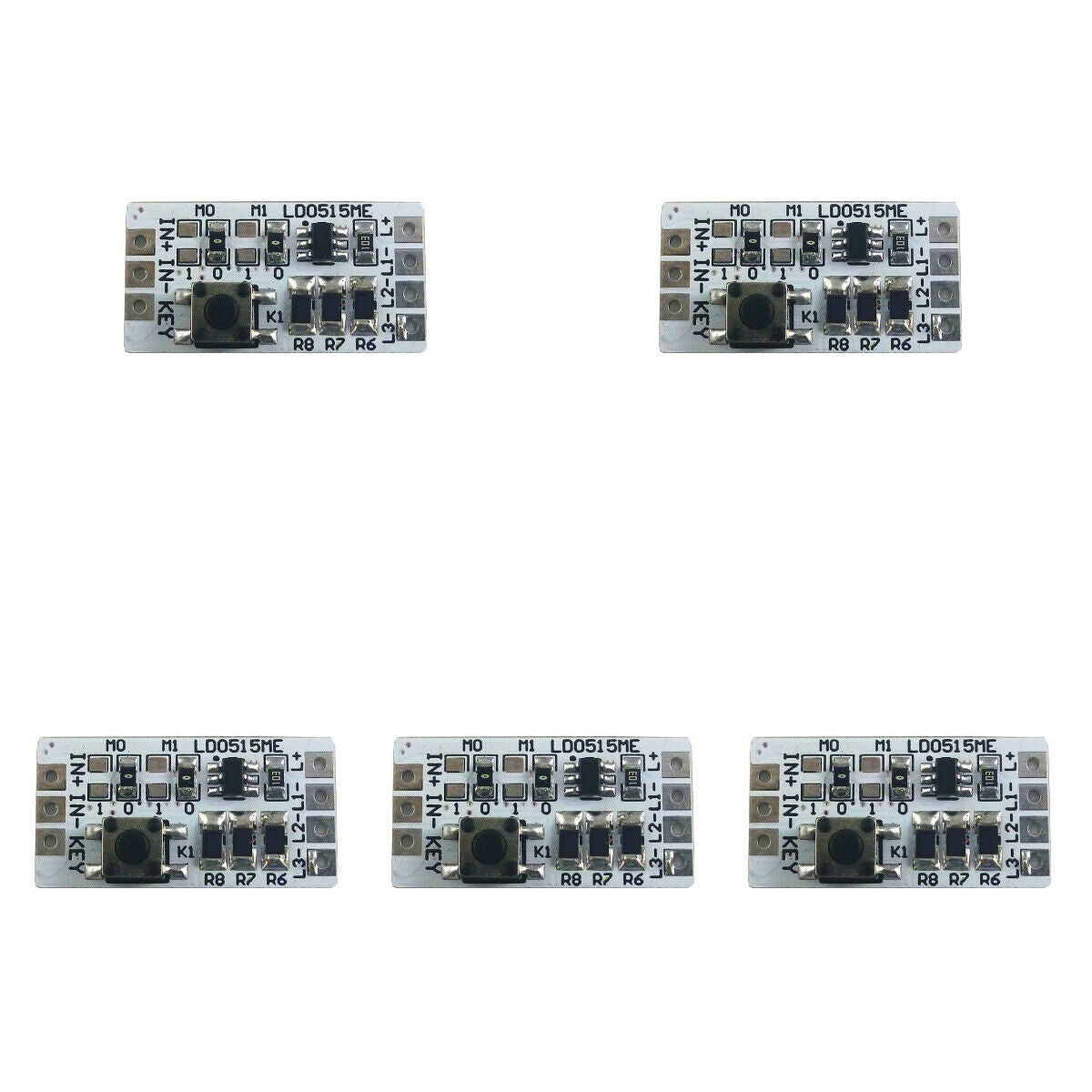

Working voltage : DC 2.5-5V(Perfect for 3.3V 3.7V 4.2V 5V LED Driver)
Output Current: <=1200MA
Maximum output power: 6W
Work efficiency up to 90%
Turn off consumption is only 30uA
Anti-battery reverse polarity protection function
Anti-load short-circuit protection function
Size : 23mm x 12mm x 6mm
Weight : about 1g

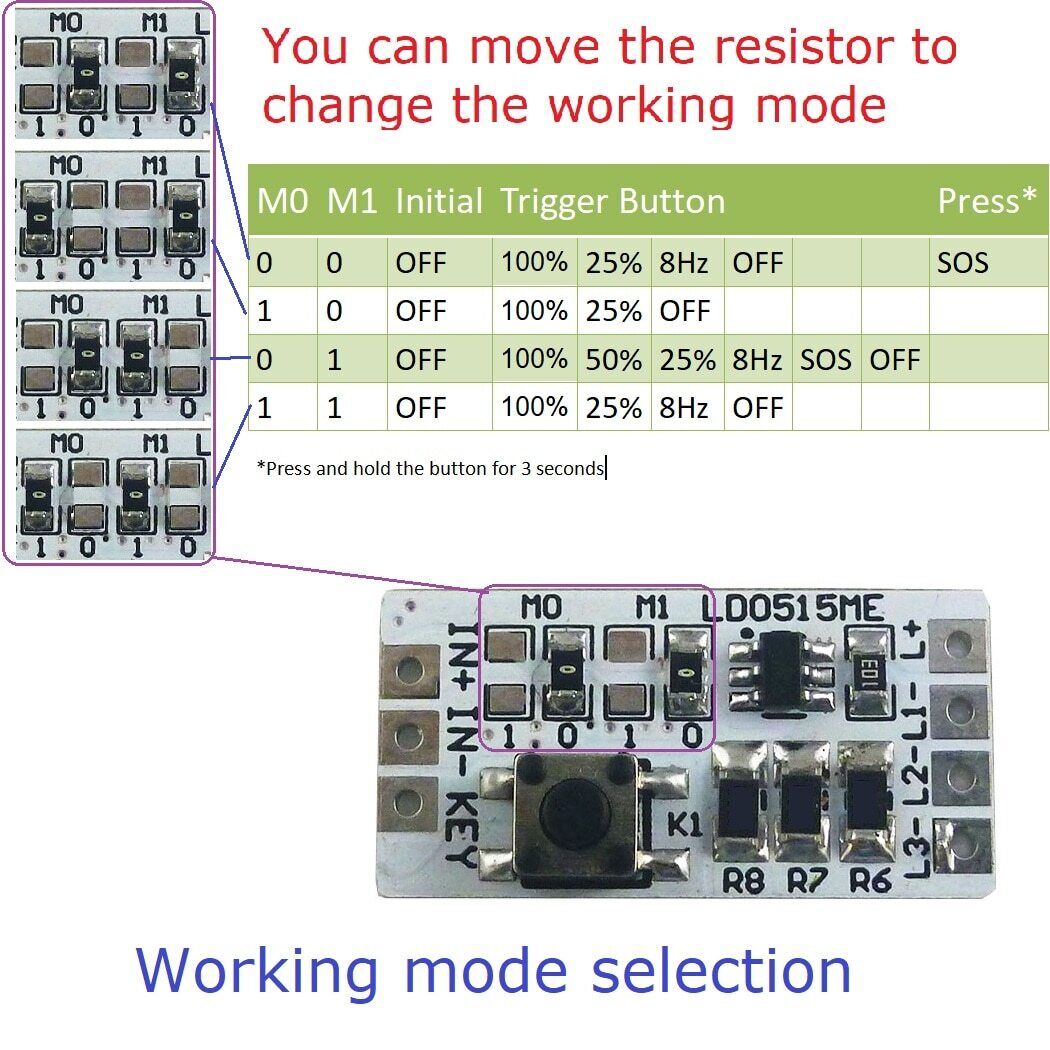

Working Mode(You can move the resistor to change the working mode):
When power on, the LED is OFF;
First trigger button,the LED is ON 100%;
Second trigger button,the LED is ON 25%;
Third trigger button,the LED is 8HZ flashes;
Fourth trigger button,the LED is OFF.
Press and hold the button for 3 seconds, SOS function

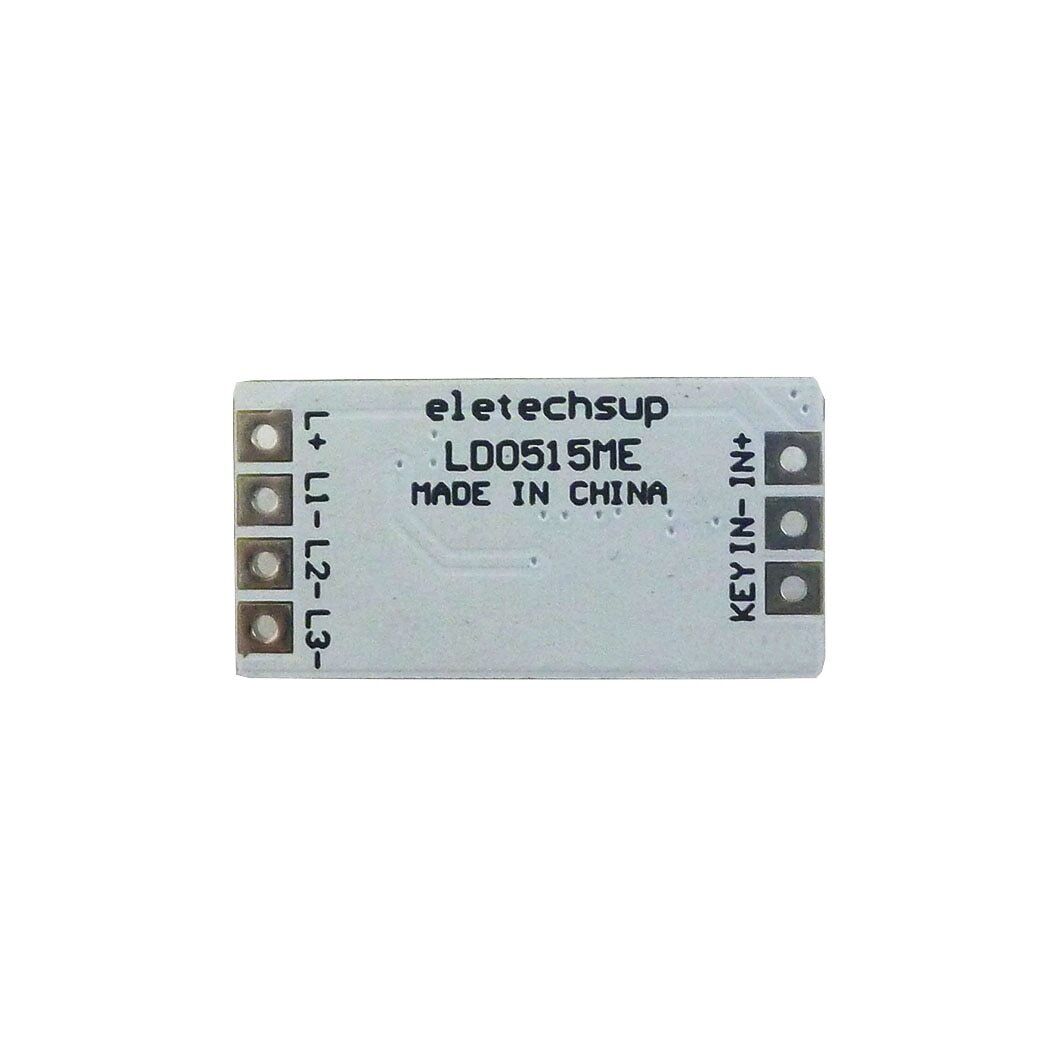

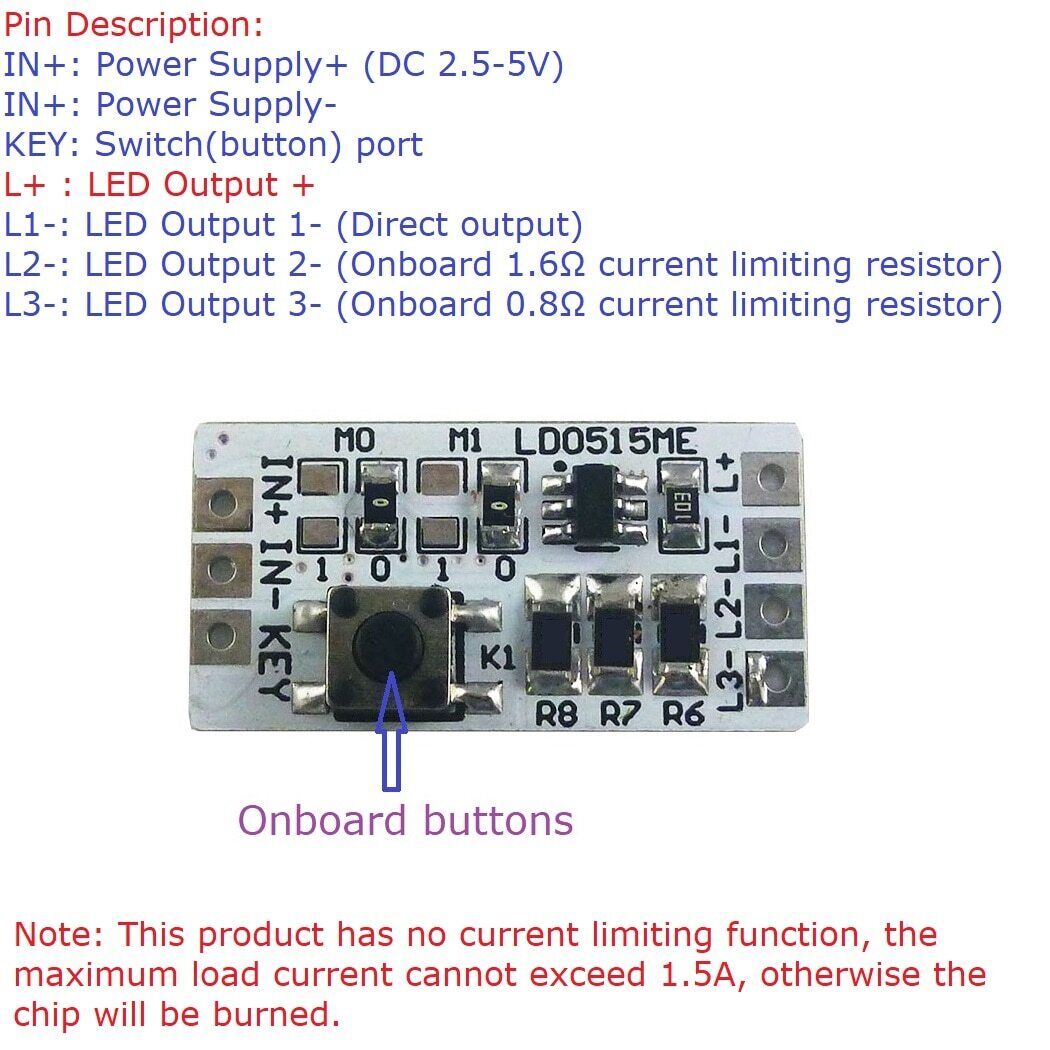

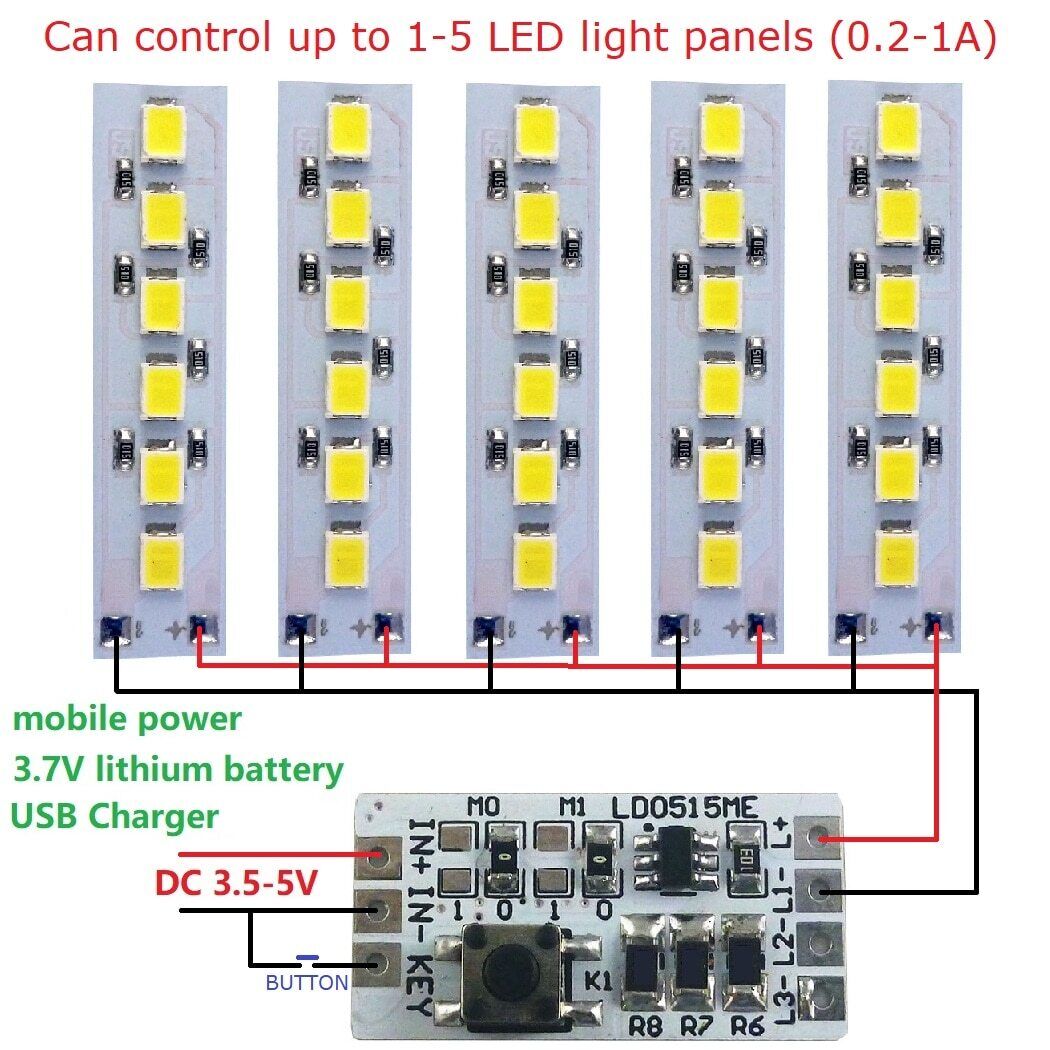

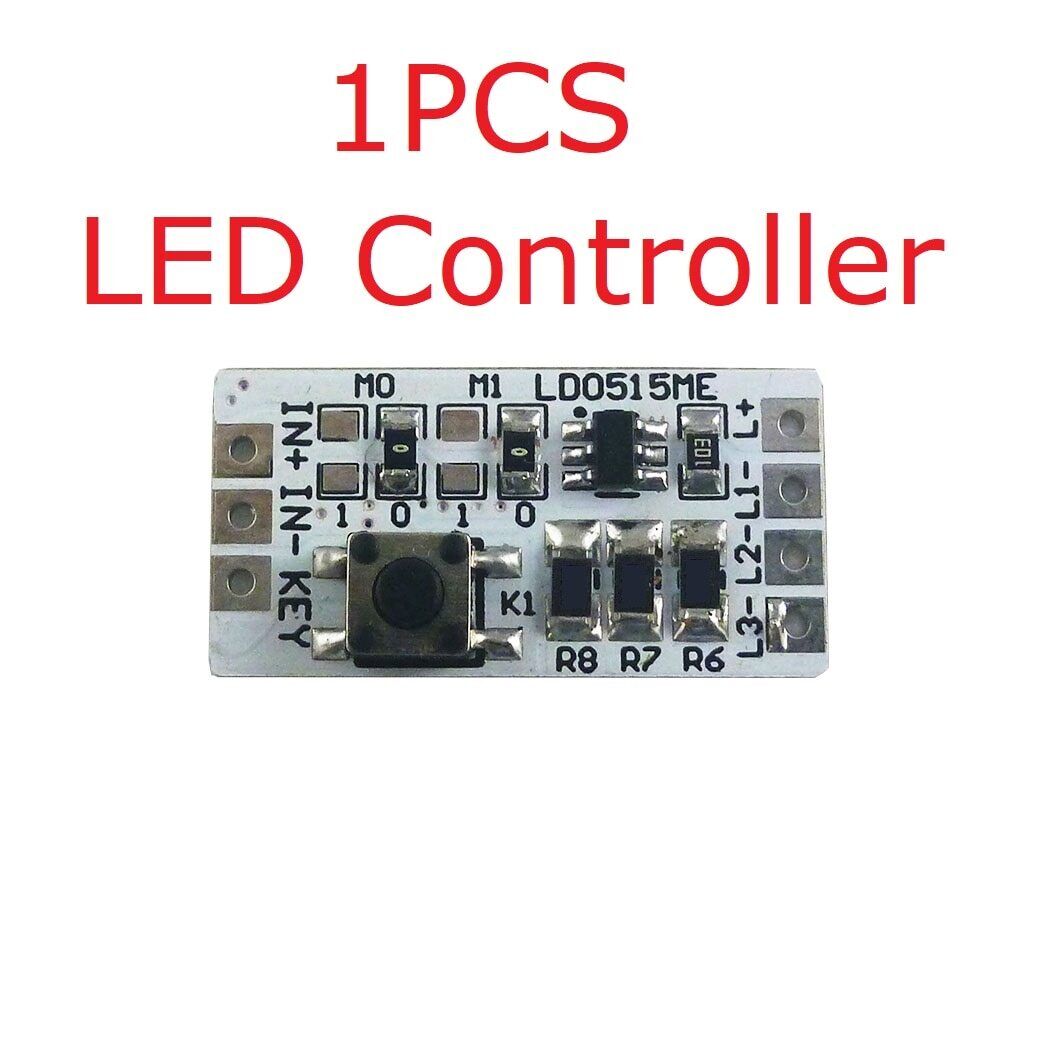

Pin Description:
IN+: Power Supply+ (DC 2.5-5V)
IN+: Power Supply-
KEY: Switch(button) port
L+ : LED Output +
L1-: LED Output 1- (Direct output)
L2-: LED Output 2- (Onboard 1.6Ω current limiting resistor)
L3-: LED Output 3- (Onboard 0.8Ω current limiting resistor)
Note: This product has no current limiting function, the maximum load current cannot exceed 1.5A, otherwise the chip will be burned.

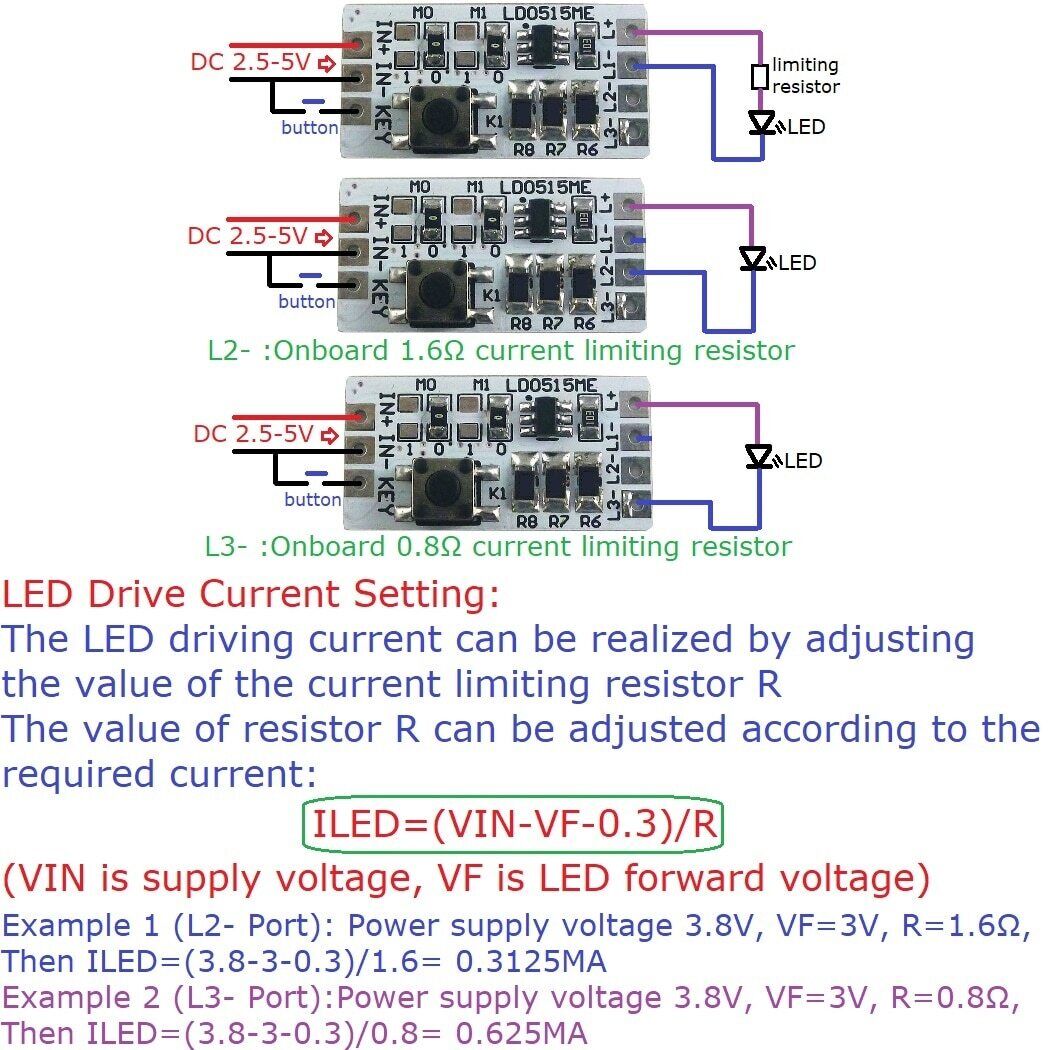

LED Drive Current Setting
The LED driving current can be realized by adjusting the value of the current limiting resistor R
The value of resistor R can be adjusted according to the required current:
ILED=(VIN-VF-0.3)/R
(VIN is supply voltage, VF is LED forward voltage)
Example 1 (L2- Port): Power supply voltage 3.8V, VF=3V, R=1.6Ω,
Then ILED=(3.8-3-0.3)/1.6= 0.3125MA
Example 2 (L3- Port):Power supply voltage 3.8V, VF=3V, R=0.8Ω,
Then ILED=(3.8-3-0.3)/0.8= 0.625MA

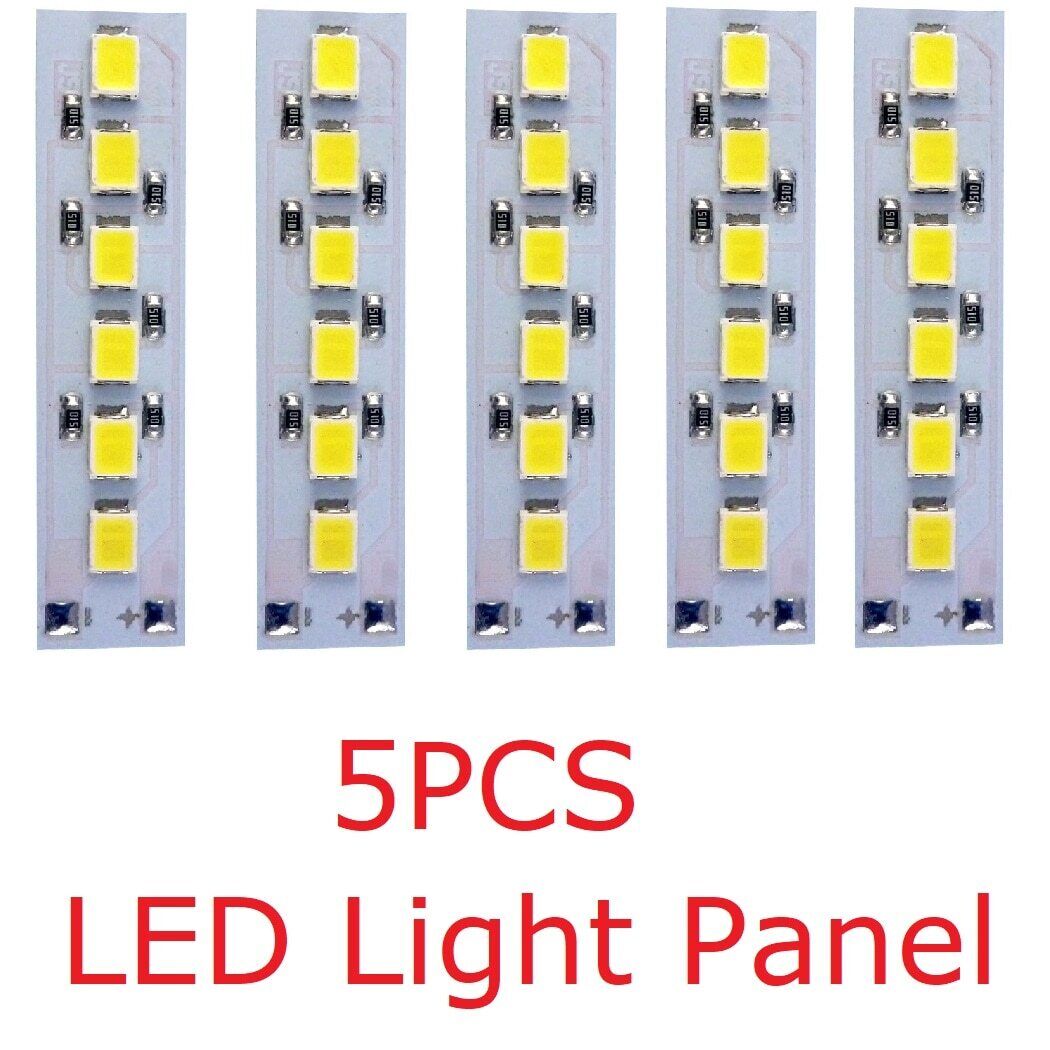

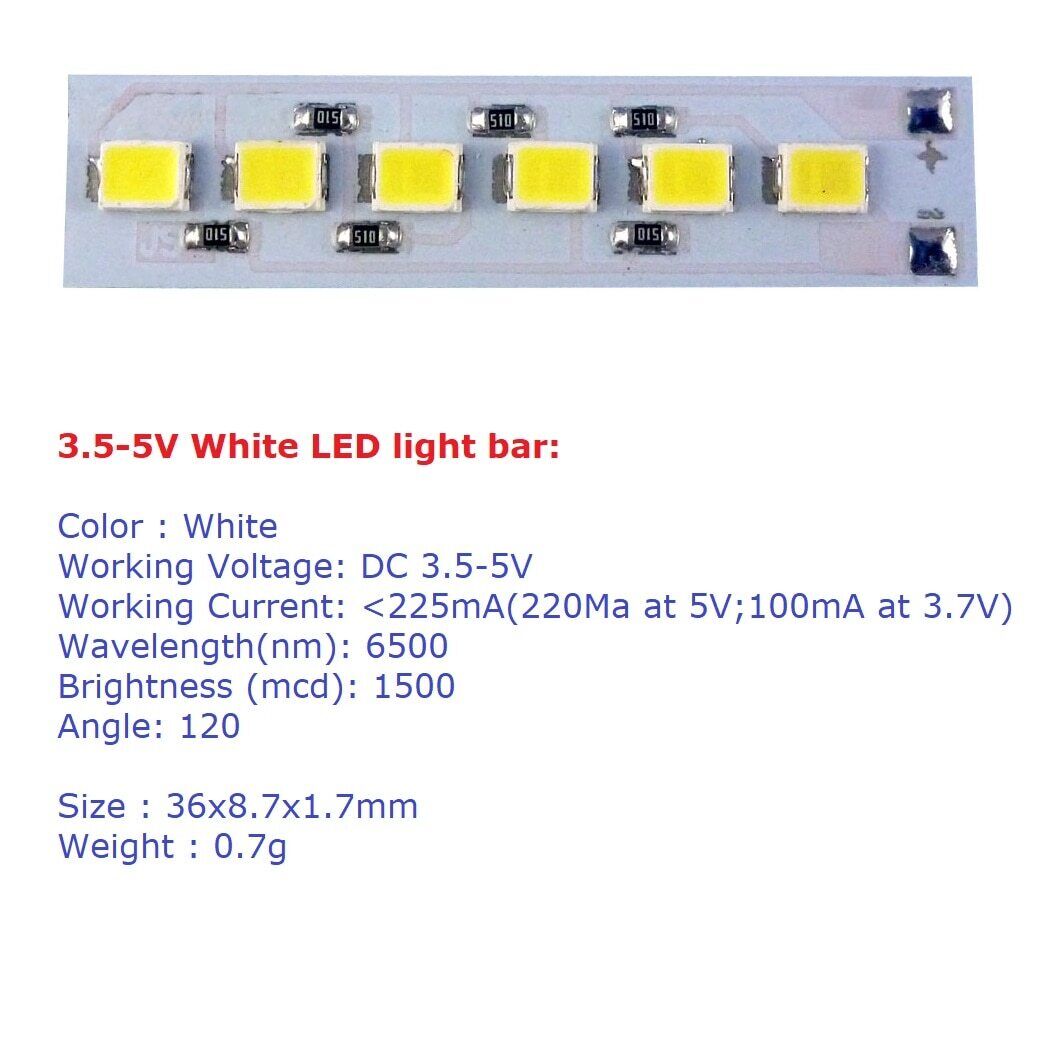

3.5-5V White LED light bar:
Color : White
Working Voltage: DC 3.5-5V
Working Current: <225mA(220Ma at 5V;100mA at 3.7V)
Wavelength(nm): 6500
Brightness (mcd): 1500
Angle: 120
Size : 36x8.7x1.7mm
Weight : 0.7g
