DD0324PW 25W Mini Size High-power 2-5Cell Battery Multiplier 3.7V 4.2V to 8.4V 12.6V 16.8V 21V DC-DC Boost Converter Module 5V 12V 15 24V

SKU:DD0324PW_8V4

1997 in stock

$3.99

Sale Sold out

Quantity

Product List:
1PCS 25W Mini Size High-power 2-5Cell Battery Multiplier 3.7V 4.2V to 8.4V 12.6V 16.8V 21V DC-DC Boost Converter Module 5V 12V 15 24V
(Specific according to the version and quantity you choose)

Description:

25W Mini Size High-power DC-DC Boost Converter Module

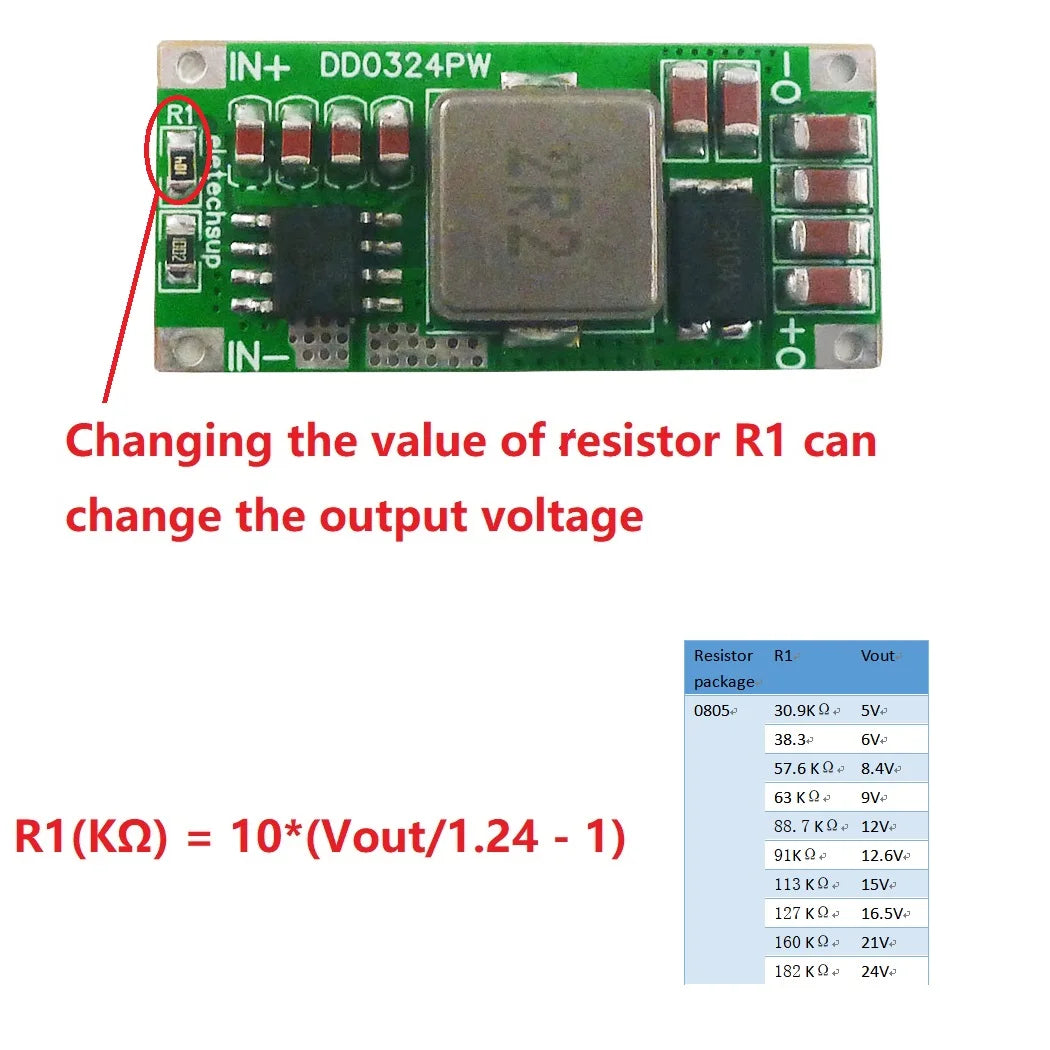

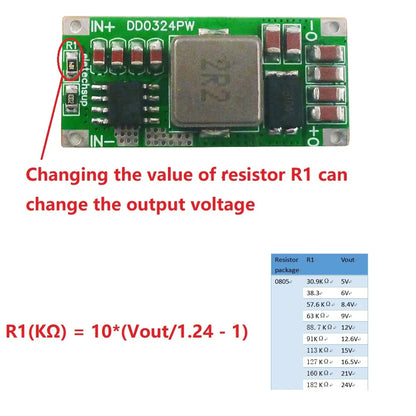

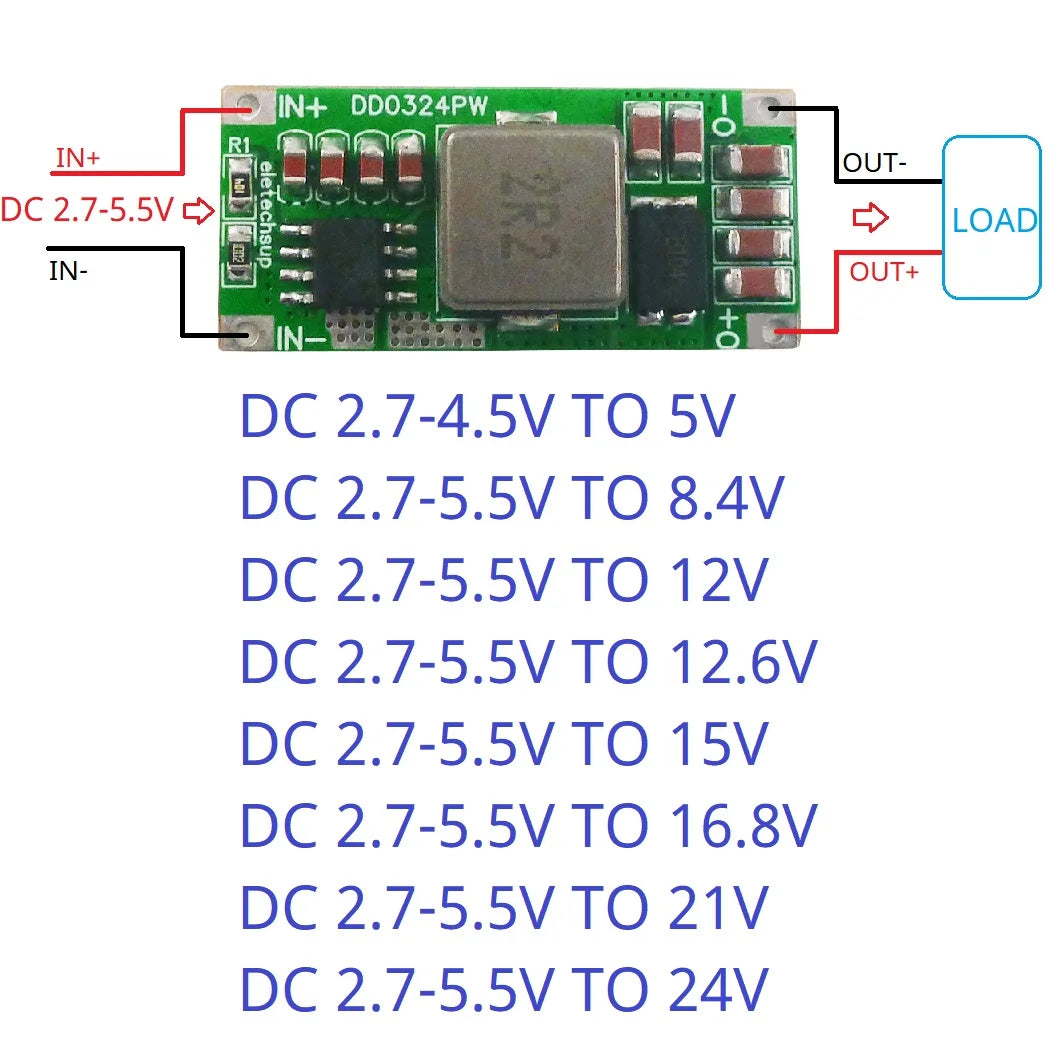

Input DC 2.7-5.5V,Output 5V/8.4V/12V/12.6V/15V/16.8V/21V/24V

Maximum output power 25W(See the table for details)

Maximum input current: 8A(See the table for details)

Maximum output current: 5A(See the table for details)

Quiescent current: about 1MA

Efficiency : Up to 96%

Switching Frequency : 600KHz fixed

Overtemperature shutdown, input under-voltage protection and short circuit protection.

UVLO Low Threshold 2.6V,UVLO High Threshold 3.2V,suitable for 3.7V lithium

battery power supply

Operating Ambient Temperature : -40 to 85 °C

Storage Temperature : -55 to 150°C

Size : 33*15*5mm

Weight : 4.5g

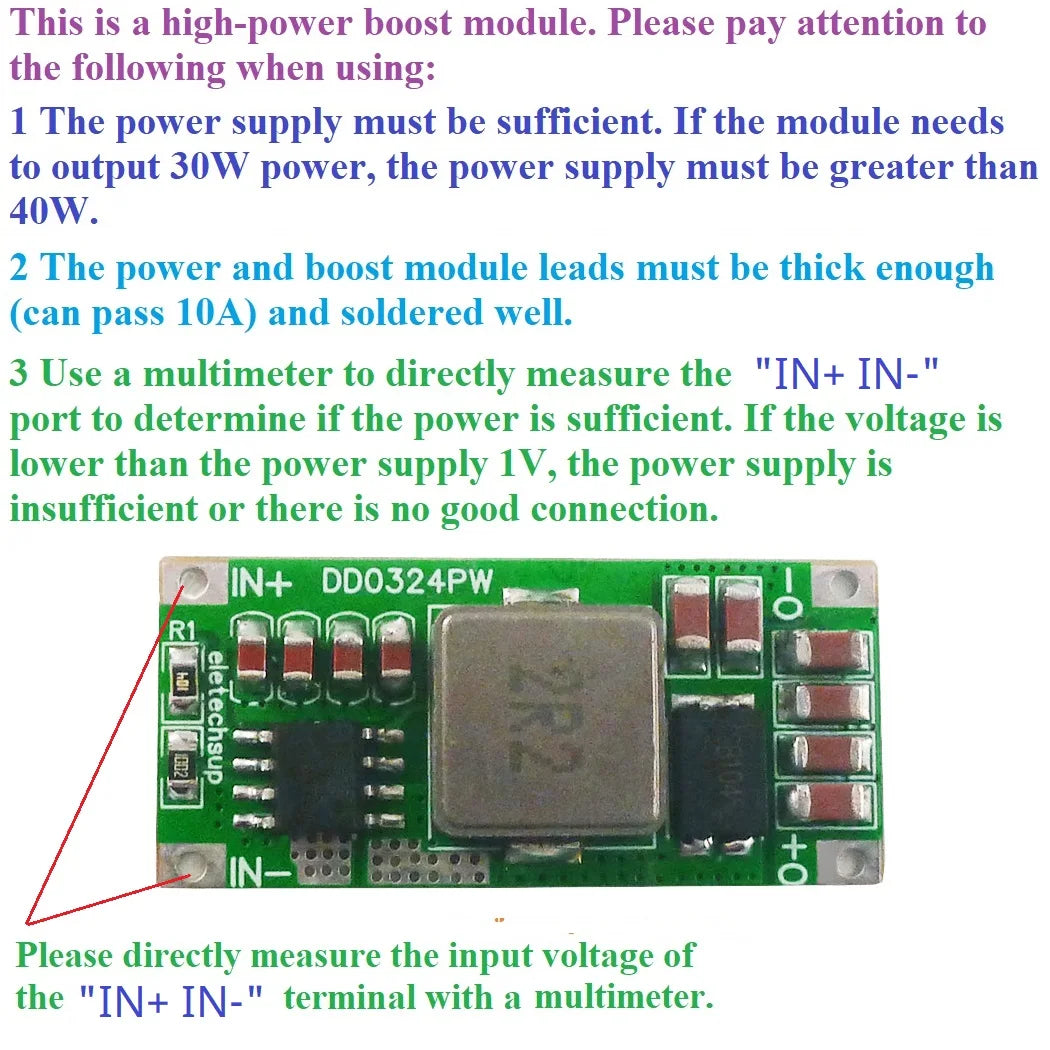

Attention :

This is a high-power boost module. Please pay attention to the following when using:
1 The power supply must be sufficient. If the module needs to output 25W power, the power supply must be greater than 35W.

2 The power and boost module leads must be thick enough (can pass 10A) and soldered well.

3 Use a multimeter to directly measure the ''IN+ IN-'' port to determine if the power is sufficient. If the voltage is lower than the power supply 1V, the power supply is insufficient or there is no good connection.

4 Input voltage can not be greater than the maximum input range

5 Output power can not be greater than the maximum load for a long time

6 Input power must be greater than the output power, because the power consumption of the module itself

Applications:

for QC2.0 3.0 charger

for 3.7V li-on Lipo Lithium Battery 18650

PTZ CCTV IP camera

Smart home / home automation

WIFI Router Switch Network equipment

LED Motor Driver

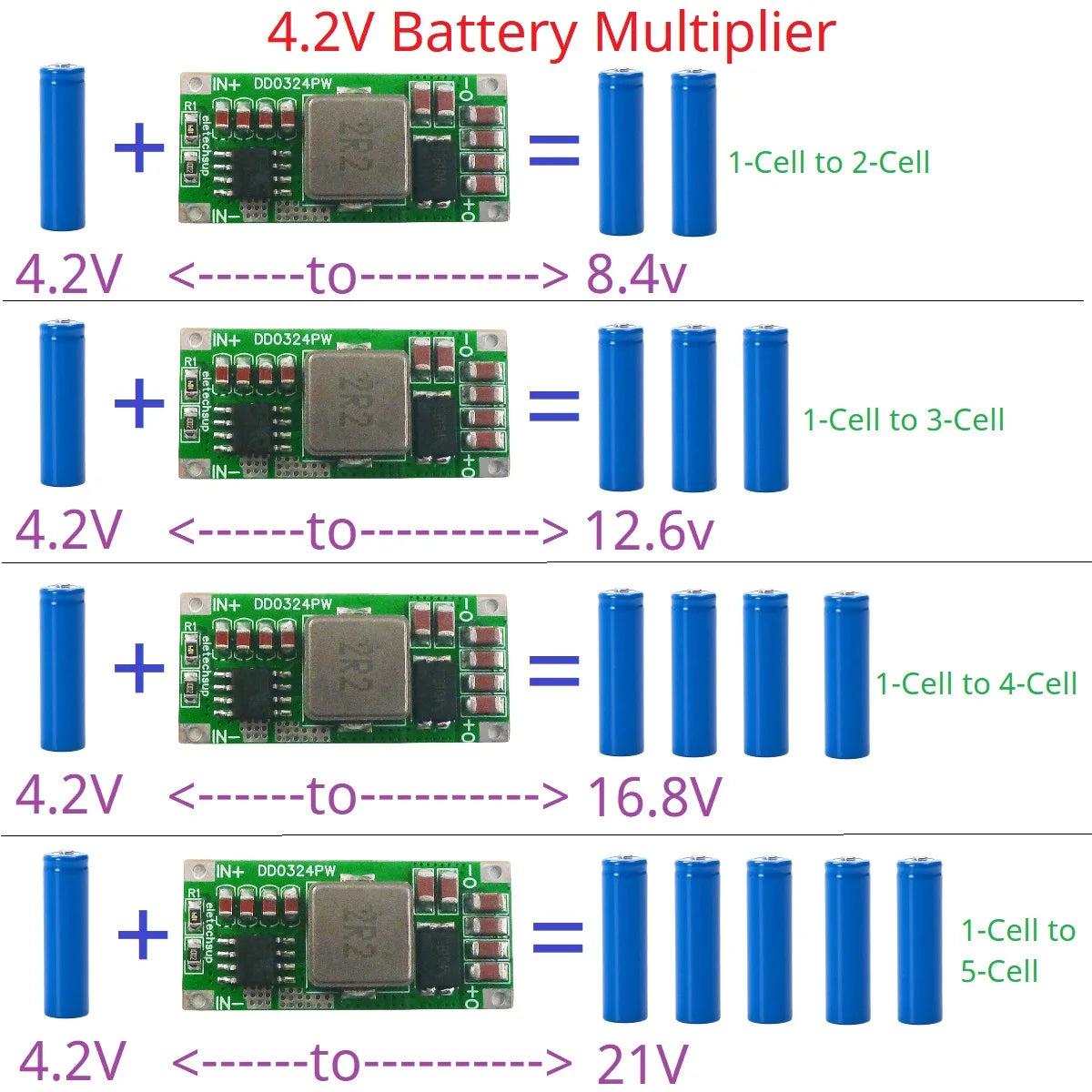

1 CELL Lithium Battery to 2-5 CELL Output

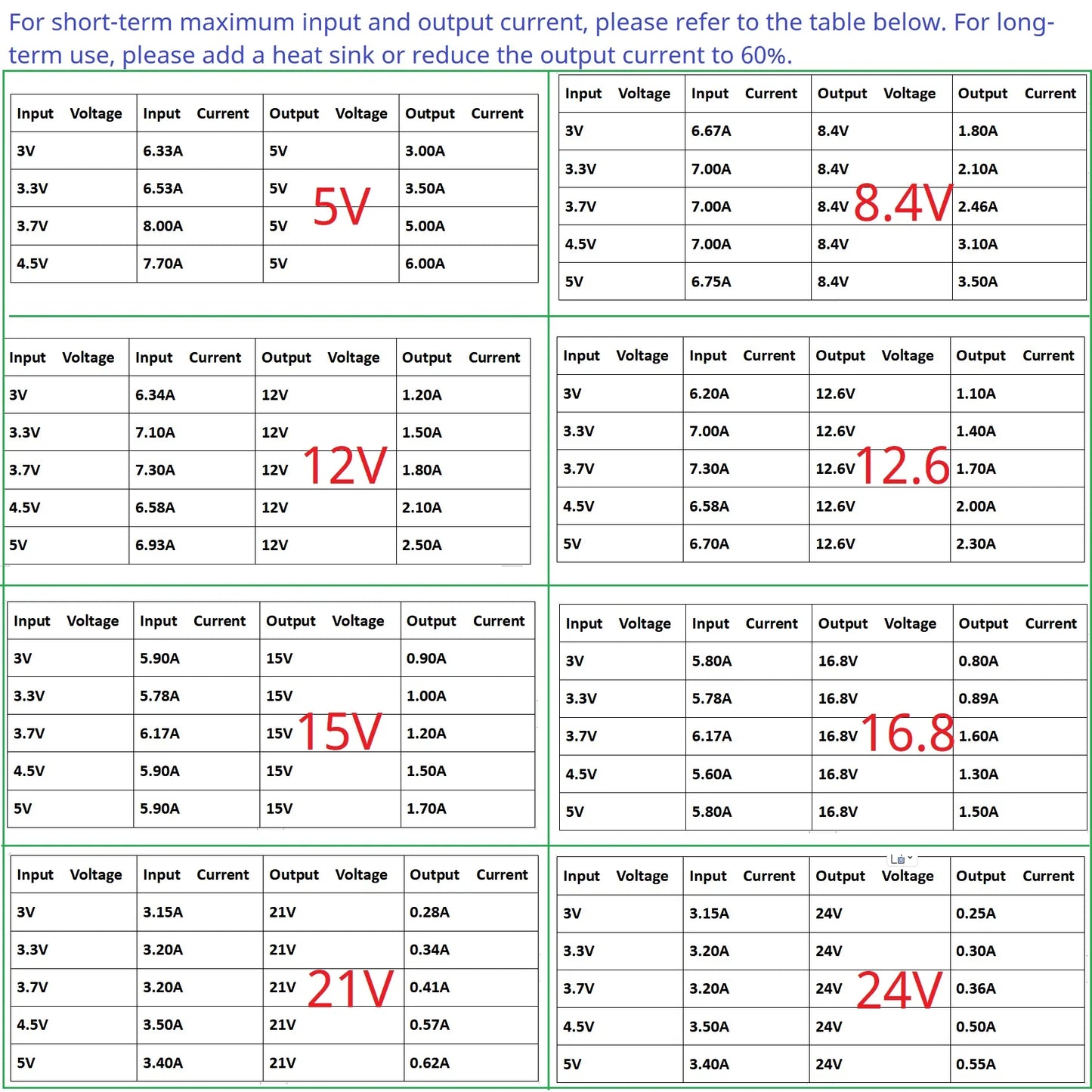

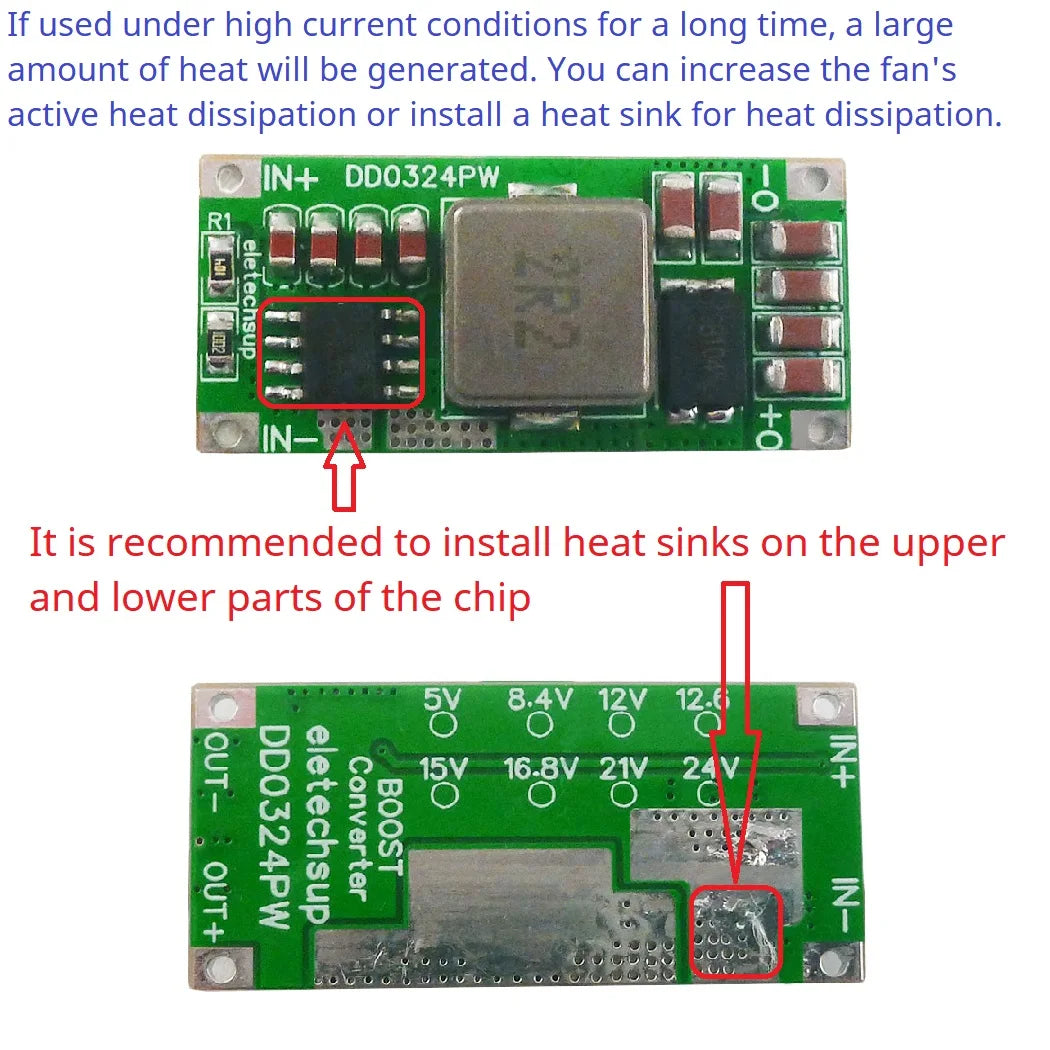

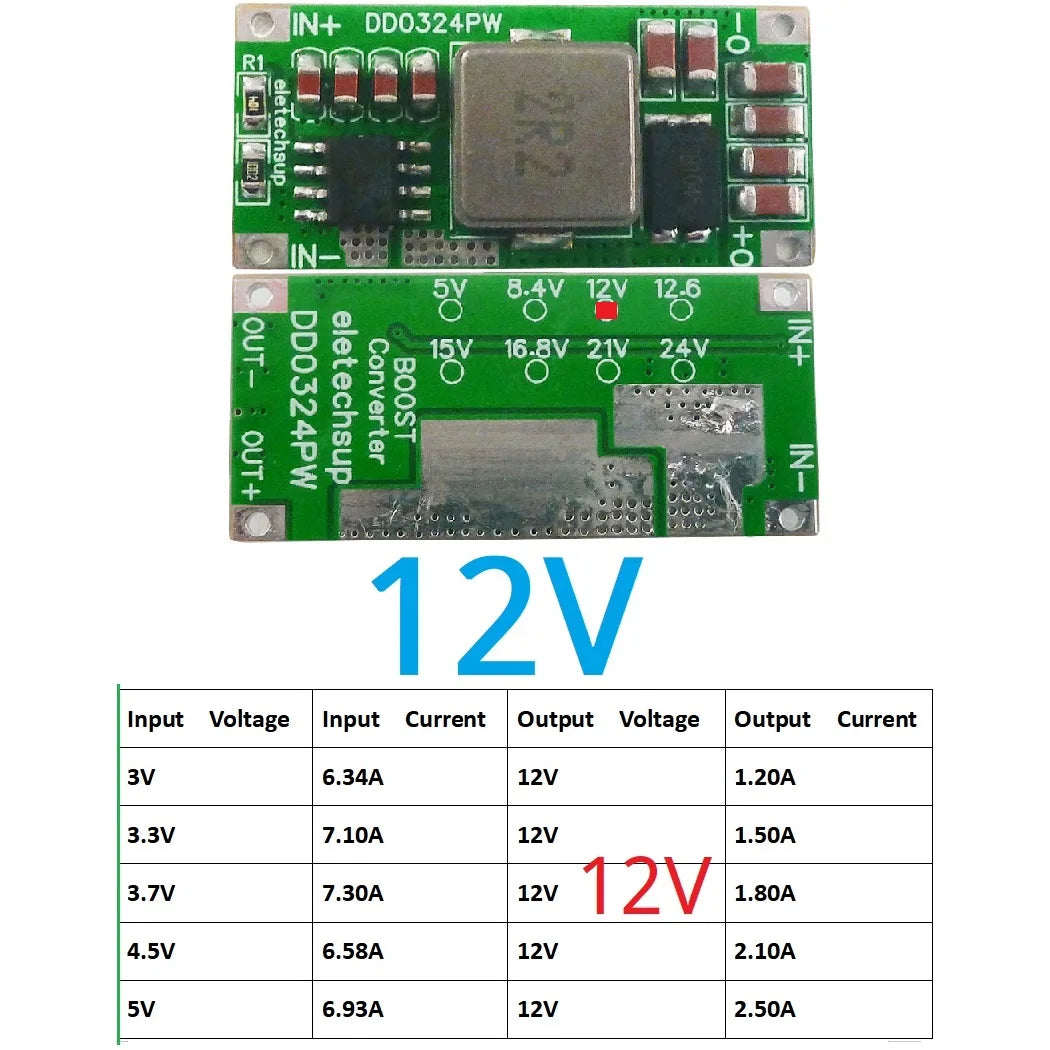

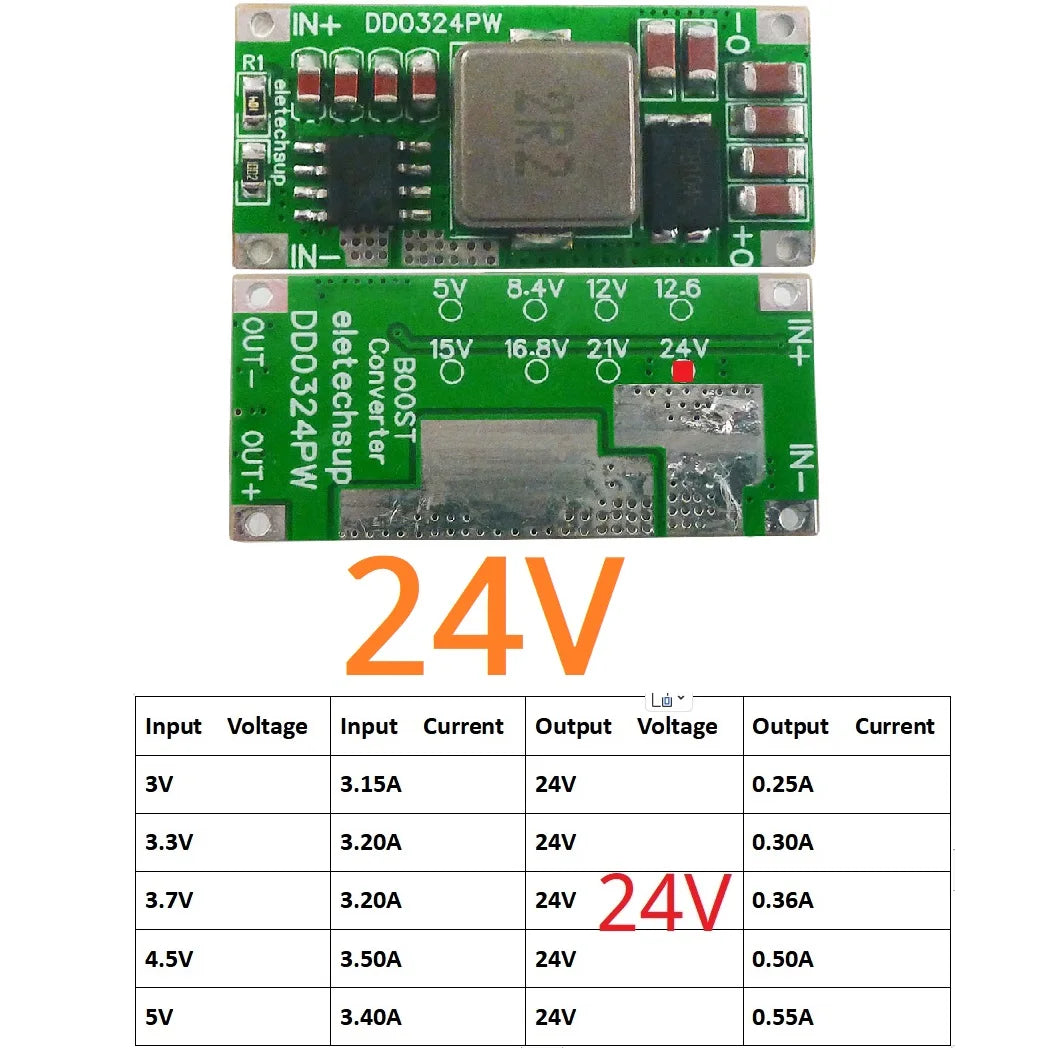

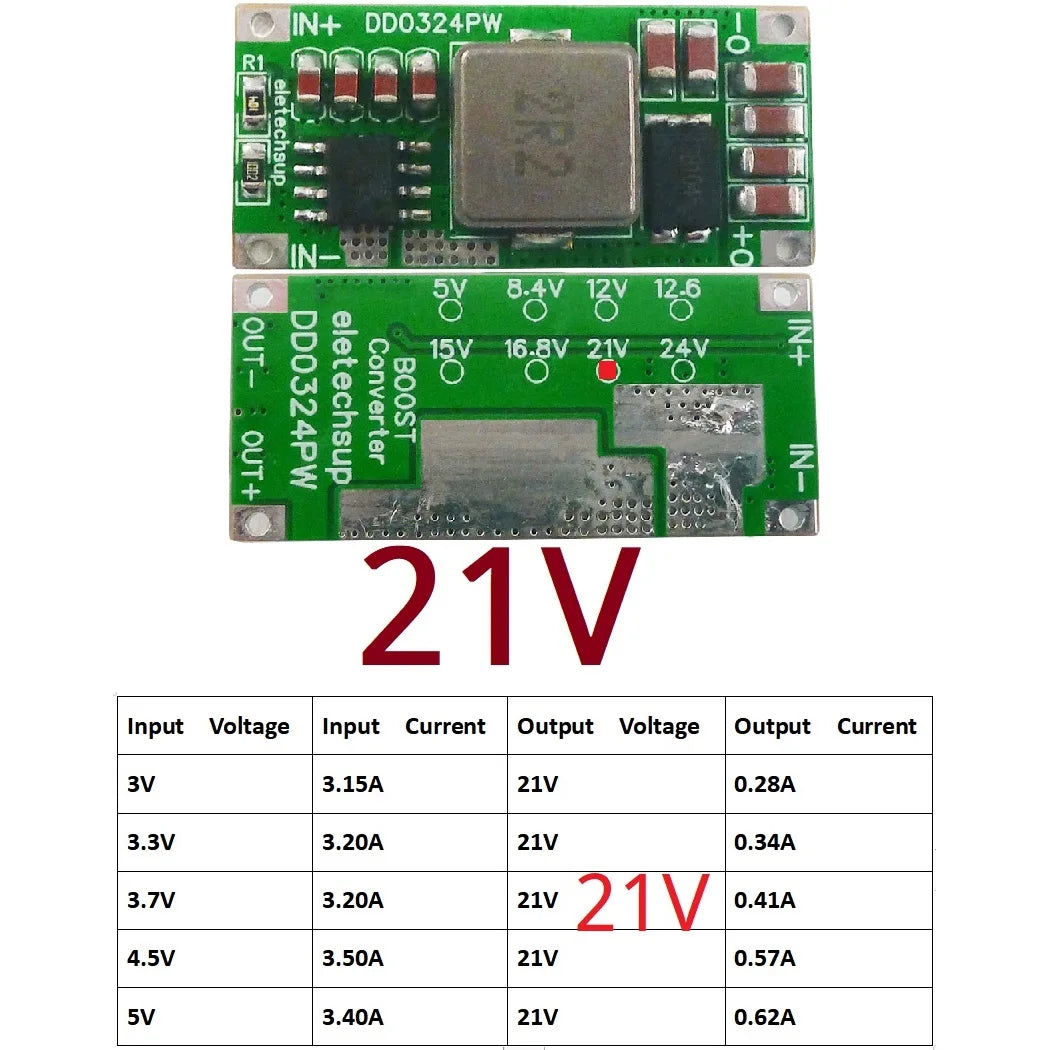

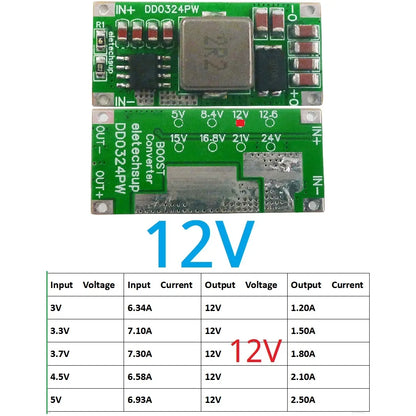

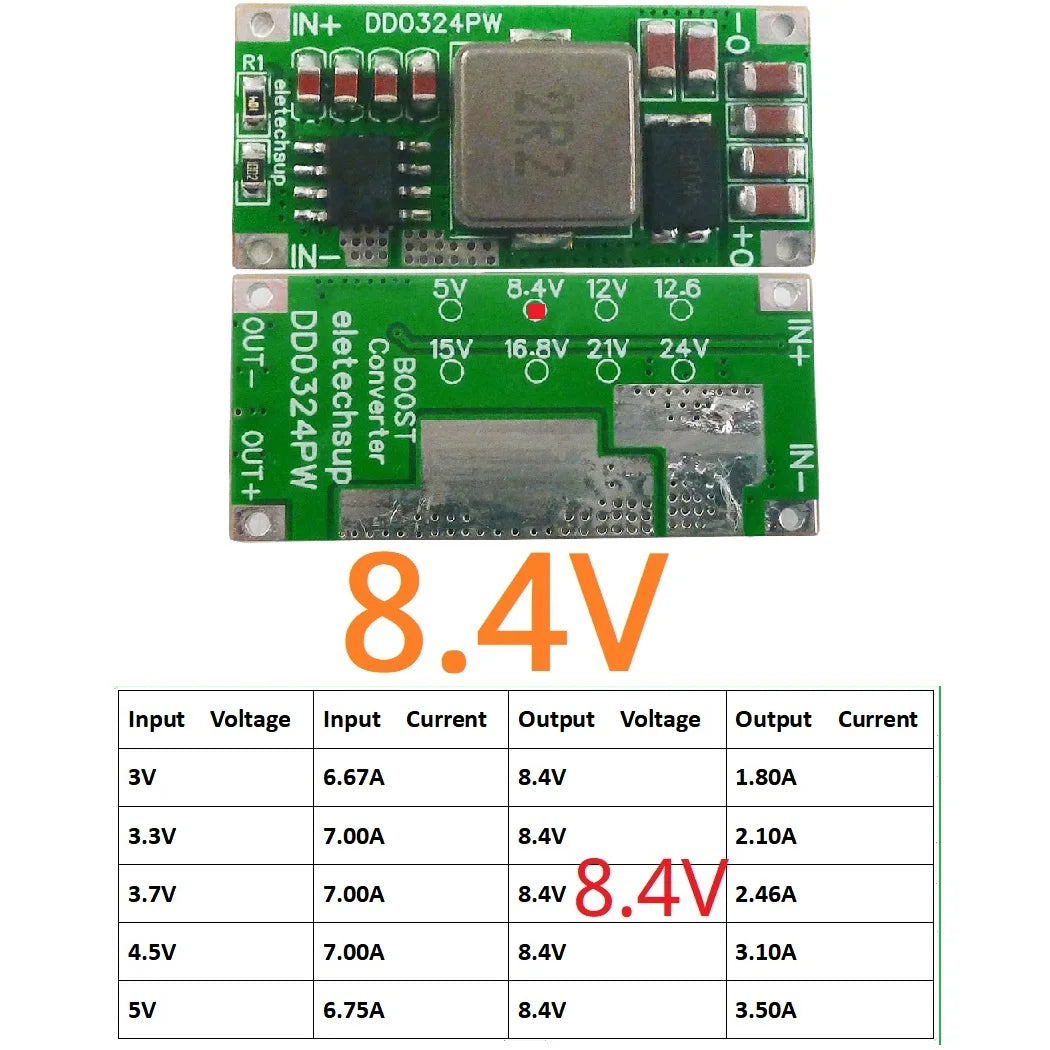

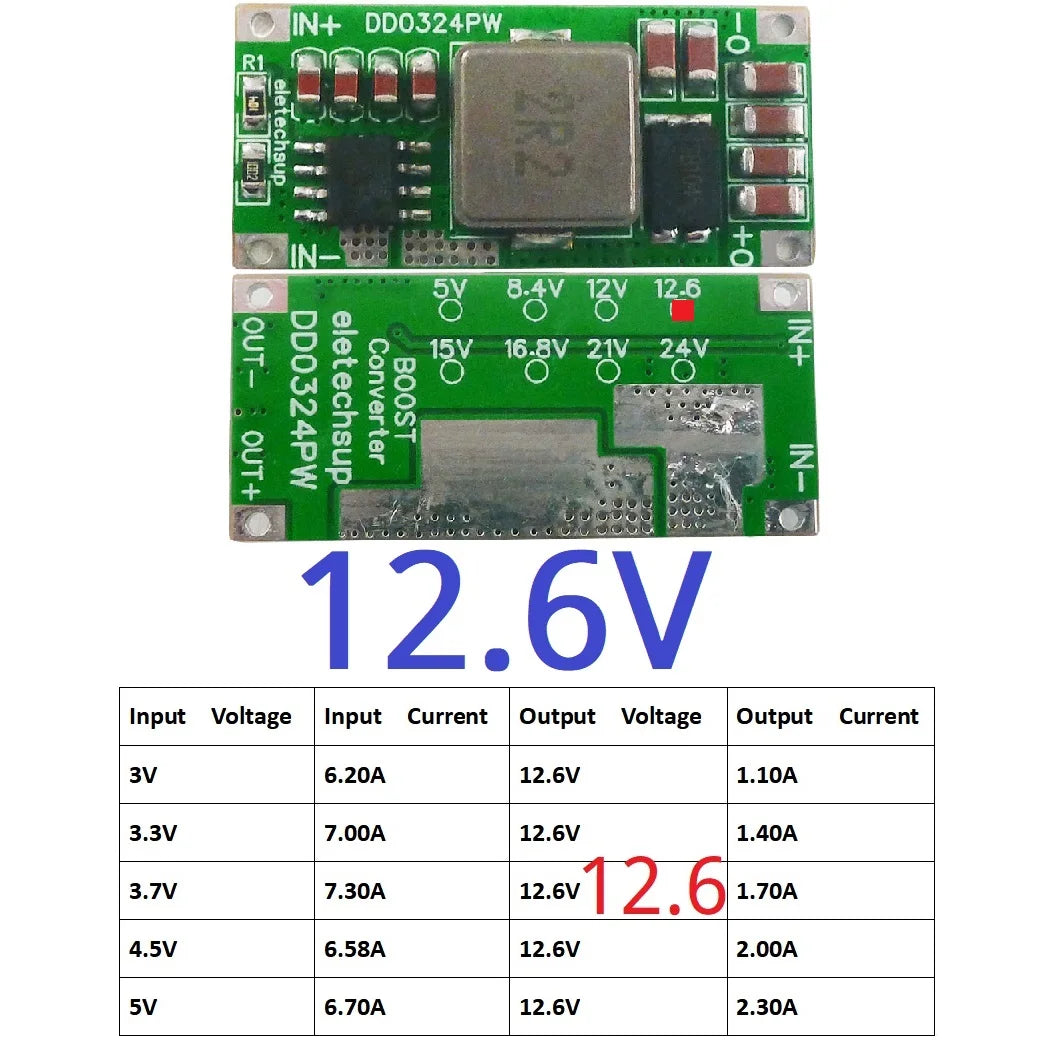

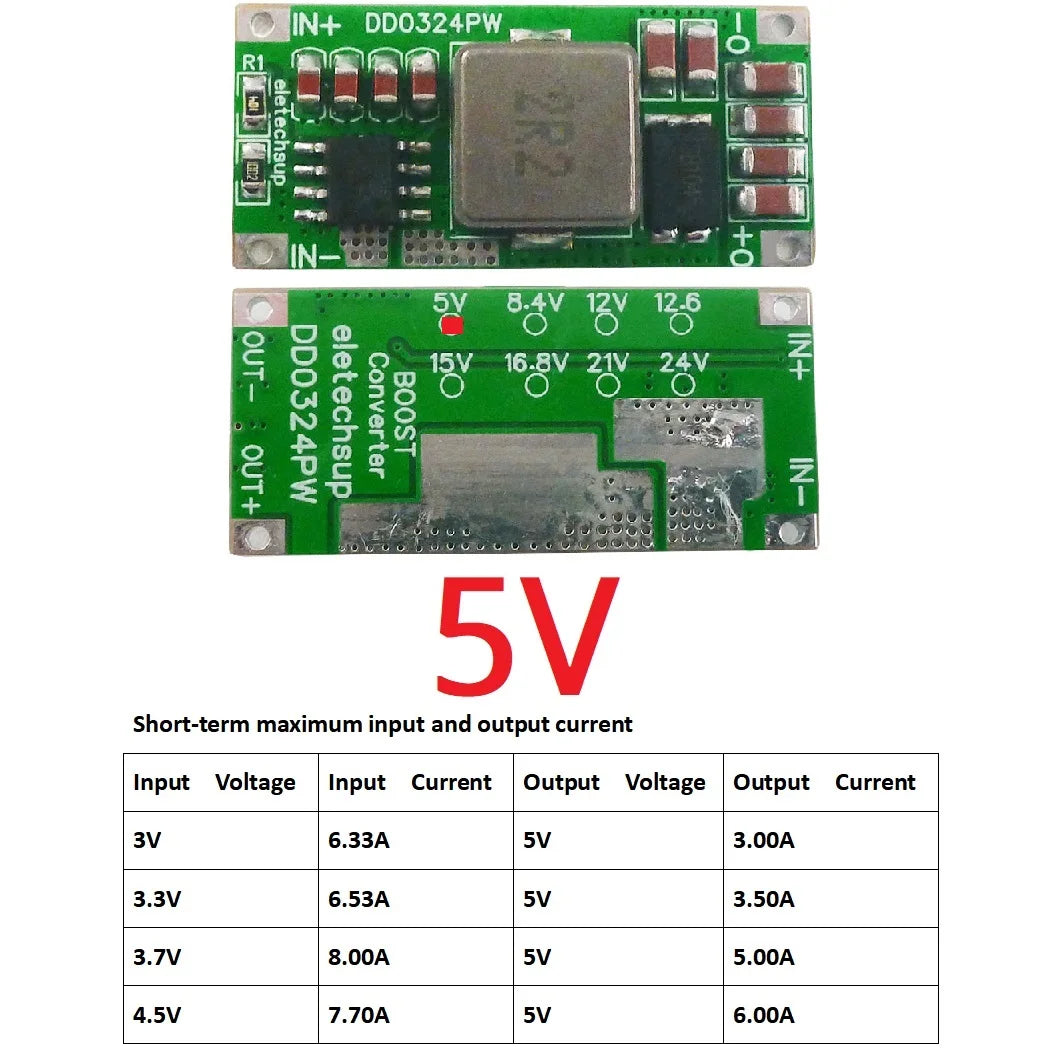

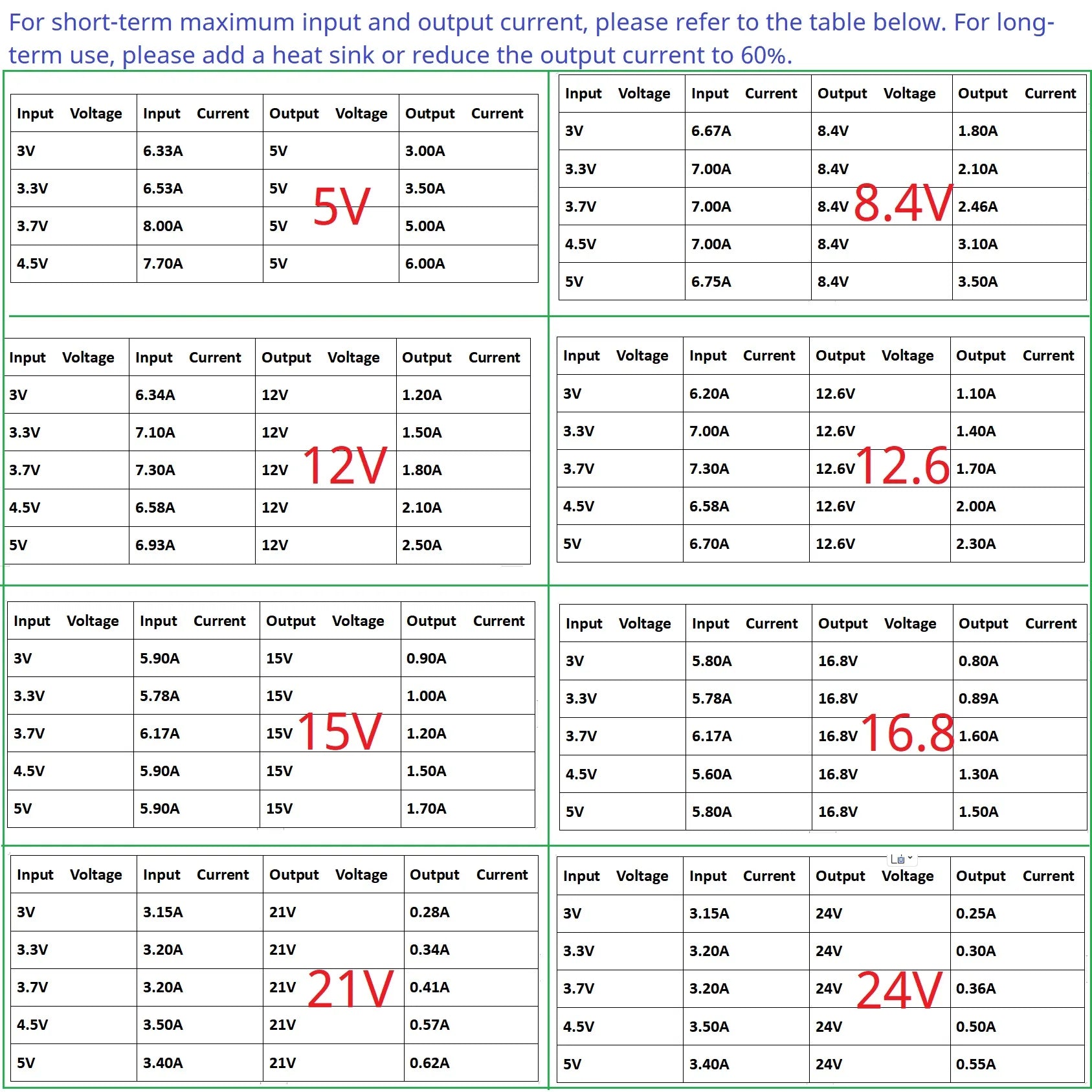

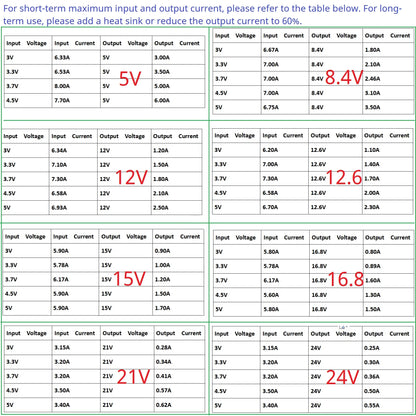

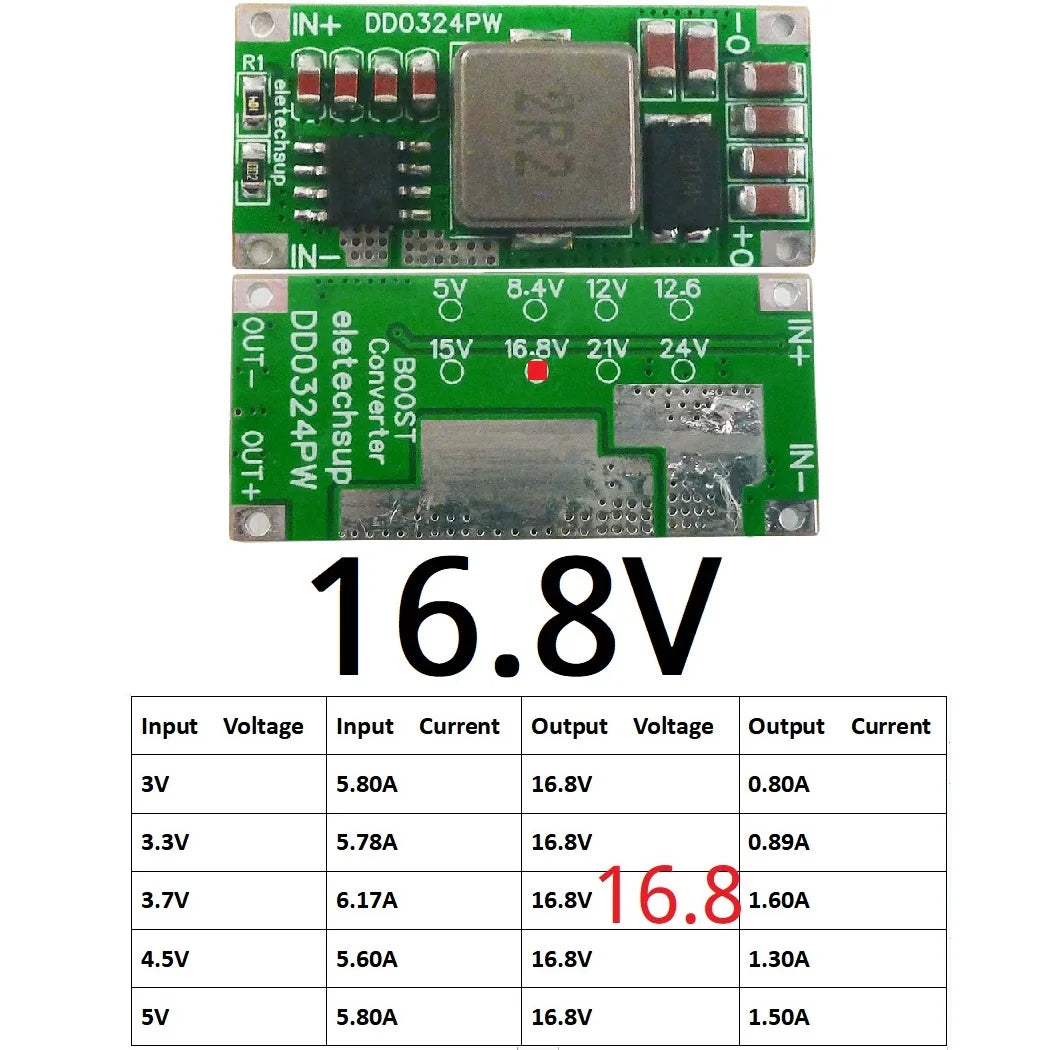

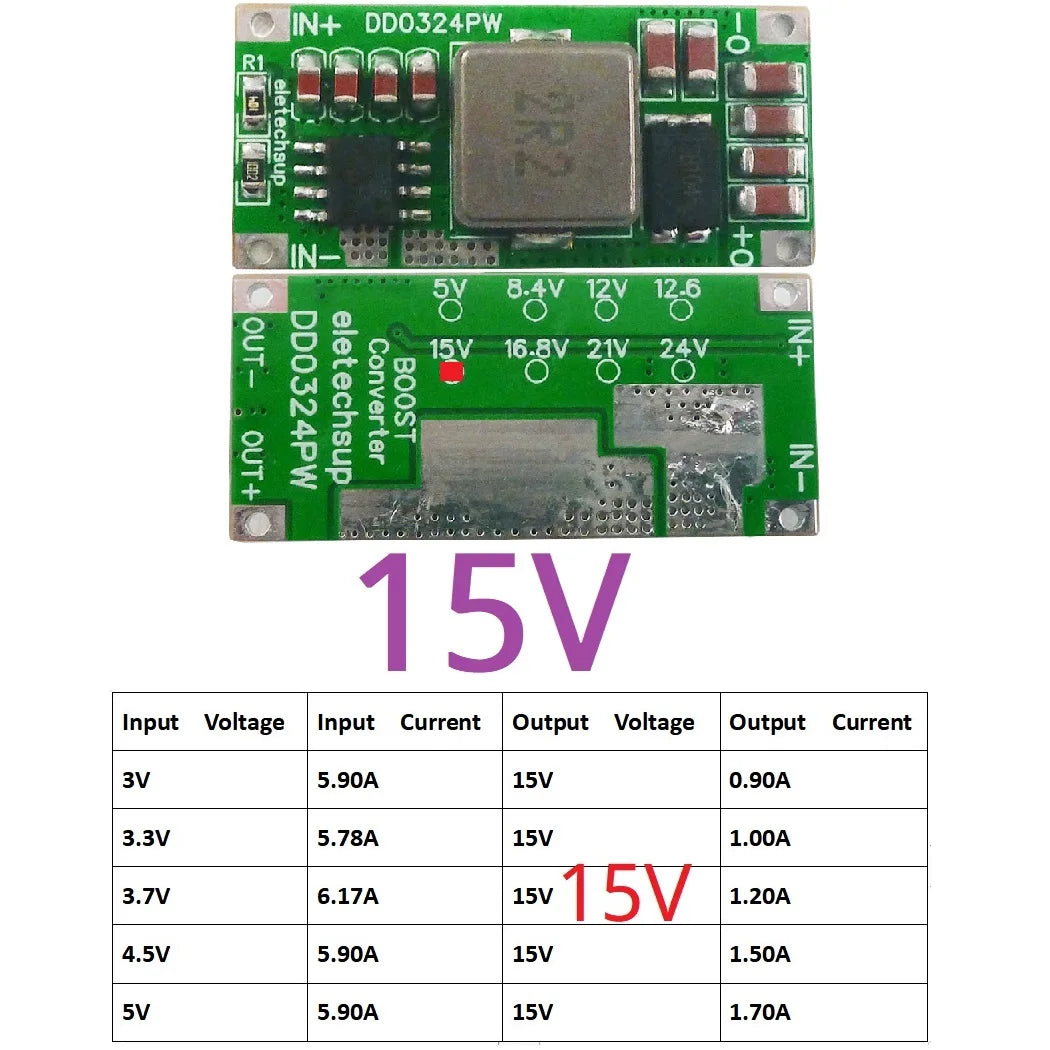

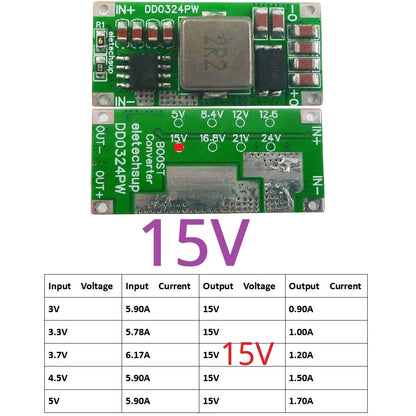

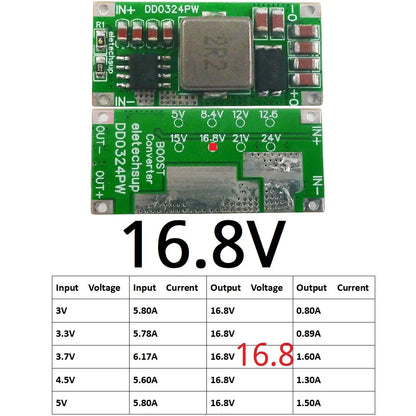

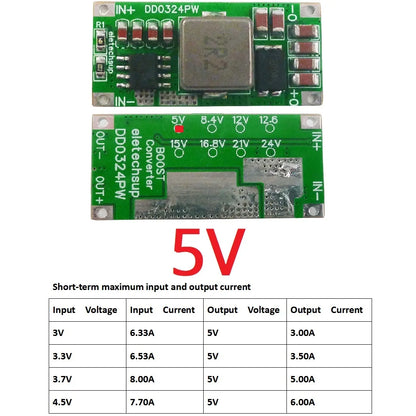

For short-term maximum input and output current, please refer to the table below. For long-term use, please add a heat sink or reduce the output current to 60%.

When used to drive inductive loads or motors, please pay attention to the following:

1 Please note that the starting current of the motor is greater than 3 times the rated
current.

2 Please ensure that the power supply is sufficient.

3 Please connect a diode or drive circuit between the module and the motor.
