DD0403MA 3.3-6V to 3V 3.3V DC-DC Step-Down Power Buck LDO Voltage regulator

DD0403MA 3.3-6V to 3V 3.3V DC-DC Step-Down Power Buck LDO Voltage regulator

DD0403MB_3V3*2

1010 in stock

$1.99
$6.48 $1.99
Sale Sold out
Applications:
AA AAA Dry cell powered equipment
Breadboard Power Supply
Small power motors
Camera, Video camera
Electric toys
Model aircraft
LED Lighting
raspberry pi Arduino UNO MEGA2560
electronic diy kit
STM32 FPGA/CPLD PIC AVR Board
electronic diy kit
Wifi Module,ESP8266
Bluetooth Module,HC-05,HC-06,SPP-C

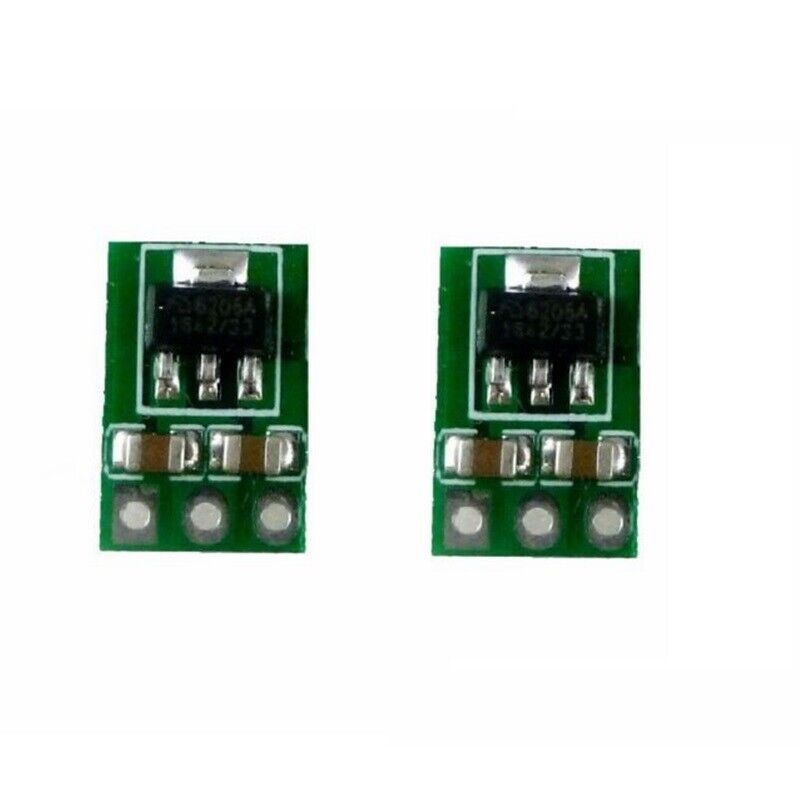

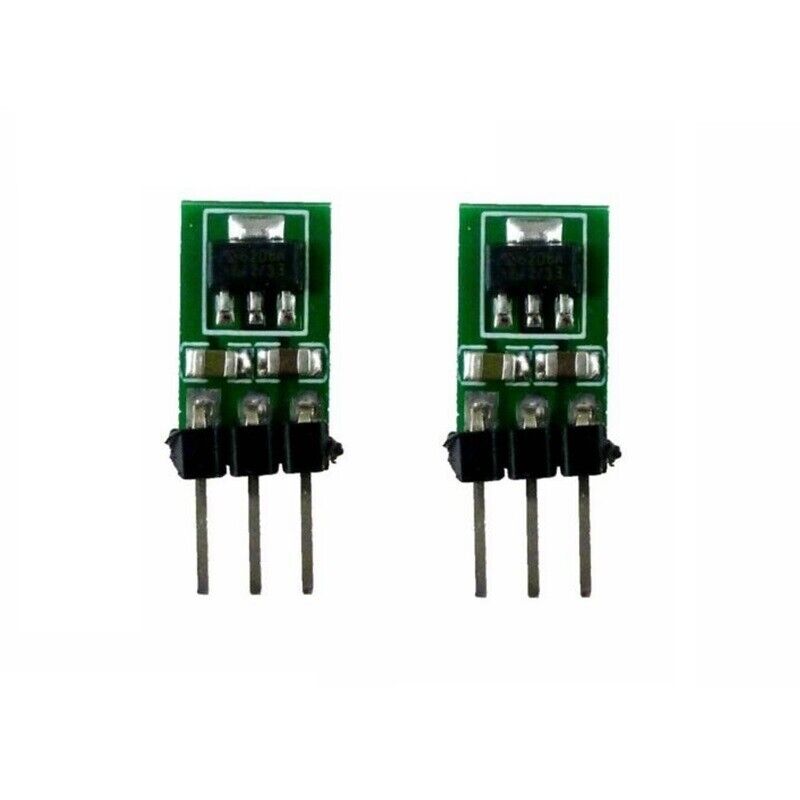

Product Name: 2 PCS 3.3-6V to 3V 3.3V DC-DC Step-Down Power Supply Buck LDO  Voltage regulator Board


Packing list:

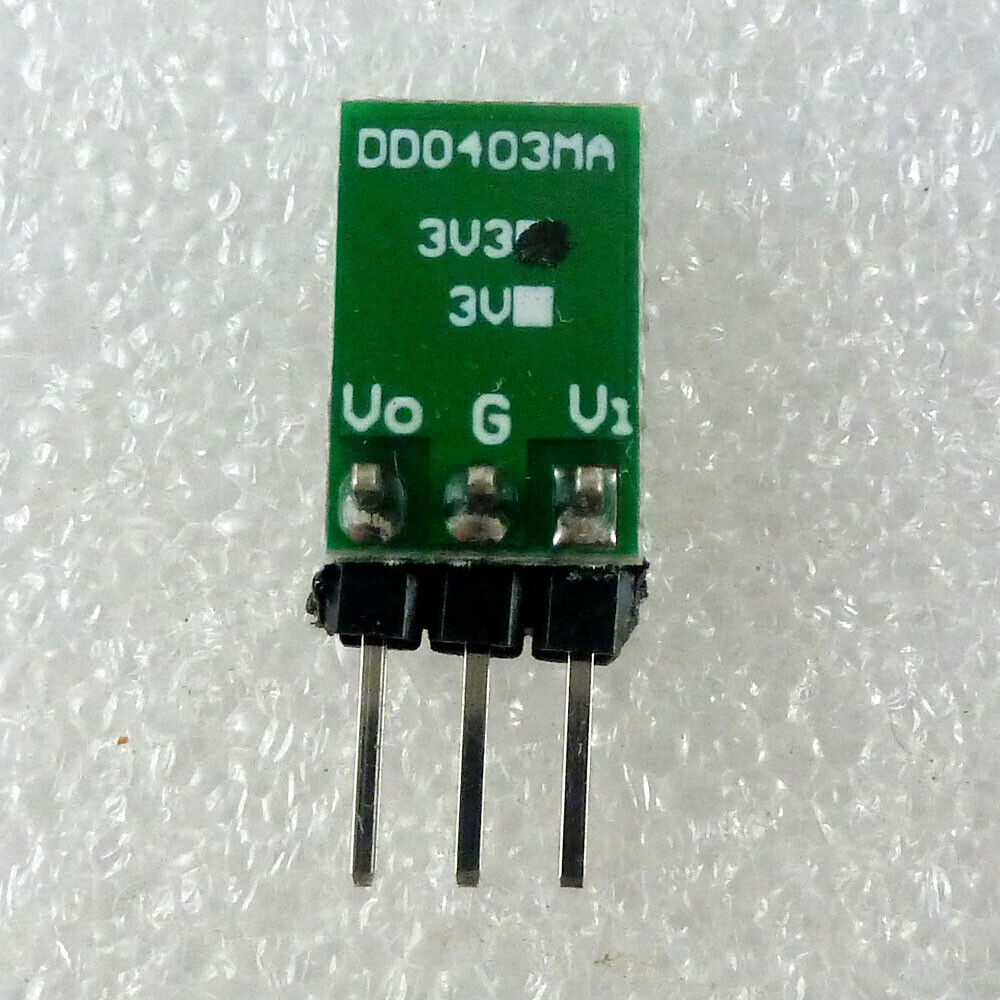

2 PCS DD0403MA or DD0403MB 3V 3.3V DC DC Step Down Converter LDO Module




Description:

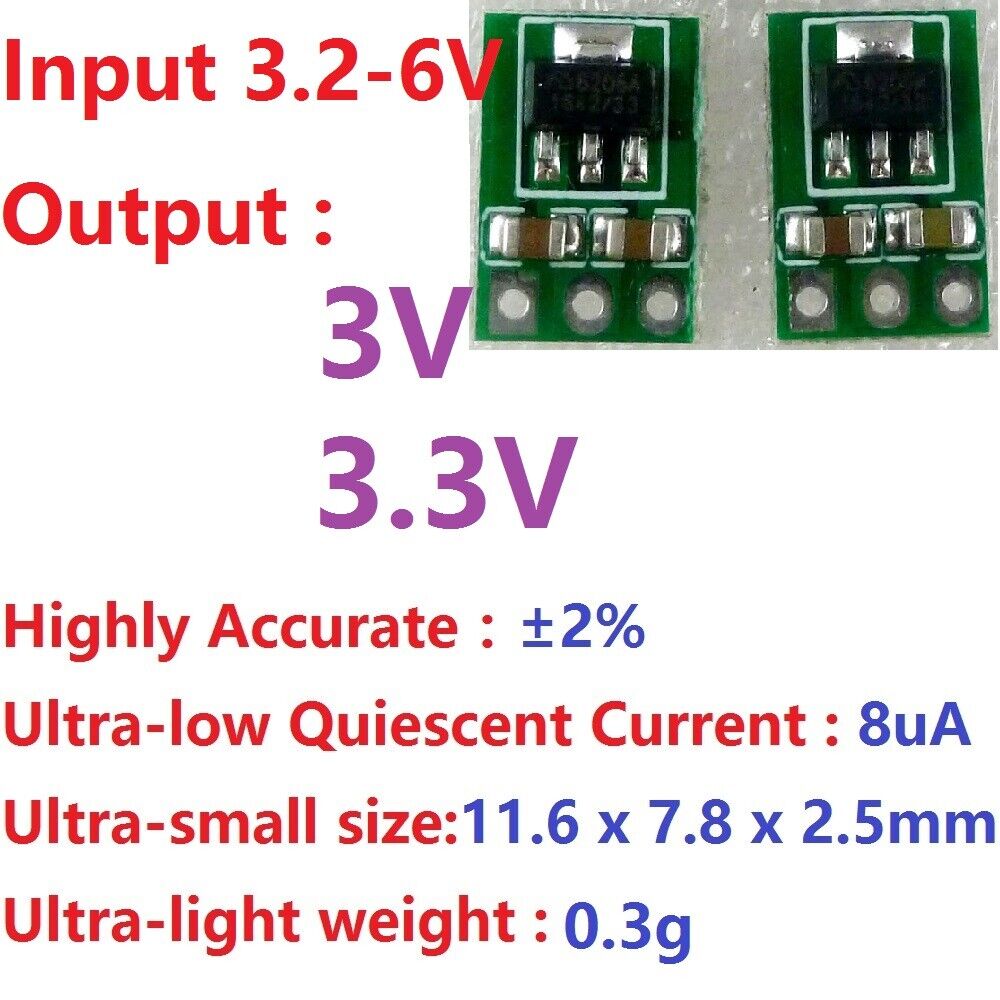

3V :

Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered

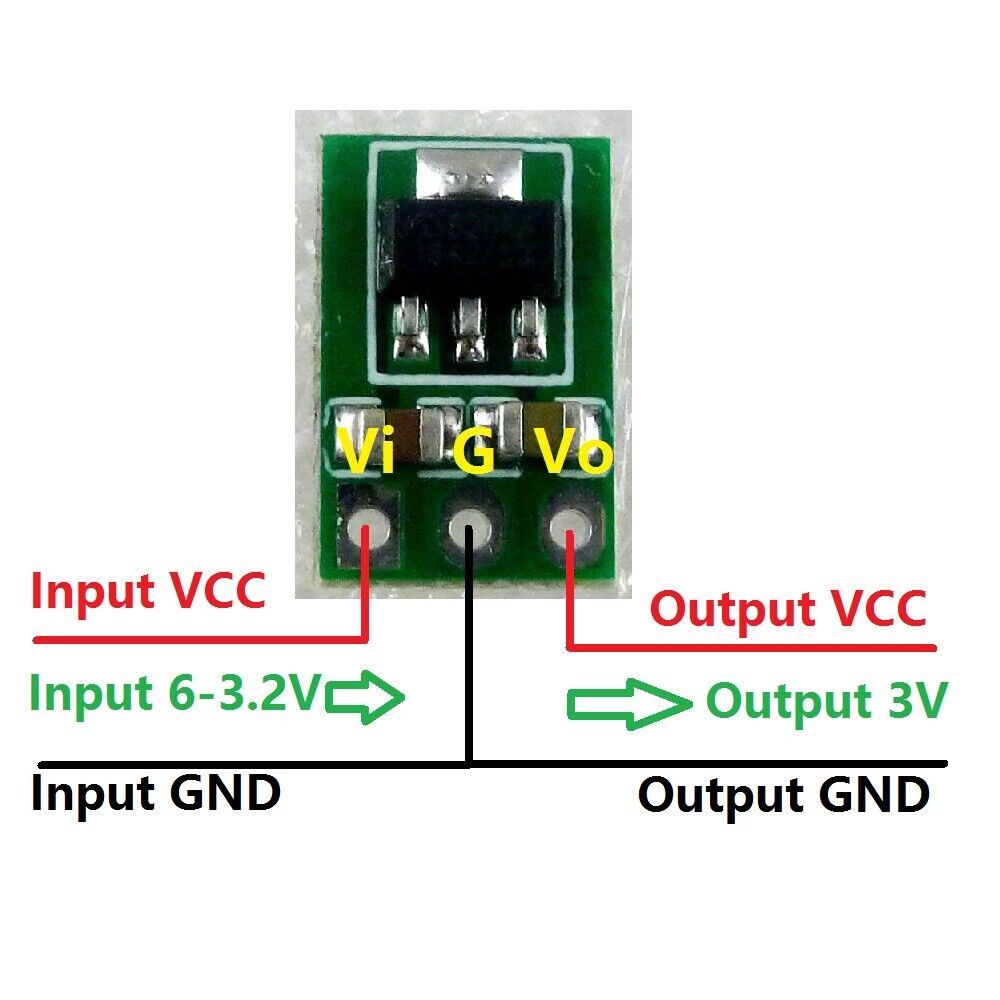

Input voltage: DC 3.2-6V

Output voltage: DC 3V

Long time maximum output current 300mA

Short time maximum output current 400mA

Highly Accurate：±2%

Quiescent Current : 8uA

Short Circuit Current : 30mA

Over Current Protection : 500mA

Operating Temperature: -25℃ ~ +85℃

Size : 11.6x 7.7 x 2.5mm

Weight : 0.54g(with Pin),0.33g(no Pin)

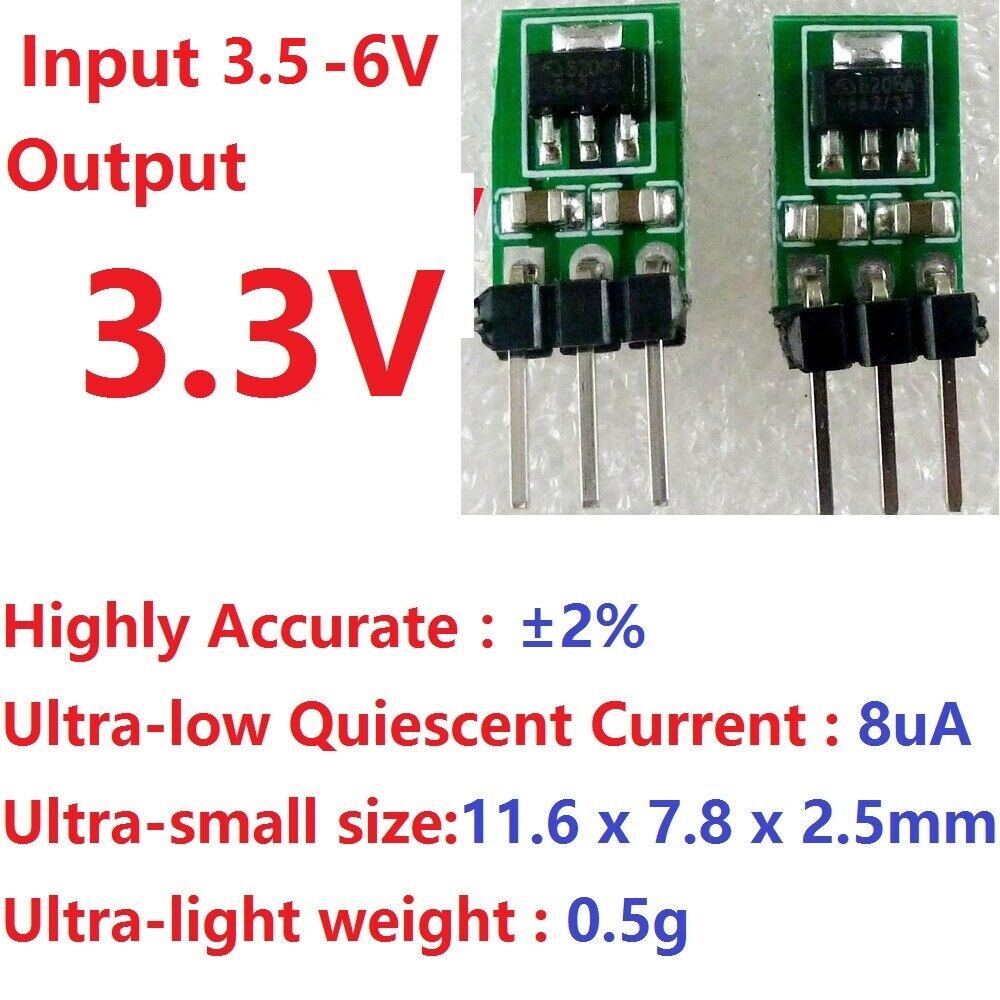

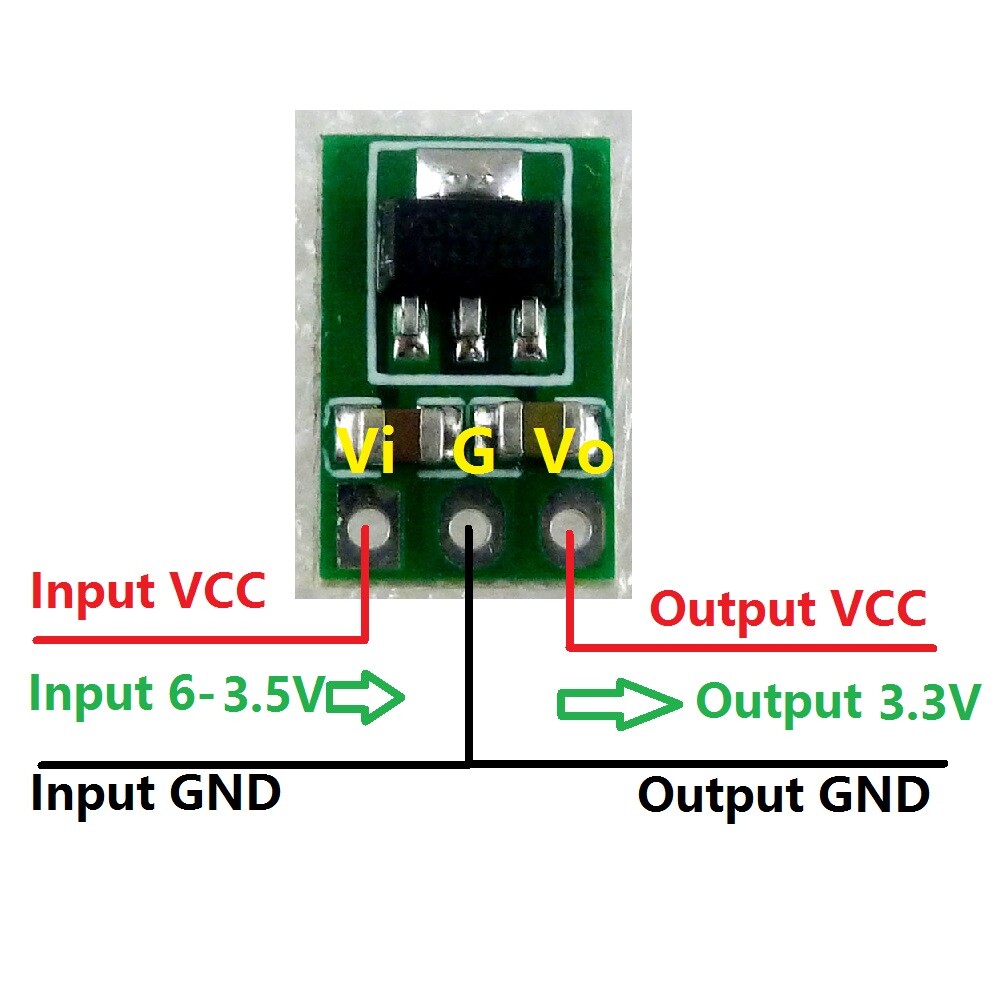

3.3V :

Low power consumption,Low ESR Cap.Compatible DD0403MA Series LDO Module,Very suitable for lithium battery-powered

Input voltage: DC 3.5-6V

Output voltage: DC 3.3V

Long time maximum output current 300mA

Short time maximum output current 400mA

Highly Accurate：±2%

Quiescent Current : 8uA

Short Circuit Current : 30mA

Over Current Protection : 500mA

Operating Temperature: -25℃ ~ +85℃

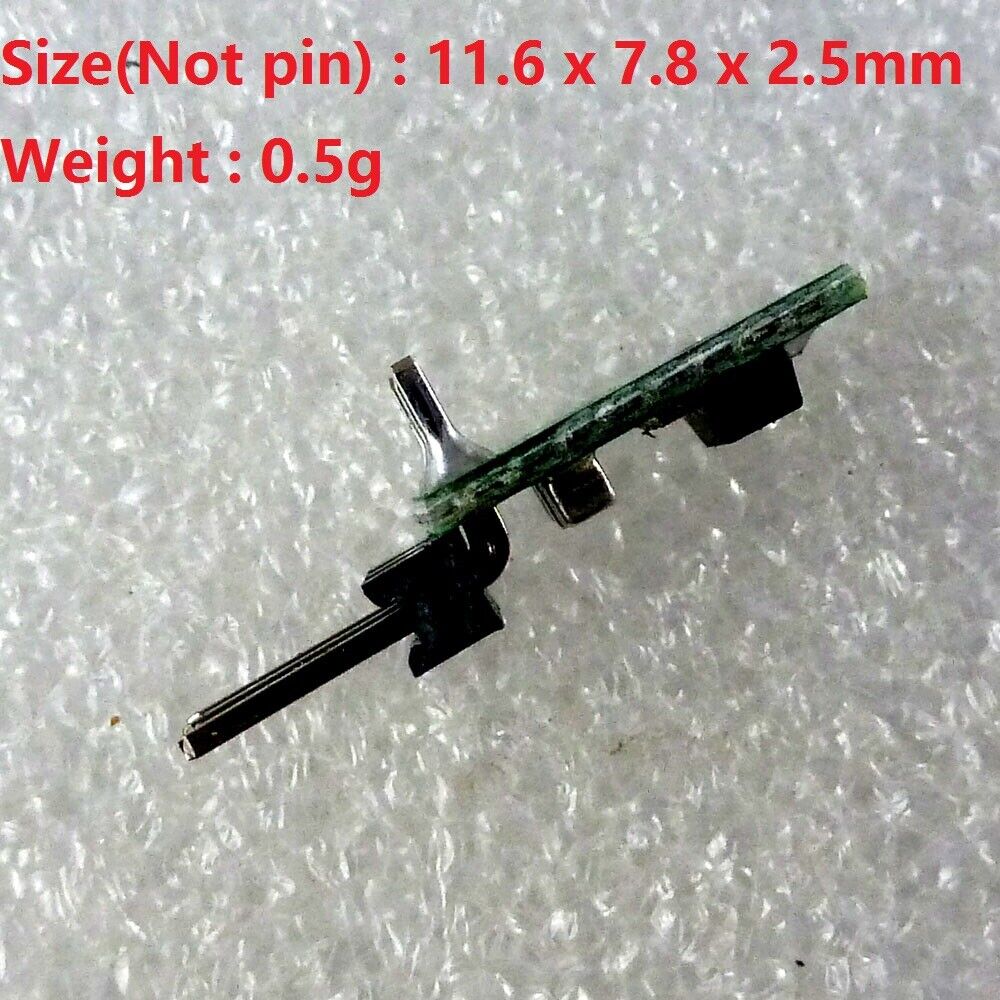

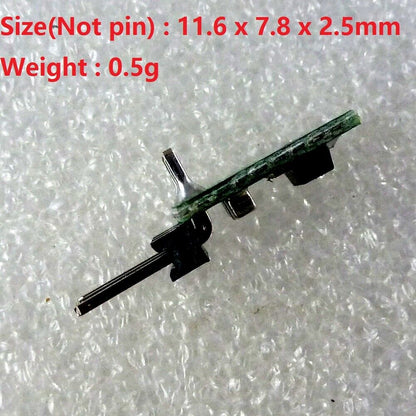

Size(Not including pin) : 11.6 x 7.7 x 2.5mm

Weight : with pin 0.54g,no pin 0.33g




Attention :


This is a DC-DC voltage converter module,Must be noted when using:



1 Input voltage can not be greater than the maximum input range


2 Output power can not be greater than the maximum load for a long time


3 Input power must be greater than the output power, because the power consumption of the module itself
