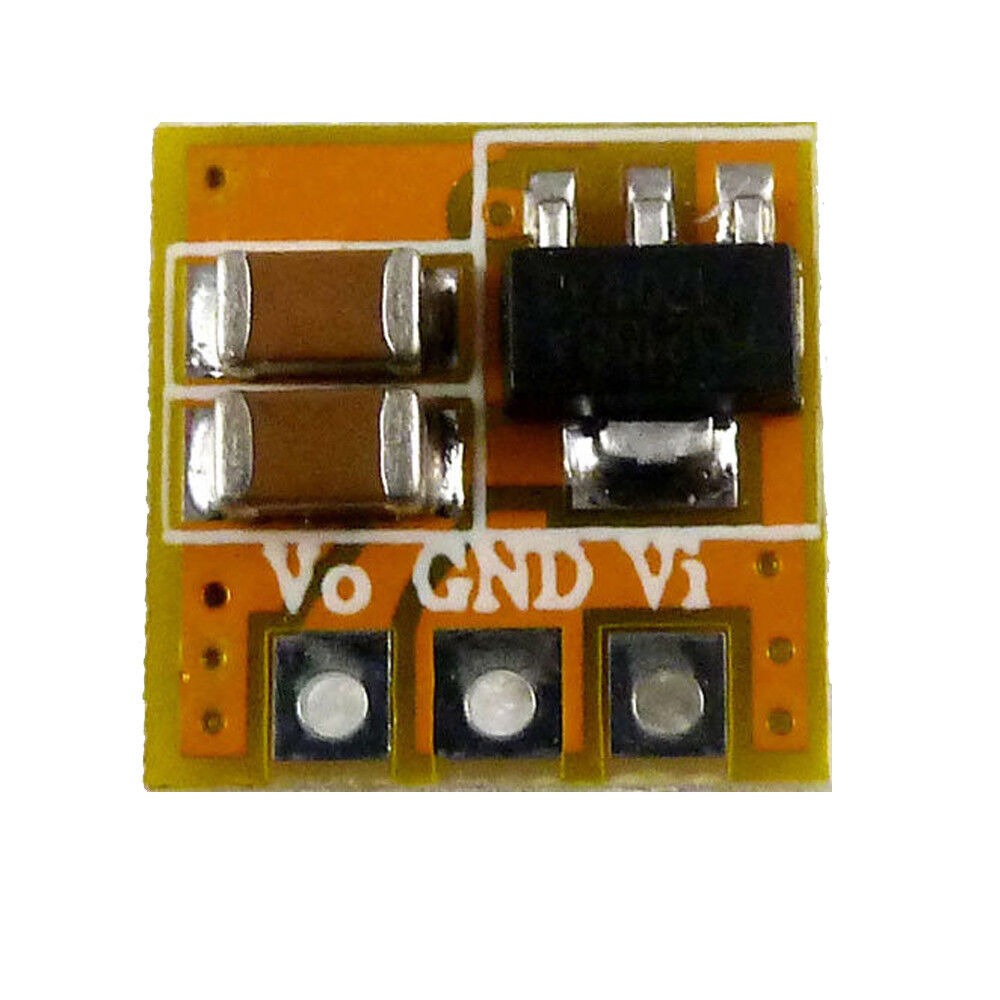

Product Name: 0.7-5V to 3V 3.3V 5V DC DC Boost Converter voltage Step-up Module
Packing list: 1 PCS mini High Efficiency synchronous PFM step-up DC-DC converter

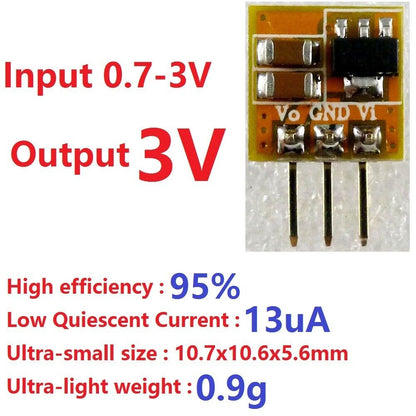

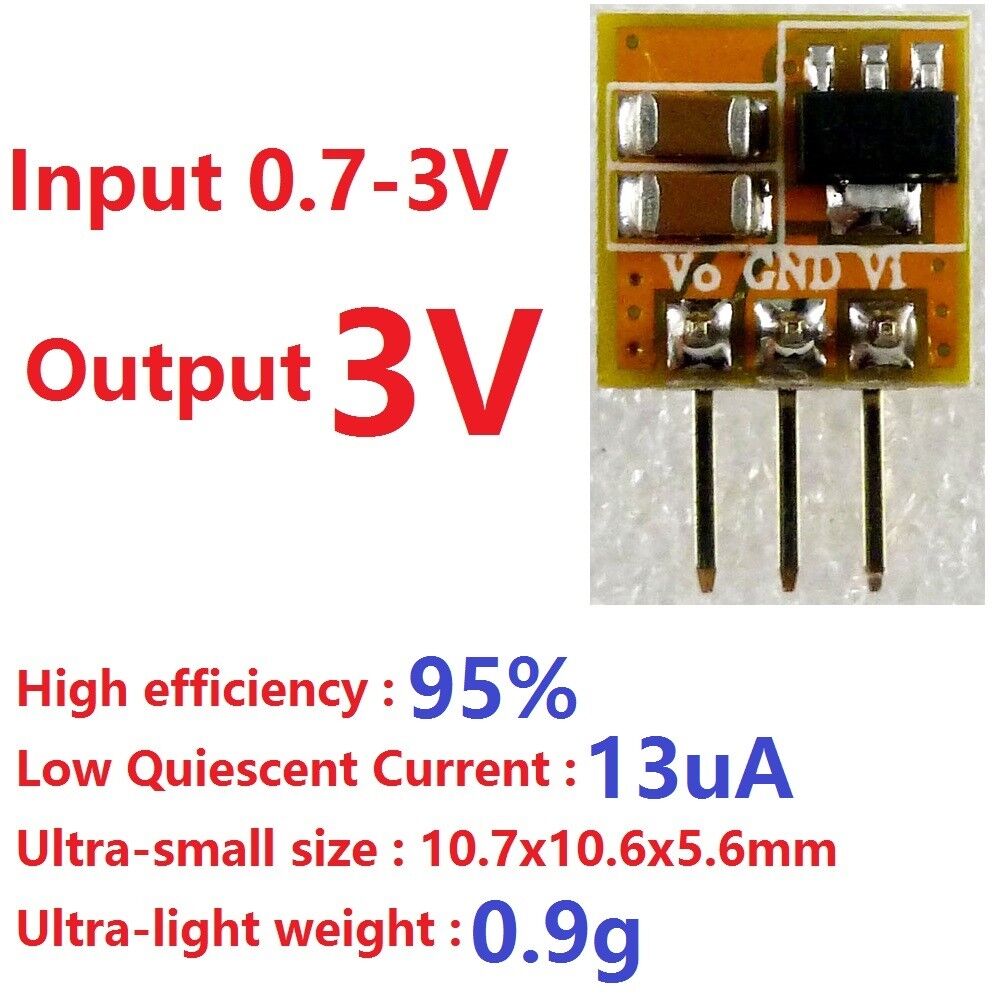

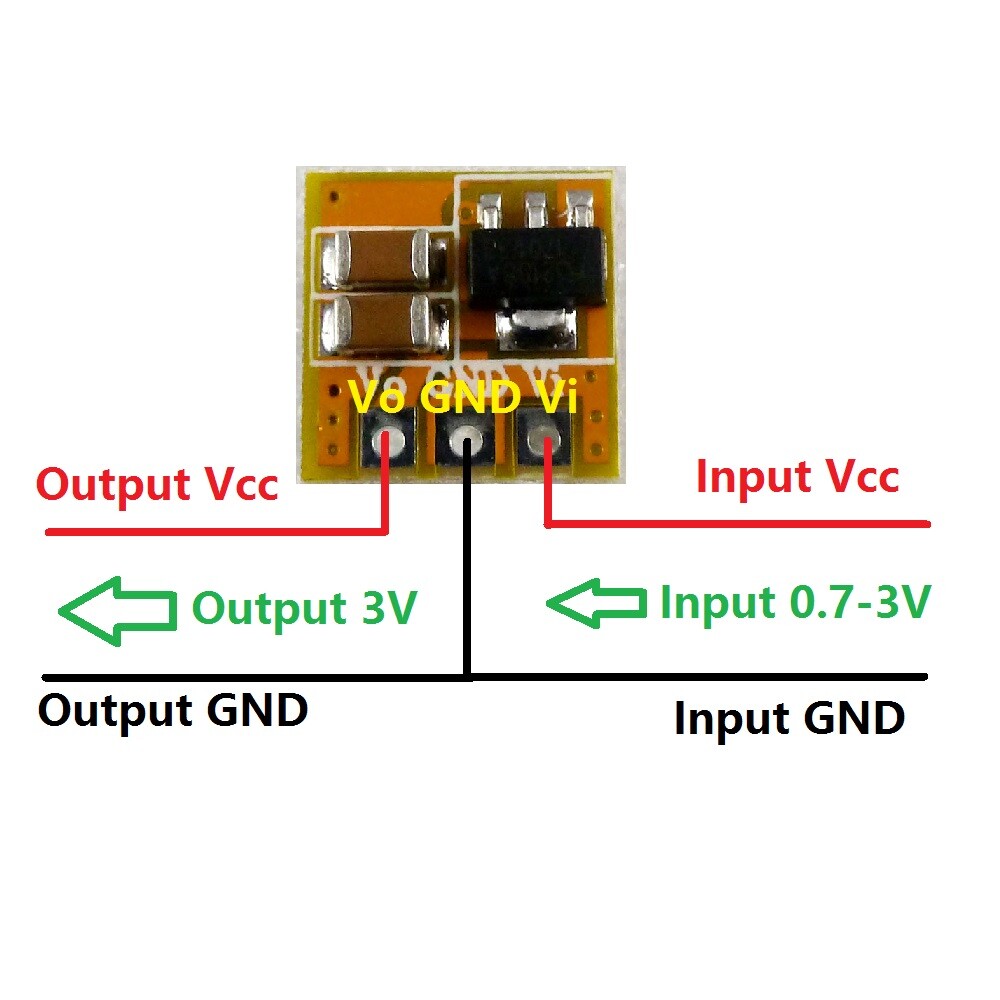

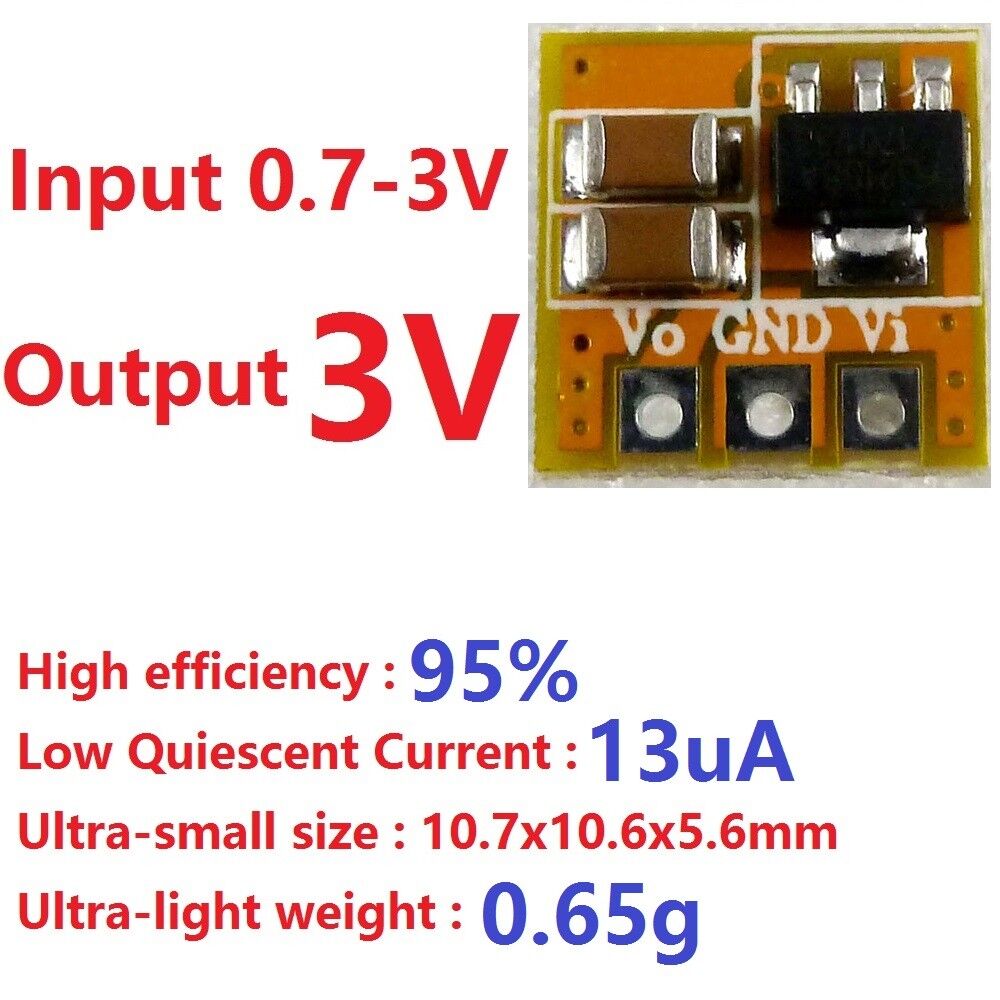

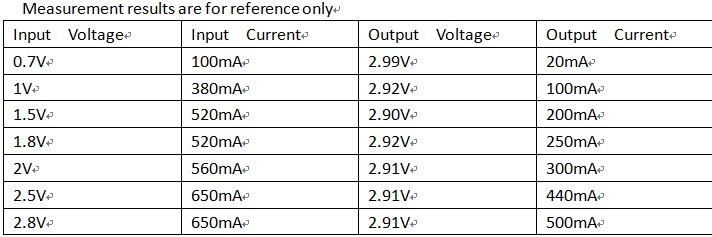

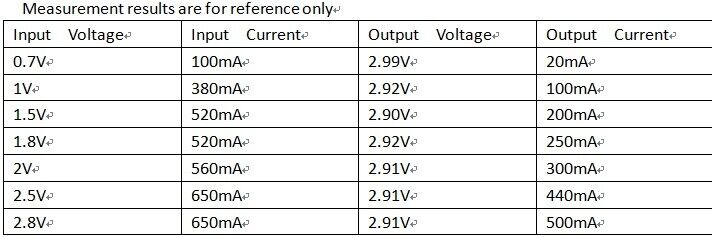

Input voltage DC 0.7 ~ 3V,output DC 3V±2%
DC DC Boost Converter Module working frequency 350KHZ.
High efficiency : 95% (usually is 77%-93%)
Low Quiescent Current : 13uA
Low ripple and Low noise

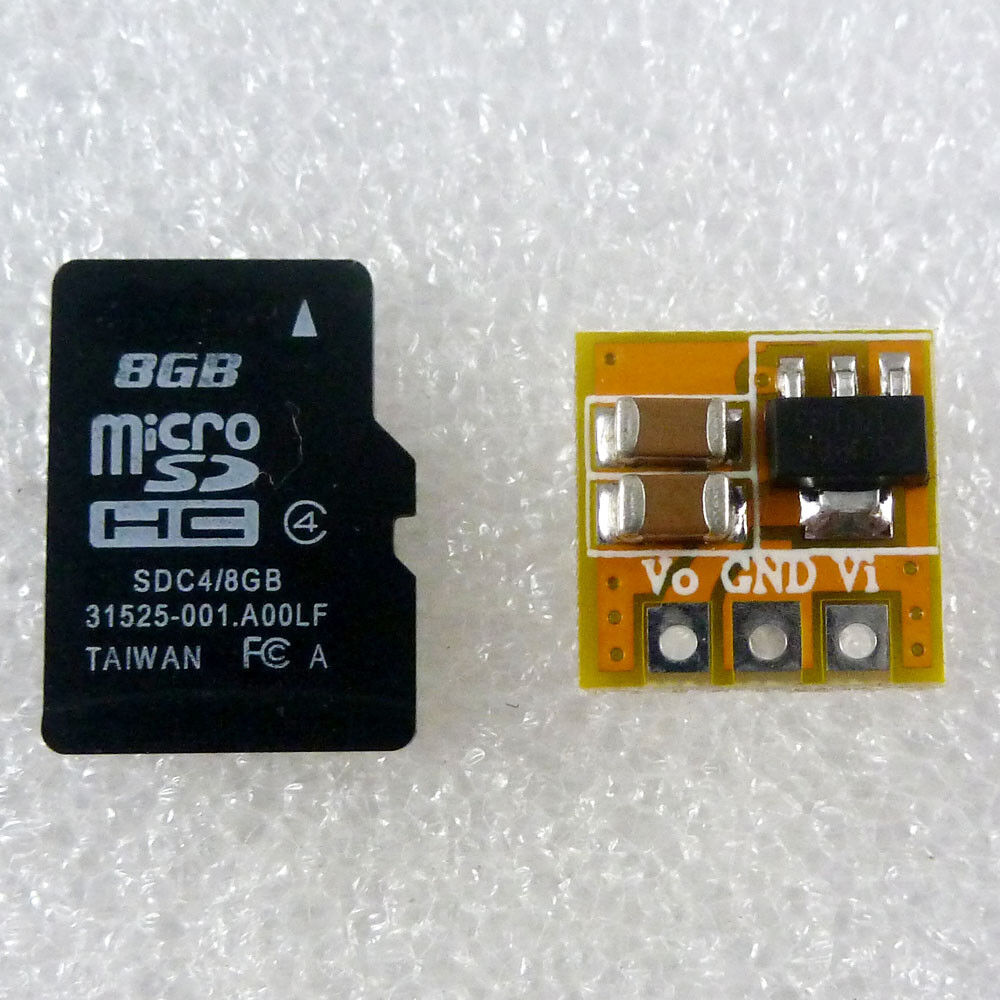

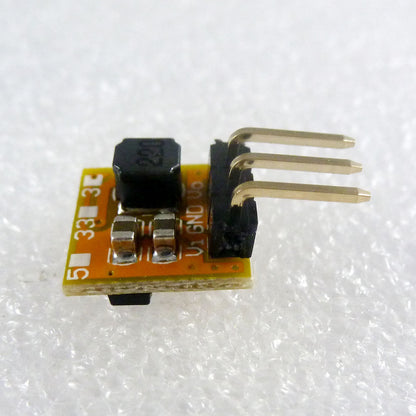

Ultra-small size(Not including pin): 10.7x10.6x5.6mm
Ultra-light weight : with Pin is 0.9g,no Pin is 0.65g

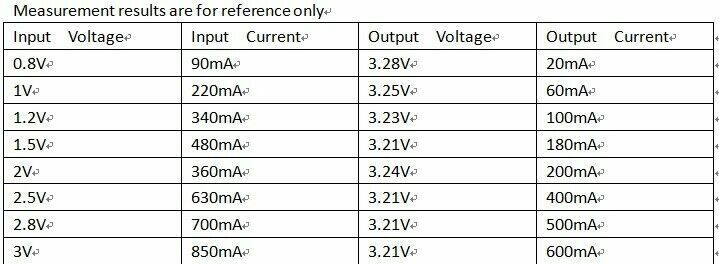

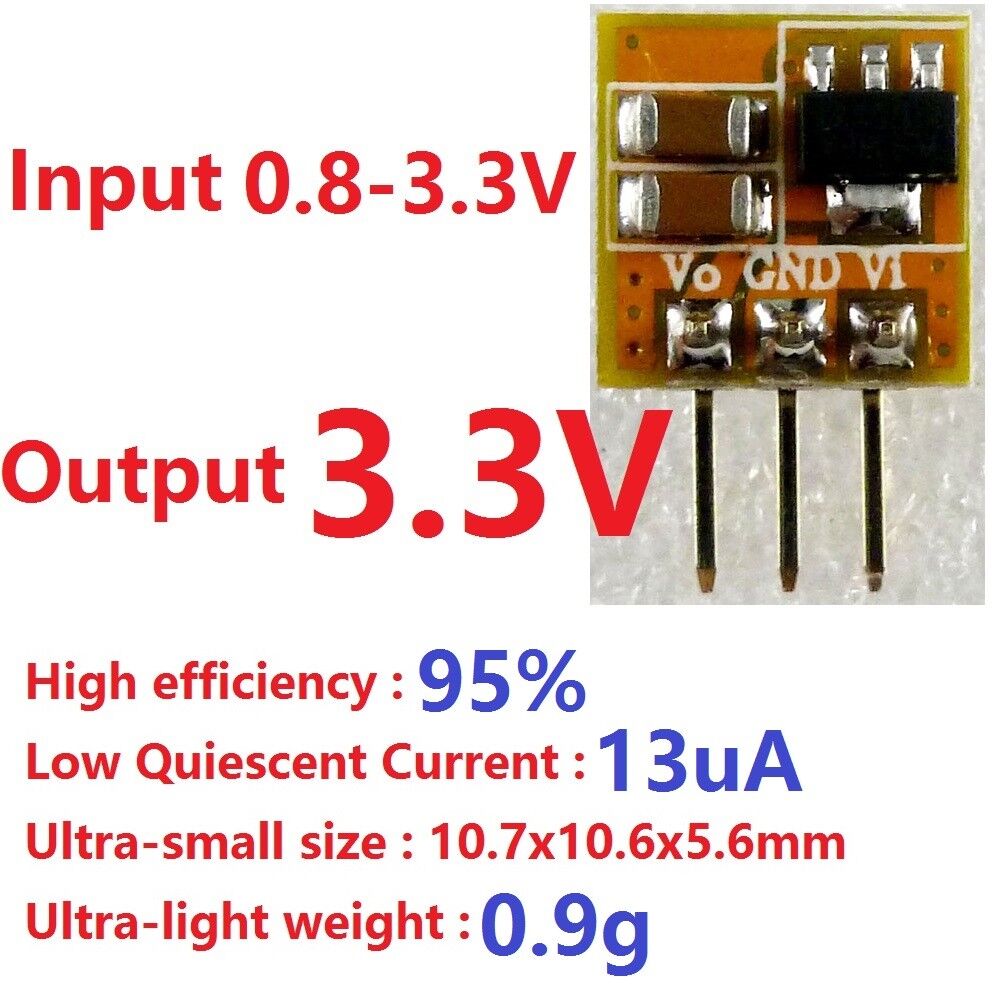

3.3V :

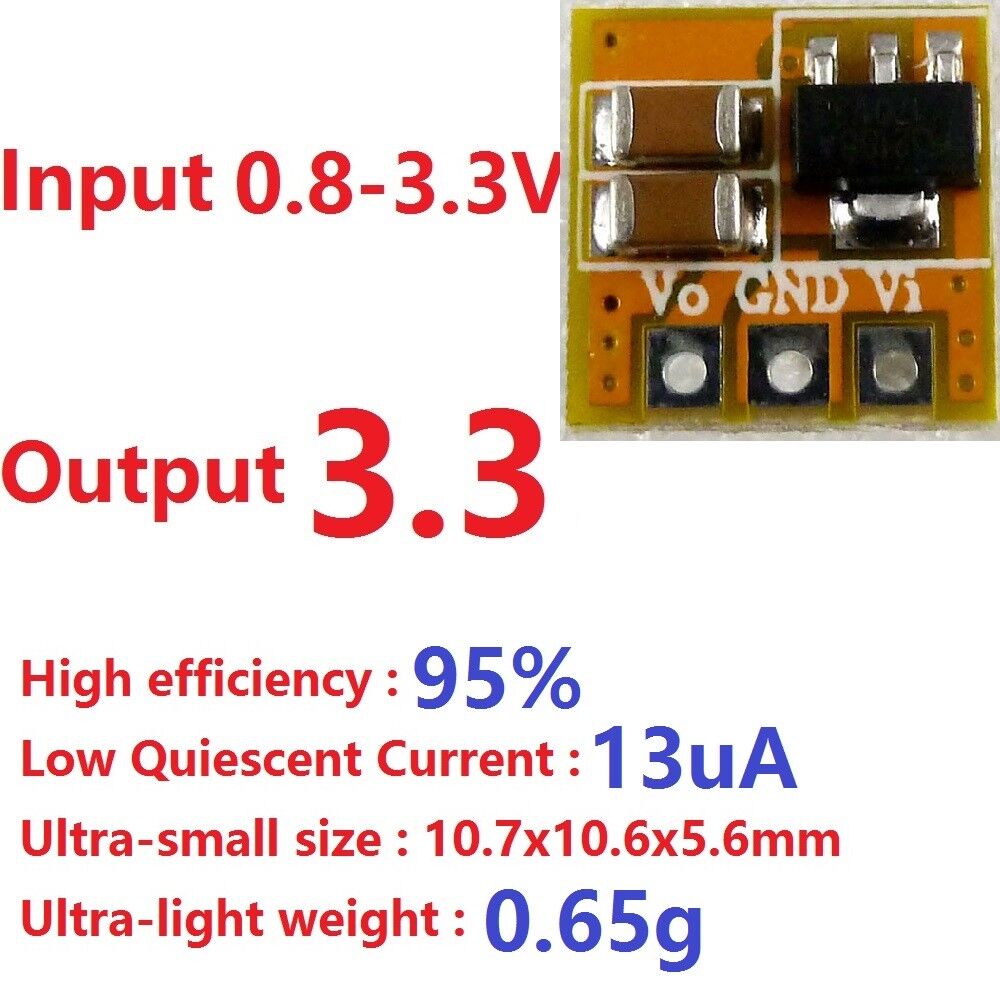

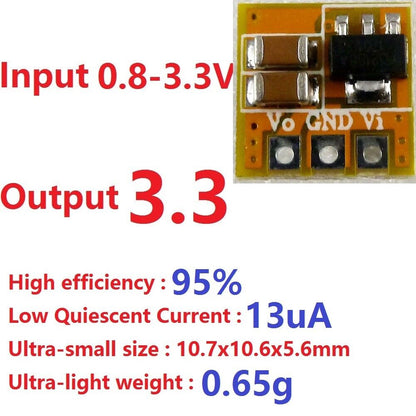

Input voltage DC 0.8 ~ 3.3V,output DC 3.3V±2%
DC DC Boost Converter Module working frequency 350KHZ.
High efficiency : 95% (usually is 75%-93%)
Low Quiescent Current : 13uA
Low ripple and Low noise
Ultra-small size (Not including pin): 10.7x10.6x5.6mm
Ultra-light weight : with Pin is 0.9g,no Pin is 0.65g

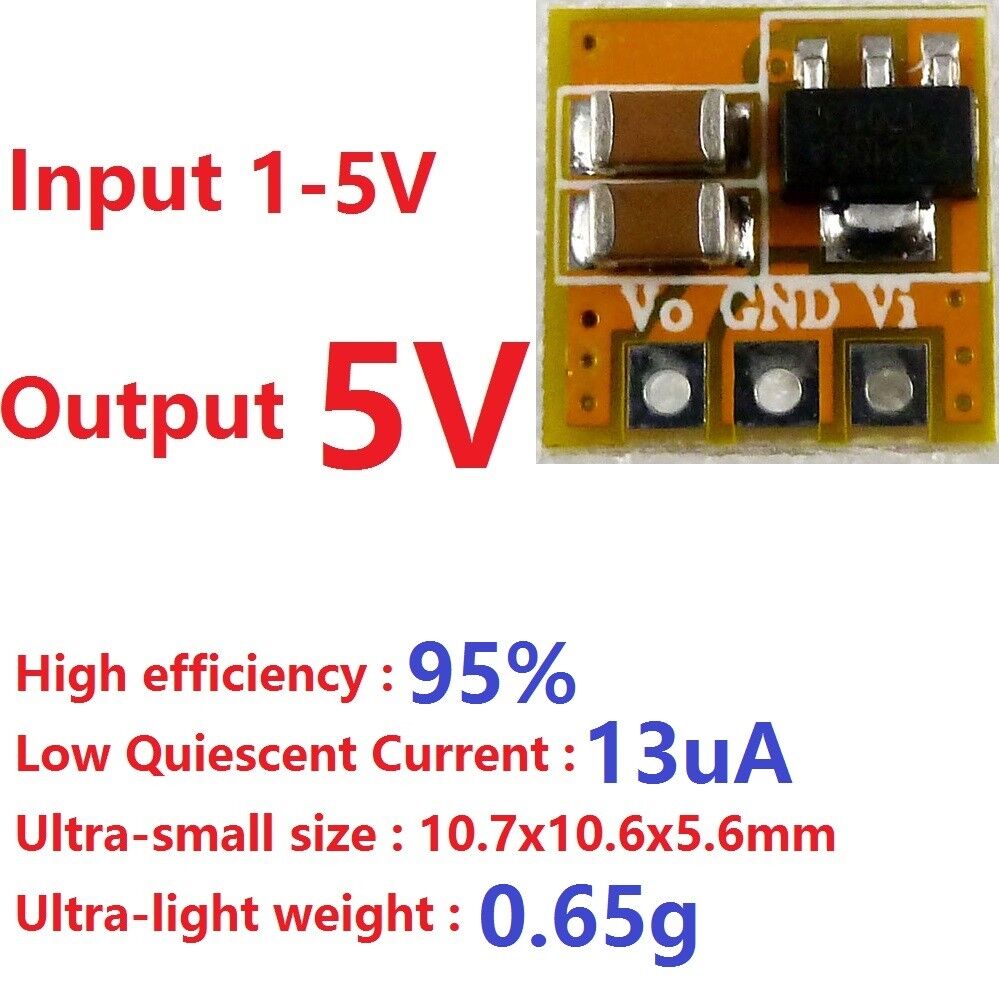

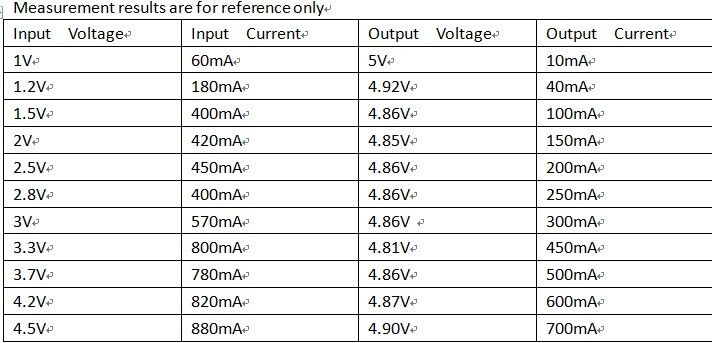

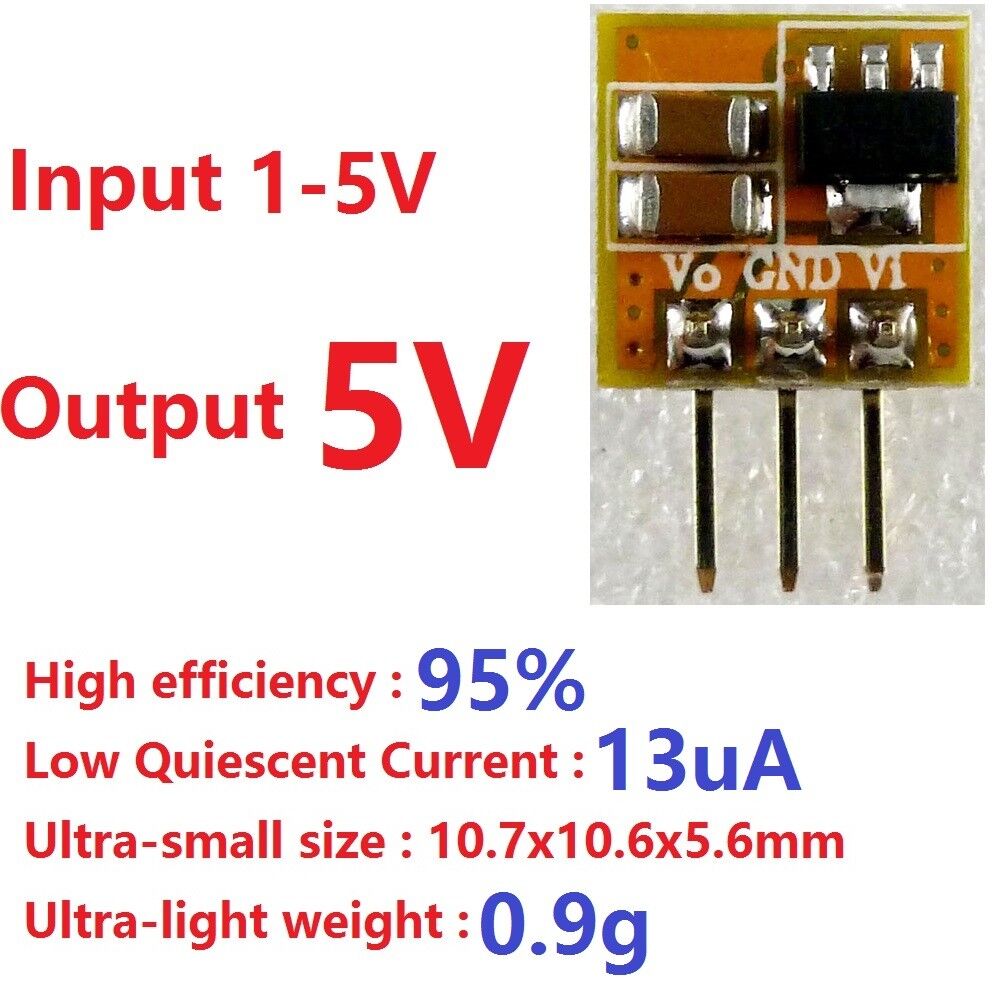

5V :

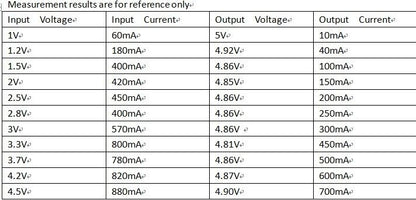

Input voltage DC 1 ~ 5V,output DC 5V±2%
DC DC Boost Converter Module working frequency 350KHZ.
High efficiency : 95% (usually is 76%-93%)
Low Quiescent Current : 13uA
Ultra-small size (Not including pin): 10.7x10.6x5.6mm
Ultra-light weight : with Pin is 0.9g,no Pin is 0.65g
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
AA AAA Dry cell powered equipment
Breadboard Power Supply
Small power motors
Camera, Video camera
Electric toys
Model aircraft
LED Lighting
raspberry pi Arduino UNO MEGA2560
electronic diy kit
STM32 FPGA/CPLD PIC AVR Board
electronic diy kit
Wifi Module,ESP8266
Bluetooth Module,HC-05,HC-06,SPP-C
