DD0505MC 250mA SMD 3V 3.3V 3.7V to 5V DC DC Boost Step-Up Converter Power Module
DD0505MC 250mA SMD 3V 3.3V 3.7V to 5V DC DC Boost Step-Up Converter Power Module
SKU:DD0505MD
1000 in stock
Regular price
$0.99
Regular price
$0.99
Sale price
$0.99
Unit price
per
Couldn't load pickup availability
Applications:
Low-power LED Driver
White LED Backlighting
LCD display
sensor
Li-Ion Battery Backup Supplies
Local 3V to 5V Conversion
Smart Card Readers
PCMCIA Local 5V Supplies
Product Name : DD0505MD 250mA SMD 3V 3.3V 3.7V to 5V DC DC Boost Step-Up Converter Power Module
Module No.: DD0505MD
Packing list:
1 PCS DD0505MD SMD 250MA 2.8V-5V to 5V DC DC Boost Converter
This is a micro-power( only 250MA ) DC-DC Step-Up Converter module.
If you need 1200MA 3V-5V to 5V Boost module ,Click here
If you need 1200MA 5V-23V to 5V Buck module ,Click here
Description:
Low Noise, Regulated Charge Pump DC/DC Converter

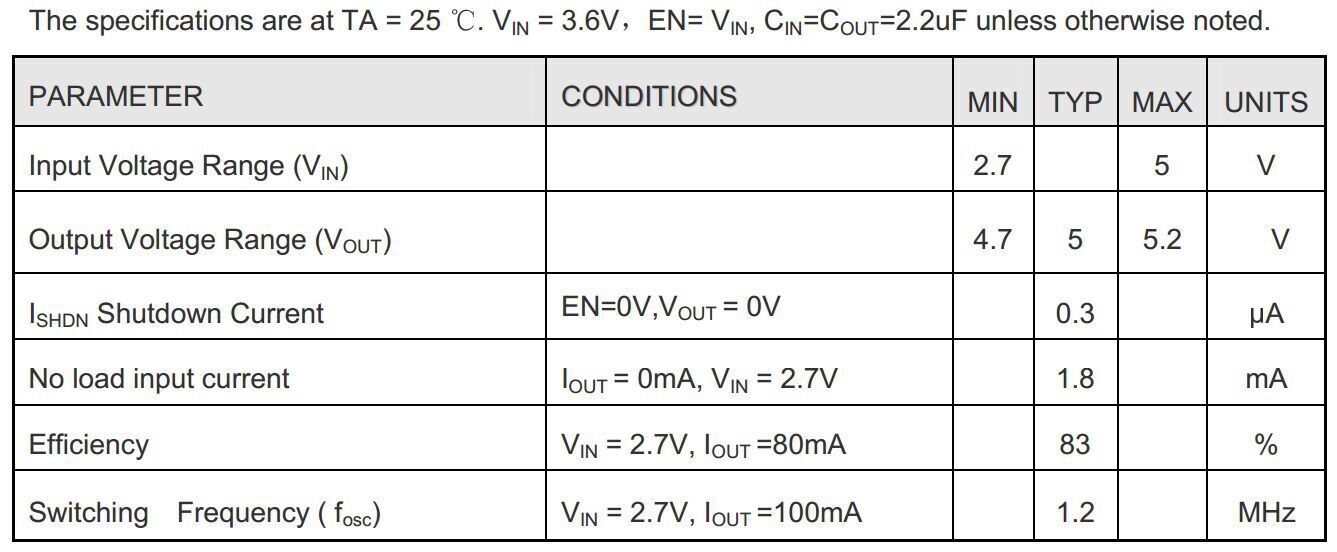

It produce a regulated output voltage from a 2.8V to 4.5V input with up to 250mA of output current
Fixed 5V+-4% Output

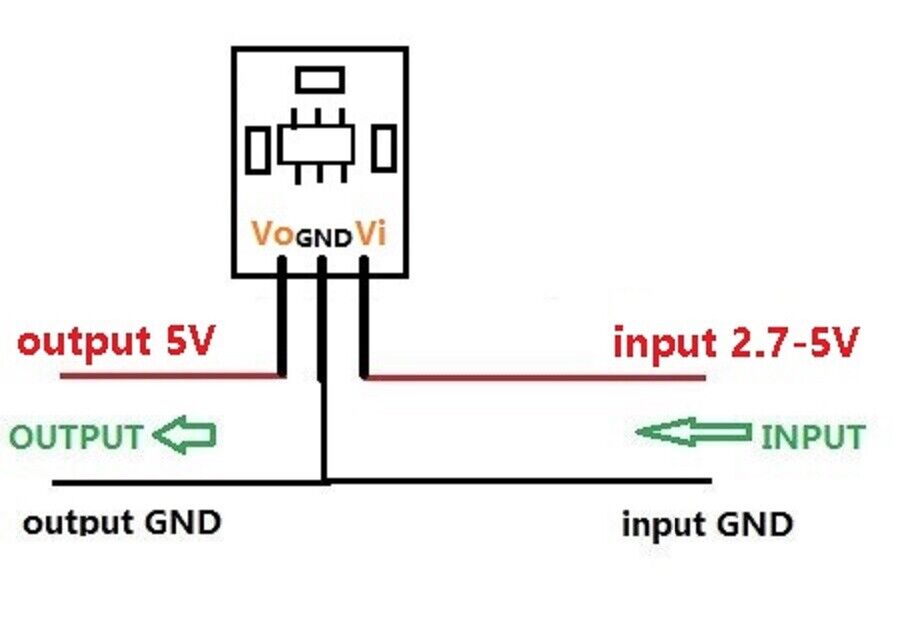

Voltage Input Range: 2.7~5V
Long time maximum output current 200mA
Short time maximum output current 250mA
working frequency 1.2MHz.
Short-Circuit Protection
No load input current : 1.8mA
2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly

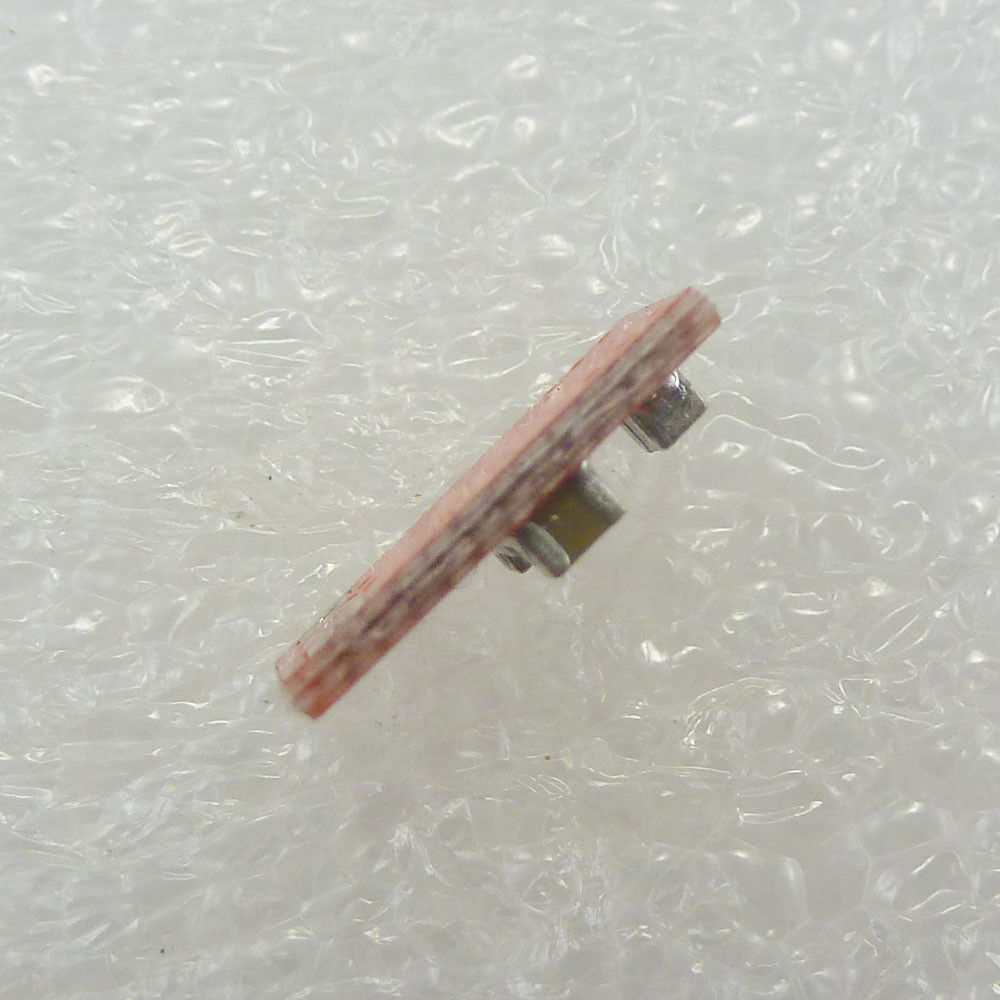

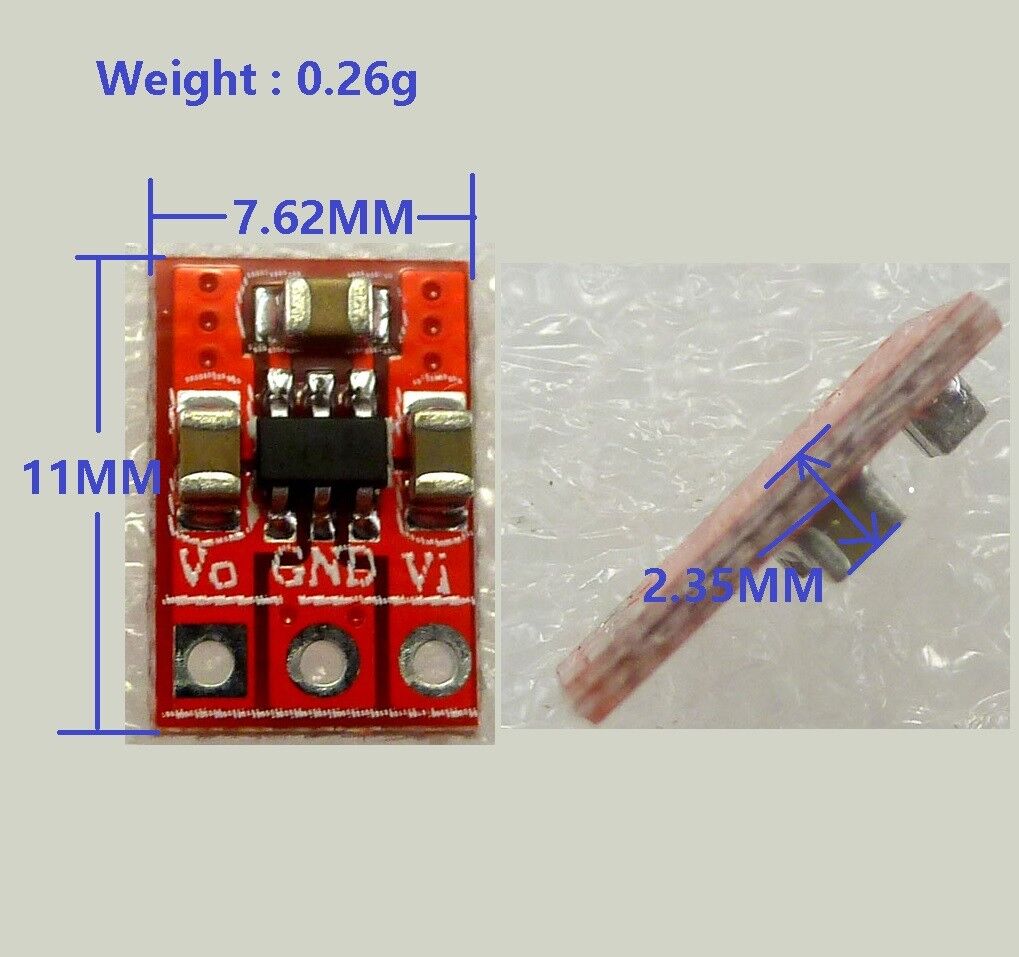

Size 11mm x 7.62mm x 2.4mm(Very very small)
Weight : about 0.26g(Very very light)
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
