DD0505MC 3V 3.3V 3.7V to 5V Charge Pump DC DC Converter Boost Step Up Power Module for LED MCU 18650

DD0505MC 3V 3.3V 3.7V to 5V Charge Pump DC DC Converter Boost Step Up Power Module for LED MCU 18650

DD0505MC

1000 in stock

$0.99
$1.99 $0.99
Sale Sold out
Applications:
Low-power LED Driver
White LED Backlighting
Li-Ion Battery Backup Supplies
Local 3V to 5V Conversion
Smart Card Readers
PCMCIA Local 5V Supplies

Product Name:
DD0505MC 2PCS 3V 3.3V 3.7V to 5V Charge Pump DC DC Converter Boost Step Up Power Module for LED MCU 18650

Packing list:
2 PCS 250MA 2.7V-5V to 5V DC DC Boost Converter

This is a micro-power( only 250MA ) DC-DC Step-Up Converter module.
If you need 1200MA 3V-5V to 5V Boost module , Click here
If you need 1200MA 5V-23V to 5V Buck module , Click here

Description:
Low Noise, Regulated Charge Pump DC/DC Converter
It produce a regulated output voltage from a 2.7V to 4.5V input with up to 250mA of output current
Fixed 5V+-4% Output

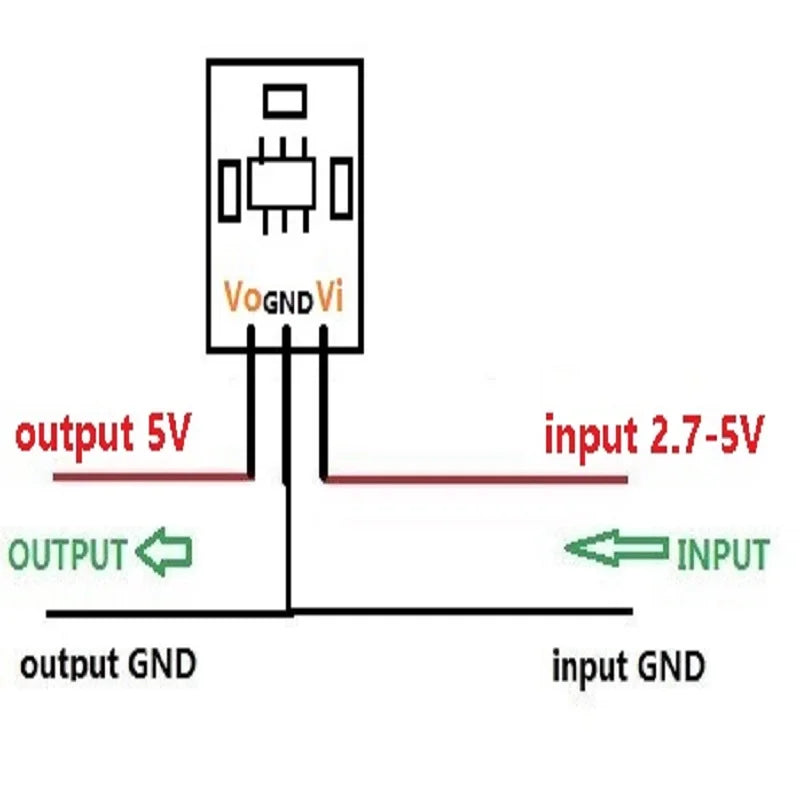

Voltage Input Range: 2.7~5V
Long time maximum output current 200mA
Short time maximum output current 250mA
working frequency 1.2MHz.
Short-Circuit Protection
No load input current : 1.8mA
2.54mm pin pitch, Arduiuo Breadboard MCU Development Board friendly

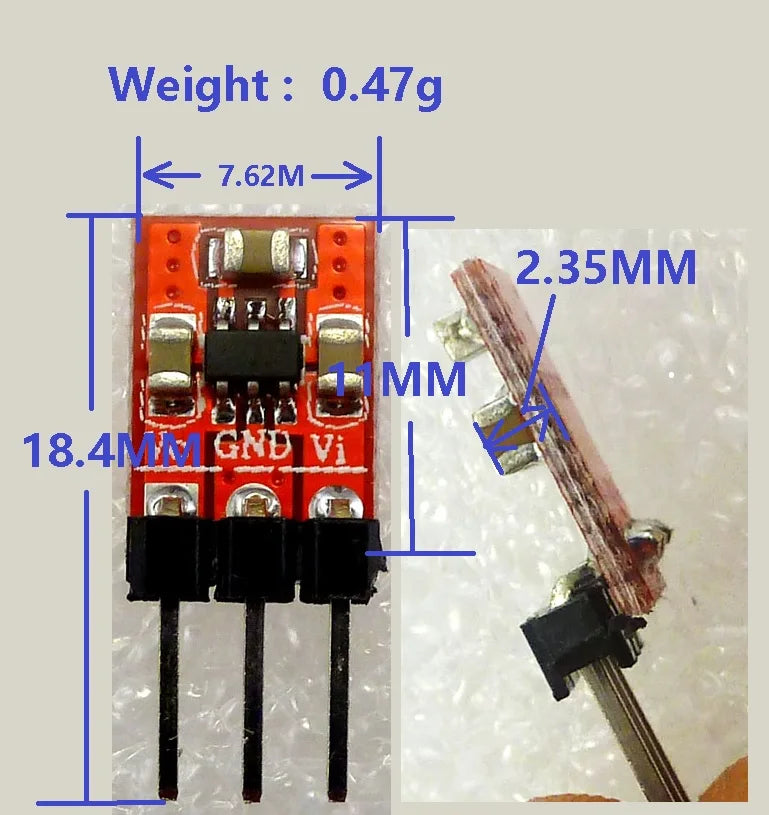

Excluding Pin Size 11mm x 7.62mm x 2.4mm(Very very small)
Weight : about 0.47g(Very very light)


Attention :
This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
