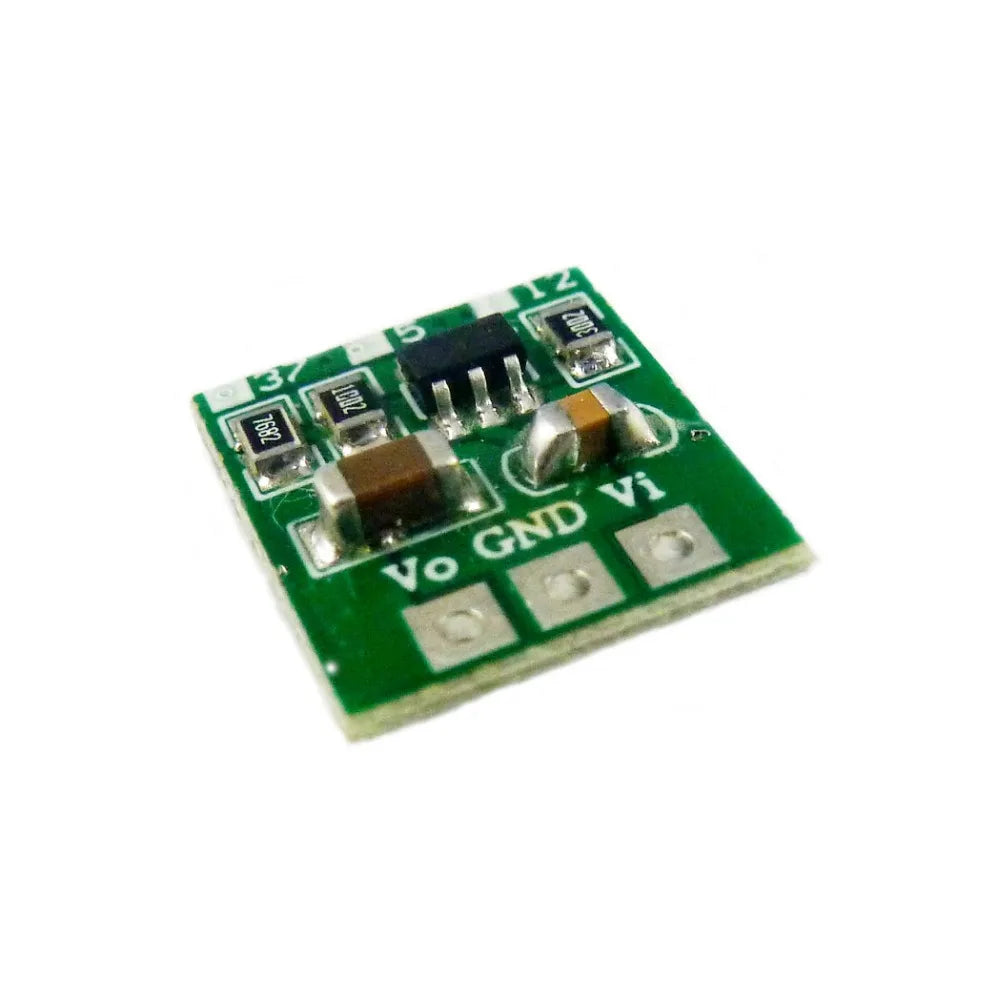

DD0512MA mini 6W 3V 3.3V 4.2V 4.5V to 3.7V 5V 12V DC DC Step-up Boost Converter for 18650 403040 Li-Po li ion lithium battery

DD0512MA mini 6W 3V 3.3V 4.2V 4.5V to 3.7V 5V 12V DC DC Step-up Boost Converter for 18650 403040 Li-Po li ion lithium battery

DD0512MA_3V7

1000 in stock

$1.99
$1.99 $1.99
Sale Sold out
Product Name: mini 5W 2.6-6V to 3.7V 5V 12V Boost Voltage Regulator Module DC-DC Step-up Converter Board DD0512MA


Packing list:


5 PCS 6W DD0512MA Ultra-small Ultra-small & Ultra-thin DC-DC Step-up Converter







Description:

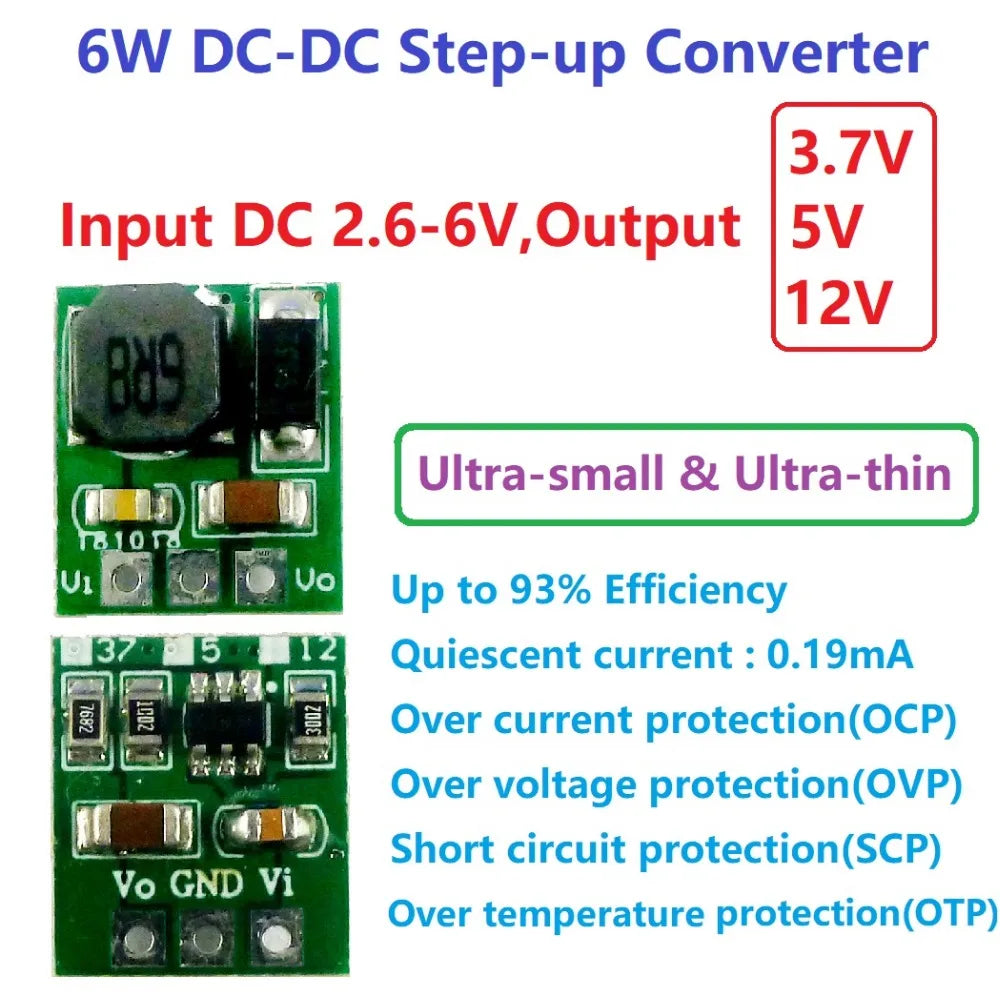

DC DC Boost Converter Module working frequency 1MHZ.




Up to 94% Efficiency (usually is 84%-91%)




Quiescent current : 0.19MA.



Operating temperature range : -40~+85 Degrees Celsius




Storage temperature range : -65~+150 Degrees Celsius

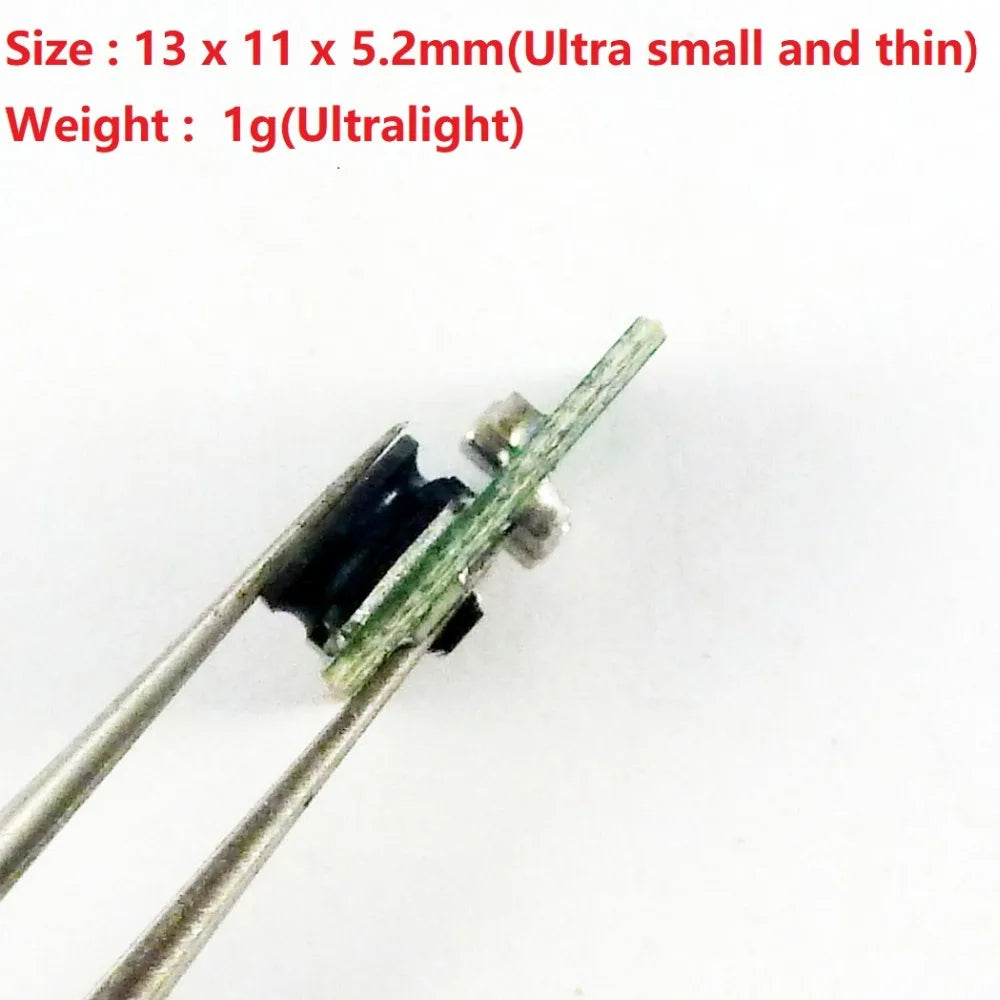

Size : 13 x 11 x 5.2mm(Ultra small and thin)


Weight : 1g(Ultralight)





Protection :





Over current protection(OCP)


Over voltage protection(OVP)


Short circuit protection(SCP)


Over temperature protection(OTP)

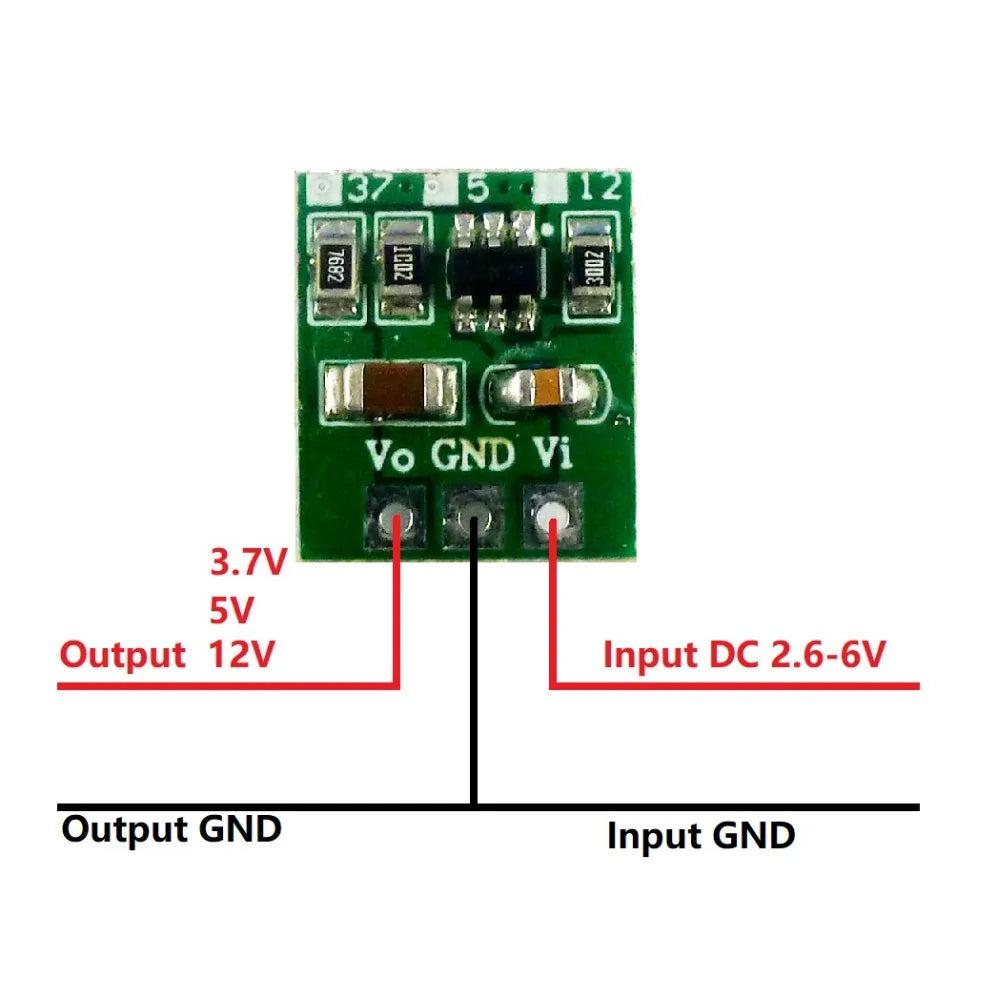

Pin description:







Pin description:


Vi : Input positive(+)


GND : Input and Output negative(GND/-)


Vo : Output positive(+)

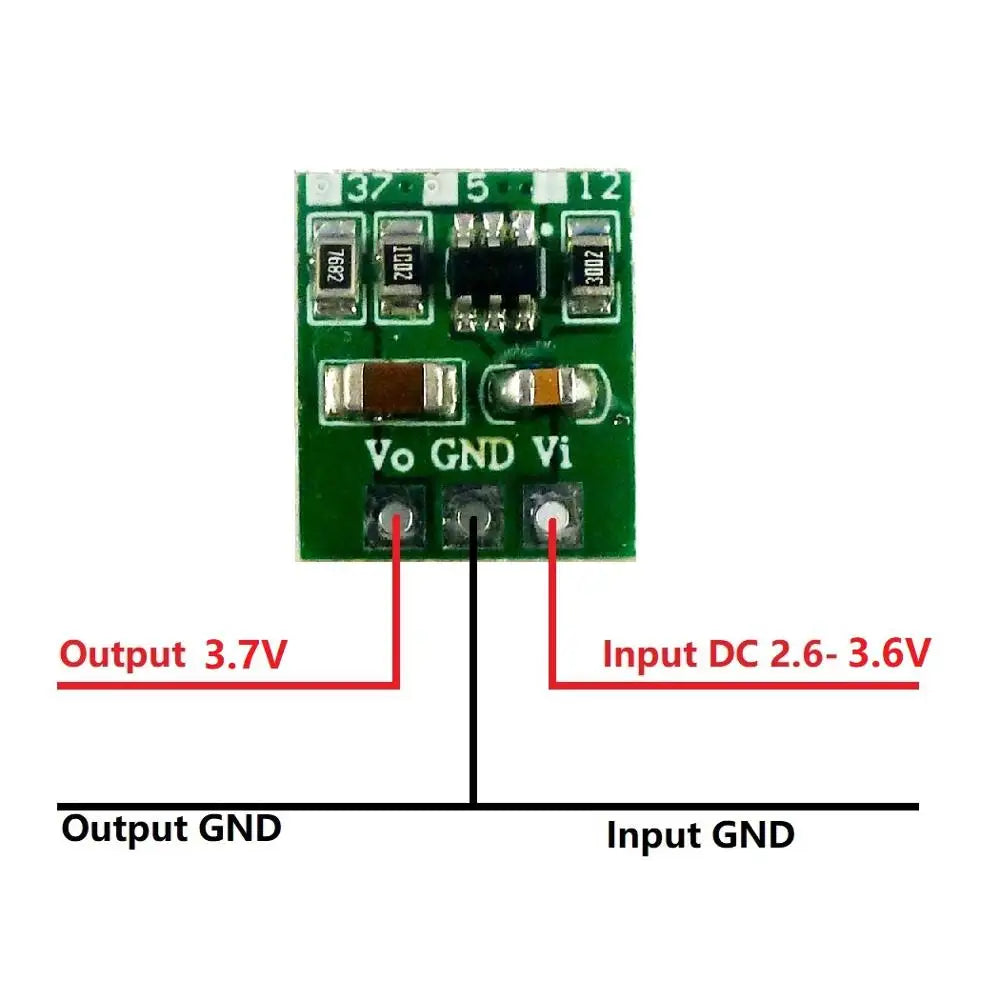

Output 3.7V :





Input voltage DC 2.6 ~ 3.6V,output DC 3.7V±3%

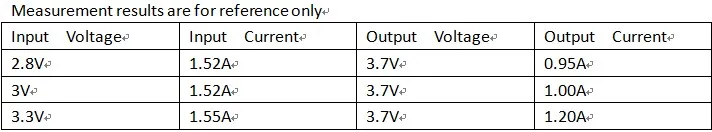

Maximum output : 3.7V/1200MA(See the table below for details)










Output 5V :





Input voltage DC 2.6 ~ 4.5V,output DC 5V±3%

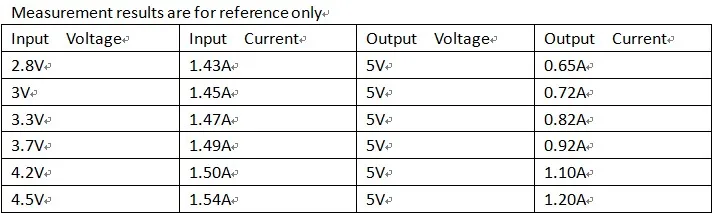

Maximum output : 5V/1200MA(See the table below for details)

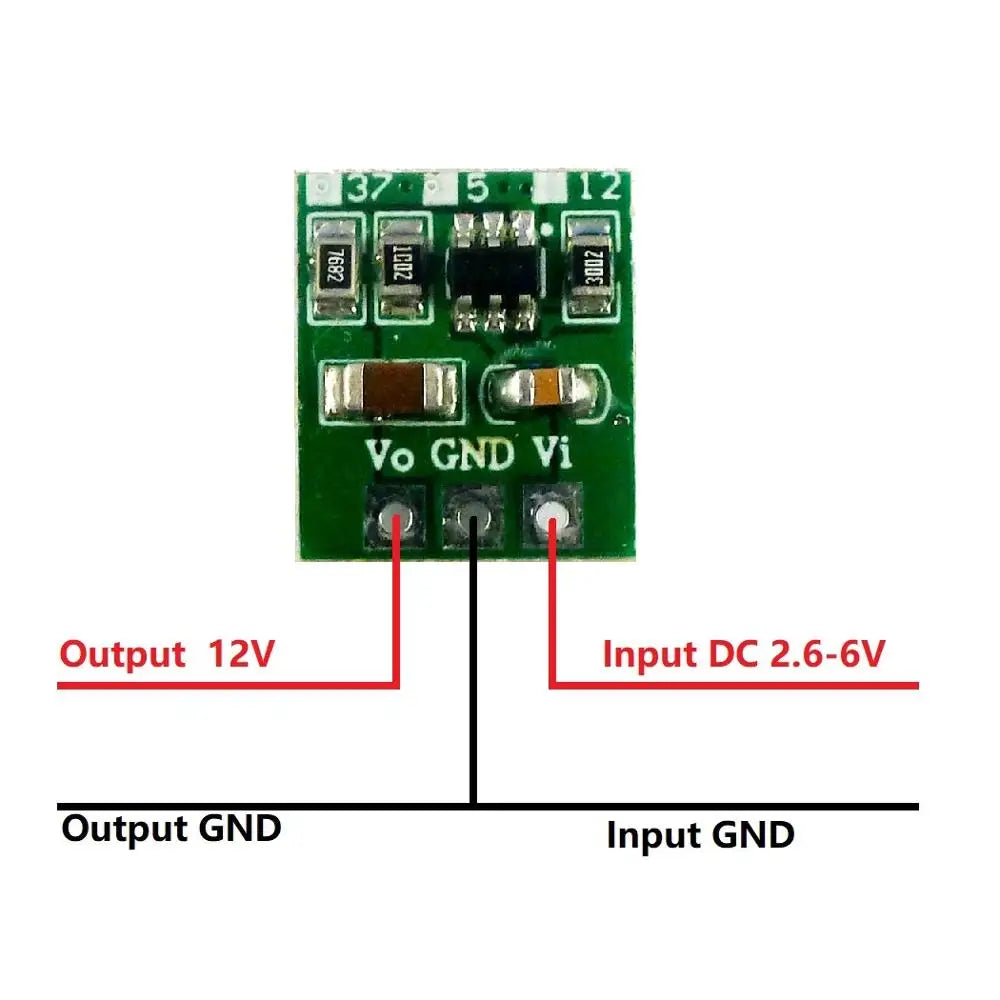

Output 12V :





Input voltage DC 2.6 ~ 6V,output DC 12V±3%


Maximum output : 12V/500MA(See the table below for details)











Applications







Battery powered equipment


Instrumentation, multimeter


Small power motors


PTZ Camera webcam


IP Camera


Toy car boat


Model aircraft


power bank


LED Lighting


WIFI Router


PLC RS485 devices


Lithium battery power supply equipment









Attention :





This is a DC-DC voltage converter module,Must be noted when using:

1 Input voltage can not be greater than the maximum input range

2 Output power can not be greater than the maximum load for a long time

3 Input power must be greater than the output power, because the power consumption of the module itself


Q & A:




Q : Why output voltage is less than the nominal voltage



A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
