DD05CRTA Max 1000mA DC1.5V 3V 3.3V 3.7V to 4.2V 5V Lithium Battery Power Charging Board
DD05CRTA Max 1000mA DC1.5V 3V 3.3V 3.7V to 4.2V 5V Lithium Battery Power Charging Board
SKU:DD05CRTA
1000 in stock
Regular price
$2.99
Regular price
$12.99
Sale price
$2.99
Unit price
per
Couldn't load pickup availability
Product Name: 2 in 1 DC1.5V 3V 3.3V 3.7V to 4.2V 5V Boost Charging board tp4056 charger Module
Module No.: CE-DD05CRTA*2
Packing list:
1 PCS DD05CRTA 2 in 1 DC 0.9-5V to 4.2V 5V Boost Charging board
Description:
DC 0.9-5V Boost Lithium Battery Charger Module - Linear charging.
Input voltage 0.9-5V

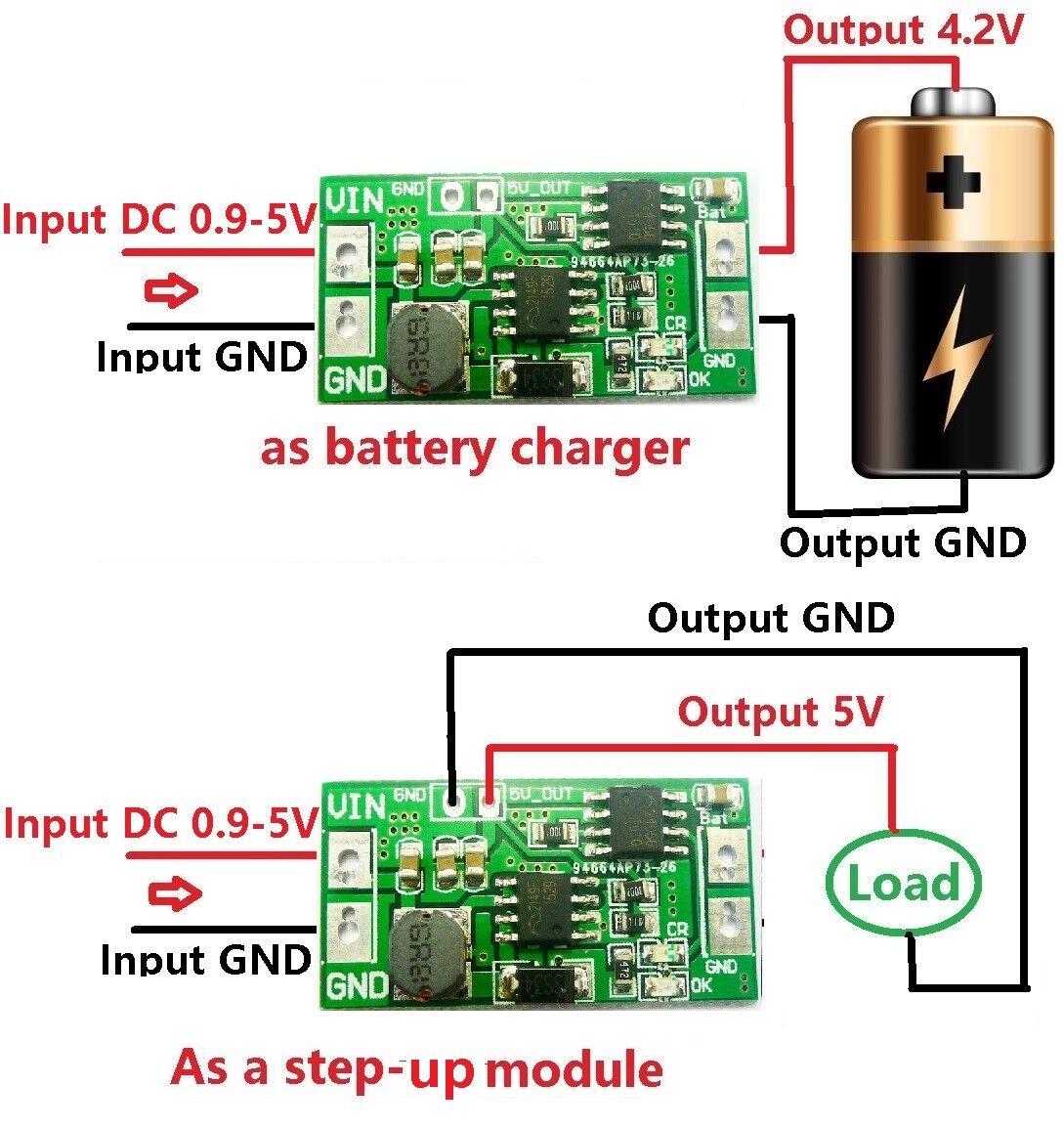

Output_1 : DC 4.2V/0-1A, as battery Charger
Maximum charging current : 1000MA
Full charge voltage : 4.2V+-2%.

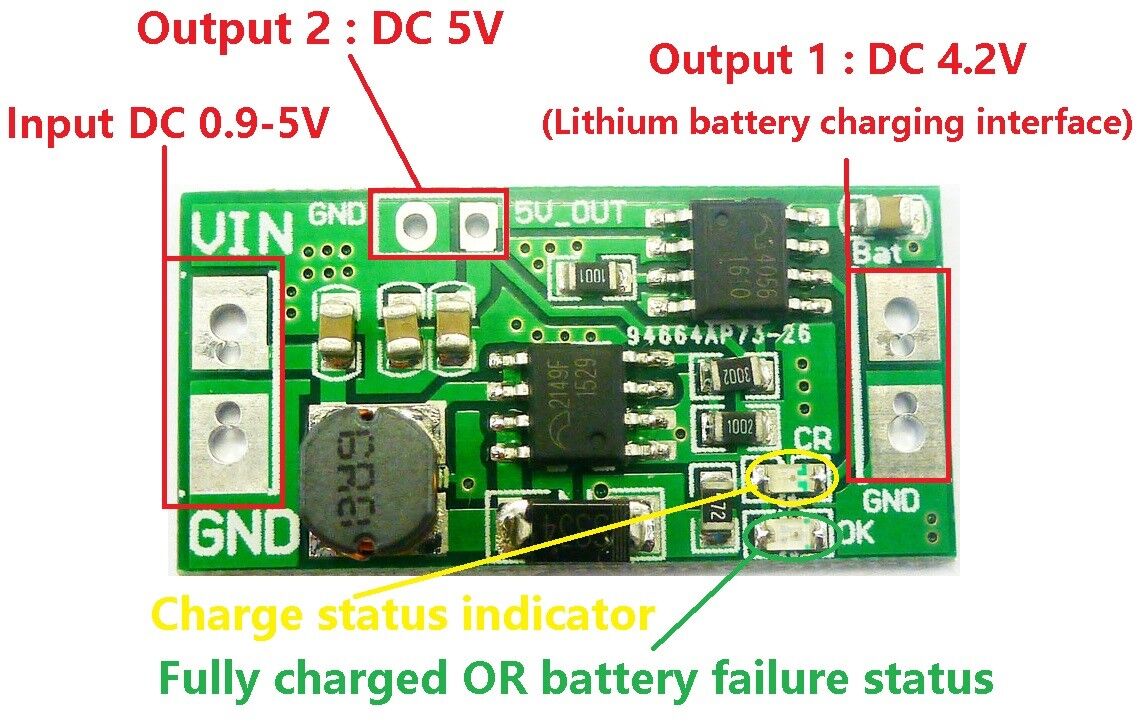

Led indicator : "OK" LED is fully charged OR battery failure status indicator;
"CR" LED is charge status indicator
Output_2 : 0.9-5V to 5V Step up module
Start Voltage 0.9V, Output Current 1MA
INPUT 1.2V/0.23A, OUTPUT_2 5V/0.04A;
INPUT 1.5V/1.24A, OUTPUT_2 5V/0.25A;
INPUT 1.8V/1.24A, OUTPUT_2 5V/0.35A;
INPUT 2.5V/1.22A, OUTPUT_2 5V/0.52A;
INPUT 3V/1.22A, OUTPUT_2 5V/0.65A;
INPUT 3V/1.5A, OUTPUT_2 5V/0.75A;
INPUT 3.3V/1.23A, OUTPUT_2 5V/0.72A;
INPUT 3.3V/1.5A, OUTPUT_2 5V/0.84A;
INPUT 3.7V/1.2A, OUTPUT_2 5V/0.8A;
Operating ambient temperature : -40° to +85°
Storage temperature : -65° to +125°

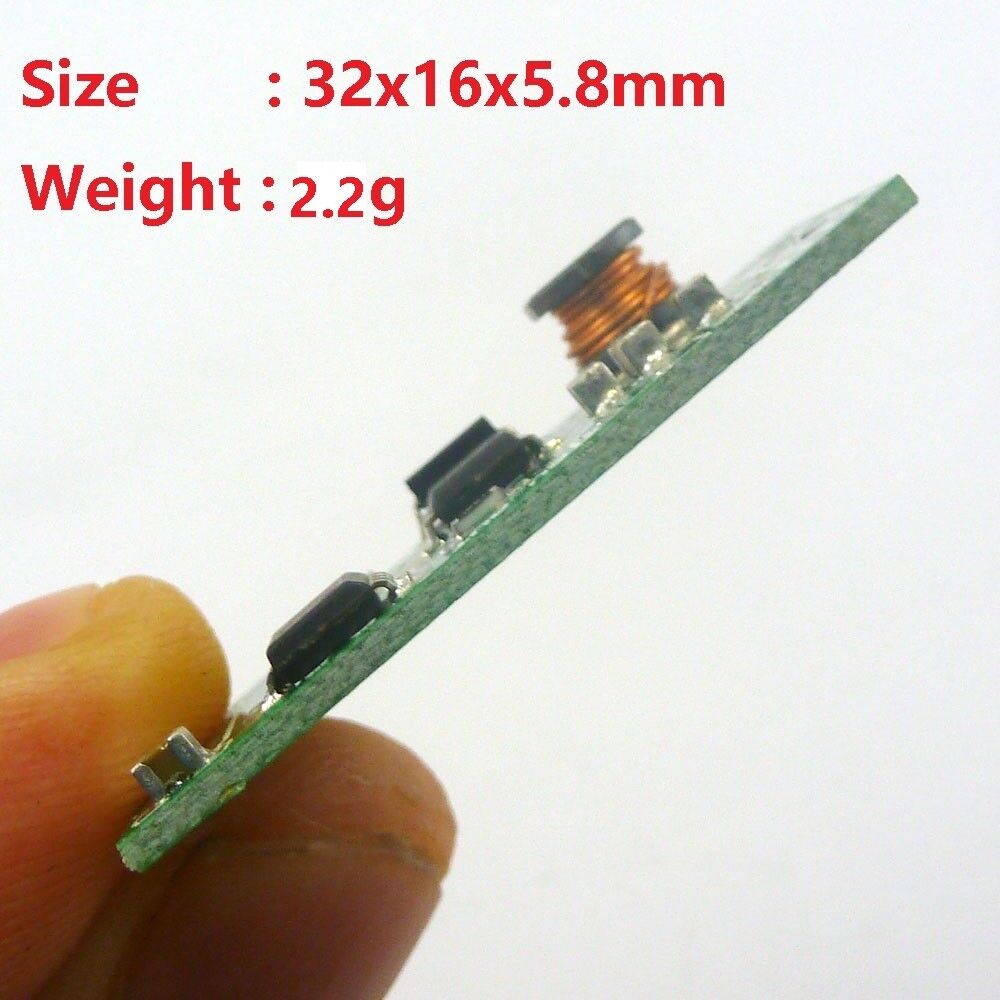

Size : 32x16x5.8mm
Weight : 2.2g
Can be used DC 0.9V-5V power supply charger(Such as Solar panels)Charging module comes with charge-management functions, will not overcharge or over discharge
Comes with rechargeable function,Will enter standby mode when fully charged.When the battery capacity is below 80%, the charging start.
Applications:
Battery powered equipment
Lithium Battery 18650
Mobile phone
Solar charging
MP3/MP4 player
Audio equipment
Portable Devices
Bluetooth Applications
Wifi Applications
