DD0603SA 2 In 1 0.9-6V To 3V 3.3V 3.7V 5Vauto Step-Up & Step-Down Dc Dc Converter
DD0603SA 2 In 1 0.9-6V To 3V 3.3V 3.7V 5Vauto Step-Up & Step-Down Dc Dc Converter
SKU:DD0603SA_3V
1000 in stock
Regular price
$1.84
Regular price
$1.84
Sale price
$1.84
Unit price
per
Couldn't load pickup availability
Product Name:2 in 1 0.9-6V to 3V 3.3V 3.7V 5VAuto Step-UP & Step-Down DC DC Converter DD0603SA_3V 3V3 3V7 5V
Packing list:

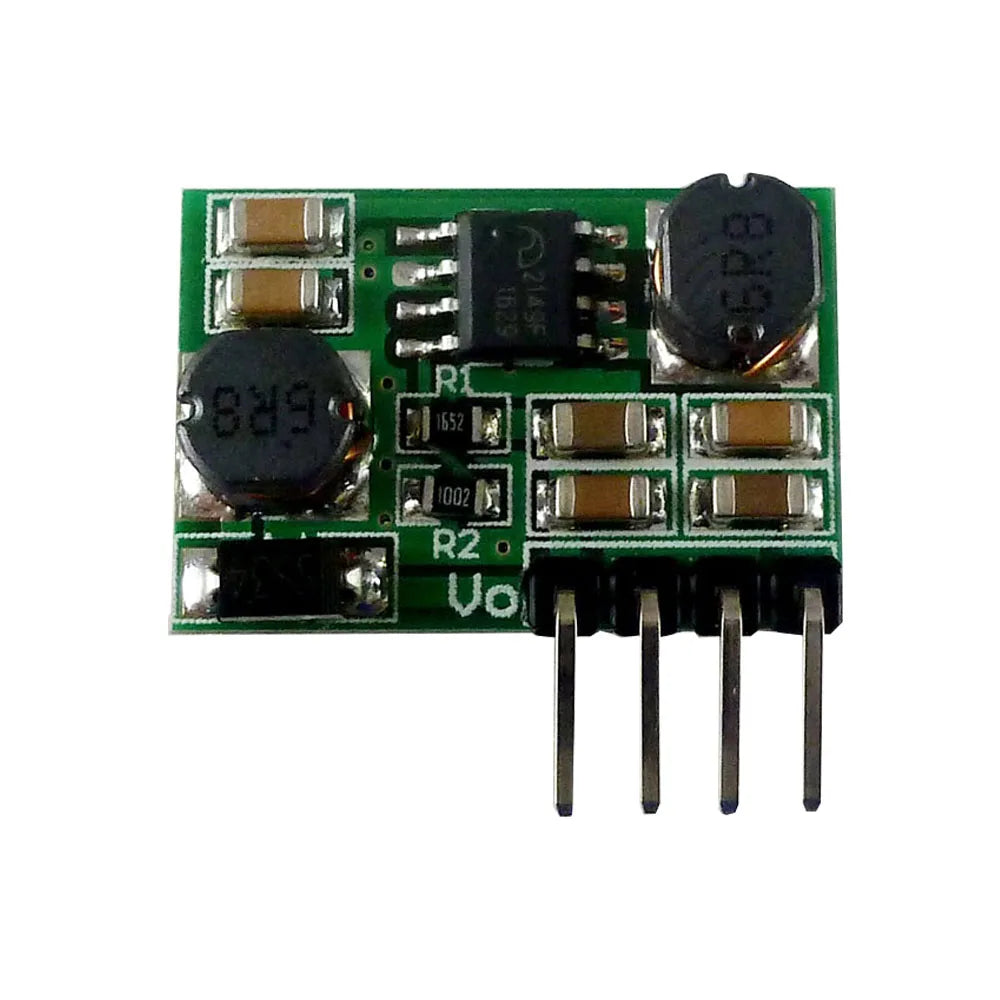

1PCS 3V or 3V3 or 3V7 or 5V 2 in 10.9-6V TO 3V 3.3V 3.7V 5V DC DC Boost-Buck Converter Board

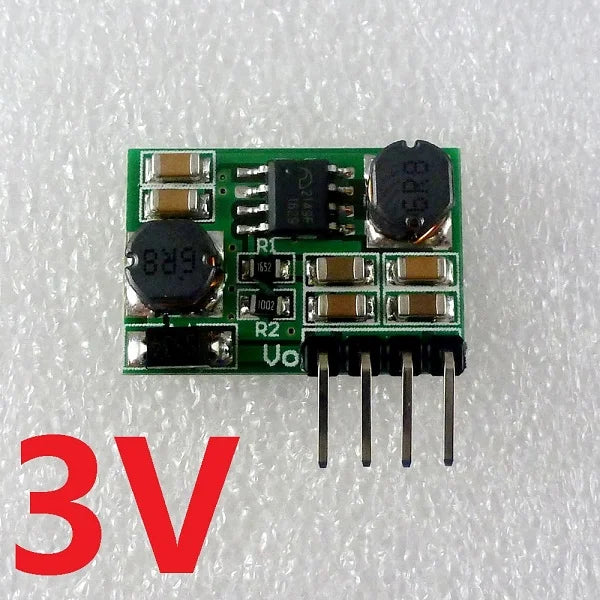

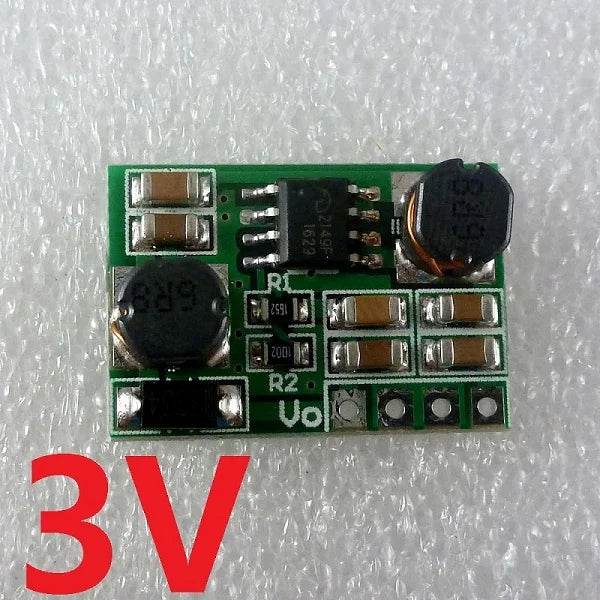

3V:
Description:
Input voltage DC 0.9 ~ 6V, output DC 3V(+-5%)
The maximum input voltage can not exceed 6.5V
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% .
Operating temperature range : -25~+85 Degrees Celsius
Storage temperature range : -45~+125 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.

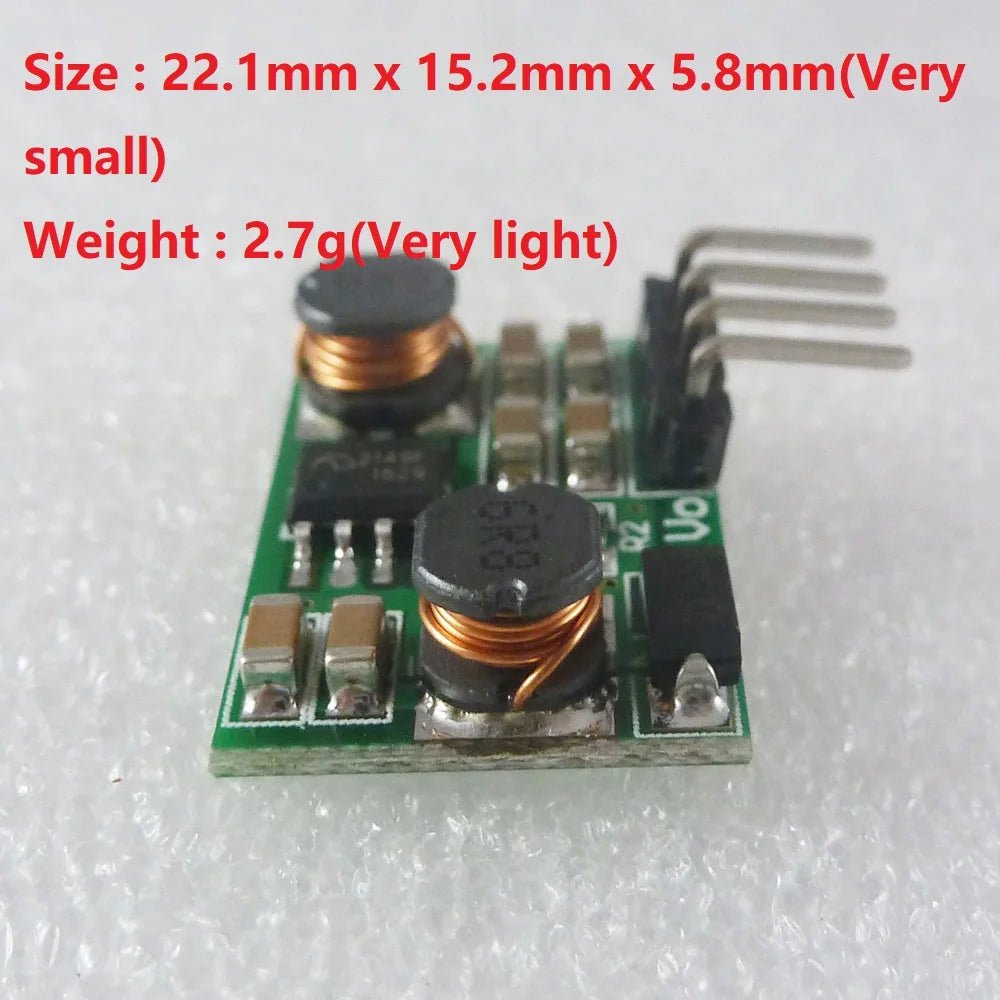

Size : 22.1mm x 15.2mm x 5.8mm(Very small)
Weight : 2.7g(Very light)

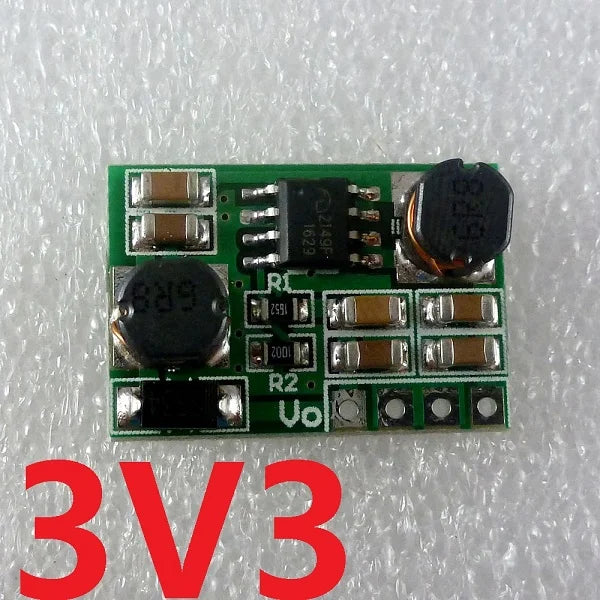

3V3:
Description:
Input voltage DC 0.9 ~ 6V, output DC 3.3V(+-5%)
The maximum input voltage can not exceed 6.5V
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 61%-85% .
Operating temperature range : -25~+85 Degrees Celsius
Storage temperature range : -45~+125 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.
Size : 22.1mm x 15.2mm x 5.8mm(Very small)
Weight : 2.7g(Very light)

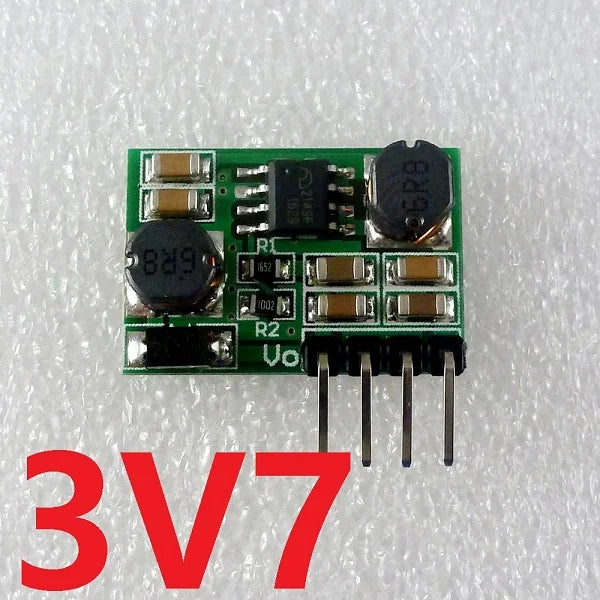

3V7:
Description:
Input voltage DC 0.9 ~ 6V, output DC 3.7V(+-5%)
The maximum input voltage can not exceed 6.5V
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 61%-85% .
Operating temperature range : -25~+85 Degrees Celsius
Storage temperature range : -45~+125 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.
Size : 22.1mm x 15.2mm x 5.8mm(Very small)
Weight : 2.7g(Very light)

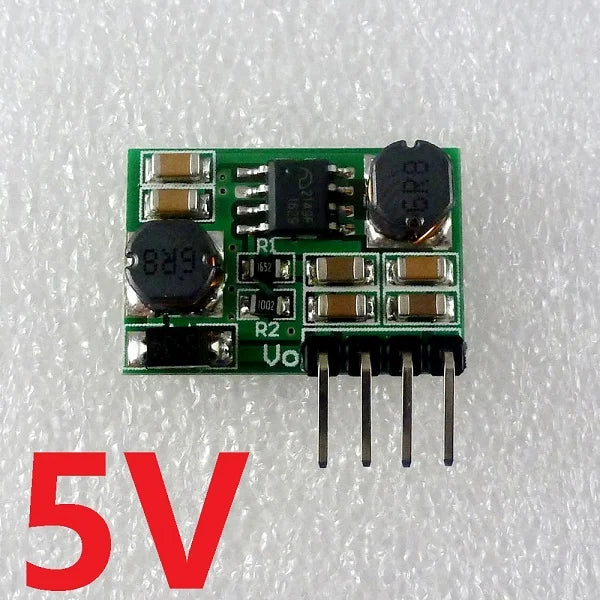

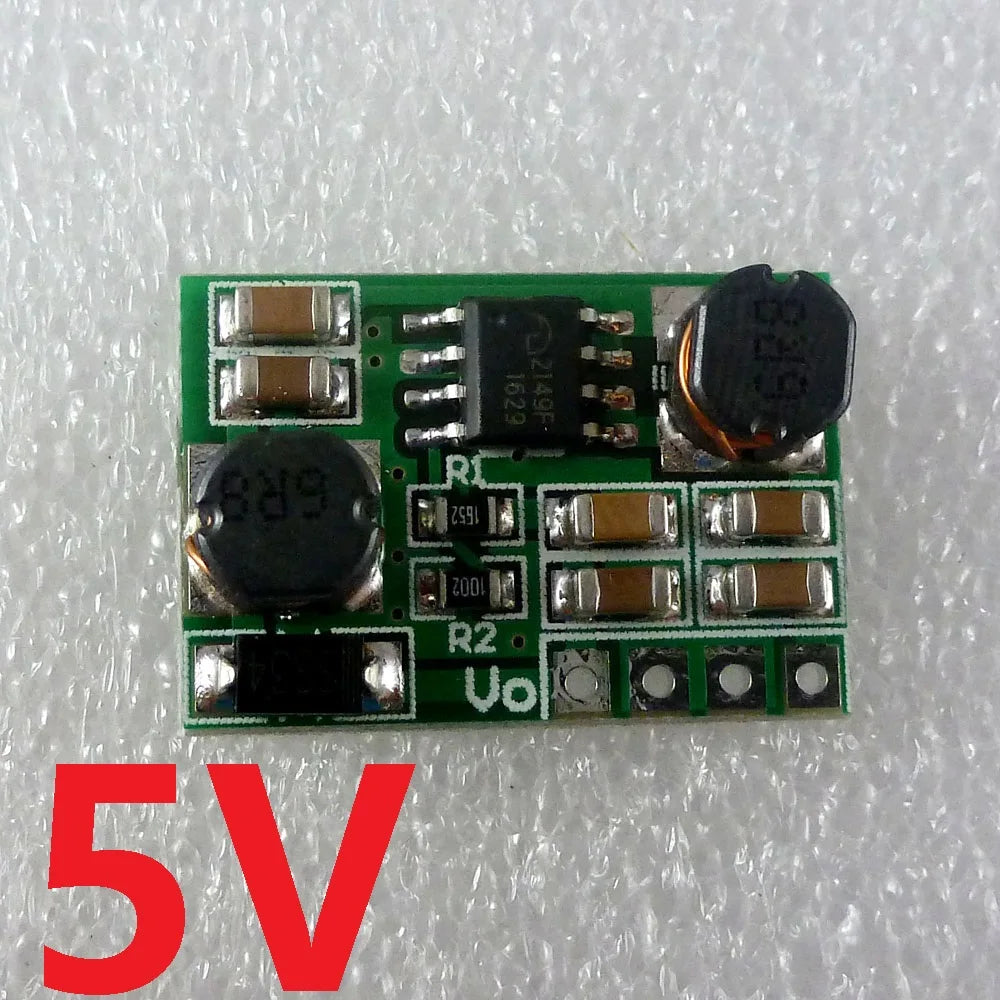

5V:
Description:

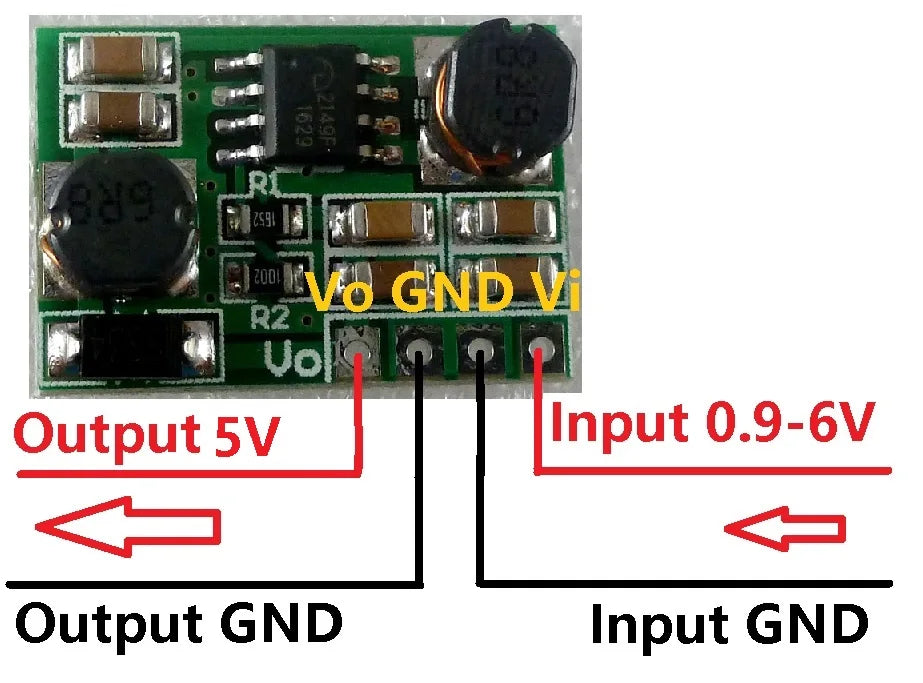

Input voltage DC 0.9 ~ 6V, output DC 5V(+-5%)
The maximum input voltage can not exceed 6.5V
Auto Buck-Boost Converter Module working frequency 1MHZ.efficiency 60%-85% .
Operating temperature range : -25~+85 Degrees Celsius
Storage temperature range : -45~+125 Degrees Celsius
2.54mm pin pitch,MCU Development Board Breadboard friendly.
Size : 22.1mm x 15.2mm x 5.8mm(Very small)
Weight : 2.7g(Very light)
Applications
Battery powered equipment
UNO MEGA2560 Breadboard Power Supply
PAD Phone power supply
electrical tools
Solar battery
Small power motors
Camera, Video camera
Toy car
power bank
LED Lighting
Wireless communication equipment
Audio equipment
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1. Input voltage can not be greater than the maximum input range
2. Output power can not be greater than the maximum load for a long time
3. Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
