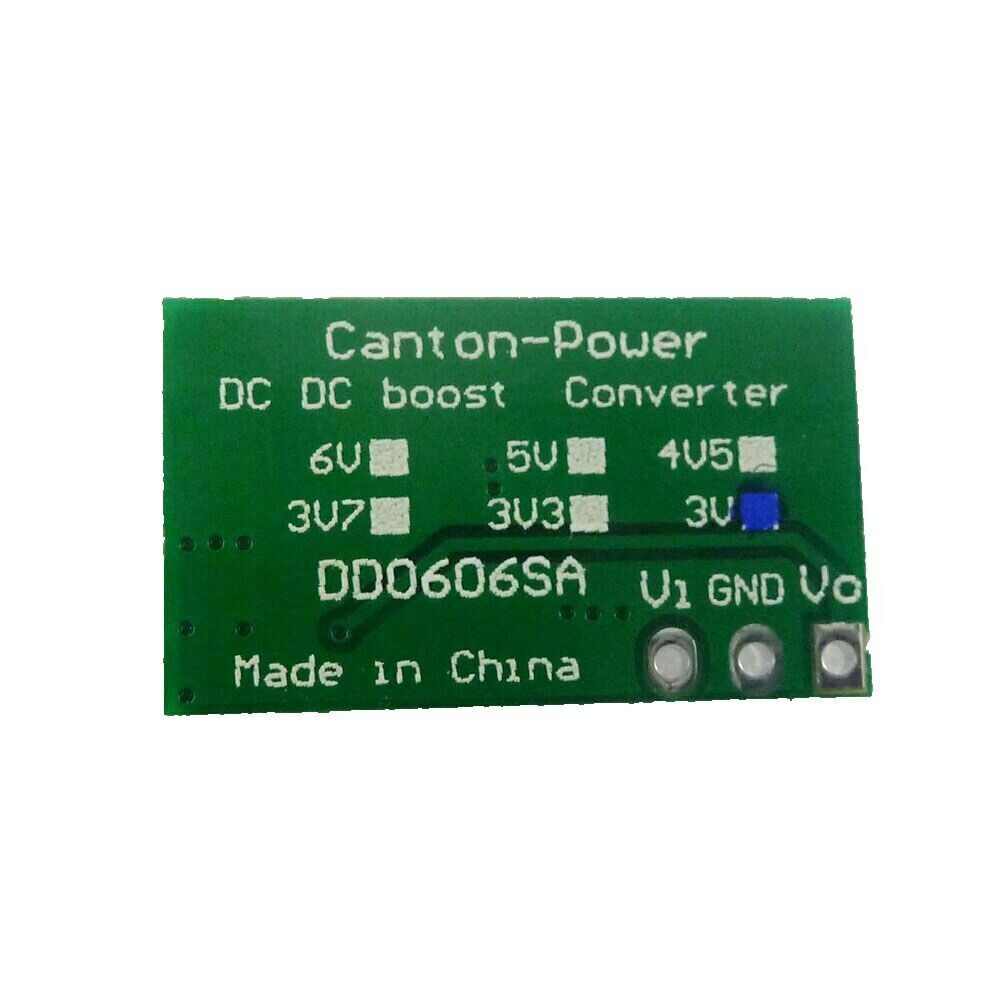

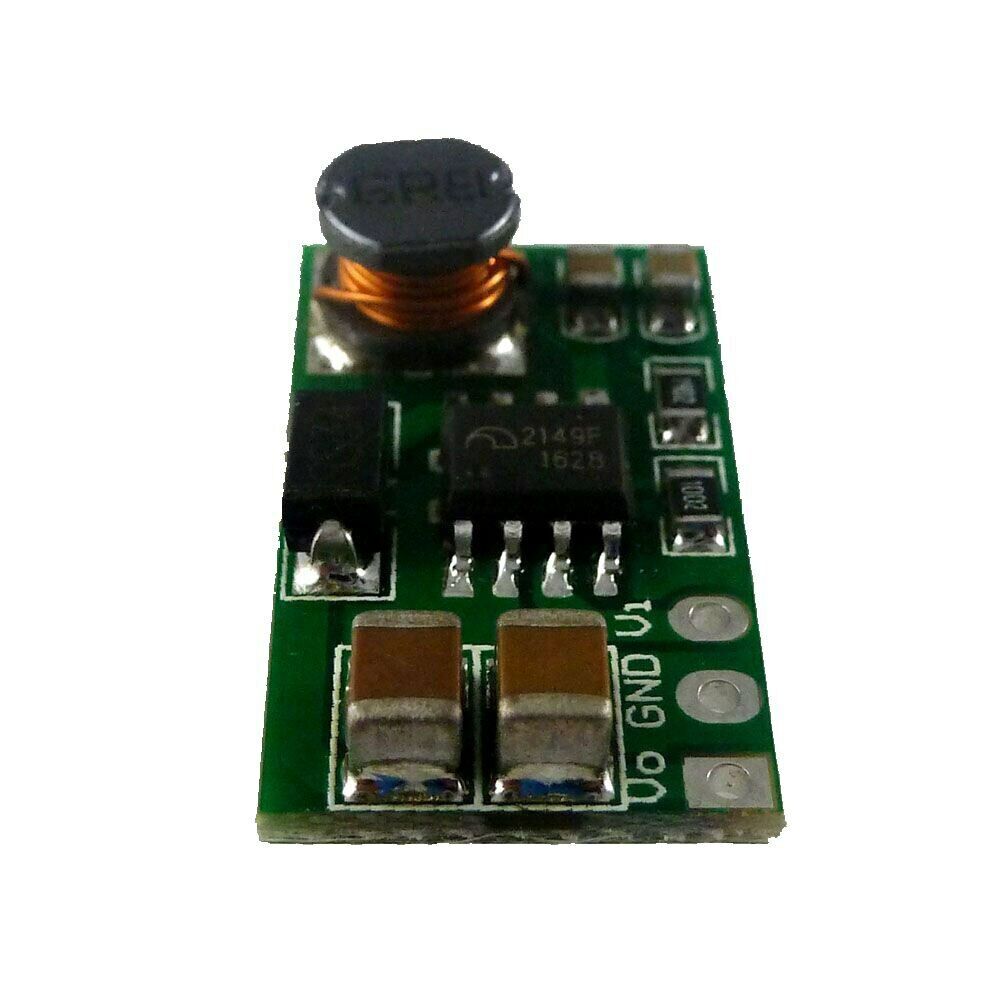

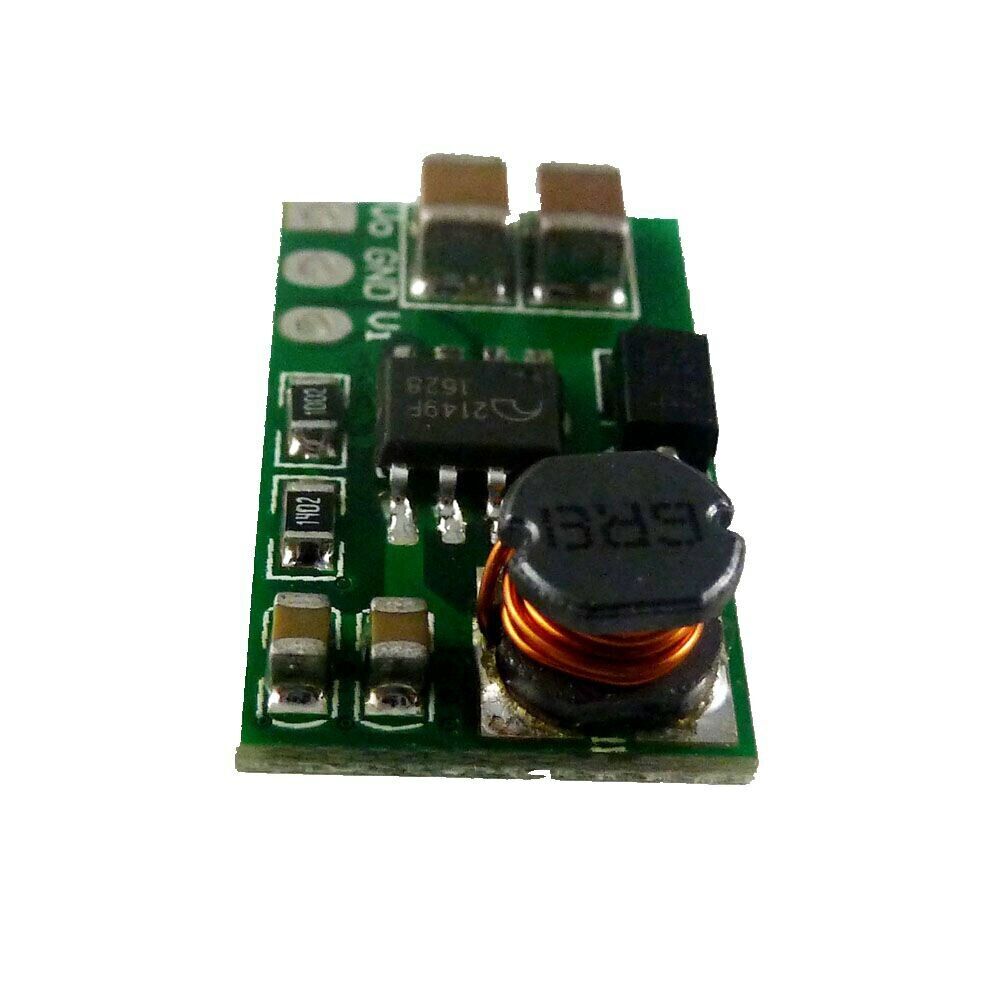

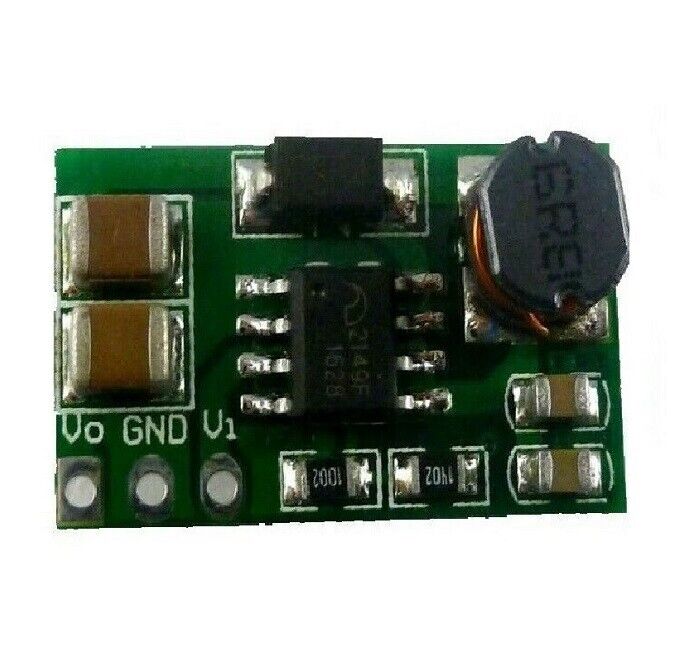

DD0606SA DC-DC 1-6V to 3V 3V3 3V7 4V5 5V 6V Boost Step up Converter Module

Product Name:   1 PCS  DC-DC 1-6V to 3V 3V3 3V7 4V5 5V 6V Boost Step up Converter Module Voltage Regulator Board for Electric Car kids toy

Packing list:



Description:

Input voltage DC 1 ~ 3V, output DC 3V(+-5%)



DC DC Boost Converter Module working frequency 1MHZ.efficiency 65%-88% .



Operating temperature range : -25~+85 Degrees Celsius



Storage temperature range : -45~+125 Degrees Celsius



2.54mm pin pitch,MCU Development Board Breadboard friendly.

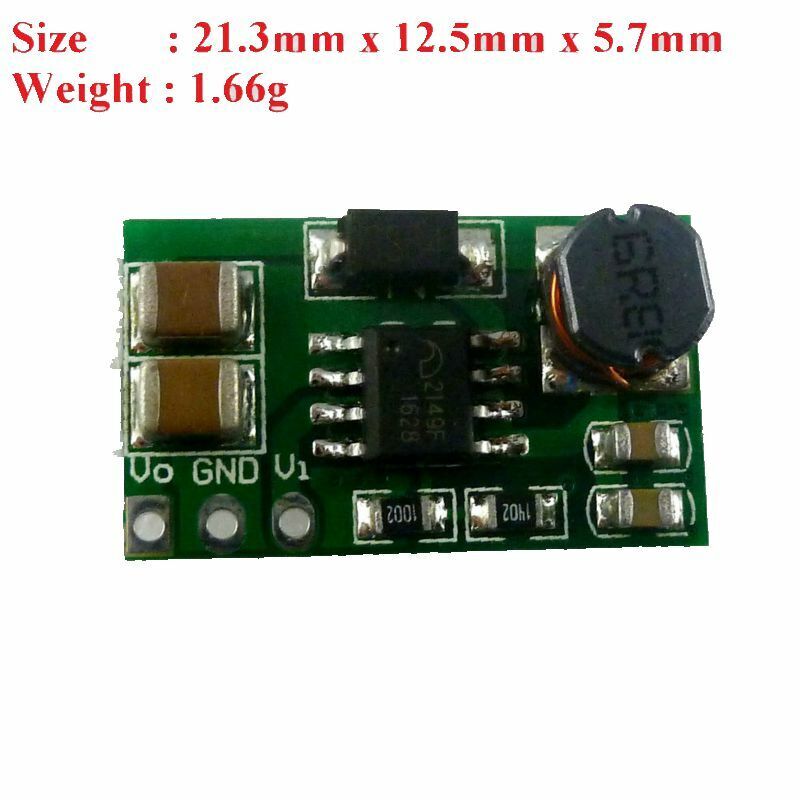

Excluding Pin Size : 21.3mm x 12.5mm x 5.7mm(Very small)



Weight : 1.66g(Very light)



 Applications



Battery powered equipment

Breadboard Power Supply



Wireles s Module, NRF24L01 Zigbee CC1101 CC2500 etc



3V Small power motors

Camera, Video camera

3V Toy car

PDA

LED Lighting

Wireless communication equipment

Audio equipment







3V3

Description:

Input voltage DC 1 ~ 3.3V, output DC 3.3V(+-5%)



DC DC Boost Converter Module working frequency 1MHZ.efficiency 66%-88% .



Operating temperature range : -25~+85 Degrees Celsius



Storage temperature range : -45~+125 Degrees Celsius



2.54mm pin pitch,MCU Development Board Breadboard friendly.



Excluding Pin Size : 21.3mm x 12.5mm x 5.7mm(Very small)



Weight : 1.85g(Very light)



 Applications

Battery powered equipment

Breadboard Power Supply



ARM STM32 FPGA CPLD Board



Wireles s Module,  esp8266 nrf24l01 rtl8710 GSM  etc



3.3V Small power motors

Camera, Video camera

3.3V Toy car

PDA

LED Lighting

Wireless communication equipment

Audio equipment





3V7

Description:

Input voltage DC 1 ~ 3.7V, output DC 3.7V(+-5%)



DC DC Boost Converter Module working frequency 1MHZ.efficiency 66%-88% .



Operating temperature range : -25~+85 Degrees Celsius



Storage temperature range : -45~+125 Degrees Celsius



2.54mm pin pitch,MCU Development Board Breadboard friendly.



Size : 21.3mm x 12.5mm x 5.7mm(Very small)



Weight : 1.66g(Very light)



Applications

Battery powered equipment

Breadboard Power Supply



ARM STM32 FPGA CPLD Board



Wireles s Module,  esp8266 nrf24l01 rtl8710 GSM  etc



3.3V Small power motors

Camera, Video camera

3.3V Toy car

PDA

LED Lighting

Wireless communication equipment

Audio equipment

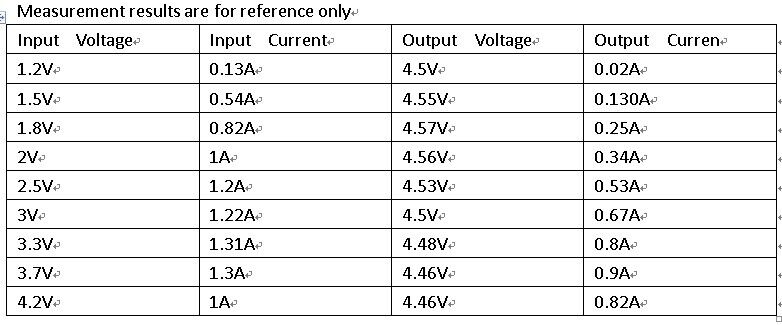

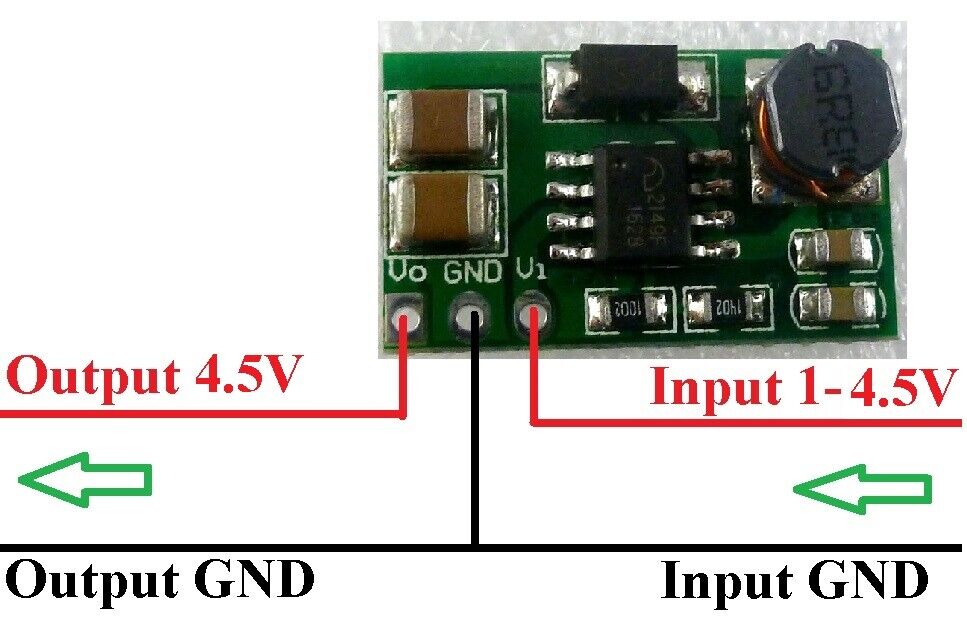

4V5

Description:

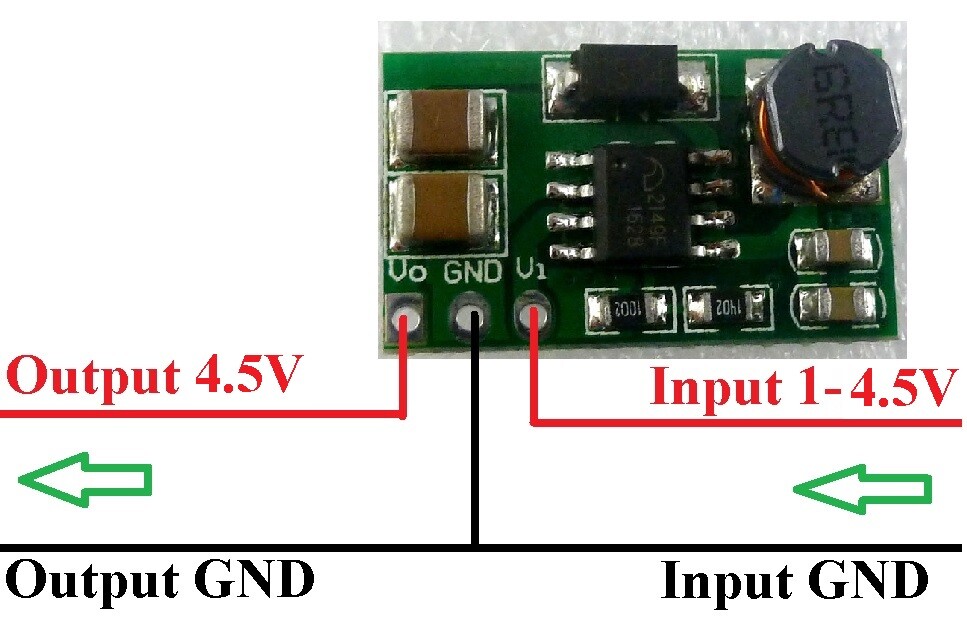

Input voltage DC 1 ~ 4.5V, output DC 4.5V(+-5%)



DC DC Boost Converter Module working frequency 1MHZ.efficiency 66%-88% .



Operating temperature range : -25~+85 Degrees Celsius



Storage temperature range : -45~+125 Degrees Celsius



2.54mm pin pitch,MCU Development Board Breadboard friendly.



Excluding Pin Size : 21.3mm x 12.5mm x 5.7mm(Very small)



Weight : 1.66g(Very light)



Applications

Battery powered equipment

Breadboard Power Supply



ARM STM32 FPGA CPLD Board



Wireles s Module,  esp8266 nrf24l01 rtl8710 GSM  etc



4.5V Small power motors

Camera, Video camera

4.5V Toy car



18650 & aa battery

PDA

LED Lighting

Wireless communication equipment

Audio equipment









5V

Description:

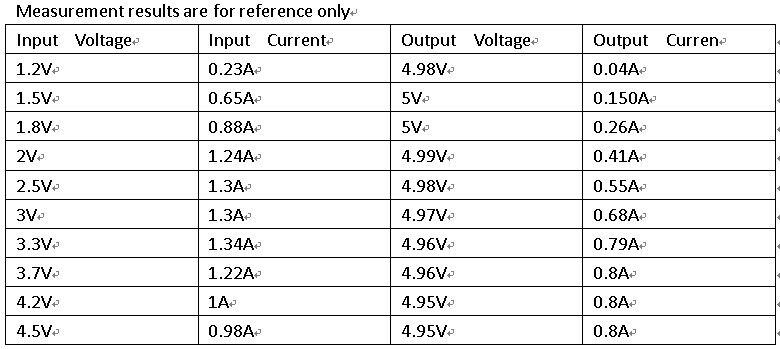

Input voltage DC 1 ~ 5V, output DC 5V(+-5%)



DC DC Boost Converter Module working frequency 1MHZ.efficiency 66%-88% .



Operating temperature range : -25~+85 Degrees Celsius



Storage temperature range : -45~+125 Degrees Celsius



2.54mm pin pitch,MCU Development Board Breadboard friendly.



Excluding Pin Size : 21.3mm x 12.5mm x 5.7mm(Very small)



Weight : 1.65g(Very light)

​





 Applications

Battery powered equipment

Breadboard Power Supply



ARM STM32 FPGA CPLD Board



Small power motors

Camera, Video camera

Toy car



power bank

Phone PDA

LED Lighting

Wireless communication equipment

Audio equipment

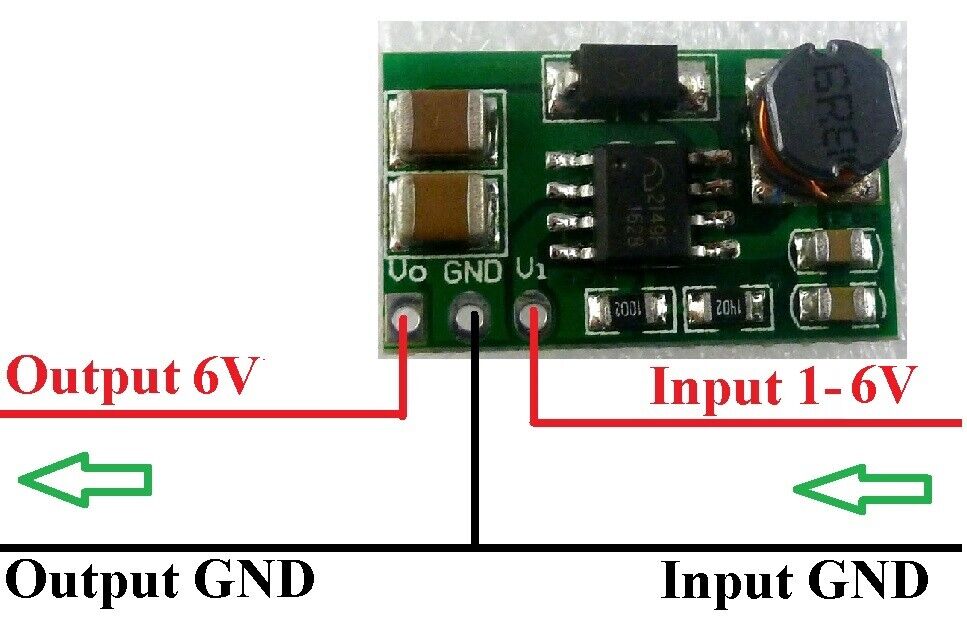

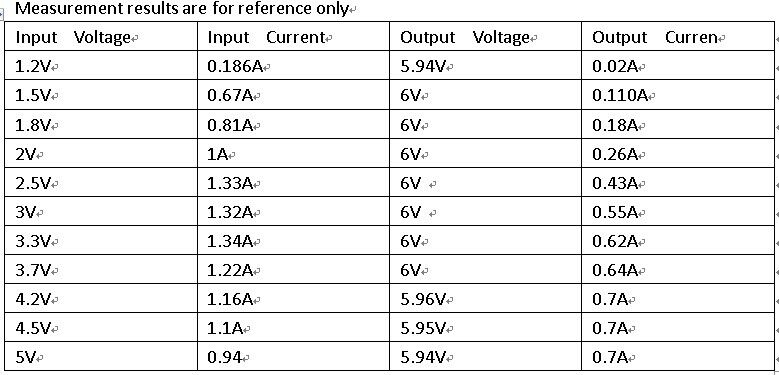

6V

Description:

Input voltage DC 1 ~ 6V, output DC 6V(+-5%)



DC DC Boost Converter Module working frequency 1MHZ.efficiency 66%-88% .



Operating temperature range : -25~+85 Degrees Celsius



Storage temperature range : -45~+125 Degrees Celsius



2.54mm pin pitch,MCU Development Board Breadboard friendly.



Excluding Pin Size : 21.3mm x 12.5mm x 5.7mm(Very small)



Weight : 1.85g(Very light)
