DD0612SA 3.5A DC-DC Step-up Boost Voltage Converter 3V 3.3V 3.7V to 5V 6V 9V 12V
DD0612SA 3.5A DC-DC Step-up Boost Voltage Converter 3V 3.3V 3.7V to 5V 6V 9V 12V
SKU:DD0612SA_12V
1000 in stock
Regular price
$1.99
Regular price
$5.68
Sale price
$1.99
Unit price
per
Couldn't load pickup availability
Product Name:

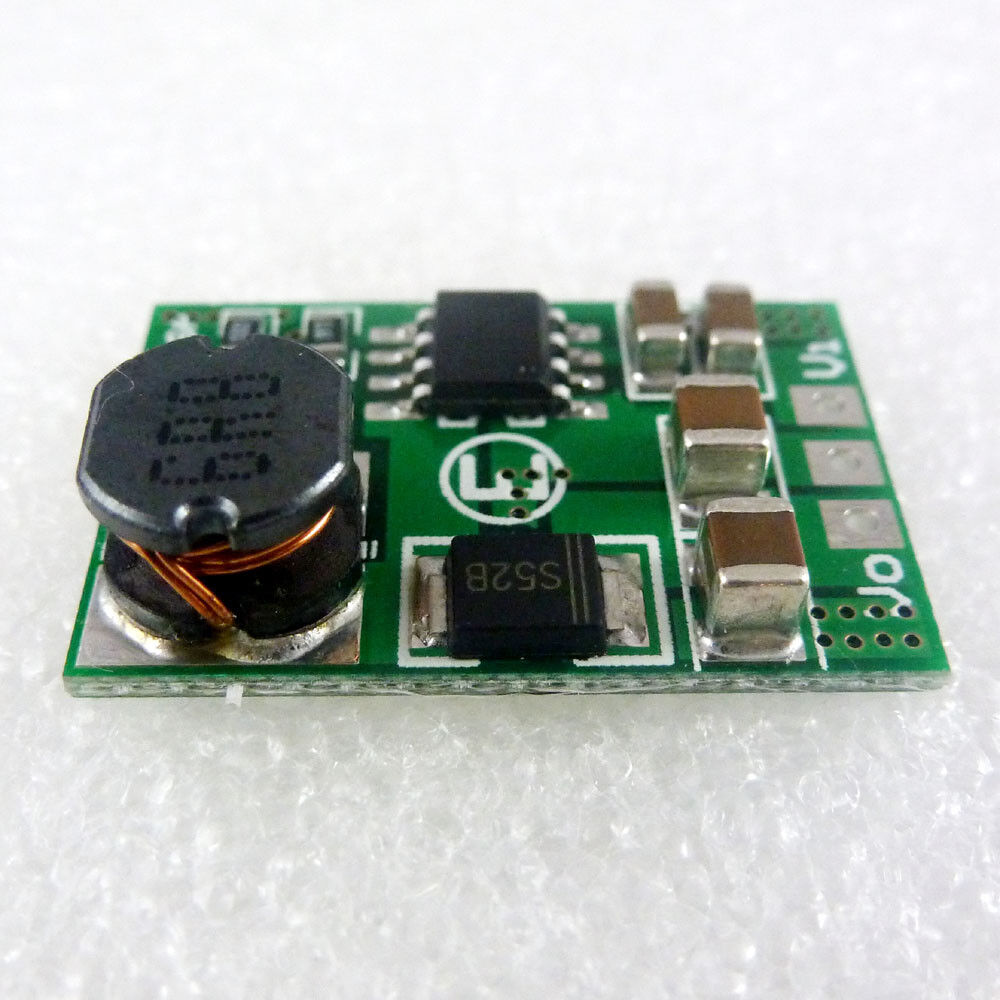

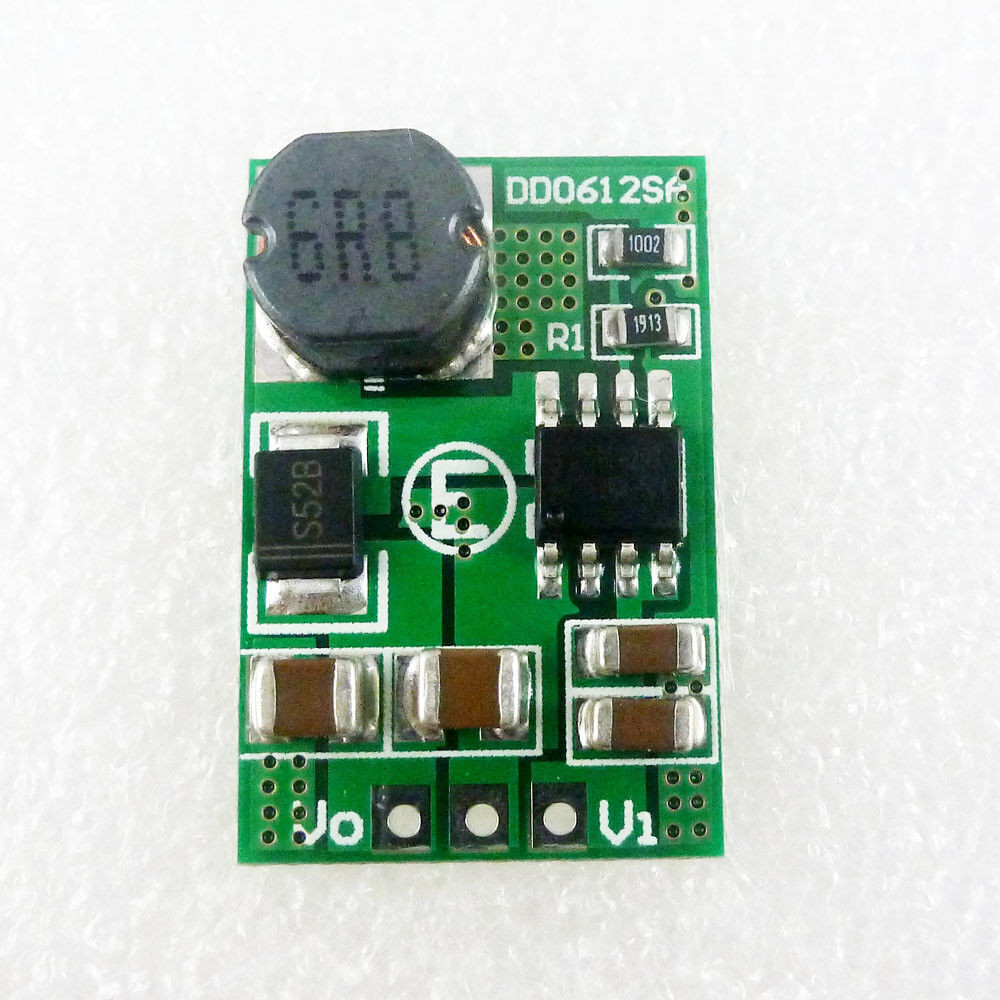

3.5A DC-DC Step-up Boost Voltage Converter Module 3V 3.3V 3.7V to 5V 6V 9V 12V
Packing list:
1 PCS 3.5A DD0612SA 2.6V-5V TO 5V/6V/9V/12V DC DC Step-up Converter Module
Description:

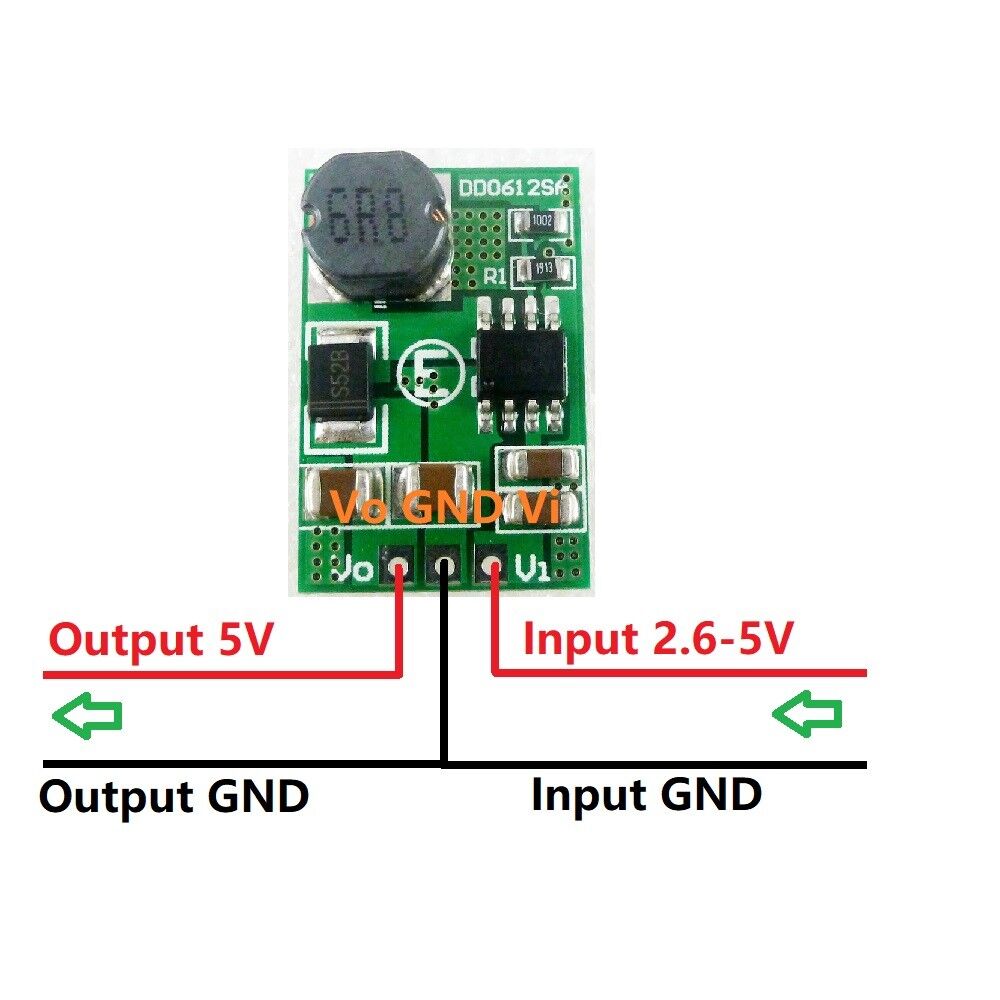

5V:
Input voltage DC 2.6 ~ 5V,output DC 5V±3%
Maximum output : 5V/2.6A(See the table below for details)
6V:
Input voltage DC 2.6 ~ 6V,output DC 6V±3%
Maximum output : 6V/2.5A(See the table below for details)

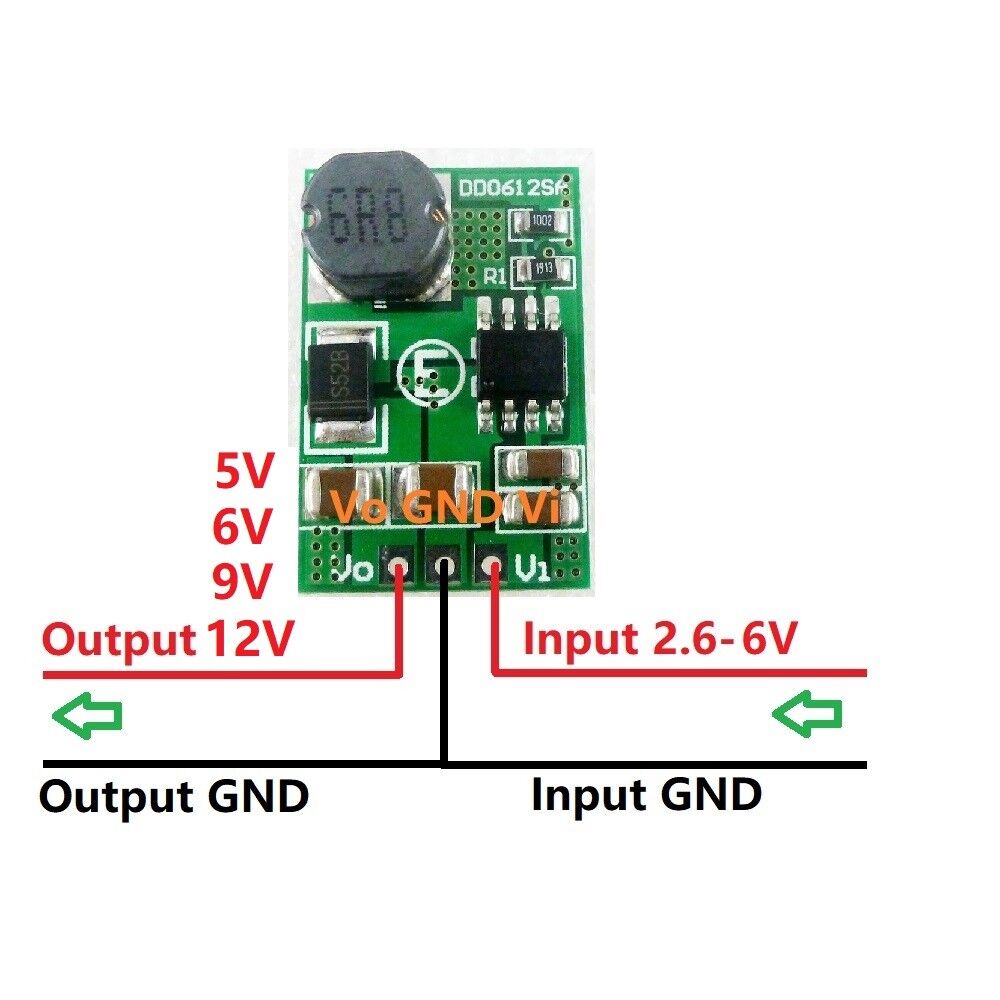

9V:
Input voltage DC 2.6 ~ 6V,output DC 9V±3%
Maximum output : 9V/1.6A(See the table below for details)
12V:
Input voltage DC 2.6 ~ 6V,output DC 12V±3%
Maximum output : 12V/1.2A(See the table below for details)
DC DC Boost Converter Module working frequency 1MHZ.
Up to 96% Efficiency (usually is 74%-96%)
Quiescent current : 0.19mA
Operating temperature range : -40~+85 Degrees Celsiu
Storage temperature range : -65~+150 Degrees Celsius
2.54mm pin pitch,for MCU Development Board Breadboard friendly.
Size : 23.9 x 16 x 6.2mm
Weight : 2.5g
Protection :
Over current protection(OCP)
Over voltage protection(OVP)
Short circuit protection(SCP)
Over temperature protection(OTP)
Applications
Battery powered equipment
MCU Breadboard Power Supply
Small power motors
Camera, Video camera
Toy car boat
Model aircraft
power bank
LED Lighting
Mobile phone charger
Attention :
This is a DC-DC voltage converter module,Must be noted when using:
1 Input voltage can not be greater than the maximum input range
2 Output power can not be greater than the maximum load for a long time
3 Input power must be greater than the output power, because the power consumption of the module itself
Q & A:
Q : Why output voltage is less than the nominal voltage
A : Input power supply power is too low.Test the input voltage with a multimeter,a t this time of the input voltage is very low
